GEPRC GEP-F722-35A AIO SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembly Category
Size: 1 inch
Remote Control Peripherals/Devices: Accessories
Recommend Age: 12+y
RC Parts & Accs: Transmitters
Quantity: 1 pcs
Origin: Mainland China
Model Number: GEP-F722-35A AIO
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters
Brand Name: GEPRC
Summary:
I am gald to introduce a new member of GEPRC FC AIO,GEP-F7-35A,it is released now.
GEP-F7-35A adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.
We designed a 6-pin connector for DJI AIR UNIT MODULE,just plug and play.
The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.Support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 26.5mm * 26.5mm mounting hole, suitable for most of the frames on the market.
We pursue lighter weight, smaller volume, more functions and better performance of FC.
Specification:
-
Model Name:GEP-F722-35A AIO
-
MCU:STM32F722
-
IMU:MPU6000 gyro/accelerometer(SPI)
-
Firmware target:GEPRC_F722_AIO
-
OSD:Betaflight OSD w/ AT7456Ev
-
UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
-
Beeper:YES
-
LED:YES
-
USB:Micro USB
-
BEC output:5V@1A
-
Intergrated LC Filter
-
ESC MCU:8BB21F16G
-
Continuous current:35A
-
MAX current:40A (10s)
-
Input:2~6S
-
Supports:Dshot600,Oneshot,Multishot
-
BlackBox: 16Mb
-
Traget:G_H_30
-
Size:32x32mm Board
-
Installing Hole:26.5×26.5mm,M2
-

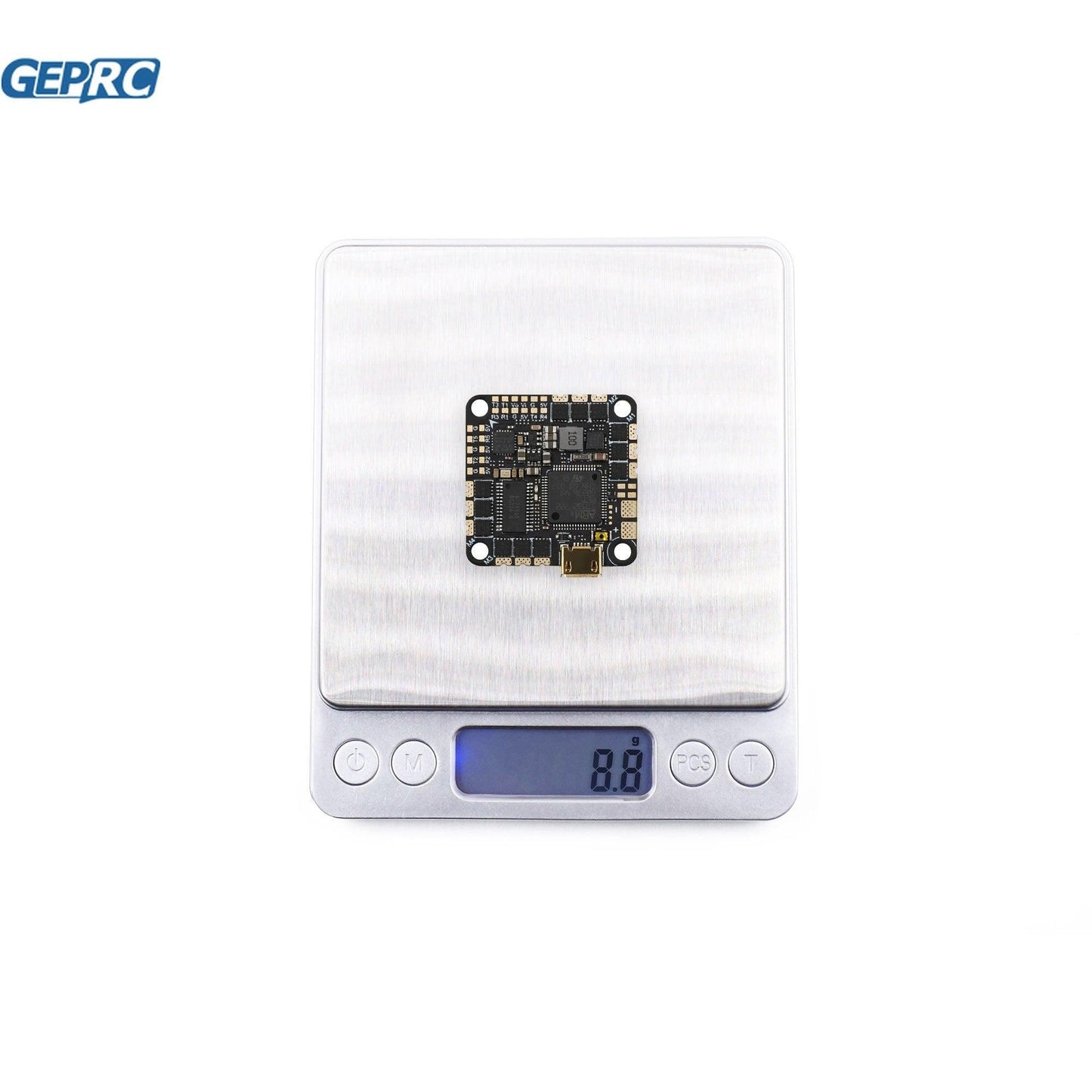

Weight:8.8g
Features:
-
MCU:STM32F722,with strong performance and higher computing speed.
-
It has 5 full UART ports, which connect more external devices
-
3Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
-
The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.
-
Support OSD parameter adjustment, buzzer, led and other functions.
-
8.8g ultra light weight
-
26.5mm * 26.5mm mounting hole, suitable for most frames
Include:
-
1 x GEP-F7-35A AIO
-
1 x XT30-7CM-18AWG Power cables
-
1 x 35V220UF capacitance
-
1 x SH1.0-6Pin to GH1.25-8Pin cables
-
8 x M2*6.5mm Damping rings
