GEPRC GEP-Racer 208mm Wheelbase 5 Inch FPV Drone Frame

Summary

When the conventional FPV drone cannot satisfy the pursuit of speed in the FPV racing arena, you need a racing frame specially designed for the competition. The GEPRC Racer was thus born.

The Racer frame combines the 7075-T6 aviation aluminum alloy splint and the high-grade T700 carbon plate CNC processing, and the overall structure is solid. 20*20mm/25.5*25.5mm/30.5*30.5mm flight controller can be installed, and the motor mounting hole is 16*16mm.

Feature

1. High-strength 7075 aviation aluminum alloy splint
2. T700 carbon fiber plate material
3. Design shark fin support,easy to flip over after crash.
4. Quick-release design of the arm is convenient for maintenance.
5. 25.5mm*25.5mm M3 screw FC hole,matching the newest GEPRC 25.5MM stack.
6. Compatible with HDZero VTX

Specification:

• Model: RACER FPV Frame
• Frame: GEP-RACER Frame
• Dimensions: 175mm×173mm
• Wheelbase: 208mm
• Top plate: 2.0mm
• Aluminum plate: 2.0mm
• Bottom plate: 2.0mm
• Arm thickness: 5.0mm
• Aluminum column size: M3*6*24mm
• FC mounting hole: 30.5mm*30.5mm/25.5mm*25.5mm/20mm*20mm
• VTX mounting hole: 20mm*20mm
• Motor mounting hole: 16mm*16mm
• Camera installation space: 14mm
• Propeller: 5 inches

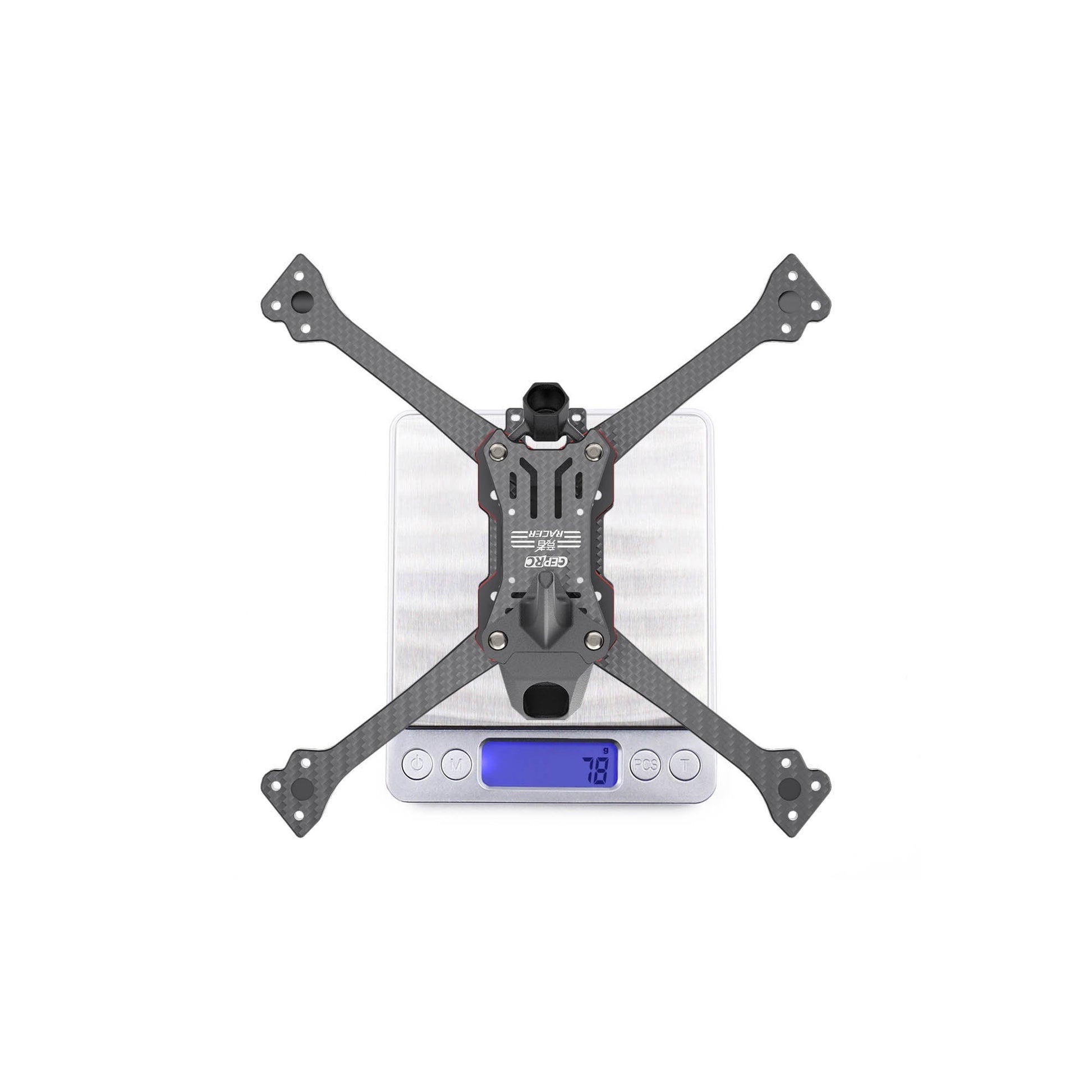

• Weight: 78g ± 2g

Includes

1 x Top plate
1 x Bottom plate
1 x Aluminum plate
1 x Camera mount
1 x VTX antenna mount
1 x Shark fin print
4 x M3*6*24mm aluminum column
2 x 20*250mm battery cable ties
2 x Battery anti-skid pads
1 x Screw pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm

Details

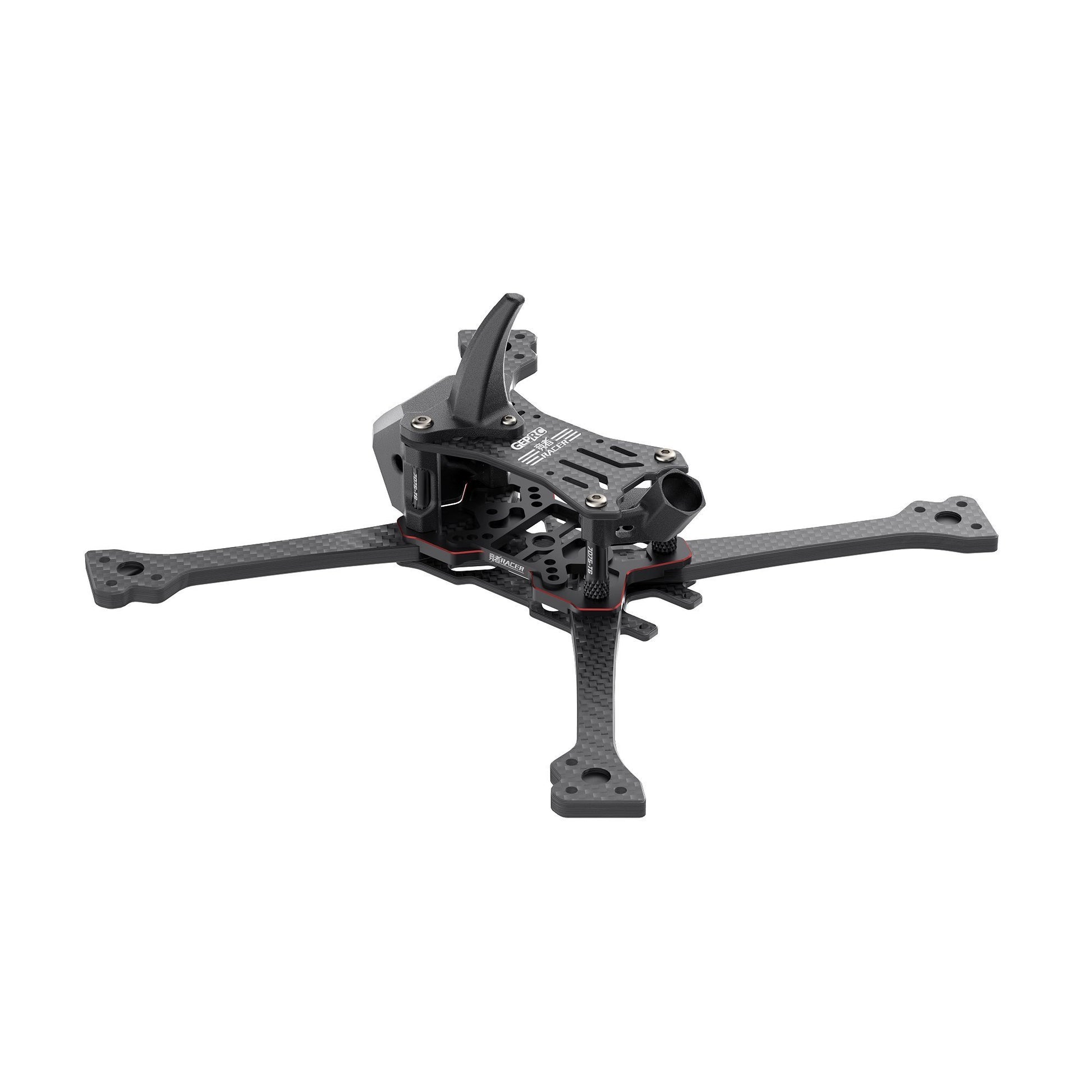

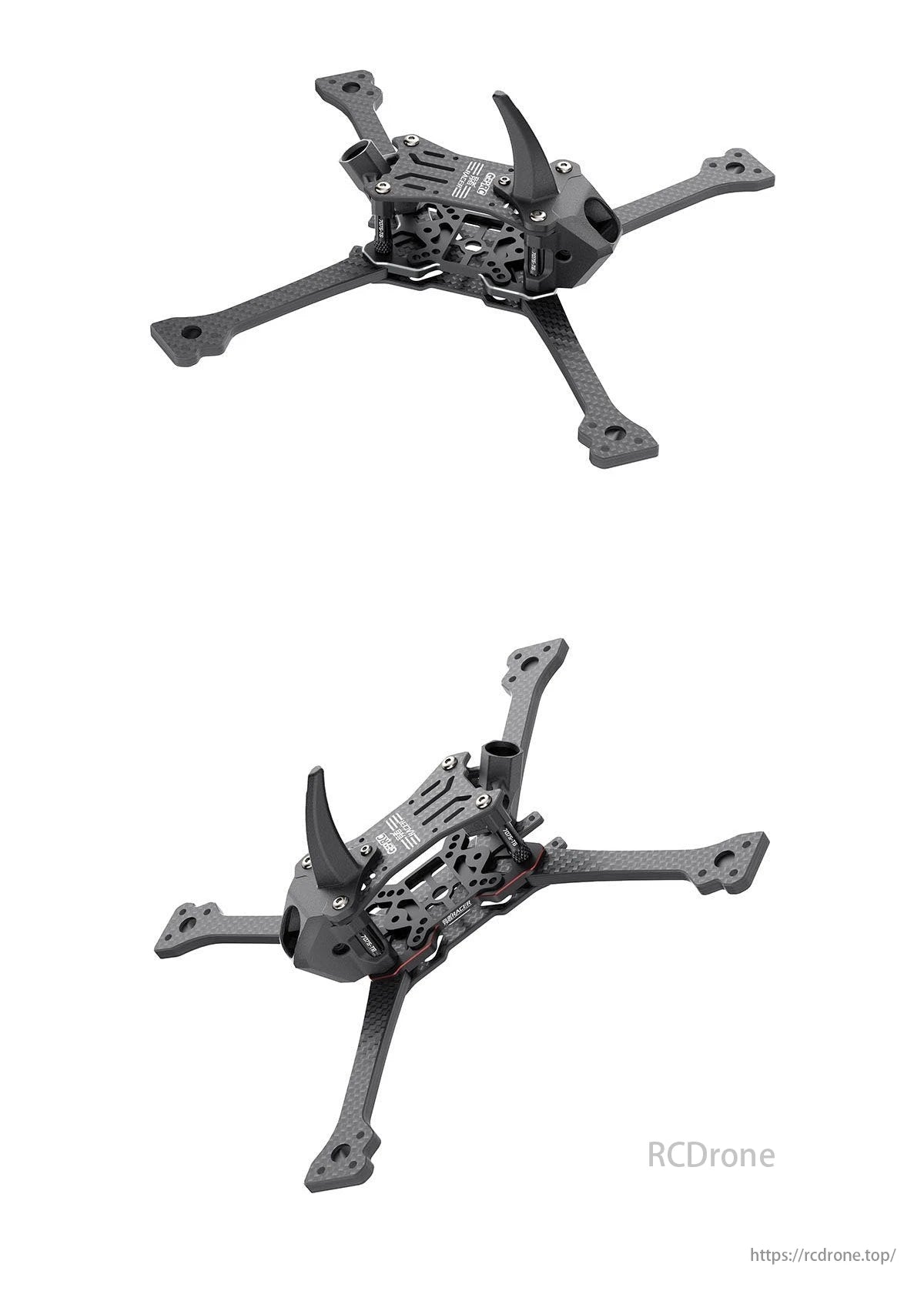

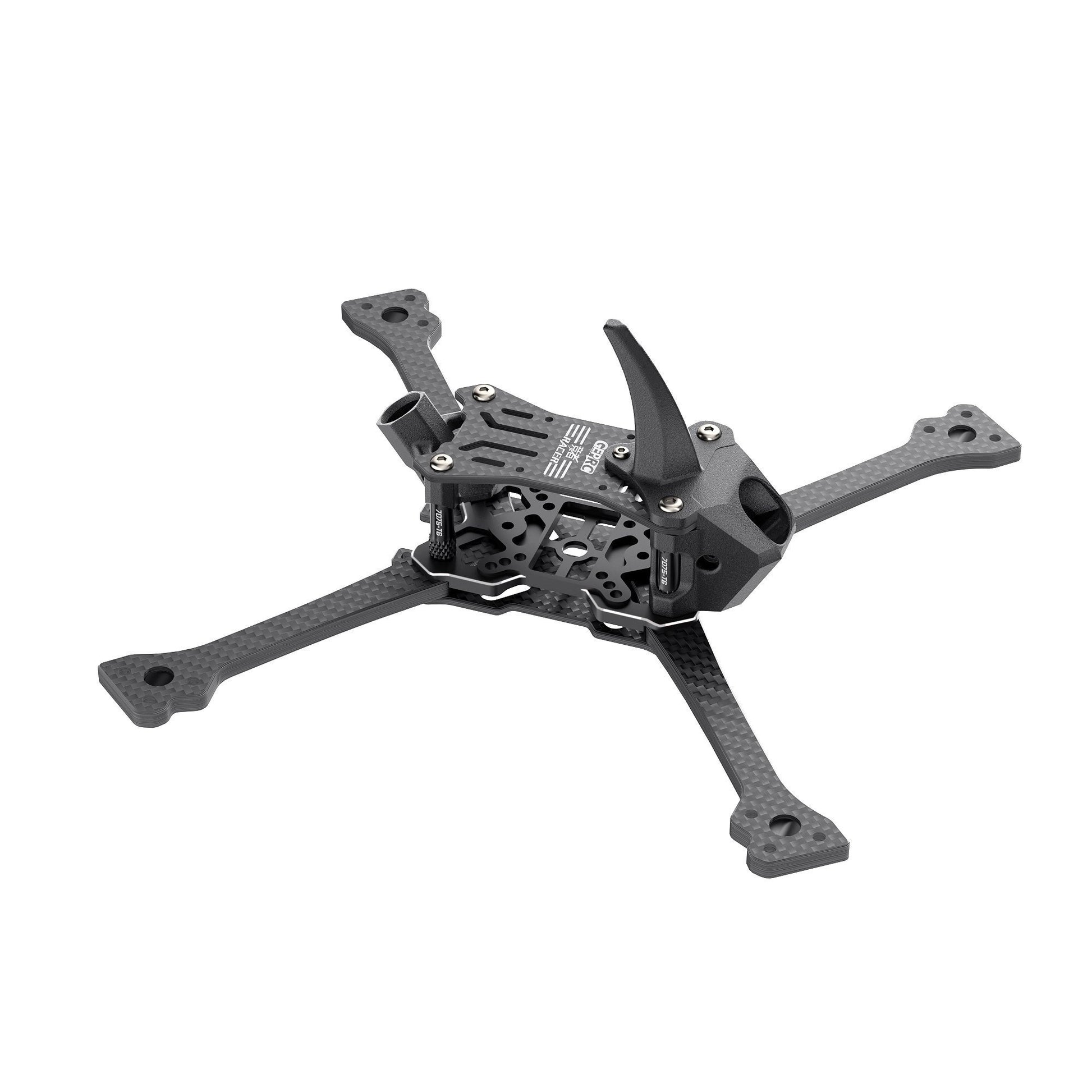

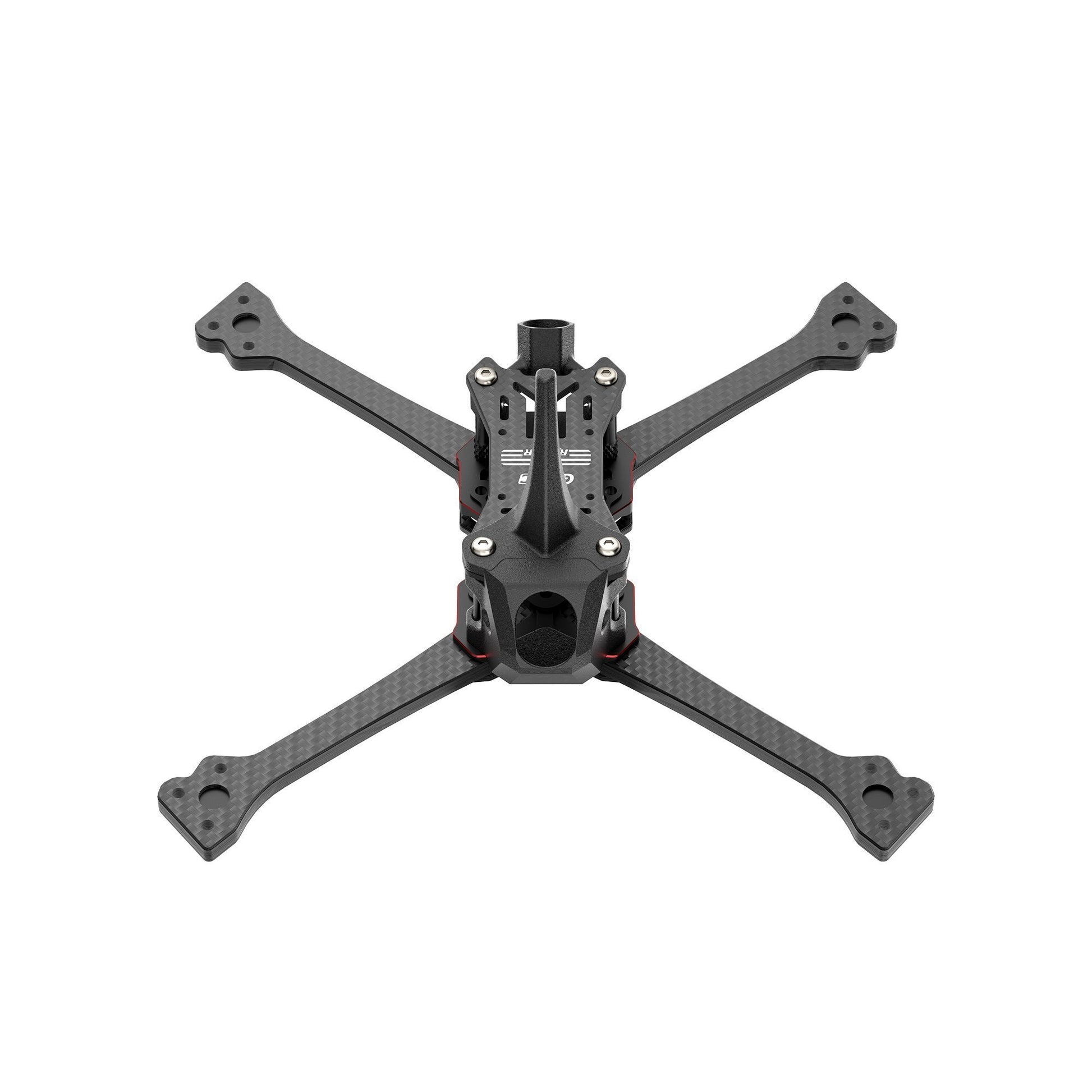

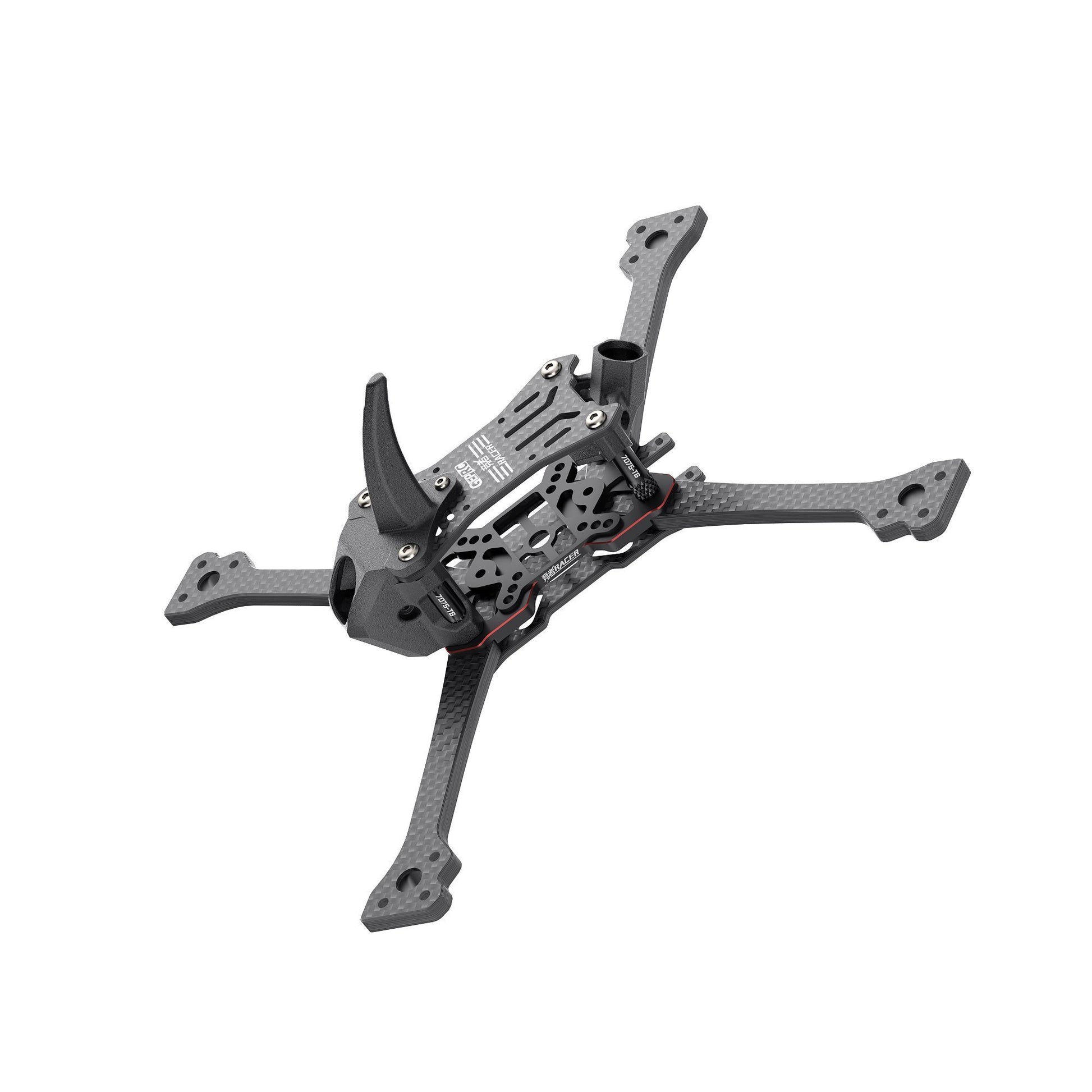

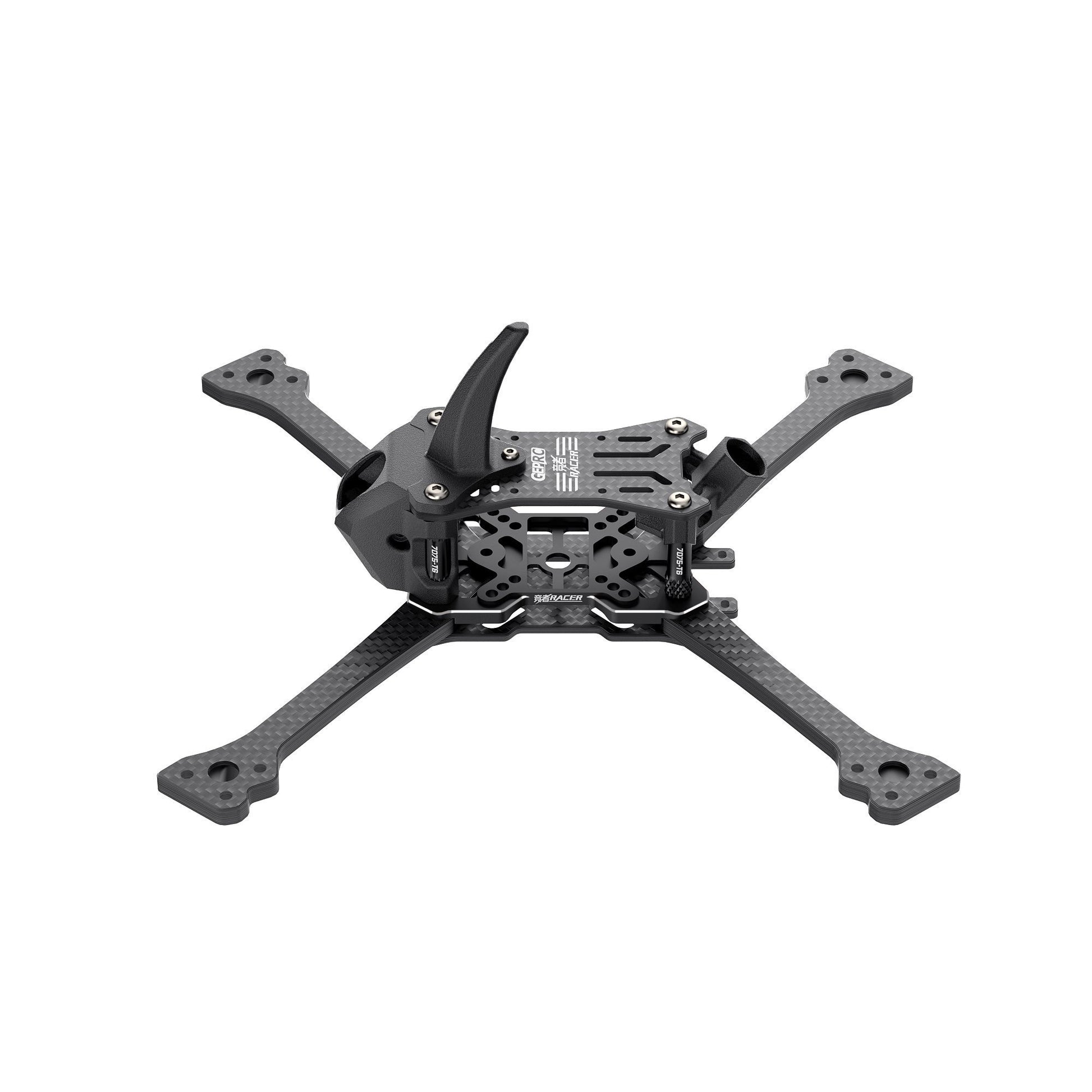

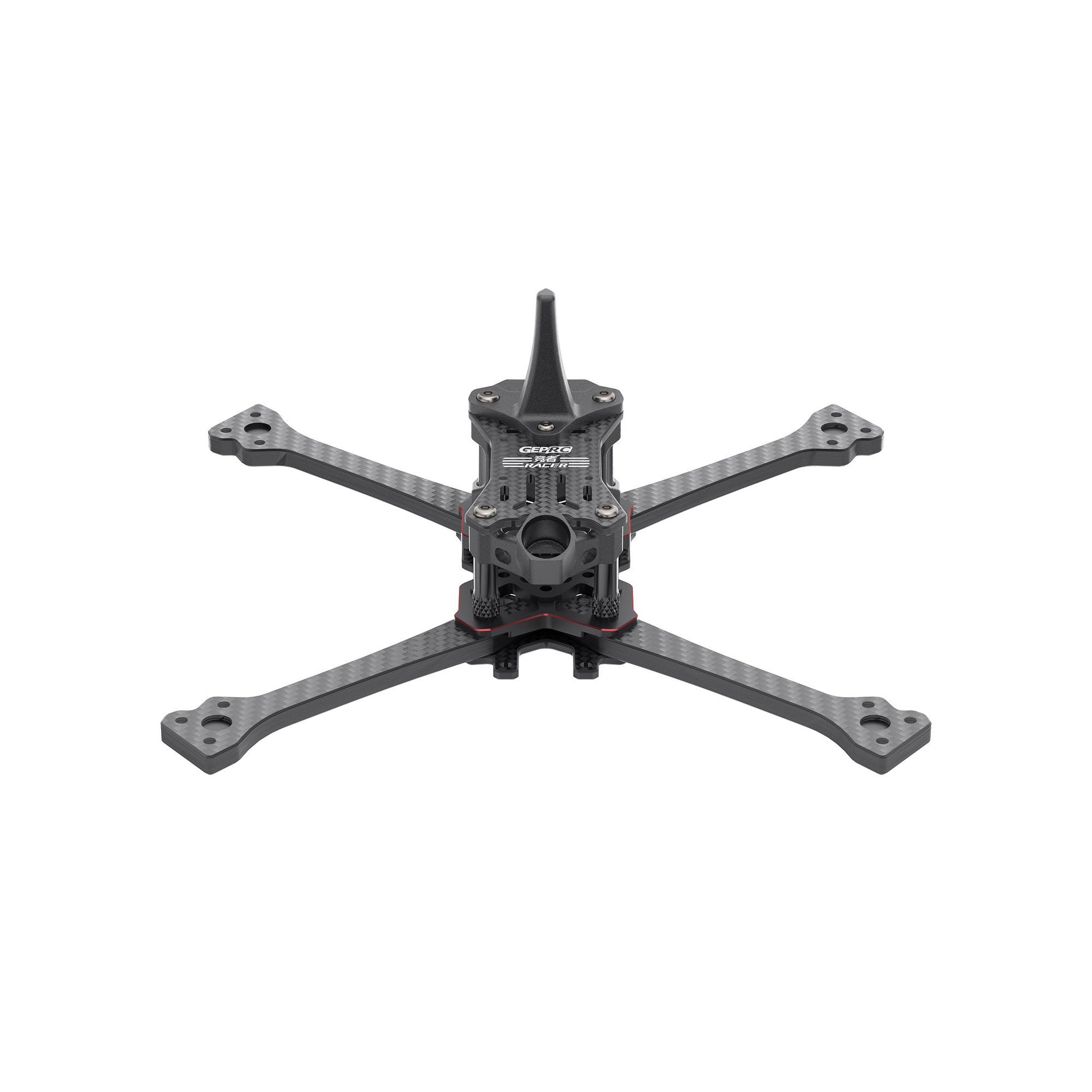

GEPRC RACER FPV drone frame with quick assemble arms, 7075 aluminum parts, X-shaped arm structure, and receiver compartment.

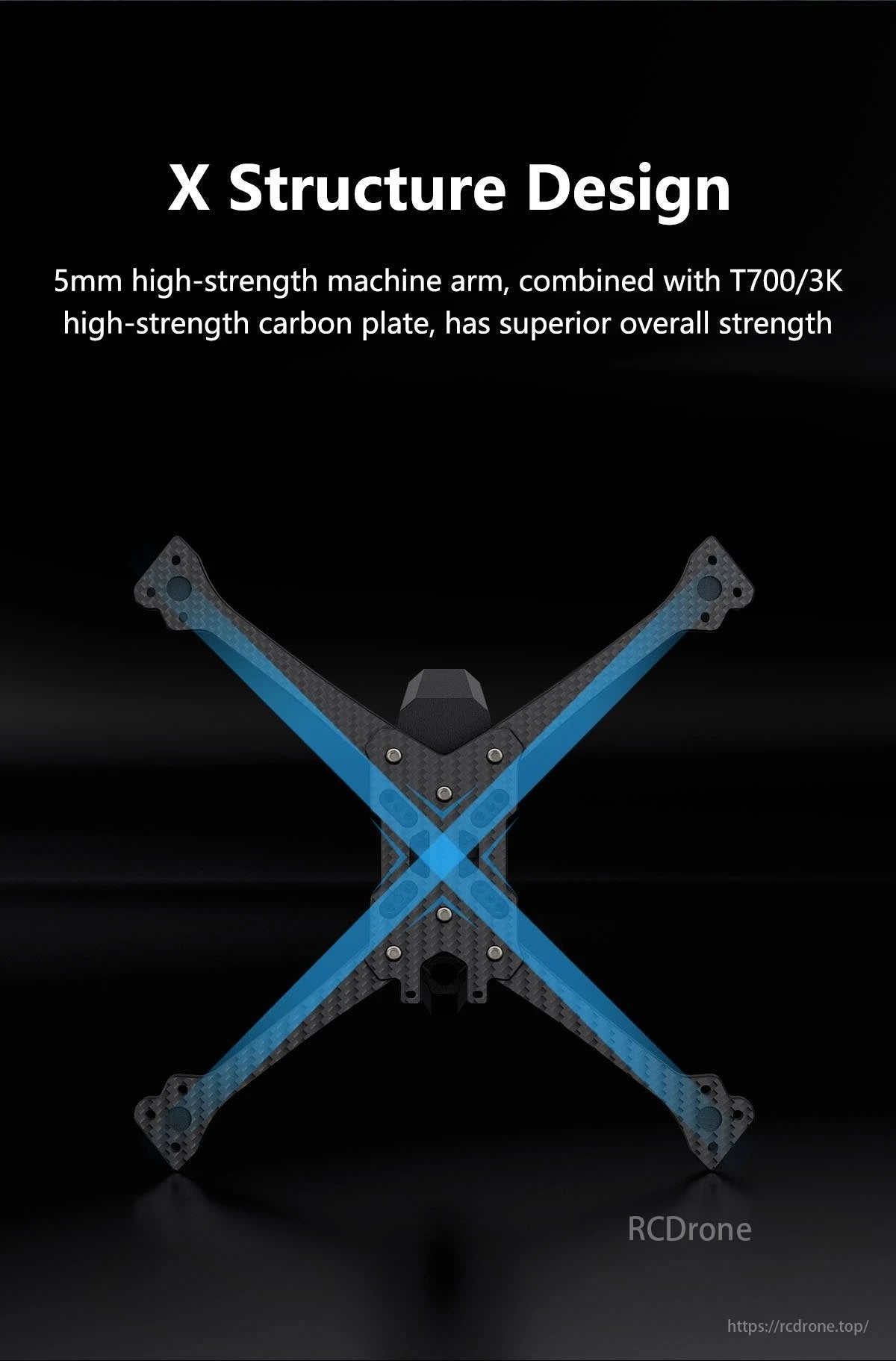

X Structure Design with 5mm high-strength machine arm and T700/3K carbon plate for superior strength.

High-precision 7075-T6 aluminum alloy fuselage strengthens stability, with two optional CNC aluminum parts colors.

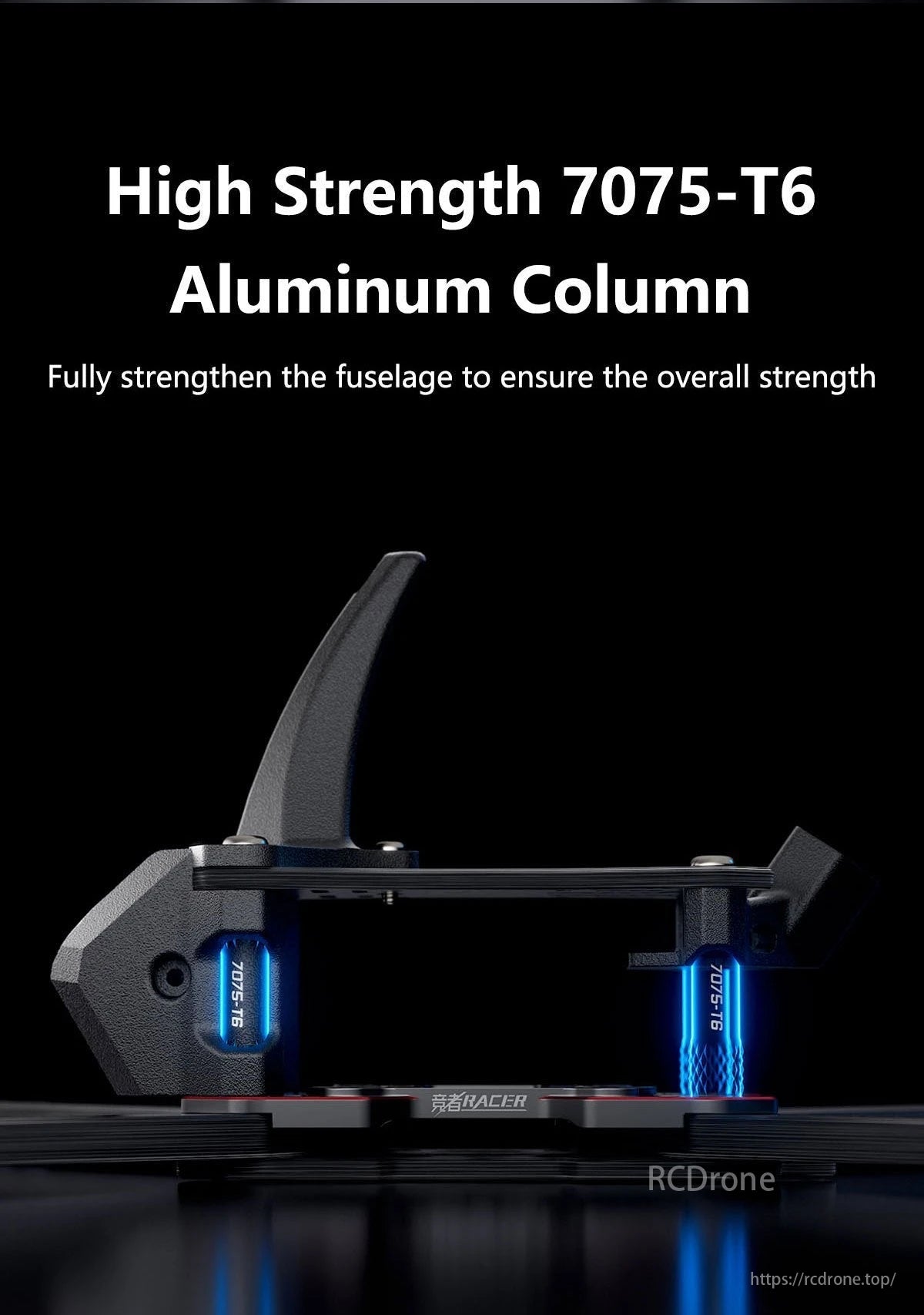

High-strength 7075-T6 aluminum column ensures structural integrity. Drone frame designed for durability and performance.

Quick-swap arm assembly for easy repair on flying site or race day.

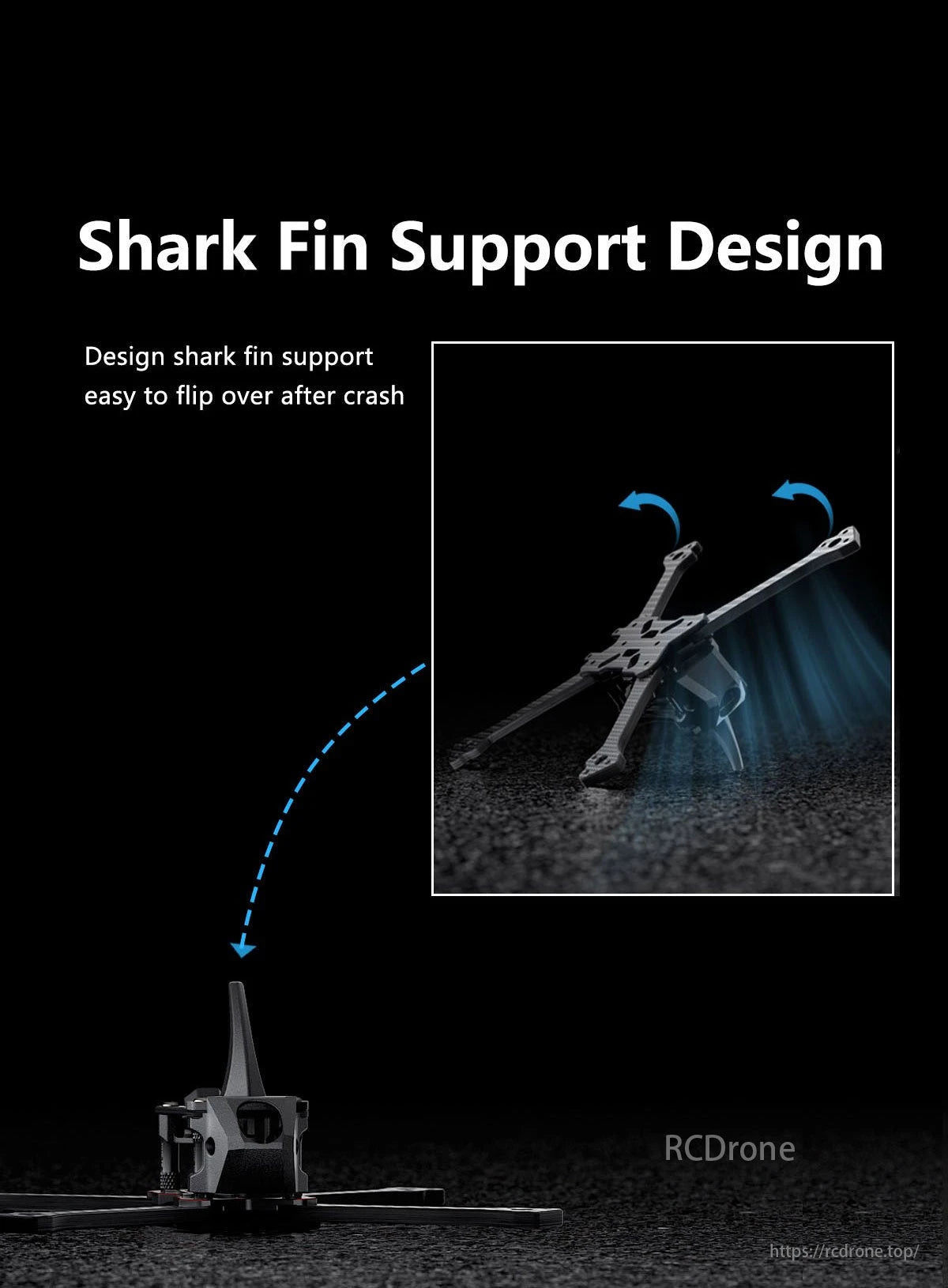

Shark Fin Support Design for easy flipping after crashes on GEPRC GEP-Racer 5-inch FPV Drone Frame.

GEPRC GEP-Racer 208mm wheelbase 5-inch FPV drone frame with hidden receiver compartment, supporting a 27mm x 14mm x 4.5mm receiver, includes structural details and branding.

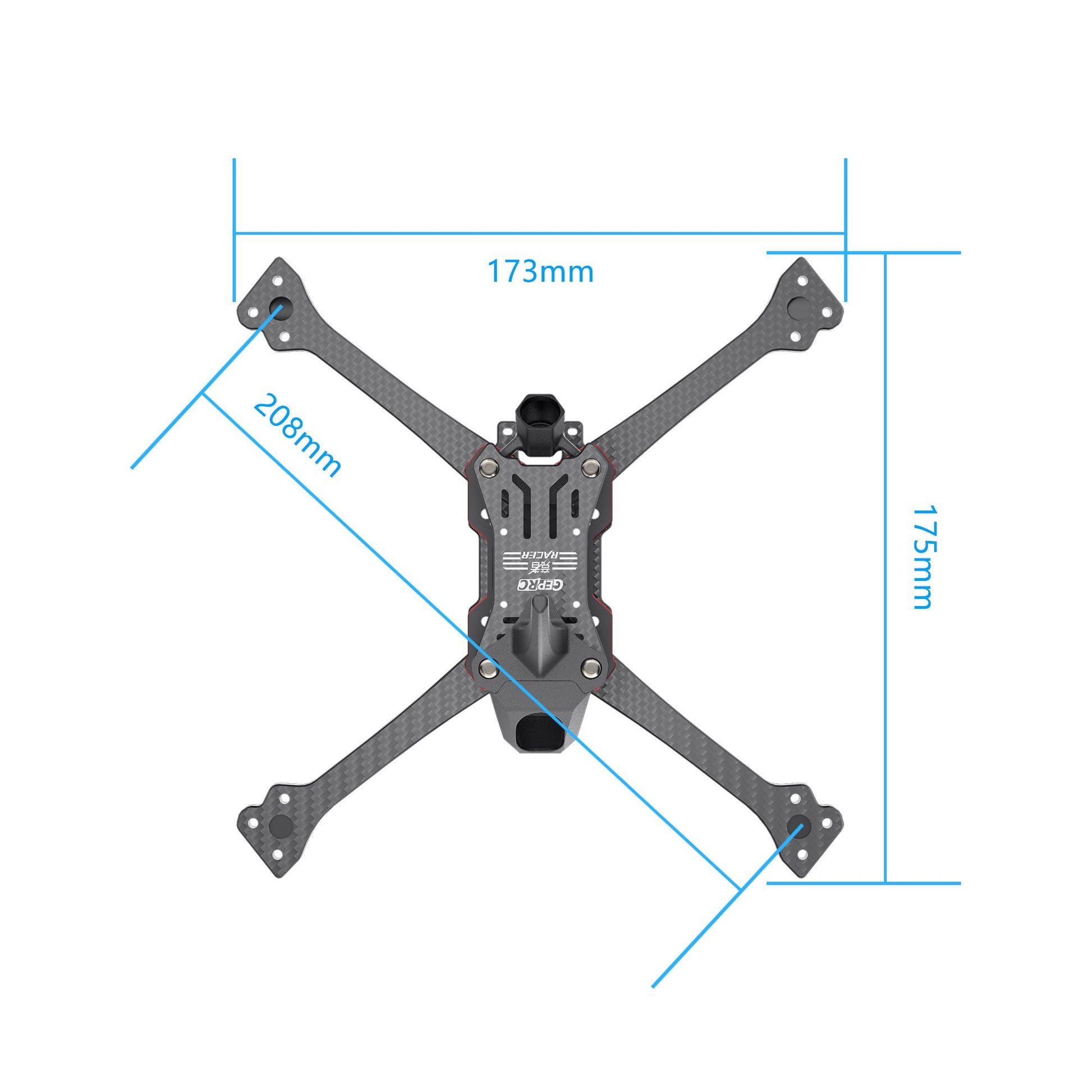

GEPRC GEP-Racer 5 Inch FPV Drone Frame, 208mm wheelbase, dimensions 175mm x 173mm, plates 2.0mm thick, arms 5.0mm thick, aluminum plate 2.0mm. Design showcased.

Product list for GEPRC GEP-Racer 208mm wheelbase 5-inch FPV drone frame components.
