SPECIFICATIONS
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 1080p FHD
Video Capture Resolution: 4K UHD
Video Capture Resolution: 2K QHD
Type: HELICOPTER
State of Assembly: Ready-to-Go
Remote Distance: 3000 meters
Remote Control: Yes
Recommend Age: 12+y
Power Source: Electric
Plugs Type: XT60
Package Includes: Operating Instructions
Package Includes: Original Box
Package Includes: Camera
Origin: Mainland China
Operator Skill Level: Beginner
Operator Skill Level: Expert
Operator Skill Level: Intermediate
Motor: Brushless Motor
Model Number: GEPRC MARK5 HD DJI AIR UNIT Freestyle FPV Drone
Material: Metal
Material: Plastic
Material: Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 4-8 minutes
Features: App-Controlled
Features: FPV Capable
Features: Other
Features: Integrated Camera
Dimensions: 5 inch
Controller Mode: MODE2
Controller Mode: MODE1
Controller Battery: Not include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount
Camera Mount Type: Other
CE: Certificate
Brand Name: GEPRC
Aerial Photography: Yes
Summary
GEPRC new generation freestyle drone MARK5.We are proud to say the MARK5 HD quad is the best freestyle quadcopter in the market.It is now launched in three versions: HD AIR UNIT, HD VISTA and Analog.
MARK5 is developed specifically for freestyle with squashed X arm design. Unique shock absorbing structure design, less vibrations and resonance provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning but reduce weight and add more endurance. MARK5 is equipped with GEPRC’s latest SPAN F722-BT-HD V2 FC with high performance and lots of ports, supporting Bluetooth wireless connection for easy field tuning. Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC’s latest 2107.5 motor, has great explosive power and very fast response speed. The new HQ Ethix S5 5×4×3 propellers provide delicate and silky smooth flight experience. The MARK5 is shipped with two different 3D printed action cam mounts that can be fitted with GoPro8/9/10, Naked GoPro8, Insta 360 GO2 and Caddx Peanut cameras. After continuous testing and tuning by GEPRC R&D team, we are proud to say, this is yet another GEPRC drone that comes perfectly tuned right out of the box. Just take it out, plug the battery and have fun!
We’ve been pursuing for lighter weight, better flying experience, and more functionality for all our products!
Changelog
June 2nd,2022: The MARK5 HD DJI AIR UNIT Version will be gradually changed from DJI HD System & the original Air Unit cam to Caddx AIR UNIT & Caddx Cam, the same performanc as DJI AIR UNIT.
July 22nd,2022: The propeller changed from GEMFAN Freestyle 4S to HQ Ethix S5 5×4×3.
Tips:It is recommended to use the latest 10.8.0 betaflight to correspond to the corresponding FC Firmware and Factory CLI Dump to avoid setting errors.
Feature
Aluminum alloy side plates not only look stunning but reduce weight and add more endurance.
Supports Bluetooth wireless connection for easy field tuning.
Developed specifically for freestyle with squashed X arm design.
The HD version comes with the Caddx Air Unit HD System & Caddx cam.
A variety of receiver choices including our brand new ExpressLRS Rx.
Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC with GEPRC’s latest 2107.5 motor, has great explosive power and very fast response speed.
Unique shock absorbing structure design, less vibrations and resonance.
Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction.
The new HQ Ethix S5 5×4×3 propellers provide delicate and silky smooth flight experience.
Shipped with two different 3D printed action cam mounts that can be fitted with GoPro, Naked GoPro8, Insta 360 GO2 and Caddx Peanut cameras.
MARK5 is the most ideal for freestyle flying and bando-bashing resistant.
Specifications
Model: MARK5 HD AIR UNIT Quadcopter
Brand: GEPRC
Frame: GEP-MK5
Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm
FC system: SPAN F722-BT-HD V2 (No barometer but more stable)
MCU: STM32F722
Gyro: 42688-P
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: AIR UNIT Module
Camera: Caddx Camera
Charge connector: XT60
Propeller: HQ Ethix S5 5×4×3
Antenna: AIR UNIT Antenna
Motor: SPEEDX2 2107.5-1960KV (6S Version) / SPEEDX2 2107.5-2450KV(4S Version)

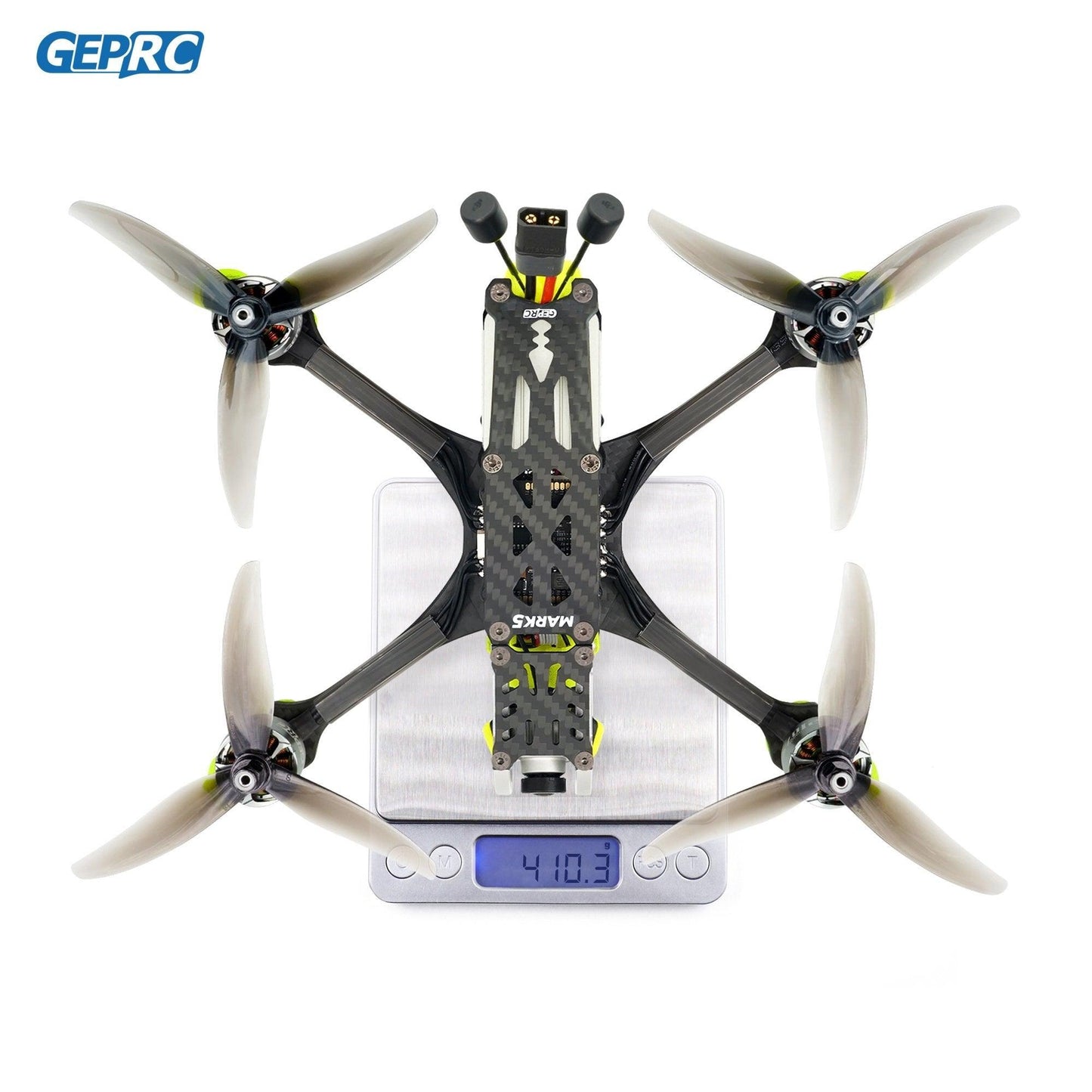

Weight: 410.3g (MARK5 HD AIR UNIT 6S PNP including 3D print)
Receiver: PNP,Frsky R-XSR ,TBS Nano RX,ELRS 915,ELRS 2.4G
Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S Version) / LiPo 6S 1050mAh-1550mAh(6S Version)
Include
1 x MARK5 HD AIR UNIT Quadcopter
4 x HQ Ethix S5 5×4×3 propellers (pair)
1 x Battery strap M15x250mm
2 x Battery strap M20x220mm
2 x Battery Silicone Pads
1 x Camera cage carbon top plate
1 x 3D print mountings combination
2 x Action cam mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube
Introducing the MARK5 Freestyle FPV Drone, featuring an HD DJI air unit, 4S/6S compatibility, and equipped with SPEEDX2 2107.5 motors for long-range freestyle flight.
Upgrade your flight experience with our brand new, high-strength aluminum alloy side plates made from premium 7075 aluminum material, designed to provide exceptional durability and protection for your camera against impacts.
Experience high-definition video with our advanced HD system, featuring a DJI original camera that provides crystal-clear pictures, stable signals, low latency, and extended range. The HD air unit also supports Lo8OP and 60fps recording capabilities.
Upgrade your flying experience with our second-generation SPEEDX2 2107.5 motor, featuring lightweight design, powerful performance, advanced heat dissipation, and precise control for a smooth and stable flight.
Capture stunning footage with our compatible action cameras, including TPU/EVA designs for GoPro models (such as GoPro9, GoPro8), DJI Action2, Naked GoPro 8, Insta360 One X2, and Caddx Peanut Camera.
The GEPRC MARK5 FPV drone features a SPAN F722-HD-BT flight controller with BLHeli 32 50A ESC, supporting 1x2, 3S, 22C LiPo battery configuration. Additionally, the drone has a no-cov design and is compatible with various cameras.
Enjoy wireless parameter tuning on your mobile phone with Bluetooth connectivity, featuring Jib1am 97 space-grade materials. Simply disconnect and set up your camera settings, then re-enter the desired mode for seamless control.
Experience enhanced durability and reduced weight with our 3K ultra-high strength carbon plate, featuring a chamfered design for improved strength-to-weight ratio.

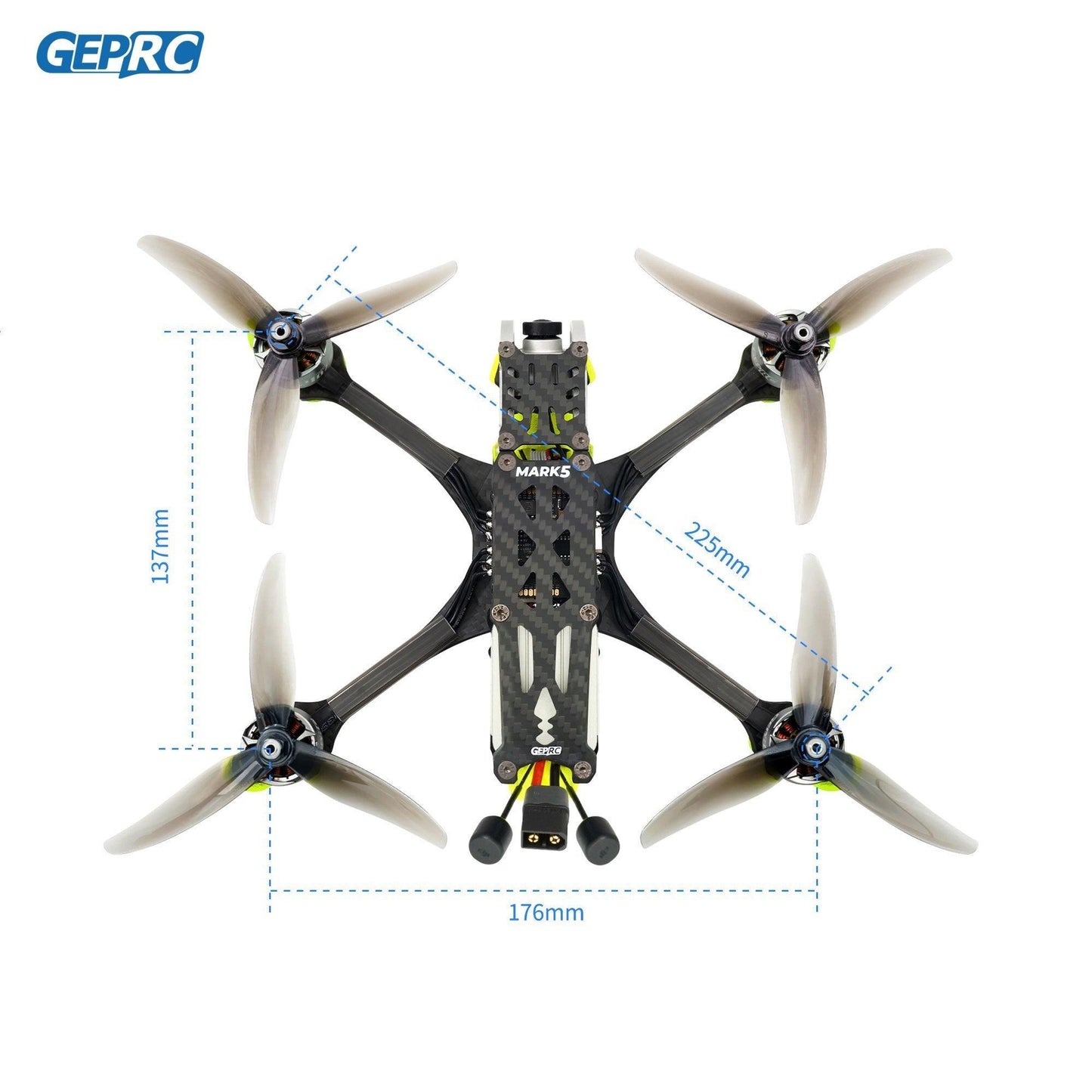

Specifications for the MARK5 HD Air Unit include: Model - DJI AIRUNIT, Antenna length - 176mm, Wheelbase - 225mm. Motor options are: 2107.5-1960KV (6S Version) and SPEEDX2 2107.5-2450KV (4S Version). ESC is SPAN GSOA BL32 50A.
Specifications for the MARK5 HD Vista include: Length - 176mm, Wheelbase - 225mm. Motor option is: SPEEDX2 2107.5-1960KV (6S Version).
Specifications for the MARK5 include: Length - 176mm. Model: GEPRC MOMODA, Wheelbase: 225mm. Motor option is: SPEEDX2 2107.5-1960KV (6S Version).
The MARK5 HD Air Unit features an FC (flight controller) by SPAN, specifically the F722-HD-BT model. The ESC (electronic speed controller) is also by SPAN, with a GSOA BL32 4INI 50A configuration. The VTX (video transmitter) is an air unit module, compatible with CADDX Vista and GEPRC RAD vtx 5.86. Additionally, the drone comes equipped with a receiver that supports PNP, FrSky R-XSR, TBS NanoRX, ELRS 915MHz, and ELRS 2.46GHz frequencies. The motor is a SPEEDX model.
