GEPRC MATEN 1.2G 2W VTX - 1080-1360MHZ/25-2000mW Pit 5V@600mA 14.5g For FPV Drone

GEPRC MATEN 1.2G 2W VTX - 1080-1360MHZ/25-2000mW Pit 5V@600mA 14.5g For FPV Drone

GEPRC

$69.46 USD
$90.30 USD $69.46 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

97 orders in last 90 days

Color
Ships From
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

GEPRC MATEN 1.2G 2W VTX SPECIFICATIONS

Brand Name: GEPRC

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

Recommend Age: 6-12y

RC Parts & Accs: Transmitters

Size: 1 inch

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Certification: CE

Certification: FCC

Certification: RoHS

Certification: weee

Upgrade Parts/Accessories: Adapter

Remote Control Peripherals/Devices: VTX

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: GEPRC SPEEDX2 1404 3000KV/4600KV Motor

Four-wheel Drive Attributes: VTX

Wheelbase: Screws

Summary

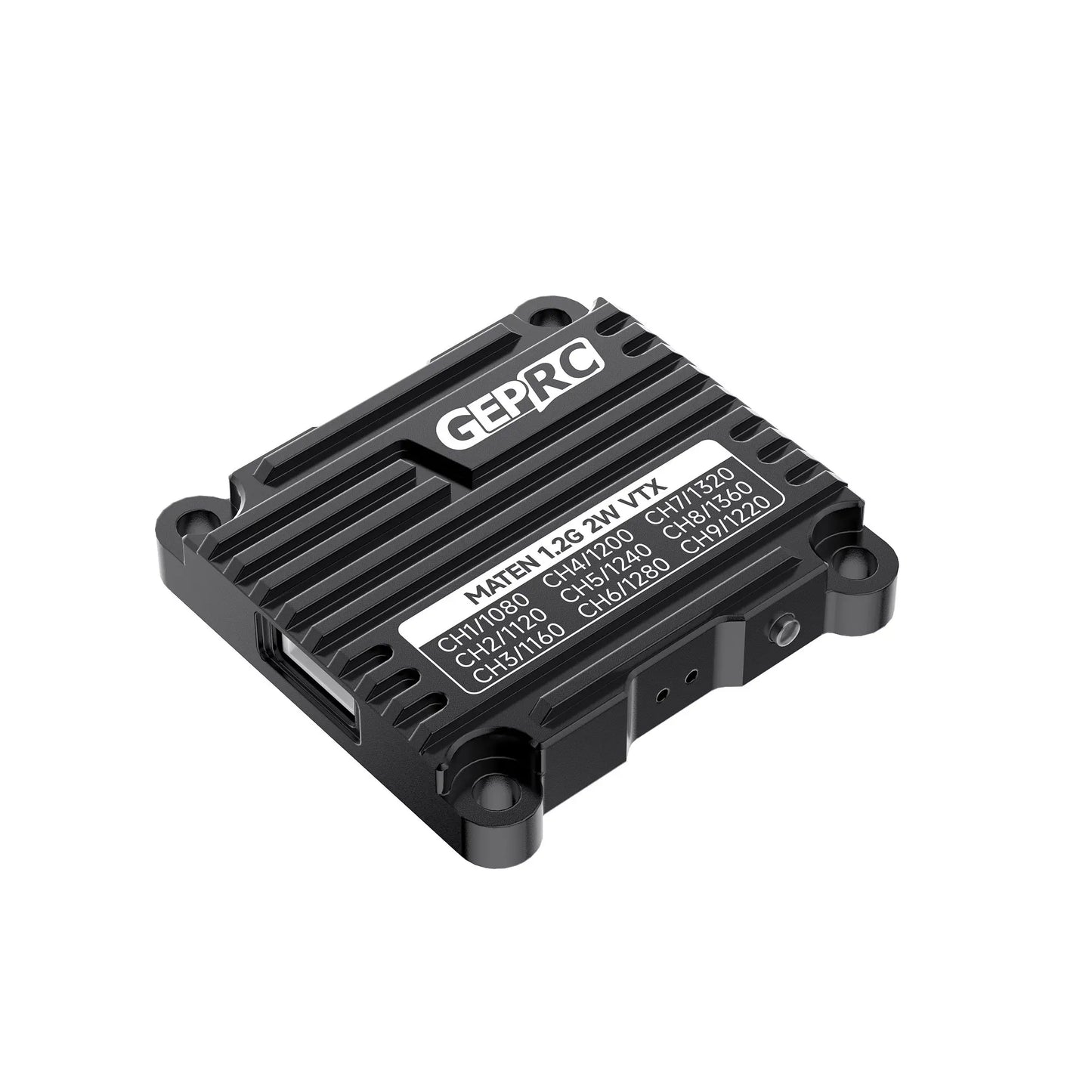

The MATEN 1.2G 2W VTX high-power image transmission newly developed by the GEPRC team is now officially released.   Its performance is very powerful, with 4 adjustable power levels and a maximum power of up to 2000mW.The transmission signal is very stable and the penetration ability is excellent.

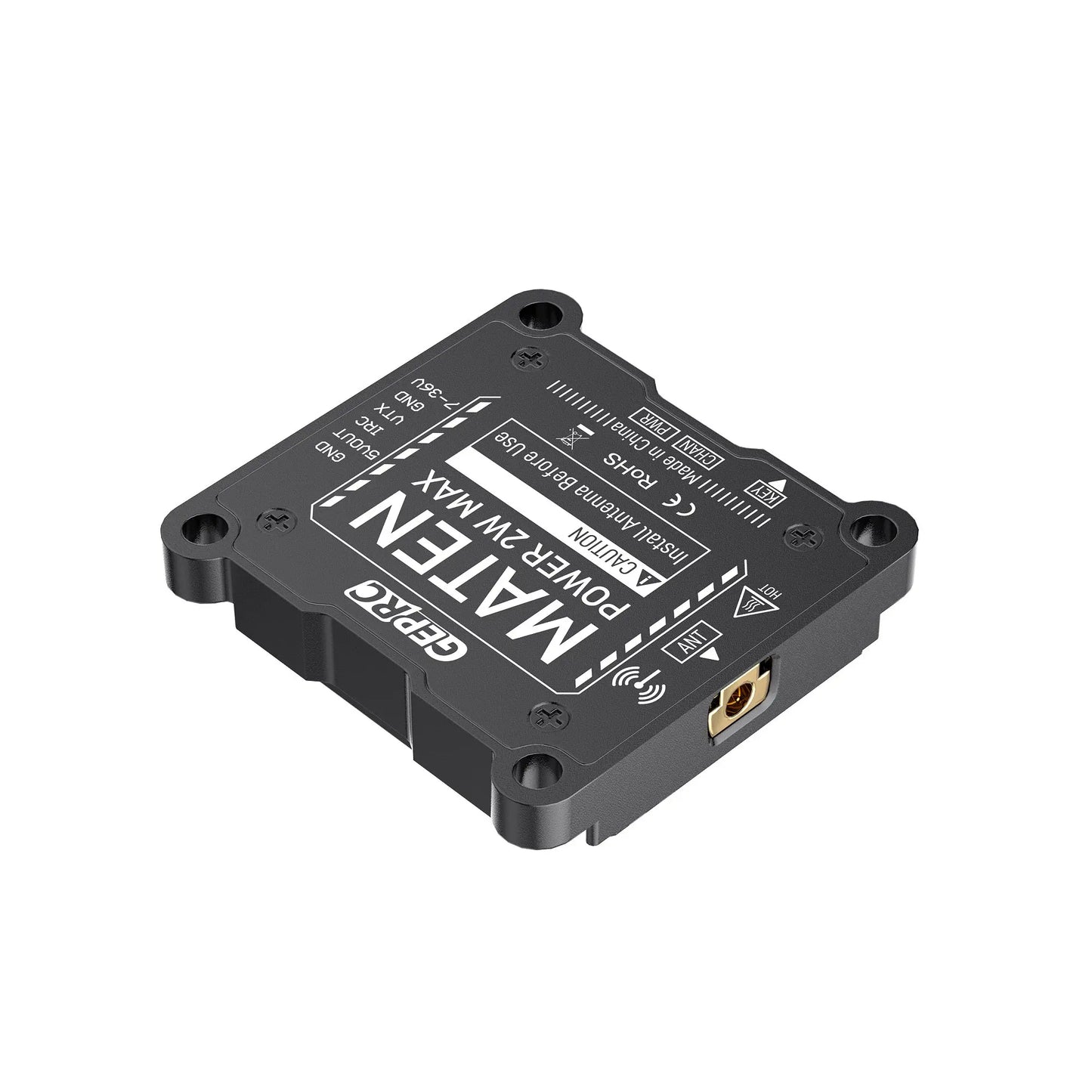

MATEN 1.2G 2W VTX uses high-strength aluminum alloy CNC shell to assist heat dissipation.The unique appearance design stronger impact resistance and better heat dissipation performance.

It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters.

It has a wide voltage input of 7-36V and temperature control protection function to prevent overheating and burning.Support 30.5×30.5mm(M3)  installation hole position.



Features:

  1. Four levels of adjustable power, up to 2000mW, suitable for long distance flight

  2.  optional channels

  3. Selected high strength aluminum alloy CNC shell, auxiliary heat dissipation

  4. Wide voltage input, Supports 7V-36V Voltage input.

  5. One function buttons, two indicator lights, easy to control.

  6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.

  7. Temperature control protection function that can prevent high temperature burning

  8. Support 30.5×30.5mm(M3)  installation hole position



Specifications

  • Model：GEPRC MATEN 1.2G 2W VTX

  • Size：36.4×36.4x7.4mm

  • Mounting hole：30.5×30.5mm(M3)

  • Frequency band：1080MHz-1360MHz

  • Channel customer：9

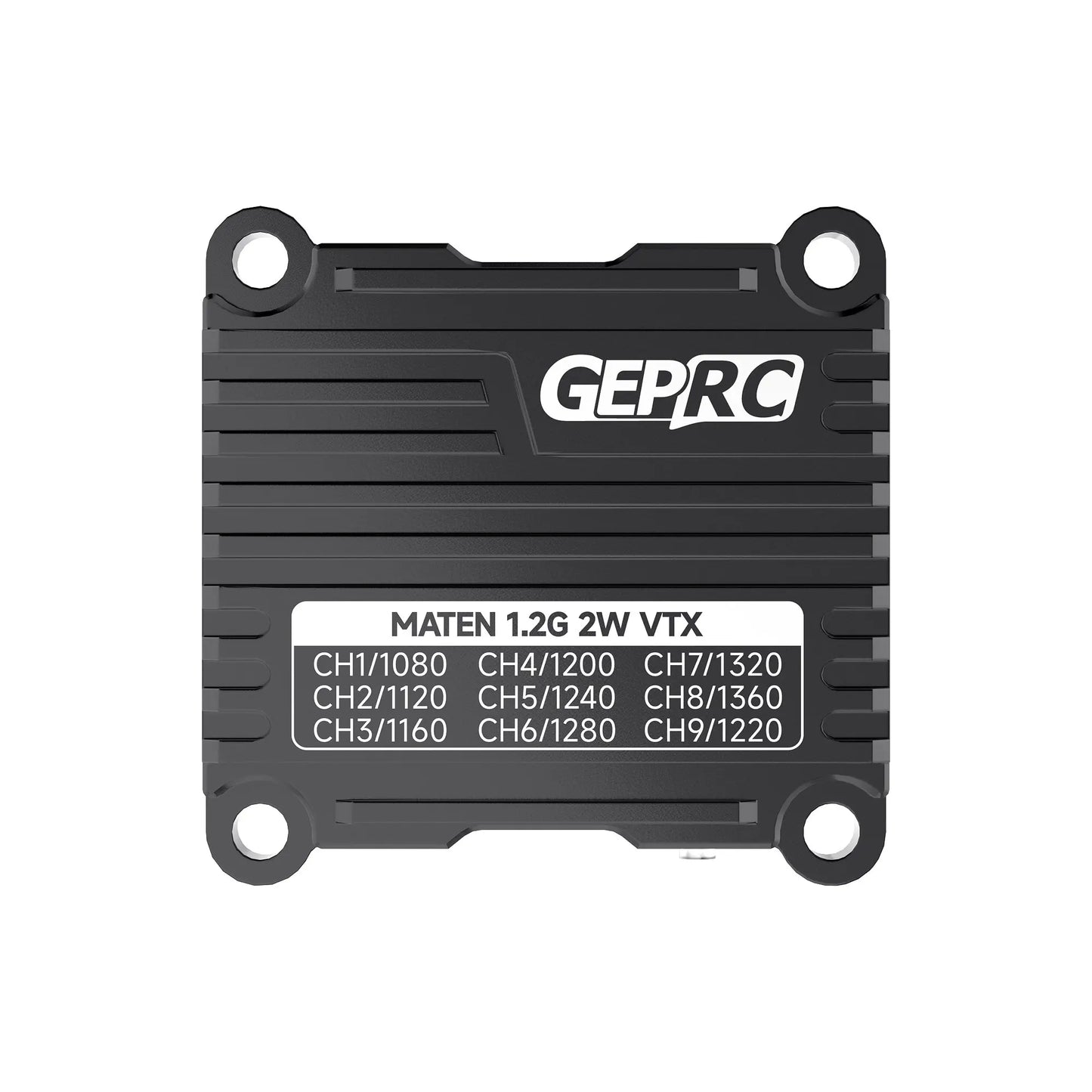

  • Channel Frequency：1080/1120/1160/1200/1240/1280/1320/1360/1220(MHz)

  • Output power：25mW/400mW/800mW/2000mW/Pit mode

  • Frequency Stability：±100KHz (Typ.)

  • Frequency precision：±200KHz (Typ.)

  • S/N(Fo±3MHz)：>70dBc

  • Antenna Port：50 Ohms

  • Input voltage：DC7-36V（2-8S Battery）

  • Output voltage：5V@600mA

  • Protocol：IRC Tramp

  • Antenna interface：MMCX

  • Cable interface：sh1.25 6pin

  • Video format：PAL/NTSC

  • Operating Temperature：-10℃~+60℃

  • Weight：14.5g（VTX only）



Notes

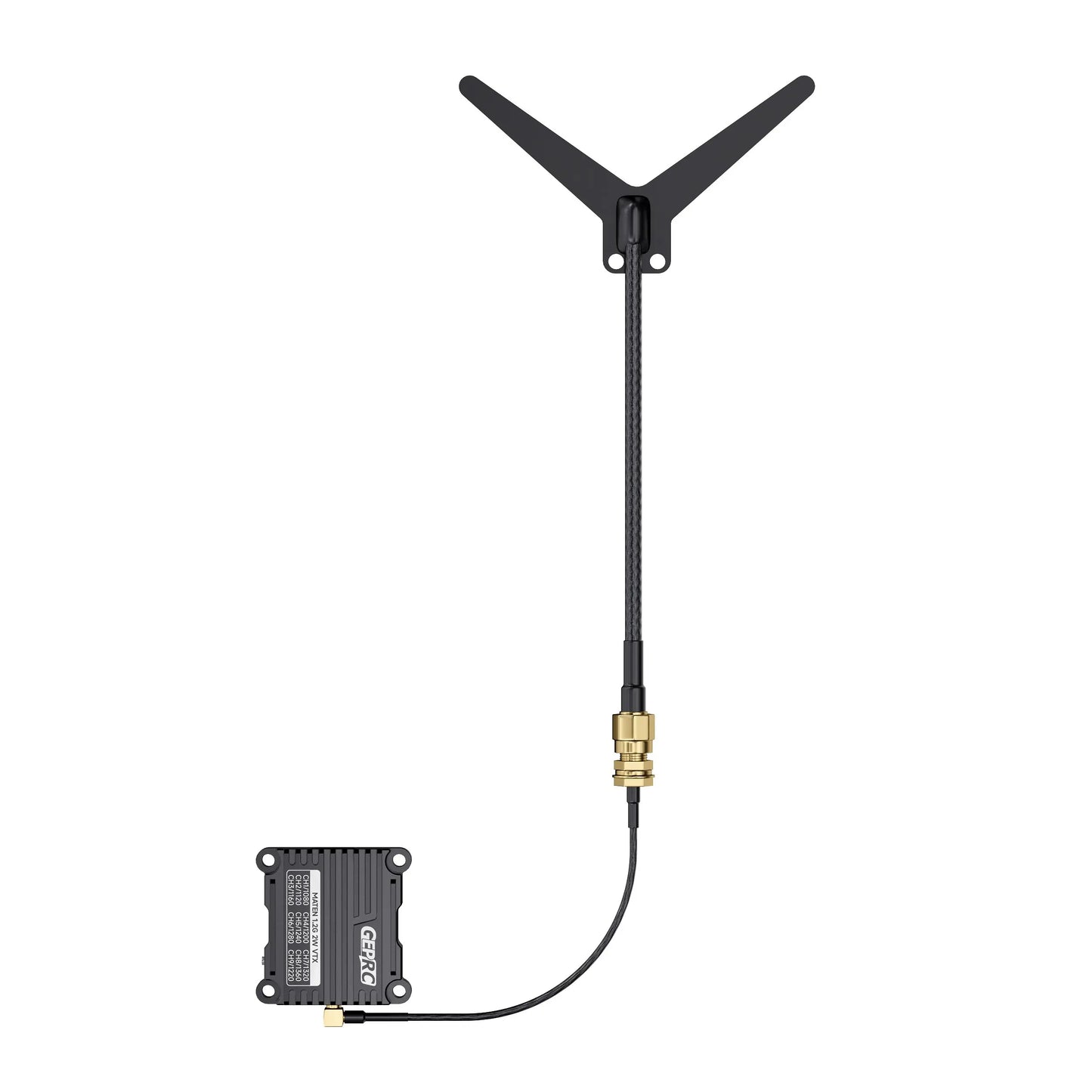

  1. Install Antenna before use.

  2. To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.

  3. The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

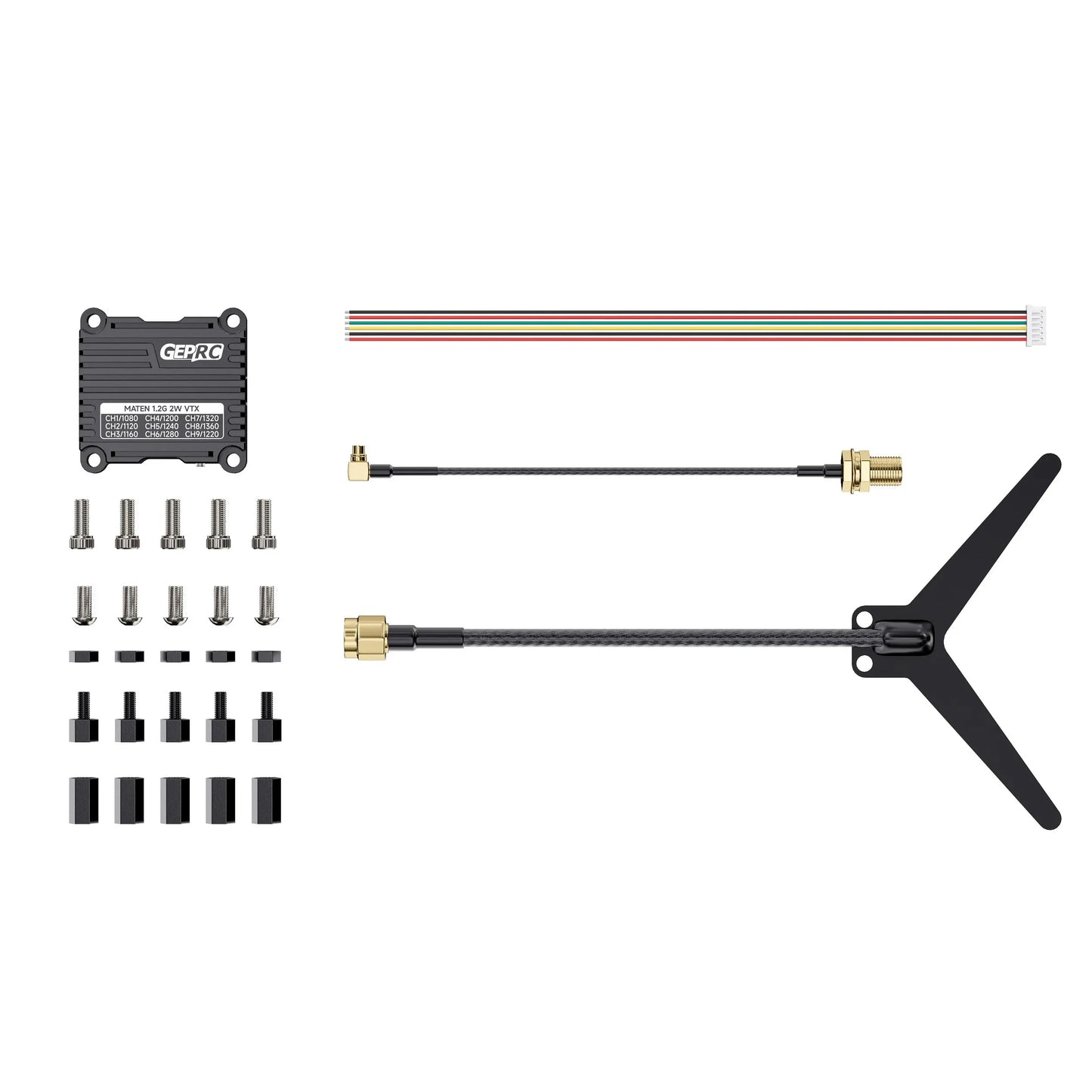

Includes

1 x MATEN 1.2G 2W VTX

1 x MMCX to SMA（internal needle）connector

1 x 1.2G antenna(SMA inner hole)

1 x sh1.25 6P Connecting cable

5 x M3*7 screws

5 x M3*8 screws

5 x M3 x 10 hexagon

5 x M3*5 isolation column

5 x M3 nylon nut

1 x product description

GEPRC MATEN 1.2G 2W VTX, to prevent overheating,provide constant airflow and a well ventilated environment GEPRC MATEN 1.2G 2W VTX, Specifications Model Size MATEN 1.2G 2W VTX 36.4x36.4

Specifications: Model - MATEN 1.2G 2W VTX; Dimensions: 36.4mm x 36.4mm x 7.4mm (mounting hole: M3); Frequency band: 1080-1360 MHz; Input voltage range: DC 5V at 600mA, compatible with 2-8S battery; Output voltage: 5V; Protocol: IRC Tramp; Antenna interface: MMCX; Cable interface: SH1.25 (6-pin); Weight: 14.5g (VTX only).

GEPRC MATEN 1.2G 2W VTX, four levels of adjustable power, up to 2O0OmW, suitable for long distance

Features include four levels of adjustable power output, reaching up to 2000mW, making it ideal for extended range flights. The module also features one function button and two indicator lights, allowing for easy control and monitoring.

GEPRC MATEN 1.2G 2W VTX, MATEN 1.2G 2W VTX uses high-strength aluminum alloyGEPRC MATEN 1.2G 2W VTX, use the buttons to adjust the VTX Switch Channal light blue Power light

To operate the VTX, use the buttons to adjust the channel and power levels. The switch channel indicator light will turn blue when activated. Pressing the side button once will cycle through frequency channels CH1-CH9. A flashing blue light indicates the current channel selection. To enter PIT mode, press the side buttons for 8 seconds; this will allow you to adjust the power output from 25mW to 2000mW in increments of 400mW (25mW, 400mW, 800mW, and 2000mW).

the GEPRC MATEN 1.2G 2W VTX high-power image transmissionGEPRC MATEN 1.2G 2W VTX, GEPRC MATEN 1.2G 2

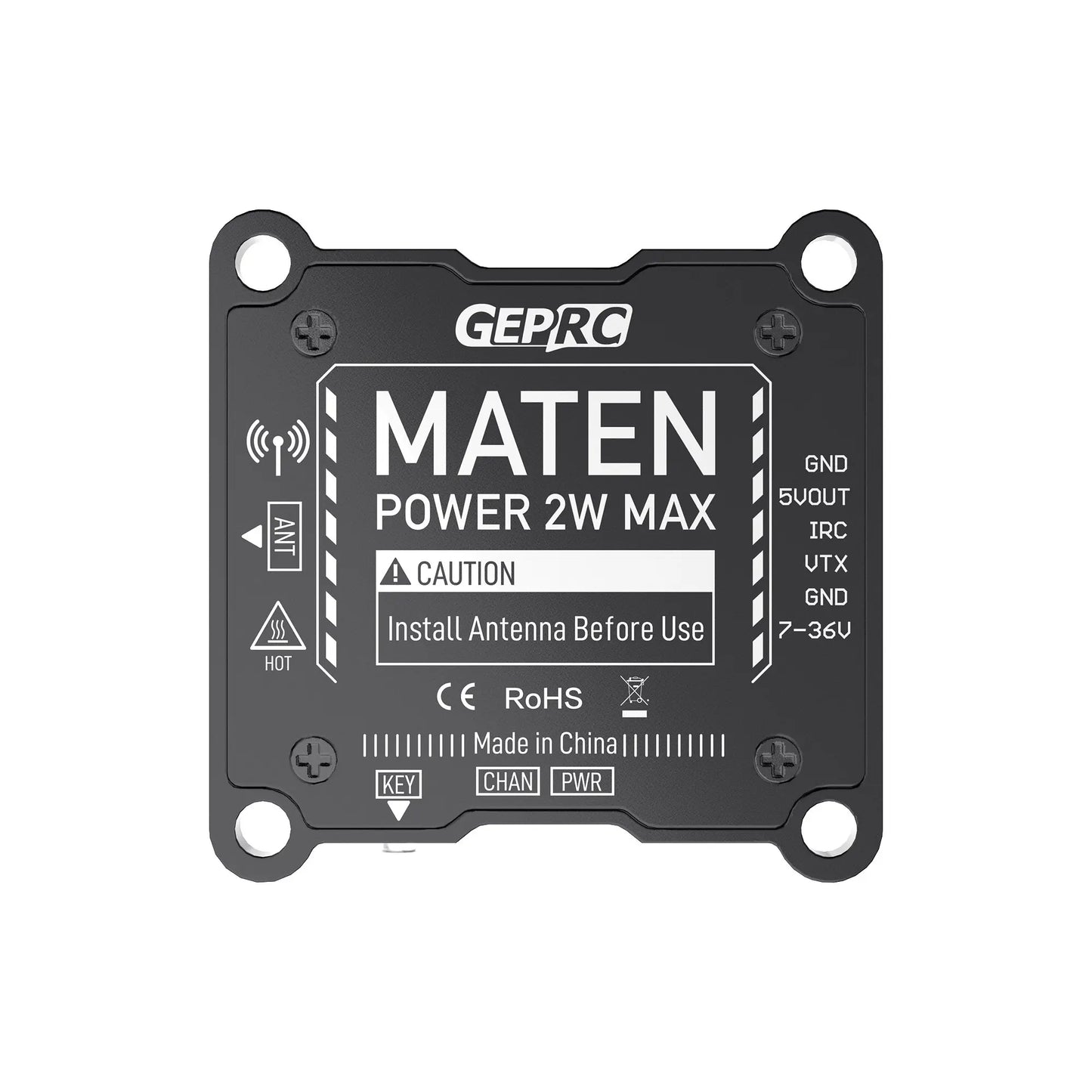

Important Safety Information: GEPRC MATEN 1.2G 2W VTX Maximum Power Output Warning: IRC CAUTION. Install antenna before use. Operating voltage range: 7-36V. Made in China, RoHS compliant. (Note: Key L Chani Pwr)

GEPRC MATEN 1.2G 2W VTX, it supports the IRC Tramp protocol and can use the OSD to quickly adjust parametersGEPRC MATEN 1.2G 2W VTX, GEPRC MATEN 1.2G 2
