GEPRC MATEN 5.8G 3W VTX PRO for FPV Drone – 80CH IRC Tramp Video Transmitter, 3000mW, MMCX, 7-36V

Overview

The GEPRC MATEN 5.8G 3W VTX PRO is a high-performance video transmitter built for FPV drone long-range applications. With adjustable power settings up to 3000mW, a dual-core signal system, and IRC Tramp protocol support, it delivers ultra-stable video transmission across 80 channels. Designed with a CNC aluminum alloy housing, integrated micro fan, and a wide 7–36V input range, this VTX ensures consistent performance in demanding environments. It supports both 20x20mm and 30.5x30.5mm (M2) mounting patterns, making it compatible with a wide range of FPV drone frames.

Key Features

• Dual-core signal transmission design with up to 3000mW output

• Five power levels: 25mW / 200mW / 600mW / 1600mW / 3000mW + Pit mode

• 80 channels (4.9G–5.8G) for broad frequency compatibility

• Supports IRC Tramp protocol for OSD-based control

• Built-in microphone for real-time onboard audio feedback

• Active heat dissipation via internal micro turbofan

• Durable CNC aluminum alloy shell for enhanced heat resistance

• Compatible with 20x20mm and 30.5x30.5mm (M2) mounting

• Wide voltage input: 7–36V (supports 2–8S LiPo batteries)

• 5V@600mA output for powering camera or cooling fan (not for battery input)

Specifications

Package Includes

• 1 × MATEN 5.8G 3W VTX PRO

• 1 × MMCX Elbow Copper Tube Antenna

• 1 × MMCX to SMA (Center Hole) Adapter

• 1 × SH1.0 6P VTX Cable

• 6 × M2*5 Screws

• 6 × M2*12 Screws

Usage Notes

• Always install the antenna before powering on

• Maintain airflow or install a cooling fan in enclosed setups

• The 5V output is strictly for a camera or fan—never connect battery input to this port

Details

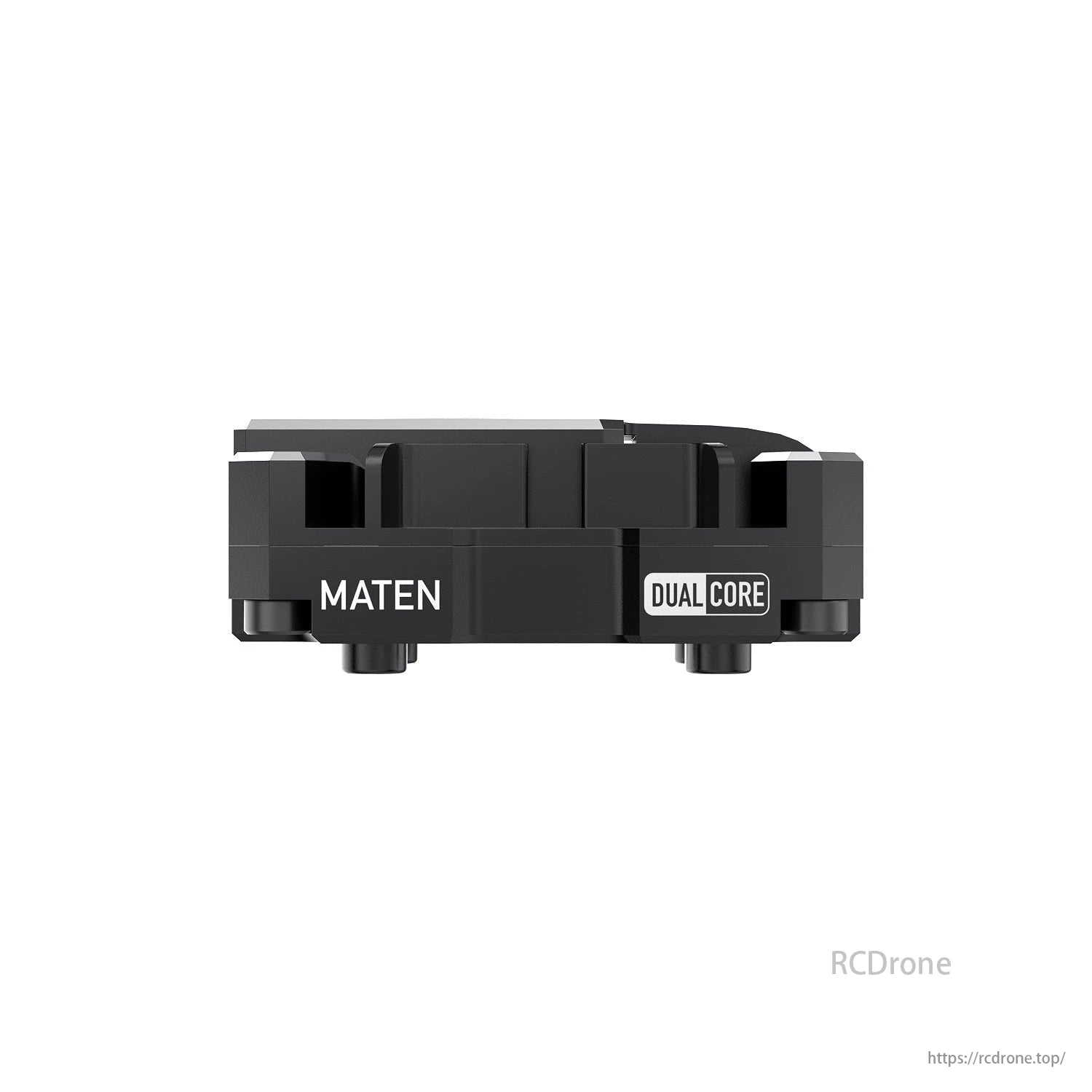

GEPRC MATEN 5.8G 3W VTX Pro: Dual-Core, High Power video transmitter.

MATEN 5.8G 3W VTX PRO: 36.3x36.3x15.1mm, 4.9-5.8GHz, 80CH, DC7-36V input, 5V@600mA output, IRC Tramp protocol, MMCX antenna, SH1.0 6pin cable, built-in mic, 21.1g, 20x20mm/30.5x30.5mm mounting holes, 25mW-3000mW output power.

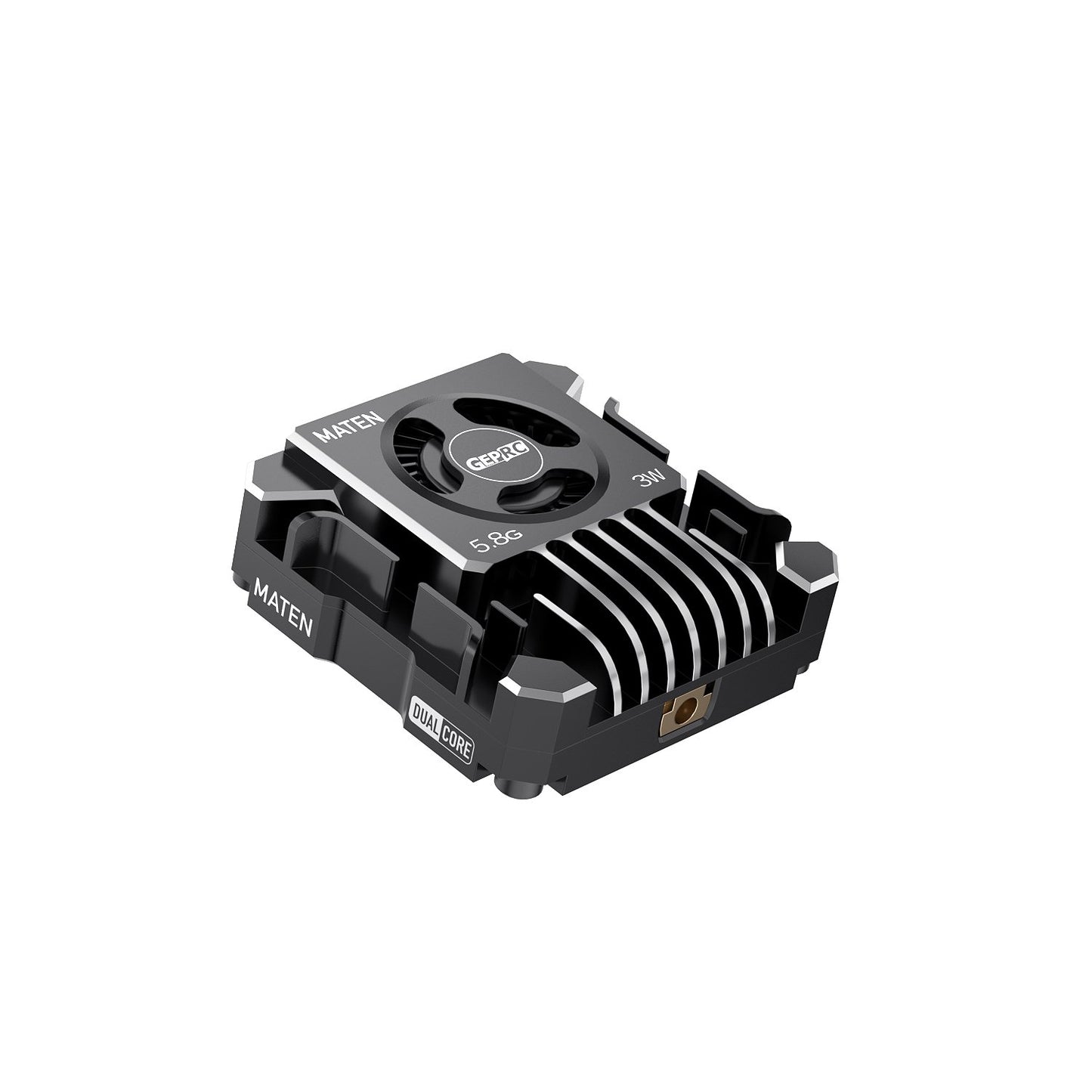

Dual-core 3000mW design, aluminum CNC shell, micro turbofan cooling, 7V-36V input, easy operation, IRC Tramp protocol, temperature protection, built-in mic, 80 channels, supports two mounting hole sizes.

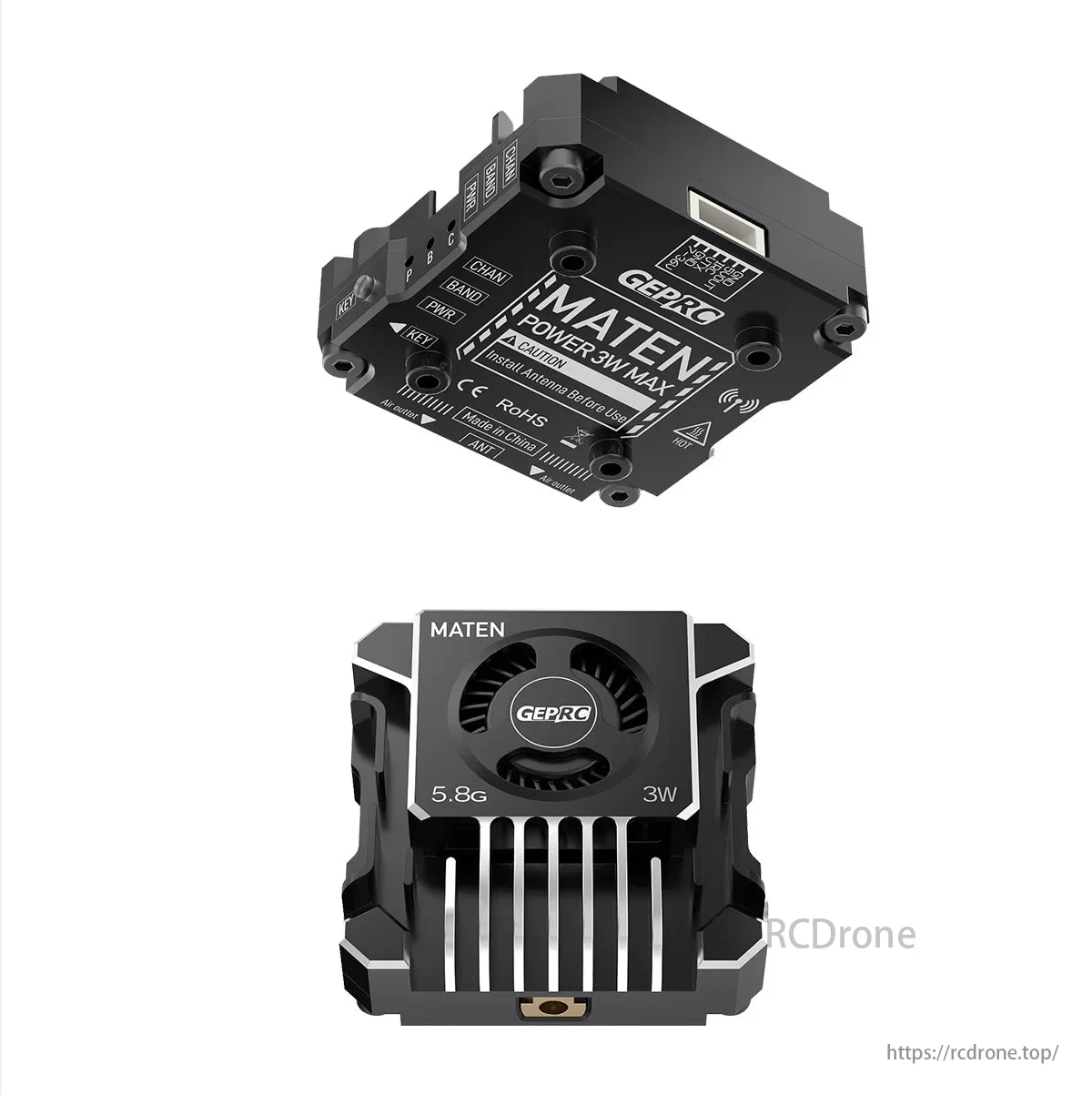

GEPRC MATEN 5.8G 3W VTX specifications: 36.3mm x 36.3mm x 15.1mm. Supports 20x20(M2)mm and 30.5x30.5mm(M2) mounting holes. Dual-core design with cooling fan and heatsink for efficient performance.

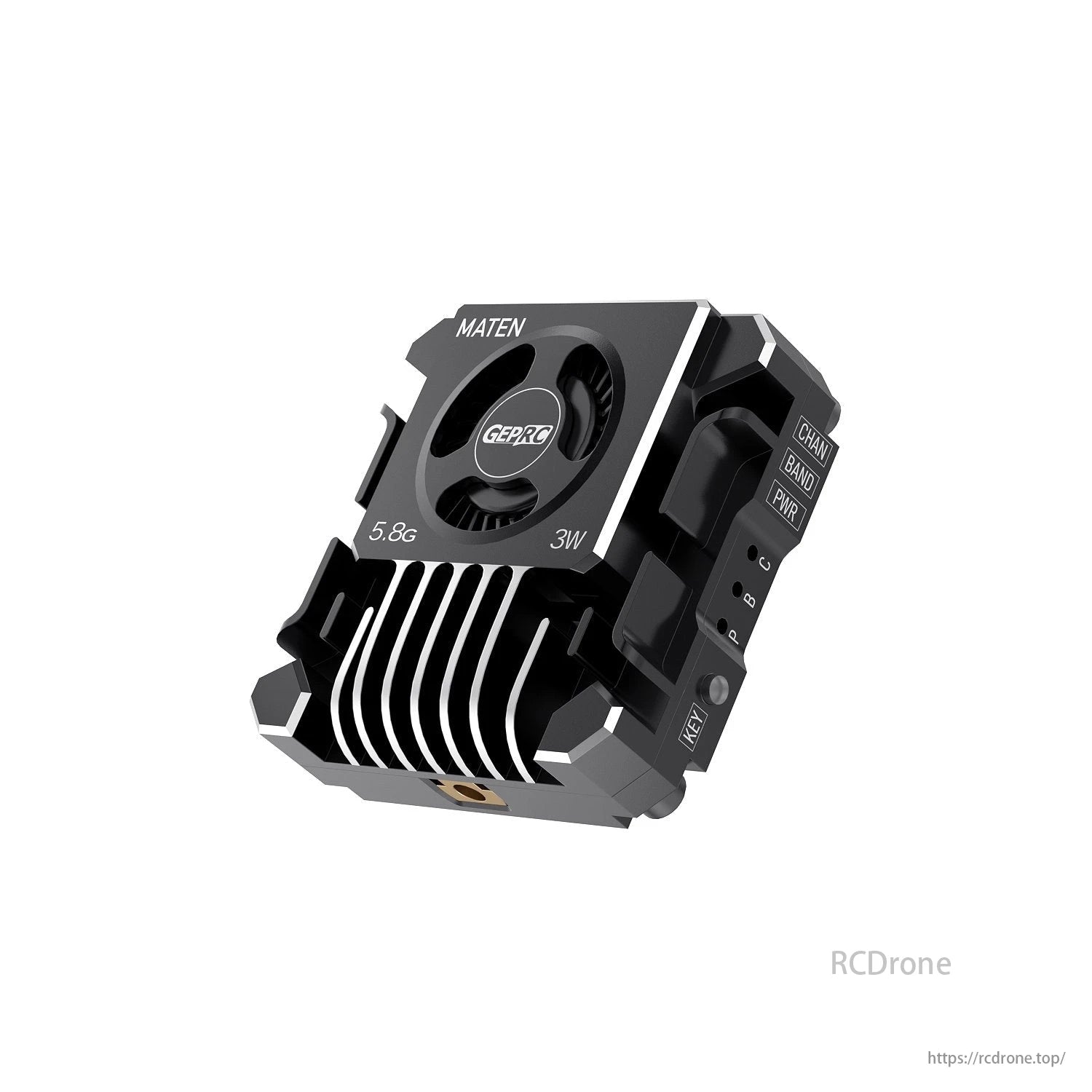

Use buttons to adjust GEPRC MATEN 5.8G 3W VTX. Blue light for frequency, green for band, red for power. Hold 2 seconds, click quickly to switch settings.

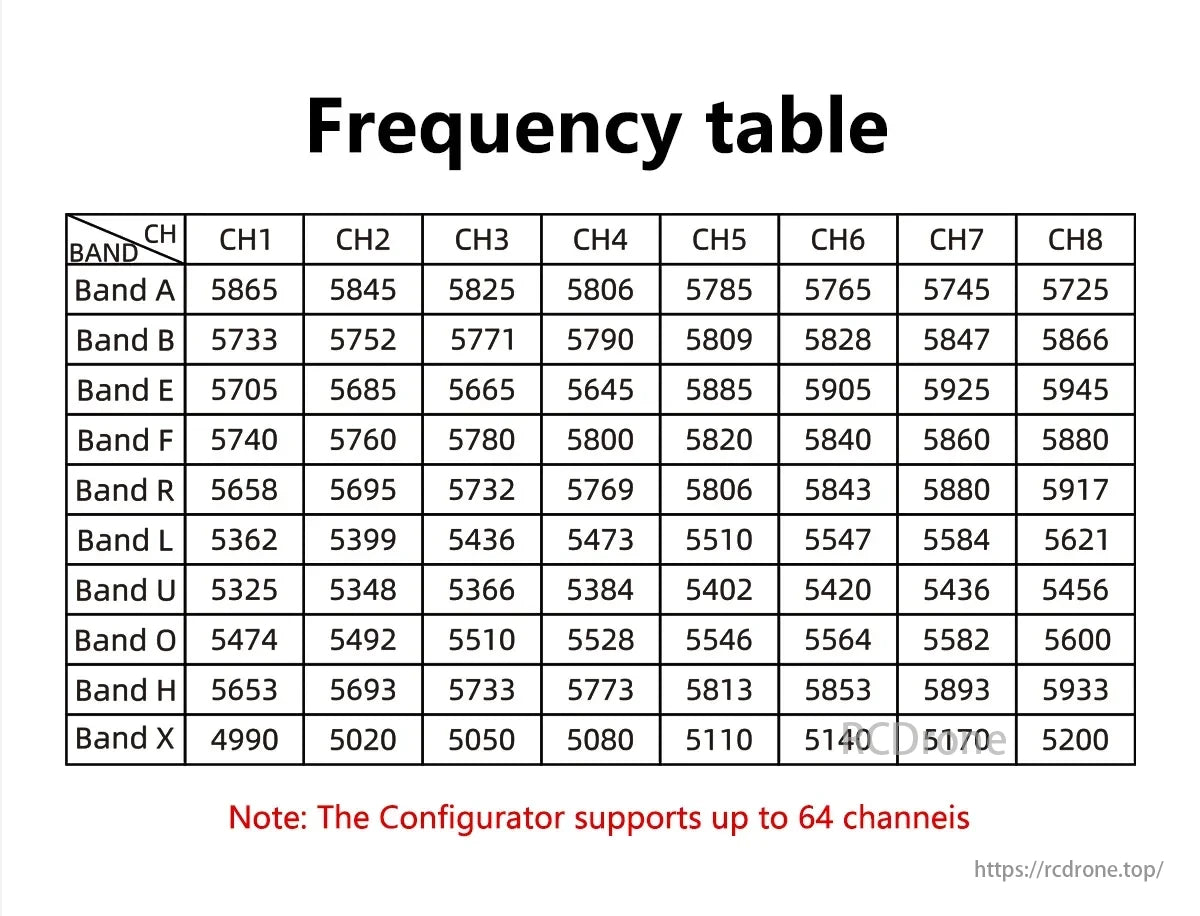

GEPRC MATEN 5.8G 3W VTX frequency table lists bands A, B, E, F, R, L, U, O, H, X with channels 1-8 and frequencies. Configurator supports up to 64 channels.

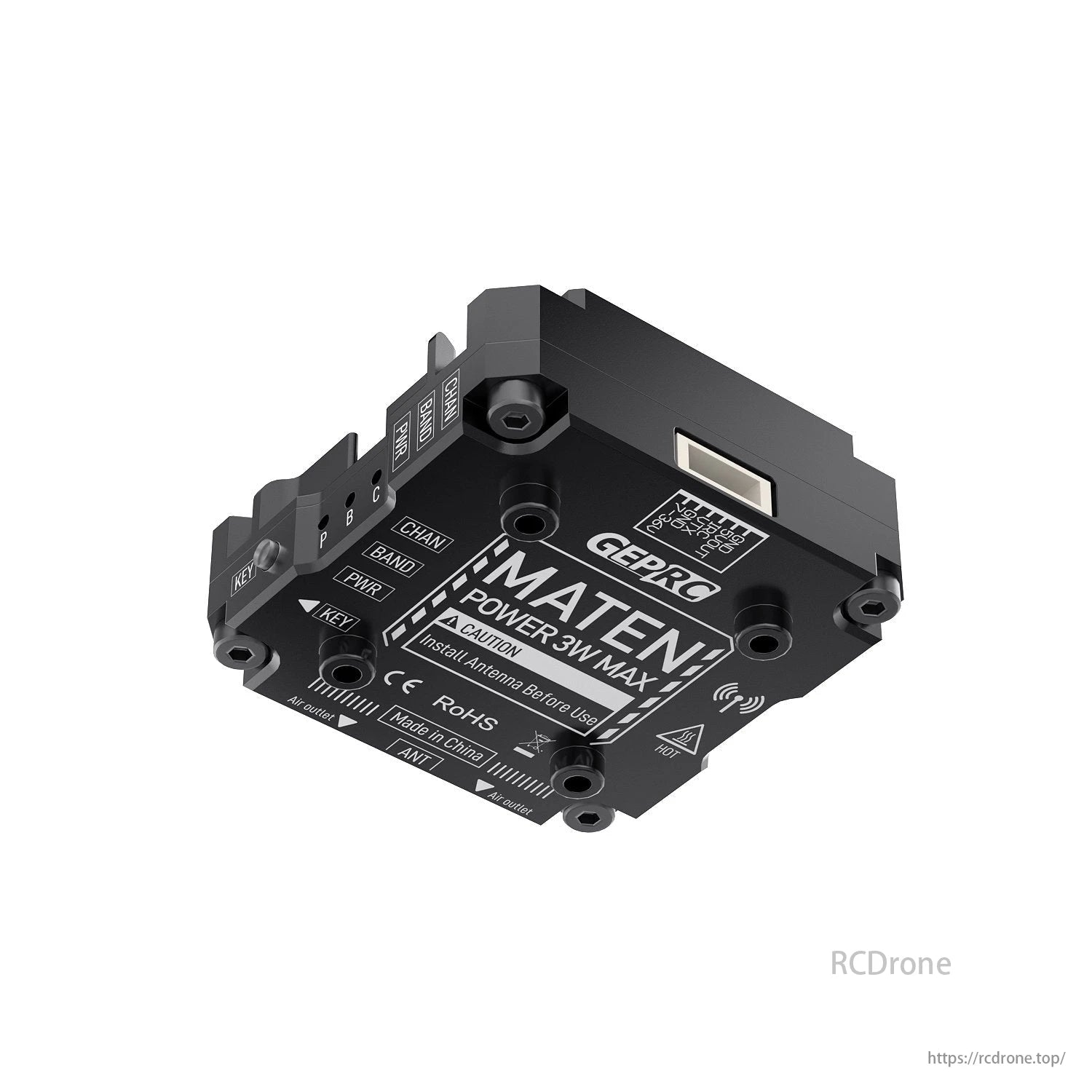

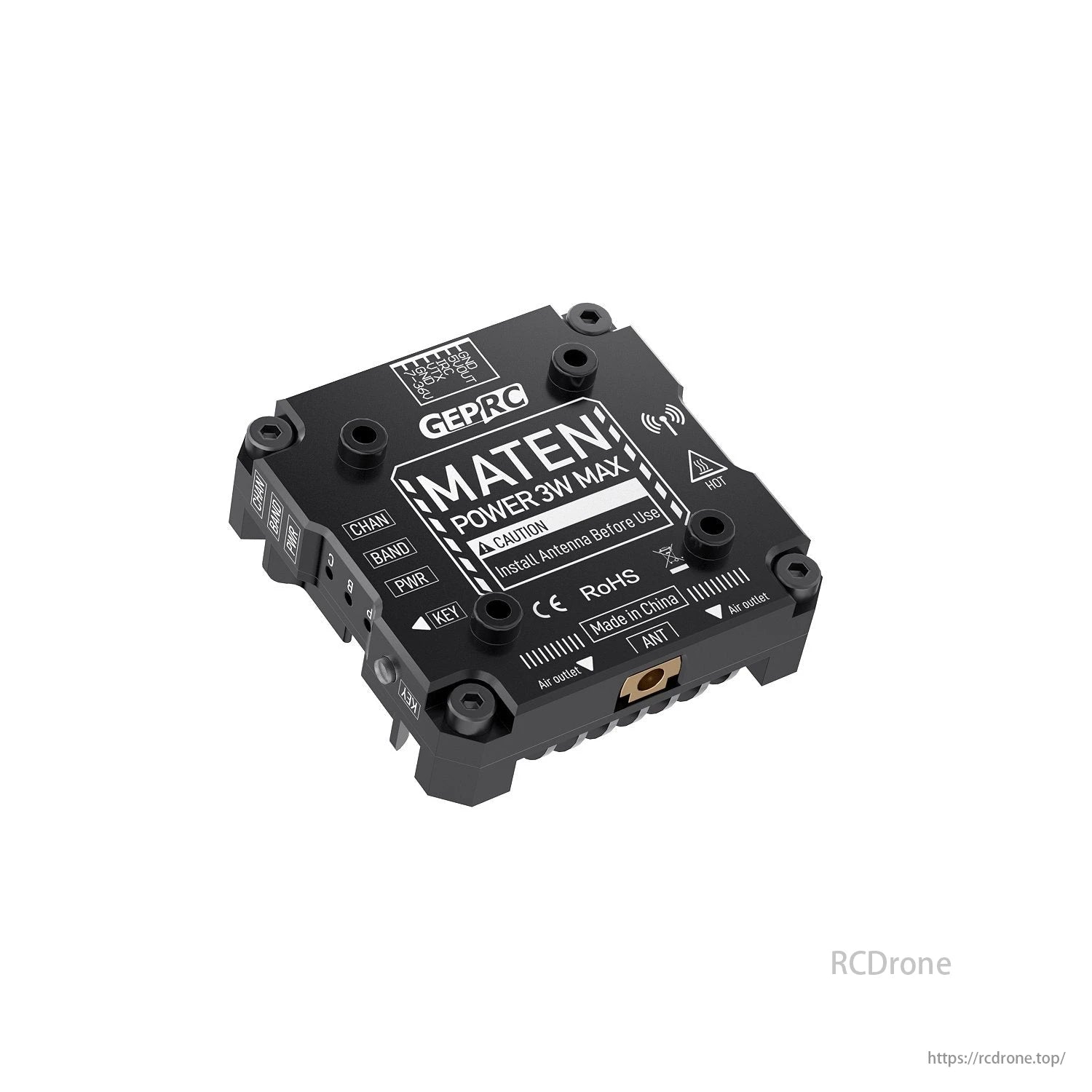

GEPRC MATEN 5.8G 3W VTX, dual-core design, power max 3W, caution for antenna installation before use, made in China, RoHS compliant.

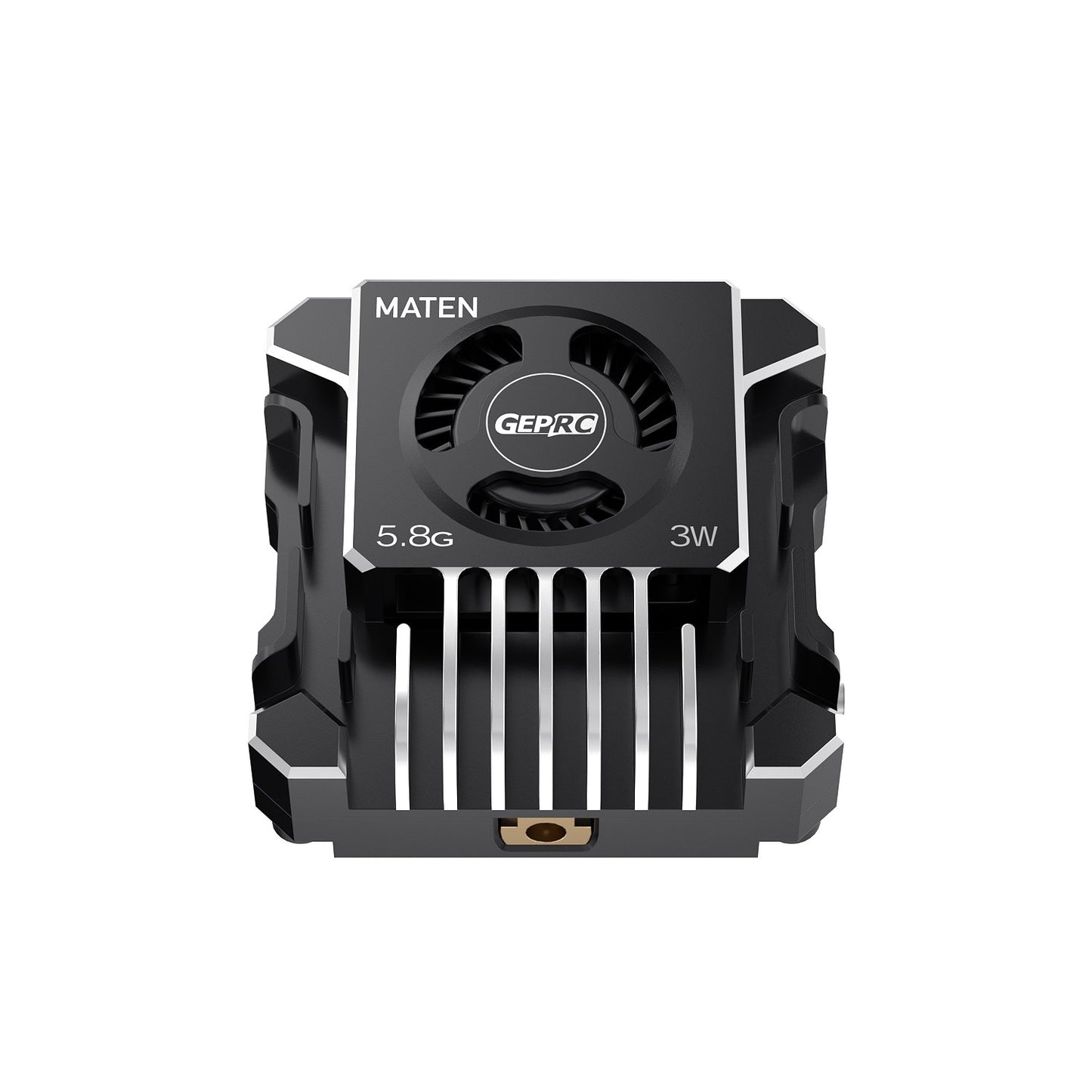

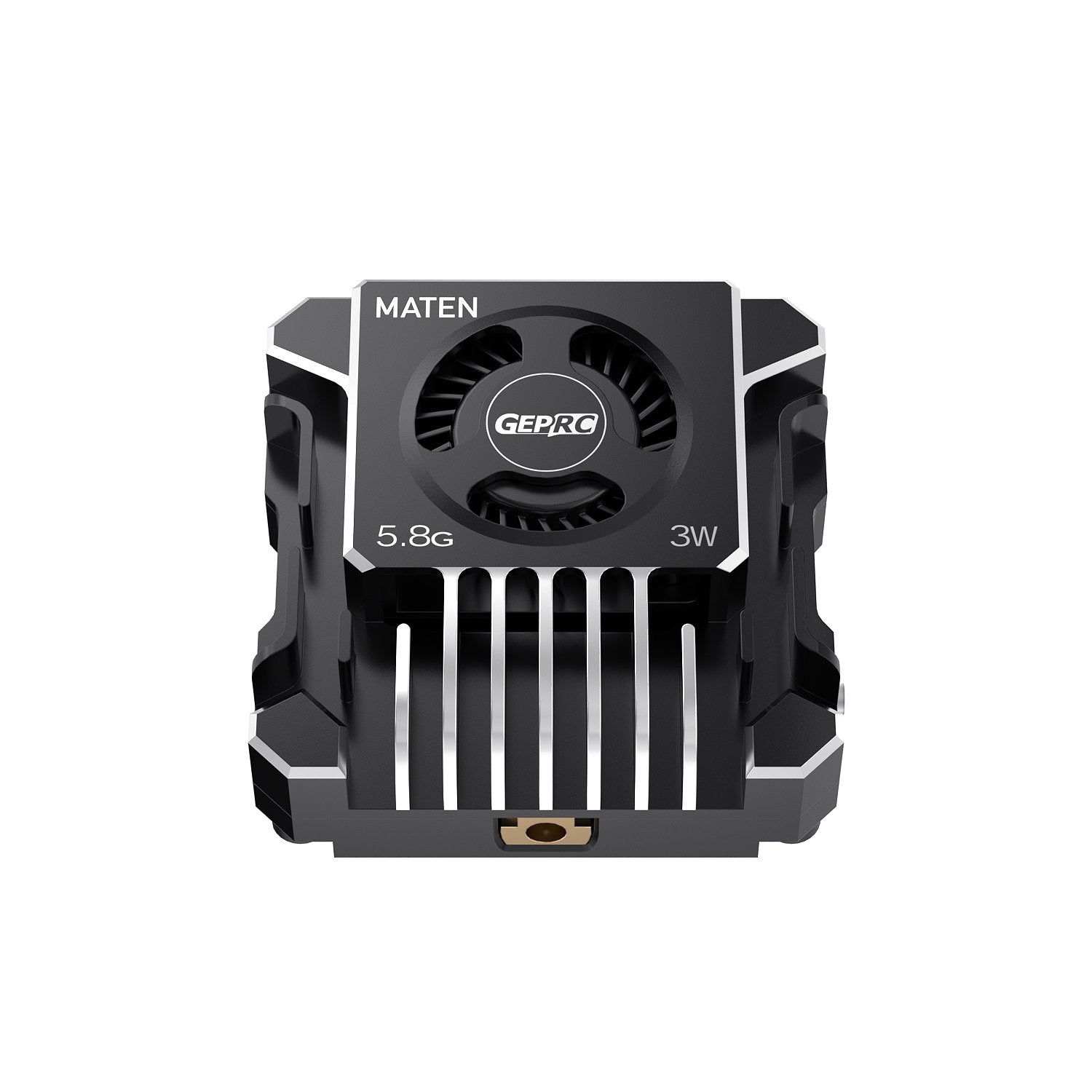

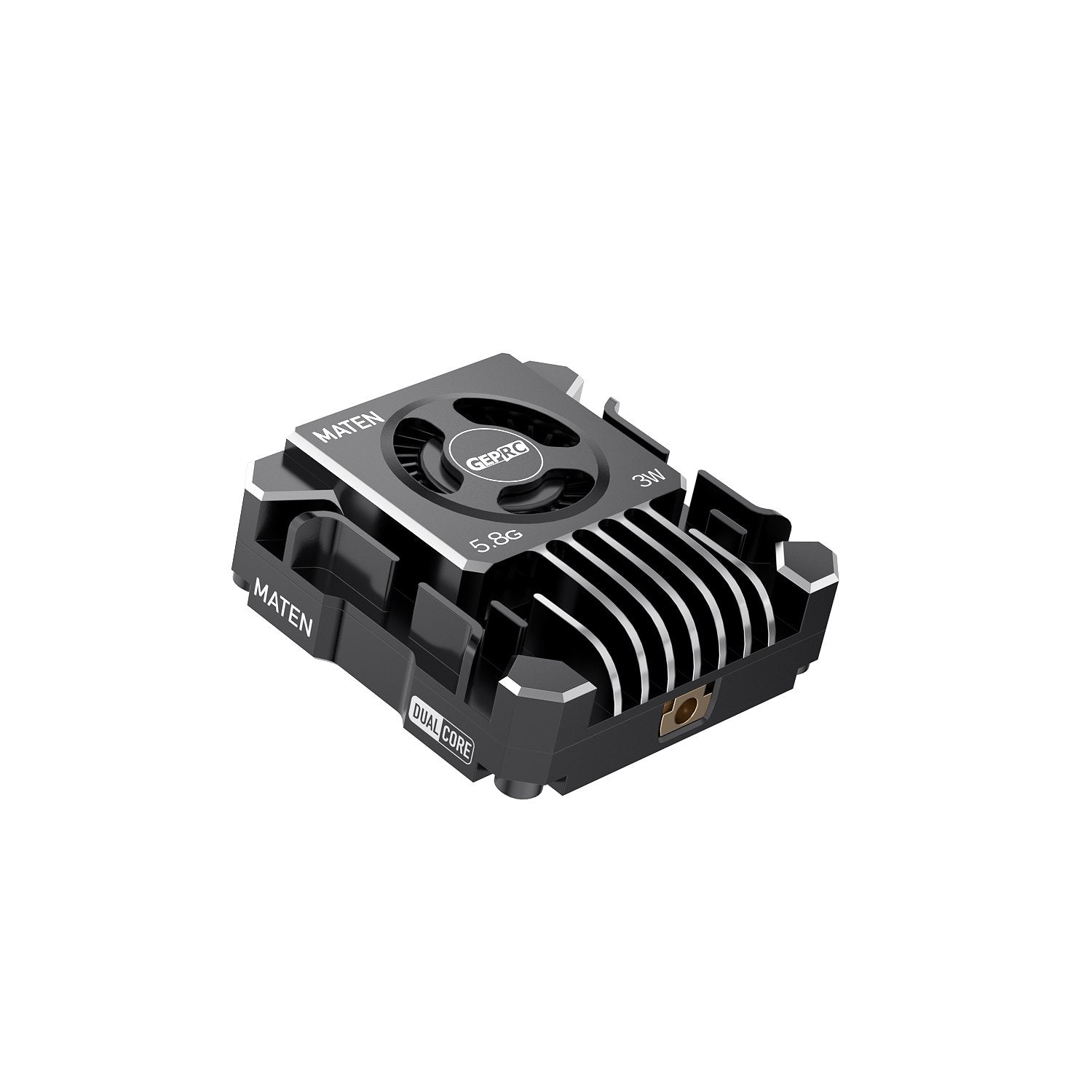

GEPRC MATEN 5.8G 3W VTX, black design with cooling fan, power max 3W, caution for antenna installation before use.

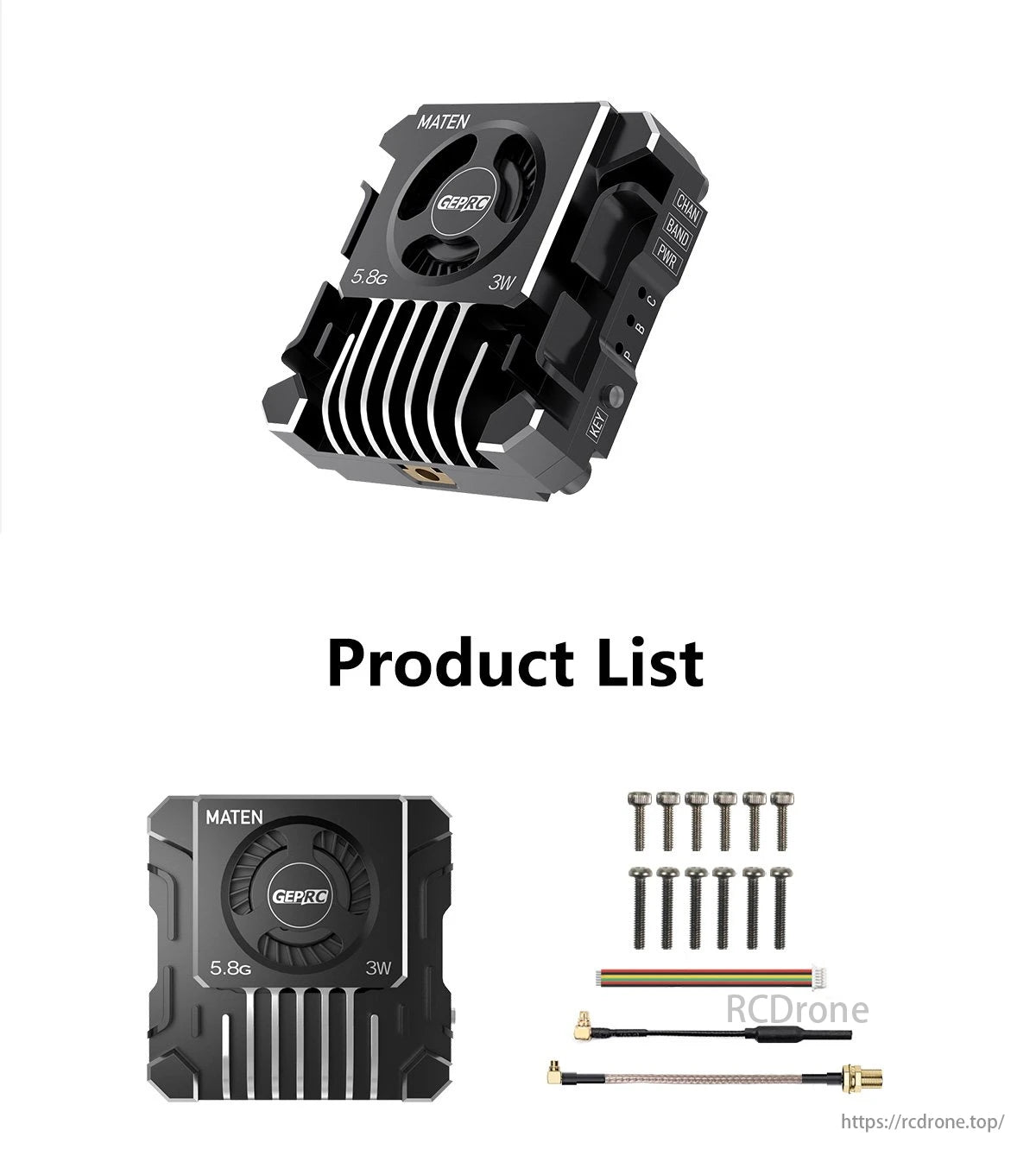

Awaken with MATEN 5.8G and 3W product list, a perfect blend of technology and innovative design.
