Summary

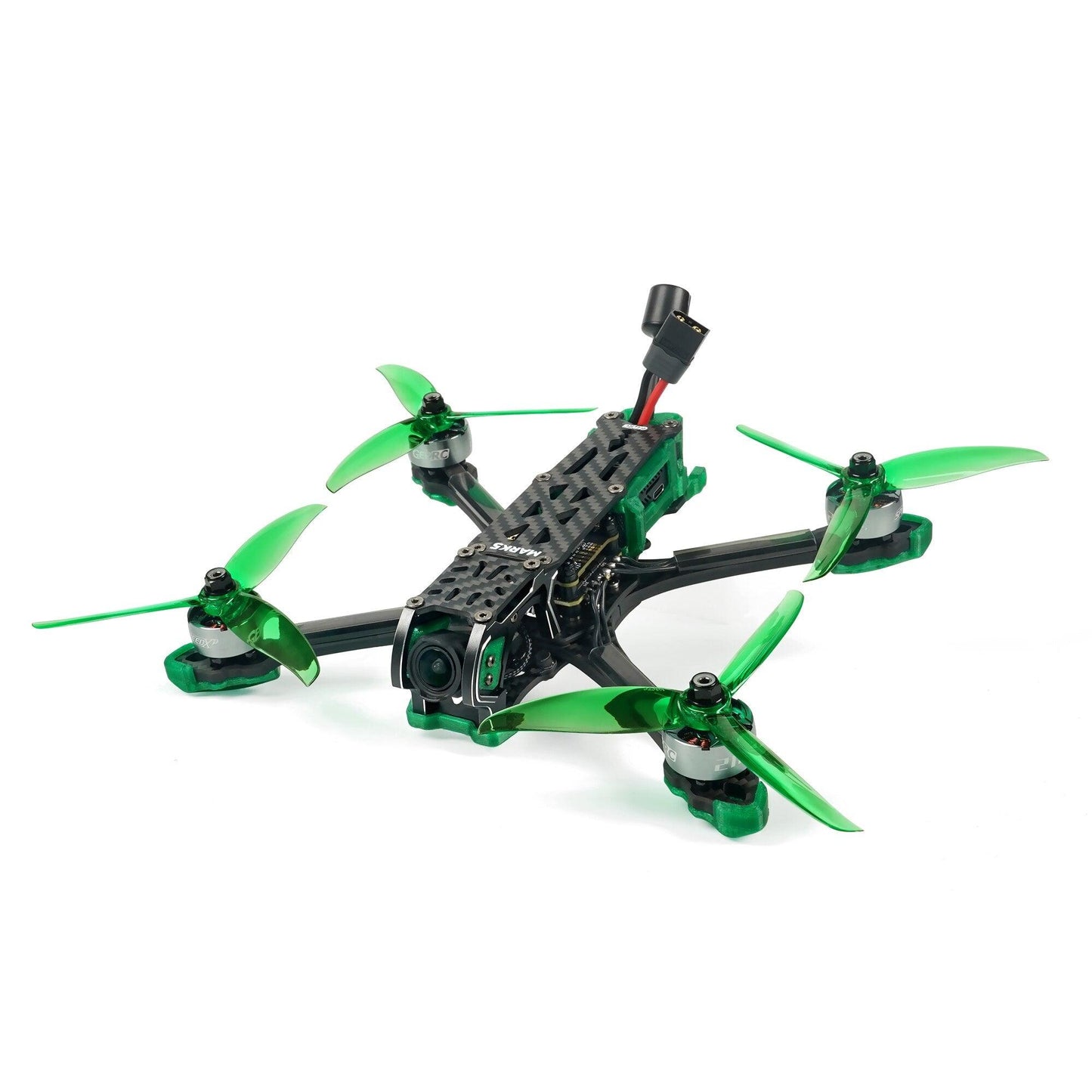

The HD VTX ushered in a new upgrade, and the brand new VTX of O3 air unit pushed the digital system to a new level. The GEPRC team is also upgrading and optimizing the overall performance based on MARK5. At the same time, it will be equipped with O3 air unit to design the new MARK5 O3 version.

The newly upgraded camera aluminum alloy side plate, 7075-T6 aluminum alloy is strong and durable. It can be fully adapted to new O3 air unit camera, with a field of view (FOV) of 155°, and the recording specification can support up to 4K 60FPS. We also specially designed TPU fixing parts for the O3 VTX module, and equipped with air inlet cooling port, which is conducive to adequate heat dissipation at the air unit. MARK5 O3 uses GEPRC's latest SPAN F722-BT-HD V2 stack, with ICM 42688P gyroscope for smooth flight, redundant performance and ports, and supports Bluetooth wireless connection for tuning. The SPAN BLHeli_32 50A ESC with GEPRC 2107.5 motor, and uses new Gemfan 5136 propellers, which has strong power. MARK5 O3 is shipped with two different camera mounts, which can be mounted with a full range of GoPro action cameras, as well as Naked GoPro 8/10, Insta 360 GO2 and Caddx Peanut, etc. to record beautiful moments for your flight.

This time, MARK5 O3 will broaden your horizons, fly beyond what you have ever seen, and bring more possibilities for FPV creation.

Features

1. Upgraded lens aluminum alloy side plate, durable and more visual impact

2. Built-in Bluetooth, supports mobile phone wireless connection for parameter tuning

3. Developed specifically for freestyle with a squashed X arm design.

4. The HD version uses new O3 VTX, clear image, stable signal, low-latency, long-distance, and supports up to 4K/60fps recording

5. SPAN G50A BLHeli_32 4in1 50A ESC with the latest GEPRC 2107.5 motor, with strong power, fast response speed, precise throttle control, and smooth flight experience

6. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment

7. With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter

8. Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of GoPro cameras, as well as Naked GoPro 8, Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear

9. Add coral orange and emerald green colors to the O3 version to add more colors to your flight

10. MARK5 O3 is optimized for freestyle, with a smoother flight experience

Specifications

• Model: MARK5 HD O3 Quadcopter

• Brand: GEPRC

• Frame: GEP-MK5

• Wheelbase: 225mm

• Top plate: 2.5mm

• Bottom plate: 2.5mm

• Arm plate: 5mm

• FC system: SPAN F722-BT-HD V2

• MCU: STM32F722

• Gyro: 42688-P(SPI)

• OSD: BetaFlight OSD w/AT7456E chip

• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC

• VTX: O3 Air Unit

• Camera: O3

• Propeller: Gemfan 5136

• Antenna:  O3 antenna

• Motor: SPEEDX2 2107.5-1960KV (6S Version) / SPEEDX2 2107.5-2450KV(4S Version)

• Weight: 404.9g (MARK5 HD O3 including 3D printed parts)

• Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS 2.4G

• Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S Version) / LiPo 6S 1050mAh-1550mAh(6S Version)


Includes

1 x MARK5 HD O3 Quadcopter

4 x Gemfan 5136 propellers (pair)

1 x Battery strap M15x250mm

2 x Battery strap M20x220mm

2 x Battery Silicone Pads

1 x 3D printed parts

1 x Action cam mount holder

1 x Set of screws

1 x Set of screwdrivers

1 x Antenna fixed tube

GEPRC MARK503 4K Ultra-wide Viewing Angle; Take You Into Immersive Flight SpE 4K OoOO 60fps Aluminum Great Mount Bluetooth 03 Air Unit Maximum alloy side plates

Redefined Frame Design: The entire drone is fully compatible with DJI O3 Air Unit, featuring a 38mm x 62cm x 17.5cm design with an O51 configuration, suitable for MARK5 HD O3 Freestyle FPV drone applications.

The entire drone is fully compatible with DJI O3 Air Unit, featuring high-strength aluminum components that effectively protect the FPV camera and ensure efficient performance through GEP RC's EDXY technology.

Colors: Available in two vibrant options - Emerald Green and Coral Orange - allowing you to add a pop of color to your flight experiences.

Enjoy low latency and extended range with electronic stabilization, supporting up to 4K resolution at 60fps for high-quality recording. The DJI O3 Air Unit is a cutting-edge digital image transmission system designed for high-end performance.

Featuring a full 3K carbon fiber fuselage, the drone boasts a smooth, precision-cut and chamfered design that combines light weight with exceptional strength. Measuring 17.3 x 11.8 cm in size.

The drone features a BLHeli 32 50A ESC with F722-BT-HD flight controller, powered by an MG996R motor, utilizing ARM Cortex-M8 processor technology. The system includes STM32F722 microcontroller, 3-axis accelerometer, and 2-axis gyroscope. Additionally, the FC supports wireless connectivity for convenient and quick adjustment of parameters, offering full functionality and performance.

The SPEED X2 2107.5 motor offers a lightweight yet powerful design with excellent heat dissipation, providing precise control and smooth flight performance.

Conveniently tune parameters wirelessly using your mobile phone via Bluetooth connectivity. This allows for seamless setup and disconnection, with no need to worry about complex configuration or re-connection issues.

The drone is compatible with various mounting platforms, including GoPro Hero9/10, and can also be mounted with naked GoPro Hero8/10 cameras.

The DJI O3 Air Unit specifications for the MARKS 03 model are as follows: antenna length is 176mm, wheelbase measures 225mm, and features SPEED X2 2107.5-1960KV motors (compatible with 6S battery version).
