GEPRC Racer FPV Racing Drone SPECIFICATIONS
Brand Name: GEPRC
Remote Distance: 2500 meters
Remote Control: Yes
Package Includes: Original Box
Package Includes: Operating Instructions
Package Includes: Camera
Video Capture Resolution: 1080p FHD
Video Capture Resolution: 2K QHD
Video Capture Resolution: 4K UHD
Controller Battery: Not include
Aerial Photography: Yes
Control Channels: 8 Channels
Material: Metal
Material: Plastic
Material: Carbon Fiber
Origin: Mainland China
Controller Mode: MODE1
Controller Mode: MODE2
Recommend Age: 14+y
Dimensions: 5 inch
Motor: Brushless Motor
Plugs Type: XT60
Type: HELICOPTER
State of Assembly: Ready-to-Go
Features: App-Controlled
Features: FPV Capable
Features: Integrated Camera
Features: Other
Indoor/Outdoor Use: Indoor-Outdoor
Charging Voltage: 14.8V
Charging Time: 30 minutes
Camera Mount Type: Fixed Camera Mount
Camera Mount Type: Other
Warning: Minors please use under the supervision of an adult
Model Number: GEPRC Racer FPV Racing
Power Source: Electric
Operator Skill Level: Beginner
Operator Skill Level: Intermediate
Operator Skill Level: Expert
Summary
When the conventional FPV drone cannot satisfy the pursuit of speed in the FPV racing arena, you need a racing FPV specially designed for the competition. The GEPRC Racer was thus born.
The main structure of Racer is constructed with 7075-T6 aviation aluminum alloy splint combined with high-grade T700 carbon plate, the overall structure is light and stable. The flight system uses GEPRC's new TAKER F722 E55A stack with two motor versions: GEPRC SPEEDX2 2207 2050KV and TMOTOR F60PROV 2020KV professional racing motor. The overall performance has strong explosive power.
The Racer has been carefully designed by the GEPRC team, and the flying feel and response speed have reached the best state.
Feature
1. GEPRC SPEEDX2 2207 2050KV/TMOTOR F60PROV 2020KV two professional racing motor versions are optional.
2. The flight performance responds quickly, and the hand feels light and fast.
3. Made of high hardness T700 carbon fiber board material.
4. Design the anti-turtle shark fin support.
5. The quick-release design of the machine arm is convenient for the maintenance of the fryer.
6. Use GEPRC's new TAKER F722 E55A high-performance stack.
7. Choose MPU6000 gyro.
Specifications
GEPRC SPEEDX2 2207 motor version
-
Model: Racer FPV
-
Frame: GEP-Racer Frame
-
Wheelbase: 208mm
-
Top plate: 2mm
-
Bottom plate: 2mm
-
Arm plate: 5mm
-
Aluminum splint plate color: black with red
-
FC: TAKER F722 SE
-
ESC: TAKER E55A 32Bit 4IN1
-
MCU: STM32F722RET6
-
Gyro: MPU6000
-
OSD: AT7456E
-
VTX: GEPRC RAD Tiny 5.8G 400mW
-
Camera: Runcam Nano4
-
Antenna: Peano 5.8G RHCP UFL
-
Motor: SPEEDX2 2207 2050KV
-
Propeller: Gemfan 51466 x3
-
Weight: 279g ± 5g
-
Receiver: PNP/ TBS NanoRX / GEPRC ELRS 2.4G
-
Recommended battery: Lipo 6S 1300-1500mah
TMOTOR F60PROV motor version
-
Model: Racer FPV
-
Frame: GEP-Racer Frame
-
Wheelbase: 208mm
-
Top plate: 2mm
-
Bottom plate: 2mm
-
Arm plate: 5mm
-
Aluminum splint plate color: Black with Titanium
-
FC: TAKER F722 SE
-
ESC: TAKER E55A 32Bit 4IN1
-
MCU: STM32F722RET6
-
Gyro: MPU6000
-
OSD: AT7456E
-
VTX: GEPRC RAD Tiny 5.8G 400mW
-
Camera: Runcam Nano4
-
Antenna: Peano 5.8G RHCP UFL
-
Motor: F60PROV 2020KV
-
Propeller: Gemfan 51466 x3
-
Weight: 281g ± 5g
-
Receiver: PNP/ TBS NanoRX / GEPRC ELRS 2.4G
-
Recommended battery: Lipo 6S 1300-1500mah

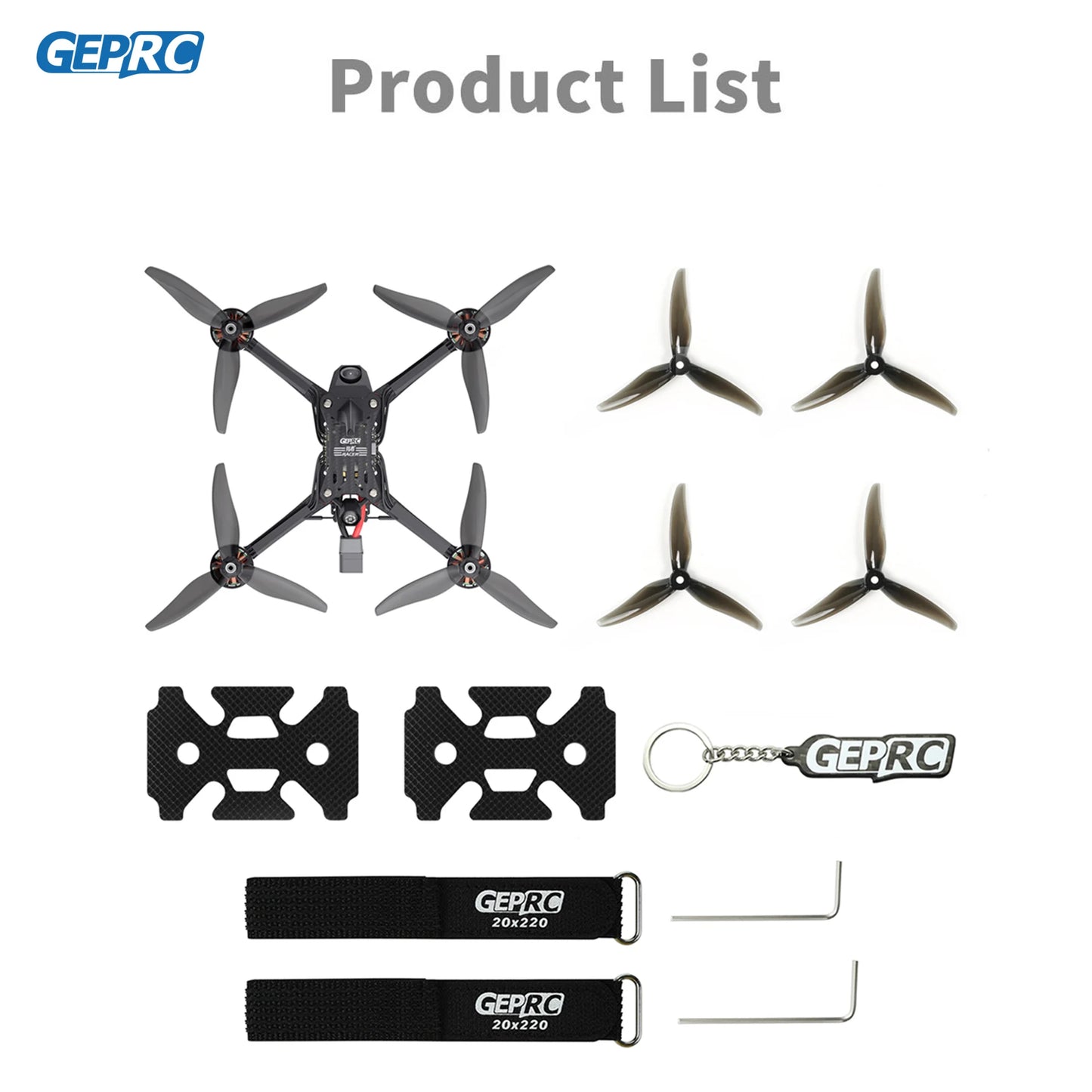

Includes
1 x RACER FPV
2 x Gemfan 51466 propellers(pair)
2 x M20*250mm battery tie
2 x Battery anti-skid pads
1 x Spare screw bag
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x M8 wrench
'F6OPROV TAKER F722 ESSA MPUGOOOGyro MOTOR SE STACK 40Omw Aviation-grade 7-series Strong flight power RAD 5.8G 40omW VTX aluminum alloy reinforcement Tiny flight power Tiny aircraft-grade VT

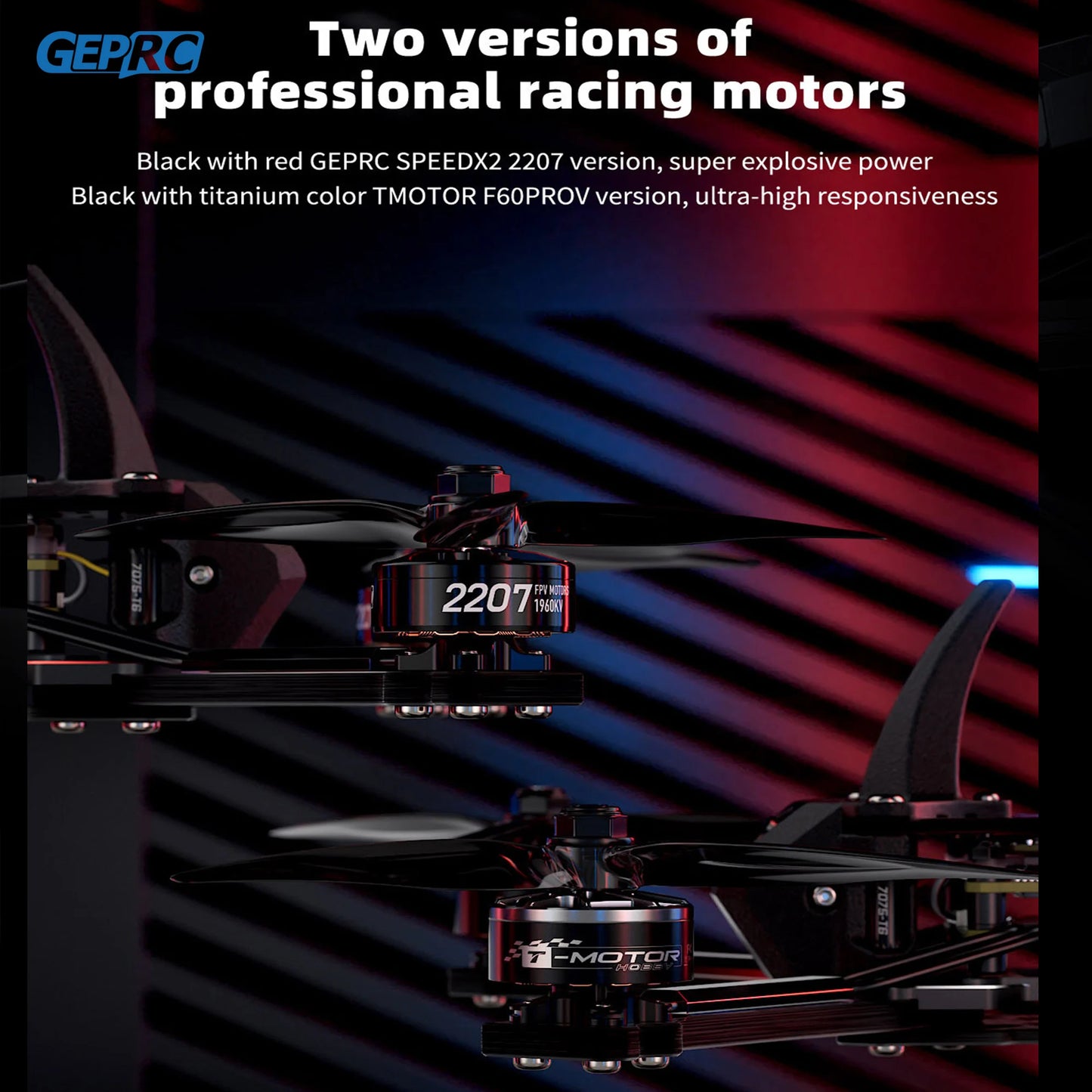

This drone kit features two professional racing motor options: the SPEEDX2 2207 version with black and red color scheme, offering explosive power; or the TMOTOR F60PROV version with titanium color, providing ultra-high responsiveness.
This drone features a high-performance TAKER F722 ESSA Stack with a 25.5mm x 25.5mm pitch, offering a new stack solution. It also boasts an MPU6000 gyro and a metal package with 55A MOS tube technology, resulting in improved heat dissipation performance.
The GEPRC team has elaborately designed this drone, ensuring that every flight is performed with high proficiency.
The drone features an arm with a quick-release design, allowing for easy removal by simply unscrewing one fastener, making maintenance a breeze.
This drone features an aviation-grade 7075 aluminum alloy frame, which increases overall strength by 30%. It's available in two versions: one with a black and red finish, and another with a titanium finish.
This drone kit includes the following components: GEPRC SPEEDX2 2207 motors, TMOTOR F60PROV motor, Gemfan 51466 propellers (3-piece set), and recommends using a LiPo battery with a capacity of 6S 1300mAh-1500mAh. The drone has a wheelbase of 208mm, weighs +5g (+281g +1sg) or +Tg (+279g), depending on the build.
