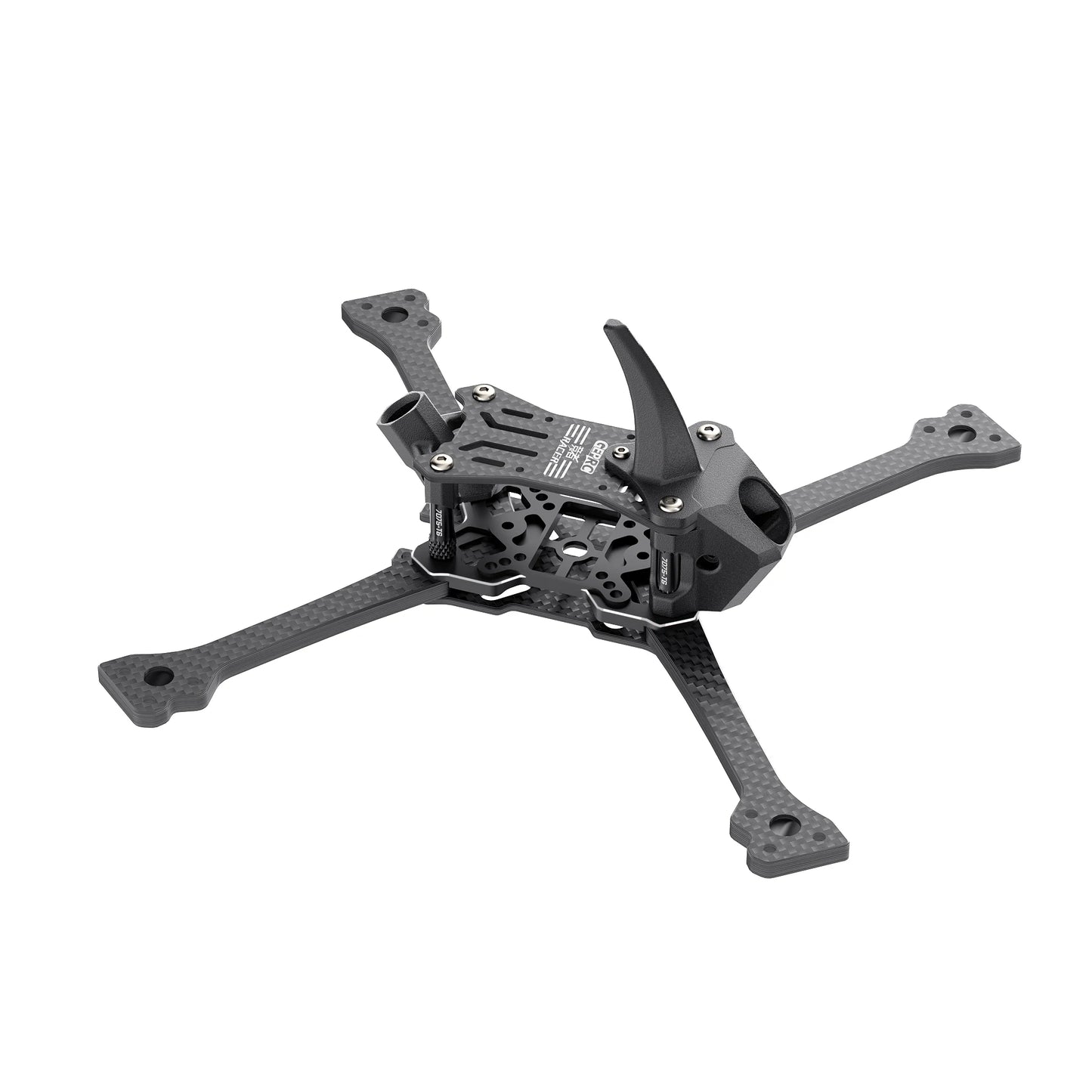

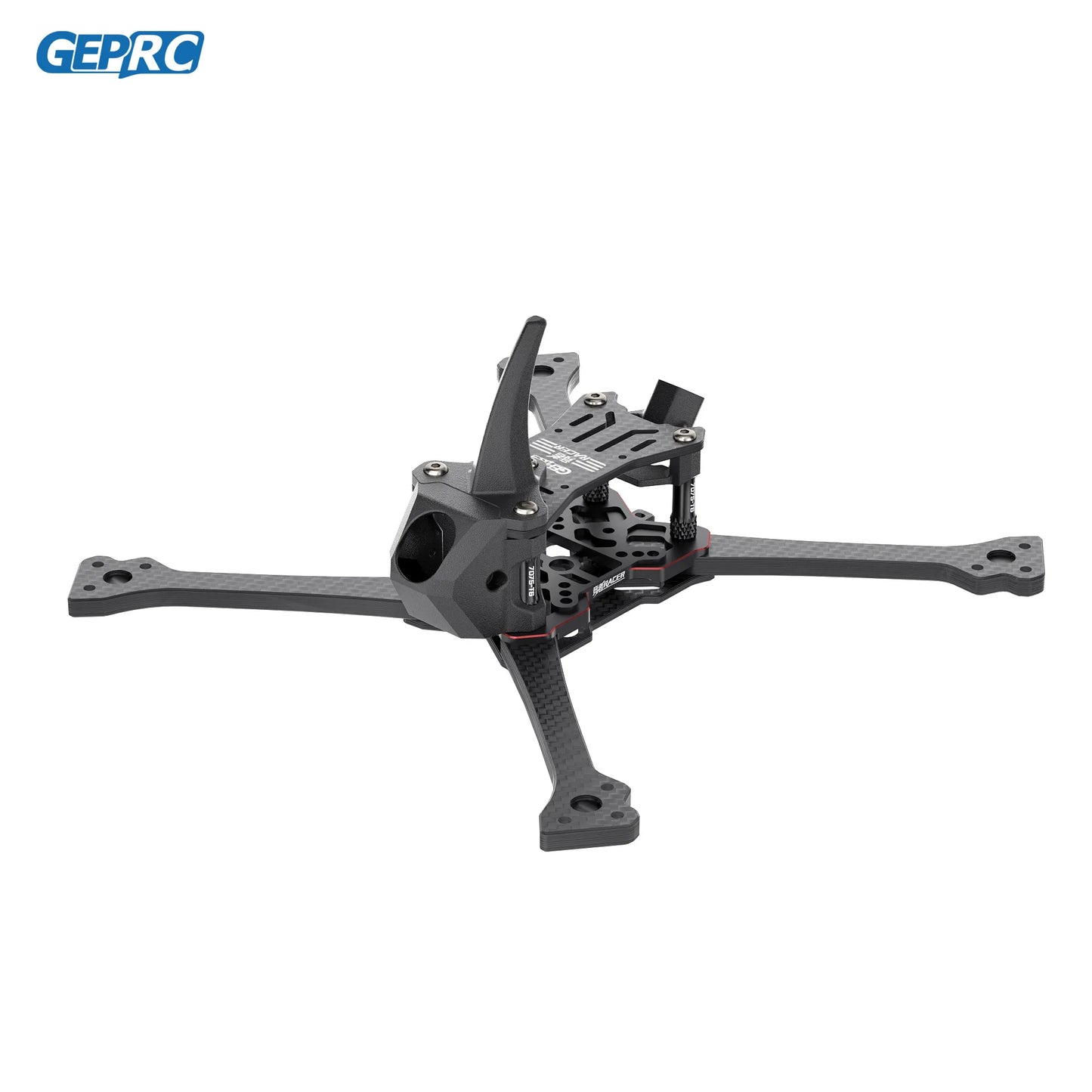

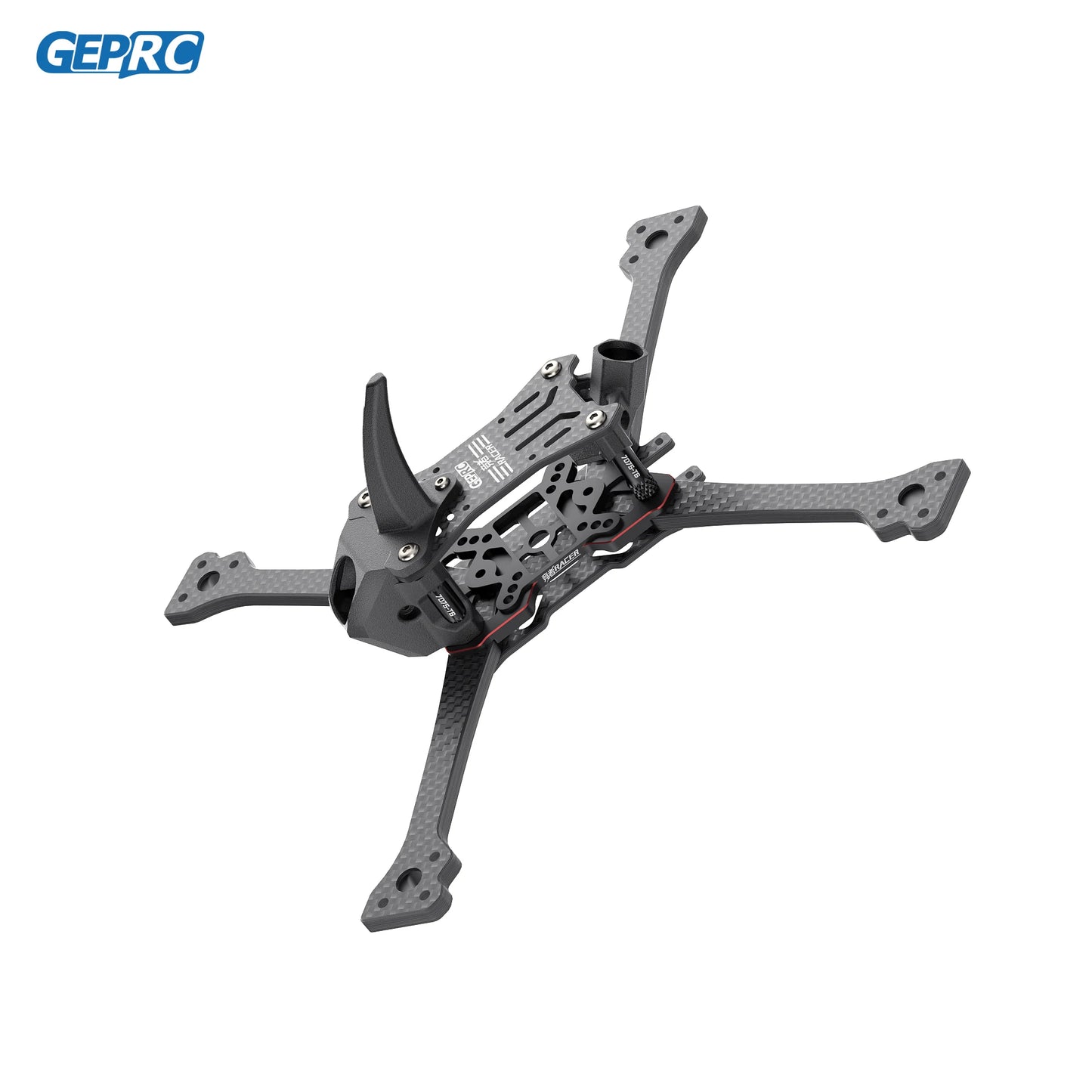

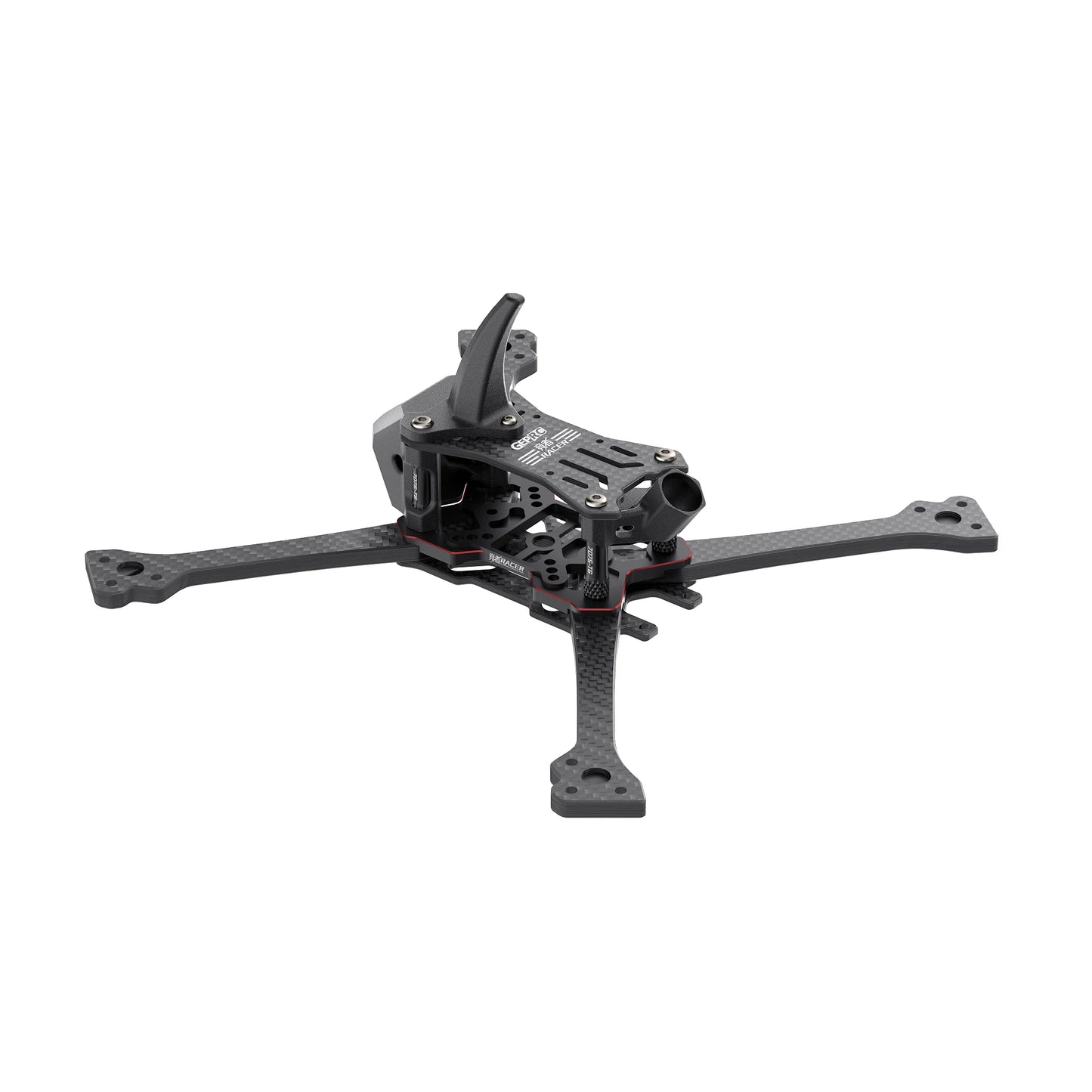

GEPRC Racer Frame Parts - Racing Frame 3D Shark Fin 7075 Aviation Aluminum Alloy Splint FPV Quadcopter DIY RC for Drone

GEPRC Racer Frame Parts - Racing Frame 3D Shark Fin 7075 Aviation Aluminum Alloy Splint FPV Quadcopter DIY RC for Drone

GEPRC

Regular price $60.85 USD
Regular price $79.10 USD Sale price $60.85 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

260 orders in last 30 days

Color
Ships From

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

GEPRC Racer Frame Parts SPECIFICATIONS

Brand Name: GEPRC

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Engines

For Vehicle Type: Helicopters

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Car Shell Column

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembly Category

Quantity: 1 pcs

Model Number: GEP-Racer Frame

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws



Summary

When the conventional FPV drone cannot satisfy the pursuit of speed in the FPV racing arena, you need a racing frame specially designed for the competition. The GEPRC Racer was thus born.

The Racer frame combines the 7075-T6 aviation aluminum alloy splint and the high-grade T700 carbon plate CNC processing, and the overall structure is solid. 20*20mm/25.5*25.5mm/30.5*30.5mm flight controller can be installed, and the motor mounting hole is 16*16mm.

Feature

1. High-strength 7075 aviation aluminum alloy splint
2. T700 carbon fiber plate material
3. Design shark fin support,easy to flip over after crash.
4. Quick-release design of the arm is convenient for maintenance.
5. 25.5mm*25.5mm M3 screw FC hole,matching the newest GEPRC 25.5MM stack.
6. Compatible with HDZero VTX

Specification:

  • Model: RACER FPV Frame

  • Frame: GEP-RACER Frame

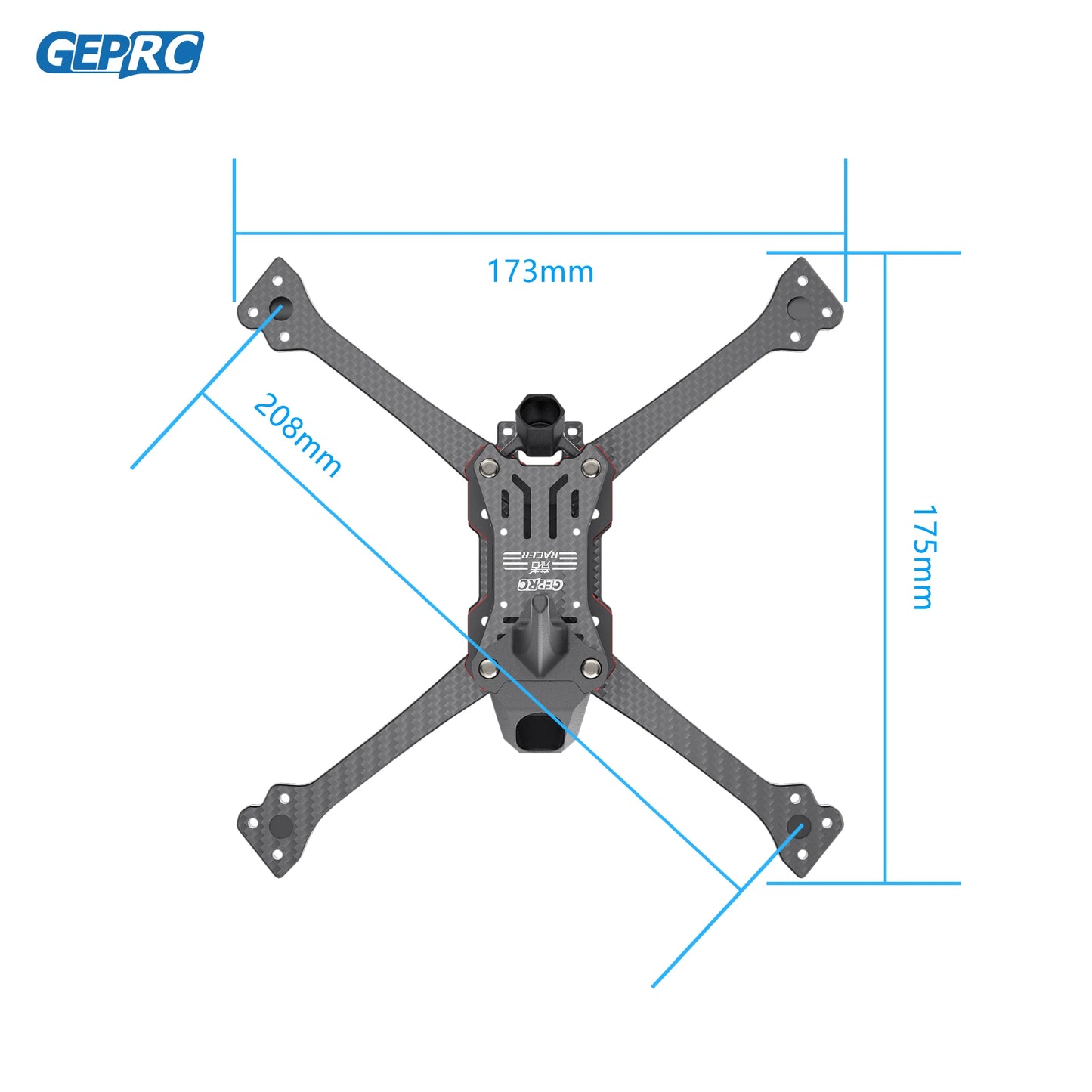

  • Dimensions: 175mm×173mm

  • Wheelbase: 208mm

  • Top plate: 2.0mm

  • Aluminum plate: 2.0mm

  • Bottom plate: 2.0mm

  • Arm thickness: 5.0mm

  • Aluminum column size: M3*6*24mm

  • FC mounting hole: 30.5mm*30.5mm/25.5mm*25.5mm/20mm*20mm

  • VTX mounting hole: 20mm*20mm

  • Motor mounting hole: 16mm*16mm

  • Camera installation space: 14mm

  • Propeller: 5 inches

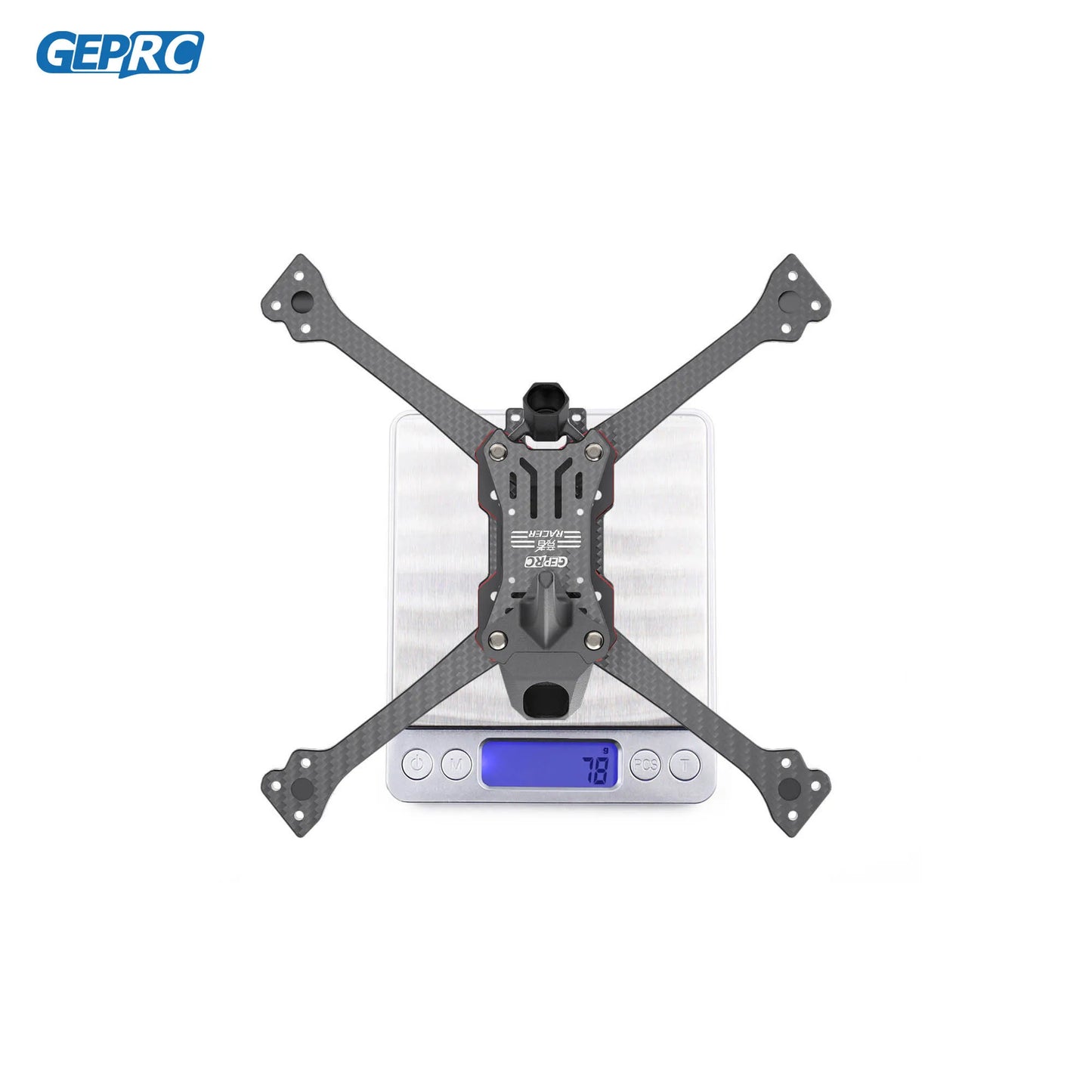

  • Weight: 78g±2g

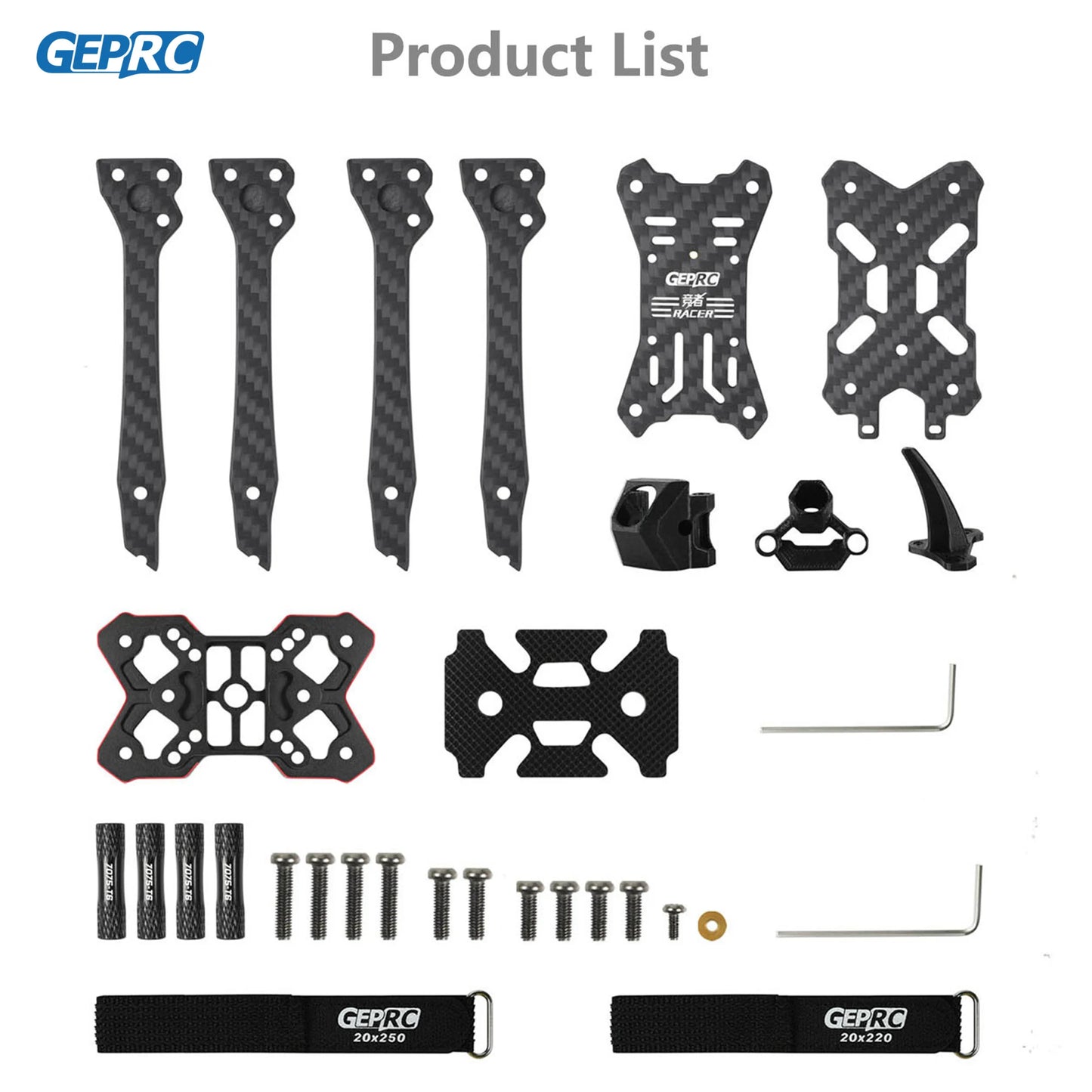

Includes

1 x Top plate
1 x Bottom plate
1 x Aluminum plate
1 x Camera mount
1 x VTX antenna mount
1 x Shark fin print
4 x M3*6*24mm aluminum column
2 x 20*250mm battery cable ties
2 x Battery anti-skid pads
1 x Screw pack
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
