SPECIFICATIONS
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 1080p FHD
Type: HELICOPTER
State of Assembly: Ready-to-Go
Remote Distance: 2000 meters
Remote Control: Yes
Recommend Age: 12+y
Power Source: Electric
Plugs Type: XT30
Package Includes: Camera
Package Includes: Operating Instructions
Package Includes: Original Box
Origin: Mainland China
Operator Skill Level: Beginner
Operator Skill Level: Intermediate
Operator Skill Level: Expert
Motor: Brushless Motor
Model Number: SKIP-HD-2.5
Material: Metal
Material: Carbon Fiber
Material: Plastic
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5 minutes
Features: FPV Capable
Features: Other
Features: App-Controlled
Dimensions: 2.5 inch
Controller Mode: MODE1
Controller Mode: MODE2
Control Channels: 8 Channels
Charging Time: 20 minutes
Certification: CE
Camera Mount Type: Other
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: GEPRC
Barcode: Yes
Aerial Photography: Yes

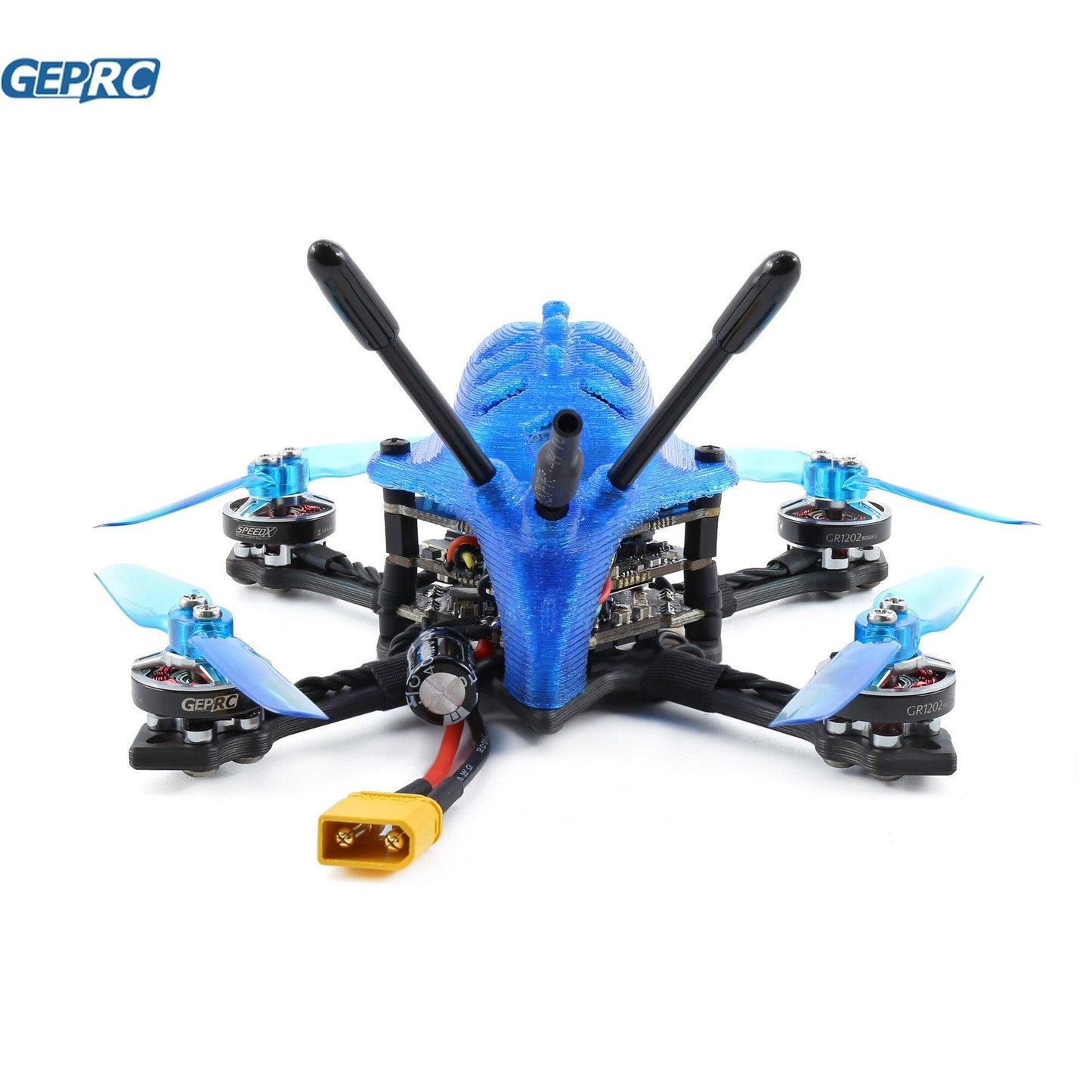

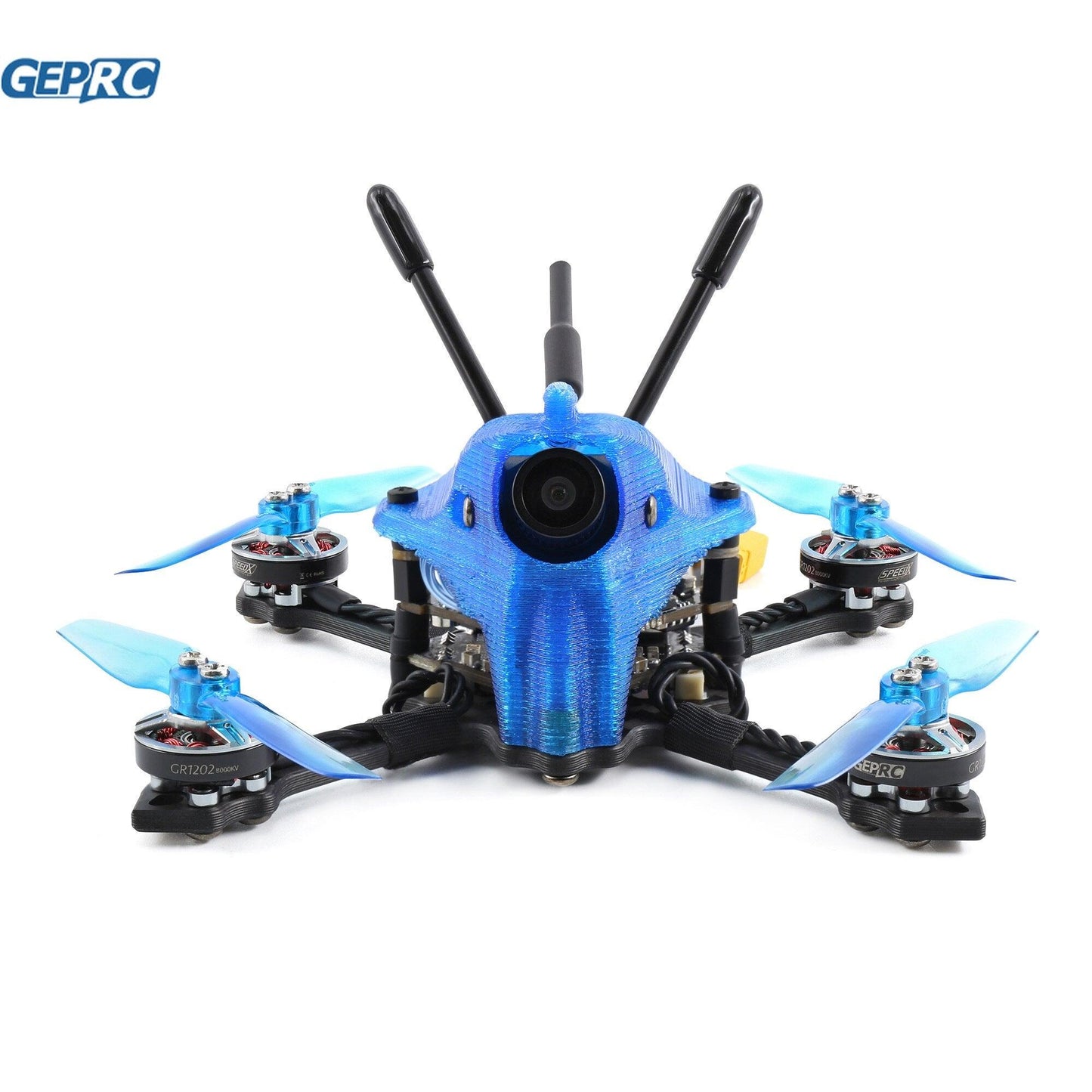

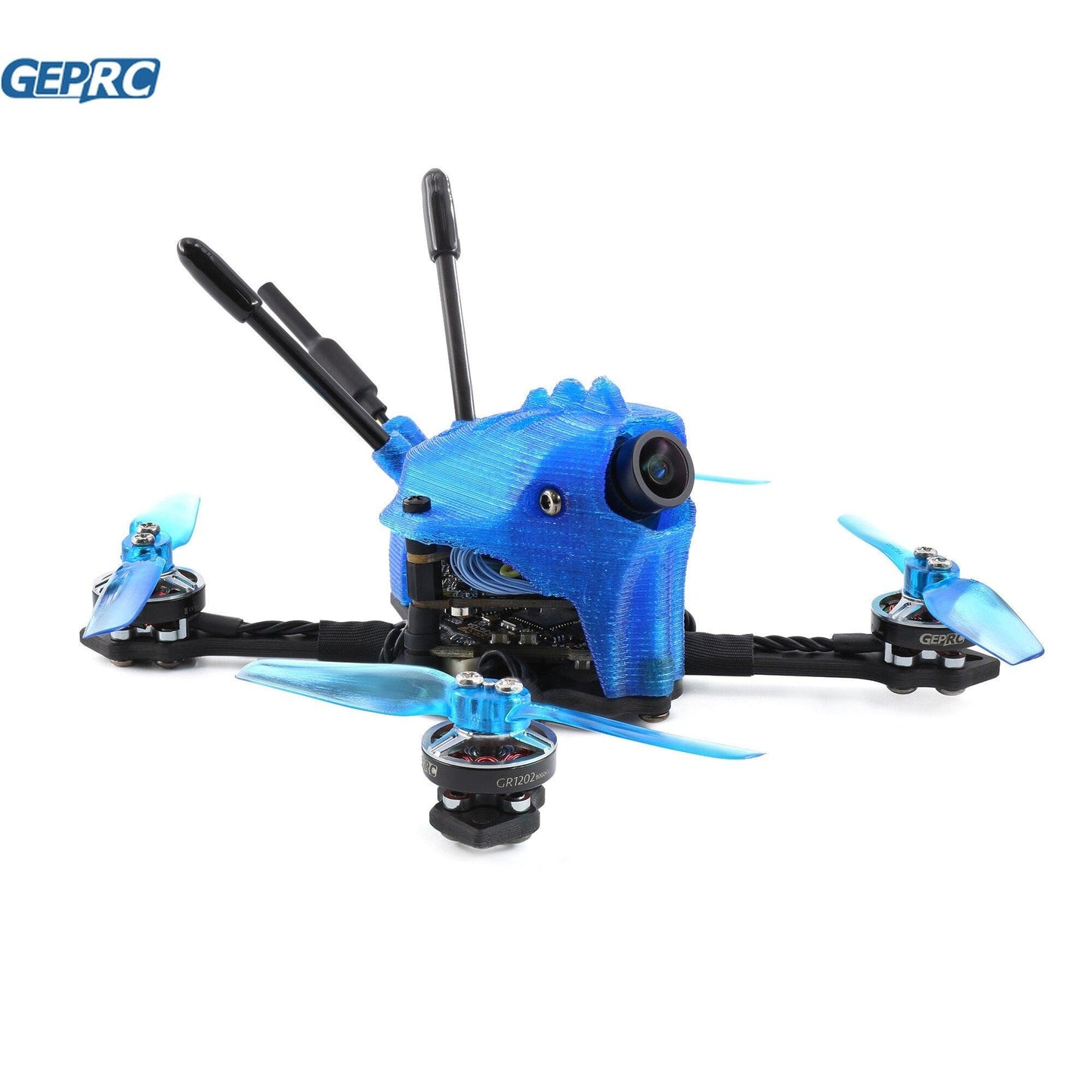

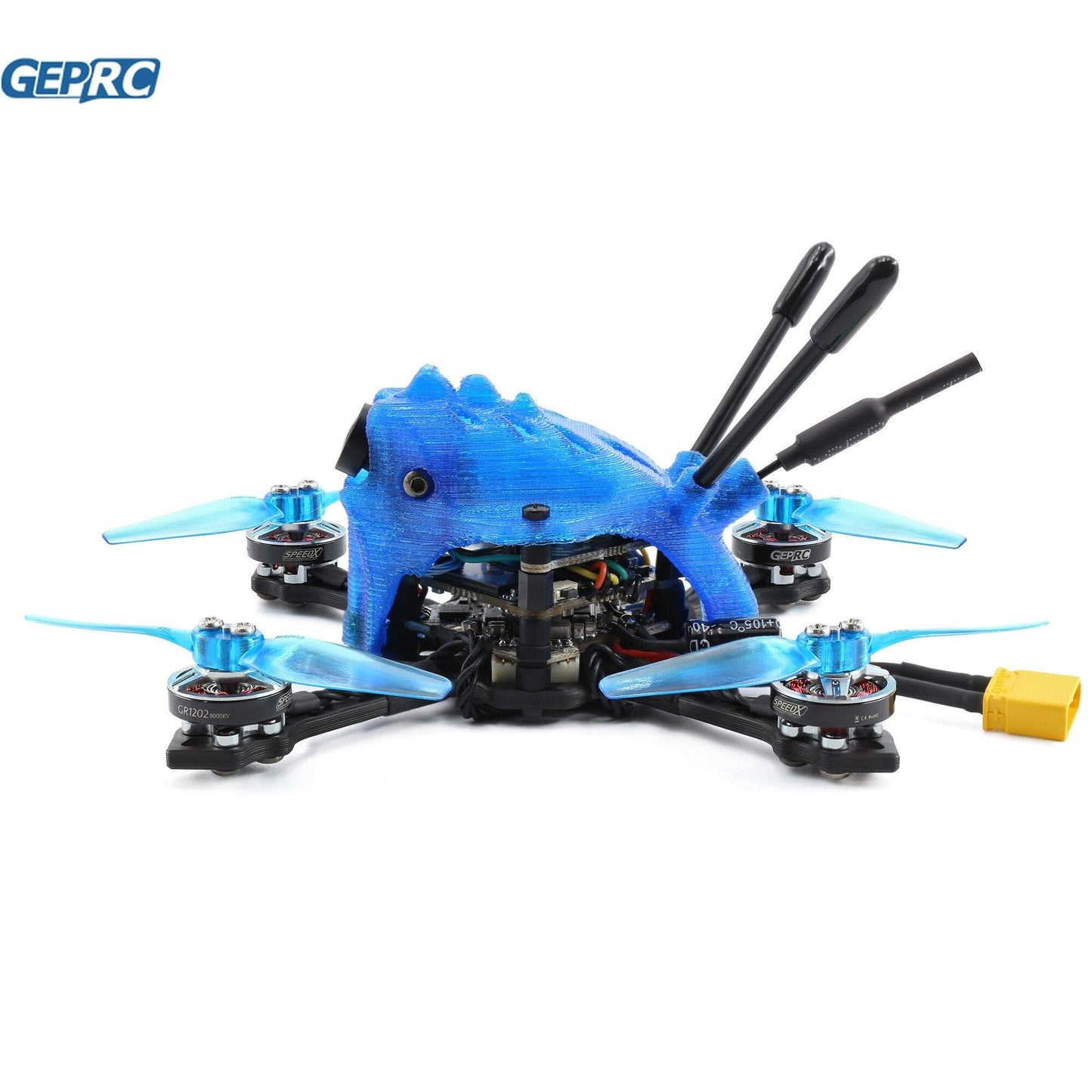

Name: SKIP HD 2.5″
FC & ESC:GEP-12A-F4
ESC:12A(BLheli_S)
Frame:GEP-SP2.5
Bottom plate thickness: 2.5mm
Motor: GEPRC GEP-GR1202 8000KV(3S 450mAh)
Wheelbase: 105mm
Propeller: 2.5inch
VTX:5.8g 200mW
Camera: RunCam Split 3 Nano / Caddx baby turtle V2
Weight: 63g (without battery)
Battery 450mAh 3S battery (No inclueded)
Flight time: Almost 5mins in a smooth flight
Specifications(RunCam Split 3 Nano):
Field of View (FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3)
Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps
TV Mode:NTSC (720*480)/PAL (720*576) Switchable
Runcam Splite 3 Nano:
Manual
Specifications(Caddx baby turtle V2):
Image sensor:1/2.7Inch Cmos sensor
Recording: 1080P/60fps,1080P/60fps
Lens:108mm lens
FPV FOV/Recording FOV: 170
TV System: NTSC/PAL changeable with OSD
GEP-12A-F4 System:
MCU: STM32F411
Gyro: 6-Axis
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@2A
Mounting holes: 25.5mm*25.5mm
Input voltage 2-4S LIPO
FC Firmware target: MATEKF411
Continuous current: 12A
ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
ESC Firmware target: Blheli_S G_H_30
Current meter: 210
VTX 5.8G 200mW
Power : PIT/25/100/200mW
Antenna interface : IPEX (UFL)
Telemetry: IRC Tramp
Integrated LC Filter
Include:
-1 x SKIP HD ToothPick Drone
