GEPRC SMART Toothpick SPECIFICATIONS
Warranty: 3 months
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 1080p FHD
Type: HELICOPTER
State of Assembly: Almost Ready
Remote Distance: 800 meters
Remote Control: Yes
Recommend Age: 12+y
Power Source: Electric
Plugs Type: XT60
Package Includes: Camera
Package Includes: Operating Instructions
Package Includes: Original Box
Origin: Mainland China
Operator Skill Level: Intermediate
Operator Skill Level: Beginner
Operator Skill Level: Expert
Motor: Brushless Motor
Model Number: PHANTOM Toothpick Freestyle BNF/PNP
Material: Plastic
Material: Carbon Fiber
Material: Metal
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 8-15 minutes
Features: App-Controlled
Dimensions: 2.5 inch
Controller Mode: MODE1
Controller Mode: MODE2
Control Channels: 8 Channels
Charging Time: 40 minutes
Brand Name: GEPRC
Aerial Photography: Yes
Summary

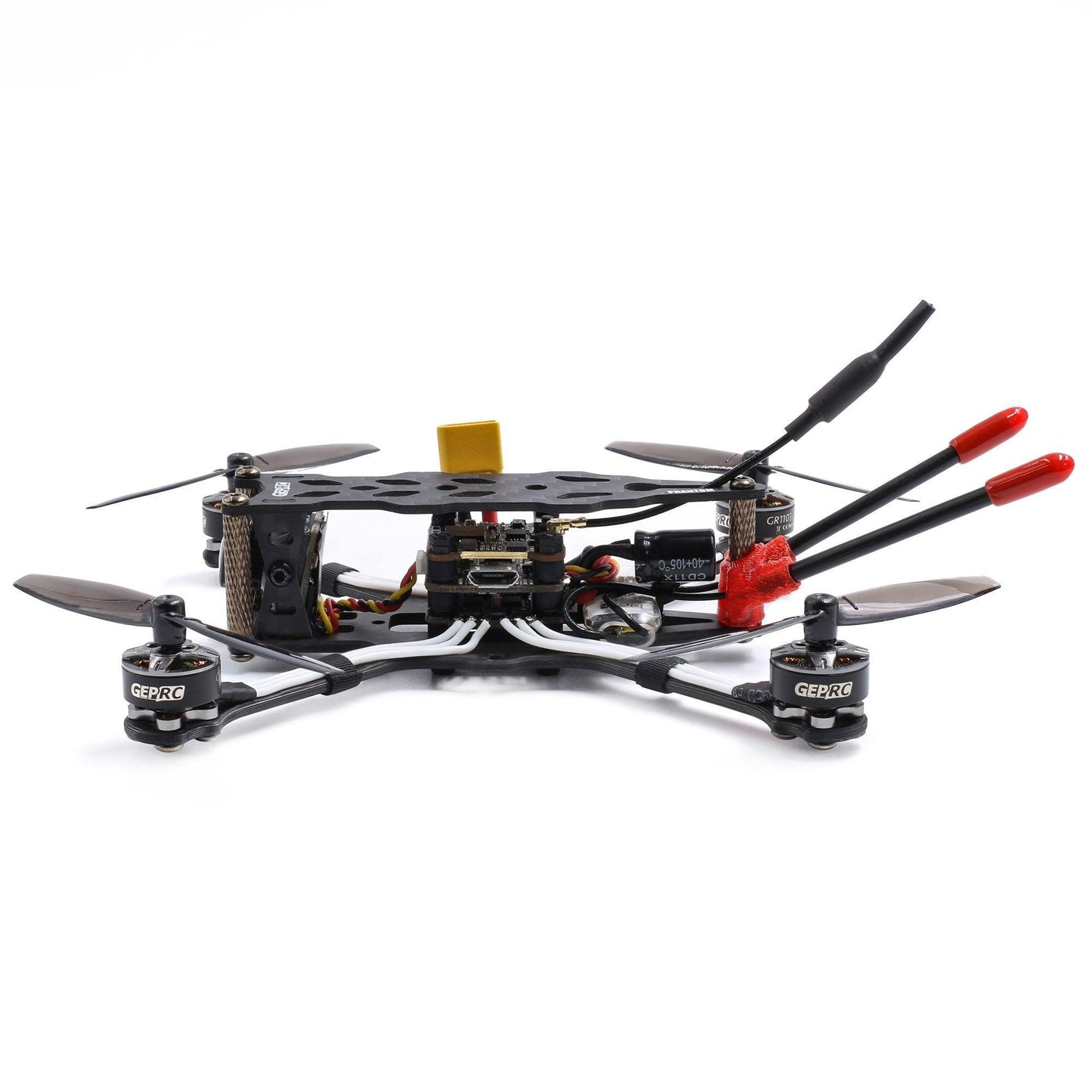

PHANTOM is a super mini Freestyle Quad,2.5inch propeller and GR1103 8000kv motors with 3S 300mAh battery, The flight experience is like a 5-inch propeller quad. Freestyle training quad. You will be like it.
Specifications:
-
Name: PHANTOM
-
FC:STM32F411
-
ESC:12A(BLheli_S)
-
Motor: GEPRC GEP-GR1103 8000KV(3S 300mAh)
-
Wheelbase: 125mm
-
Propeller: 65mm or 2.5inch
-
VTX:5.8g 200mW
-
Camera:Caddx EOS2
-
Battery Input: 2-3S Lipo 300mAh
-
Weight: 51g (without battery)
-
Take-off weight is less than 250 grams
STABLE F411 Micro System:
STABLE F411 Flight Controller(16*16mm)
-
MCU: STM32F411
-
IMU: MPU6000 gyro/accelerometer (SPI)
-
OSD: BetaFlight OSD w/ AT7456E chip
-
BEC Output:5V@2A
-
Size: 21mm*21mm
-
Mounting holes: 16mm*16mm
-
Integrated LC Filter
-
Input voltage 2-4S LIPO
-
Firmware target: MATEKF411
-
Weight: 2.5g
STABLE F411 BLheli_S 4IN1 12A ESC(16*16mm)
-
MCU: BB21F16G
-
Continuous current: 12A
-
Input voltage : 2-4S LIPO
-
ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc.
-
Size: 23mm*21mm
-
Mounting hole 16*16mm
-
Firmware target: Blheli_S G_H_30
-
Current meter: 210
-
Weight: 2.7g
STABLE F411 VTX 5.8G 200mW(16*16mm)
-
Power : PIT/25/100/200mW
-
Antenna interface : IPEX (UFL)
-
Telemetry: IRC Tramp
-
Size: 17mm*27mm
-
Mounting holes: 16*16mm
-
Integrated LC Filter
-
Weight: 1.6g
Include:
-1 x PHANTOM Quadcopter
