The main parameters:

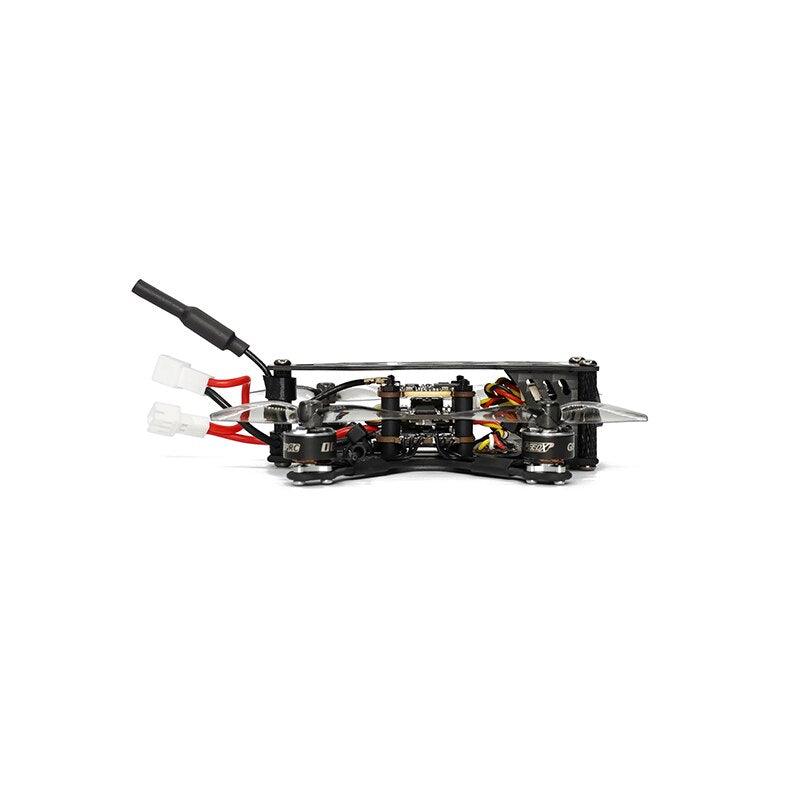

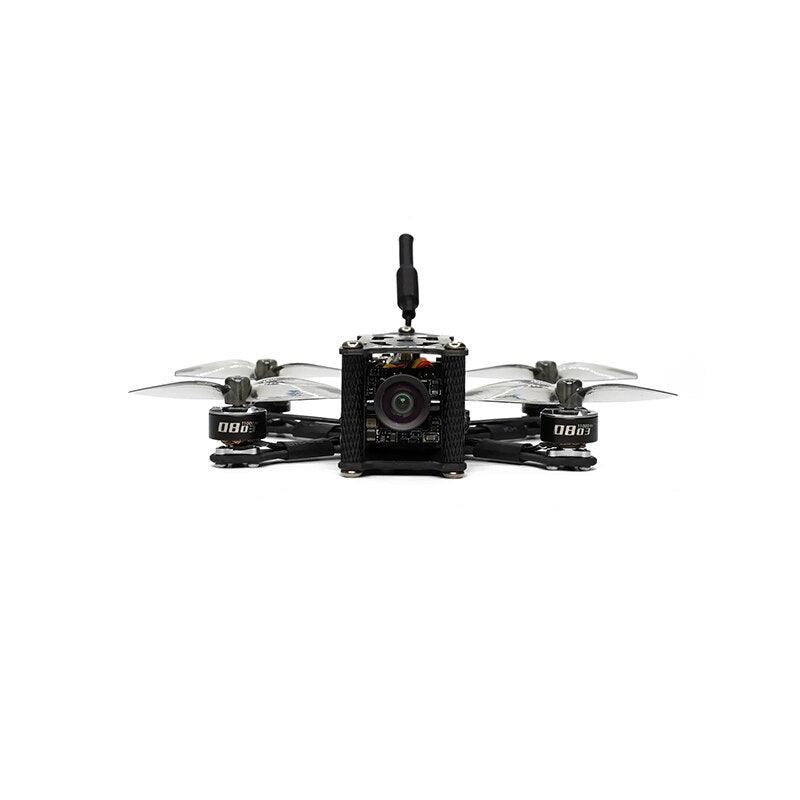

Product Chinese name: SMART16 miniature travel machine

Product English name: SMART16-Freestyle

Rack: GEP-ST16

Wheelbase size: 78mm

Top plate thickness: 1.0mm

Bottom plate thickness: 1.5mm

Arm thickness: 1.5mm

Flight control system: STABLE F411 FC (16*16mm)

MCU: STM32F411

Gyro: 6-Axis

OSD: BetaFlight OSD w/AT7456E chip

ESC: STABLE F411 BLheli_S 4IN1 12A ESC(16*16mm)

Image transmission: STABLE F411 VTX 5.8G 200mW(16*16mm)

Lens: Caddx Ant

Propeller: GemFan 1610-2

Antenna: UFL 5.8G stick image transmission antenna

Motor: GR0803 11000KV

SMART16 weight: 33.8g (TBS version)

Receiver version: PNP (no separate receiver), AC900, TBS Nano RX, ELRS 915, ELRS 2.4G

feature:

1. 1.6-inch flower plane, small size, light weight, only 36.0g.

2. Using 2S battery, the battery power output is strong

3. Equipped with 200mW 5.8G video transmission, with 6 frequency bands and 8 frequency point selection

4. Using Caddx Ant camera, the imaging effect is clear and clean

5. Independent battery compartment design, can be hung up or down, easy to replace the battery

6. The latest 0803 motor is matched with 1610-2 blades, which has strong flight power output and high flight efficiency

7. The flower-flying frame design can also be used for racing competitions

8. Rich prints are designed to have a better flight experience

Product List:

1 x SMART16 kit

4 x GemFan 1610-2 propellers (pair)

2 x Battery Ties M12x120mm

2 x battery anti-skid pads

1 x Spare Print Set

1 x Spare screw pack combination

1 x spare screwdriver set

25 380mAh HIGH PERFORMANCE BATTERY 2S, 90C BATTTERIES FOR LONGER, AGGRESSIVE FLYING 8 2 ? 8 3 82 EE:

3D PRINTED PARTS FOR VTX, POWER LEAD, AND BATTERY MOUNTS HIGH CONVENIENCE AND EASE OF USE d8i
