SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembly Category
Size: 3.5 inch
Remote Control Peripherals/Devices: Motor
Recommend Age: 12+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: GEPRC SPEEDX2 2105.5 2650KV/3450KV Motor
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Helicopters
Certification: FCC
Certification: WEEE
Certification: RoHS
Certification: CE
Brand Name: GEPRC
Summary:

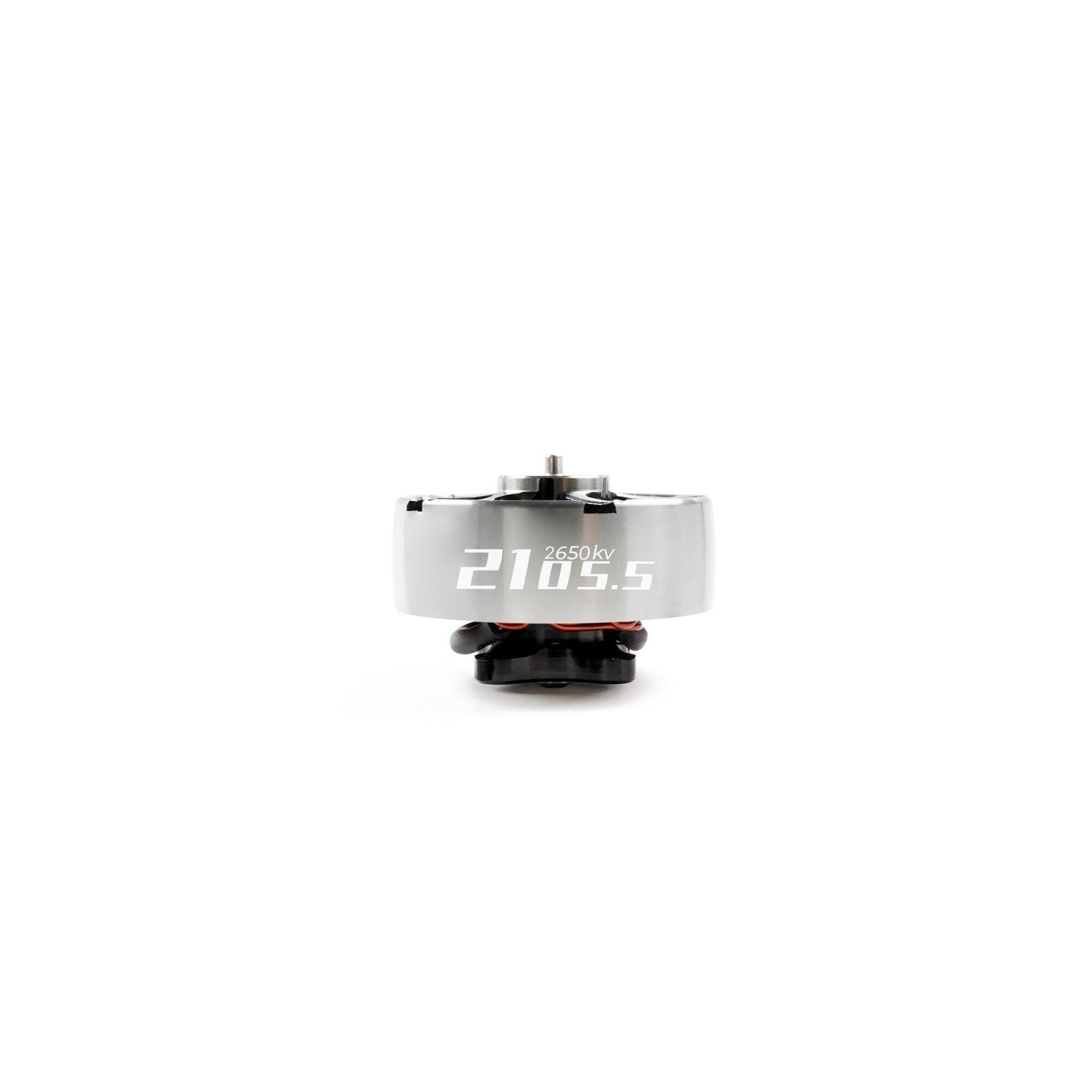

The GEPRC new generation brushless motor SPEEDX2 2105.5 is an exceedingly innovative brushless motor with an avant-garde style and unique design.
The lightweight design greatly reduces the weight, only 21.0g. The flat motor shape with the exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation, the advantage is maintaining a lower temperature for the running motor.
Using customized high-quality materials and professional magnetic circuit design,the SPEEDX2 2105.5 motor with good handling and stably aggressive power. Bringing pilots a super smooth flying experience.
In term of high strength structure design, SPEEDX2 2105.5 also has good durability and crash resistance.It’s a ideal motor for every pilot building their own 3-4 inch FPV quads or 4-5 inch long range FPV quads.
We’ve been pursuing a lighter weight, more responsive, more efficient and more powerful brushless motor.
Feature:

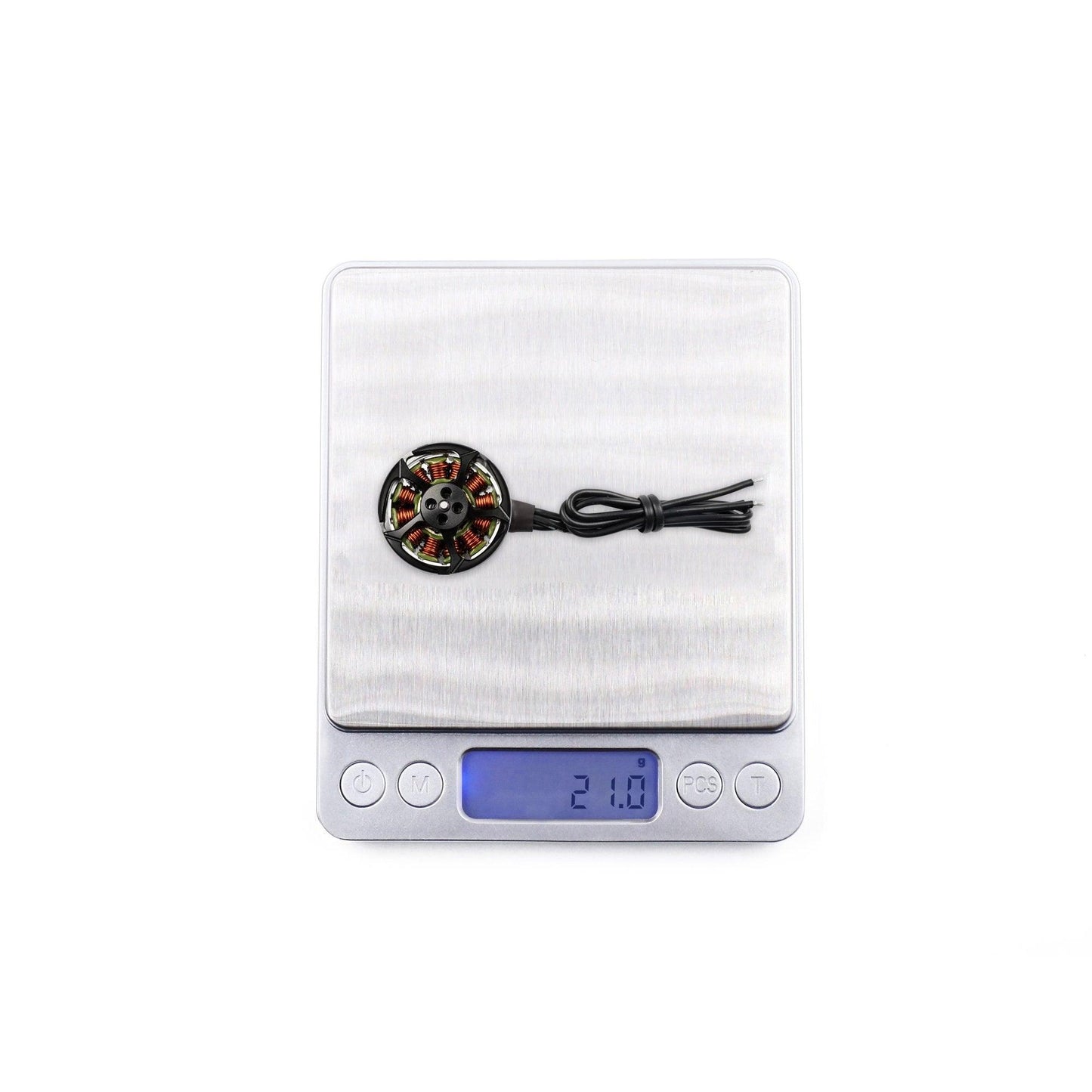

1. Lightweight design, only 21.0g.
2. High-quality arc magnetic steel, professional magnetic field design, strong magnetic force, stable motor power output.
3. The flat design motor is very prominent in Freestyle & Racing. Large motor torque, strong explosive force, and extremely fast response speed.
4. Good handling and stable power output bring a super smooth flying experience.
5.The Exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation.
6. High-strength motor structure, good durability and crash resistance.
7.The 1.5mm shaft is quite suitable for most of the conventional 3-5 inch FPV quad propellers on the market.
8.Suitable for 3-4 inch FPV quads and 4-5 inch long range FPV quads.
Specification
Item: SPEEDX2 2105.5-2650KV
KV: 2650KV
Configuration: 12N14P
Magnet: N52H ARC
Stator Diameter: 21mm
Stator Height: 5.5mm
Shaft Diameter: Φ3.0mm(in)Φ1.5(out)

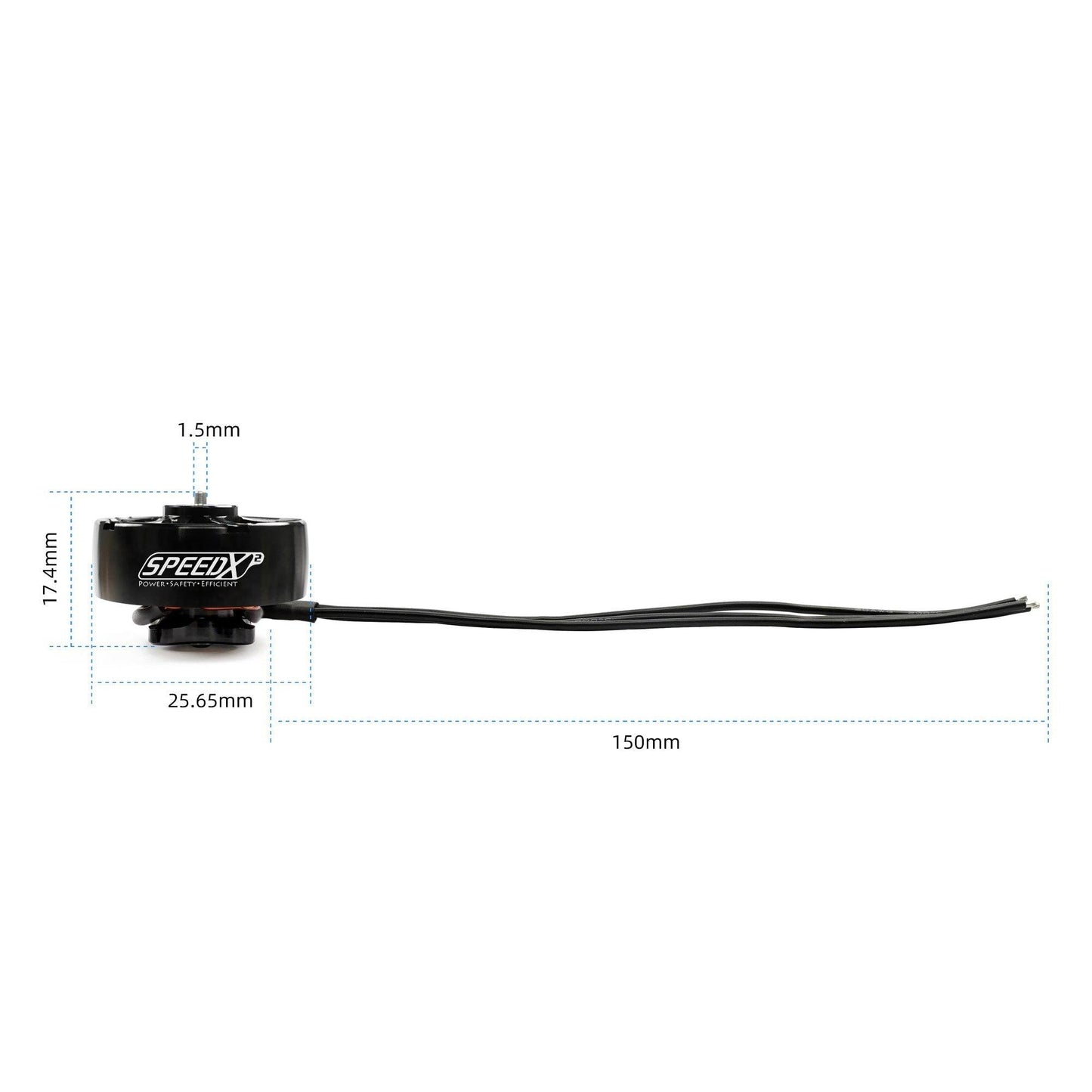

Size: Φ25.65mm*15.7mm
Lead Wires: 22#AWG 150mm
No. of Cells (LiPo) : 3-4S
Max Continuous Power(W) (5S): 559
Max Current (5S) : 34.9A
Mounting Holes:12mm x 12mm(M2 Screw)
Color: Titanium, black
Weight: 21.0 g
Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV
Item: SPEEDX2 2105.5-3450KV
KV: 3450KV
Configuration: 12N14P
Magnet: N52H ARC
Stator Diameter: 21mm
Stator Height: 5.5mm
Shaft Diameter: Φ3.0mm(in)Φ1.5(out)
Size: Φ25.65mm*15.7mm
Lead Wires: 22#AWG 150mm
No. of Cells (LiPo) : 3-4S
Max Continuous Power(W) : 558
Max Current (A) : 34.9A
Mounting Holes:12mm x 12mm(M2 Screw)
Color: Titanium, black
Weight: 21.0 g
Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV
Include:
1 x SPEEDX2 2105.5 Motor
5 x M2*6mm Screw
5 x M2*7mm Screw
Ultra Light Weight Integrated 7075 rotor, Hollow titanium alloy shaft, Ultra light weight only 21g: 3450k
High Performance High quality arc magnet; Professional magnetic circuit design Strong magnetism; Larger torque, Stable explosive power; Faster response speed: Zlig5 217i5%k,.5 210g.5
High Quality Integrated 7075 rotor, High quality magnet; Customized bearing; Two-step Anodization Manufacturing Technology: 212658,
GEPRC 2ND GENERATION BRUSHLESS MOTOR High-quality, weight reduction and higher efficiency: N52H Arc-shaped Magnets Strong magnetism; stable power output and high efficiency: Energy-saving Stator Low heating; Improving work efficiency and endurance.
1.5MM Shaft Suitable for the majority of conventional size FPV propellers . reinforced base high structural strength; More collision-resistant .
SPEEDX2 2105.5-2650KV Weight: 2lg (3cm wire) Internal Resistance: 65m Wire Size: 22#AWG 150mm Configuration: 12N14P Shaft Diameter: 01.Smm Rated Voltage: 345 Idle Current: 1.3A Maximum Current: 34.9A Maximum Power: 5591 12mm Motor Dimension: 025.65*15.7mm
