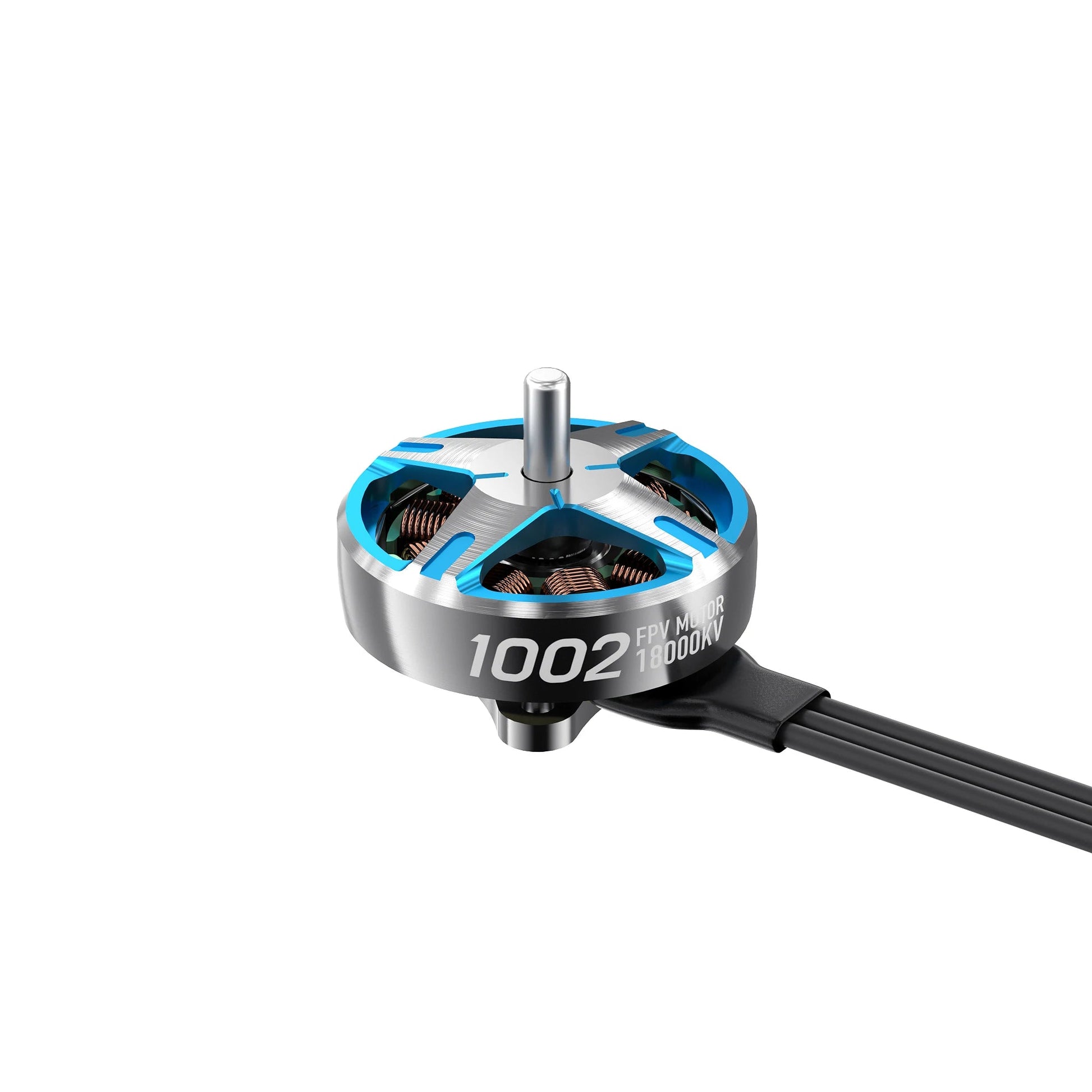

GEPRC SPEEDX2 1002 25000KV / 18000KV Brushless FPV Motor for 1.6–2 Inch 1S/2S Micro Drones

Overview

The GEPRC SPEEDX2 1002 Brushless FPV Motor is engineered for high-performance micro FPV builds ranging from 1.6 to 2-inch drones, including freestyle whoops and toothpick quads. With precision CNC machining, lightweight titanium blue anodized bell, and a durable 9N12P stator, this motor delivers powerful, responsive, and smooth performance in an ultra-light 2.5g package.

Available in 25000KV and 18000KV, the SPEEDX2 1002 motor offers flexibility across flight styles — whether you prefer high-RPM punch-outs on 1S or smooth, efficient throttle control on 2S.

Key Features

• Micro 1002 Brushless FPV Motor for 1.6"–2" drones

• Available in 25000KV (1S punch) and 18000KV (1–2S efficiency)

• 9N12P stator design with 415zz bearings for smooth, durable performance

• CNC-machined bell with titanium blue finish for style and strength

• 1.5mm shaft for secure prop mounting

• 2.5g lightweight with 50mm lead wires

• Ideal for DIY FPV freestyle and racing setups like the T-Cube18

⚙️ Specifications

📦 Package Includes

• 1 × GEPRC SPEEDX2 1002 Brushless Motor (Choose 18000KV or 25000KV)

• 6 × M1.4 × 3mm Mounting Screws

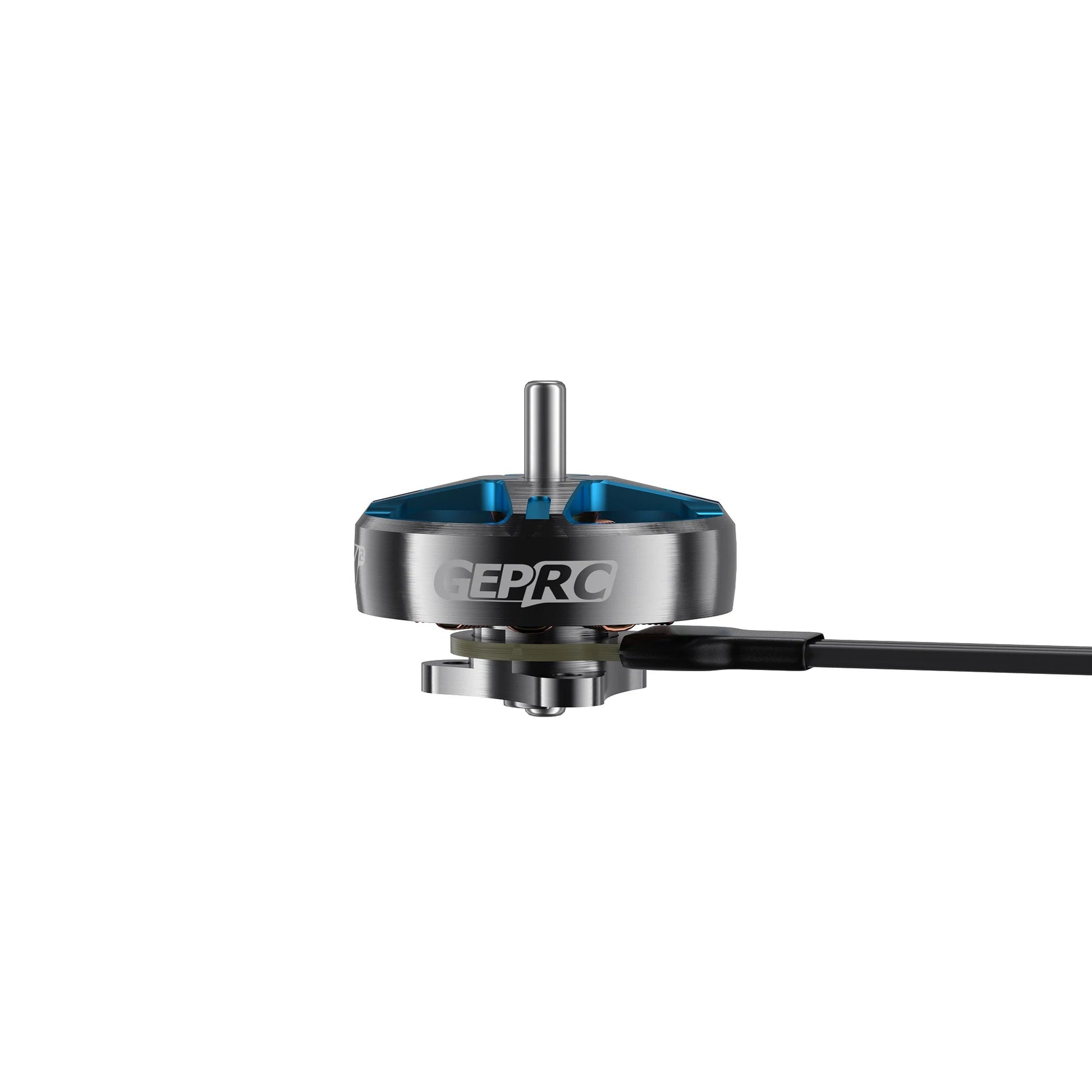

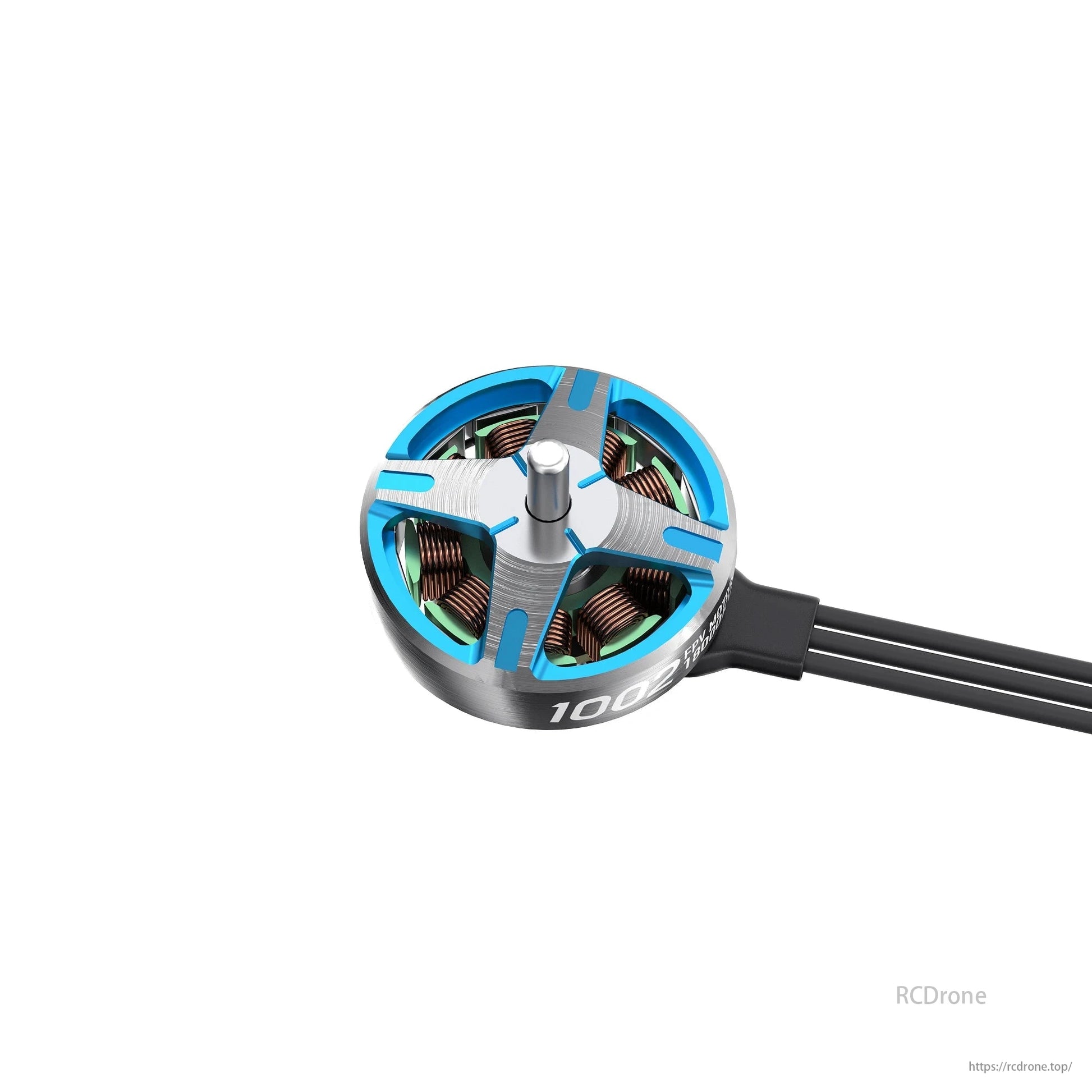

SpeedX2 1002 Motor: Nimble yet mighty, featuring 25000KV for high performance and efficiency.

SpeedX2 1002 Motor: 18000KV/25000KV, 41.1W/58.8W power, 11.1A/15.9A current, 1-2S/1S voltage. For 1.6-2 inch drones, 2mm stator height, 10mm diameter, titanium blue, 2.5g weight.

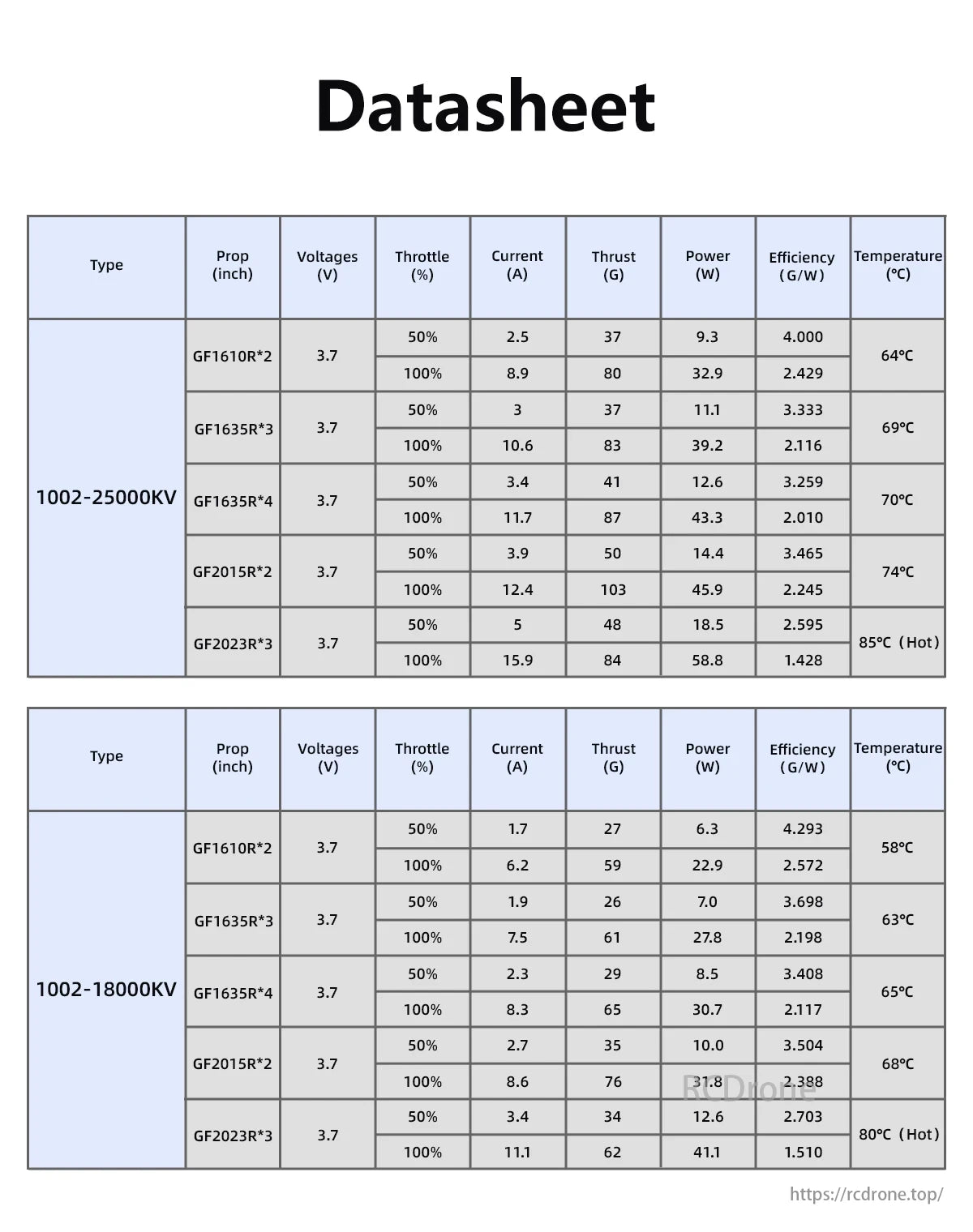

Speedx2 Brushless FPV Motor datasheet. Specs for 1002-25000KV and 1002-18000KV types include prop size, voltage, throttle, current, thrust, power, efficiency, and temperature under various conditions.

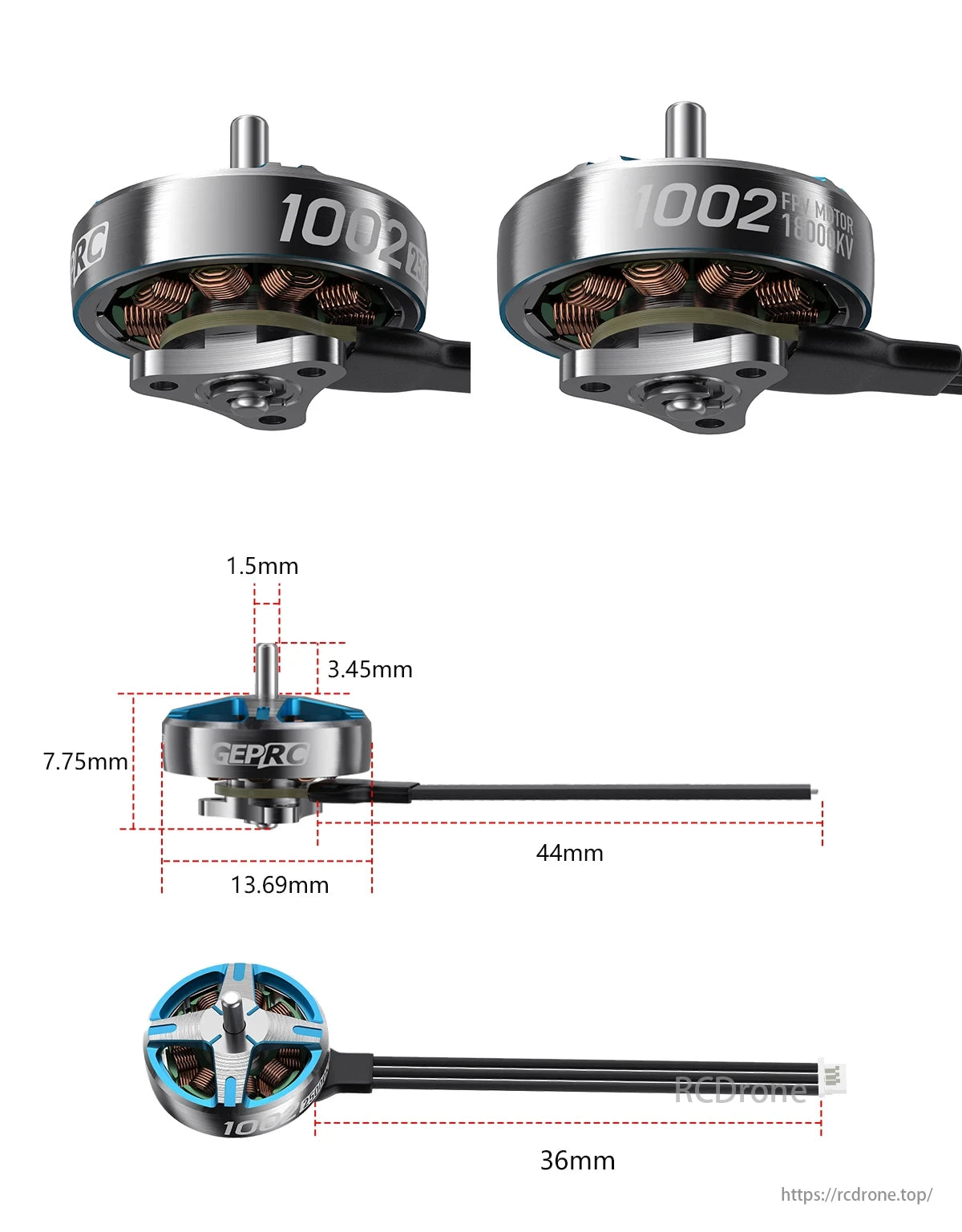

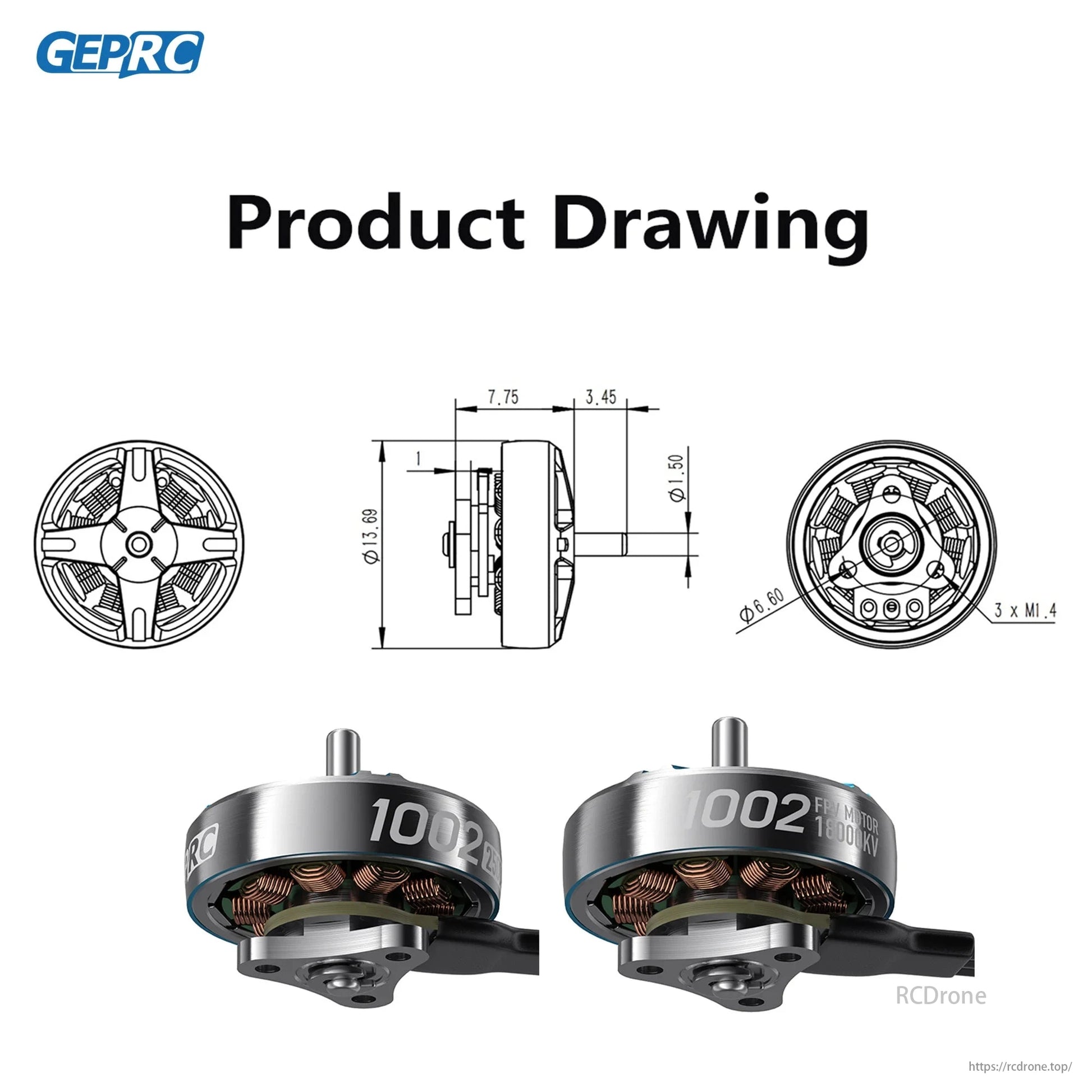

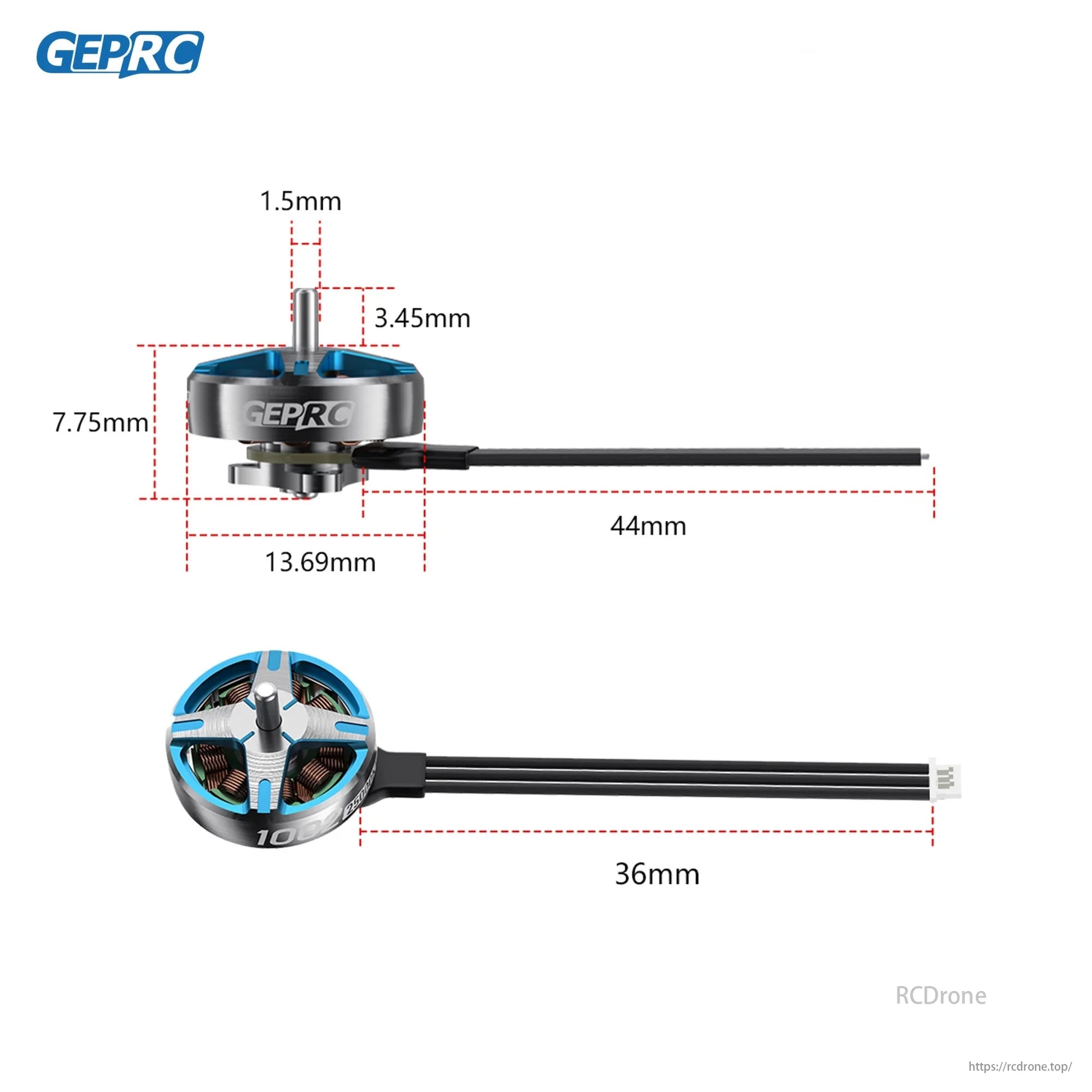

Speedx2 Brushless FPV Motor 1002, 18000KV, dimensions: 7.75mm, 36mm, 44mm.
