GEPRC Vapor-X5 Analog F722 60A 230mm Wheelbase 5 Inch Freestyle FPV Drone

Summary

The Vapor-X is a robust and agile FPV designed for freestyle flying. The name “Vapor-X” is inspired by the pursuit of freestyle flying and the distinctive wide X-shaped design.

It features the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance. The CNC aluminum alloy camera protection side plates enhance both durability and aesthetics.

Available in 5-inch and 6-inch models, catering to various flying preferences, the Vapor-X offers an unparalleled flying experience for every pilot.

Feature

1.  Equipped with the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance.
2.  Paired with GEPRC SPEEDX2 series motors to deliver robust power for freestyle flying.
3.  The CNC aluminum alloy camera protection side plates enhance durability and aesthetics.
4.  The front lens protection design provides reassuring protection for flying.
5.  The increased width of the 5mm carbon fiber arms enhances frame aesthetics and strength.
6.  Available in 5-inch and 6-inch models, catering to various flying preferences.

Specifications

• Model: Vapor-X5 Analog
• Frame: GEP-Vapor-X5 frame
• Wheelbase: 230 mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate：2.5 mm
• Arm Thickness：5.0 mm
• FC: GEP-F722-HD V2
• MCU: STM32F722
• Gyro: ICM42688-P(SPI)
• Barometer: BMP280
• OSD: Betaflight OSD w/AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: MATEN 5.8G 1.6W VTX
• Camera: Caddx Ratel2
• Antenna: GEPRC Momoda2 5.8G Antenna RHCP SMA 90mm
• Connector: XT60
• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
• 5-inch Propeller: GEMFAN 5136
• Vapor-X5 Analog PNP Version Weight: 409g±5g
• Receiver: PNP/GEPRC ELRS24/TBS Nano RX
• Recommended Battery: LiPo 1550mAh – 2200mAh
• Flight Time: 14-19  min

Includes

1 x Vapor-X5 Analog

2 x GEMFAN 5136

2 x Battery anti-slip pads

1 x Spare screw pack

2 x M20*250mm battery straps

1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2.0mm

1 x GoPro mount

Details

GEPRC Vapor-X Series drone with O3 Air Unit, buzzer, cost-effective setup, aluminum parts, Wide-X design, 5-inch/6-inch sizes.

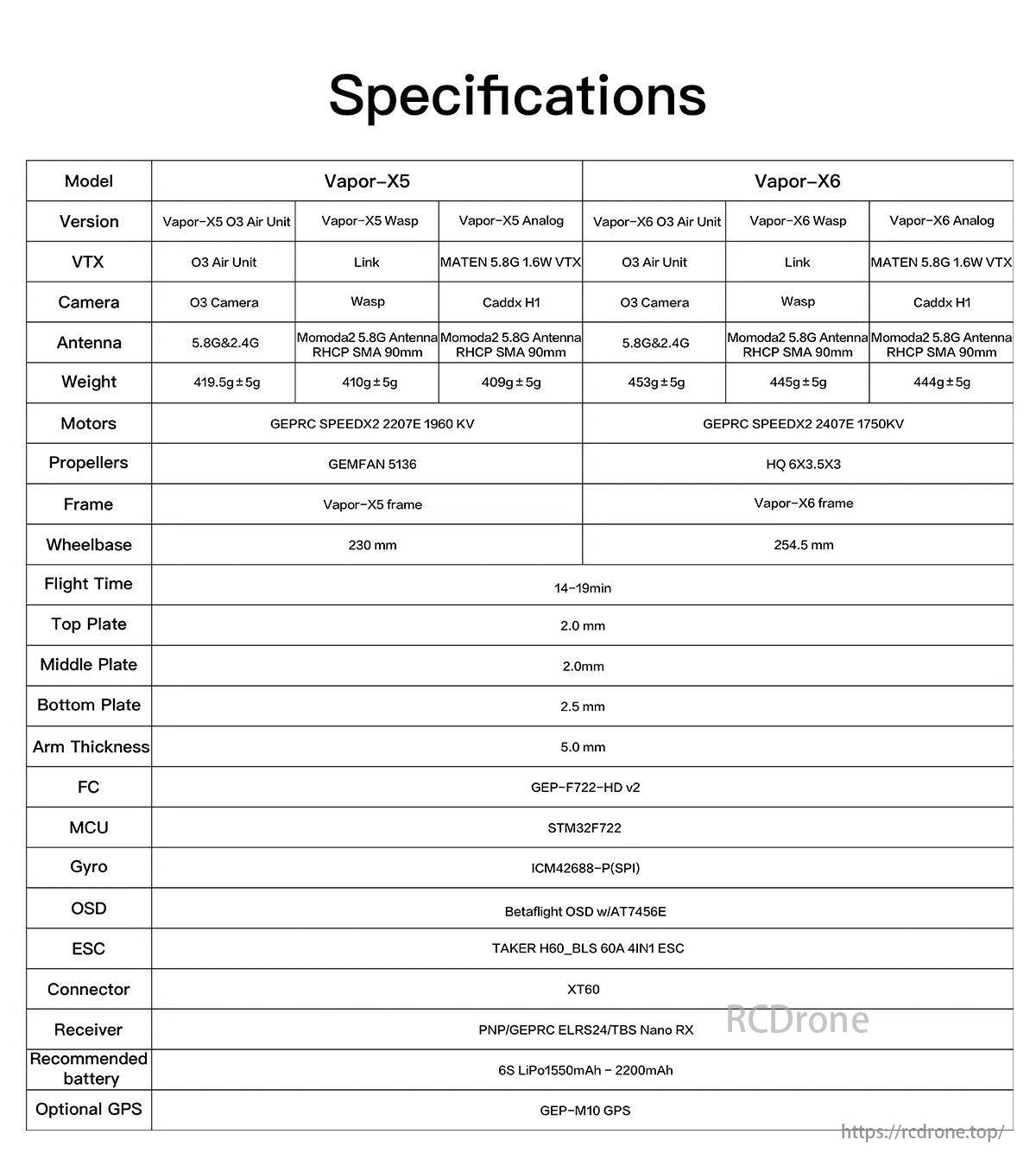

The table compares GEPRC Vapor-X5 and X6 drones, including versions, VTX, cameras, antennas, weights, motors, and more. The Vapor-X5 Analog F722 has a 230mm wheelbase, Caddx H1 camera, MATEN VTX, and GEP-F722-HD v2 flight controller.

GEPRC Vapor-X5 FPV Drone with TAKER H60_BLS 60A ESC, GEP-F722-HD v2 FC, SPEEDX2 motors. Features CNC aluminum protection, front lens guard, wide carbon arms. Available in 5-inch and 6-inch models for smooth flight and durability.

A drone with 7075-T6 aluminum plates protects the front lens, ensuring safe flights.

Robust and reliable design with 5mm thick arms for stability and aesthetics.

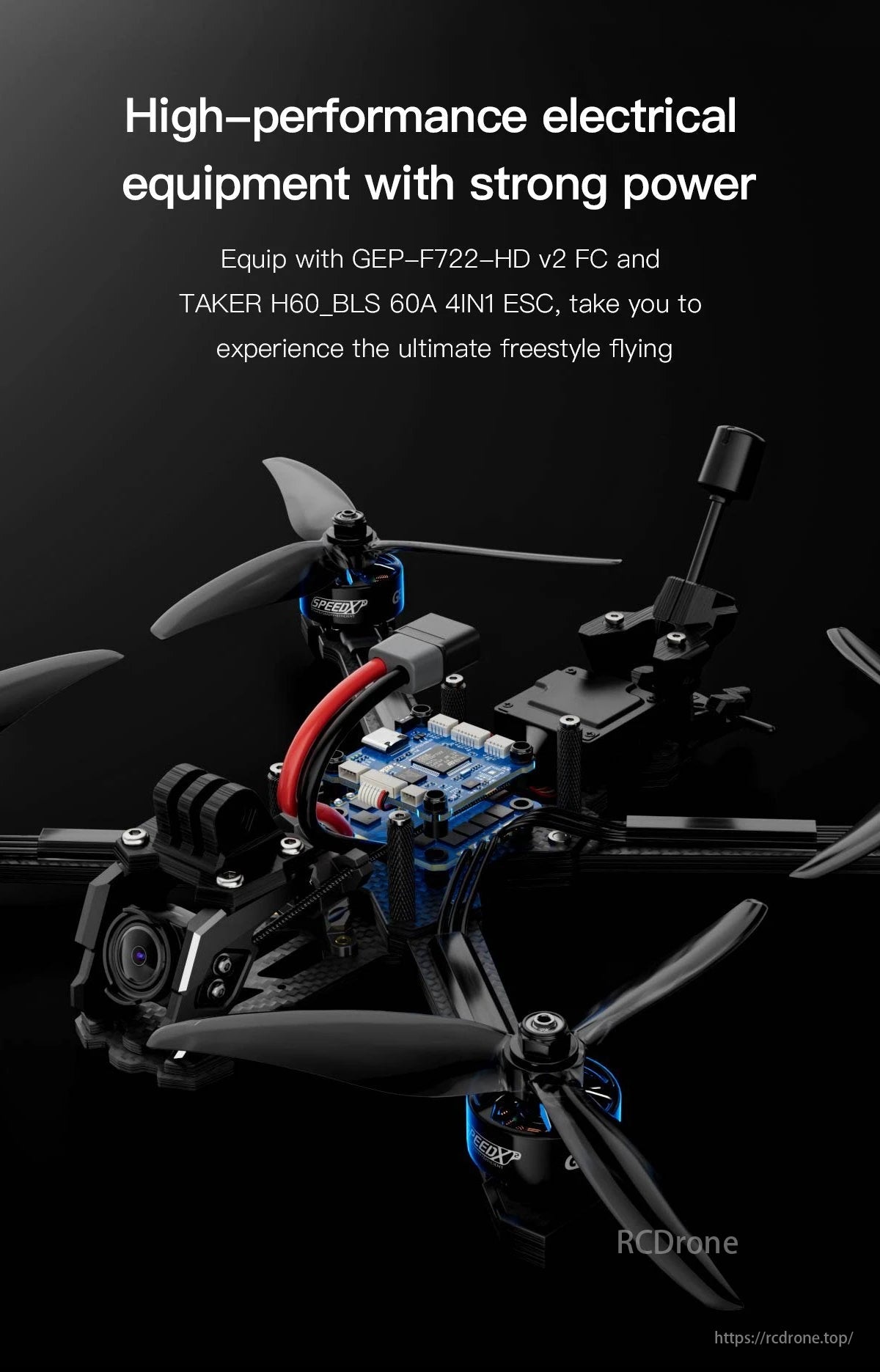

A high-performance electrical drone with strong power, featuring GEP-F722-HD v2 FC and TAKER H60_BLS 60A 4IN1 ESC for ultimate freestyle flying.

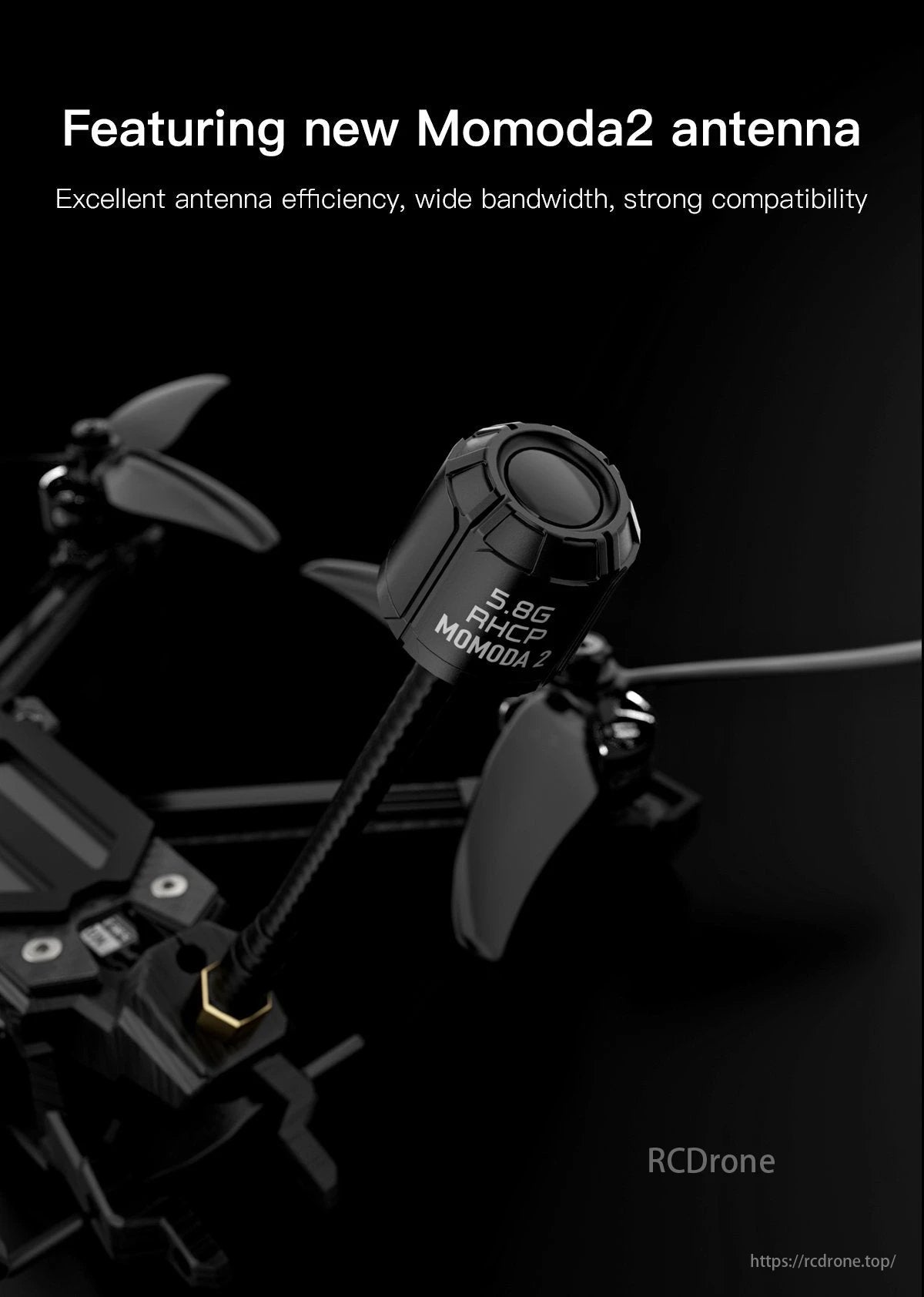

GEPRC Vapor-X5 Analog F722 drone features a new Momoda2 antenna, offering excellent efficiency, wide bandwidth, and strong compatibility. Labeled "5.8G RHCP MOMODA 2."

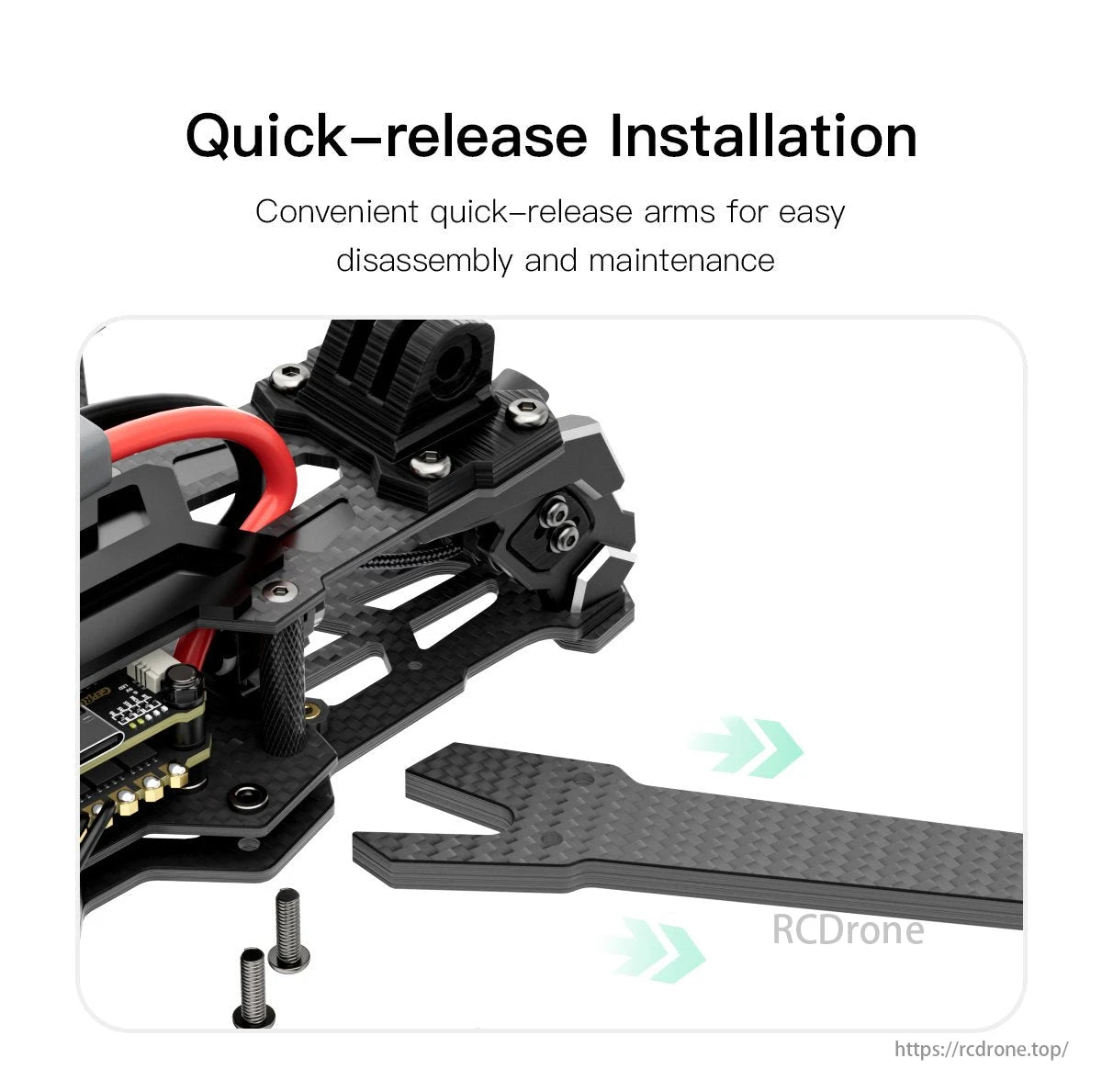

Quick-release installation with convenient arms allows easy disassembly and maintenance.

Robust and reliable design with 5mm thick arms for stability and aesthetics.

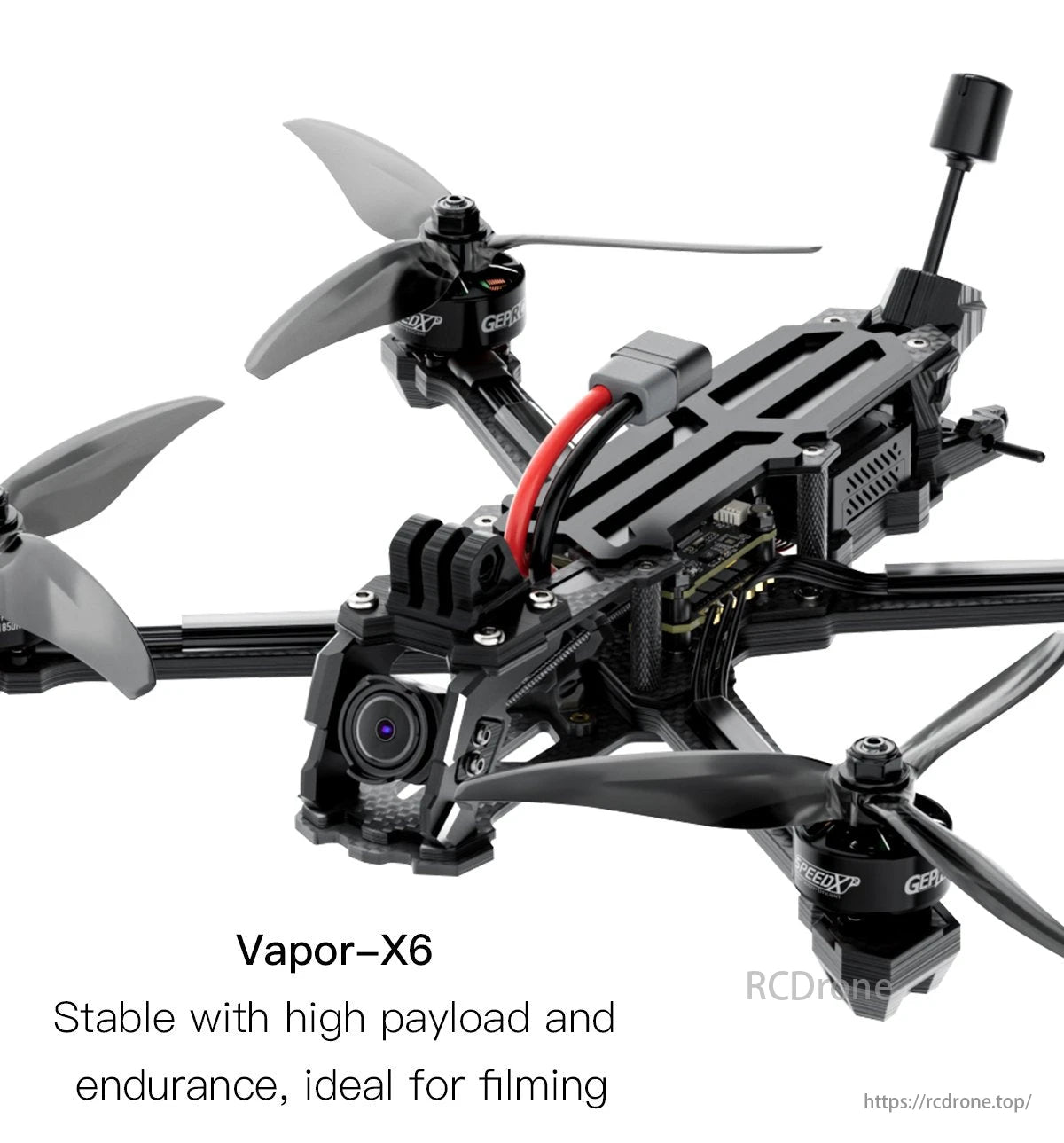

GEPRC Vapor-X6 drone, stable with high payload and endurance, ideal for filming. Features 230mm wheelbase, F722 flight controller, and 60A ESCs.

Selection guide for VTX versions: O3 AIR Unit VTX offers ultra 4K, HD Link for cost-effective digital solutions; Analog VTX features reduced latency with MATEN 5.8G 1.6W.

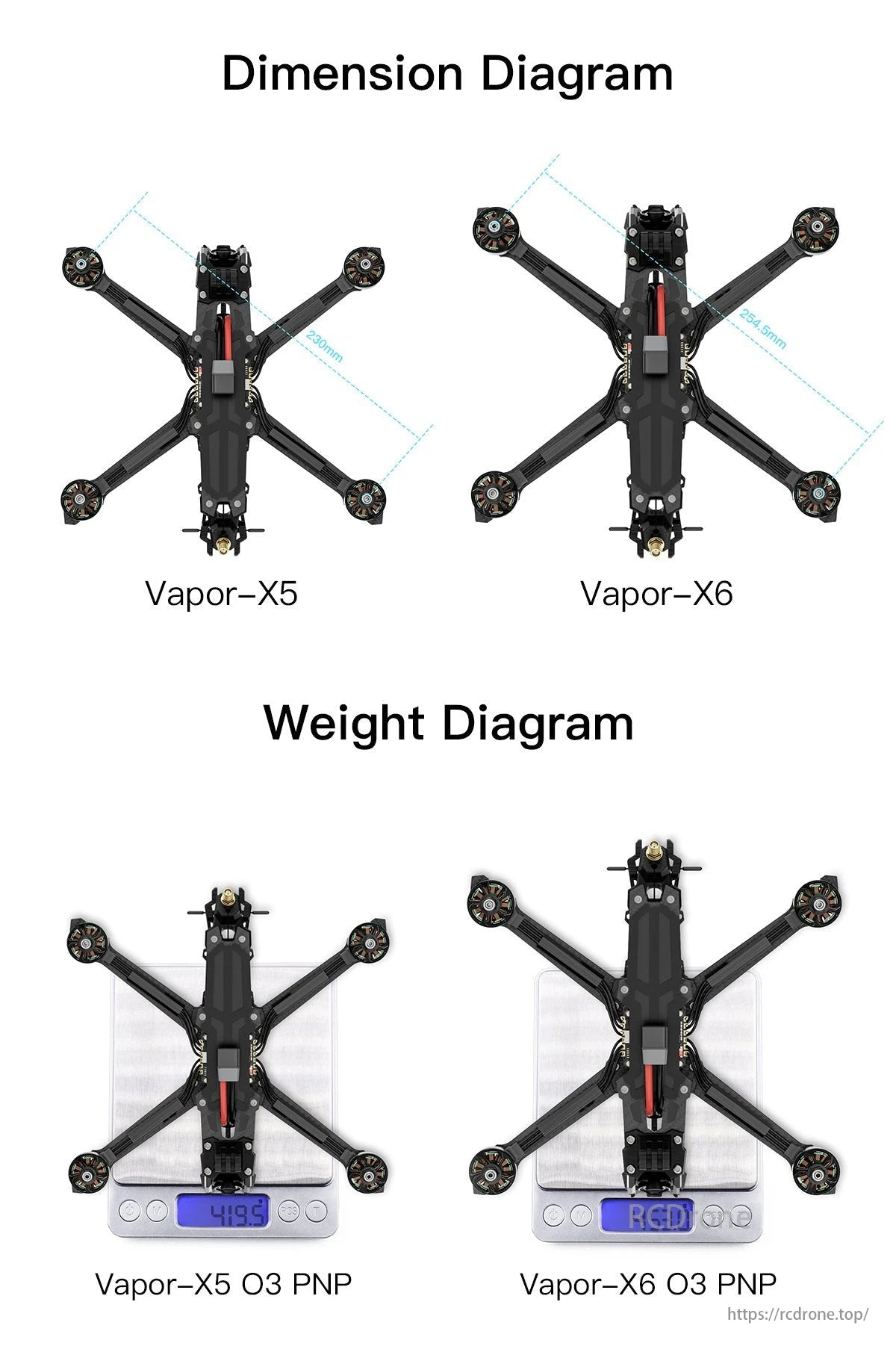

Comparison of GEPRC Vapor-X5 and Vapor-X6 drone dimensions, weights, and FPV flying specifications.

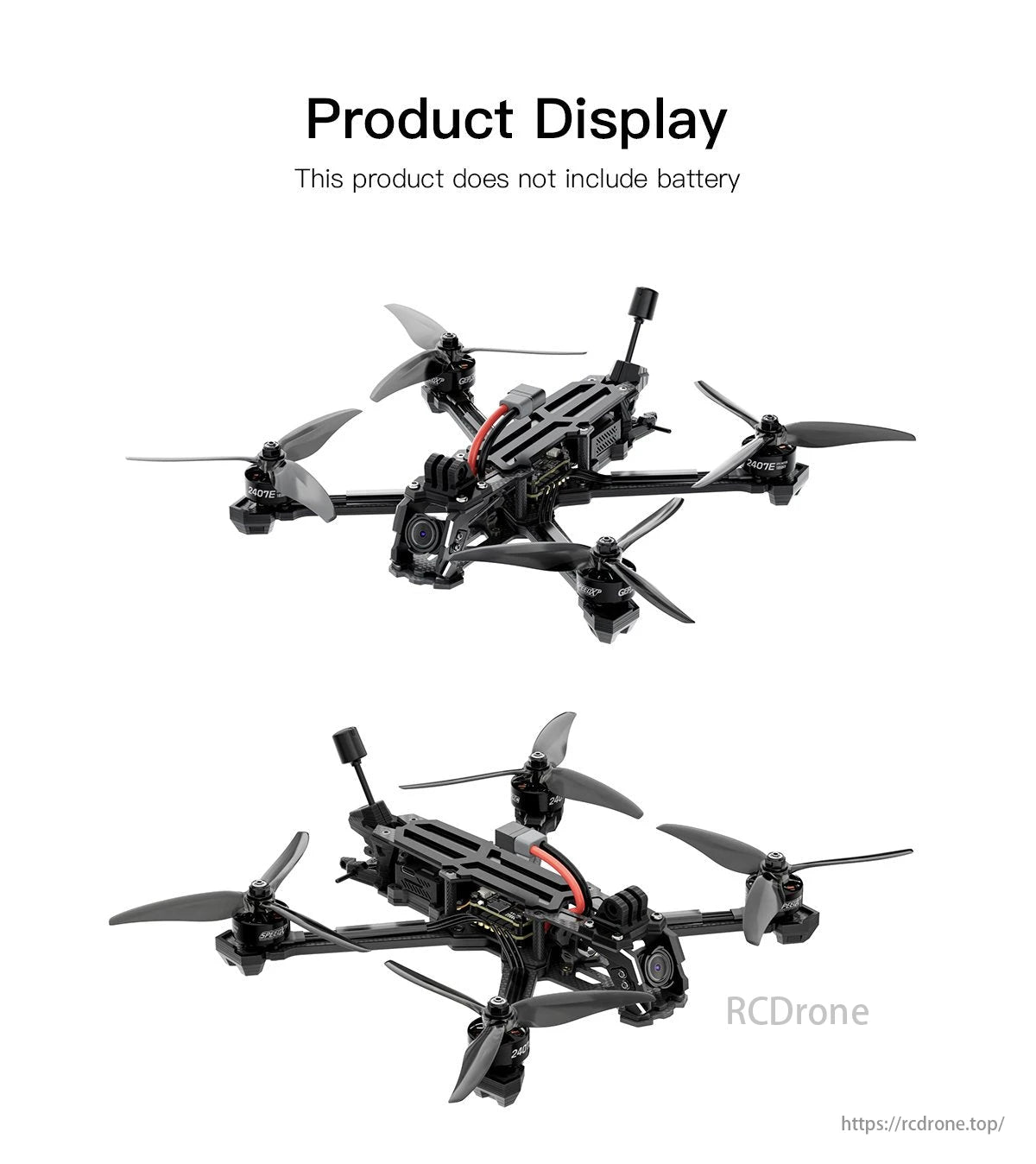

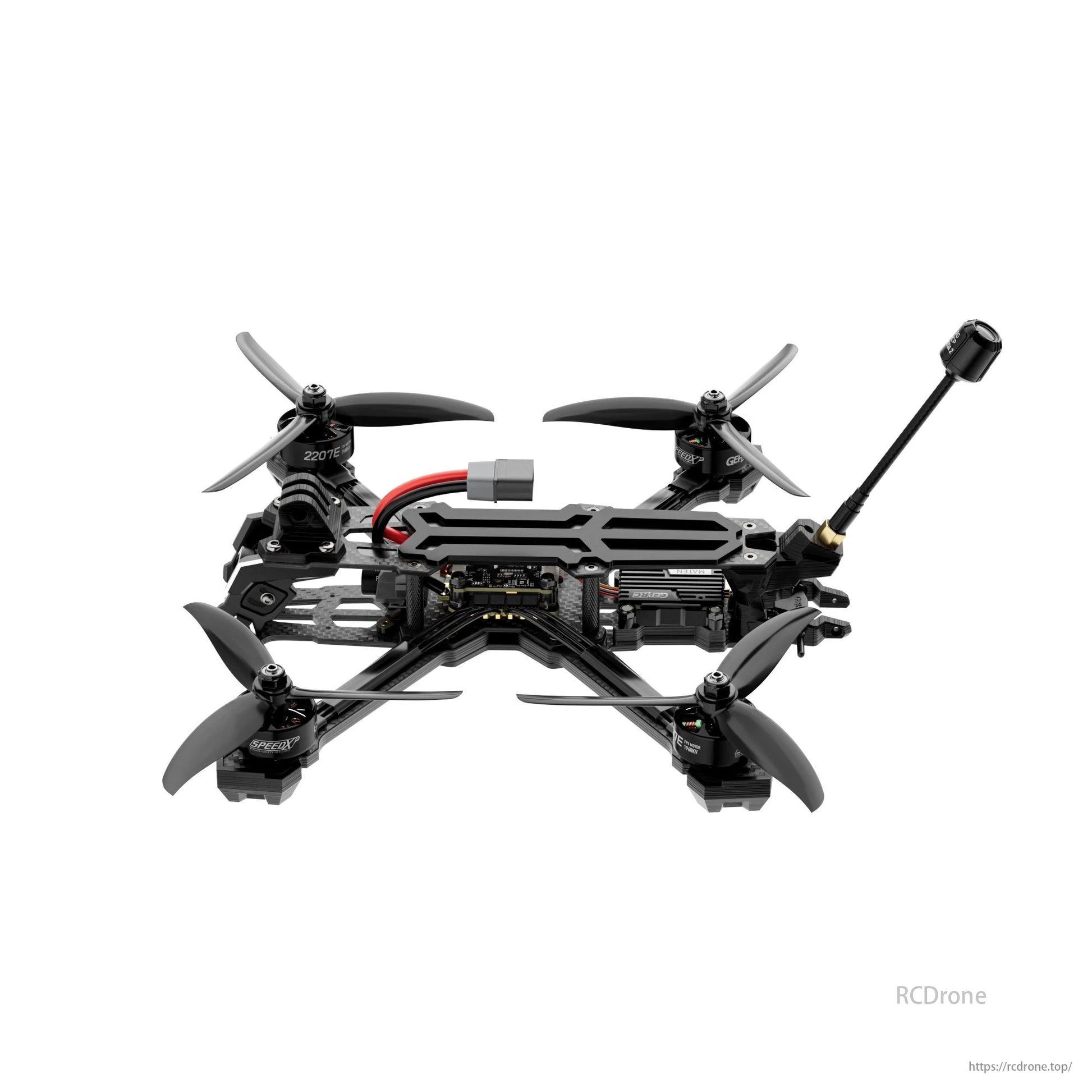

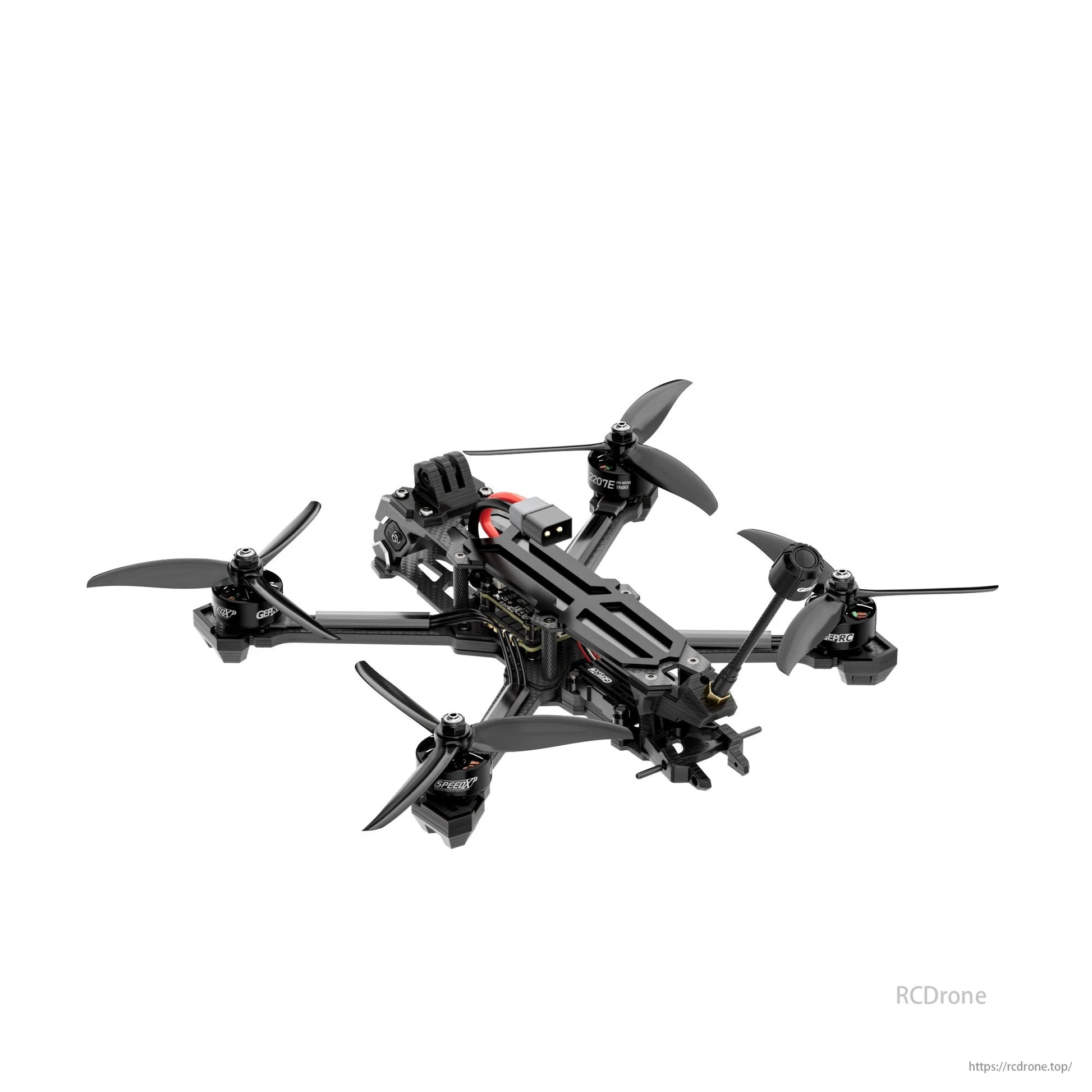

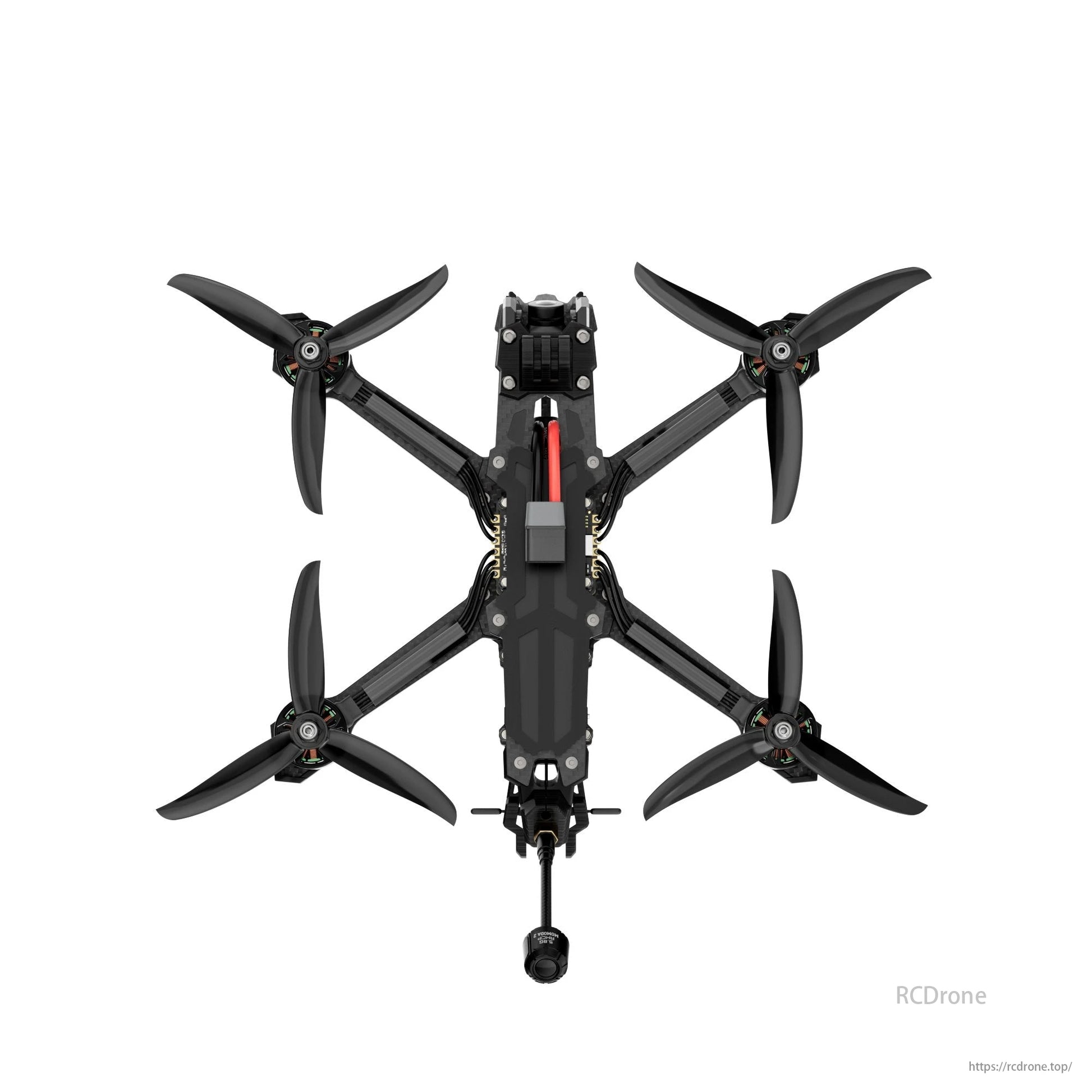

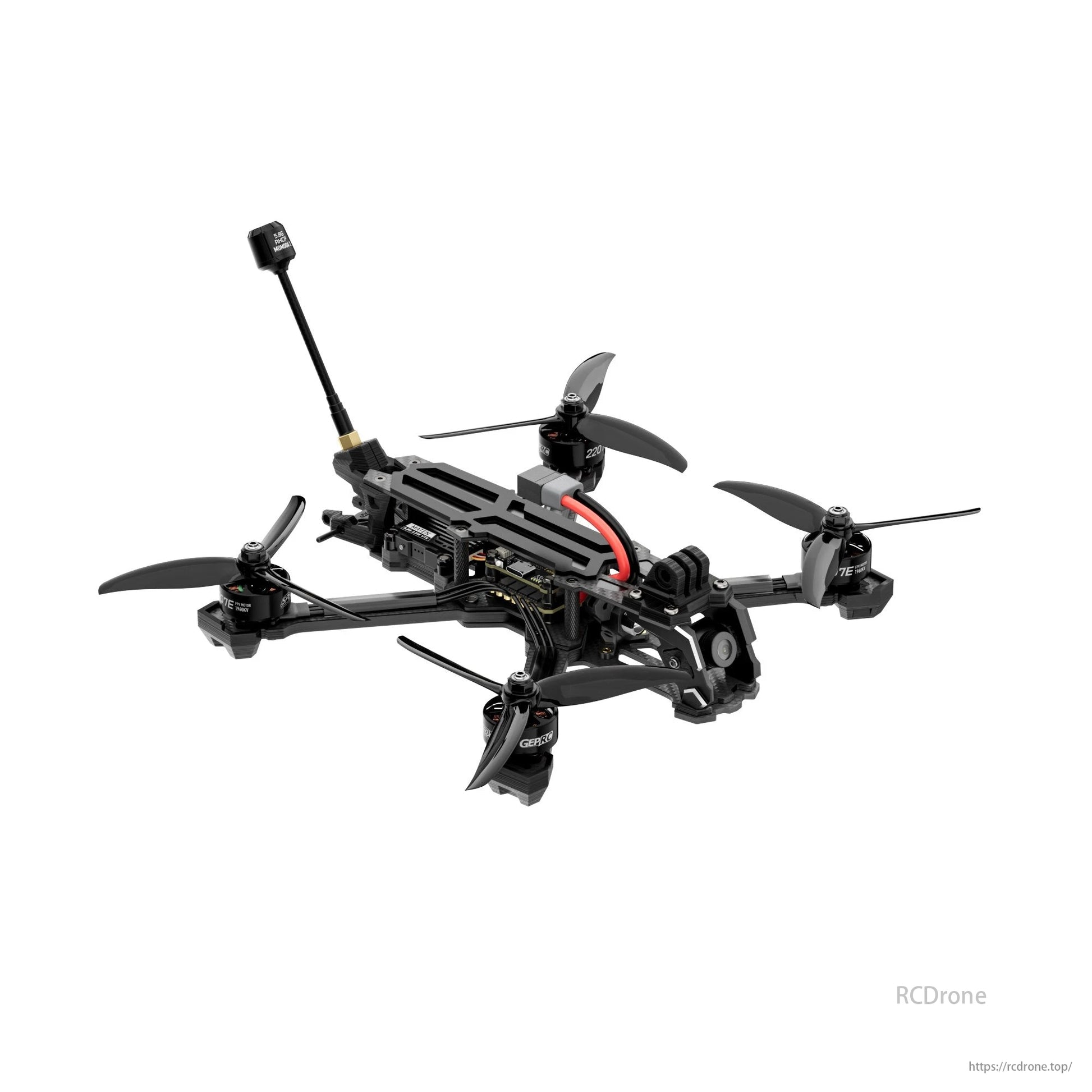

GEPRC Vapor-X5 Analog F722 60A 230mm Wheelbase 5 Inch Freestyle FPV Drone, showcasing design and components excluding battery.

Vapor-X5 drone components including frame, motors, props, tools, and screws.
