GPS GLONASS Antenna Module M8030 - Dual BN-220 BN220 BN880 BN-880 TTL Level For RC Racing FPV Drone Quadcopter

GPS GLONASS Antenna Module M8030 - Dual BN-220 BN220 BN880 BN-880 TTL Level For RC Racing FPV Drone Quadcopter

RCDrone

Regular price $21.12 USD
Regular price $35.90 USD Sale price $21.12 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

141 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Batteries - LiPo

Origin: Mainland China

Model Number: BN220 BN880 GPS Module

Material: Composite Material

For Vehicle Type: Airplanes

Brand Name: Readytosky

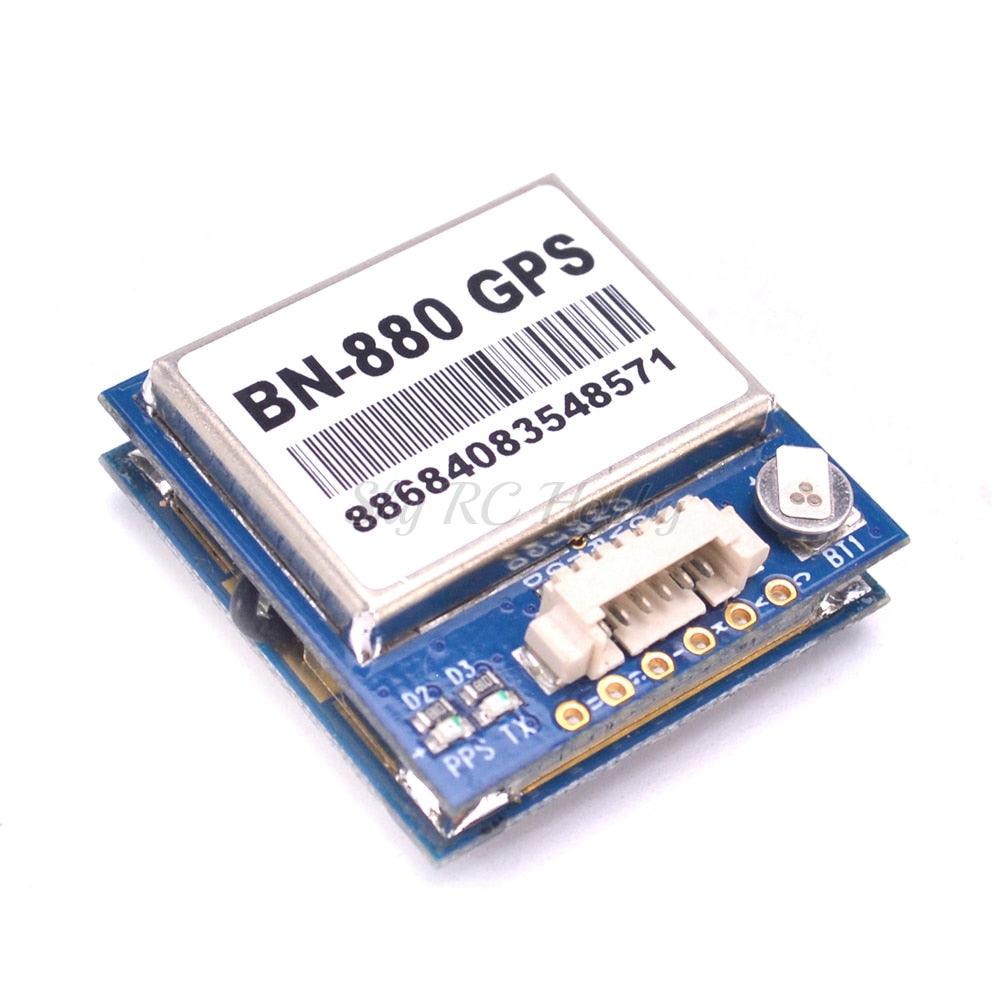

GPS GLONASS Antenna Module M8030, BN-880 GPS Module,Dual Module Compass With electronic compass .





BN-220 GPS Module:



Dimension : 22mm*20mm*6mm
Weight : 5.3g
Connector : 1.00mm spacing between the 4pins patch seat
Specification:
Electrical Characteristics
Chipset : M8030-KT
Receiving Format : GPS,GLONASS,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1
Channels : 72 Searching Channel
Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm
Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time
Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 515m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C
Indicator :
TX LED:blue.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed
Wiring:
GND,TX output,RX input,VCC(3.0v-5.5v)
Pin Description:


PIN

PIN Name

I/O

Description

1

GND

G

Ground

2

TX

O

Serial Data Output.

3

RX

I

Serial Data Input.

4

VCC

I

DC 3.6V - 5.5V supply input,Typical: 5.0V


BN-880 GPS Description:


Model:BN-880
Power Supply: DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption: Capture 50mA@5V
Receiving Format: GPS,GLONASS,BeiDou
Receiving Channel: 72 Searching Channel
Receiving Sensitivity: Trace -167dBm
Capture-148dBm
Positioning Time: Cold Start:avg26s
Warm Start:avg25s
Hot Start:avg3s
Level Positioning Precison: 2m At Open Wind
Output Frequency: 1Hz-10Hz,Default 1Hz
Speed Precison: 0.1 m/s (Without Aid)
Acceleration Precison: 0.1 m/s (Without Aid)
Dynamic Characteristics: Max Height:18000m
Max Speed:5153m/s
Max Acceleration:4G
UART Interface:UART Port: TXDA and RXDA
Support Rate: 4800bps to 115200bps,Default 38400dps
Working Temperature: -40-+85
Storage Temperature: -40-+85
Size: 28mm x 28mm x 10mm
Weight: 10g
The Module's Pins: SDA,GND,TX,RX,VCC,SCL
Features:
GPS Module,Dual Module Compass
With electronic compass IC HMC5883
1.25mm spacing between the 6pins patch seat



Package Included: (Send it as your choice)

1PCS / 2PCS / 3PCS BN-220 or BN-880 GPS Module with cables



GPS GLONASS Antenna Module M8030, BN220 BN880 GPS Module: Dimension : 22mm*20mm





BN-220 GPS:


GPS GLONASS Antenna Module M8030, BN220 BN880 GPS Module: Dimension : 22mm*20mmGPS GLONASS Antenna Module M8030 - Dual BN-2GPS GLONASS Antenna Module M8030, BN-220 GPS 88150828552 Sky RC Hobby IiozGPS GLONASS Antenna Module M8030 - Dual BN-2

BN-880 GPS:

GPS GLONASS Antenna Module M8030, BN-880 GPS Module,Dual Module Compass With electronic compass .GPS GLONASS Antenna Module M8030 - Dual BN-2GPS GLONASS Antenna Module M8030, * Jo1o 76 Lls8tse80t8988 SdGPS GLONASS Antenna Module M8030, BN220 BN880 GPS Module: Dimension : 22mm*20mm
