HAKRC 7155 80A Drone ESC - 6S–12S High Voltage | 85V MOS | 32-bit Firmware | Magic LED

Overview

The HAKRC 7155 80A ESC is a high-performance single ESC built for powerful industrial and heavy-lift drones. It supports up to 12S LiPo input and delivers 80A continuous and 100A peak current, ensuring exceptional stability for demanding applications such as long-range UAVs, agriculture drones, and large-scale multicopters.

With a compact 55×28mm form factor and a lightweight 21g build, the 7155 ESC is designed for efficient integration. It features 85V-rated imported MOSFETs, industrial-grade LDO, and Murata capacitors, ensuring excellent heat dissipation and reliable power delivery.

Key Features

• 8-layer 4oz thickened copper PCB with dual pad design for better heat management and high current capacity.

• Imported 85V MOSFETs for extended durability and high-load endurance.

• Industrial-grade LDO supports stable performance under high-temperature conditions.

• Murata Japanese capacitors offer superior filtering and ripple suppression.

• Programmable RGB LED with customizable visual feedback.

• Advanced BLHeli_32 firmware for ultra-smooth throttle response and fast refresh rates.

Specifications

Application Scenarios

Perfect for agriculture drones, cinelifters, industrial VTOL UAVs, and any drone requiring high-voltage, high-efficiency power systems.

Details

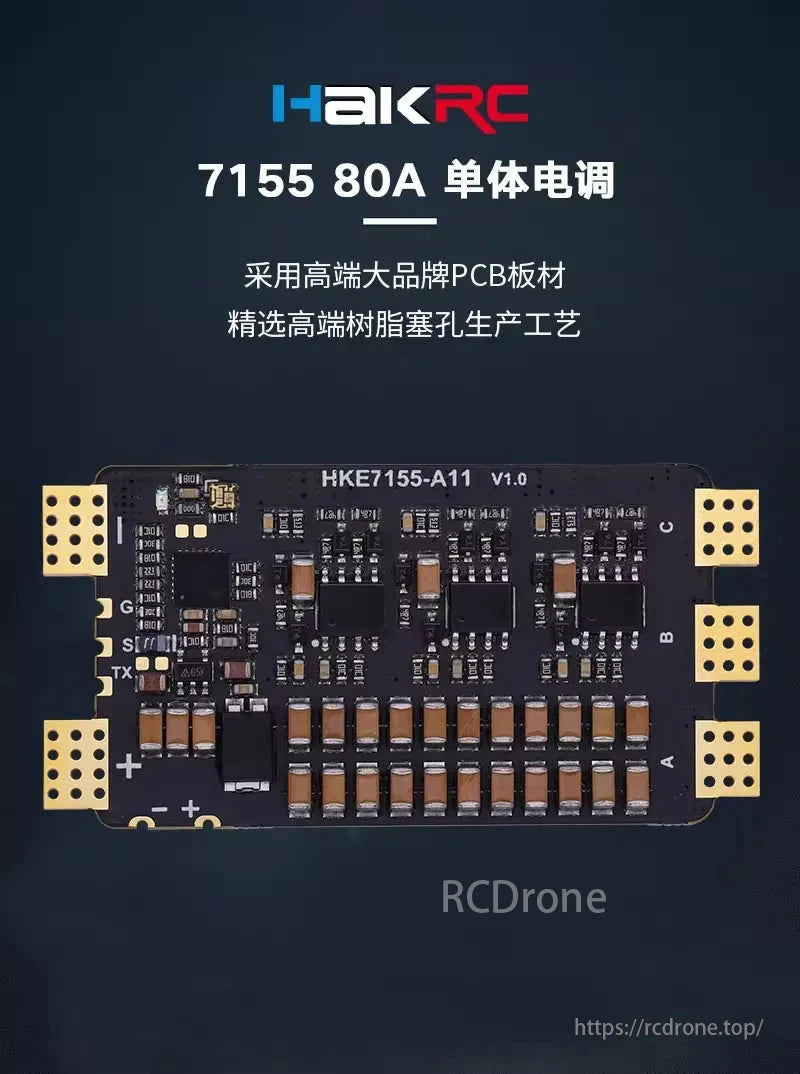

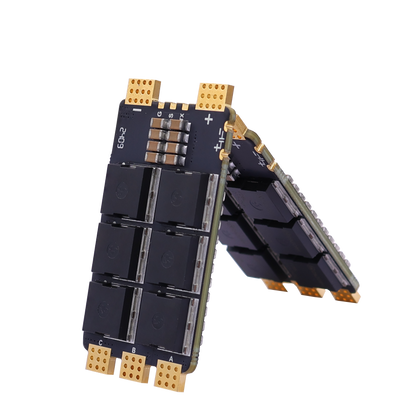

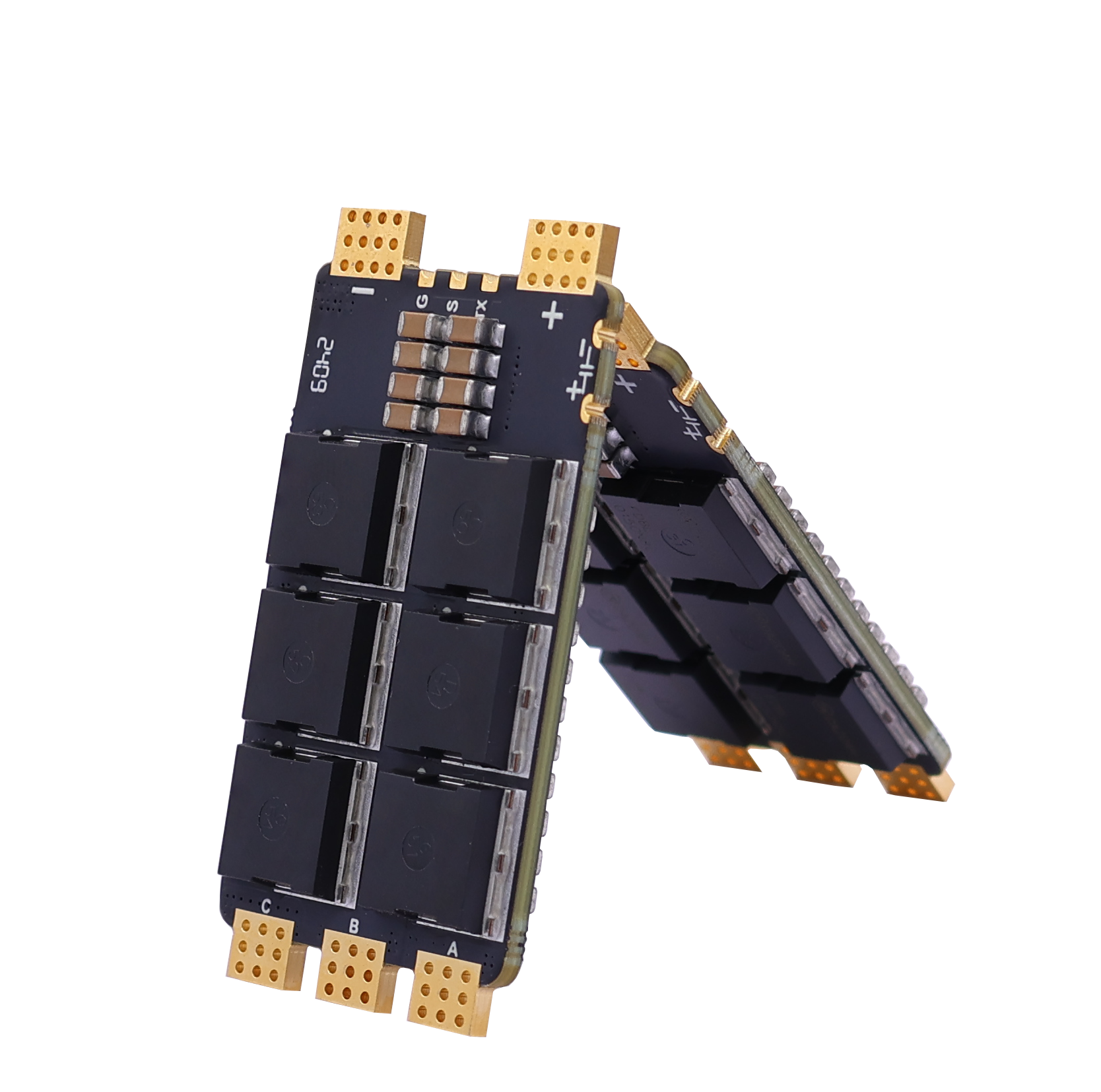

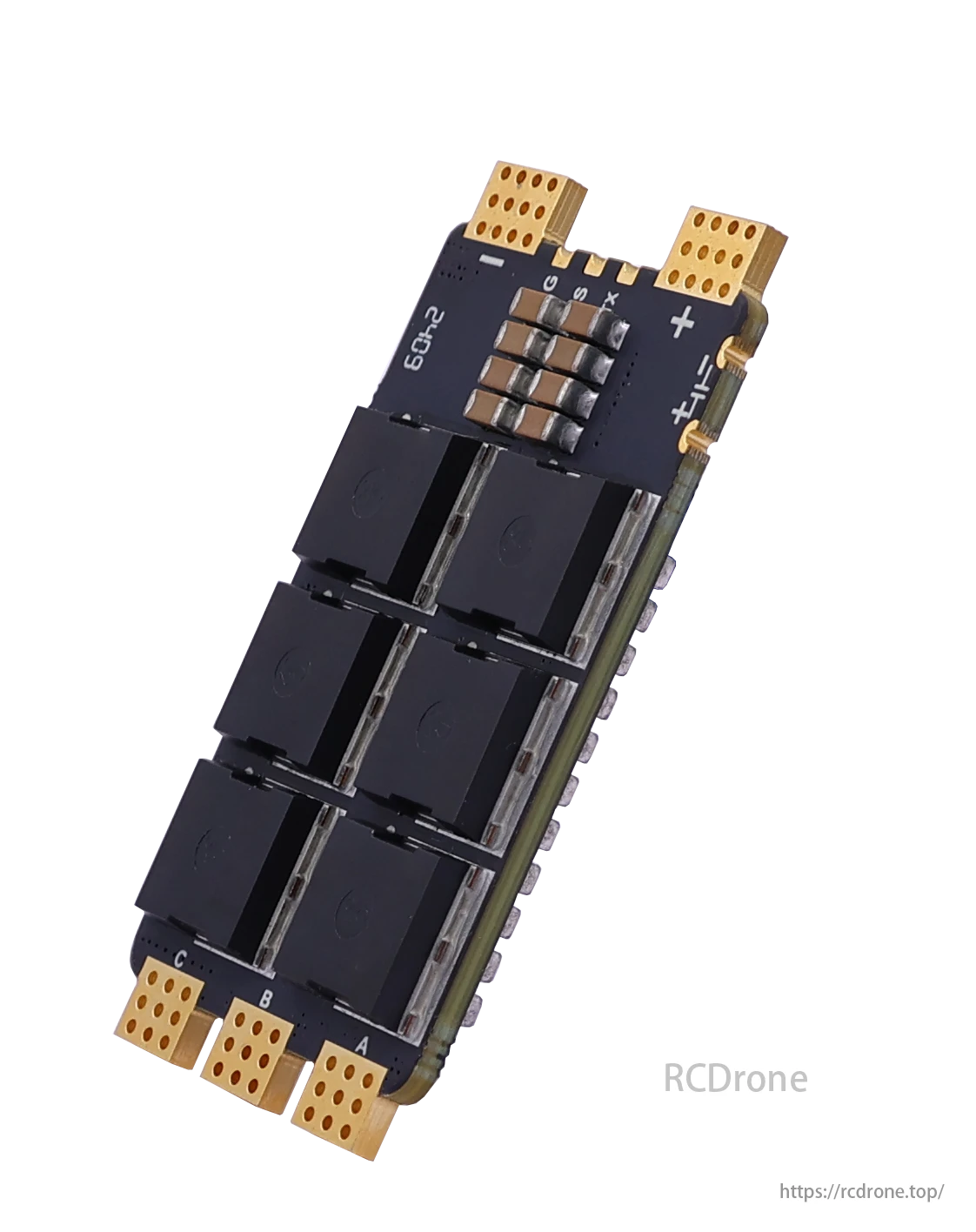

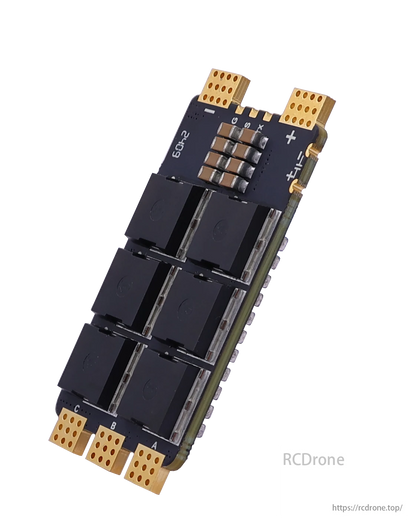

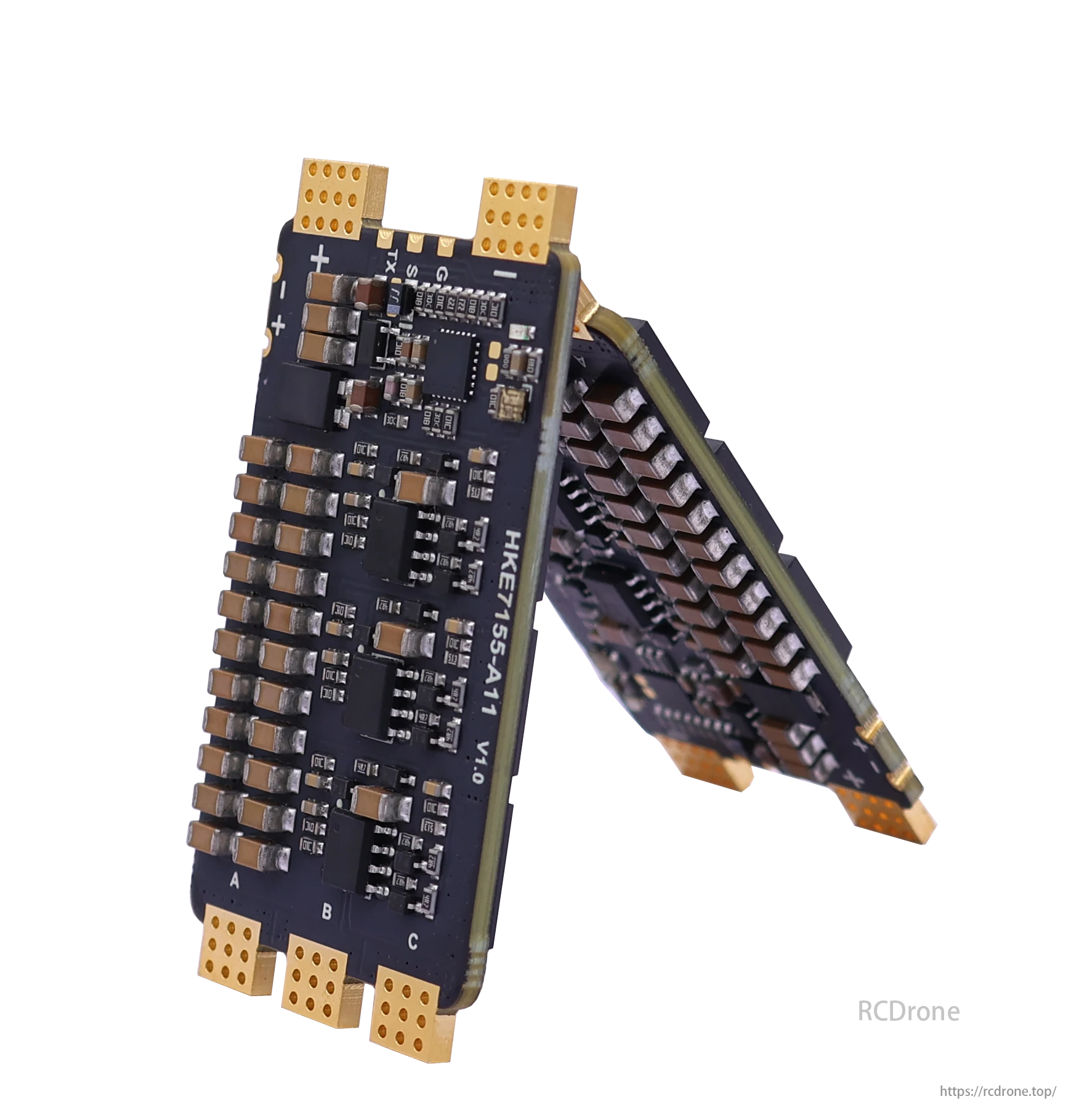

HAKRC 7155 80A Drone ESC uses high-end PCB materials and advanced resin-filled hole technology. Model HKE7155-A11 V1.0 ensures robust design for optimal performance.

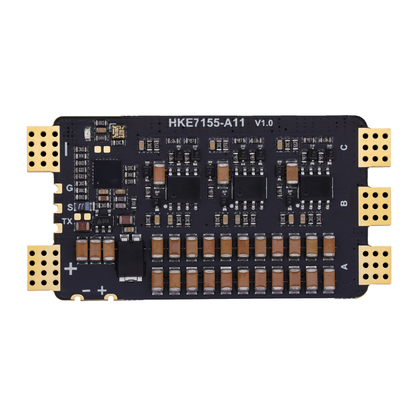

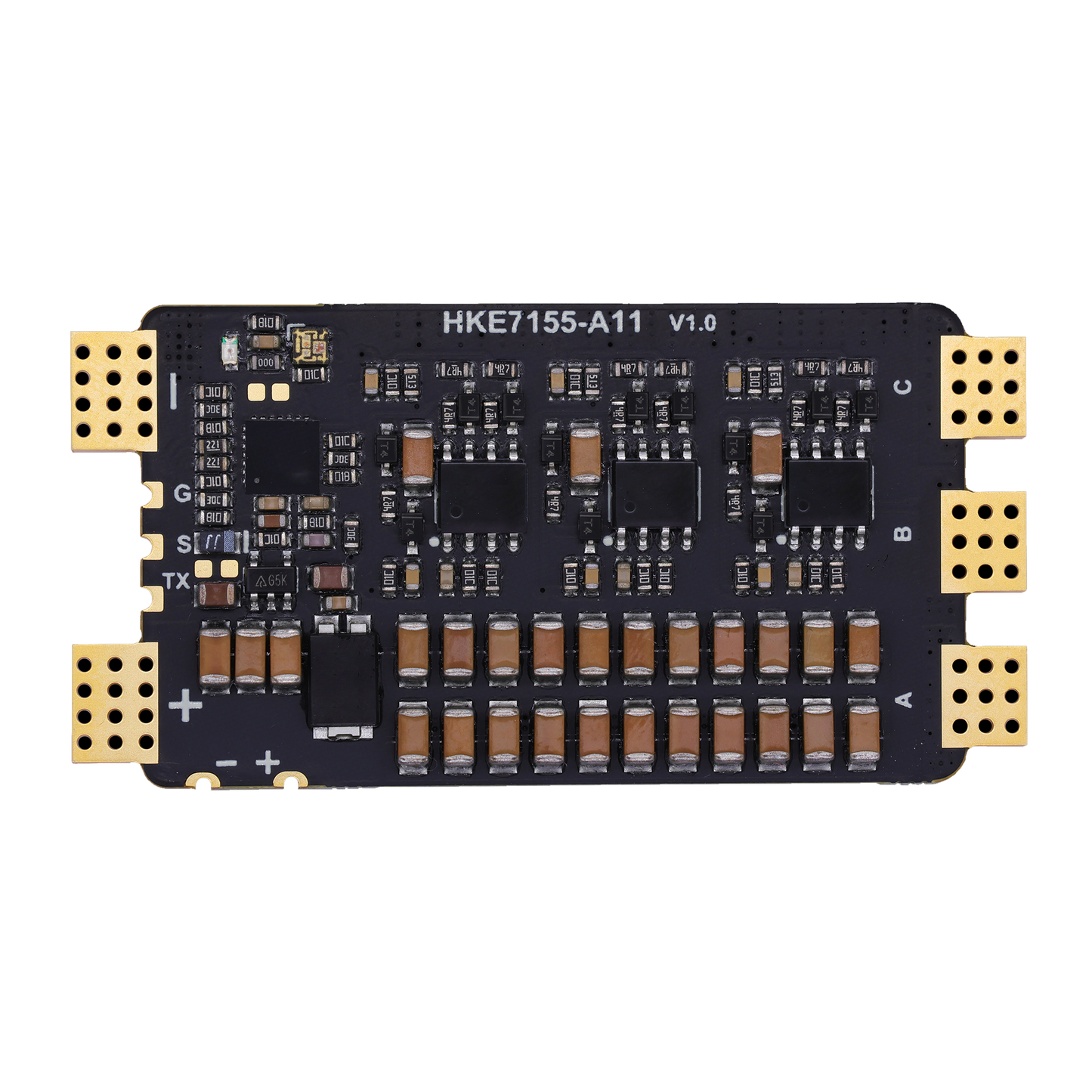

8-layer thick copper for better current and heat dissipation. STM32G071G8U6 controller with 64MHz frequency. High-quality components ensure durability and performance. Programmable LED lights.

HAKRC 7155 80A Drone ESC: Continuous current 80A, peak 100A. STM32G071G8U6 chip, 55x28mm size, 21g weight. Supports 6S-12S Lipo, various protocols (PWM, Oneshot, Multishot, Dshot). Driven by SLM21867CA-DG.
