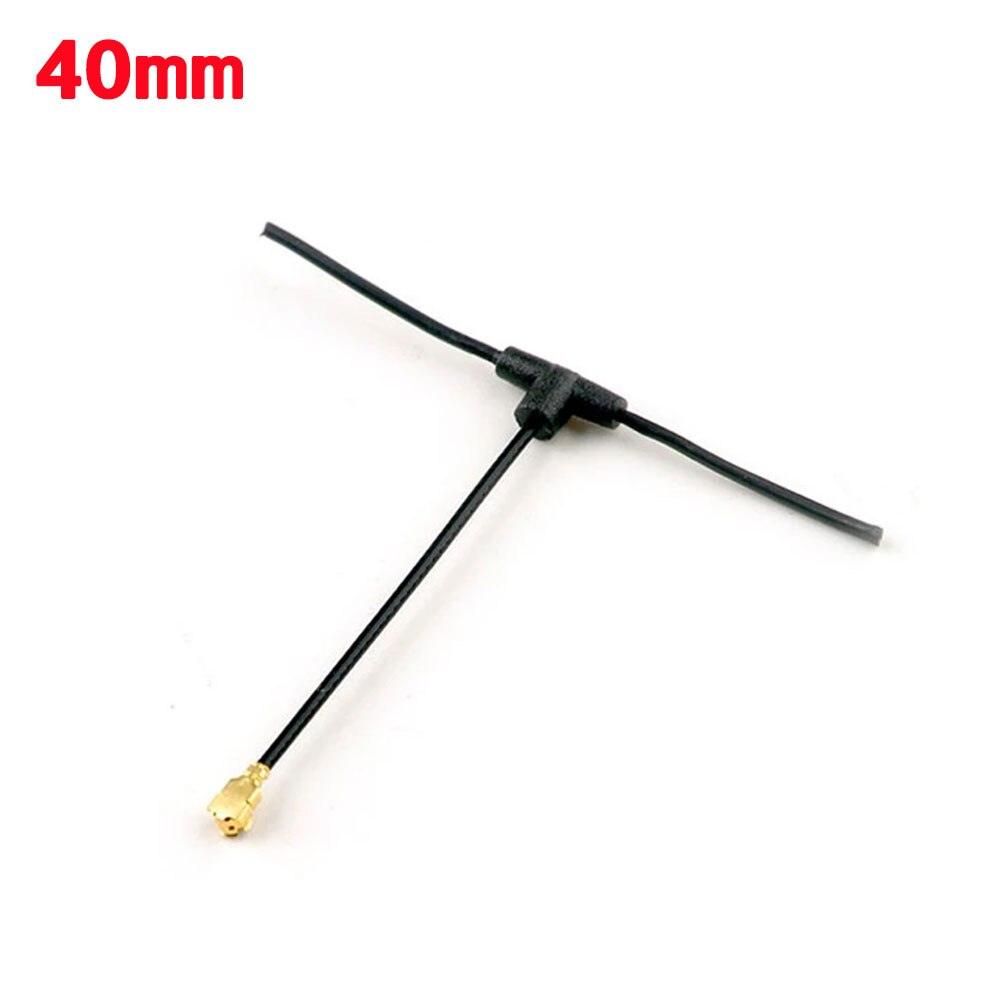

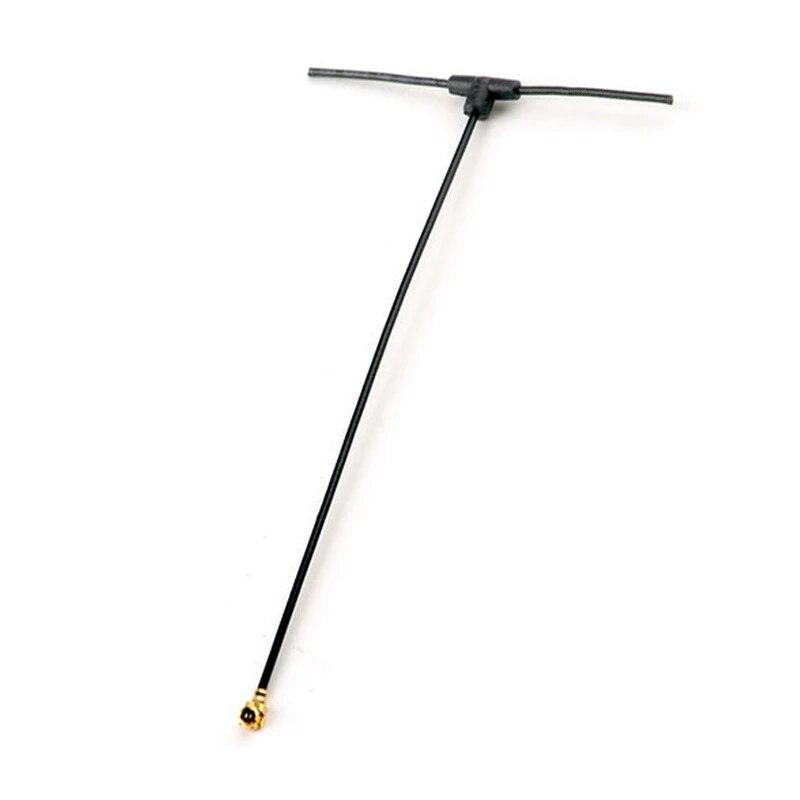

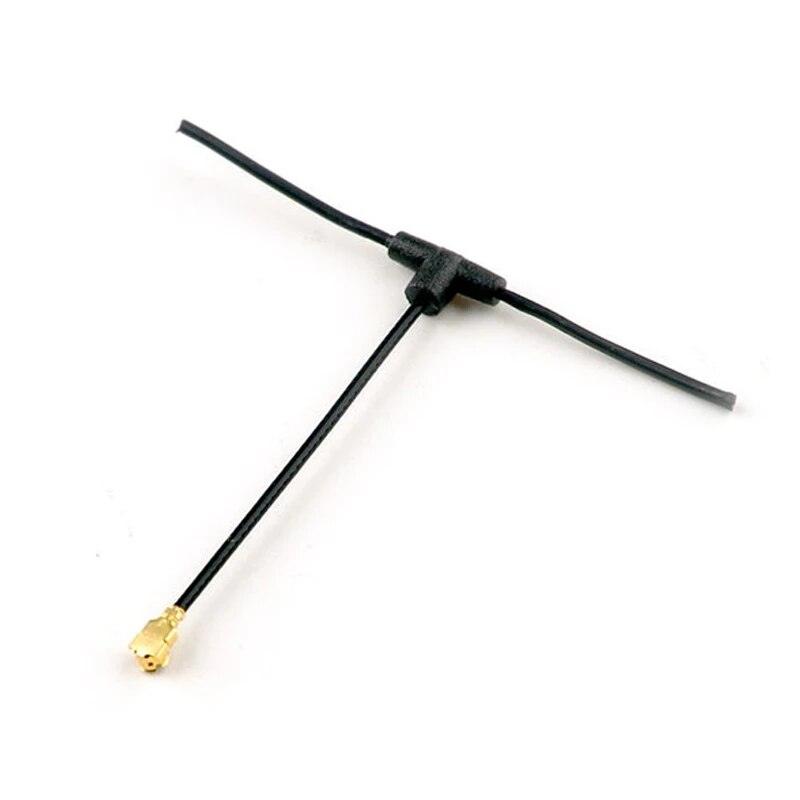

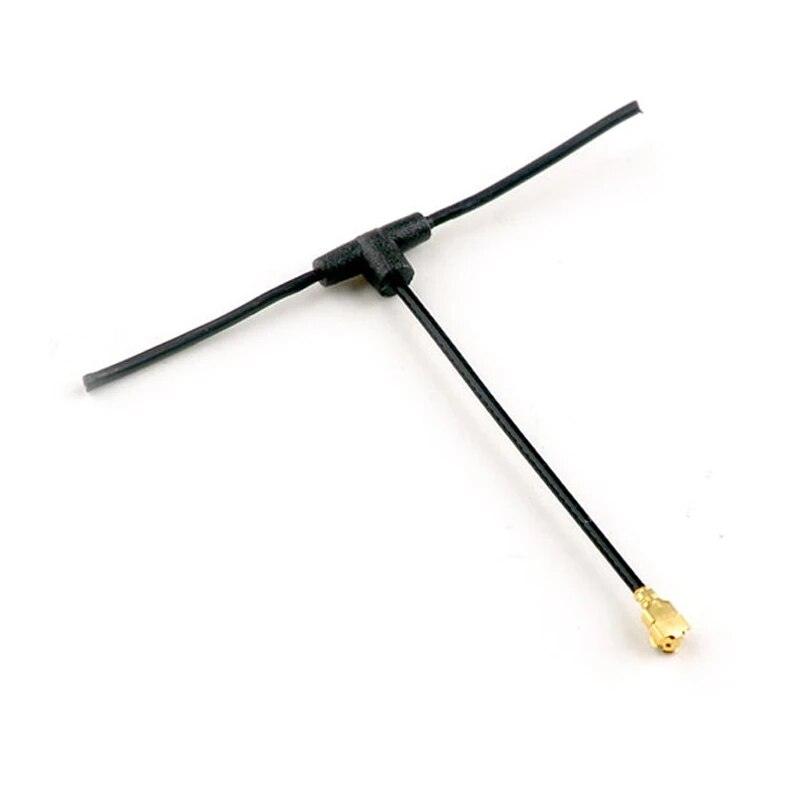

Happymodel 2.4G T omnidirectional Receiver Antenna 40MM/90MM for ELRS EP1 RX IPEX1 compatible with TBS Tracer RC FPV Drone Part

Happymodel 2.4G T omnidirectional Receiver Antenna 40MM/90MM for ELRS EP1 RX IPEX1 compatible with TBS Tracer RC FPV Drone Part

RCDrone

Regular price $9.41 USD
Regular price $18.82 USD Sale price $9.41 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

162 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Happymodel 2.4G T omnidirectional Receiver Antenna SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembled class

Technical parameters: Value 2

Remote Control Peripherals/Devices: Receivers

Recommend Age: 18+

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: Happymodel 2.4G T omnidirectional Antenna

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Frequency (MHz) 2400.0
Efficiency (dBi) -0.89
Gain (dBi) 2.23
Efficiency (%) 81.46
Directivity (dB) 5.12
Peak Gain Position (Theta) 180.00
Peak Gain Position (Phi) 330.00
Efficiency ThetaPol (%) 20.90
Efficiency PhiPol (%) 60.56
Upper Hem. Efficiency (%) 39.93
Lower Hem. Efficiency (%) 41.54

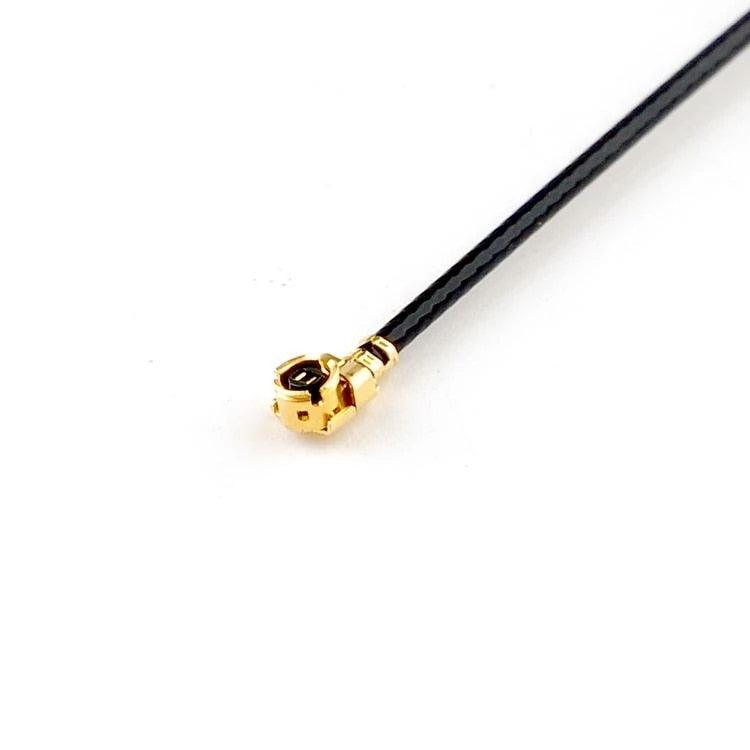

Connector IPEX/IPX/U.FL
Antenna width 52mm

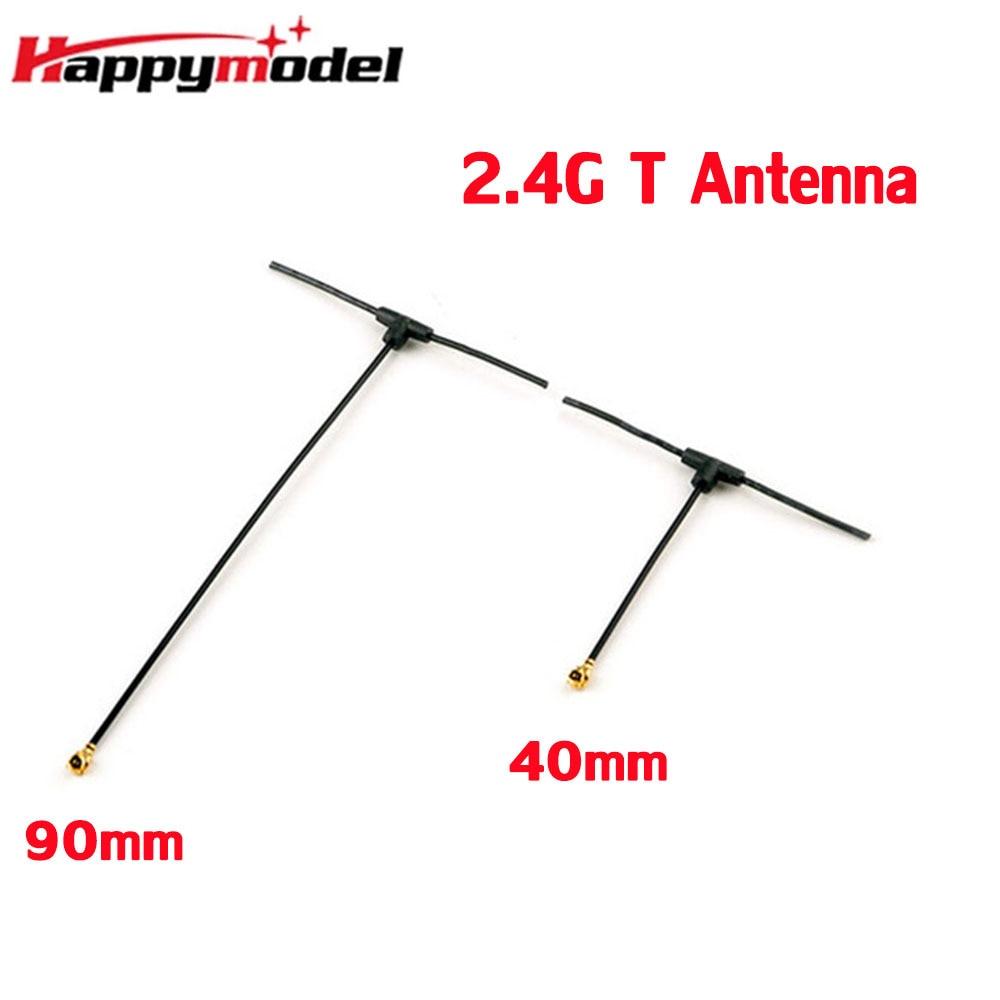

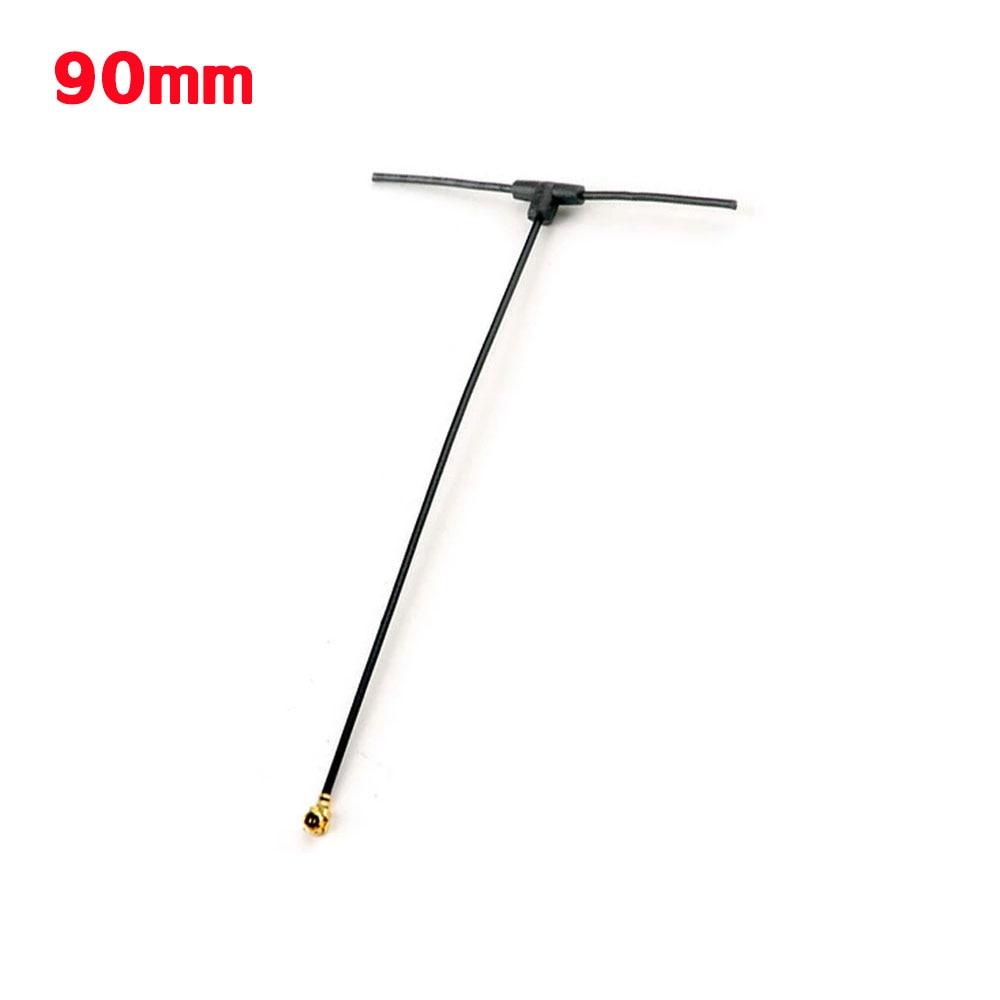

Antenna length 40mm/90mm(optional)

Happymodel 2.4G T omnidirectional Receiver Antenna 40MM/90Happymodel 2.4G T omnidirectional Receiver Antenna 40MM/90Connector IPEX/IPX/U.FL Antenna width 52mmHappymodel 2.4G T omnidirectional Receiver Antenna 40MM/90Happymodel 2.4G T omnidirectional Receiver Antenna 40MM/90Connector IPEX/IPX/U.FL Antenna width 52mmHappymodel 2.4G T omnidirectional Receiver Antenna 40MM/90Connector IPEX/IPX/U.FL Antenna width 52mm
