RCD3015 HDMI to AV Converter Board With IR Remote Triggering for SONY Camera NEX-5, 5N,5R,5T,5TL,6R,7N,7R. Nikon D90,D3X

RCD3015 HDMI to AV Converter Board With IR Remote Triggering for SONY Camera NEX-5, 5N,5R,5T,5TL,6R,7N,7R. Nikon D90,D3X

RCDrone

Regular price $47.90 USD
Regular price $71.85 USD Sale price $47.90 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

77 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

HDMI to AV Converter Board SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: HDMI to AV Converter Board

Tool Supplies: Battery

Technical parameters: Value 10

Size: As show

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Receivers

Origin: Mainland China

Model Number: RCD3015G

Material: EVA

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore




RCD3015 HDMI to AV Converter Board With IR Remote Triggering for SONY Camera NEX-5, 5N,5R,5T,5TL,6R,7N,7R. Nikon D90,D3X

it enters video recording mode when the 3-gear switch was turned to video recording gear from
Nikon D90,D3X -Cameras that it supports replay:

Use: Please watch the above demo video.
SONY NEX-5, 5N,5R,5T,5TL
SONY NEX-5, 5N,5R,5T,5TL
RCD3015G HD Port to AV Converter V2  for Sony With IR Remote Triggering Support Ground Remote FPV
RCD3015G HD Port to AV Converter V2  for Sony With IR Remote Triggering Support Ground Remote FPV

Description:

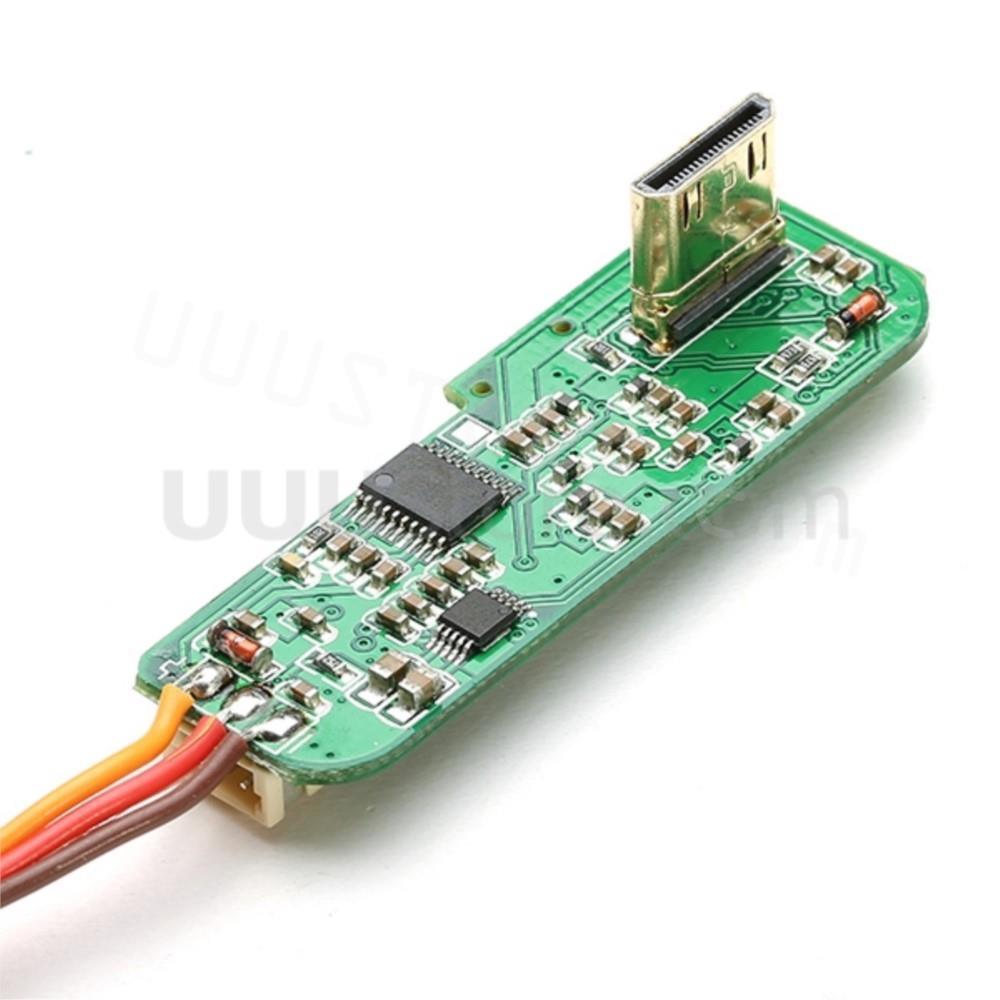

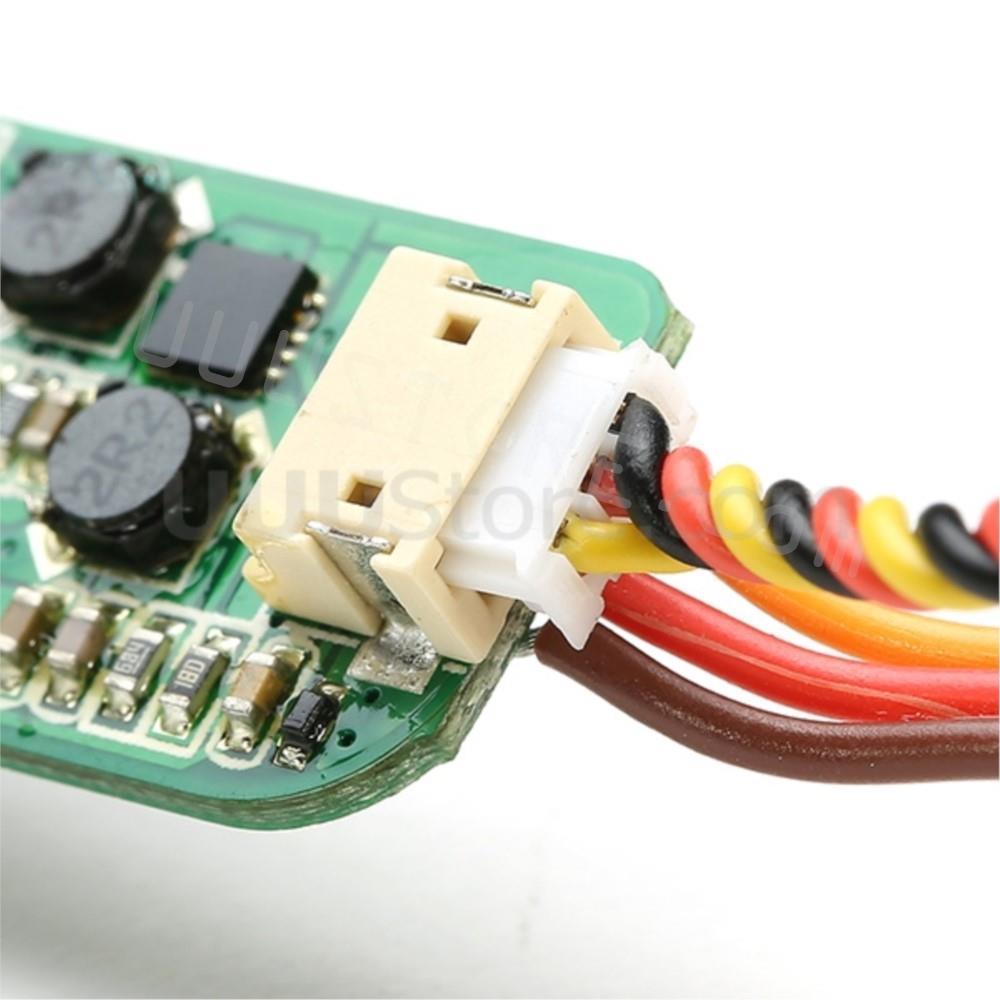

-RCD3015 is an enhanced version of our highly regarded RCD3013 HD Port to AV interface. Remote control of the camera is now possible via the 3 position switch from the radio control transmitter.
-This is an upgraded HD Port to AV aerial photography module, it can support aerial photography or video recording by remote controlling on the ground, very efficient design, it transmits infrared commands through optical fiber, easy and simple for installation. We optimized it according to the size of SONY NEX 7, no difficulty on installation now.

Usage:
Please watch the above demo video.

The control switch of three gears:
1.Gear up : take photo
2.Gear middle : stop (neutral)
3.Gear bottom : video recording

It is very important that the three geared switch needs to be on gear middle (neutral) position before you powered converter(the action of powered the converter includes turning on the camera or supply power to the receiver) When the shutter control switch is on gear middle(stop), red LED is on.

When you turn the 3-gear switch to gear middle (stop), the camera starts taking photos, the red LED flashes 2 times a second.

Control of video recording: It enters video recording mode when the 3-gear switch was turn to video recording gear from stop gear, and it starts recording video and save it on a SD card, the red LED on the converter flashes quickly. When it is turned from video recording gear to stop gear, the camera stops video recording and the video is saved at same time.

Attentions:
-Please note that the interval of changing stop (neutral) to another gear(gear up: take photo or gear bottom: video recording)should be more than 5 seconds, because the camera needs enough time for response, otherwise, the frequent command change from video transmission and stop video recording will lead to logic confusion of camera control, and may damage the recorded files.
-The converter doesn’t support RC receiver of high voltage,   the voltage for receiver should be 4.8V-6V, it will damage RCD3015G converter if the voltage is over the voltage limitation.
-If there is no signal from the receiver, the red LED flashes 4 times a second, it reminds customer to check if the receiver is powered and the transmitter is turned on.

Compatibility list:
-SONY NEX-5, 5N,5R,5T,5TL,6R,7N,7R. Nikon D90,D3X
-Cameras that it supports replay:Panasonic GH2, GH3 and Cannon 60D.
-It also supports SONY NEX 50i sold in mainland China and SONY NEX 60i series camera sold in Hong Kong or sold in Europe.

Package Include:
1 x Converter module
1 x Black red yellow AV cable
1 x 60cm long, 0.75mm POF optical fiber cable (it only needs 15cm long cable for normal Video for installation)
