HDZero Race V3 VTX - 5.8G 1S-3S 25mW/200mW 1080P@30fps 720P@60fps 540P@90fps FPV Video Transmitter

HDZero Race V3 VTX - 5.8G 1S-3S 25mW/200mW 1080P@30fps 720P@60fps 540P@90fps FPV Video Transmitter

HDZero

Regular price $93.00 USD
Regular price Sale price $93.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

125 orders in last 30 days

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

Description

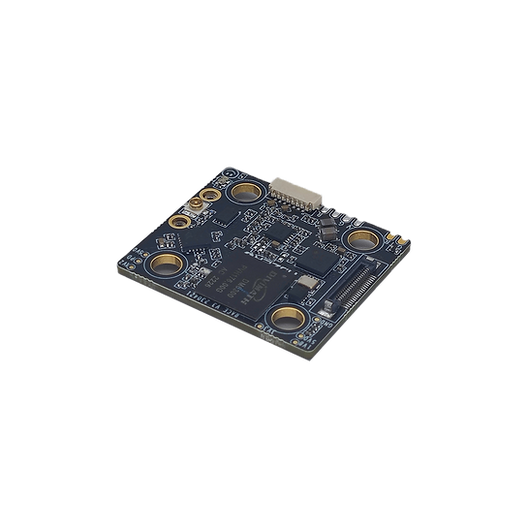

Designed for FPV racing, the HDZero Race V3 VTX is our 3rd generation digital video transmitter. With a voltage range starting at 4V, it can be powered by the 5V 1.5A regulator of most FC’s or up to 12V for FC’s that include a HD VTX plug. It is small (28x32x5mm) and light (5.5 grams). With a width of only 28mm, the VTX is now a similar width to many FC's, which improves durability and reduces weight. The antenna is securely attached with a metal bar and screws. No soldering needed – just plug the wire harness into a compatible HD-ready FC.



The HDZero Race V3 VTX is designed with durability in mind, rather than weight. It is made with a 1.6mm thick PCB, in comparison to the 1.0mm PCB used in the Whoop lite VTX. Moreover, it uses more large package size components for stability consideration. For the smaller components, an additional glue coating is applied to increase crash protection. The Race V3 VTX also has a reverse polarity protection circuit, which is not present in the Whoop lite VTX.



The HDZero Race V3 VTX offers high-quality video in 540p90, 720p60 and 1080p30 resolutions with 25/200mW switchable power on 5.8GHz.



Specifications





Model:

HDZero Race V3

SKU

HDZ3143

Frequency:

5.725-5.850GHz

Resolution Default:

540p90/720p60/1080p30

RF power

25mw/200mw

RF Connector:

Secured U.FL

Interface:

4 lane MIPI CSI YUV422

Video Connector:

20 Position 0.30mm Pitch

Size:

32mm x 28mm x 5mm

Weight:

5.5g

Harness length:

40mm

power input

4V-12V

Mounting

20mm x 20mm M4 with rubber grommets



Includes



VTX-R3 board with pre-soldered harness * 1;

Rubber Grommet (M4 to M3) * 4;

u.FL Antenna Retention Screws * 4

Metal bar * 1
