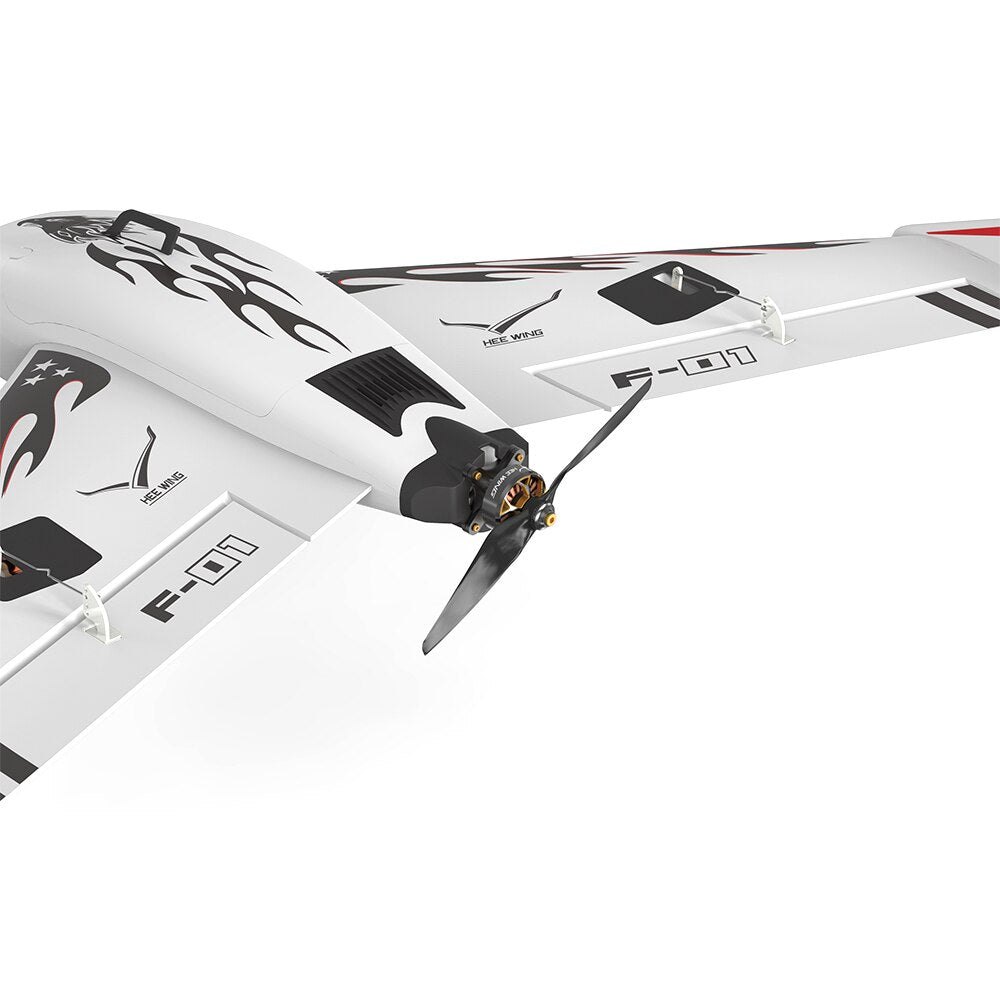

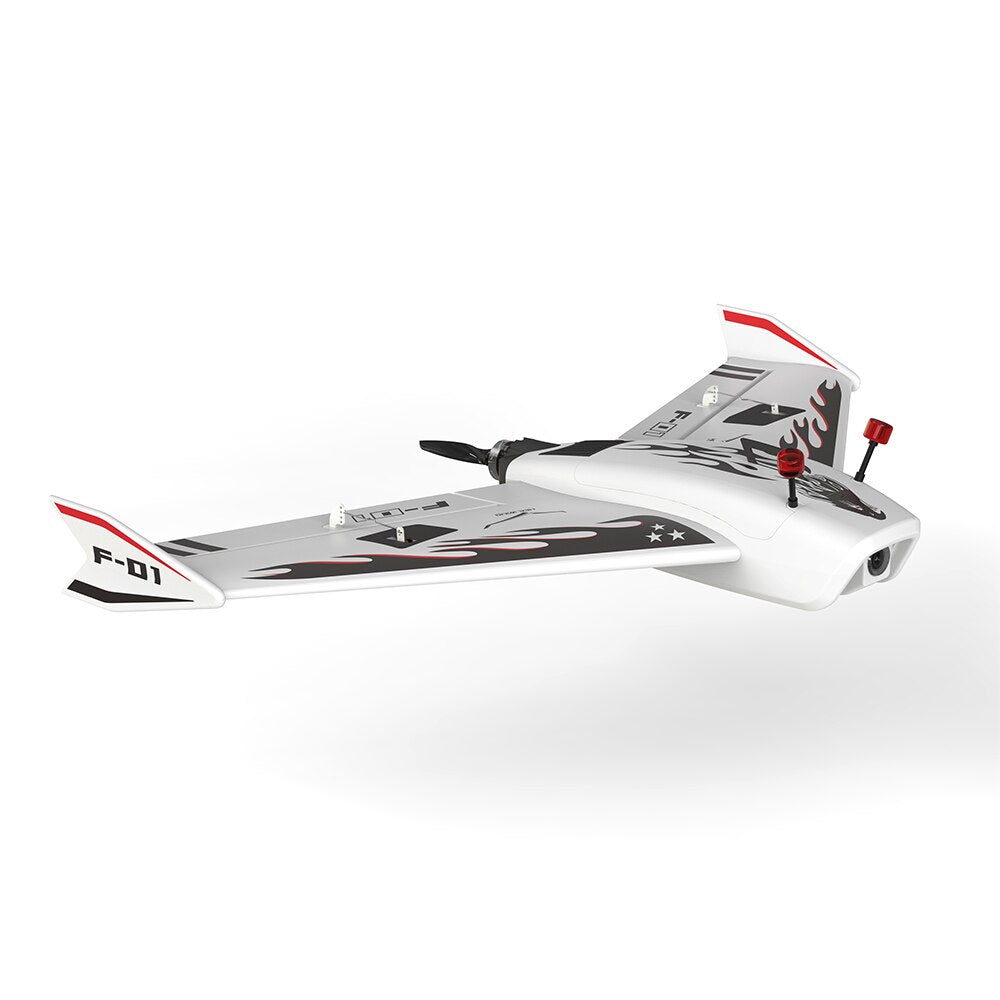

HeeWing HEE Wing F-01 Jet Ultra Wing 690mm Wingspan EPP FPV Remote Control Airplane Tailored Electric RC Aircraft Plane Drone

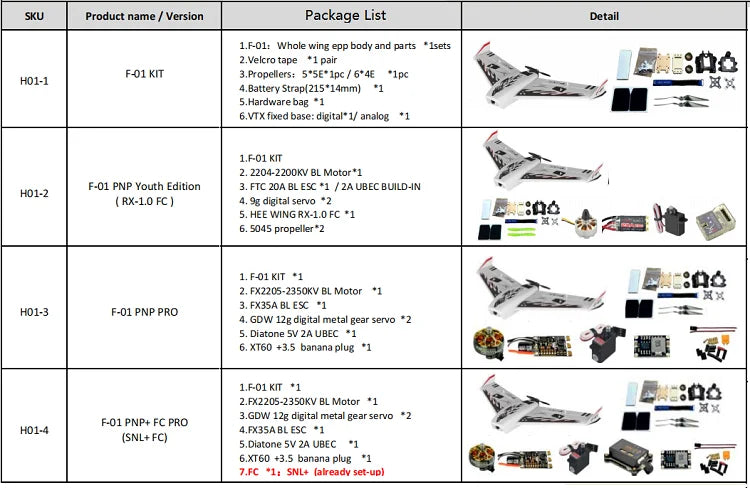

Version and Package List :

F-Ol: whole wing epp bodyand parts ets 2.Velcro tape FO1 KIT 3,Pr opelllers; 5*5E* lpc 6*40 "Ipc HOI-1 Baiter Strap(215' 1Arnm) 5.Hardware 6 VXuedpnse digital"

Parameter:

Material:  EPP/ABS/Carbon Fiber

Airplane Dimension:    Wingspan 690mm, Height:88mm, Length:415mm

Min Flight Speed: <27KM/H

Max Flight Speed: >220+km/h .

Max Endurance: >70 minutes

Max Mileage: >45km

Tailored for DJI Digital Air Unit

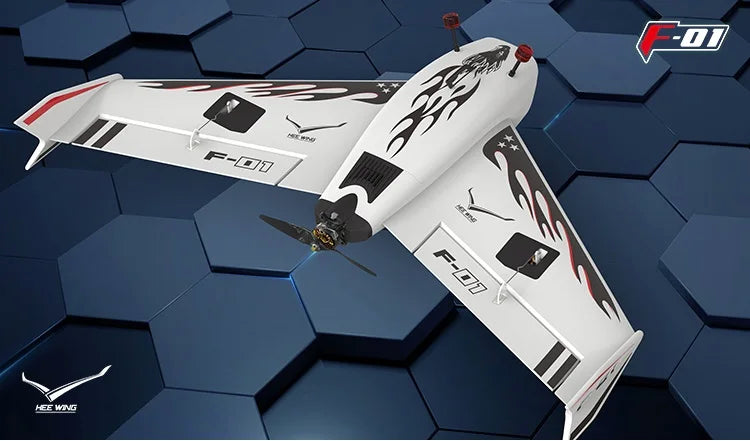

Note:  when speed is ≥100 km/h, you should install lens cover to prevent excessive inflow air from blowing  away the hatch.

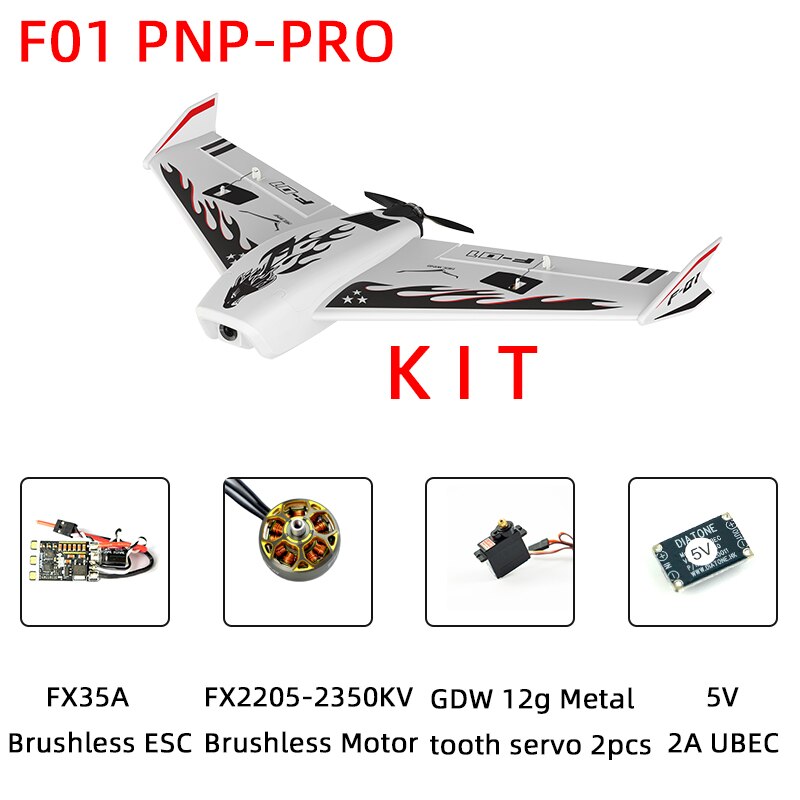

Configuration:

Motor: FX-2205/2350 kv

ESC: FX-35A

Battery: 2~4s

Propeller: 5*5E/6*4e

Servo:  digital 9g.

Thrust: ≥920 g(6*4 Prop)

Features:

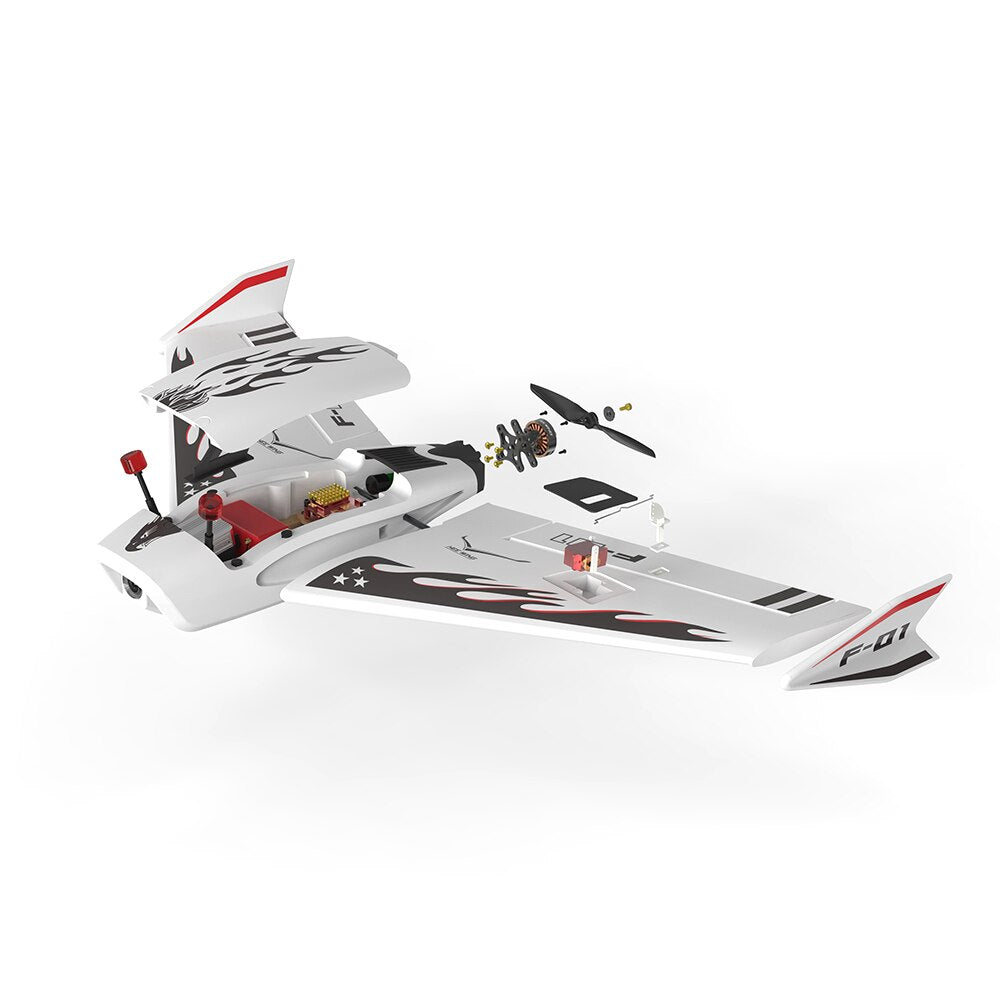

1 Tailored for DJI Digital Air Unit

  equipped with dedicated base for digital and analog versions for high strength and light weight.

2 Tailored lens ring for better protection

3 Independent detachable lens plug for both FPV and visual observation flights

4 Small wingspan & big space, worry-free placement of electronics

5 Cabin adopts dual-rail design, so you can adjust center of gravity at ease

6 Support horizontal and vertical way of battery placement, enabling more possibilities for your flight

7 Four magnets are applied to the hatch for better fastening

8 The unobstructed convection design of the cabin

  ensures that the electronic equipment inside the cabin is always cool and worry-free.

9 Adopting an asymmetric double convex airfoil design,

  which is good for both long endurance flight and high-speed maneuvering flight.

10 The new wingtip design supports vertical take-off mode.

11 The wing adopts three embedded carbon fiber rods with different angles and a high-strength frame design

   which can easily cope with heavy loads and ultra-high-speed flight.

12 All new propeller locking method, extremely light, strong and reliable.

DJI wing F-7 F-D1 is a new experience wing designed for DJI digital and analogversions . it has a 69cm wingspan and a 721ml big space wing . all new tips support vertical take-off .

Fuselage space:

Battery compartment :175mmx75mmx 55mm(Max Dimension)

ESC compartment:70mmx38mmx20mm(Max Dimension)

Camera:20mmx21mmx30mm(Max Dimension)

Camera guard: Outer Dia. 17.5mm,Inner Dia. 14mm/15mm,Height 12mm,Material:ABS
