Hex Pixhawk2.1 Flight Controller - Upgraded version open source FC autopilot orange cube for fixed-wing multi-rotor aircraft RC drone

The Cube Orange Standard Set + ADS-B  flight controller comes with an H7 processor, features a 1,090 MHz ADS-B receiver from uAvionix, automatically avoids aircraft and Is integrated into the new ADS-B carrier board!

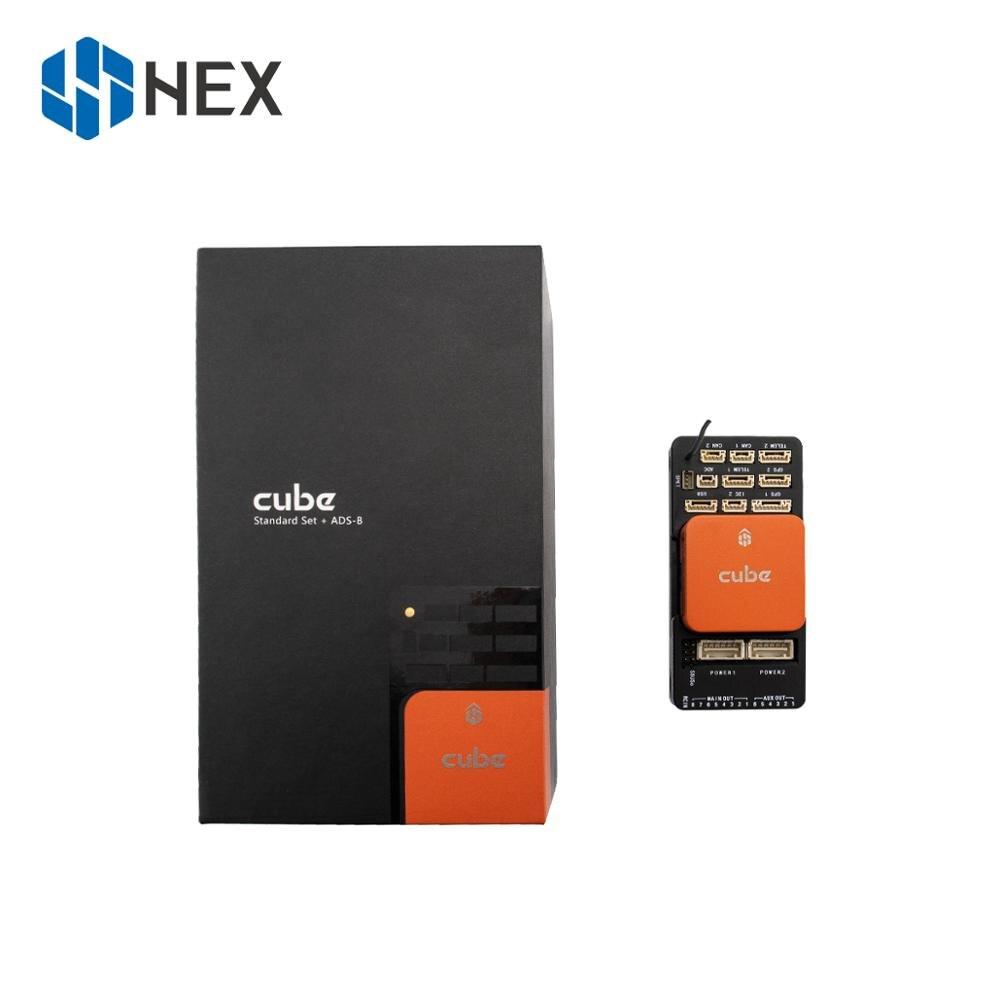

Package Includes

• 1 x Package
• 1 x Cube Orange Set
• 1 x Power Brick Mini
• 1 x I2C Board
• 1 x Buzzer
• 2 x Telemetry Cable
• 1 x GPS1 Cable
• 1 x GPS2 Cable
• 1 x Power1 Cable
• 1 x Power2 Cable
• 1 x I2C Cable
• 1 x Micro USB Cable
• 4 x Mounting Screws
• 3 x 3M Large Stickers
• 2 x 3M Medium Stickers
• 4 x 3M Small Stickers
• 1 x User

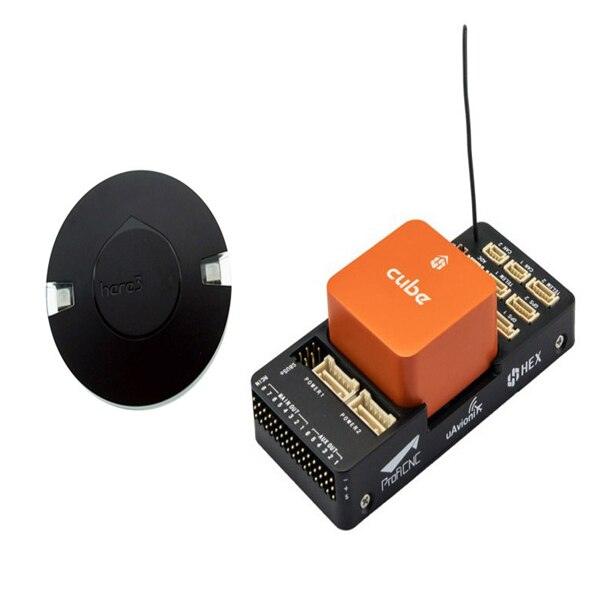

REMARK:you could choose Hex here2 or HERE3 GPS in the selection

Through the parameter setting, the autopilot can optionally set up the cube to allow the vehicle to automatically avoid an aircraft that is detected in an exclusion zone set by the pilot.

Features

• Built-in IMU Heating system, allowing flights at extreme temperature (below freezing)
• Robust DF17 Interface connectors give enhanced drop and shock resistance
• Airframes: VTOL, Plane, Multicopter, Traditional Heli, Rover, Boat, Sub, General Robotics

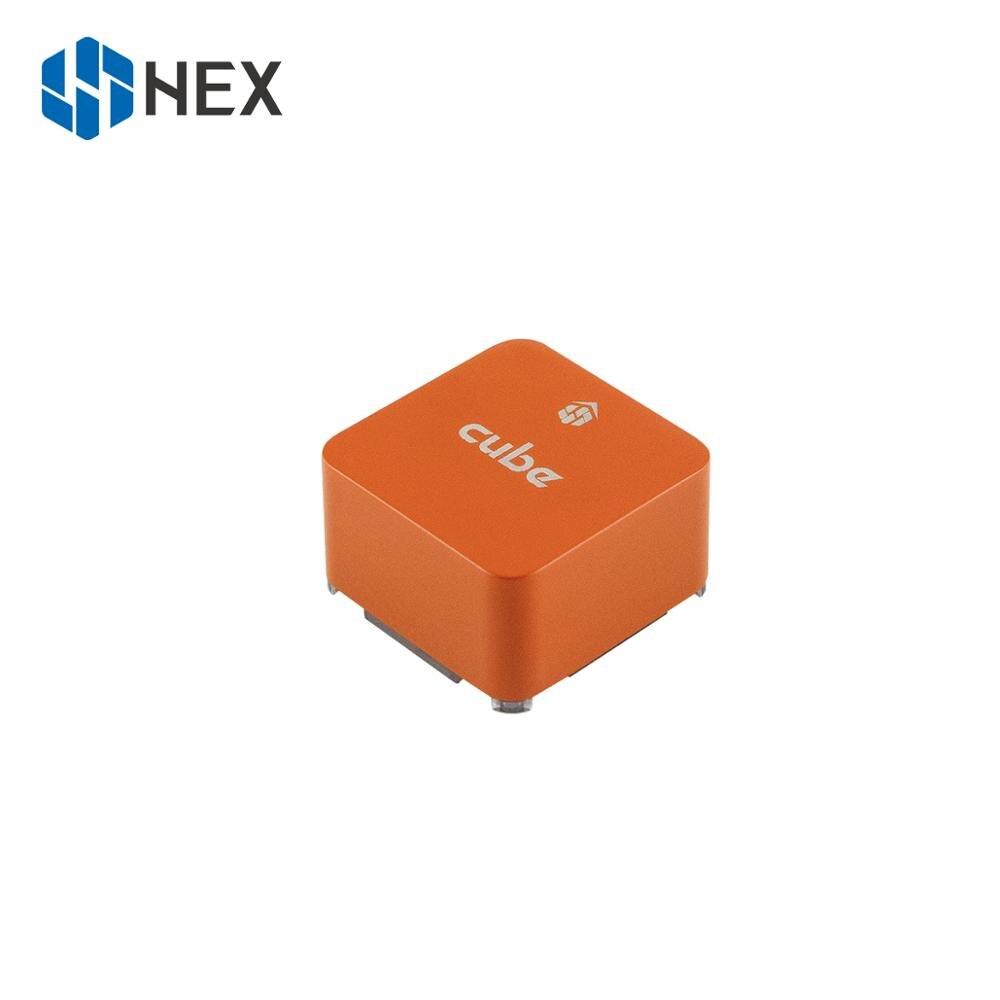

The Cube Orange

• Cube Orange targets education, amateur drones lovers, and professionals with cost-effective flight control hardware.
• Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with built-in
• triple-redundant sensors, temperature control shock absorption IMU.
• With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter
• or multi-rotor vehicle and turn it into a more professional UAV platform.

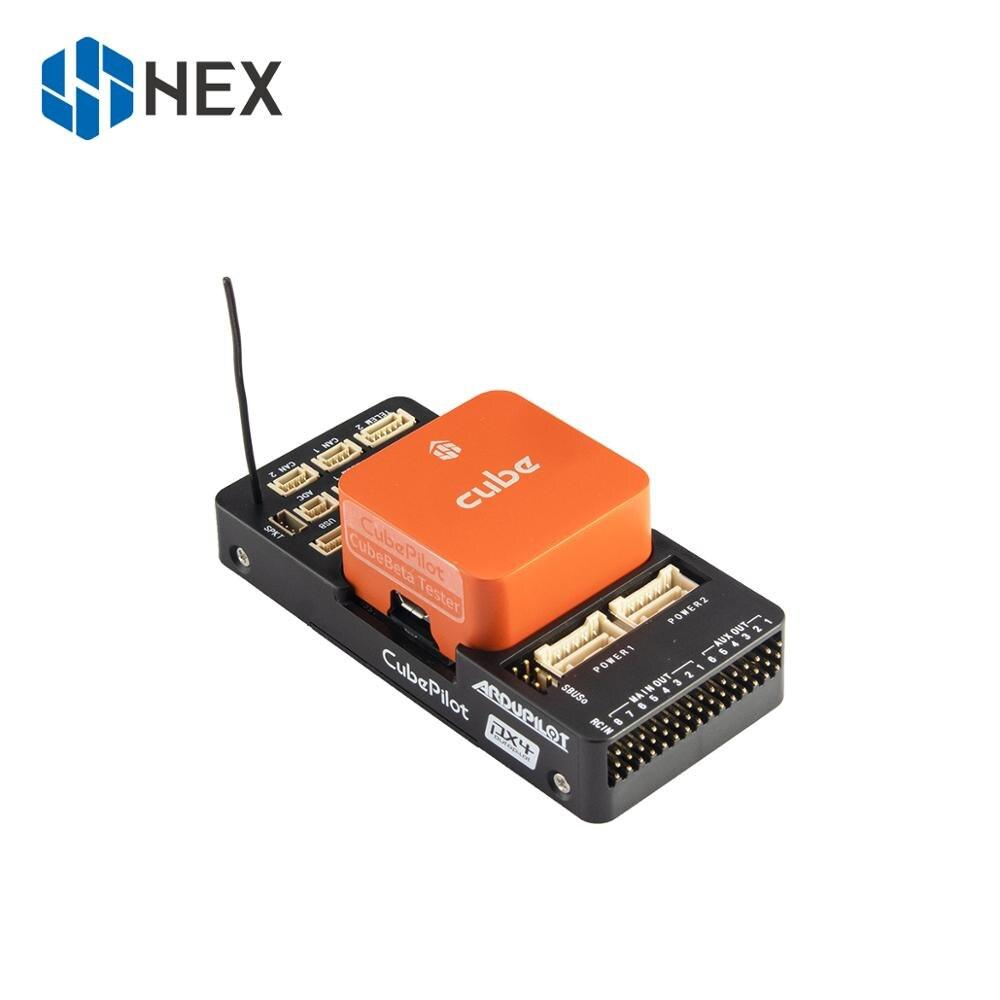

ADS-B Carrier Board

• A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location of manned aircraft in the area.
• Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
• Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that are within an exclusion zone set by you

Specifications

• Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
• Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
• Power rated output/input power: 14 W
• USB port input voltage/rated input current: 4-5.7 V / 250 mA
• Servo rail input voltage: 3.3 V / 5 V
• Not waterproof. External waterproof protection is needed
• Operation Temperature: -10 °C / 55 °C
• Cube Orange Housing Material: CNC Aluminum Alloy
• Standard Carrier Board Housing Material: ABS Molding

A 1090MHz ADS-B receiver from UAvionix has been integrated into the new Cube-Qrange carrier board . the vehicle can receive information about the location of manned aircraft in the area .

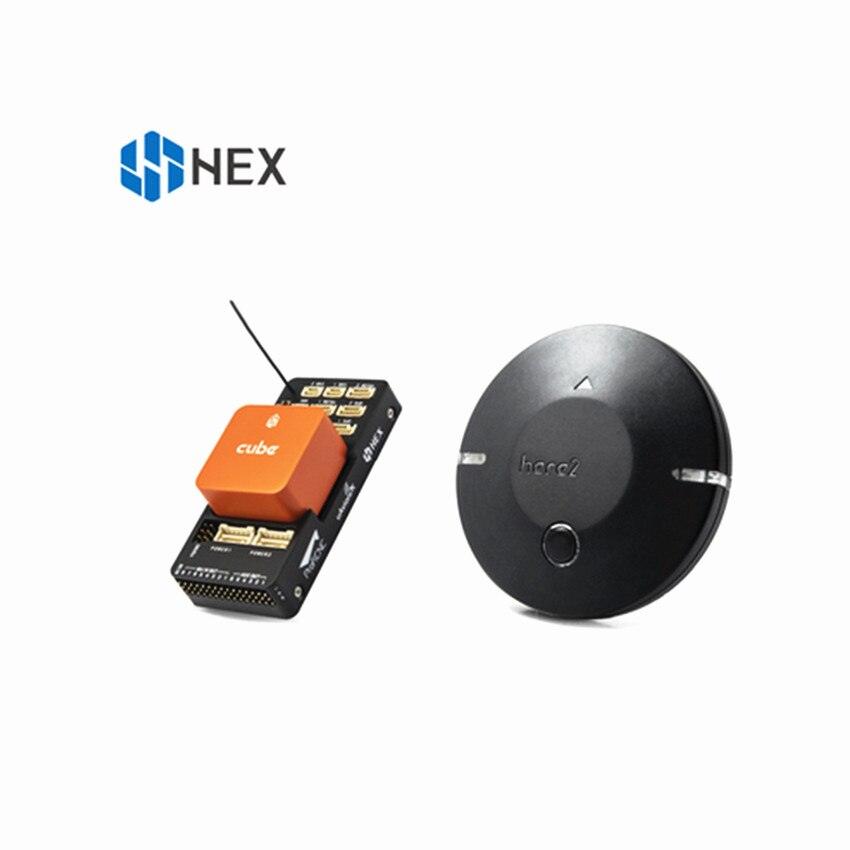

Here2 gps Description

Here2 GNSS/GPS module is the perfect fit for the Pixhawk 2.1. It was specifically designed and built to work with this world leading open source flight controller.
Features:
Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
Industry leading –167 dBm navigation sensitivity
Security and integrity protection
Supports all satellite augmentation systems
Advanced jamming and spoofing detection
Breakaway mount
Notification RGB LED
HMC5983 MAG, and LIS3MDL Mag
6CM Ground plane

built-in STM32F302 processing chip runs a real-time operating system (chibios) and an open architecture that allows the addition of custom functionalit; and supports firmware updates.

it supports two data transmission modes, CAN bus transmission mode and standard serial port +I2C transmission mode . it can be switched freely by switch .

g9 mcge Yiverse A complete set of navigation units are built in (accelerometer magnetic compass gyroscope); To meet more diversified navigation needs of users: Va 28g6*.2+A02

four separate LED status lights can send more signals through different color and brightness combinations . cheraz flight status lights are available in four different colors

the 59t obarometer MS5611 is built in, welch i kaeed or measuring pressure and height . heedllee ternal barometer becale is placed inside the sealed aircraft:

Key Features: * GPS Positioning: Yes * Magnetic Compass: Yes * Communication Protocol: Serial Port and I2C * CAN Bus Switching: Supported * Barometer: Not Available, but Yes for Other Options * Real-Time Operating System: No * Firmware Updates: Supported * Custom Software: Supported

The Hex Pixhawk 2.1 flight controller features a processor based on STM32F302, accompanied by a range of sensors including a compass, gyro, accelerometer, barometer, and MS5613 receiver. The device supports a variety of navigation systems, including GPS (U-blox MBN engine), GLONASS L1OF, Beidou, Galileo E1/B/C, SBAS, WAAS, ECNOS, MSAS, and GAGAN. It provides 3D positioning accuracy with a real-time update rate.
