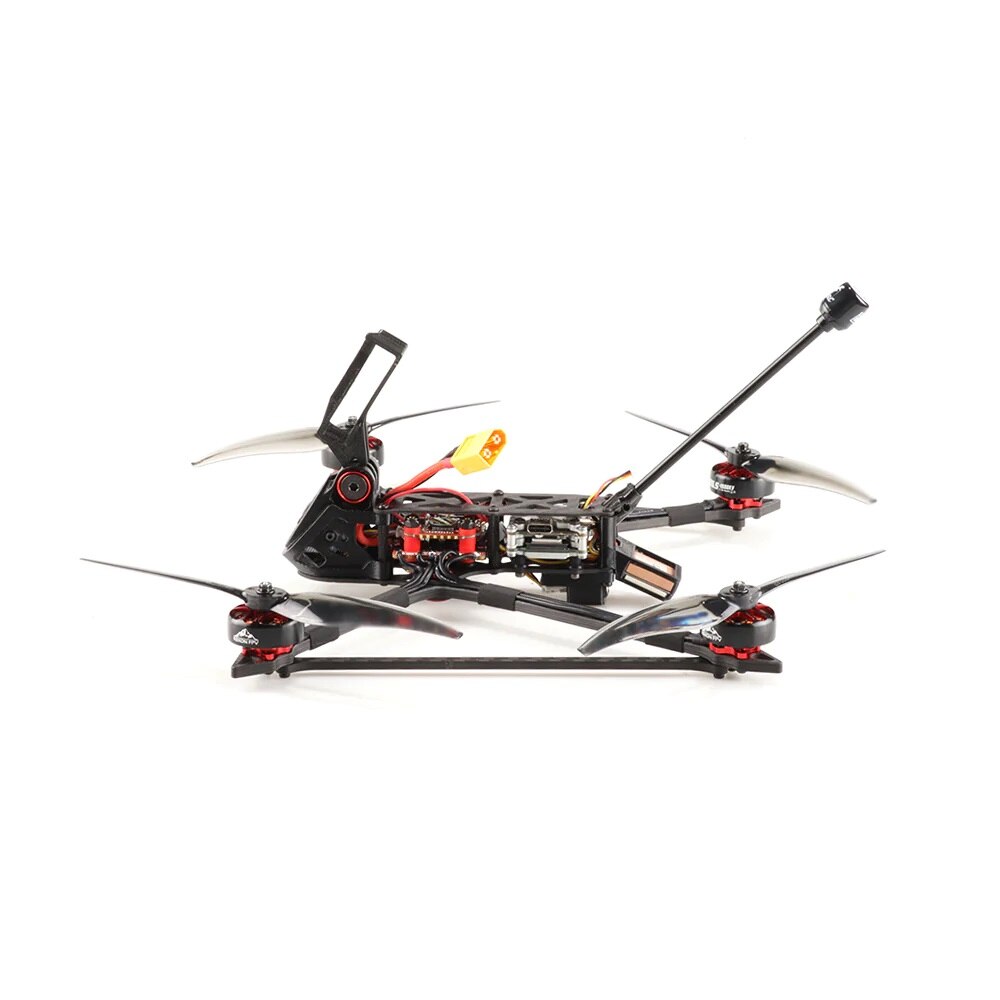

This six-inch platform is an adaptation of the Rekon 5 to match the new light 6” t-mount props that now entered the market. The main advantage of 6" compared to the 5" version is the ability to carry even higher loads, especially large four cell 21700 Lithium-Ion packs with over 4000mAh for extreme flight times. With its 1500kV 2105.5 motors the quad can be run on 6S for increased power, but it is mainly intended as an ultra-high efficiency cruiser on 4S.

Features:

- Lightweight frame with 10mm aluminium bolt construction, compact 25/20mm standoff split deck main body for double 20x20 stacks
- Shock absorbing TPU front with integrated GoPro mount
- Foldable crossfire immortal T-mount inspired by Alexandre Arvinte (@ledrone.club)
- Mild dead cat design reducing the props in view while not affecting flight performance
- Optional braces for improved vibration dampening and crash resistance
- Optimized for 2105.5 and 2303 motors with 12x12 M2 mounts
- GPS mount for M80 GPS
- External buzzer mount for Soter Buzzer
- Power plug:XT60

Specification:

HGLRC Rekon6 LR HD Quad FPV Drone F722 mini flight controller 28A 4in1 ESC Aeolus 2006 Motor CADDX Nebula Nano

Product Name:HGLRC Rekon6 LR Drone HD 4S Version
Net Weight:247.4g(without receiver)

Rekon 6 LR Frame
Type: 6 inches Frame
Wheelbase:242mm
Support for props:Up to 6 inches
Overall size:235 * 178mm

Zeus F722 mini FC
MPU:BMI270
Input Voltage:3-6S Lipo
BEC Output:5V/2A,9V/1.5A

Zeus 28A BL_S 3-6S 4in1 ESC
Input Voltage:3-6S Lipo
Steady Current:28A
Peak Current:35A（10 Sec）

CADDX Nebula Nano
Operating Frequency:5.725-5.850 GHz
Input Power:7.4-26.2V
Channels:8

Rekon 2006 1500KV Motor
No.of Cells(Lipo):16.8 V (4S)
Recommended Prop(inch):6 Inches

M80 GPS
Power Supply:5V
Size:18.5mm x 18.5mm x 7.1mm

Soter FPV drone buzzer
Input voltage: 5V
Size:22mm x 12mm x12mm

GEMFAN 6026 6 Inches 2-Blades Propeller
Quantity:4 CW & 4 CCW

include:

1x Rekon6 LR Frame
1x Zeus F722 mini FC
1x Zeus 28A BL_S 4in1 ESC
1x CADDX Nebula Nano
4x Rekon 2006 1500KV Motors
1x M80 GPS
1x Soter FPV drone buzzer
8x GEMFAN 6026 Propellers
1x SMA Mini Inner Needle Hammer Antenna (LHCP)
2x Battery Straps
1x TPU naked Gopro mount
1x Receiver（Optional）

Recommended battery:

4S:1000mAh-1500mAh

18650 lithium-ion battery
