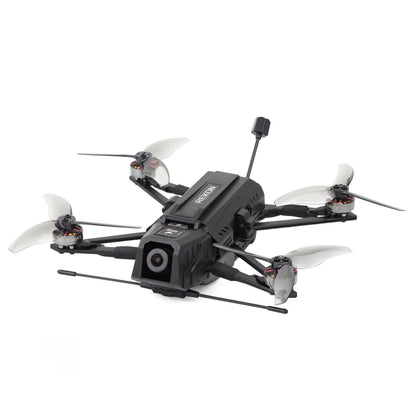

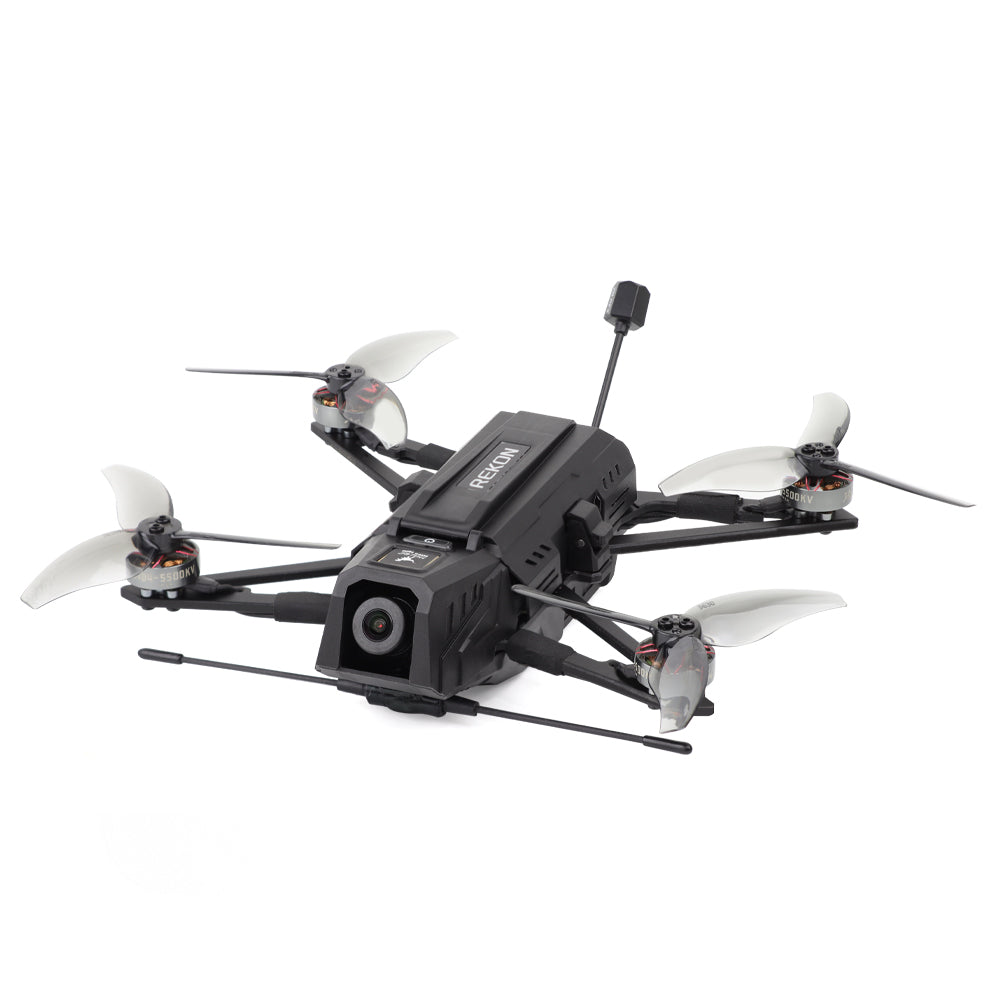

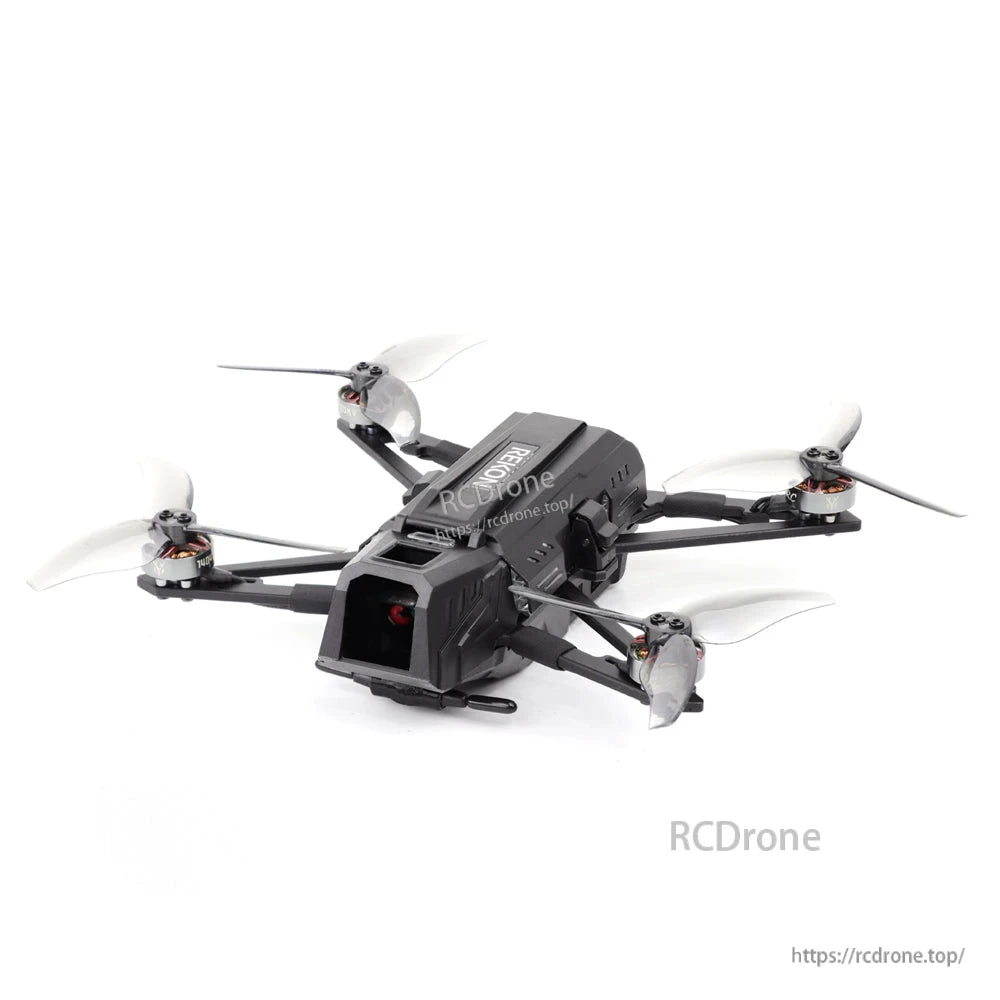

• Rekon35 v2 FPV drone three-quarter front view showing protective camera housing and prop guards

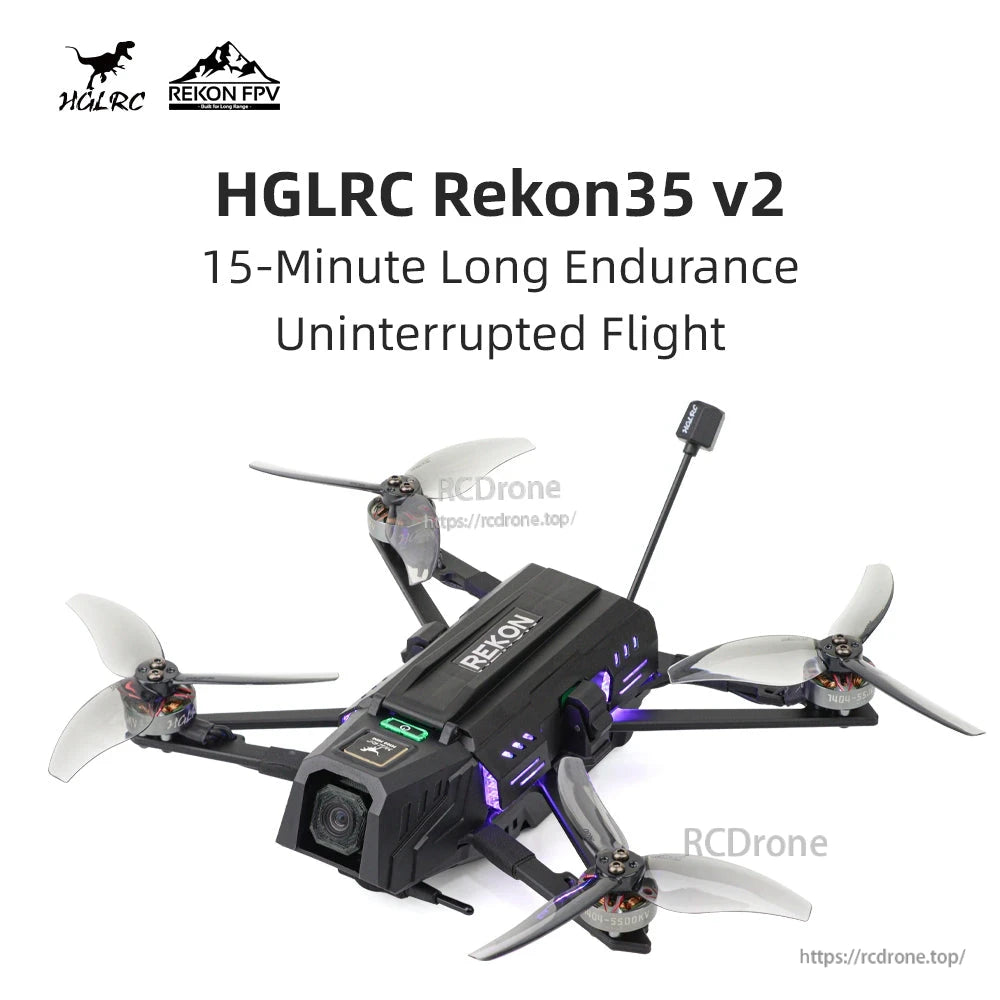

  • HGLRC Rekon35 v2 Long-Range FPV Drone endurance graphic with drone image and '15-Minute Long Endurance' text
  • Rekon35 v2 specifications chart showing analog, HD and power kit versions with component list
  • Rekon35 v2 package contents: drone, spare propellers, USB-C cable, hex wrench, screws, manuals and stickers
  • Rekon35 v2 packaging size and weight comparison chart with box dimensions and unit weight notes

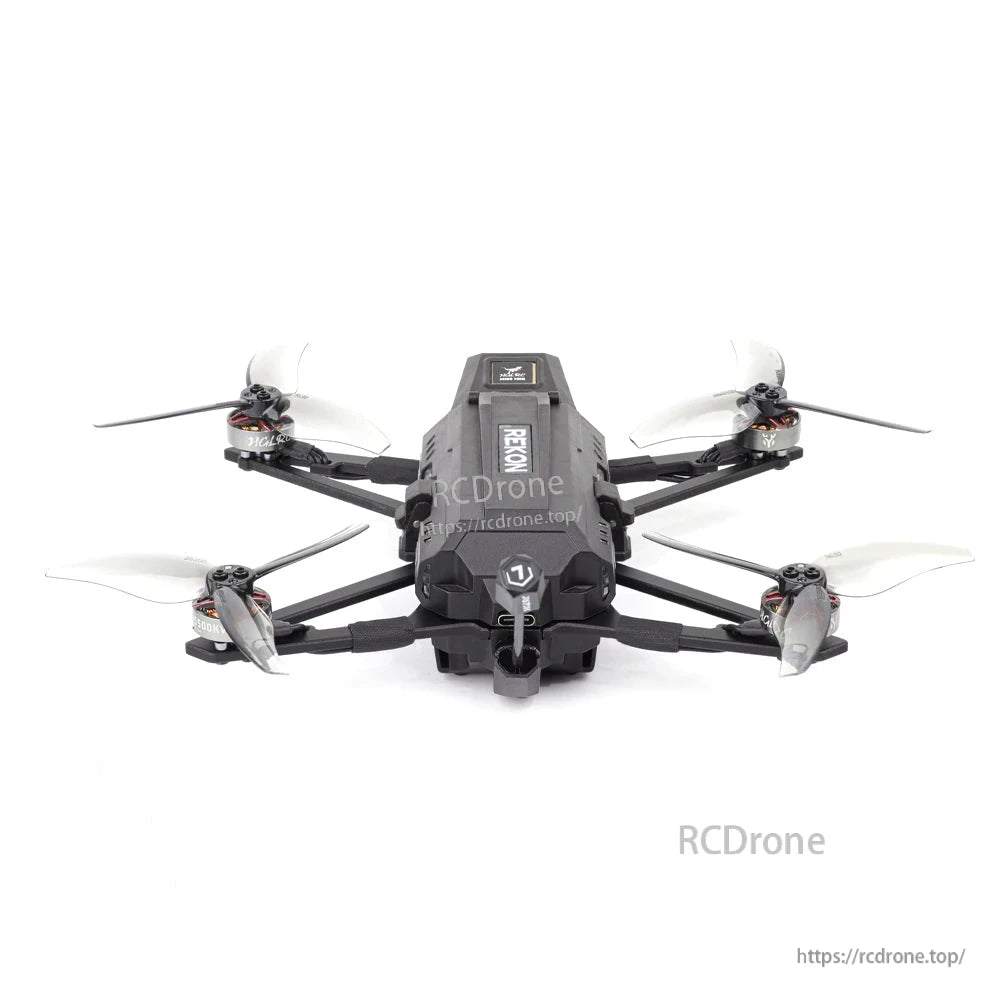

  • Rekon35 v2 top-down view showing 'REKON' canopy, frame layout, arms and propeller positions

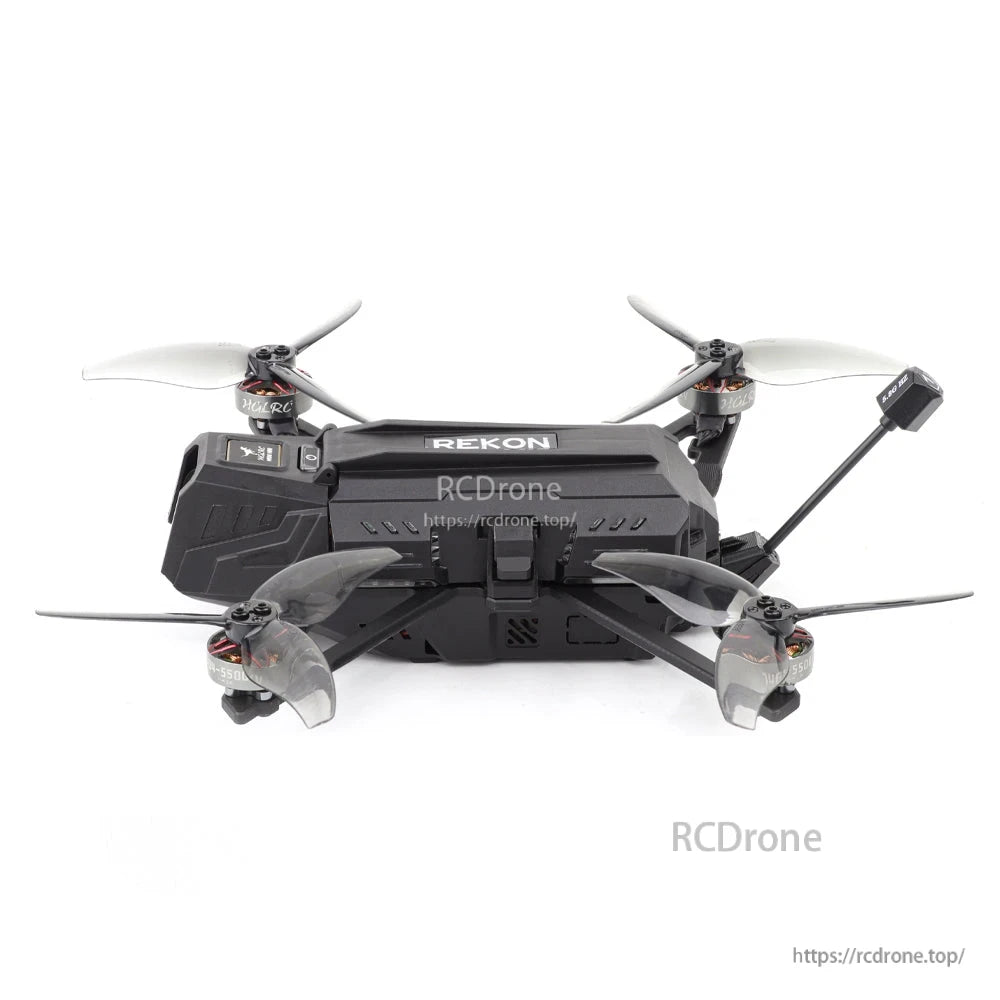

  • Rekon35 v2 side profile showing body vents, battery strap area and rear antenna mount

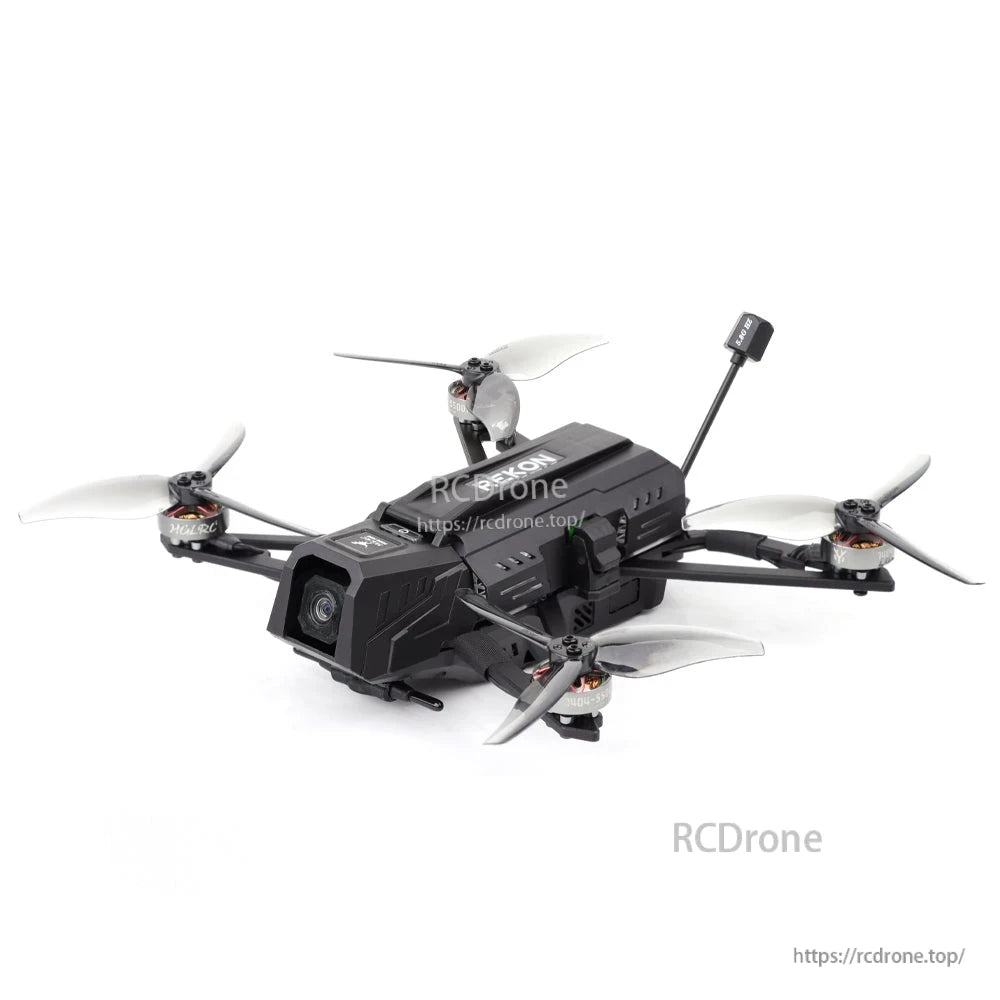

  • Rekon35 v2 angled side view showing camera lens, carbon arms, motors and upright antenna
1 8

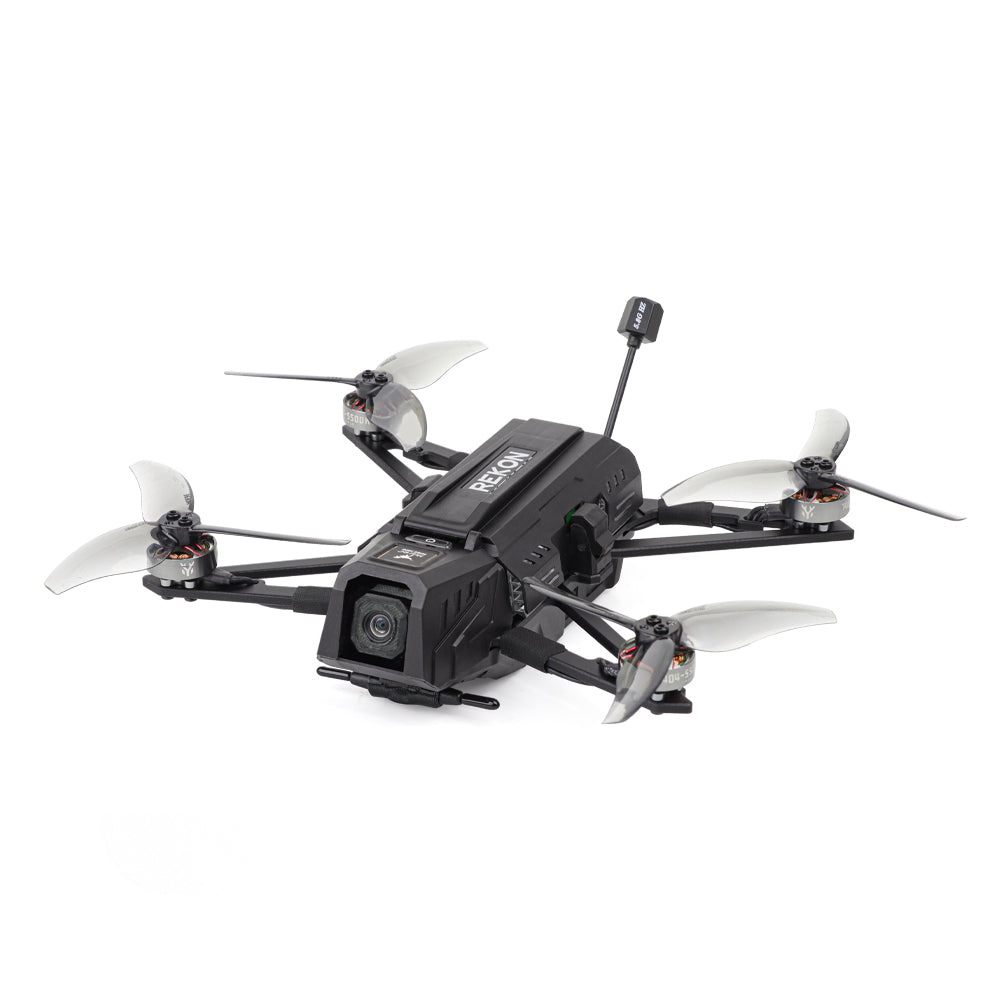

HGLRC Rekon35 v2 Long-Range FPV Drone - 15-Min Endurance, 15W PD Fast Charge, H743 AIO ELRS

HGLRC Rekon35 v2 Long-Range FPV Drone - 15-Min Endurance, 15W PD Fast Charge, H743 AIO ELRS

HGLRC

$326.99 USD
$326.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Receiver
Version
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

HGLRC Rekon35 v2 is a long-range FPV drone platform designed for long-endurance cruising, featuring up to 15-minute flight time when used with two 18650 power batteries (batteries not included). It supports 15W fast charging (requires a PD-compatible charger) and integrates a new-generation STM32H743 flight controller for fast response and stable control.

Key Features

  • Optional versions: Analog Version / O4 Lite HD Version / Power Kit Version
  • Long-endurance power system: uses two 18650 batteries for up to 15 minutes of flight time
  • 15W fast charging: connect the charging cable to initiate safe, balanced charging (auto-stop when full); PD-compatible charger required
  • One-button startup: power button lights; green = sufficient battery, red = low battery
  • Ports: Charging Port and Configuration Port
  • Battery installation note: confirm battery polarity during installation
  • Flight controller: new-gen STM32H743 high-performance FC
  • Structure: fully enclosed injection-molded body to protect internal hardware
  • Functions: multi-function buzzer prompt and customizable RGB light strip
  • GPS: supports HGLRC M100 mini GPS for compact positioning

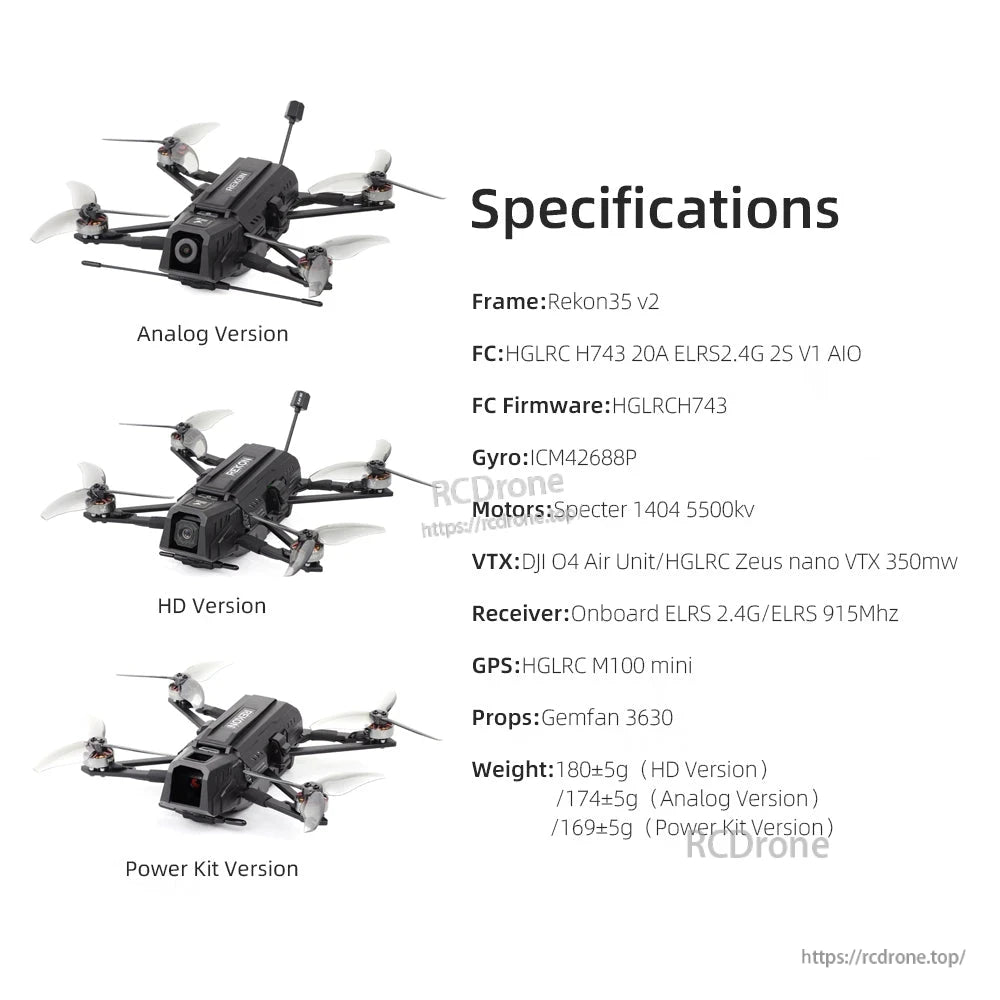

Specifications

Frame Rekon35 v2
FC HGLRC H743 20A ELRS 2.4G 2S V1 AIO
FC Firmware HGLRCH743
Gyro ICM42688P
Motors Specter 1404 5500kv
Props Gemfan 3630
GPS HGLRC M100 mini
VTX DJI O4 Air Unit / HGLRC Zeus nano VTX 350mw
Receiver Onboard ELRS 2.4G / ELRS 915Mhz

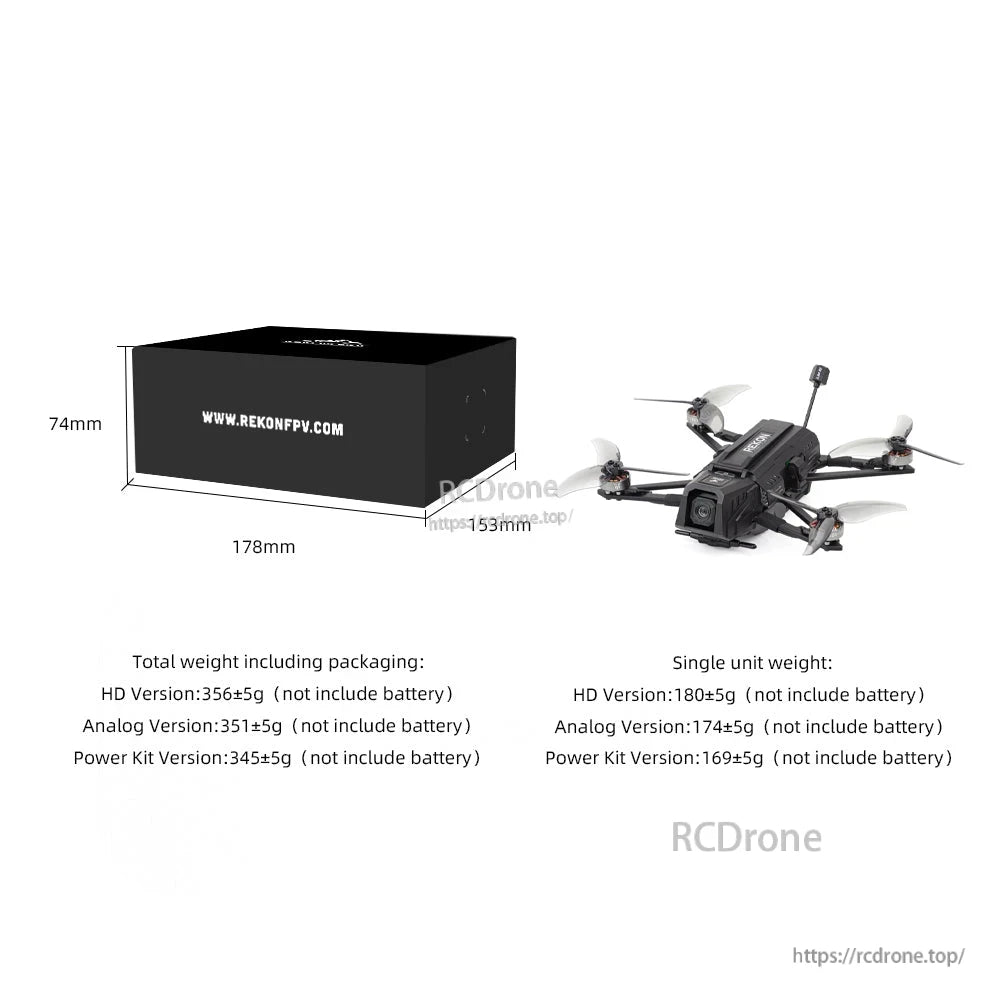

Single Unit Weight HD Version: 180±5 g; Analog Version: 174±5 g; Power Kit Version: 169±5 g (batteries not included)
Total Weight Including Packaging HD Version: 356±5 g; Analog Version: 351±5 g; Power Kit Version: 345±5 g (batteries not included)
Package Dimensions 175 x 158 x 75 mm
Box Size 178 x 153 x 74 mm
Recommended Battery HGLRC 18650 Battery
Charging Time 70 minutes (7.0v-8.4v)

Version-specific components (as listed)

Item HD Version Analog Version Power combo
FC HGLRC H743 20A ELRS 2.4G 2S V1 AIO HGLRC H743 20A ELRS 2.4G 2S V1 AIO HGLRC H743 20A ELRS 2.4G 2S V1 AIO
ESC HGLRC H743 20A ELRS 2.4G 2S V1 AIO HGLRC H743 20A ELRS 2.4G 2S V1 AIO HGLRC H743 20A ELRS 2.4G 2S V1 AIO
Motors Specter 1404 5500kv Specter 1404 5500kv Specter 1404 5500kv
Antenna Mini hammer antenna IPEX LHCP Mini hammer antenna IPEX RHCP Not listed
VTX DJI O4 Air Unit HGLRC Zeus nano VTX 350mw Not listed
Camera DJI O4 Air Unit Caddx Ratel2 Not listed
GPS HGLRC M100 mini HGLRC M100 mini Not listed
Receiver Onboard ELRS 2.4G/915Mhz Receiver Onboard ELRS 2.4G/915Mhz Receiver Onboard ELRS 2.4G

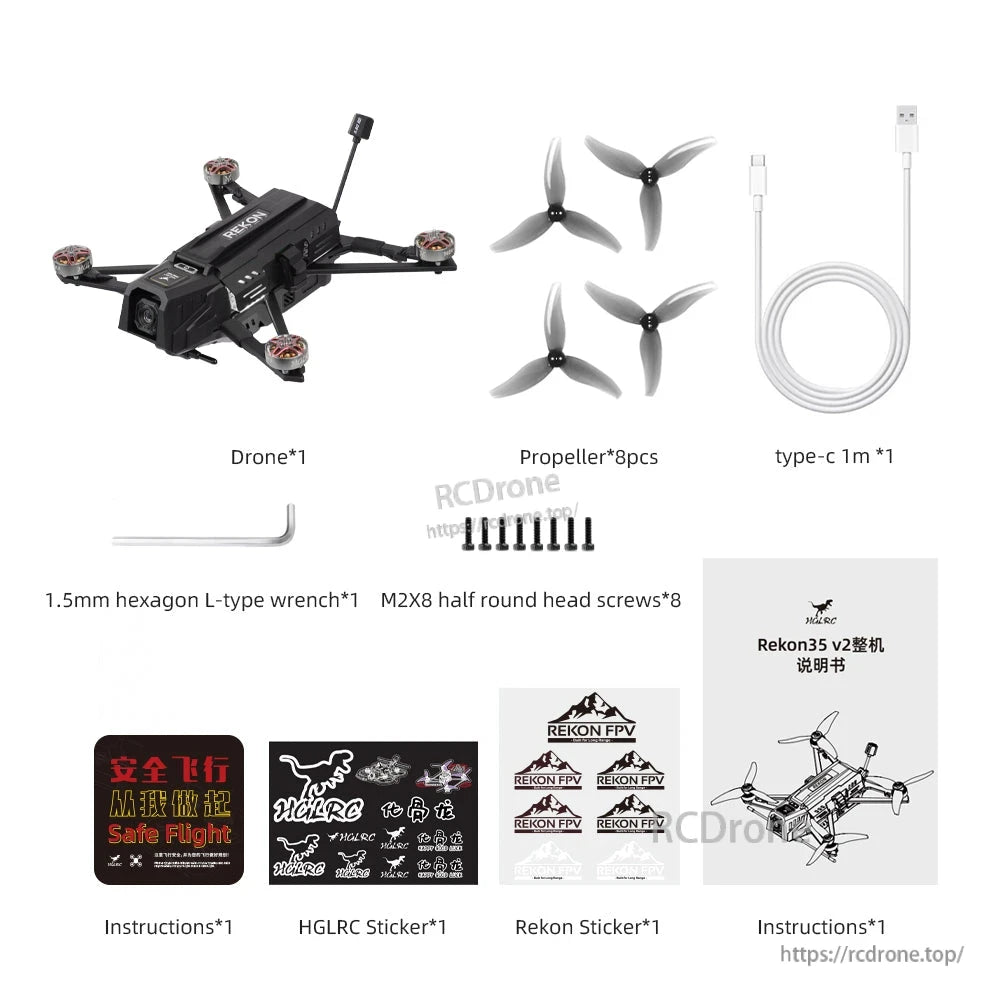

What’s Included

  • Drone x 1
  • Propeller x 8 pcs
  • Type-C cable 1 m x 1
  • 1.5 mm hexagon L-type wrench x 1
  • M2 x 8 half round head screws x 8
  • Instructions x 1
  • HGLRC sticker x 1
  • Rekon sticker x 1

Notes

  • Do not store batteries inside the drone for more than 3 days. After flight or charging, remove the battery from the drone to prevent over-discharge.
  • Initial satellite acquisition may take longer. Connect via USB for satellite locking instead of using the battery to avoid VTX overheating. If satellites cannot be locked, move away from high-power electrical equipment and interference sources.
  • Power Kits match with DJI O4 VTX. The original DJI O4 coaxial cables may be incompatible due to length constraints; use compatible coaxial cables for proper installation.

For product selection help (Analog / O4 Lite HD / Power Kit) or after-sales support, contact https://rcdrone.top/ or email support@rcdrone.top.

Details

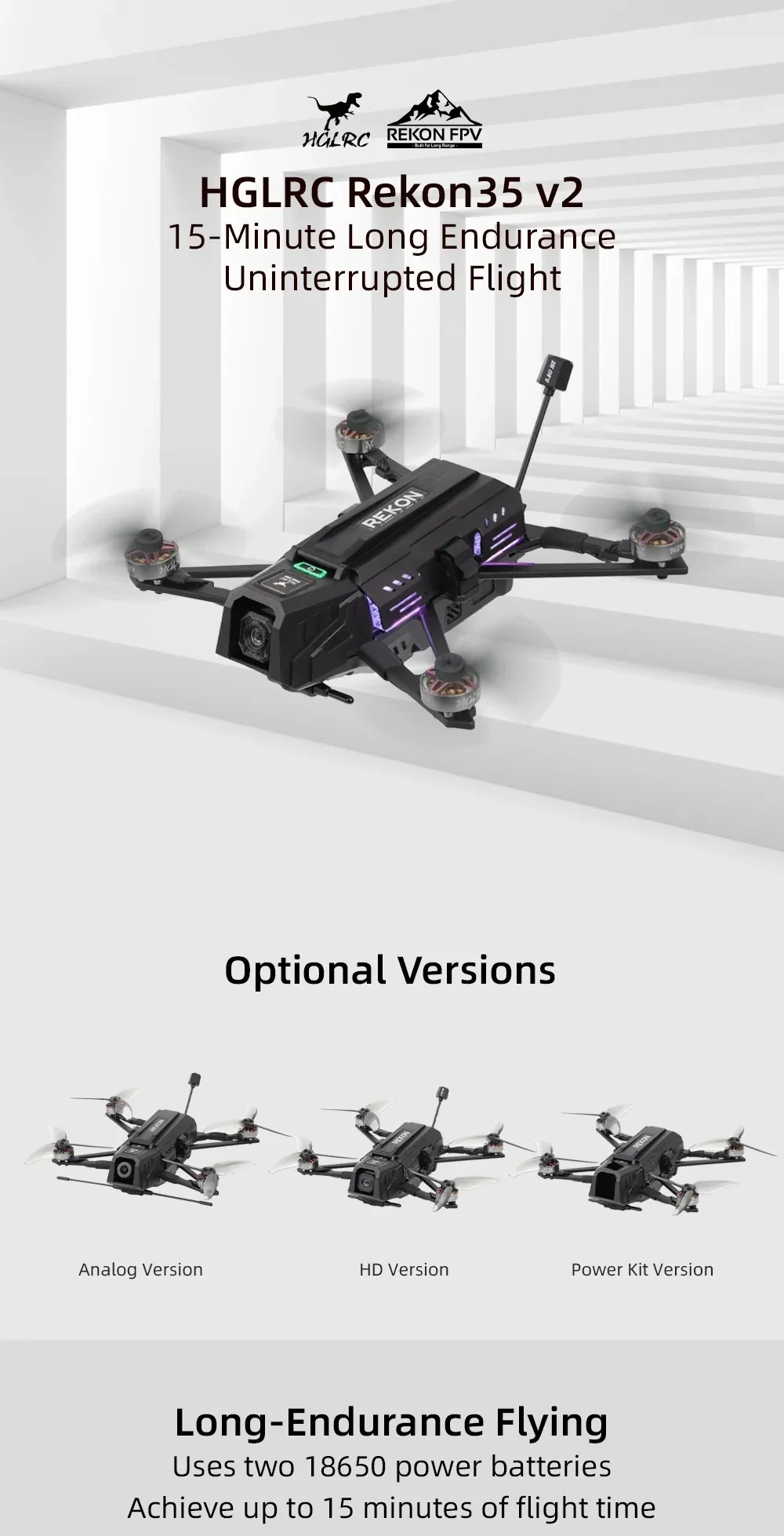

HGLRC Rekon35 v2 long-range FPV drone overview with optional Analog, HD, and Power Kit versions

Choose from Analog, HD, or Power Kit builds, with a compact Rekon35 v2 body designed for long-endurance cruising.

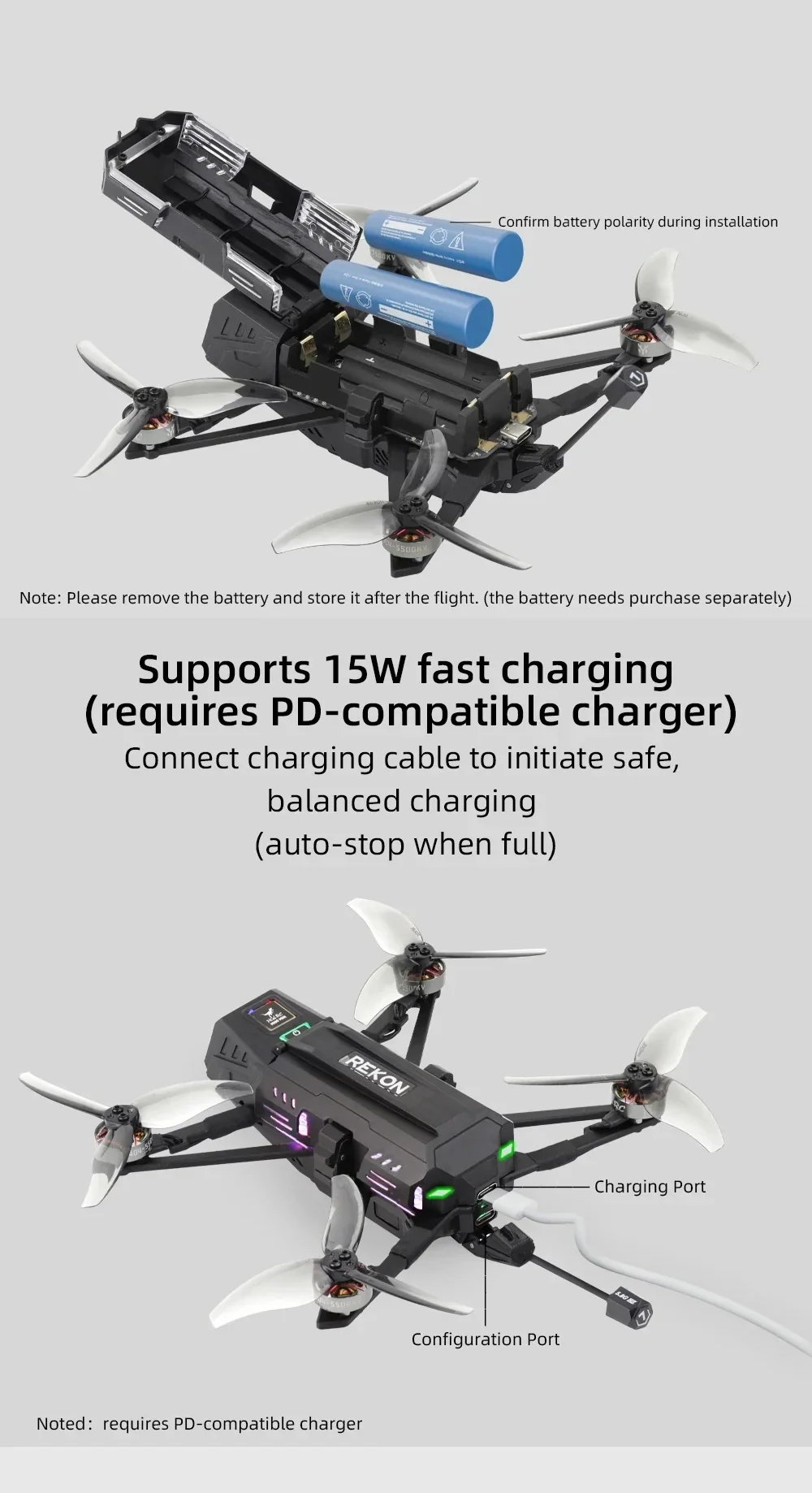

Rekon35 v2 battery bay for dual 18650 cells plus 15W PD fast-charging ports (charging and configuration)

Dual 18650 power and 15W PD fast charging help extend cruising time while keeping charging and setup ports easy to access.

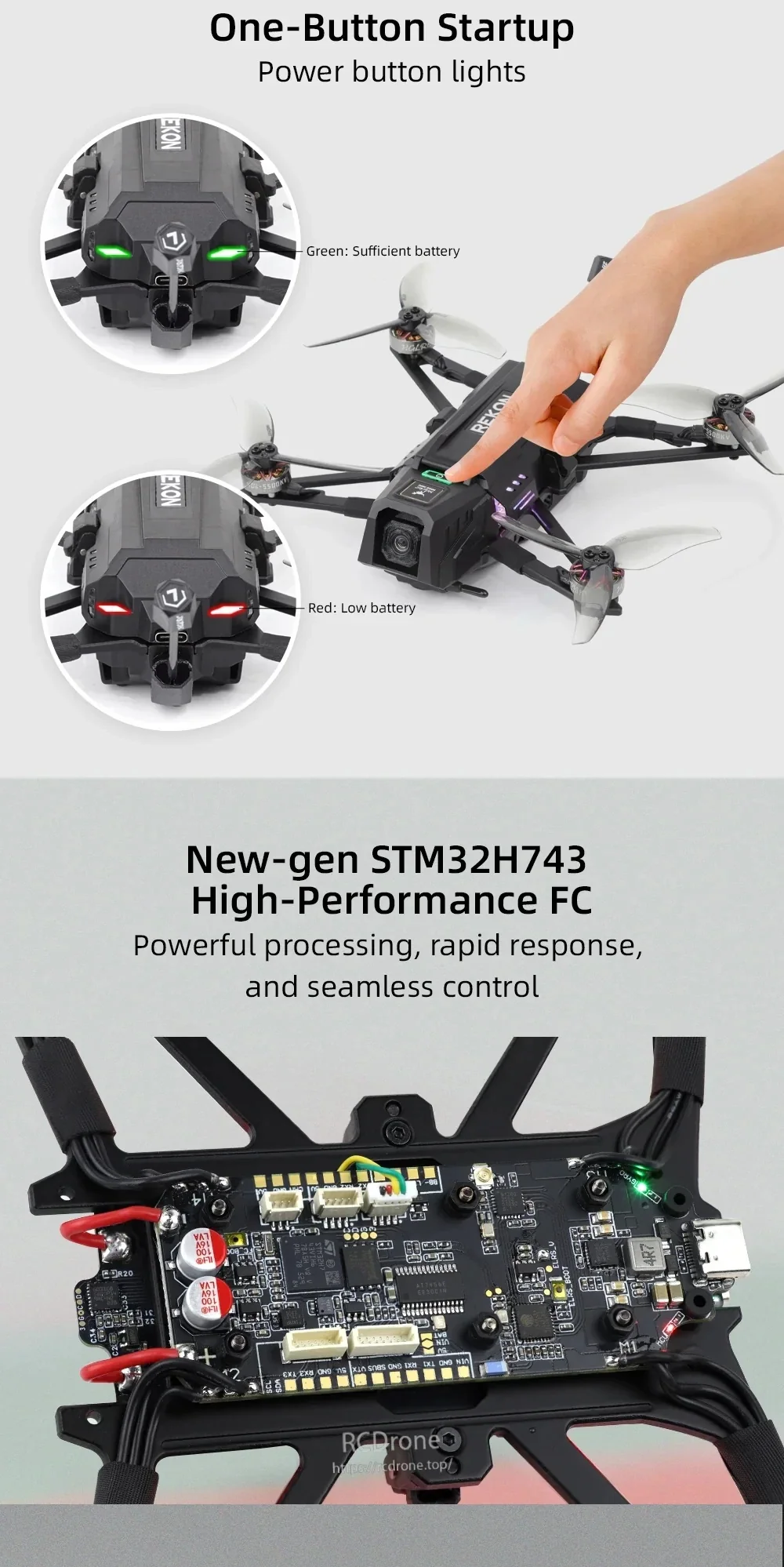

One-button startup with green/red battery status LEDs and close-up of STM32H743 flight controller board

One-button startup uses clear LED status indicators, paired with an STM32H743 flight controller for responsive, stable control.

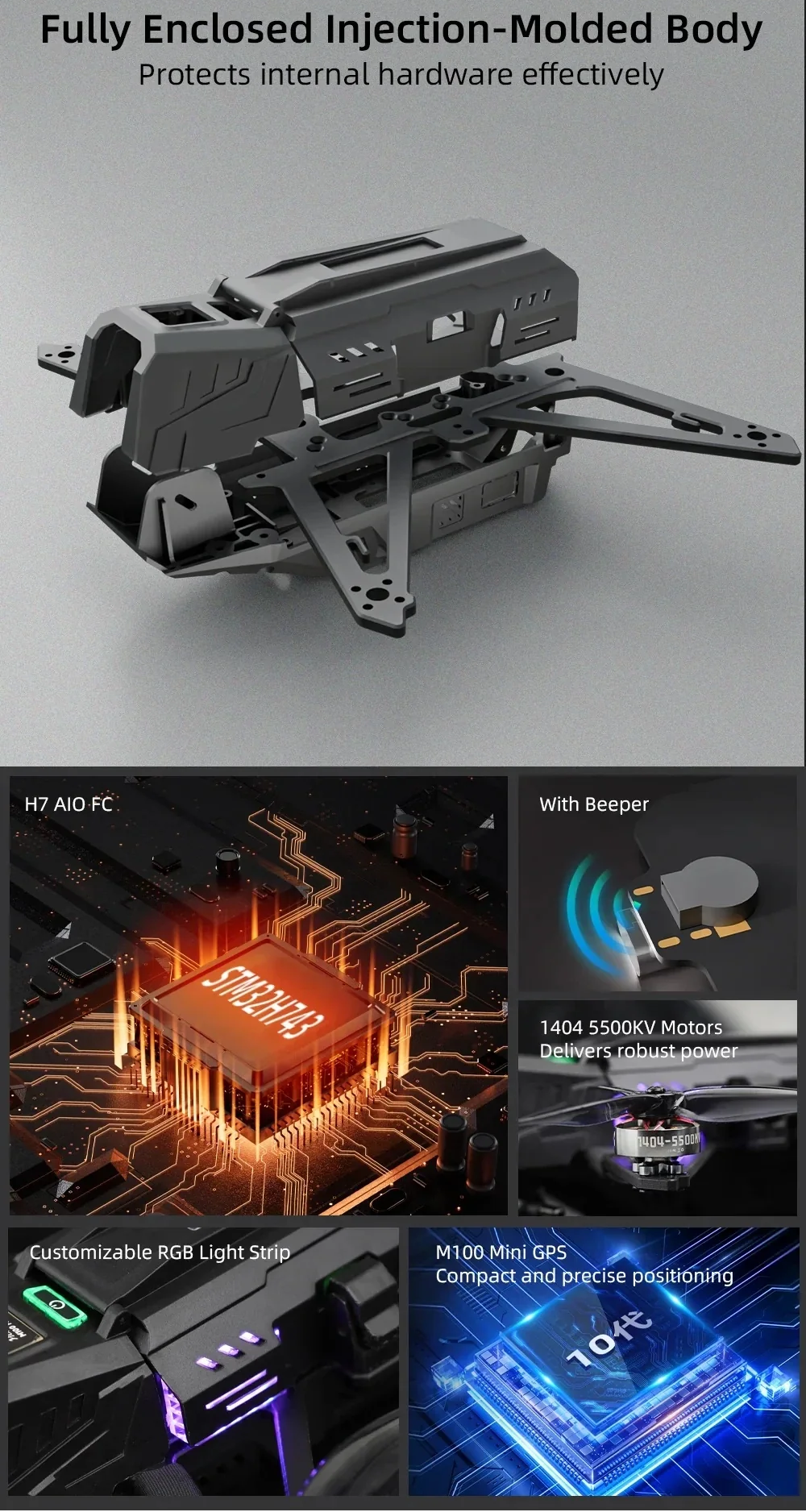

Fully enclosed injection-molded Rekon35 v2 body plus feature highlights: H743 AIO FC, beeper, 1404 motors, RGB, M100 GPS

A fully enclosed injection-molded shell protects internal components, with built-in beeper support and customizable RGB lighting.

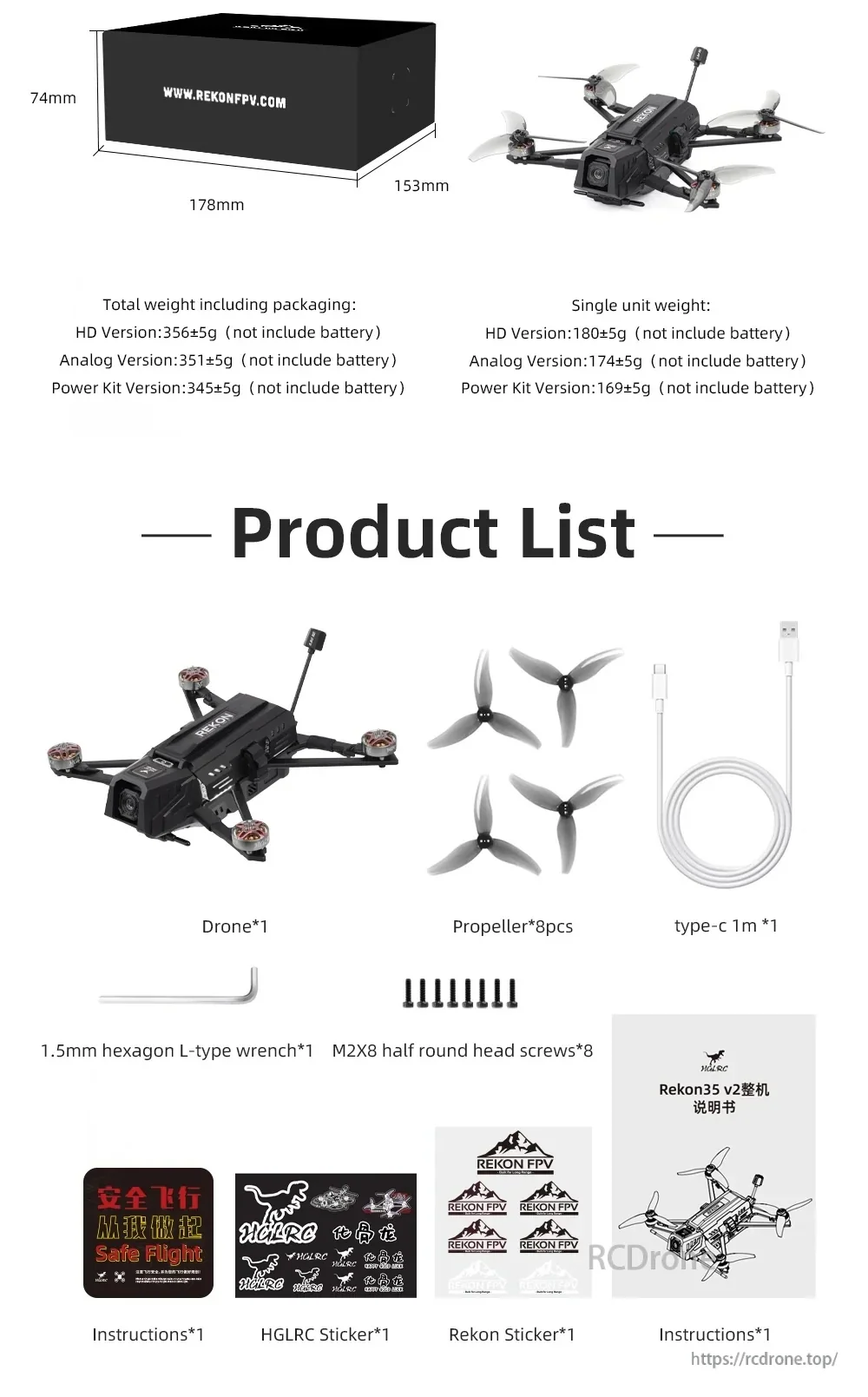

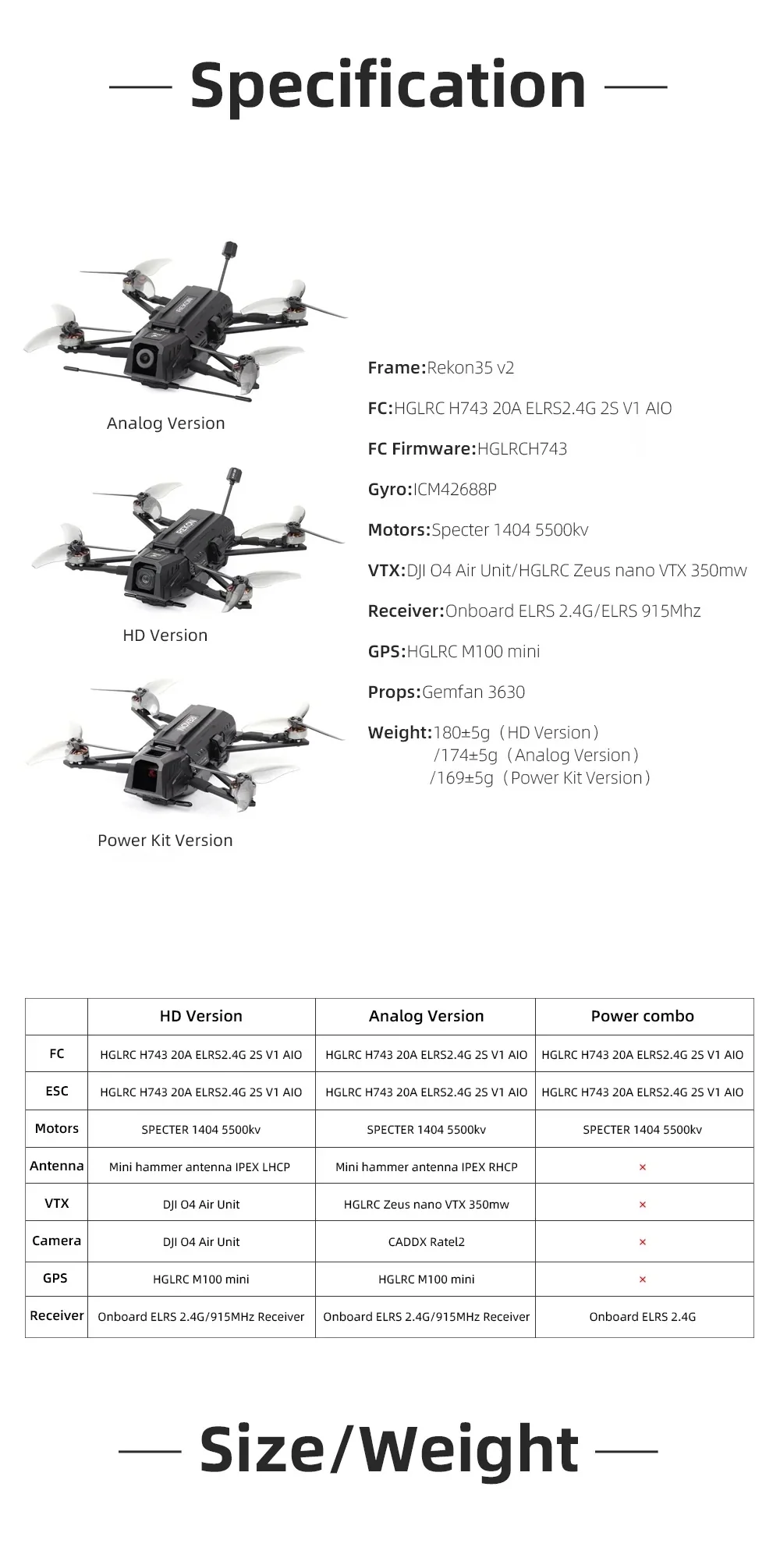

HGLRC Rekon35 v2 specification sheet comparing Analog, HD, and Power Kit versions with key components and weightsRekon35 v2 size/weight chart and box dimensions, plus package contents list with props, Type‑C cable, screws, and tools

In-the-box essentials include spare propellers, a Type‑C cable, hardware, and basic tools for setup and maintenance.
