HGLRC Sector30CR SPECIFICATIONS
Warranty: Not include
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 720P HD
Type: Airplane
State of Assembly: Ready-to-Go
Remote Distance: 1500 meters
Remote Control: Yes
Recommend Age: 12+y,14+y
Power Source: Electric
Plugs Type: XT30
Package Includes: Original Box,Camera
Origin: Mainland China
Operator Skill Level: Beginner,Intermediate,Expert
Model Number: HGLRC Sector30CR 3'' FPV Freestyle
Material: Metal,Plastic,Carbon Fiber
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5 minutes
Features: App-Controlled,FPV Capable,Integrated Camera,Other
Dimensions: 3inch
Controller Mode: MODE2,MODE1
Controller Battery: Not include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: HGLRC
Features:
Compared to the previous Sector150 version, the new one is upgraded with Zeus F728 stack and equipped with Aeolus 2004 motor,which makes the drone Sector30CR more powerful and fly with a longer distance.
Power plug:XT30
Specification:

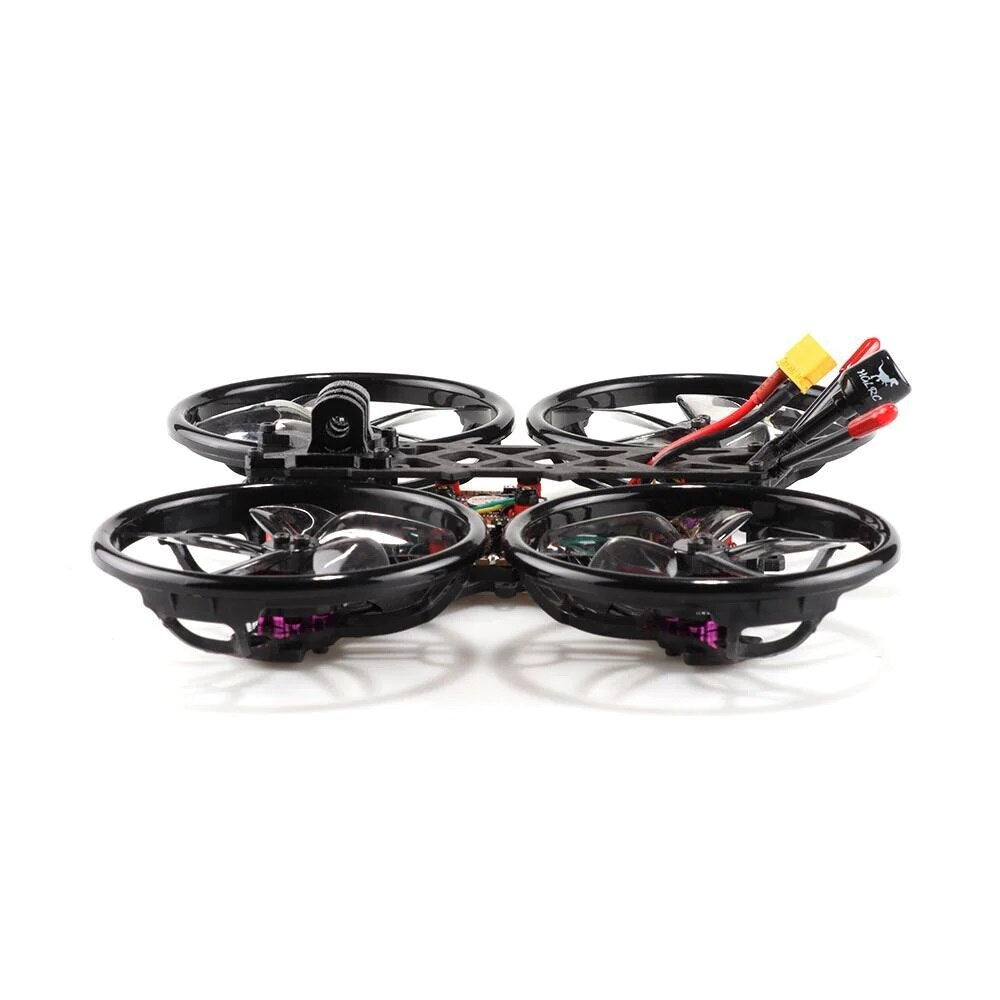

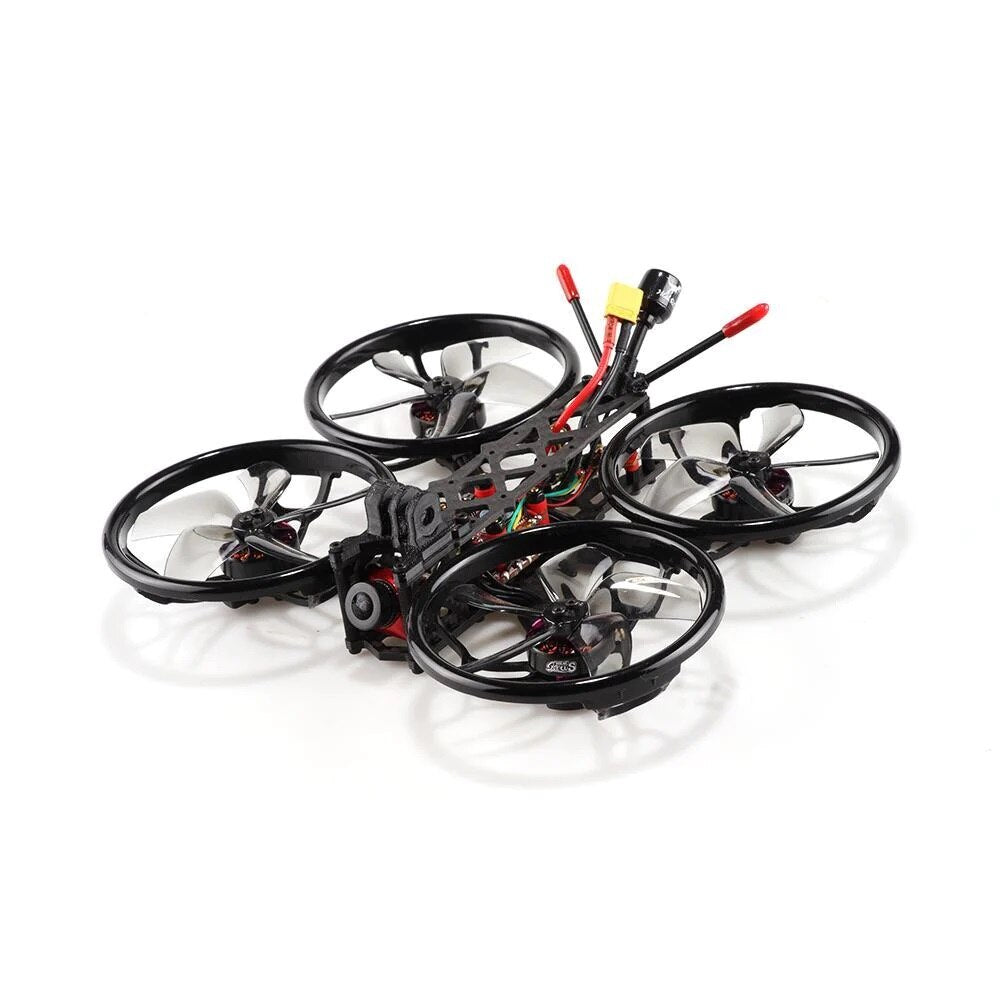

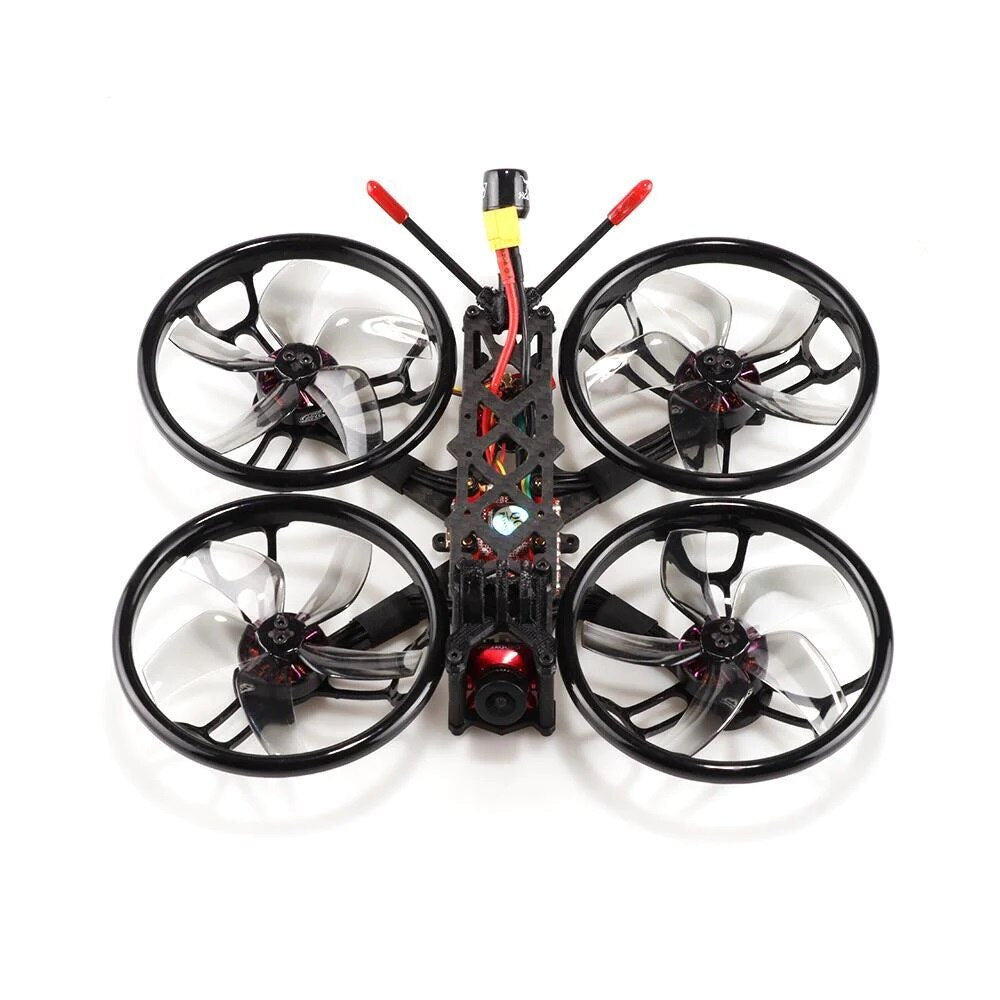

Product model:HGLRC Sector30CR Cinewhoop Freestyle 3 inch FPV Drone 4S

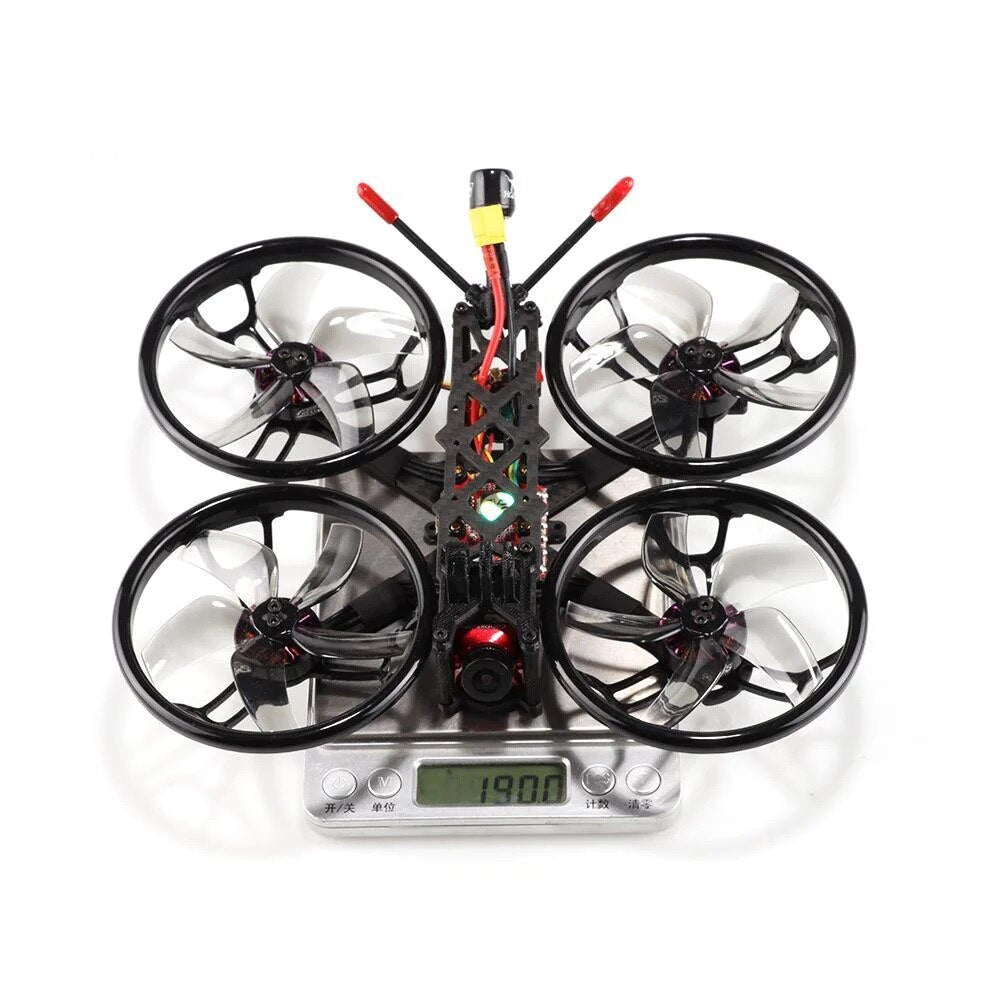

Net Weight:190g
Sector30CR Cinewhoop Freestyle frame
Wheelbase:150mm
Model:3 Inches frame
Zeus F722 mini flight controller
Input voltage:3-6S Lipo
MPU:BMI270
Zeus 28A BL_S ESC
Input voltage:3-6S
Continuous current:28A
Peak current:35A (10 seconds)
Zeus 350mW VTX
Output power:PIT/25/100/200/350mW
Input voltage:DC 5V
Antenna interface:IPEX
Caddx Ratel 2 FPV Camera
Image Sensor:1/1.8 " 1200TVL CMOS
Input Power:DC 5-40V
Dimensions:19mm*19mm*20mm
AEOLUS 2004 3000KV brushless motor
Motor:KV3000
Input voltage:4S
AEOLUS 2004 1800KV brushless motor
Motor:KV1800
Input voltage:6S
GEMFAN D76mm 3-inch 5-blades propeller
Quantity:4 CW& 4 CCW

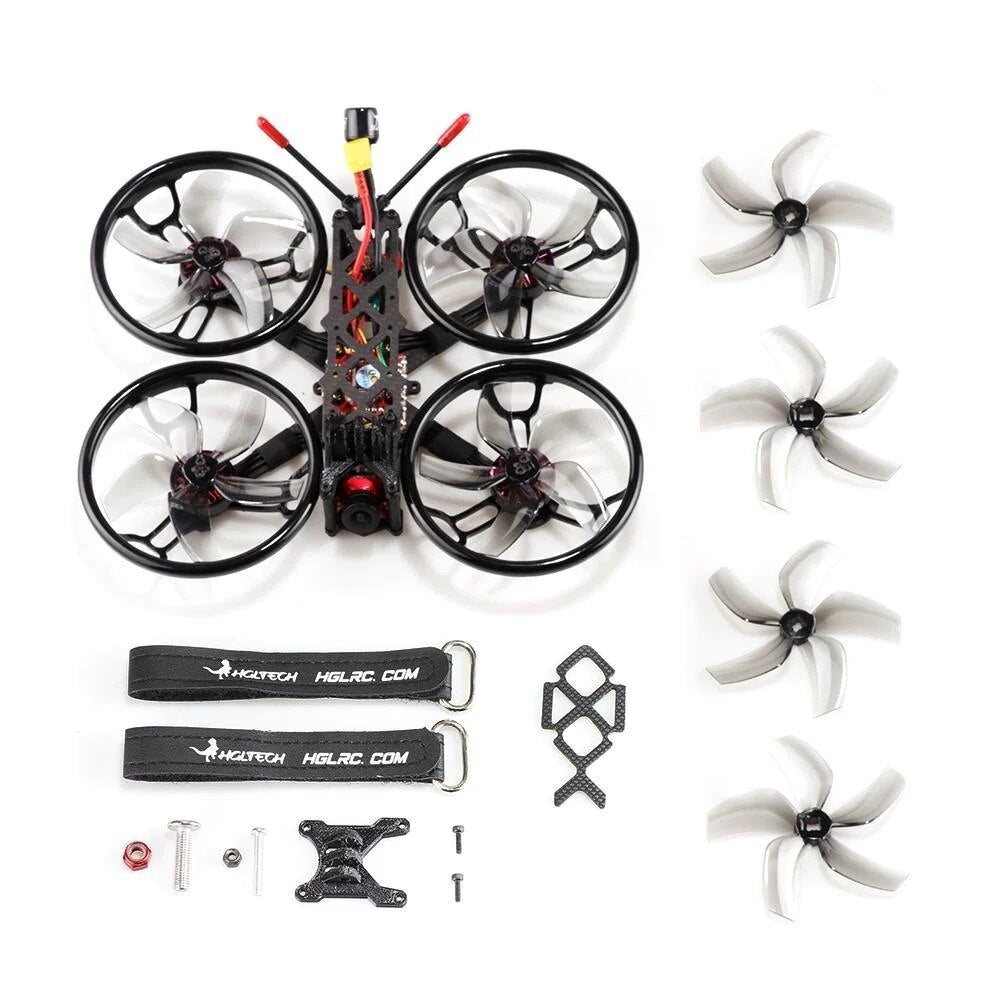

Include:
1x Sector30CR Frame
1x Zeus F722 mini Flight Controller
1x Zeus 28A BL_S ESC
1x Zeus 350mW VTX
1x Caddx Ratel 2 FPV Camera
4x AEOLUS 2004 3000KV brushless motor/AEOLUS 2004 1800KV brushless motor
8x GEMFAN D76mm 5-blade propeller
1x IPEX Hammer Antenna (RHCP)
1x Black TPU GoPro fixing base
1x Black TPU Naked GoPro fixing base
1x Receiver (optional)
Recommended Battery:
4S:550mah-1000mAh、6S:550mah-1000mAh
1652vew, more suitable for freestyle Nate The attion cameras shown in the pictures are rot included 1656vew .
GGES 3600 protects internal parts with 3609 effectively and reduces damage . a25 Zeus F728 F722 flight controller 28A BL-S 4in1 ESC 2937 0D Enlarged pad Ammeter TVS Diode Spare pad .
Designed to carry Naked GoPro SMO 4K Insta360 go 2 #nakedgopro mount is sold separately* 8 0 Note= The action cameras wn in the pictures are not included Product Photos 4 Note: The acon cameras shawn inthe pictures aren't included Note:
