HGLRC SPECTER 1003 10000KV 1S 2S Brushless FPV Motor for 75mm Tiny Toothpick Drone

HGLRC SPECTER 1003 10000KV 1S 2S Brushless FPV Motor for 75mm Tiny Toothpick Drone

HGLRC

Regular price $53.26 USD
Regular price Sale price $53.26 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
View full details

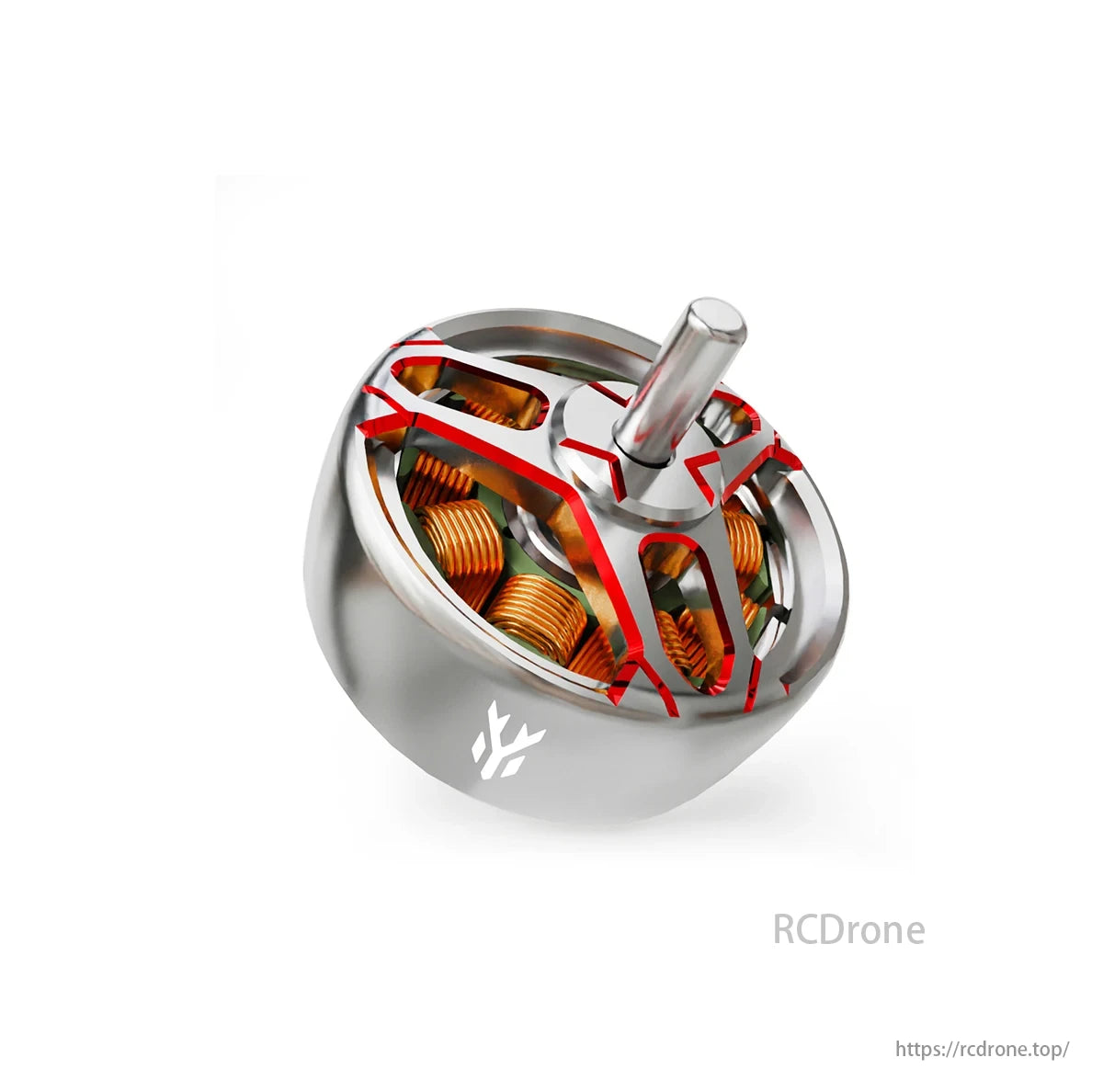

HGLRC SPECTER 1003 10000KV brushless motor


Features:

1. Brand new rotor appearance design, anodized two-color process

2. 7075 aviation aluminum material, high-strength one-piece rotor

3. Customized N52H curved magnetic steel, strong magnetism, high torque

4. Super high temperature resistant 200° copper wire winding, the motor runs more stably

5. Imported Kawasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency

6. New and optimized tuning, maintain high torque at low speed, linear power output when the throttle changes rapidly, and precise and fast response when turning

7. Alloy Steel Outlet Shaft, high strength and reduce the weight of the fuselage

8. Suitable for 75 Tiny drone or 75 toothpick drone


Specification:

Motor: 10000KV

Slot pole: 9N12P

Maximum continuous current: 11.5A

Maximum power: 85W

Input voltage: 1-2s
ESC:> 5A

Recommended propeller: 1.6-2 inches

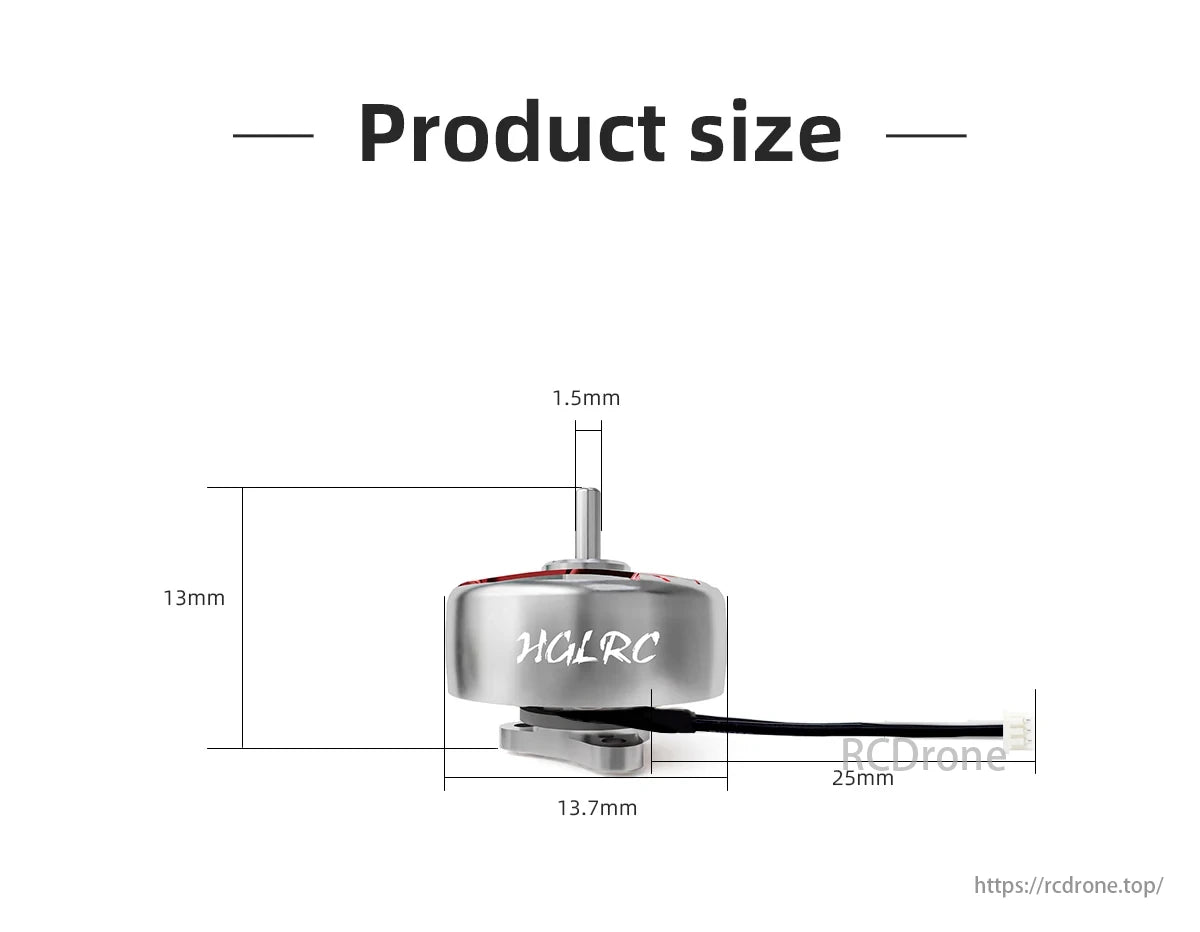

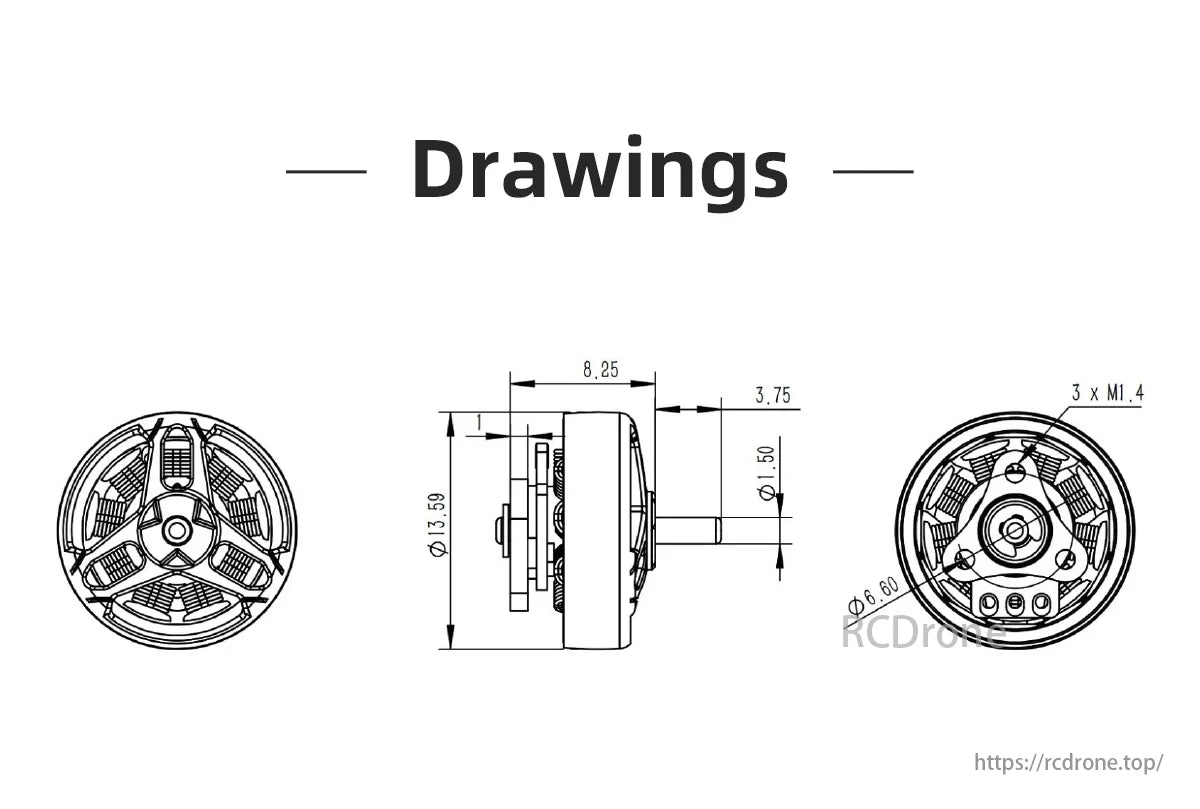

Motor size: Φ13.7mx 9.2mm

Mounting hole: 3*M1.4-∅6.6
Weight: 3.35g (with wire)

Line length:45mm

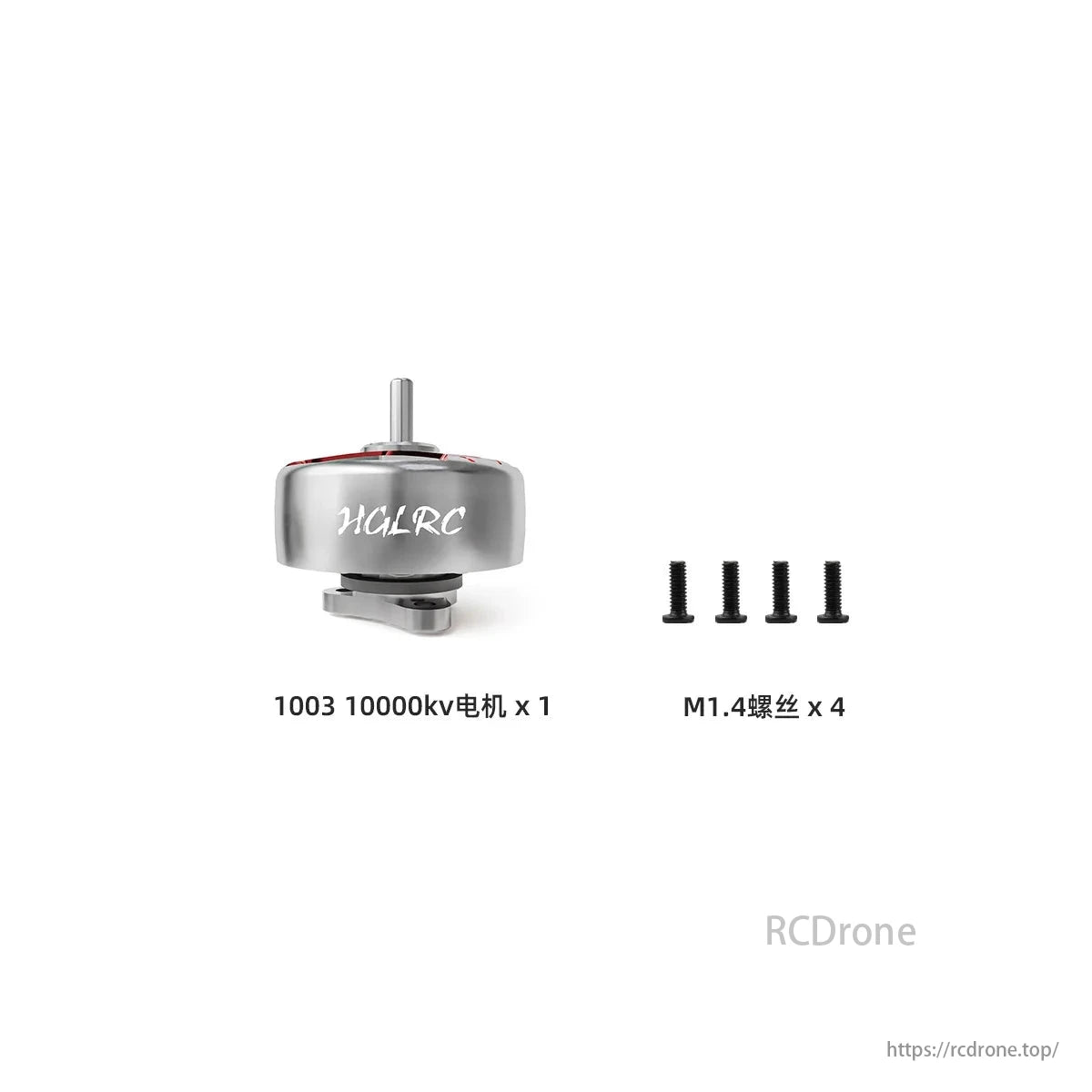

Packing List:

1003 10000KV motor x 1

M1.4 screws x 4


HGLRC Specter 1003 Motor, Imported Kawasaki silicon steel sheets used to create low-loss stators, reducing heat generation and improving efficiency.HGLRC Specter 1003 Motor, New design with 7075 high-strength rotors, two-color anodizing, and improved durability and performance.

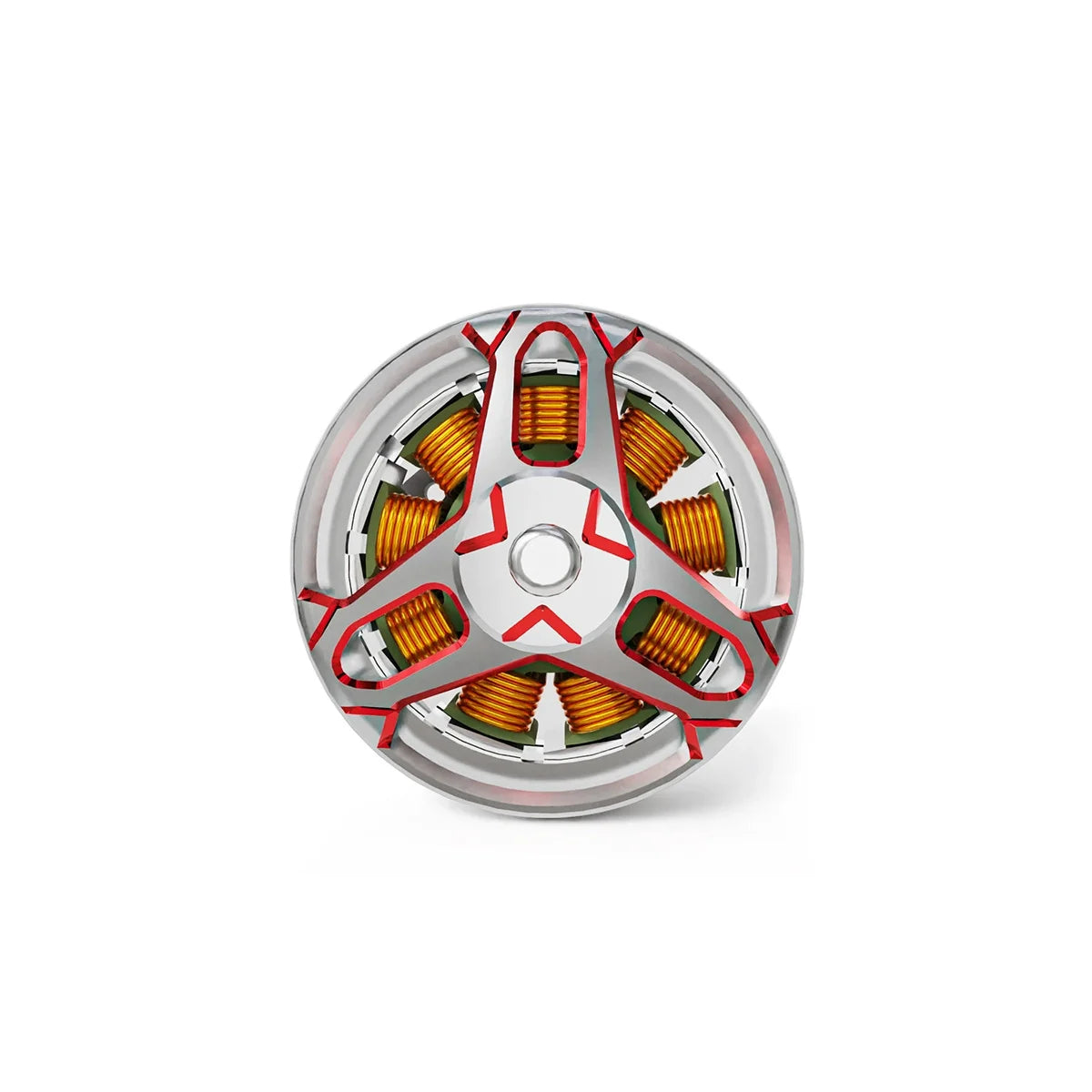

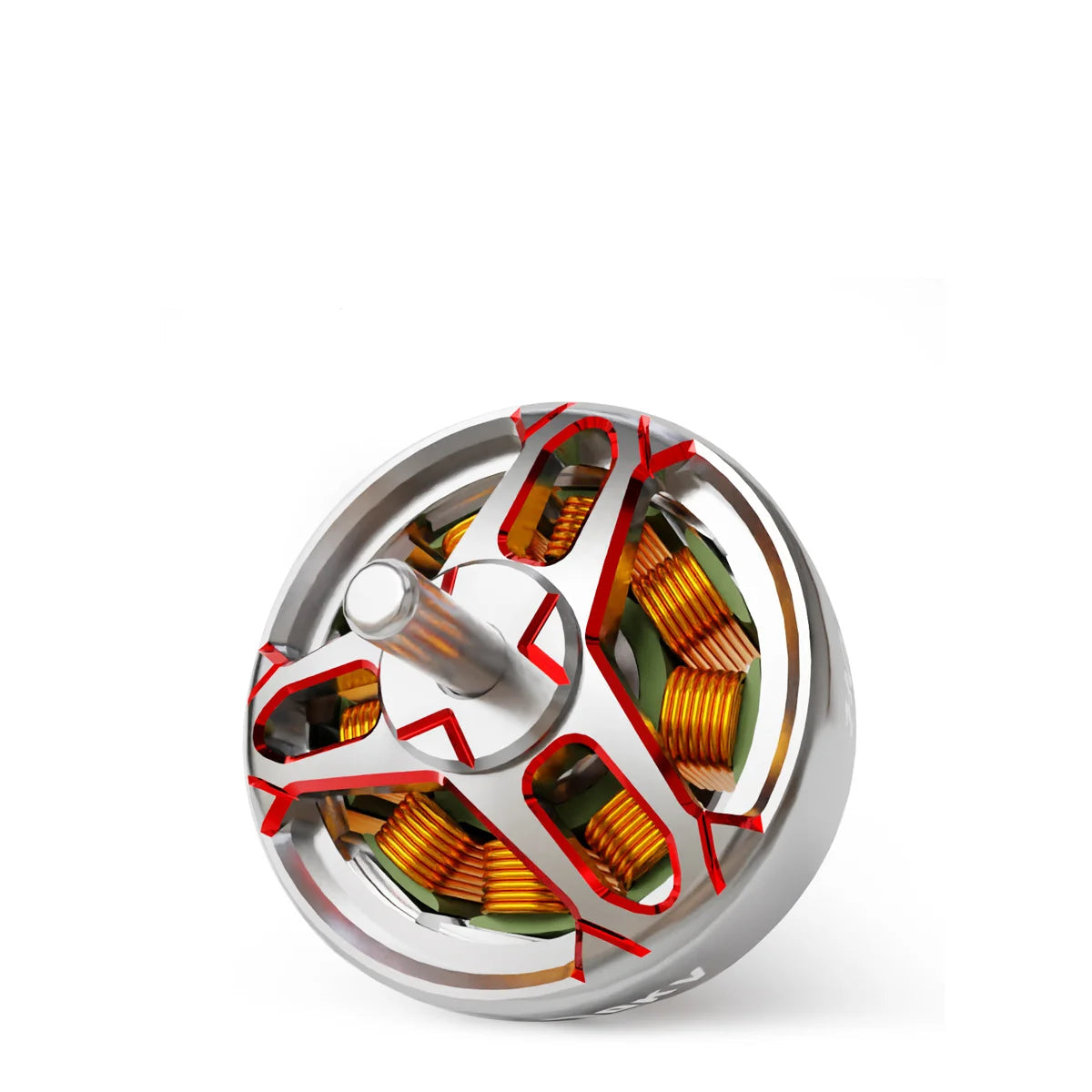

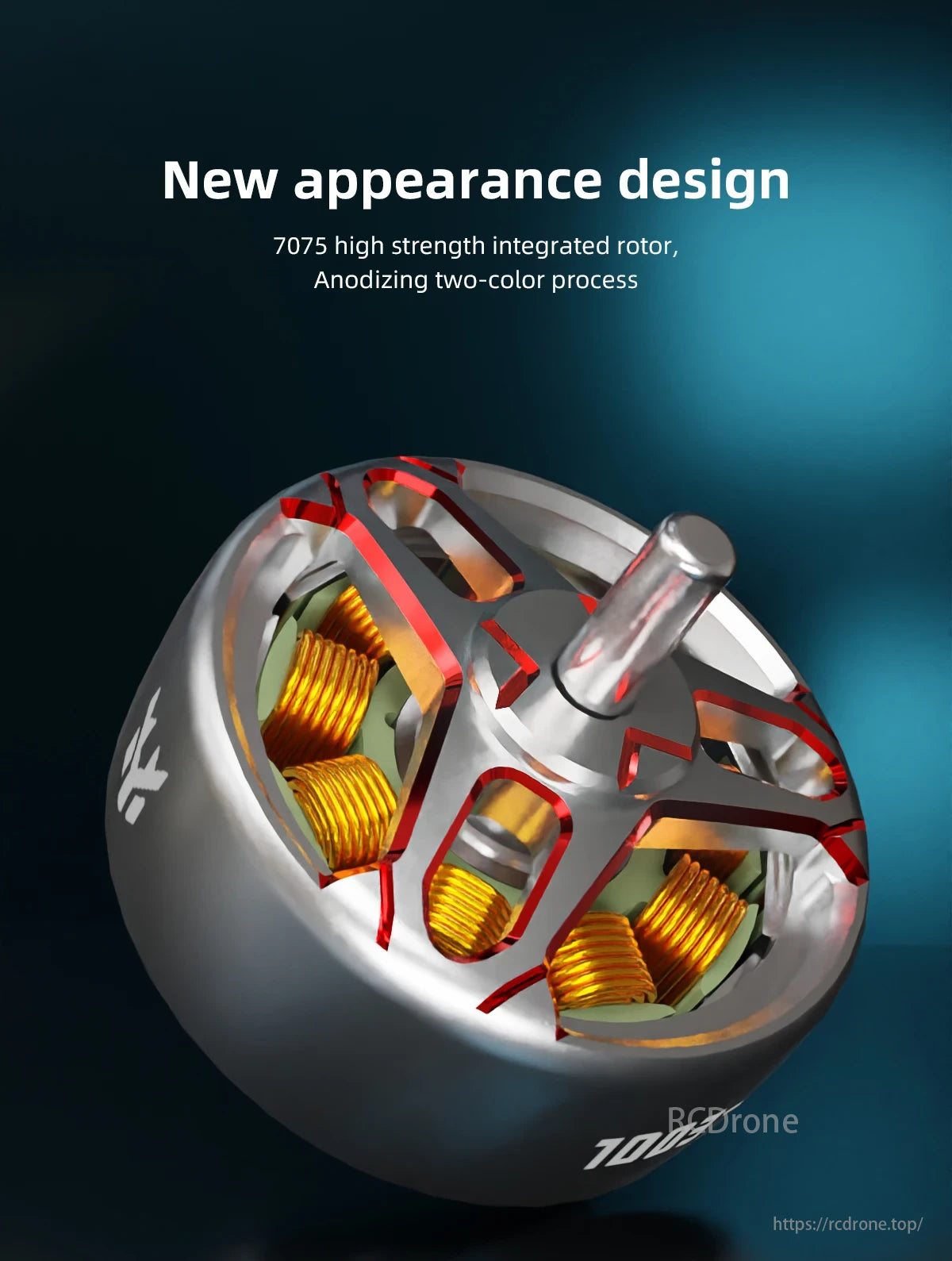

New appearance design. 7075 high strength rotor, anodizing two-color process. Sleek, modern aesthetics with enhanced durability and performance.

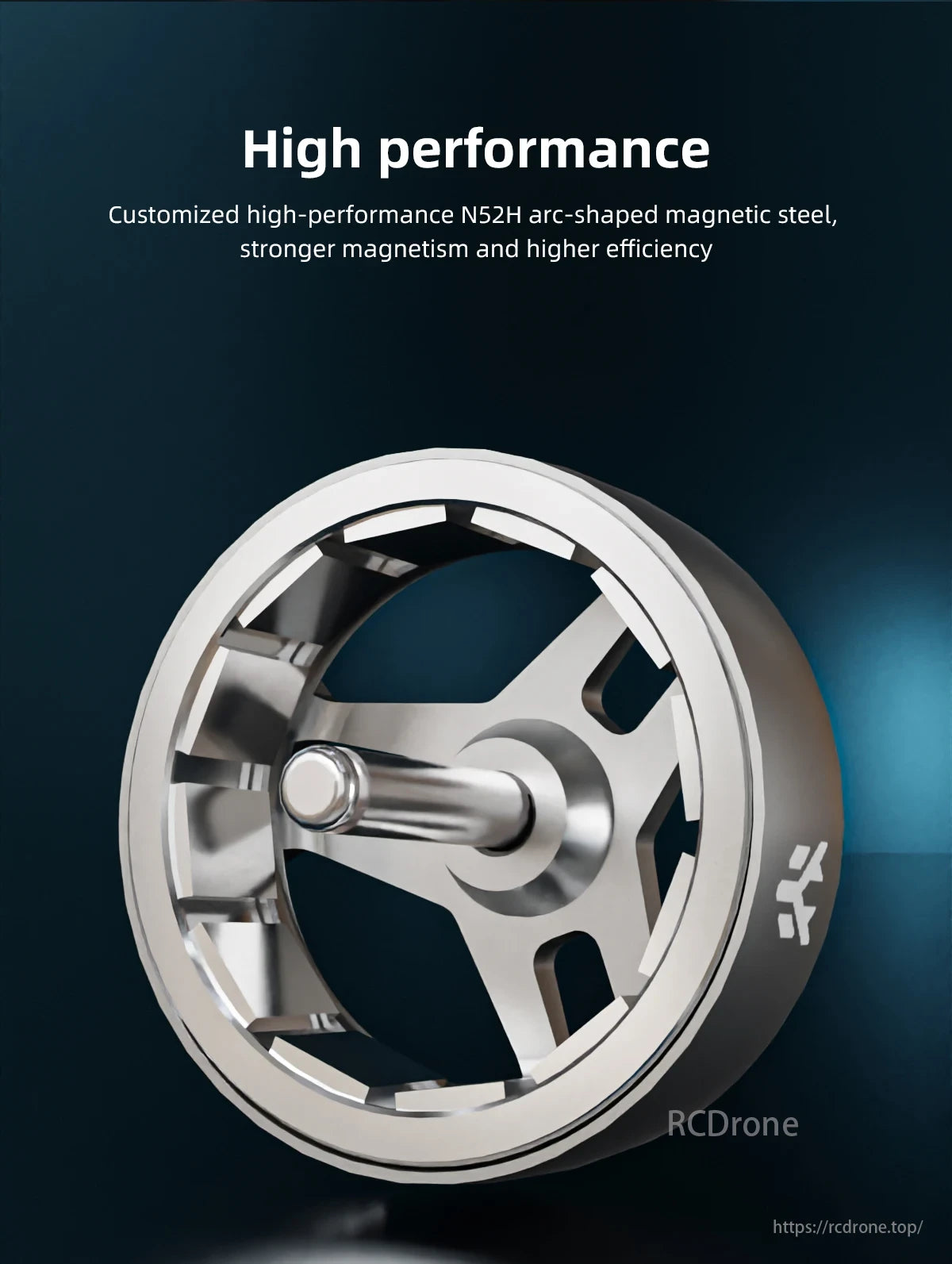

HGLRC Specter 1003 Motor with custom N52H magnetic steel provides stronger magnetism and higher efficiency.

High-performance HGLRC Specter 1003 Motor with customized N52H arc-shaped magnetic steel offers stronger magnetism and higher efficiency.

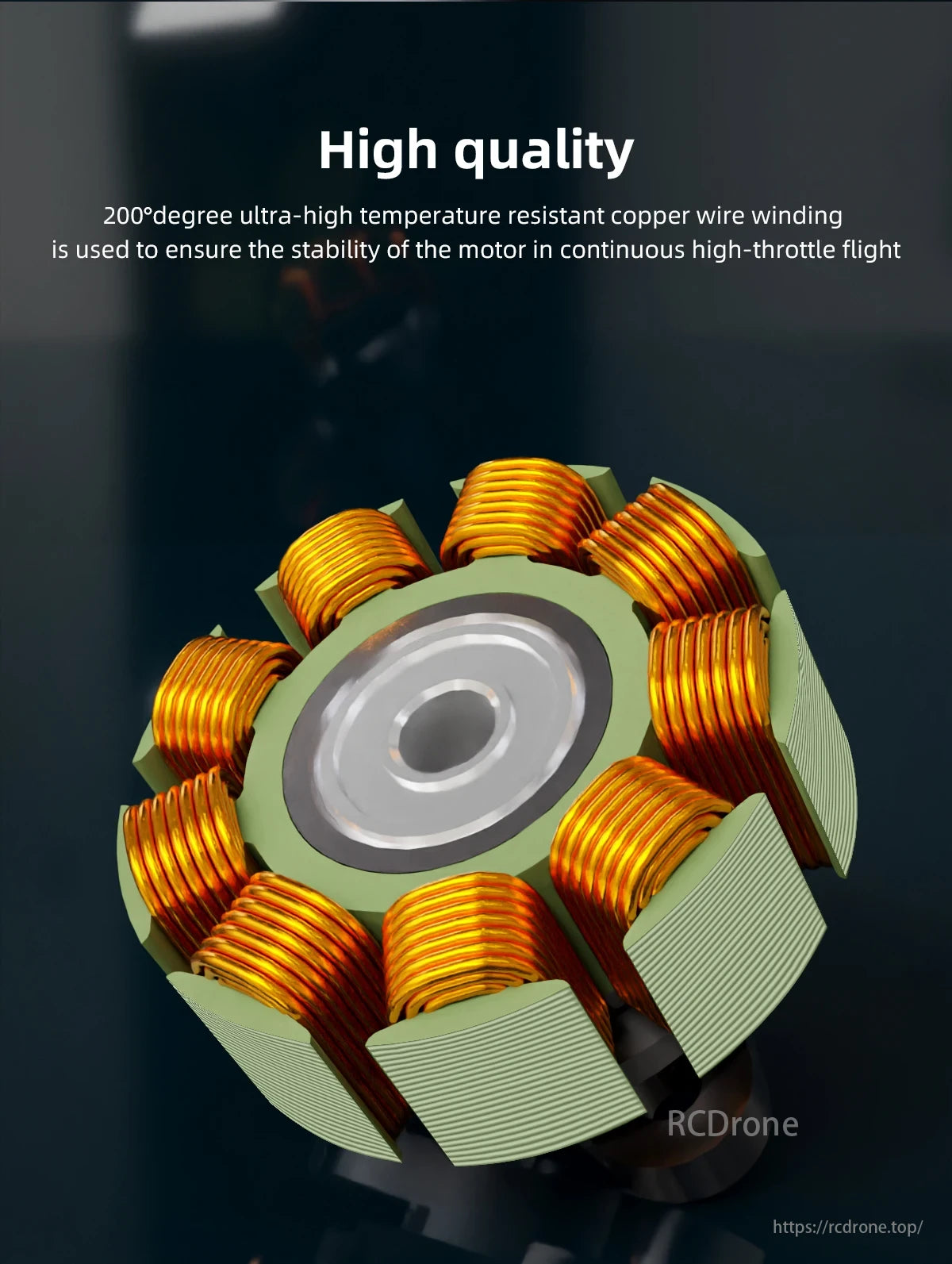

HGLRC Specter 1003 Motor, High-quality motor with 200°C ultra-high temperature resistant copper wire winding.

High-quality motor with 200°C ultra-high temperature resistant copper wire winding.

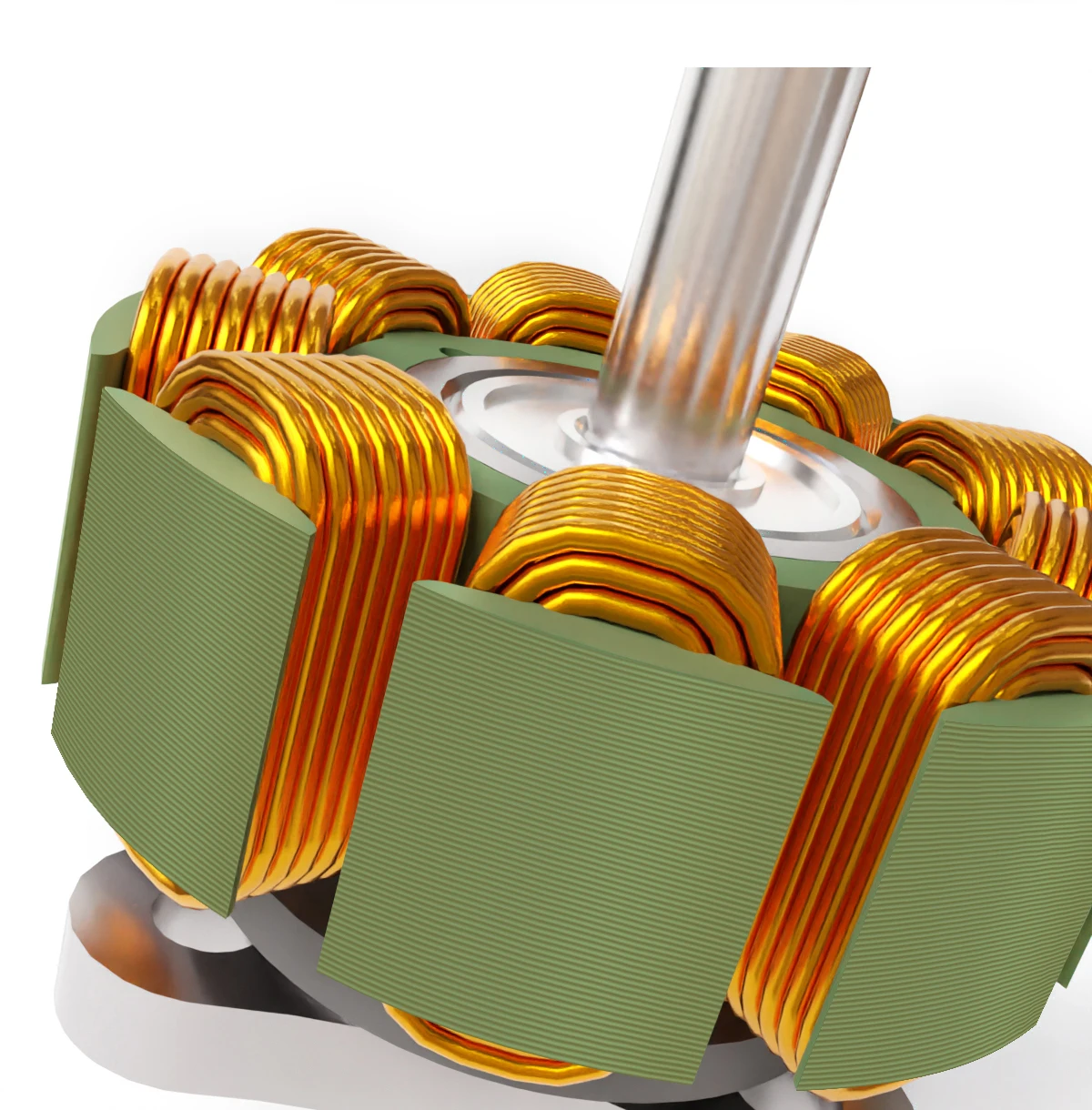

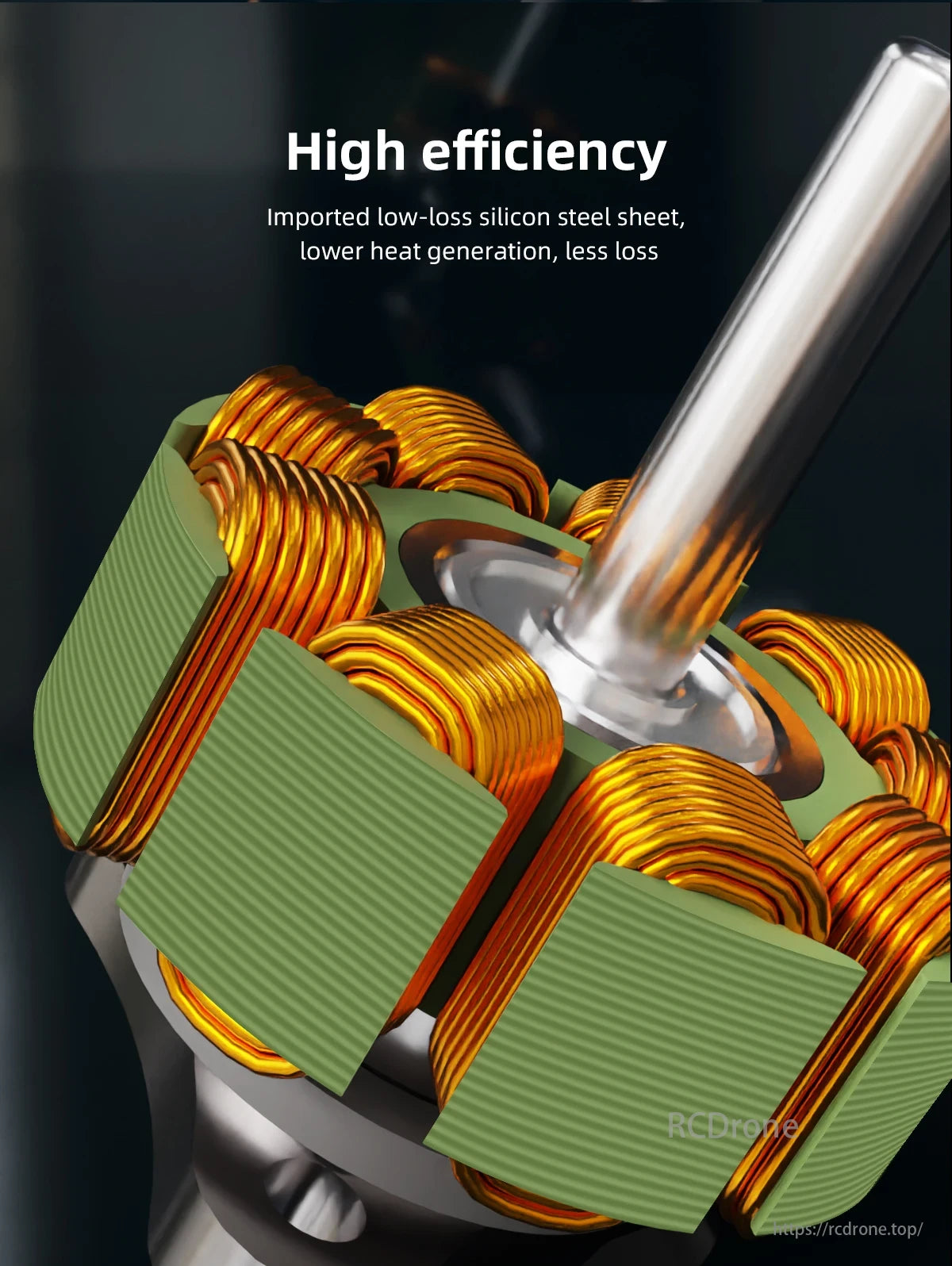

HGLRC Specter 1003 Motor features imported silicon steel for high efficiency, reduced heat, and minimal loss.

High efficiency. Imported low-loss silicon steel sheet, lower heat generation, less loss in HGLRC Specter 1003 Motor.

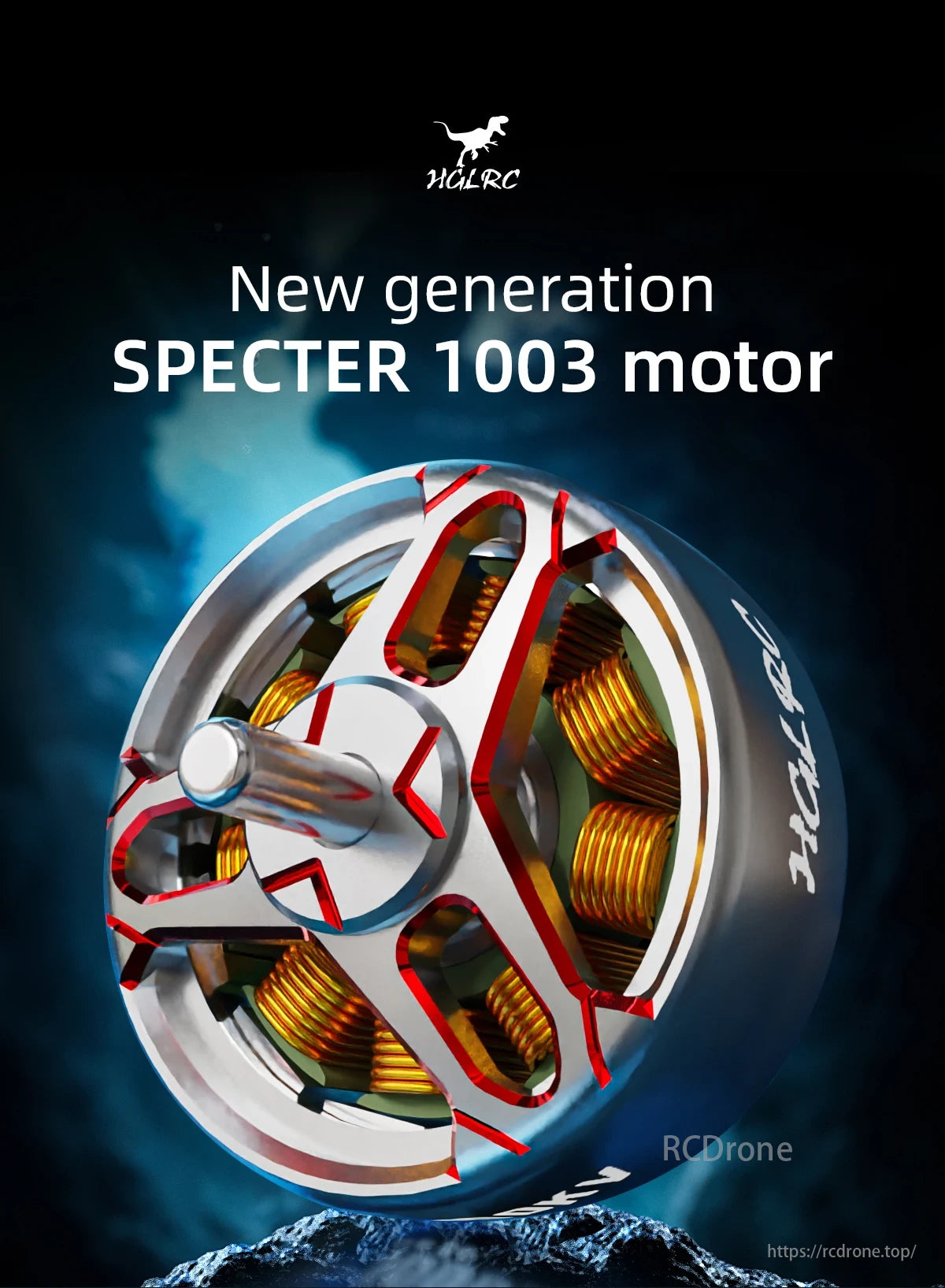

New HGLRC Specter 1003 Motor: optimized tuning, high torque, precise response.

New HGLRC Specter 1003 Motor: optimized tuning, high torque, precise response.

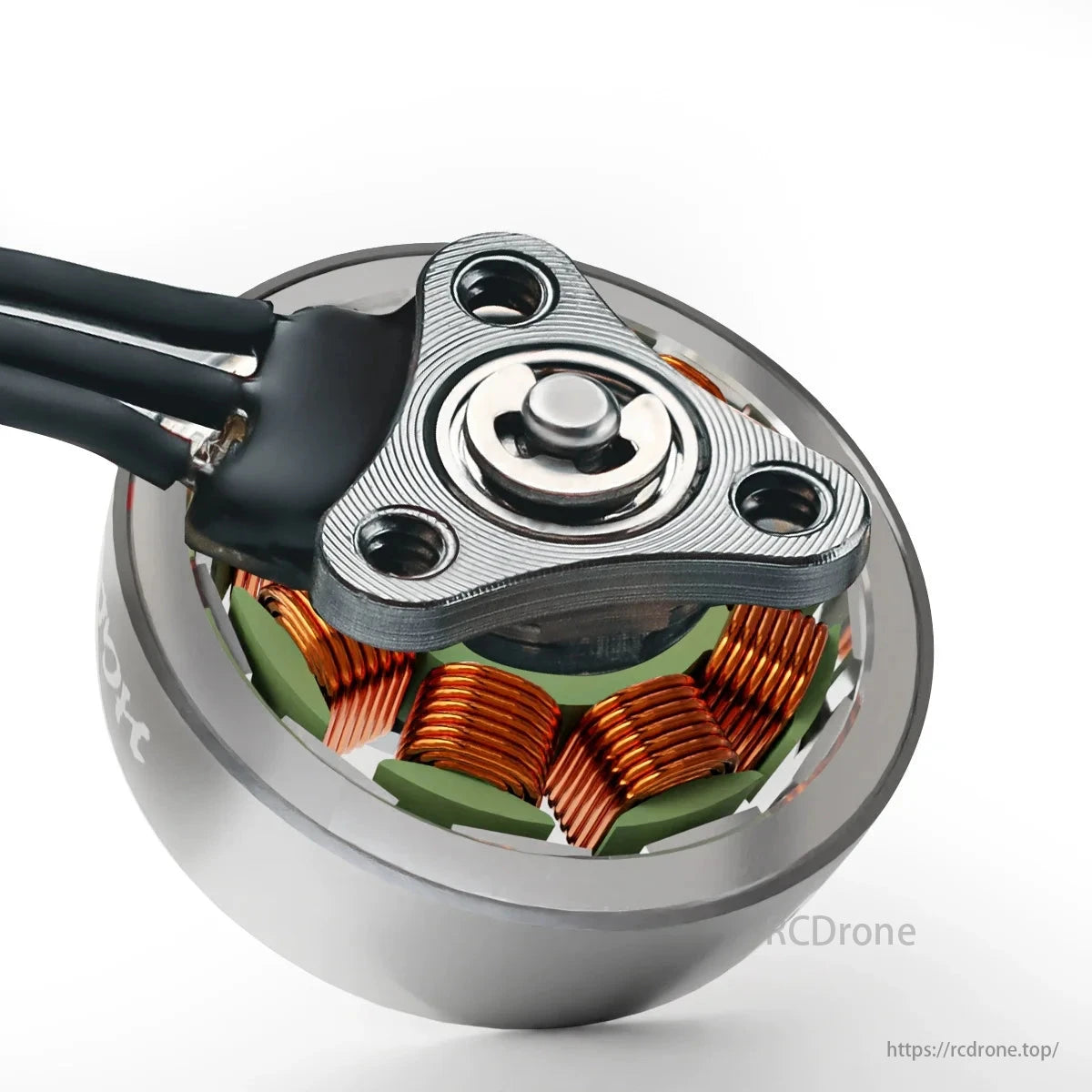

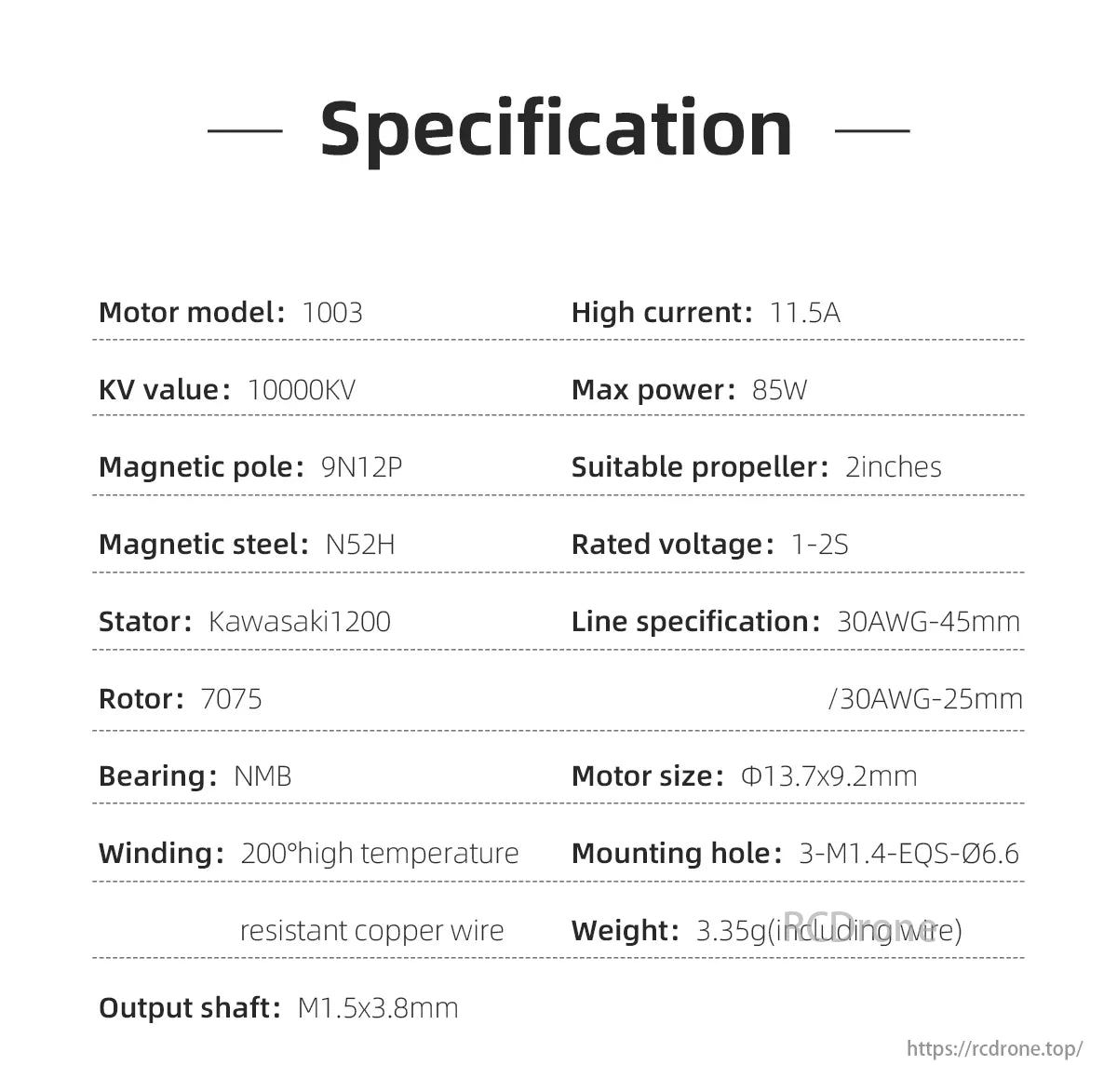

HGLRC Specter 1003 Motor, Alloy steel outlet shaft designed for high strength and reduced weight to improve aircraft performance.HGLRC Specter 1003 Motor, Description of an aviation aluminum material with high strength for making one-piece rotors.HGLRC Specter 1003 Motor, Magnetic steel product with strong magnetism and high torque.HGLRC Specter 1003 Motor, Aviation-grade 7075 aluminum material used for high-strength, single-piece rotors.HGLRC Specter 1003 Motor: 10000KV, 11.5A, 85W, 2-inch prop, N52H magnets, Kawasaki1200 stator, 7075 rotor, NMB bearing, 3.35g, M1.5x3.8mm shaft, 1-2S.

HGLRC Specter 1003 Motor: 10000KV, 11.5A, 85W max power, 2-inch propeller, N52H magnets, Kawasaki1200 stator, 7075 rotor, NMB bearing, 3.35g weight, M1.5x3.8mm output shaft, 1-2S voltage.

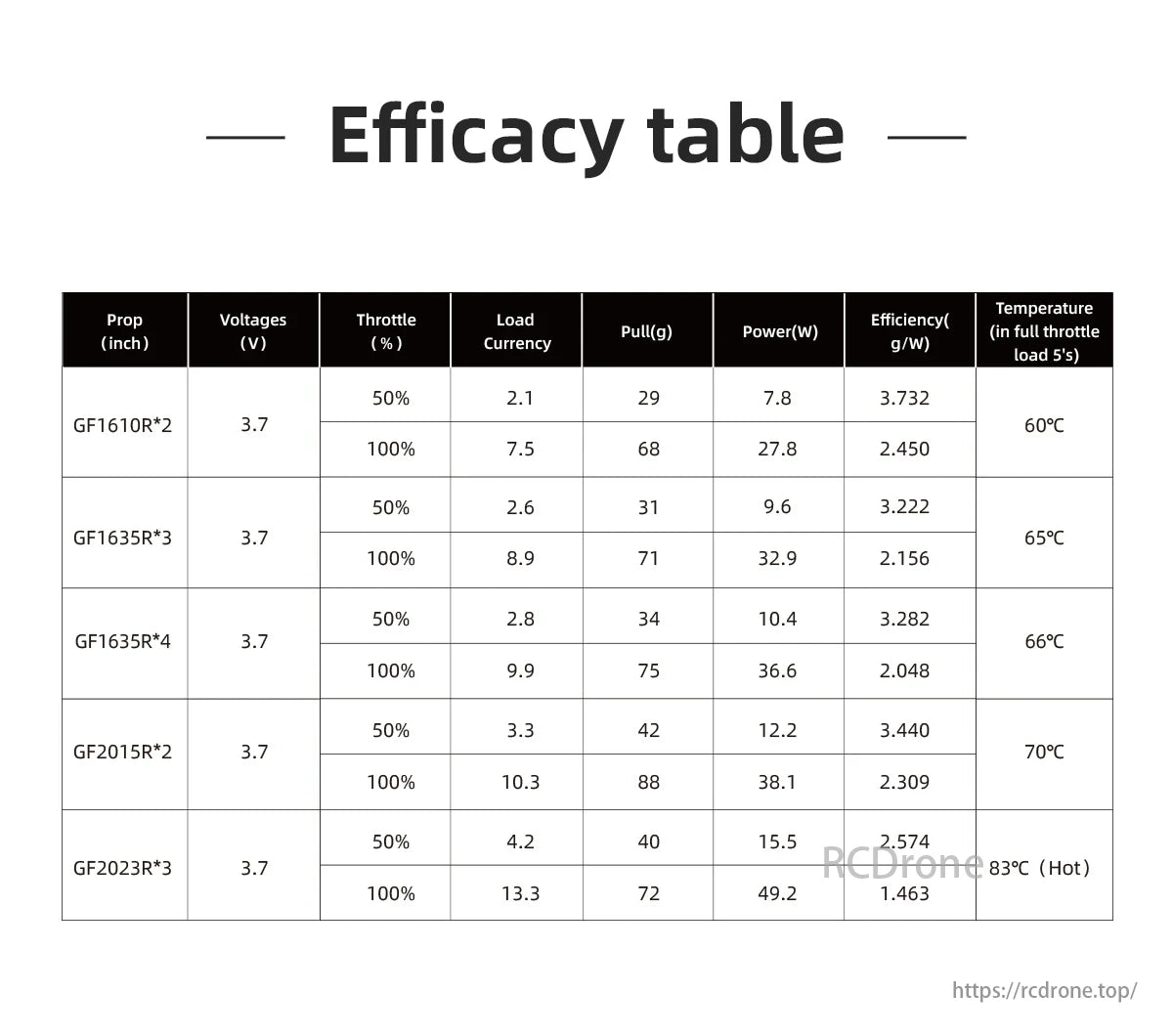

HGLRC Specter 1003 Motor, High-strength one-piece rotor made from 7075 aviation aluminum material.HGLRC Specter 1003 Motor, Copper wire winding with high temperature resistance helps motors run more stably.HGLRC Specter 1003 Motor, Customized N52H curved magnetic steel with strong magnetism and high torque properties.HGLRC Specter 1003 Motor, Motor performance at 3.7V includes throttle, current, force, power, efficiency, and temperature for different propellers.

Motor performance at 3.7V: throttle, current, force, power, efficiency, and temperature for various propellers.

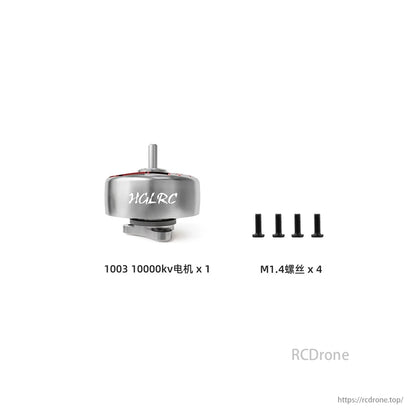

HGLRC Specter 1003 Motor, Packing list includes 1003 10000kv motor, M1.4 screws (x4), and HGLRC product details.

Packing list: 1003 10000kv motor, M1.4 screws x 4. HGLRC product details included.
