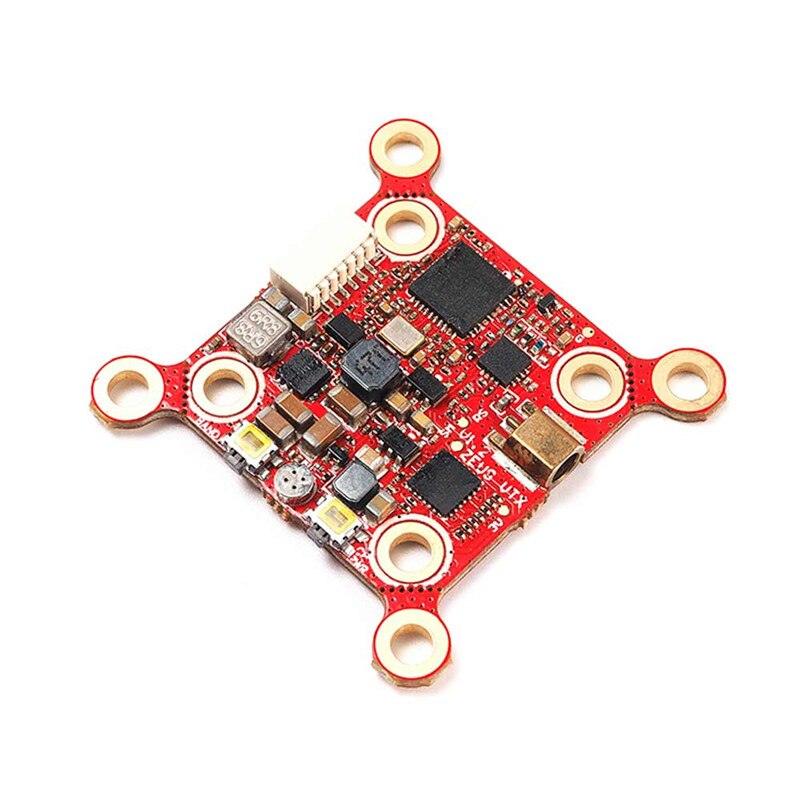

HGLRC Zeus VTX Transmitter - 5.8G 40CH PIT/25/100/200/400/800mW Smart Mounting 20*20mm/30*30mm FPV Transmitter For FPV RC Drone Quadcopter

HGLRC Zeus VTX 5.8G 40CH PIT/25/100/200/400/800mW Smart Mounting 20*20mm/30*30mm FPV Transmitter Built-in Microphone For FPV RC Racing Drone

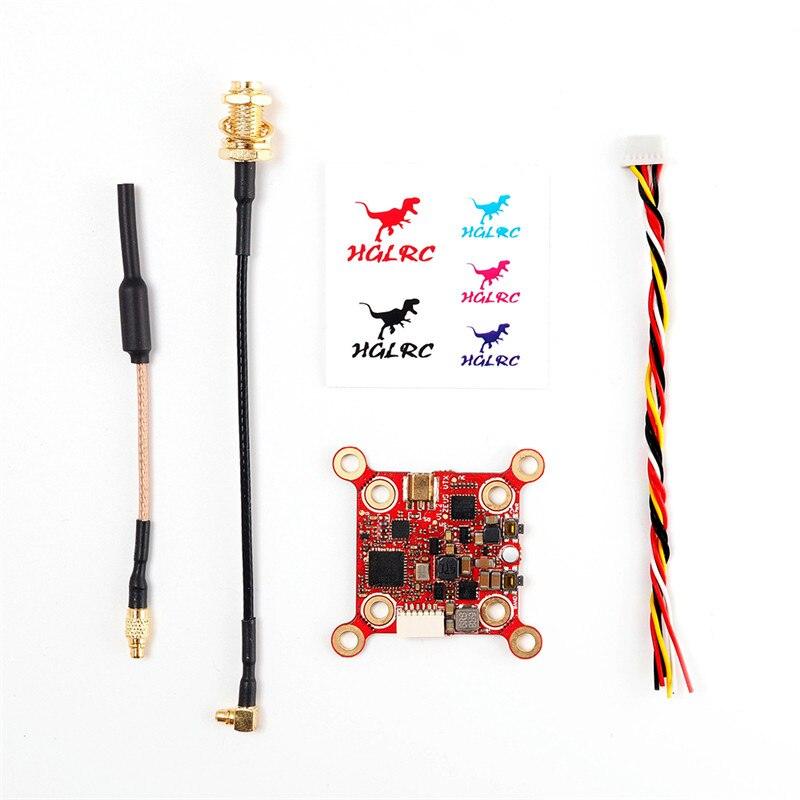

Package Included:

1 x Zeus VTX 800mW

1 x 80mm 5.8G MMCXLinear Brass Antenna

1 x SH1.0 6Pin 100mm Cable

1 x MMCX to SMA-KY Adapter Cable

Description:

Brand: HGLRC

Model: Zeus VTX 800mW

Built-in Microphone

Input voltage: DC 6-26V

Output voltage: 5V/2A

PIT@94mA

25mW@169mA/14dBm

100mW@199mA/20dBm

200mW@216mA/23dBm

400mW@279mA/26dBm

800mW@387mA/29dBm

Antenna interface: MMCX

Output power: PIT/25/100/200/400/800mW

Frequency: 5.8GHz 5 bands, 40 channels

Installing Hole: 20X20/30X30mm.M3

Size: 37mm x 37mm x 5mm

Weight: 4.8g

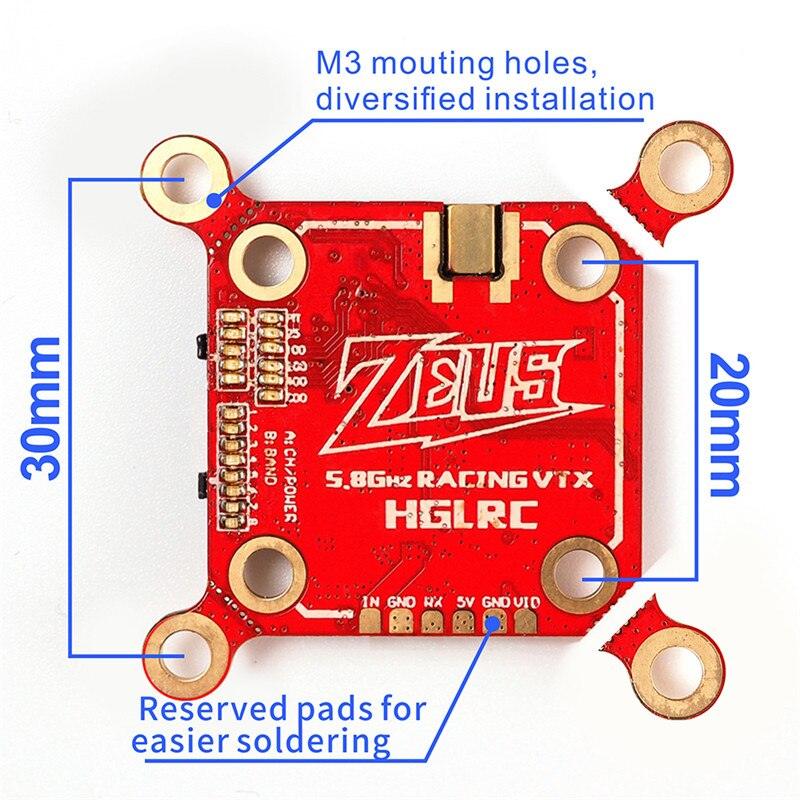

This product features M3 mounting holes, providing diversified installation options. Additionally, it includes reserved pads for easy soldering.

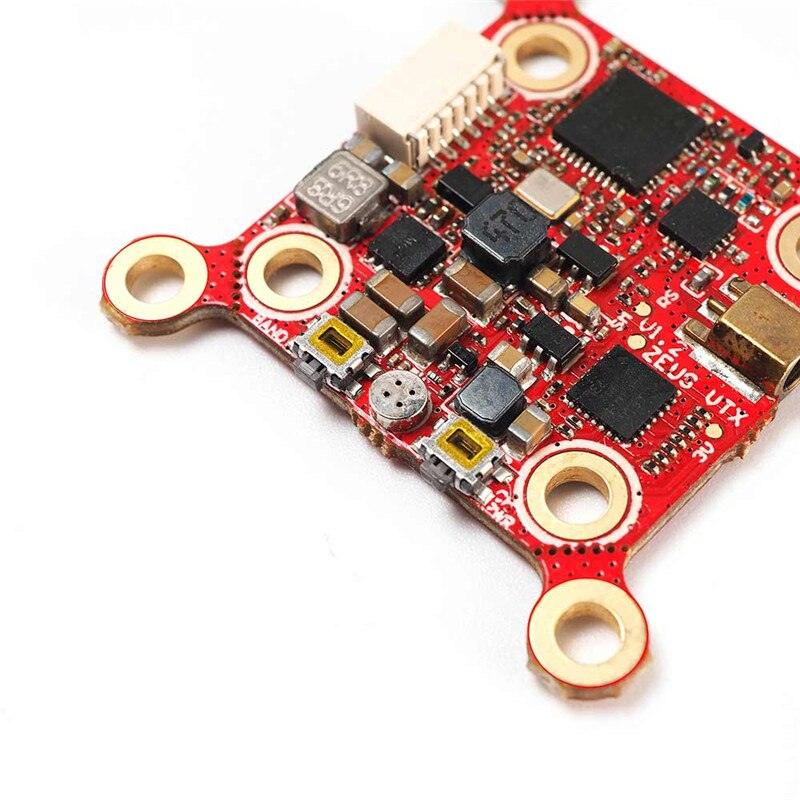

The transmitter features dual-function buttons that simplify configuration, as well as clear indicators on board to display band, frequency, and channel information.

Equipped with a built-in microphone, this transmitter enables real-time audio transmission, featuring enhanced noise reduction for crystal-clear communication.
