Holybro Atlatl HV Micro SPECIFICATIONS
Brand Name: aerops
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Transmitters
Size: 30x26mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Transmitter
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Assembly Category
Quantity: 1 pcs
Technical parameters: KV1100
Model Number: Atlatl HV Micro
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate
Holybro Atlatl HV Micro Features:
- Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
- Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
- SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
- All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.
- MMCX connector is durable and easy to use. Rated for 100's of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.
- LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.
- Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
- 0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
- Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.
- Standard 26mm form factor allows you to mount the Atlatl directly on your flight controller stack.
Holybro Atlatl HV Micro Specifications:
- Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
- Audio: 6.5 MHz Mono
- Protocol: smart audio2.0
- Antenna Connector: MMCX
- Input Voltage: 7 to 28 volts (2-6S LiPo)
- Dimensions: 30x26mm
- Mounting Holes: Standard 20mm square to center of holes (M3)
- Weight: 3.6g
Package Includes:
- VTx Board *1
- 80mm SMA--MMCX Cable *1
- 60mm Antenna *1
- 150mm 4pin JST GH wire *1
- M2 Anti-Vibration Silicone Grommet Insert *4
Holybro Atlatl HV Micro 5.8G FPV Video Transmitter for RC Multirotor Drone parts with 2-4S Lipo and frequency options: 0.5/25/200/500/800mW, 40 channels.
![Holybro Atlatl HV Micro, Mounts Atlatl directly on flight controller stack with standard 26mm form factor.](https://rcdrone.top/cdn/shop/files/S3504395d50224c3fb6712ec5273d2e9aO.webp?v=1717516707)
![Holybro Atlatl HV Micro, Mountable on a flight controller stack, standard 26mm form factor design.](https://ae01.alicdn.com/kf/Sb20081a709cf402482d5a4f3c3e3a099o.jpg?width=1080&height=1080&hash=2160)
![Holybro Atlatl HV Micro, LED indicators display channel, band, and power settings on a device's control panel.](https://rcdrone.top/cdn/shop/files/S6f534f81c495434296e53b930a15a808s.webp?v=1717516731)
![Holybro Atlatl HV Micro, Durable and easy-to-use connector for reliable connections.](https://rcdrone.top/cdn/shop/files/S9c819ba9237b4773bc76660594870af2o.webp?v=1717516741)
![Holybro Atlatl HV micro video transmitter for FPV RC drones, suitable for 2-4S LiPo batteries and 25/200/500/800mW transmission.](https://rcdrone.top/cdn/shop/files/Sb22dac44748c4003ad49651ad38cd78bj.webp?v=1717516754)
![Holybro Atlatl HV Micro - 5.8G FPV Video Transmitter 2-4S Lipo 0.5 / 25/200/500/800mW 40CH VTX for FPV RC Multirotor Drone parts](http://rcdrone.top/cdn/shop/files/S9ef84ea93fae4d43bfcd6ffe95858c020.webp?v=1717510474&width=1445)
![Holybro Atlatl HV Micro, FPV video transmitter for multi-rotor drones, offering adjustable output power and 40 channels.](http://rcdrone.top/cdn/shop/files/S1cea181d6ec9444e854e7e201c9531762.webp?v=1717510474&width=1445)
![Holybro Atlatl HV Micro - 5.8G FPV Video Transmitter 2-4S Lipo 0.5 / 25/200/500/800mW 40CH VTX for FPV RC Multirotor Drone parts](http://rcdrone.top/cdn/shop/files/S52883c142c8644f88aa3b61bddae983av.webp?v=1717510474&width=1445)
![Holybro Atlatl HV Micro - 5.8G FPV Video Transmitter 2-4S Lipo 0.5 / 25/200/500/800mW 40CH VTX for FPV RC Multirotor Drone parts](http://rcdrone.top/cdn/shop/files/Sbe9d58d9ecde404888c82a42e0170045W.webp?v=1717510474&width=1445)
![Holybro Atlatl HV Micro - 5.8G FPV Video Transmitter 2-4S Lipo 0.5 / 25/200/500/800mW 40CH VTX for FPV RC Multirotor Drone parts](http://rcdrone.top/cdn/shop/files/Sc9dcb12a11334dceb5c34b6ef1e89373M.webp?v=1717510474&width=1445)

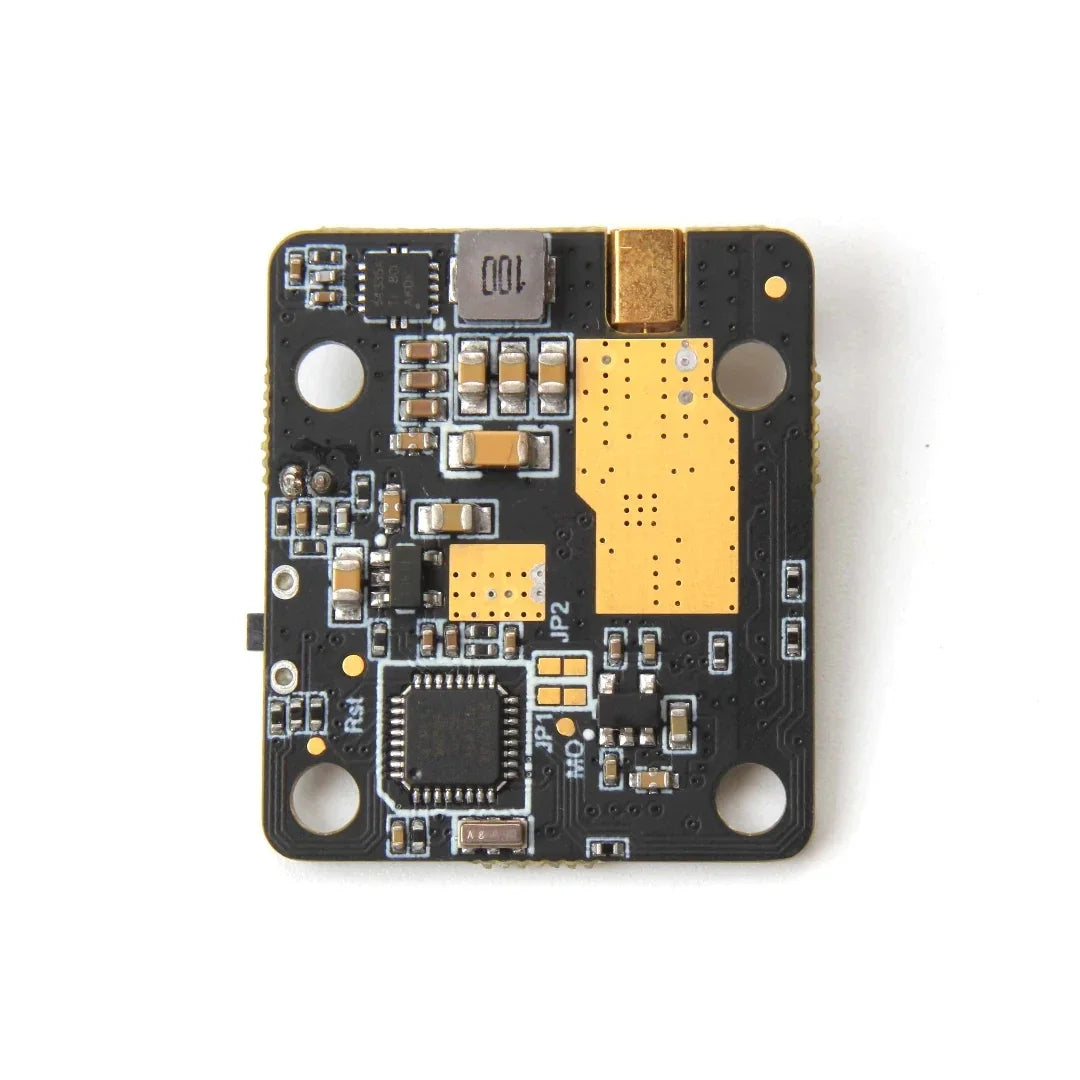

![Holybro Atlatl HV Micro - 5.8G FPV Video Transmitter 2-4S Lipo 0.5 / 25/200/500/800mW 40CH VTX for FPV RC Multirotor Drone parts](http://rcdrone.top/cdn/shop/files/S24a19bda7b2f403ca41b595574d49d17y.webp?v=1717510448&width=1445)
