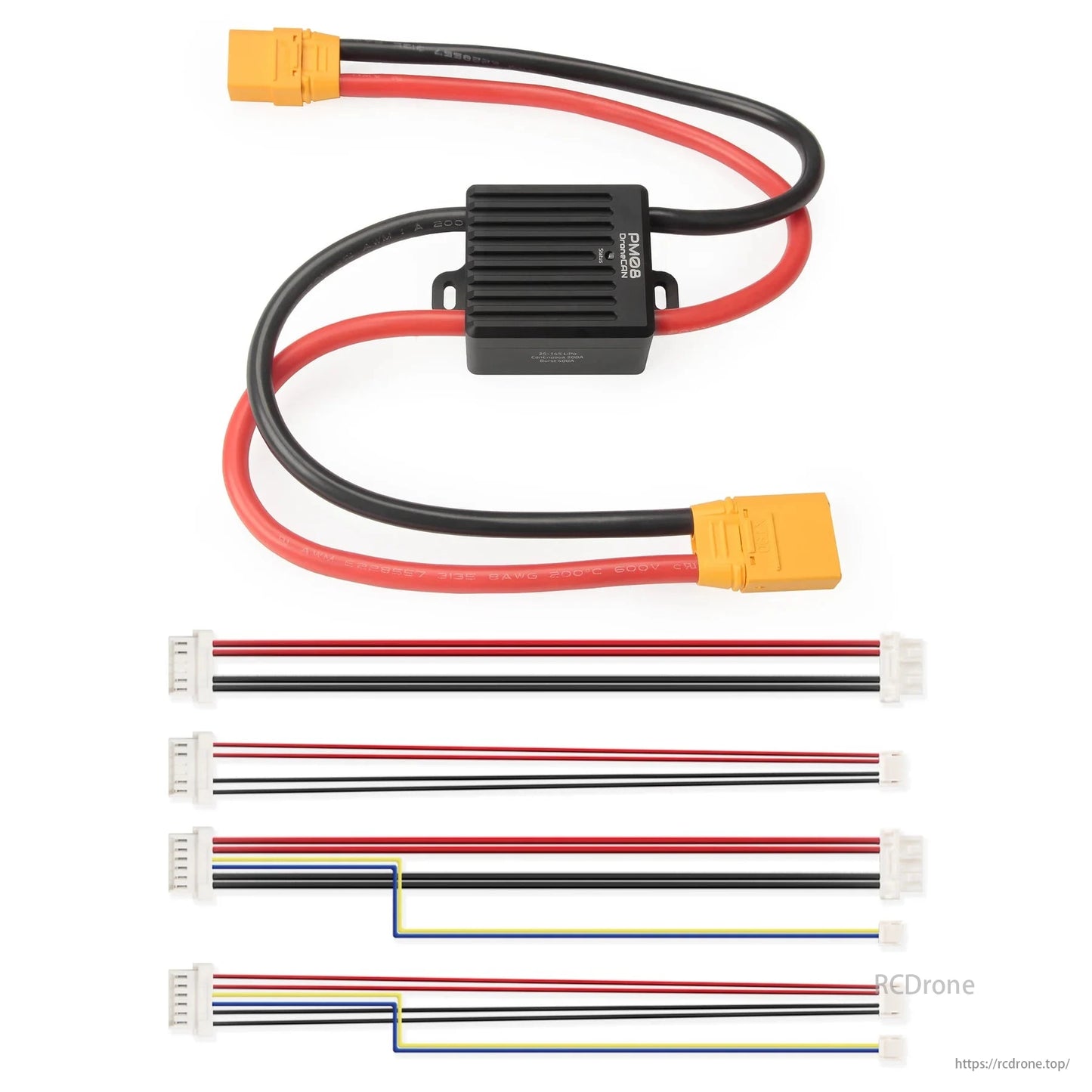

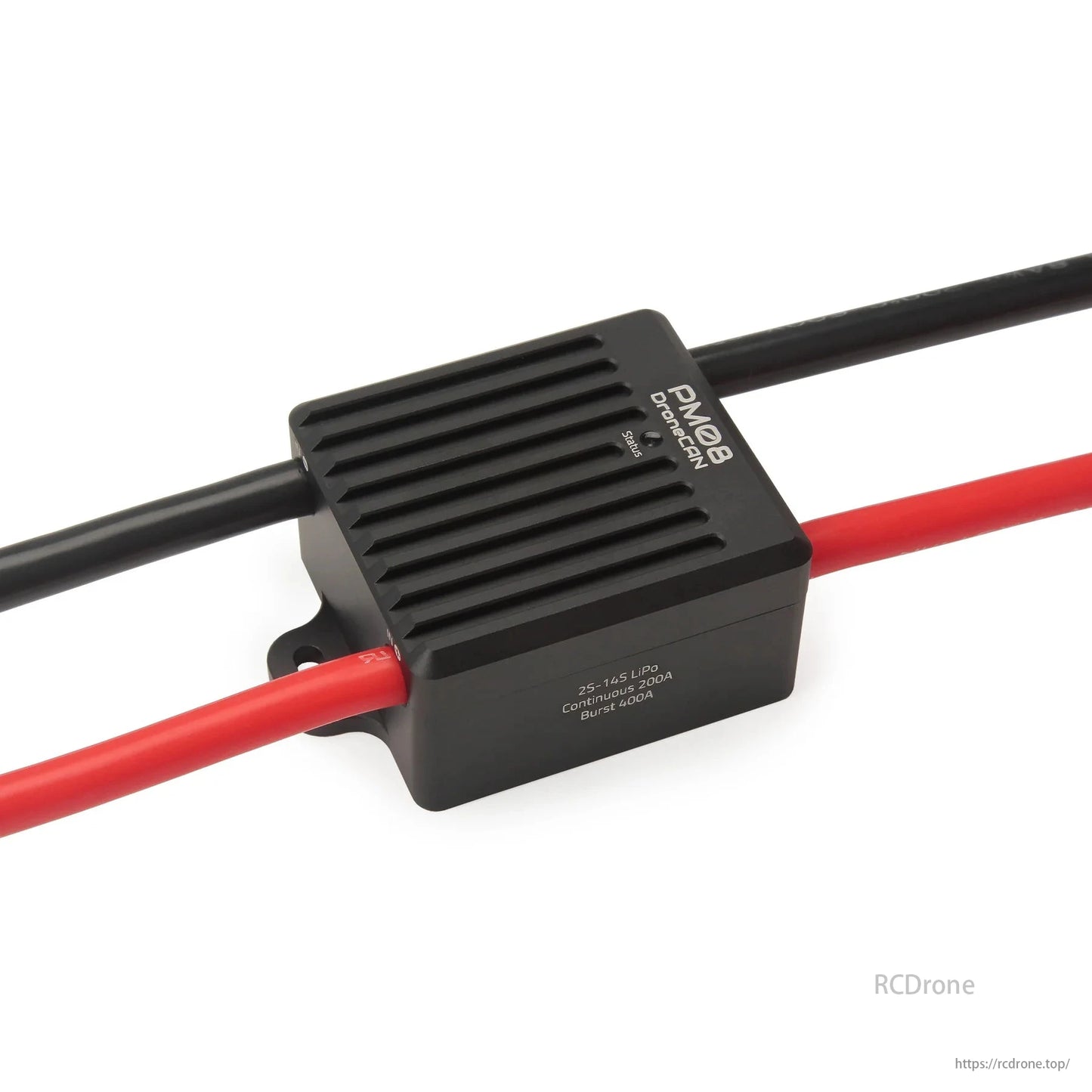

• Holybro PM08-CAN Power Module, Black box with red and black cables, labeled PM8B.

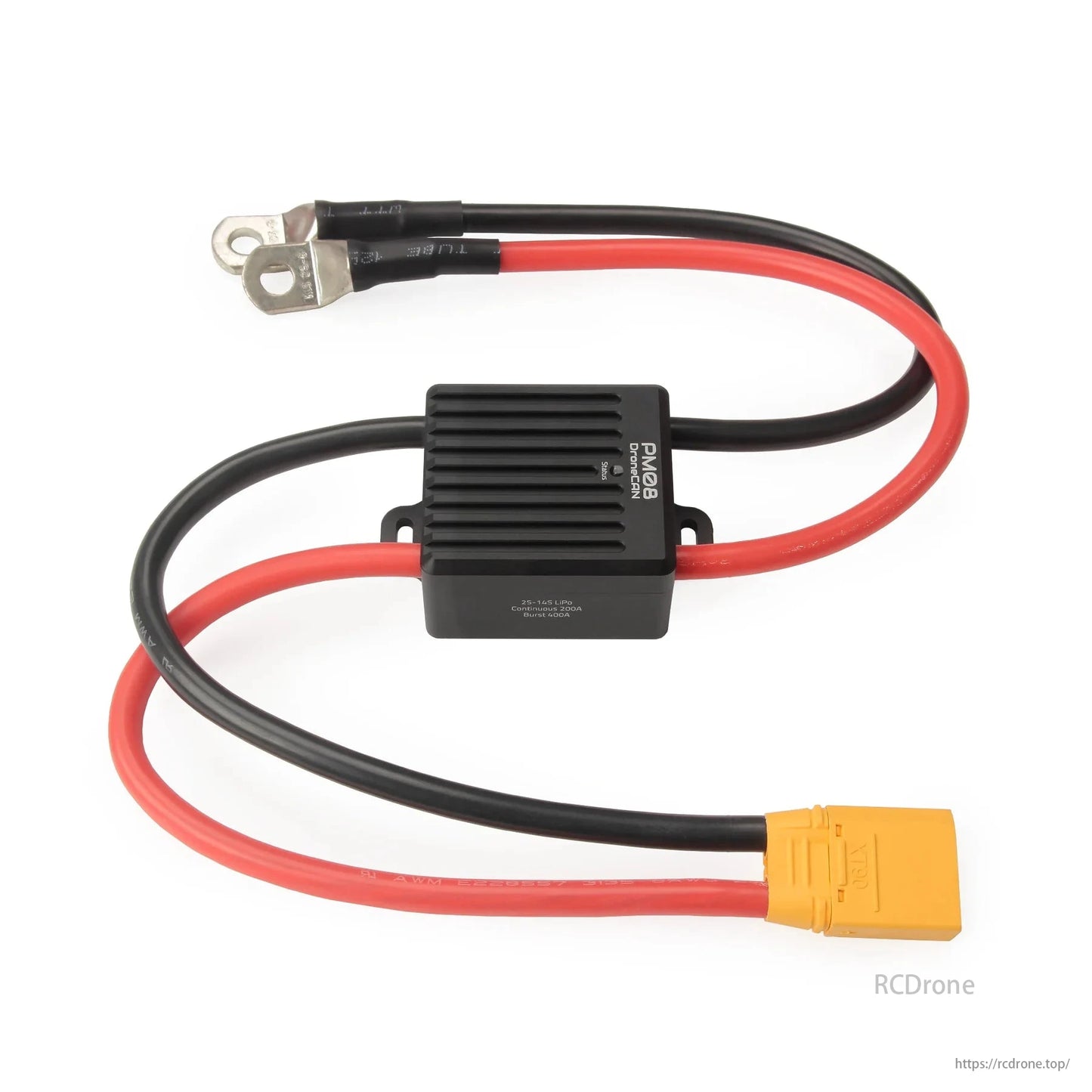

  • Holybro PM08-CAN Power Module, PM28B DroneCAN supports 2S-14S LiPo, with continuous 220A and burst 400A, featuring VBAT-IN and VBAT-OUT.
  • Holybro PM08-CAN Power Module, PM08 DroneCAN 2S-14S LiPo Continuous 200A Burst 400A

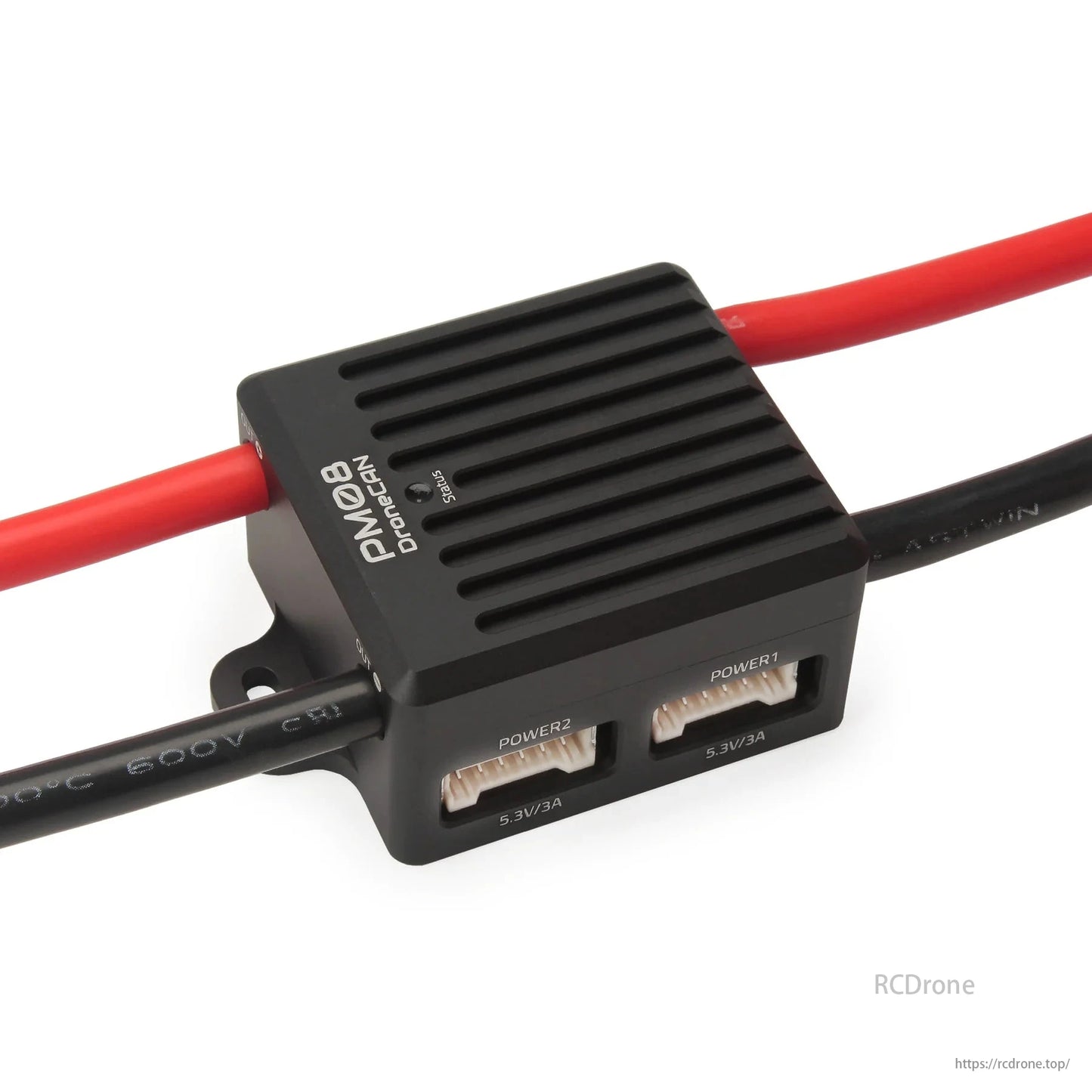

  • Holybro PM08-CAN Power Module, PM08 DroneCAN features two power outputs: POWER1 and POWER2, both providing 5.3V/3A.

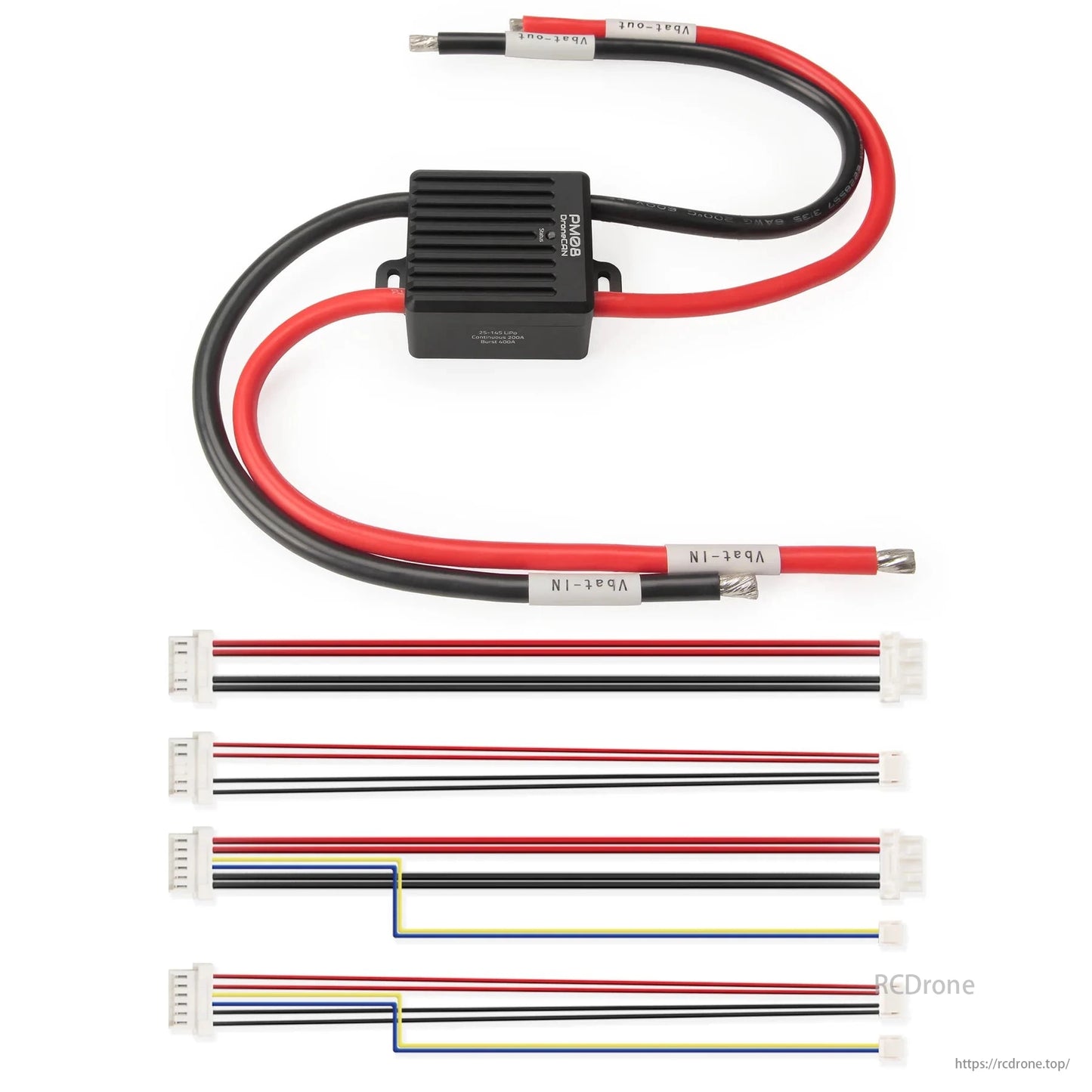

  • Holybro PM08-CAN Power Module, Battery connector, voltage regulator, multi-wire harness set.
  • Holybro PM08-CAN Power Module, PM28B DroneCAN supports 2S-14S LiPo, offers continuous 220A and burst 400A, with VBAT-IN and VBAT-OUT.

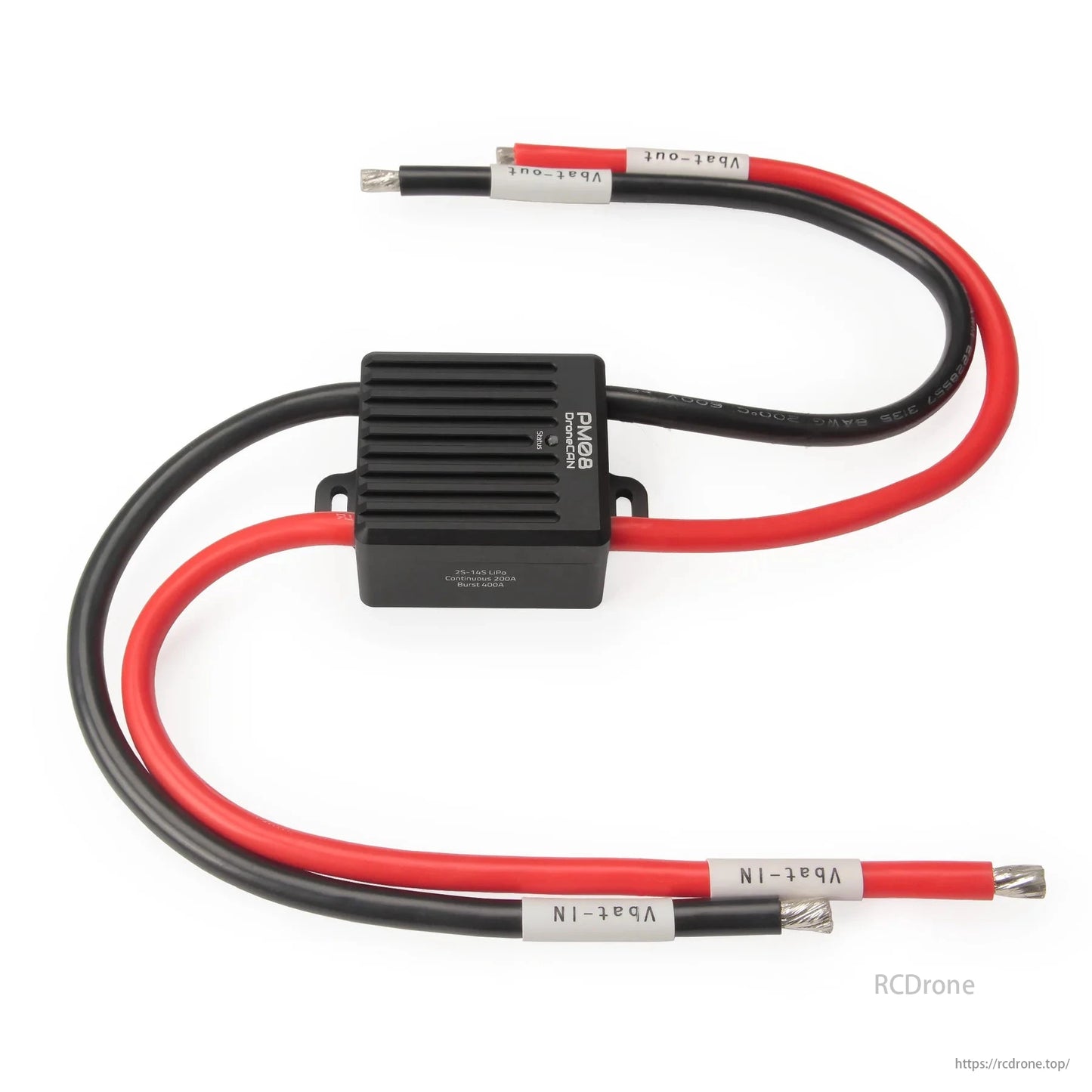

  • Holybro PM08-CAN Power Module, Vbat-IN and Vbat-OUT cables connect the battery to a black power module for input and output.

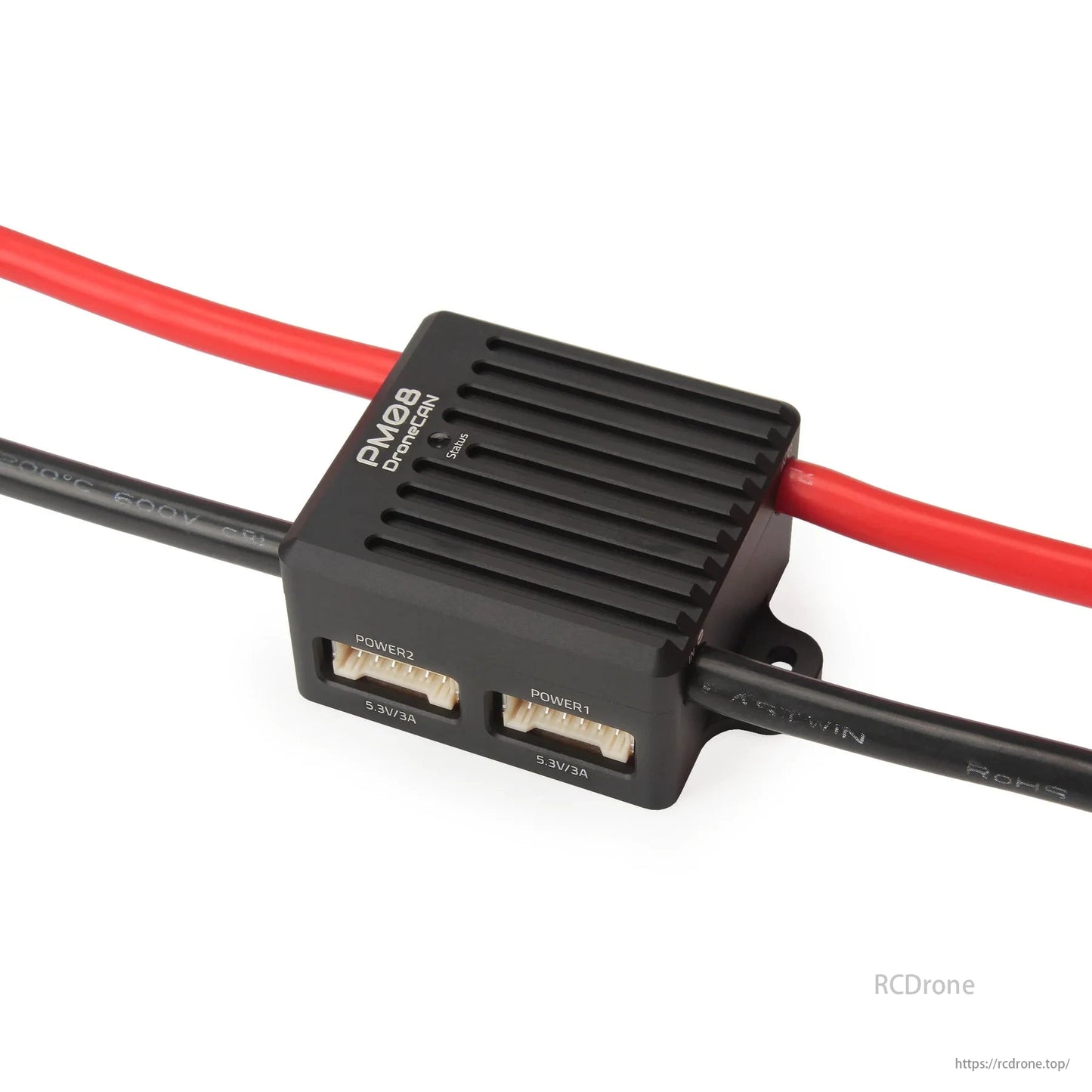

  • Holybro PM08-CAN Power Module, PM08 DroneCAN features 5.3V/3A POWER1 and POWER2 outputs, includes black box for data recording.
  • Holybro PM08-CAN Power Module, PM08 DroneCAN device with red and black cables connected.

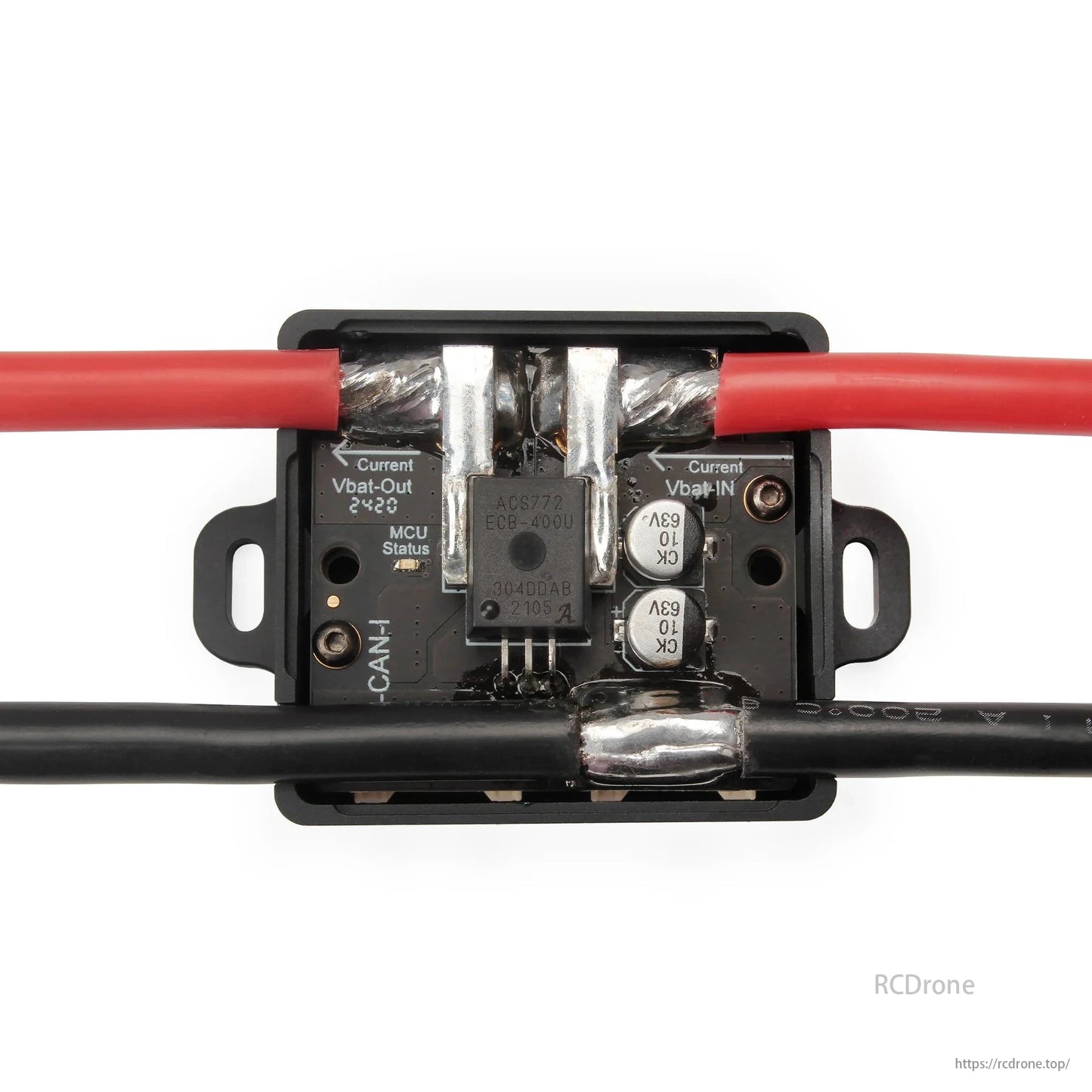

  • Holybro PM08-CAN Power Module, Summary: Technical parameters including battery currents, ACS772 sensor, 304DDAB model, CAN interface, and MCU status are listed.
  • Holybro PM08-CAN Power Module, PM08B supports 2S-14S LiPo batteries, offering a continuous current of 100A and a burst current of 160A.
  • Holybro PM08-CAN Power Module, PM08B DC-DC converter supports 2S-14S LiPo, offering continuous 100A and burst 400A.
  • Holybro PM08-CAN Power Module, Battery connector, voltage regulator, wiring harness for RC applications.
  • Holybro PM08-CAN Power Module, Battery connector, voltage regulator, wiring harness for RC applications.
1 14

Holybro PM08-CAN Power Module Support 2-14S, 200A DroneCAN

Holybro PM08-CAN Power Module Support 2-14S, 200A DroneCAN

HolyBro

$109.00 USD
$109.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Connector Type
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Holybro PM08-CAN Power Module, PM08-CAN Power Module: 2-14S, 200A, DroneCAN, compact, 2x 5V outputs, efficient heat dissipation, separated sensor/BEC, galvanically isolated current sensor.

PM08-CAN Power Module supports 2-14S & 200A, DroneCAN protocol, compact design, and 2x independent 5V output. Features high-efficiency aluminum heat dissipation shell, separated sensor and BEC board, and a galvanically isolated current sensor for high accuracy.

Feature

  • Supports 2-14S & 200A Cont, 400A Burst
  • DroneCAN Communication Protocol
  • Small & Compact Design
  • Two 5V Output with Independent BEC IC and Circuitry
  • Separated Sensor and BEC Board to Minimize Electrical Noise Interference
  • Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
  • High Accuracy Temperature Sensor for Temperature Monitor

  • High-Efficiency Aluminum Heat Dissipation Shell

Specifications

  • Processor：STM32F405RG 168MHz 1024KB Flash  196KB RAM
  • Voltage input: 7~60.9V (2S~14S)
  • Continuous current:200A
  • Burst current
    • 400A @ 25℃ 1 sec
    • 1000A @ 25℃ < 1 sec
  • Max current sensing: 376A
  • Voltage accuracy: ±0.1V
  • Current accuracy: ±5%
  • Temperature accuracy:±1℃
  • Power port output: 5.3V/3A each port
  • Protocol: DroneCAN
  • Operating temperature :-25℃~105℃
  • Firmware upgrade: Support
  • Calibration:  Support

Pinout

Holybro PM08-CAN Power Module, Feature with 2-14S support, DroneCAN protocol, compact design, and high accuracy sensors; suitable for drone autopilot systems.

Interface Type

  • Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
  • Battery IN/OUT Options:

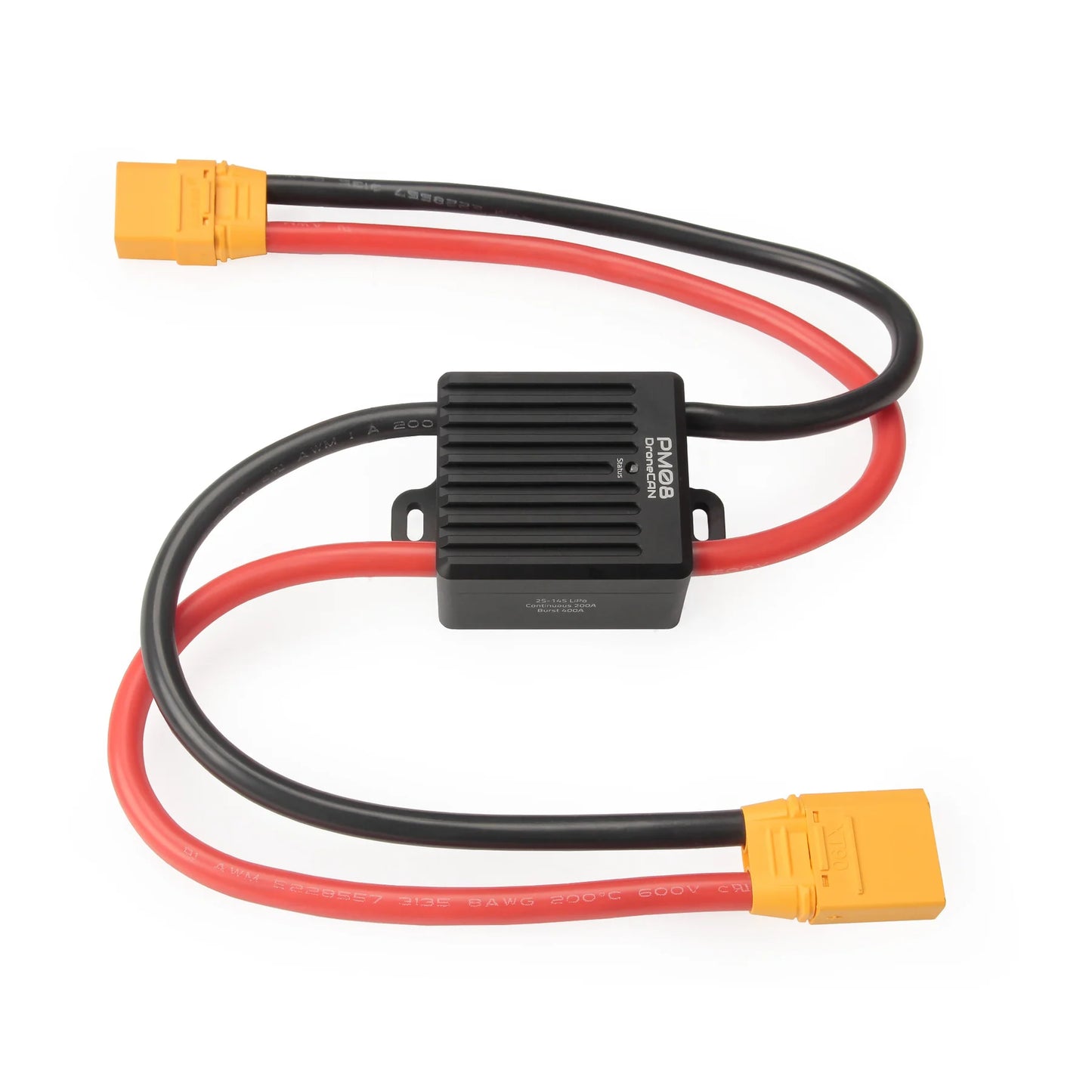

    • XT90 Connectors
    • Tinned Wires

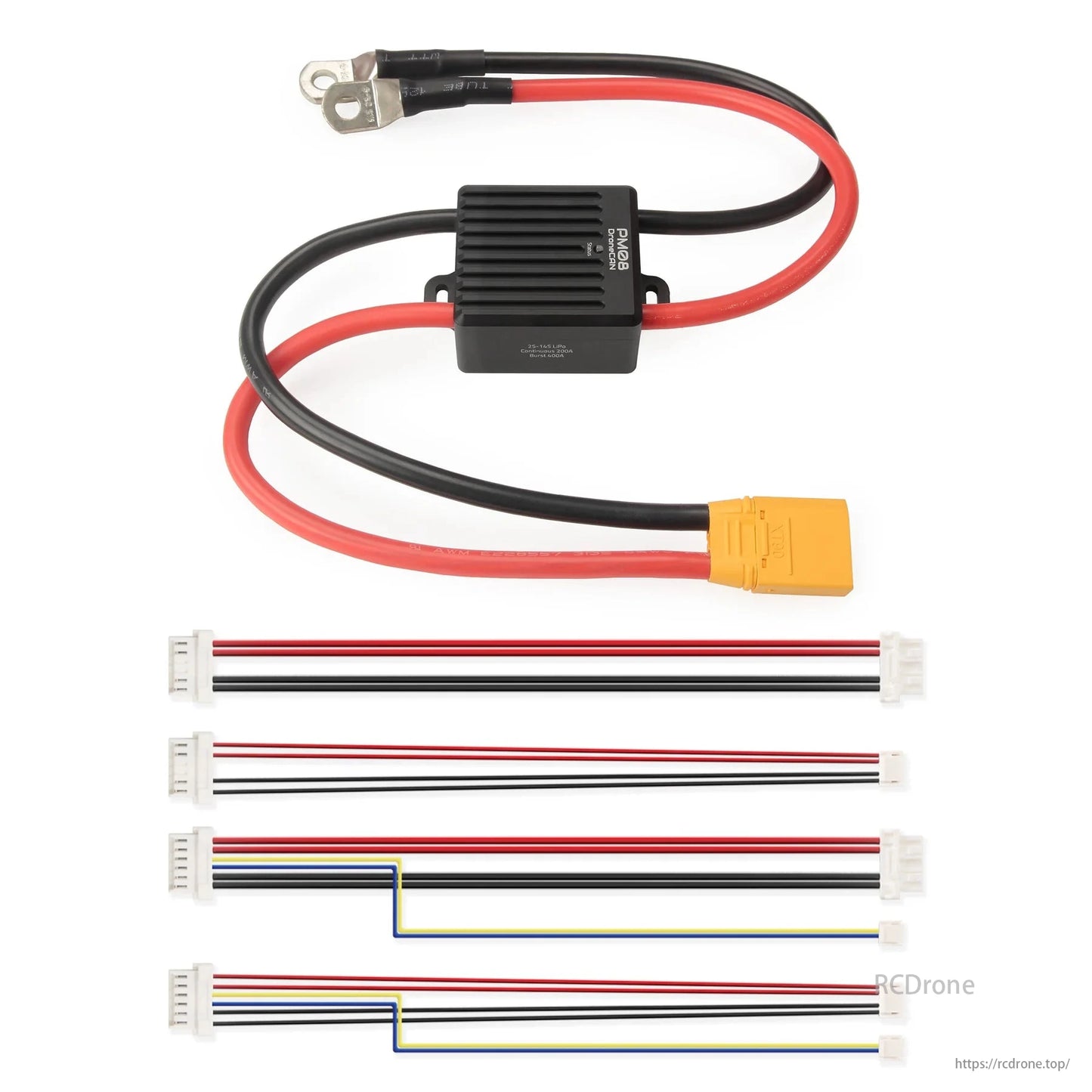

    • XT90 & Ring Terminals

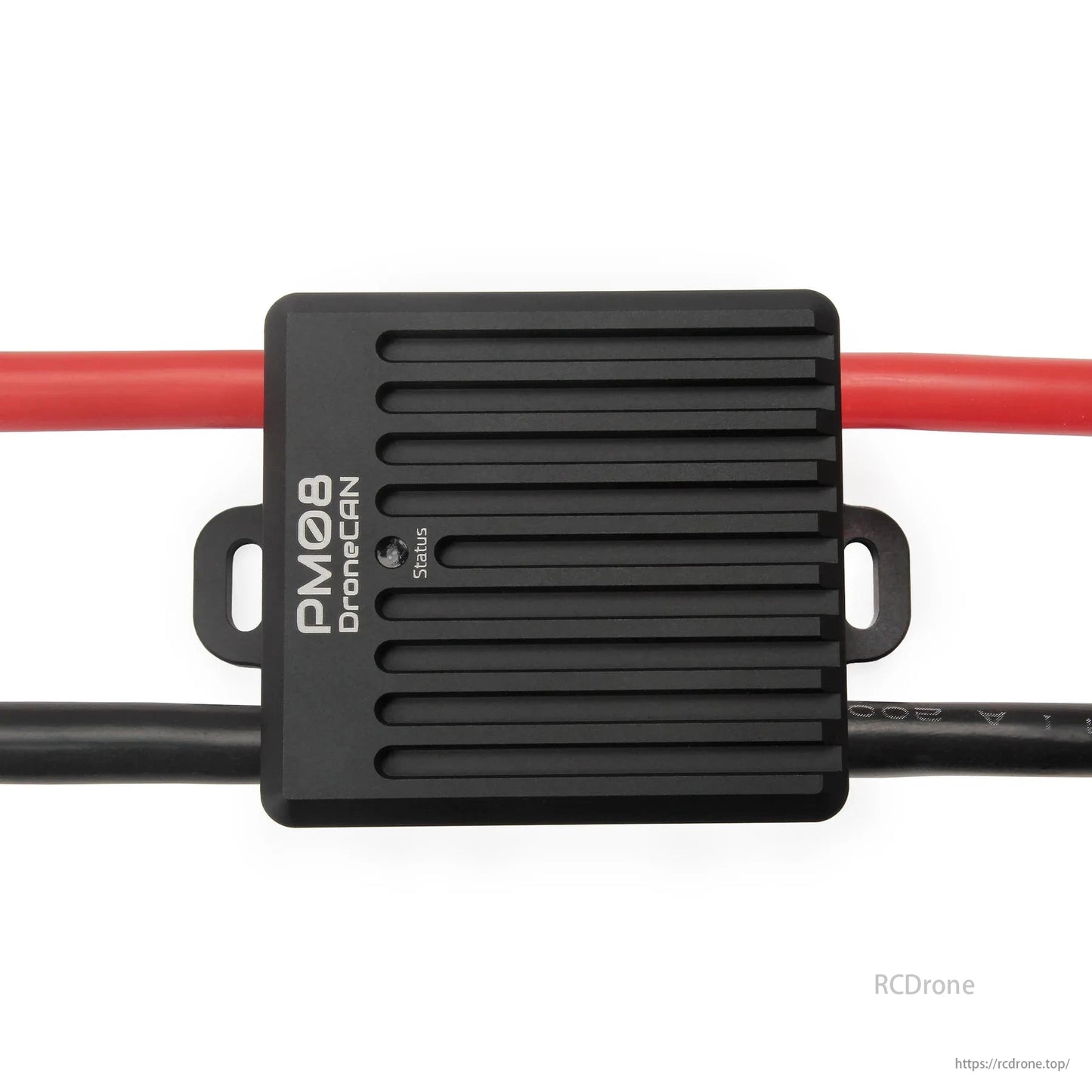

Status LED

  • Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash
  • Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
  • Flashing slowly (one-second intervals): CAN is successfully connected

Mechanical Spec

  • Size: 45mm×41mm×26mm (Not Include Cable)
  • Weight: 185g (Include Cable)
