Holybro SiK Telemetry Radio V3 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y

Origin: Mainland China

Material: Composite Material

Brand Name: NoEnName_Null

Overview

This Holybro SiK Telemetry Radio is a small, light and inexpensive open source radio platform that typically allows ranges of better than 300m “out of the box” (the range can be extended to several kilometres with the use of a patch antenna on the ground).

This radio is plug-n-play all Pixhawk Standard and other Flight Controller, providing the easiest ways to setup a telemetry connection between your Autopilot and a ground station. It uses open source firmware which has been specially designed to work well with MAVLink packets and to be integrated with the Mission Planner, Ardupilot, QGroundControl, PX4 Autopilot.

The radios can be either 915Mhz or 433Mhz and you should purchase the model which is appropriate for your country/region.

Note:

This radio does not support firmware upload via Mission Planner 1.3.75 or order. Please use Mission Planner 1.3.75.1 or newer if firmware upload is needed.

Features

Open-source SIK firmware

Plug-n-play for Pixhawk Standard Flight Controllers

Easiest way to connect your Autopilot and Ground Station

Interchangeable air and ground radio

Micro-USB port (Type-C Adapter Cable Included)

6-position JST-GH connector

Specification

100 mW maximum output power (adjustable) -117 dBm receive sensitivity

RP-SMA connector

2-way full-duplex communication through adaptive TDM UART interface

Transparent serial link

MAVLink protocol framing

Frequency Hopping Spread Spectrum (FHSS) Configurable duty cycle

Error correction corrects up to 25% of bit errors Open-source SIK firmware

Configurable through Mission Planner & APM Planner

FT230X is a USB to BASIC UART IC

Dimensions

28 x 53 x 10.7mm (without antenna)

Electrical Data

Supply voltage: 5V DC (from USB or JST-GH)

Transmit current: 100 mA at 20dBm

Receive current: 25 mA

Serial interface: 3.3 V UART

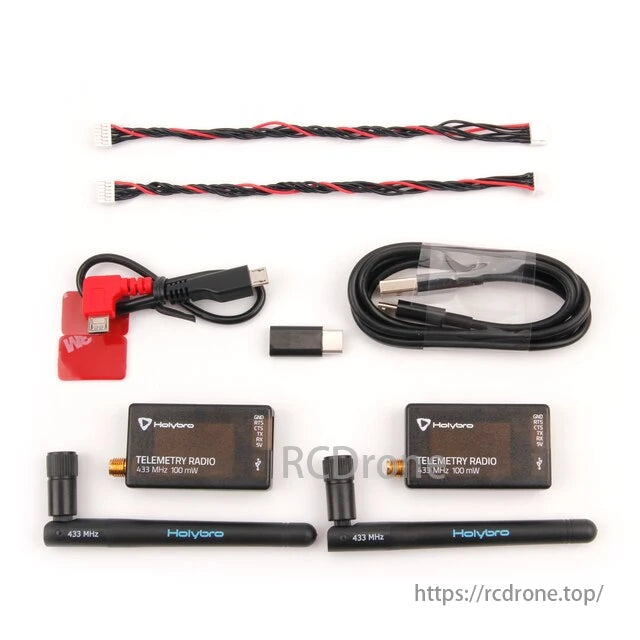

Package Included

Radio modules with antennas *2

Micro-USB to USB-A cable *1

Micro-USB to Micro-USB OTG adapter cable *1

Micro USB to Type C Adapter

JST-GH-6P to JST-GH-6P cable *1 (for Pixhawk Standard FC)

JST-GH-6P to Molex DF13 6P (for Pix32, Pixhawk 2.4.6, etc.)

Holybro SiK Telemetry Radio is small, light and inexpensive open source radio platform . it typically allows ranges of better than 30Om "out of the box" this radio is plug-n-play all Pixhawk Standard and other Flight Controller .

Qpen-source SIK firmware Plug-n-play for Pixhawk Standard Flight Controller Easiest way to connect your Autopilot and Ground Station . 100 mW maximum output power (adjustable) -117 dBm receive sensitivity RP-SMA connector 2-way full-duplex communication through adaptive TDM UART interface .

Holybro SiK Telemetry Radio V3 with 100mW and 500mW power options, operating on 433MHz and 915MHz frequencies. It features open-source SiK firmware, a plug-and-play design for Pixhawk standard flight controllers, and includes antenna frequency LED indicators, a JST-GH 6-pin port, and a micro USB connection.

the radios have two status LEDs, one red and one green . connecting to a PC or ground station is as simple as connecting a micro/type-C USB cable . the necessary drivers should be installed automatically .
