iFlight Battery Balance Charger - M4 AC 30W 1-4S 2.5A AC Smart Battery Balance Charger XT30 Output for FPV Battery

Specification:

• Input: AC100-240V@MAX30W

• Battery Type: LiPo LiHV LiFe @1-4S

• Charging Power: 0.5-2.5A@25W

• Bal Cur. : 200mA @2-4S

• Charging accuracy: <0.005V

• Display: LCD IPS 1.54 inch 240*240 resolution

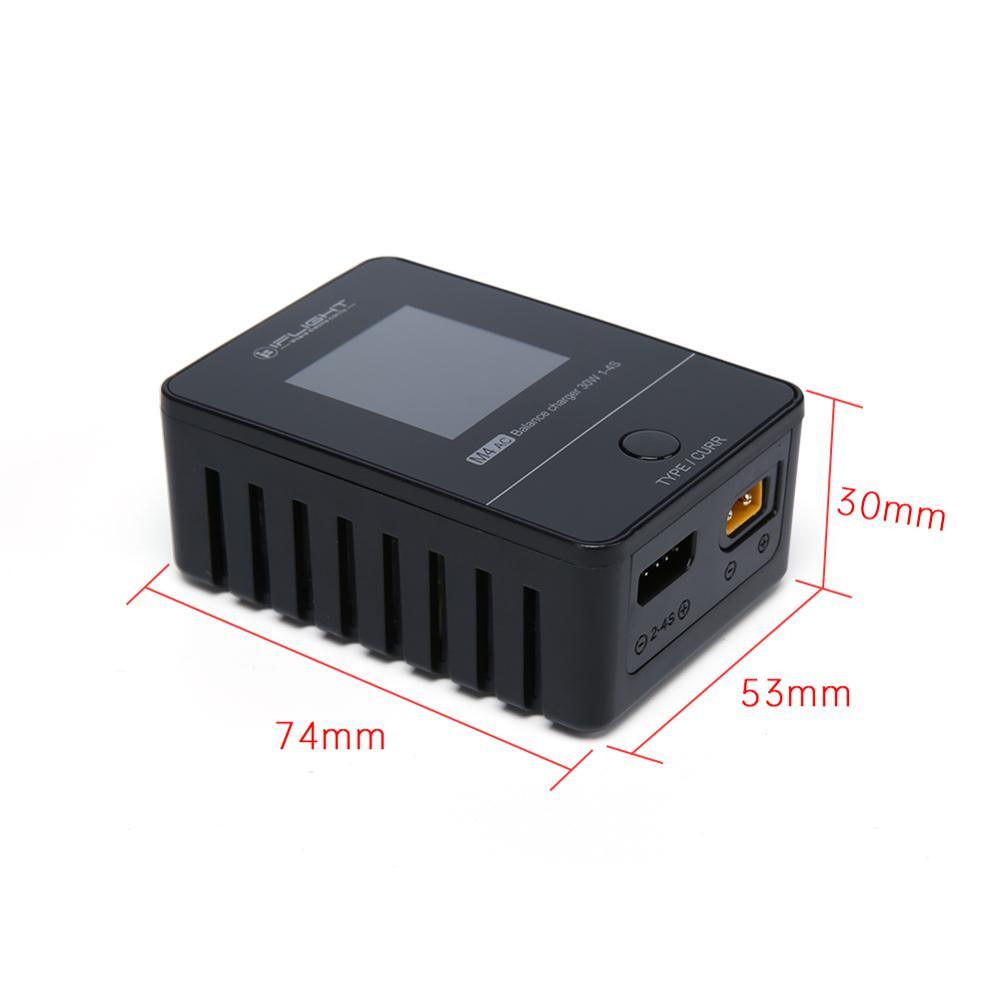

• Size: 75mm*54mm*30mm

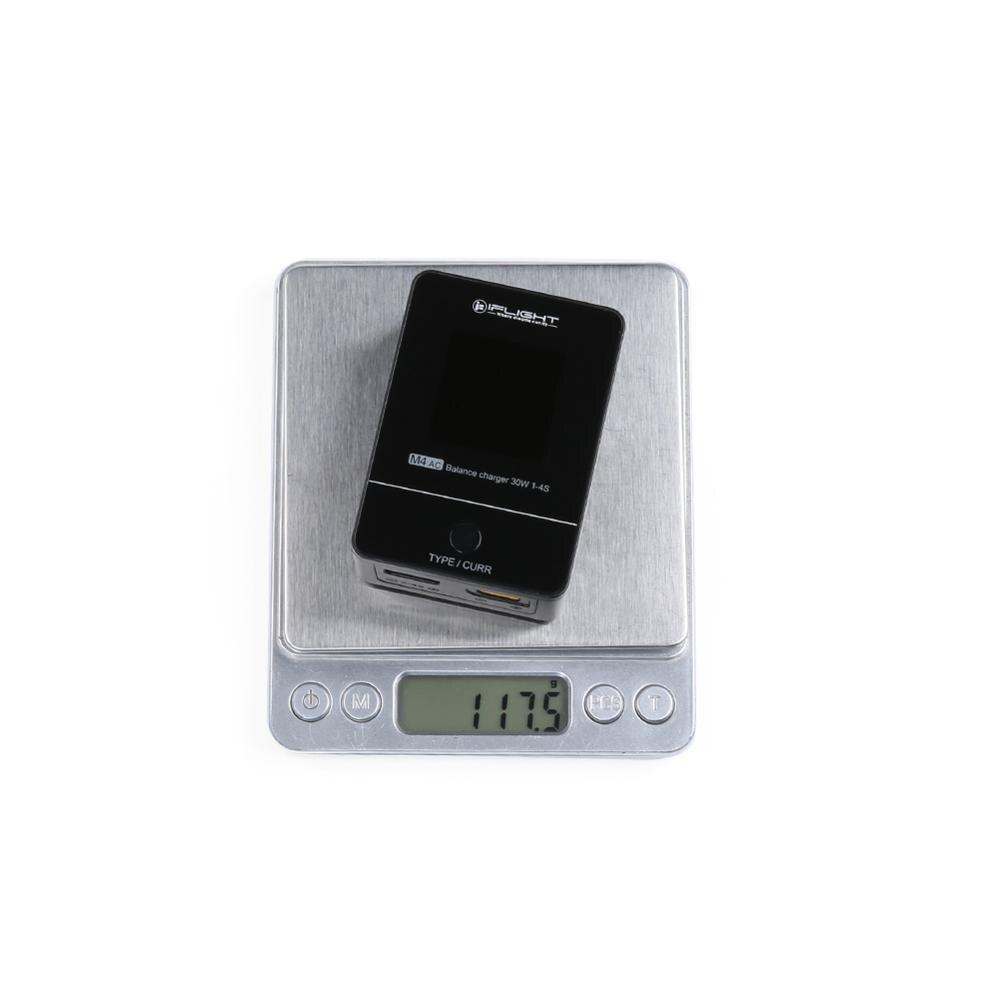

• Weight: 120g

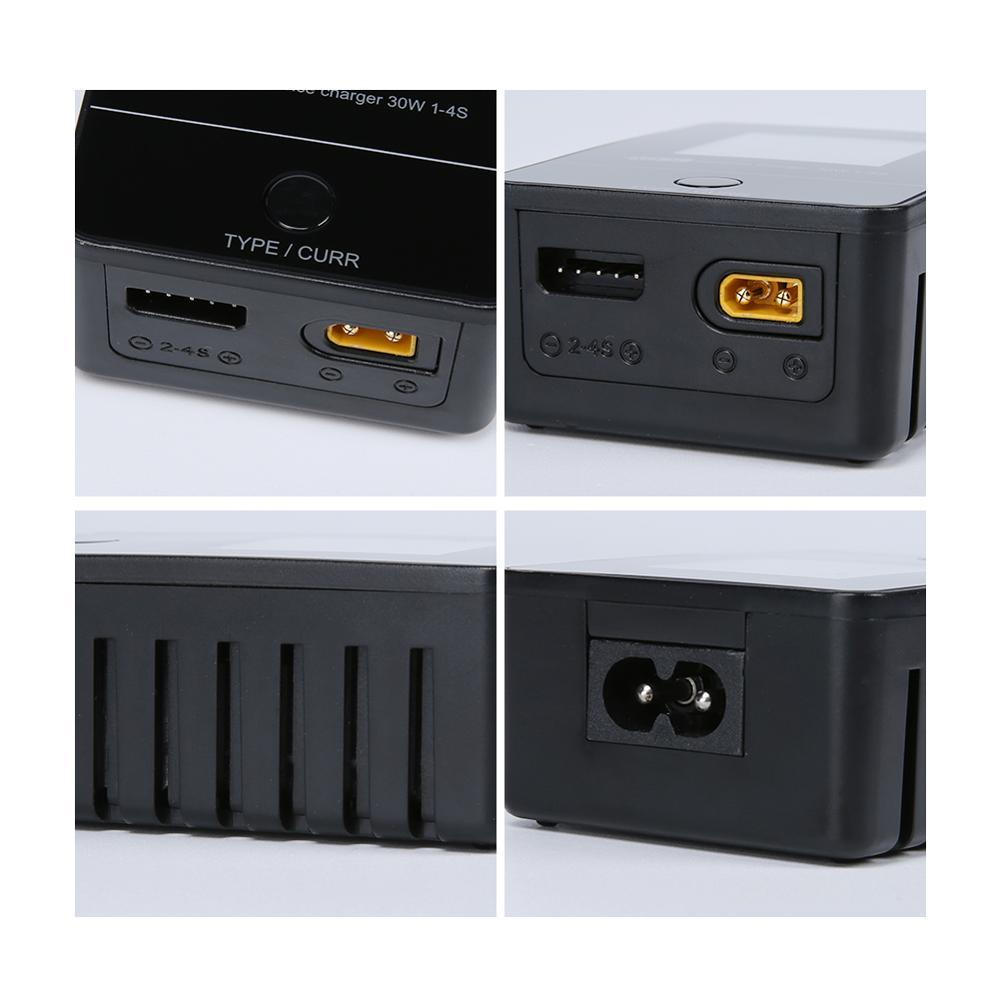

• Connector: XT30

• Suitable for 4S 350mAh~850mAh LiPo Battery. For the bigger battery, please choose the ISDT Q6 NANO


Using Instructions

• Connect the power cord，and after booting， enter the main interface

• Press and hold the button for 2 seconds to select the battery cut-off voltage.

• Press the button once to select the charging current.

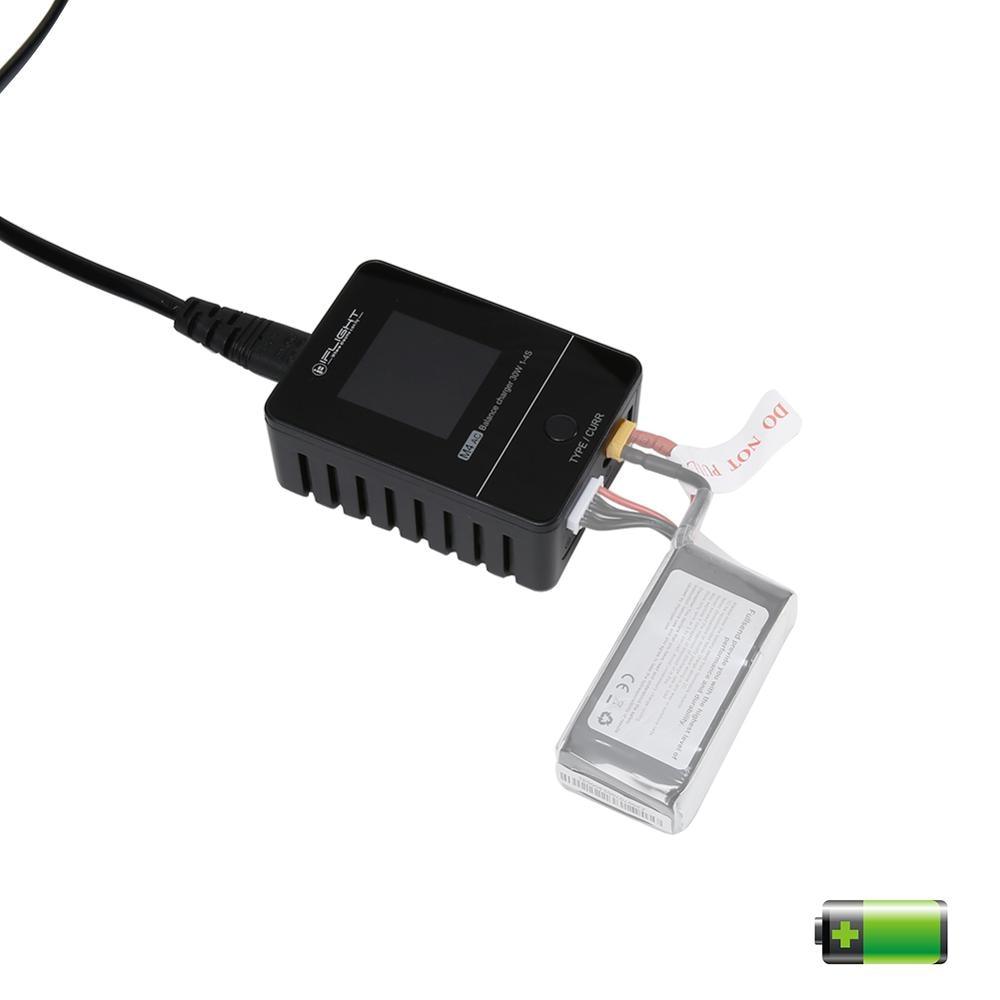

• Connected to the battery main port and balance port，the charger will automatically start charging after detecting that the battery voltage is normal.

• After each power on, you need to press the key once to unlock it before it starts charging automatically.

Safety

• M4AC allows input AC 100-240V， please use normal voltage.

• Do does not use this product in heat，moisture, flammable or explosive atmospheres.

• Make sure that the product is running under the attendance of the user.

• Please unplug the input power when not using this product.

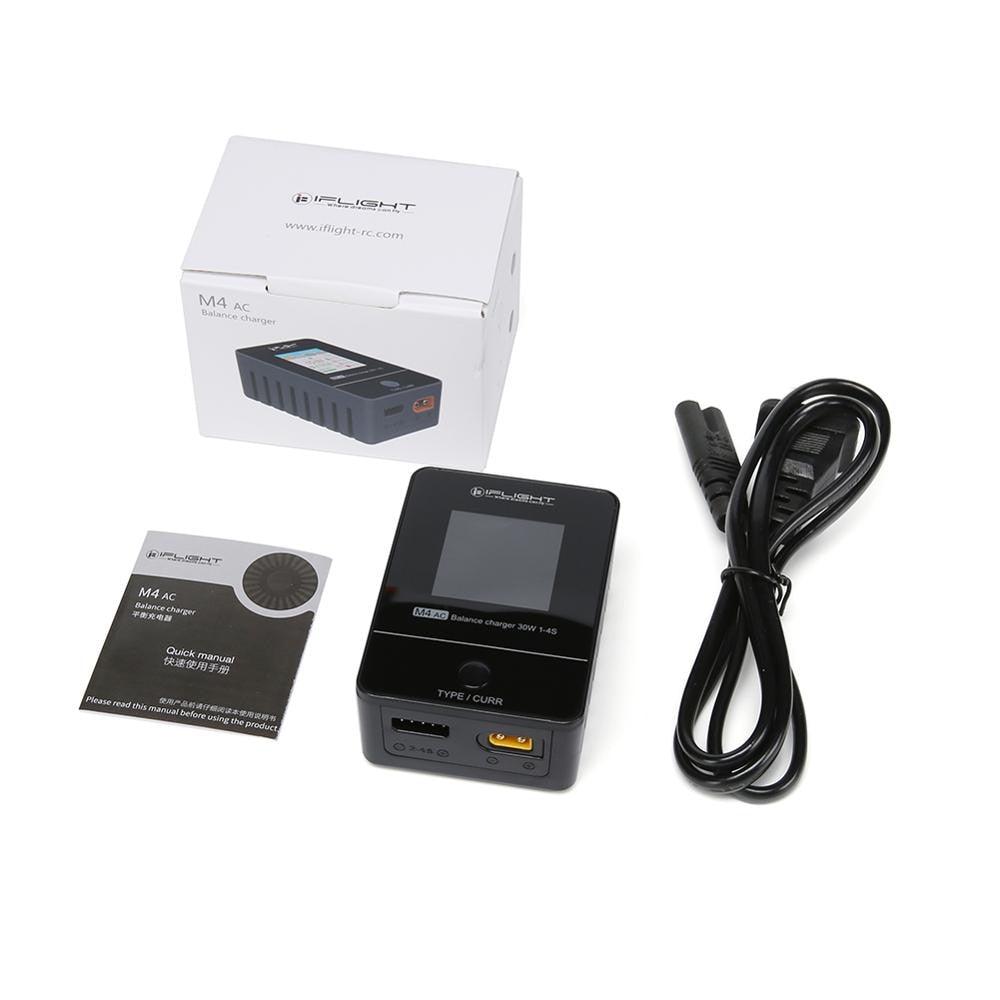

Packaging included:

• 1X iFlight M4AC Charger

• 1x AC cable

• 1x manual
