• BAT 9288 3.3v STATUS ARIERY AT32F435
  • iFlight BLITZ ATF435 Flight Controller
1 2

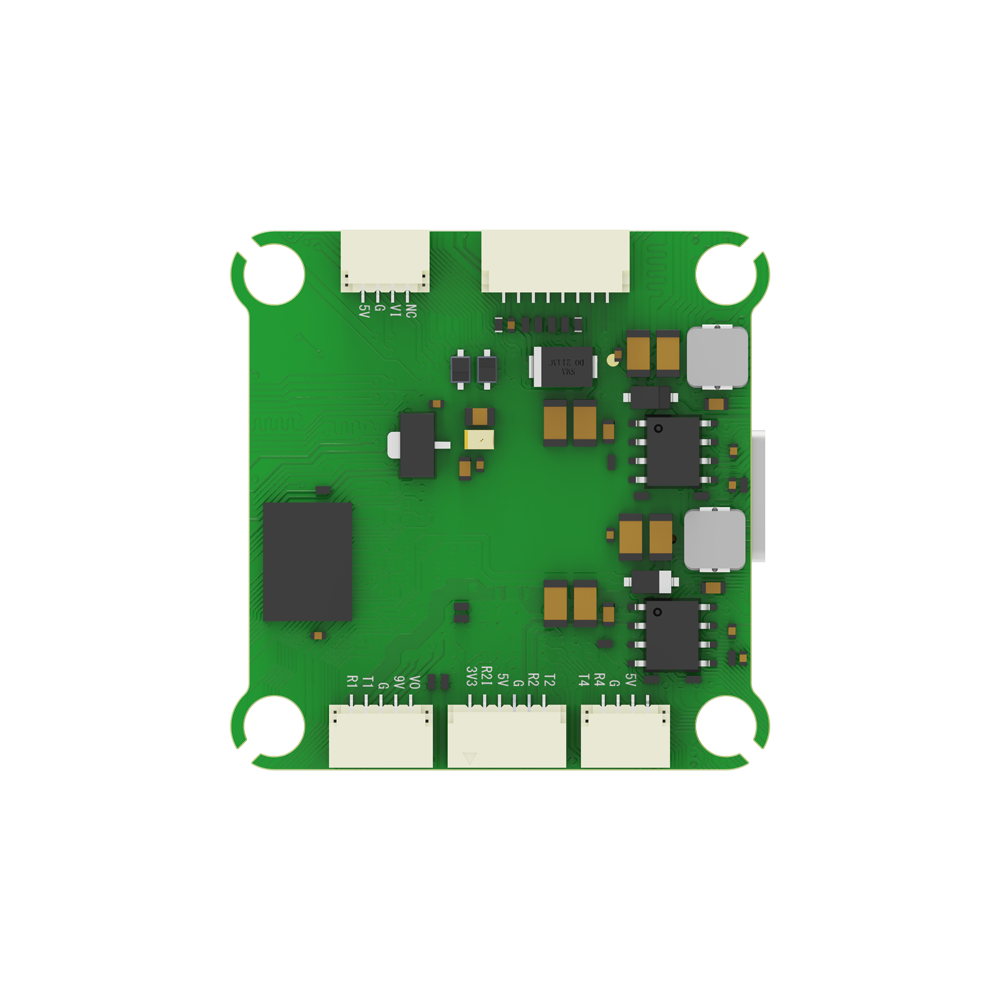

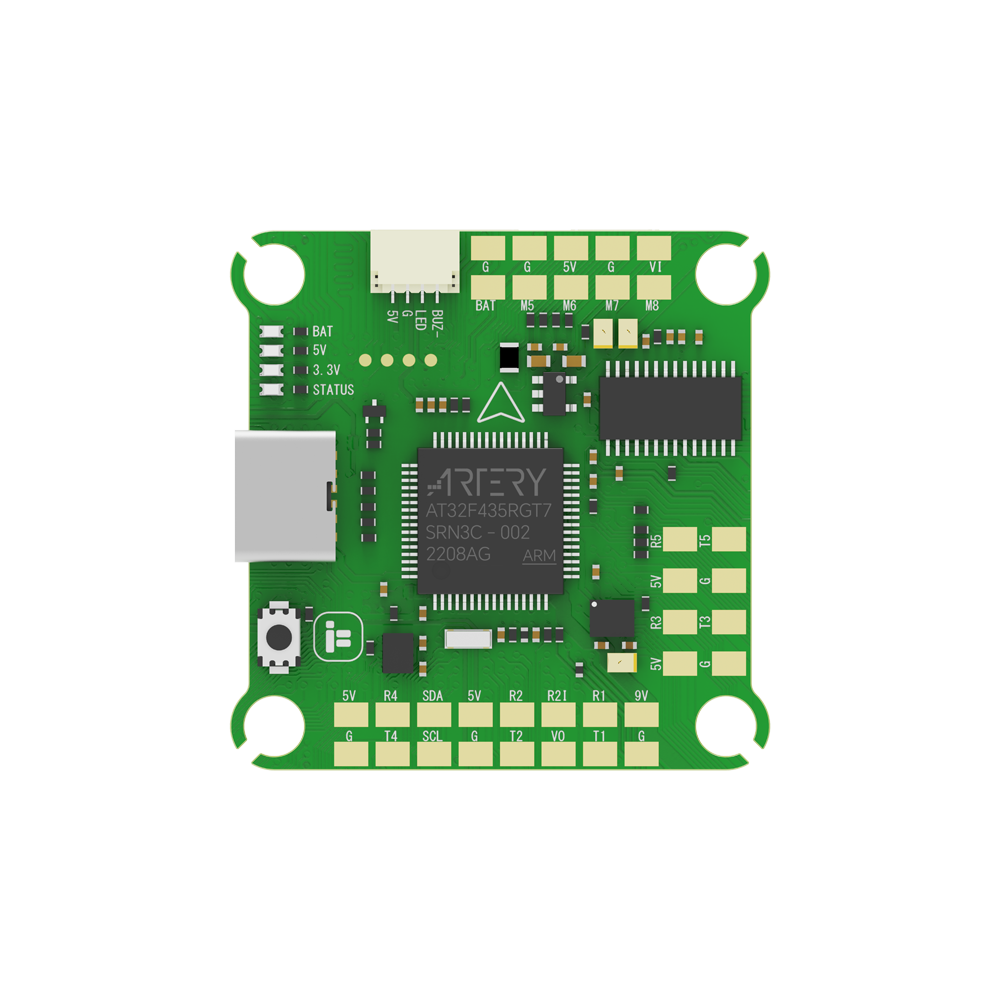

iFlight BLITZ ATF435 Flight Controller

iFlight BLITZ ATF435 Flight Controller

iFlight

$49.00 USD
$49.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

194 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details
Specifications

MCU: AT32F435CGU7

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456E

Flash: 32MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFLIGHT_BLITZ_ATF435

Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

Dimensions: 36.5*35 mm

Weight: 7.8g

BEC: 5V 2.5A / 9V 2A

Changelog

November 6, 2023: The flight control Gyro was changed from BMI270 to ICM42688.

Wiring Suggestion

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemet

Packing List

1 x BLITZ ATF435 Flight Controller
