Description：

• The MOSFET used by BLITZ E80 is PSMN1R0-40YLD, which can withstand a continuous current of 80A at 25°C, with a maximum power dissipation of 198W. BEC power supply adopts TI automotive-grade dedicated synchronous rectifier chip, supporting up to 100V.

• The 1-4 layer power board of the PCB circuit is ultra-thick copper with a thickness of 4OZ, ensuring continuous output under high-power operation. The STM32F051 main control processor with a running frequency of up to 48MHz, combined with a three-in-one driver IC, achieves a faster running speed!


Features:

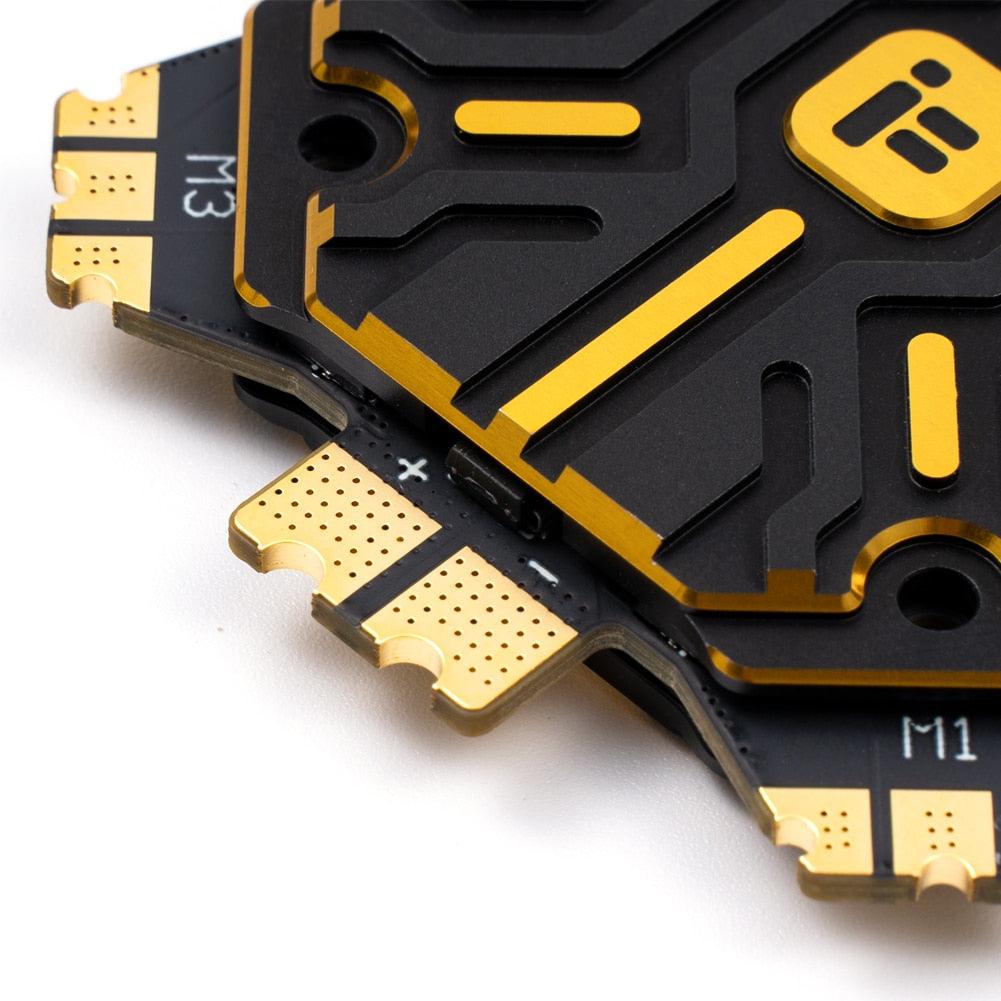

• Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

• G071 MCU, 48mHz maximum clock speed;

• TDK MLCC Low ESR ceramic capacitors;

• Top grade PSMN1R0-40YLD MOSFET;

• 8 layers double-sided PCB board


Specification:

• BLHeliSuite download (BL32): https://github.com/blheli-configurator/blheli-configurator/releases

• Supports DShot DShot150/300/600/MultiShot/ OneShot etc.

• Constant current：80A，100A（Burst）


• Mounting Holes: 35*35mm/Φ3mm

• Current sensor: Yes, scale 100

• Firmware: IFLIGHT_BLITZ_G2

• Telemetry: Supported

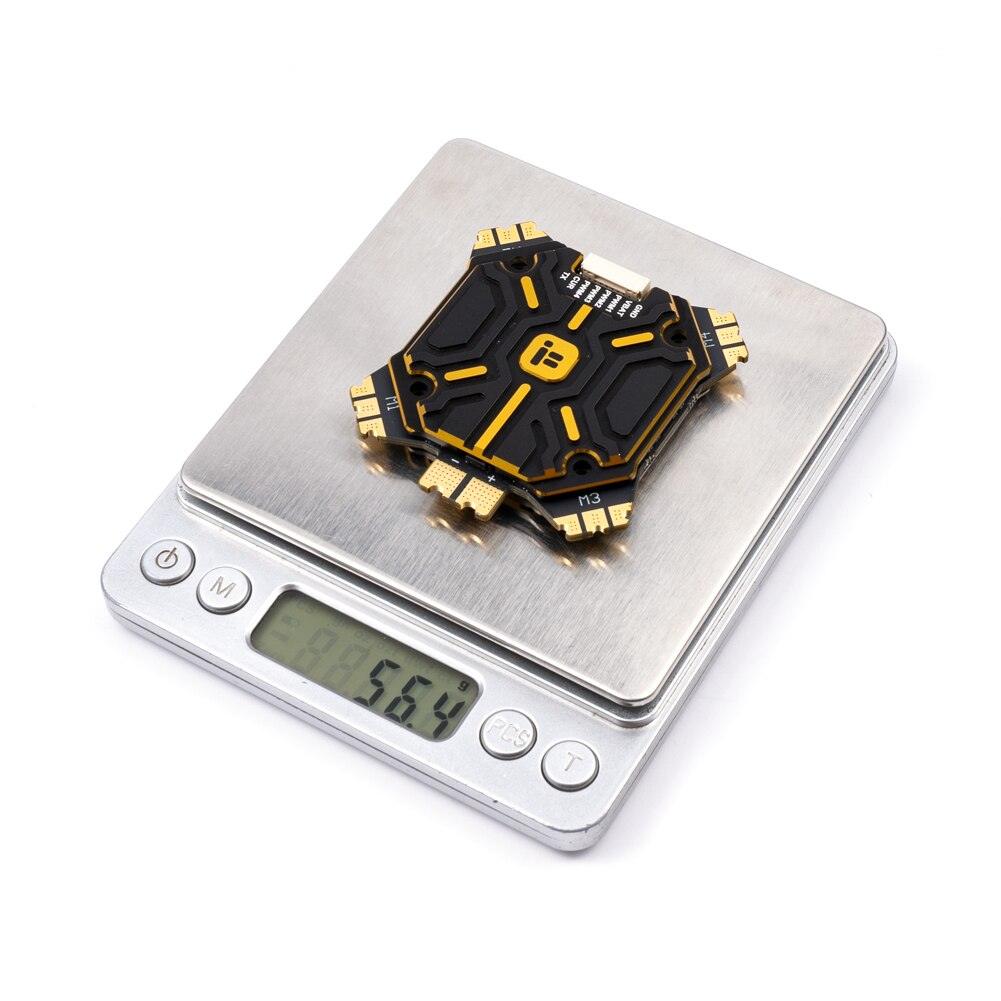

• Weight:65g(±10)

• Volts input: 2-8S

• BEC: No


Package included:

• 1 x BLITZ E80 4-IN-1 Pro ESC (G2）
