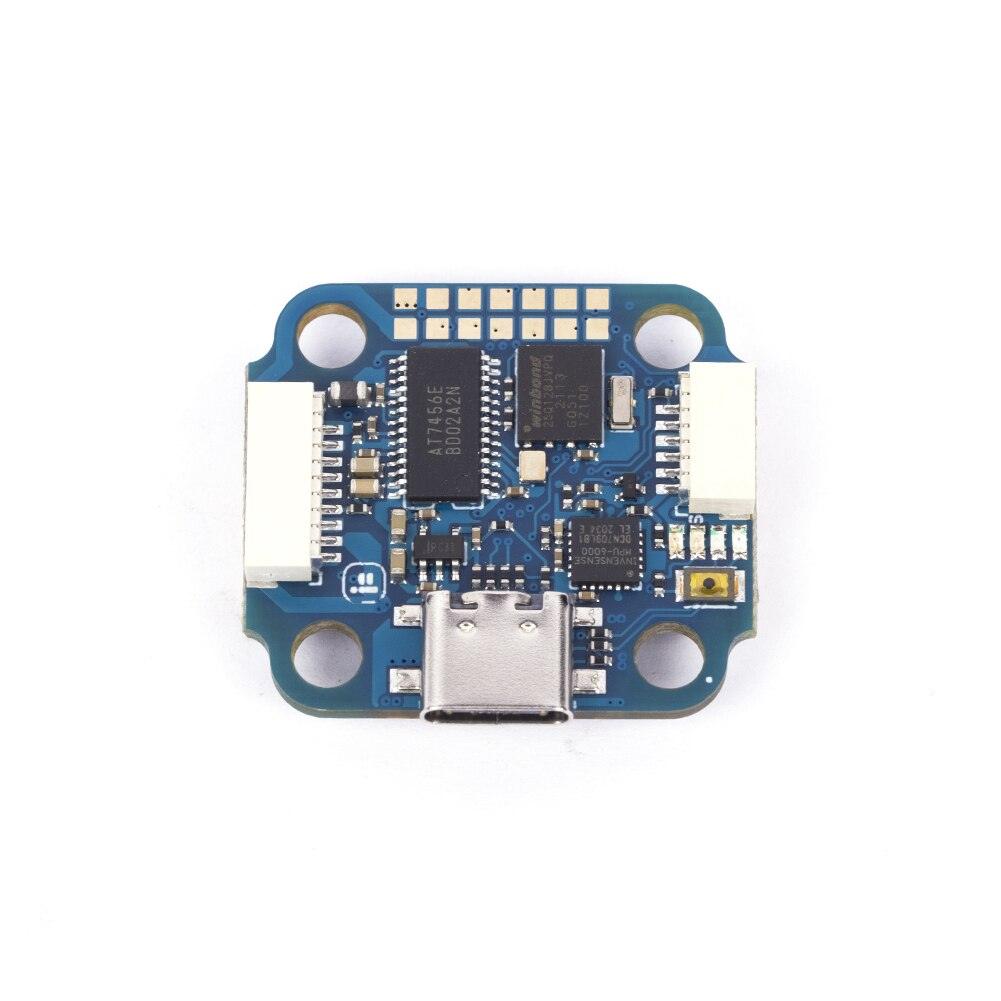

iFlight BLITZ Mini F4 Flight Controller with 20*20mm/φ4 mounting hole for FPV

iFlight BLITZ Mini F4 Flight Controller with 20*20mm/φ4 mounting hole for FPV

iFlight

Regular price $71.89 USD
Regular price $107.84 USD Sale price $71.89 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

154 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 2

Size: 30.5*27mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: BLITZ Mini F4

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description:

Specs:

  • MCU:STM32F405

  • Gyro:MPU6000

  • Baro: no

  • Betaflight OSD:IFLIGHT OSD (AT7456E)

  • BEC:5V  2.5A

  • Blackbox:16MB

  • 5 X Uarts

  • UART1 for VTX HD/Analog

  • UART2 for  Receiver

  • UART3、UART4 for GPS or 0ther sensors that require a serial port

  • UART6 for ESC Telemetry

  • 4×Dshot/PWMoutputs

  • 1×I2C

  • 1 xSH1.0 9pin connector for HD VTX/Analog VTX&CAM (5V/BAT/G/VO/T1/R1 /5V/G/VI)

  • 1 xSH1.0 8pin connector for ESC(R6/CUR/M4/M3/M2/M1/BAT/G)

  • 1xSH1.0 6pin connector for Any Receiver or DJI(3V3/R2i/5V /G/R2/T2)

  • 1xSH1.0 4Pin  connector GPS (T4/R4/G/5V)

  • 1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)

  • Smartaudio&IRCTramp  VTX protocol supported

  • WS2812ledStrip:Yes

  • Bepper:Yes

  • Firmware: IFRC-BASEF4 4.X.X

  • Mounting:20*20mm/φ4

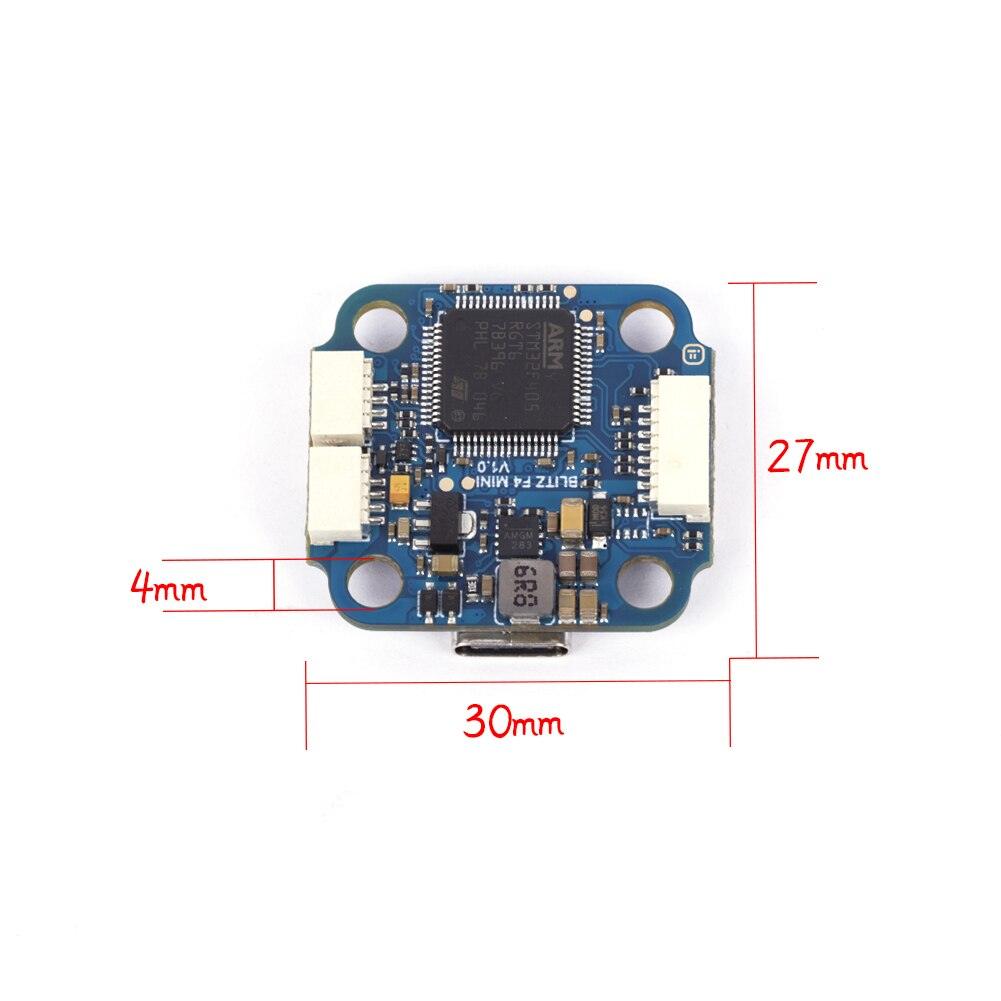

  • Dimensions:30.5*27mm

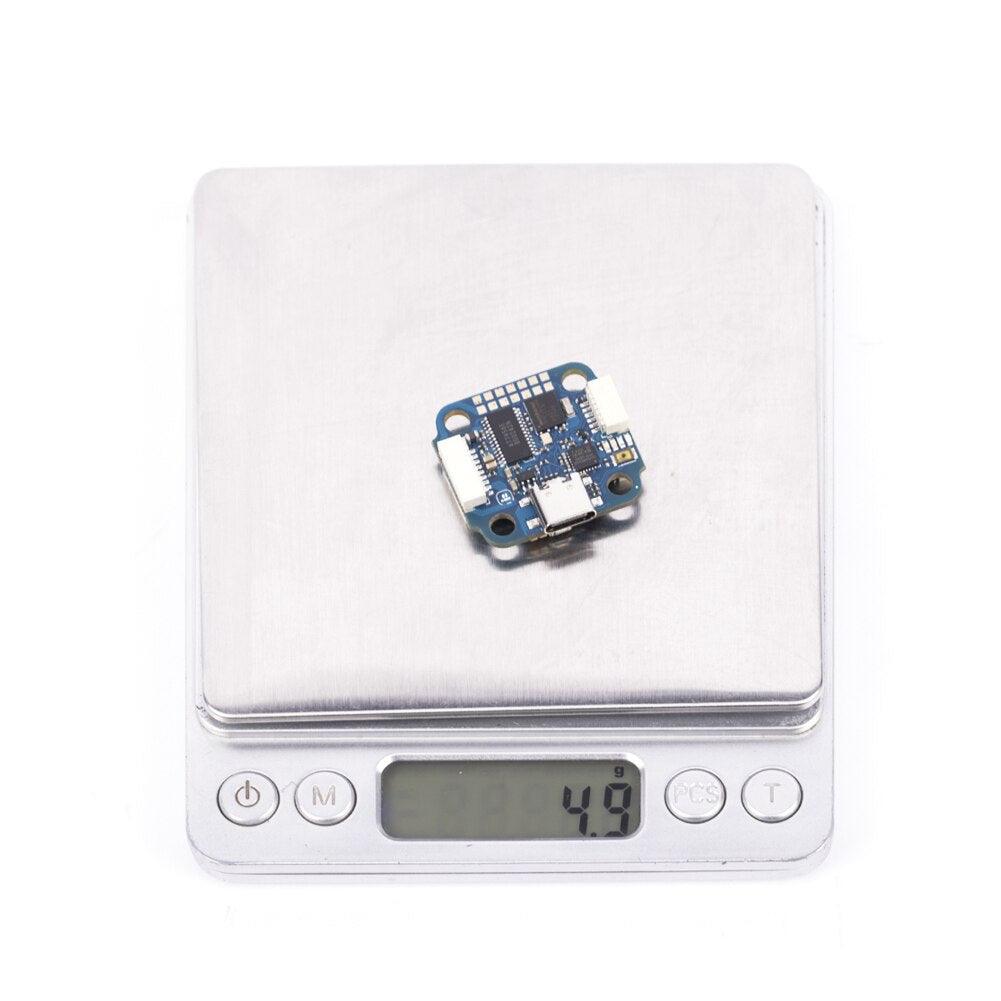

  • Weight:5.0g

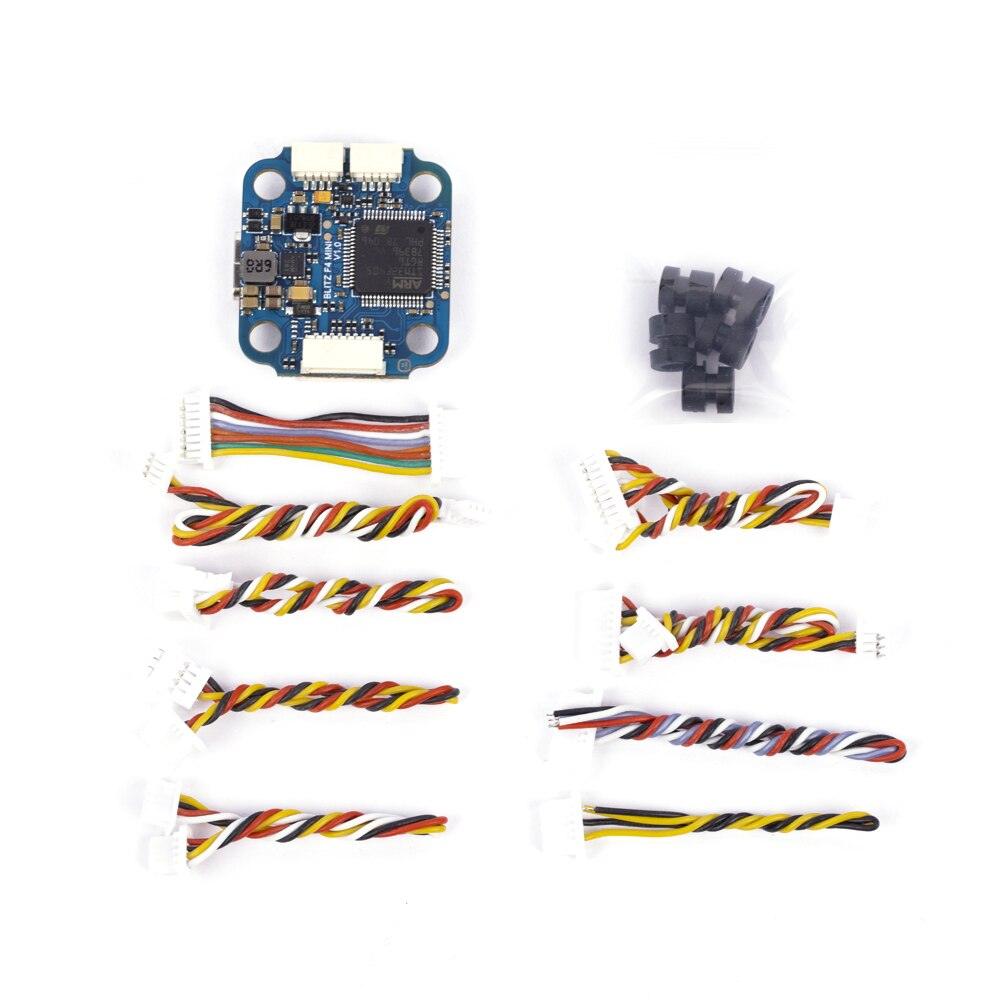

Package included:

  • 1pc x BLITZ Mini F4 Flight Controller

  • 1set x Wire harness

NOTE: F.PORT protocol RX input support, telemetry not supported.

iFlight BLITZ Mini F

the DJI Air Unit can handle voltage upto 6S batteries, plesse additiona BEC (Voltage regulator) DII Air Unb 7.4V Various Receivers Confguration/MSP .

BLITZ Mini F4 Flight Controller comes with 1 set x Wire harness .BLITZ Mini F4 Flight Controller comes with 1 set x Wire harness .BLITZ Mini F4 Flight Controller comes with 1 set x Wire harness .BLITZ Mini F4 Flight Controller comes with 1 set x Wire harness .
