Description：

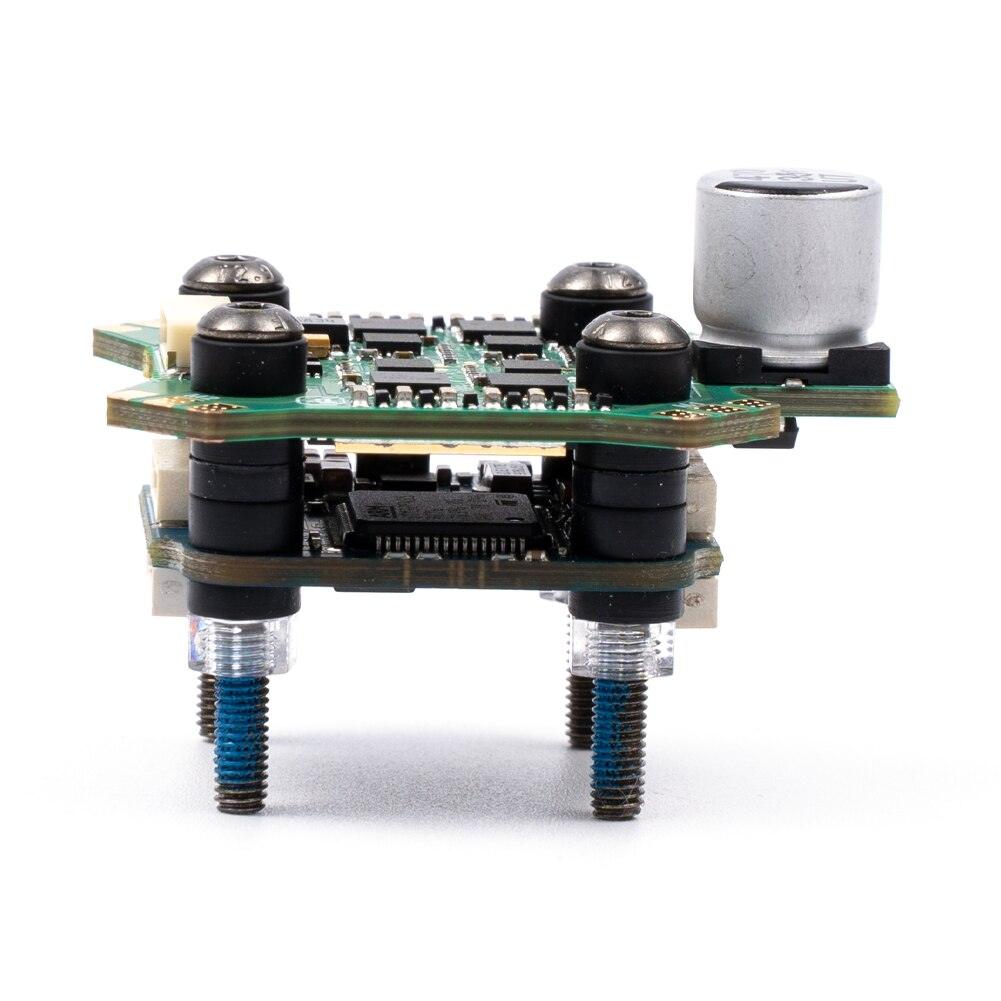

FC // BLITZ Mini F4 Flight Controller

Specification:

• MCU：STM32F405

• Gyro：MPU6000

• Baro: NO

• Betaflight OSD：IFLIGHT OSD （AT7456E)

• Blackbox：16MB

• 5 X Uarts

• UART1 for VTX HD/Analog

• UART2 for  Receiver

• UART3、UART4 for GPS or 0ther sensors that require a serial port

• UART6 for ESC Telemetry

• 4×Dshot/PWMoutputs


• 1×I2C

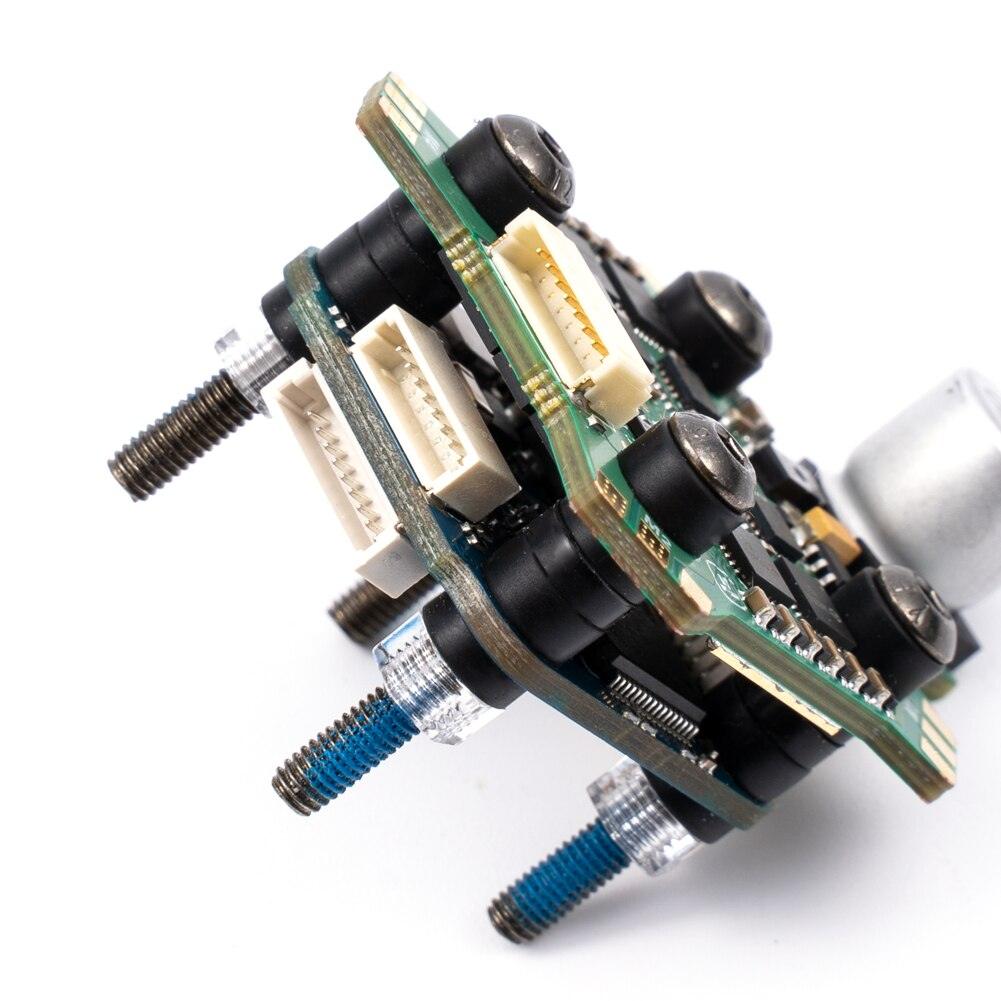

• 1 xSH1.0 9pin connector for HD VTX/Analog VTX&CAM （5V/BAT/G/VO/T1/R1 /5V/G/VI）


• 1 xSH1.0 8pin connector for ESC（R6/CUR/M4/M3/M2/M1/BAT/G)

• 1xSH1.0 6pin connector for Any Receiver or DJI（3V3/R2i/5V /G/R2/T2）

• 1xSH1.0 4Pin  connector GPS (T4/R4/G/5V)

• 1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)

• Smartaudio&IRCTramp  VTX protocol supported

• WS2812ledStrip：Yes

• Bepper：Yes

• Firmware: IFRC-BASEF4 4.X.X

• Mounting：20*20mm/φ4

• Dimensions：30.5*27mm

• Weight：5.0g

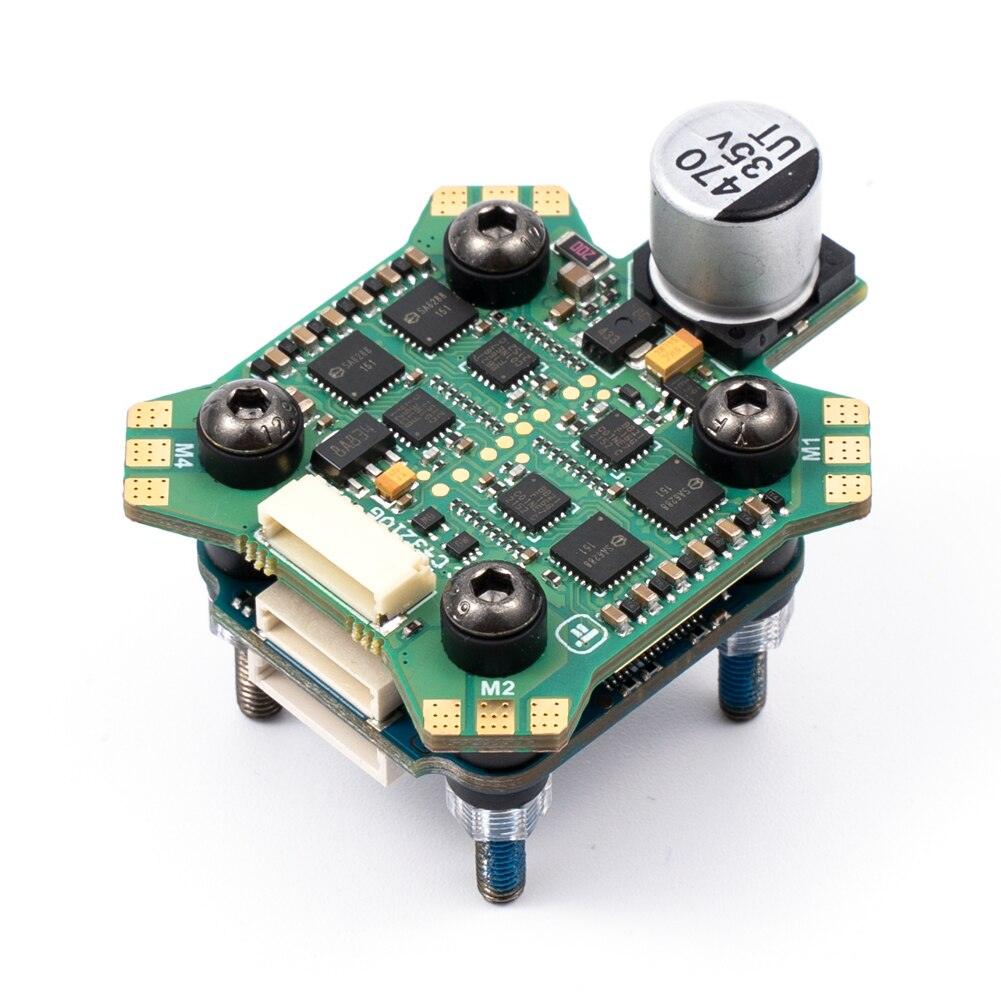

ESC // BLITZ Mini E55S 4-IN-1 2-6S ESC
Specification:

• Dimension: 35*42mm

• Mounting Holes: 20*20mm/Φ4mm

• Weight: 11.3g

• Supports 2-6S lipo input

• MCU：BB21


• Constant: 55 Amps

• Burst: 60 Amps

• Current sensor: Yes

• BEC: No

• Current rate: 100


• Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

• Target: Q-H-50 16.7 (BlheliS) / Bluejay Q-H-50 (Bluejay)


Package included:

• 1pc x BLITZ Mini F4 Flight Controller

• 1pc x BLITZ Mini E55S 4-IN-1 2-6S ESC
