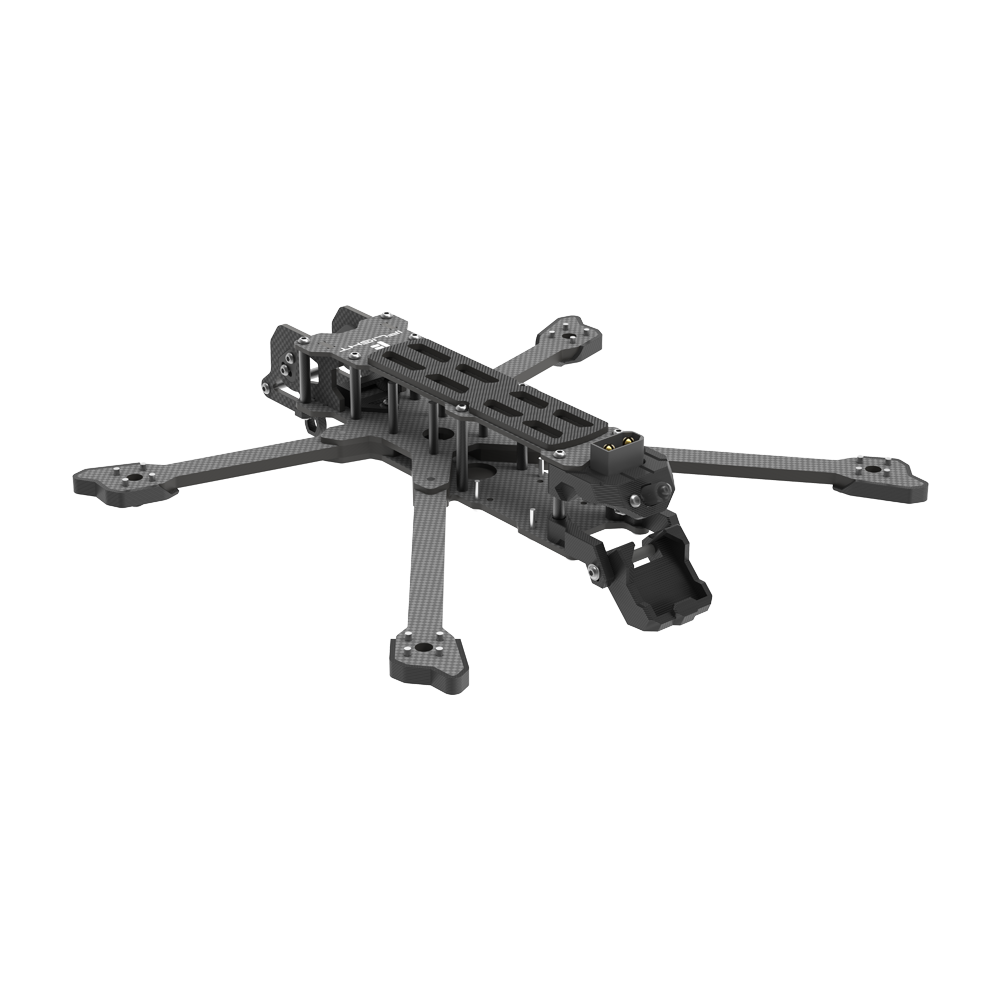

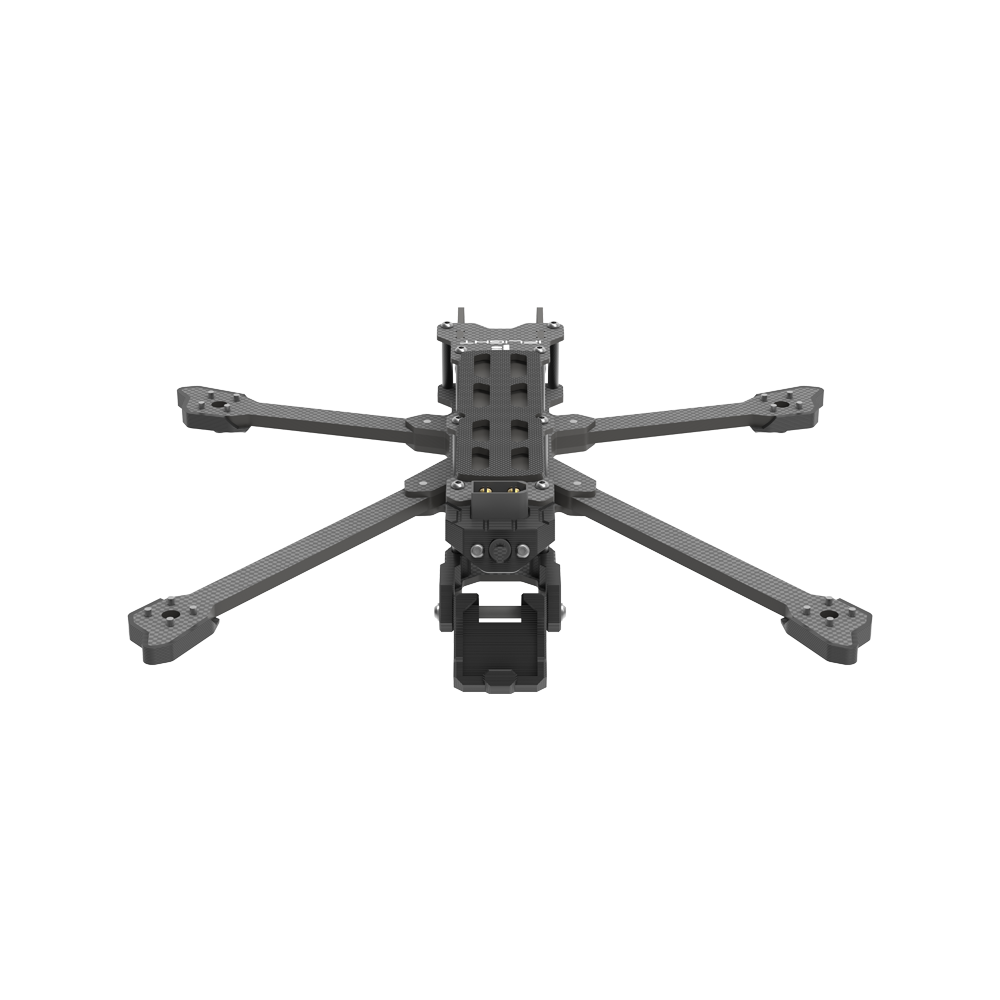

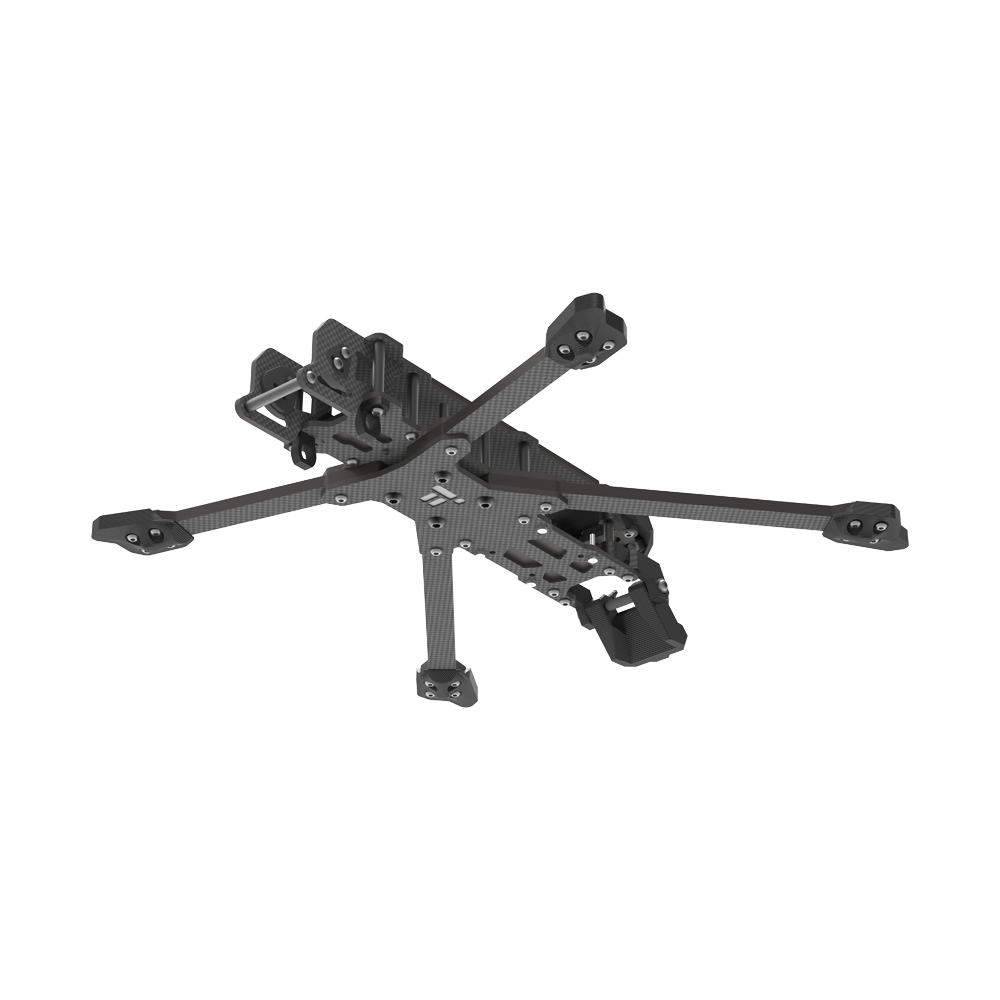

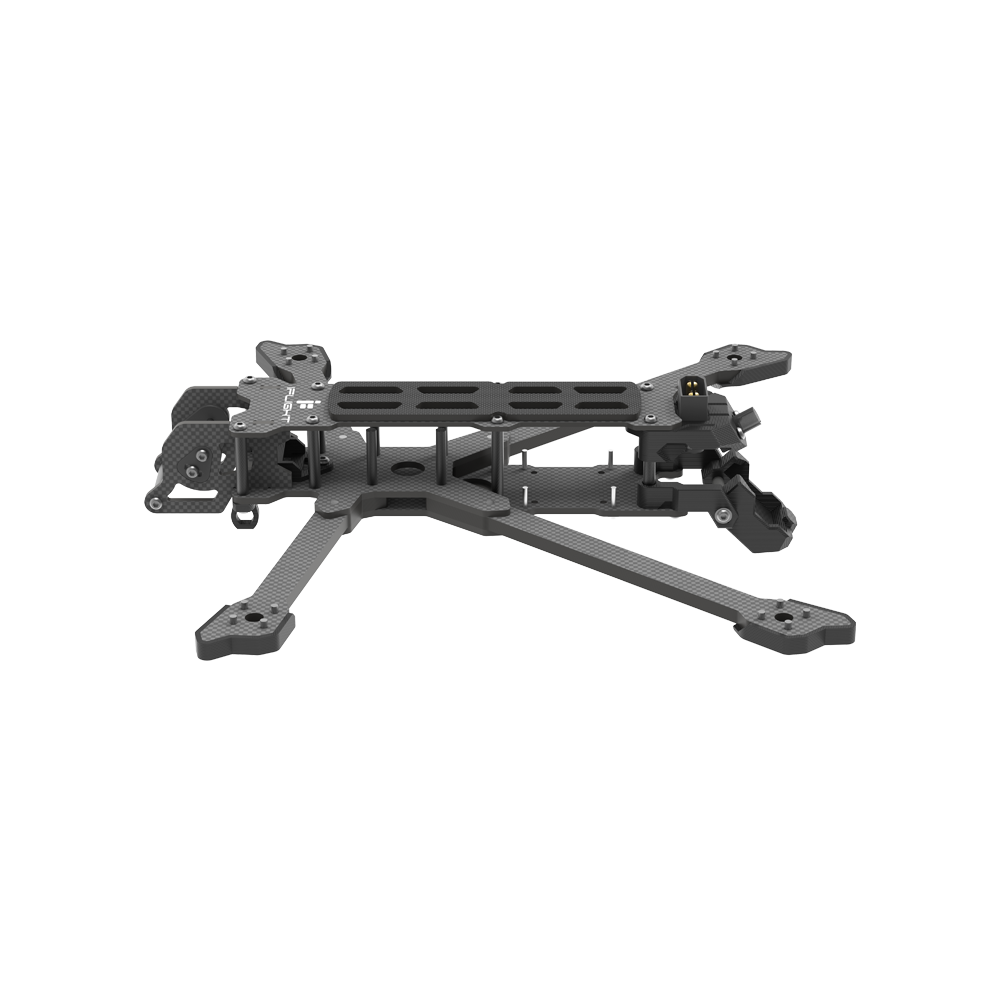

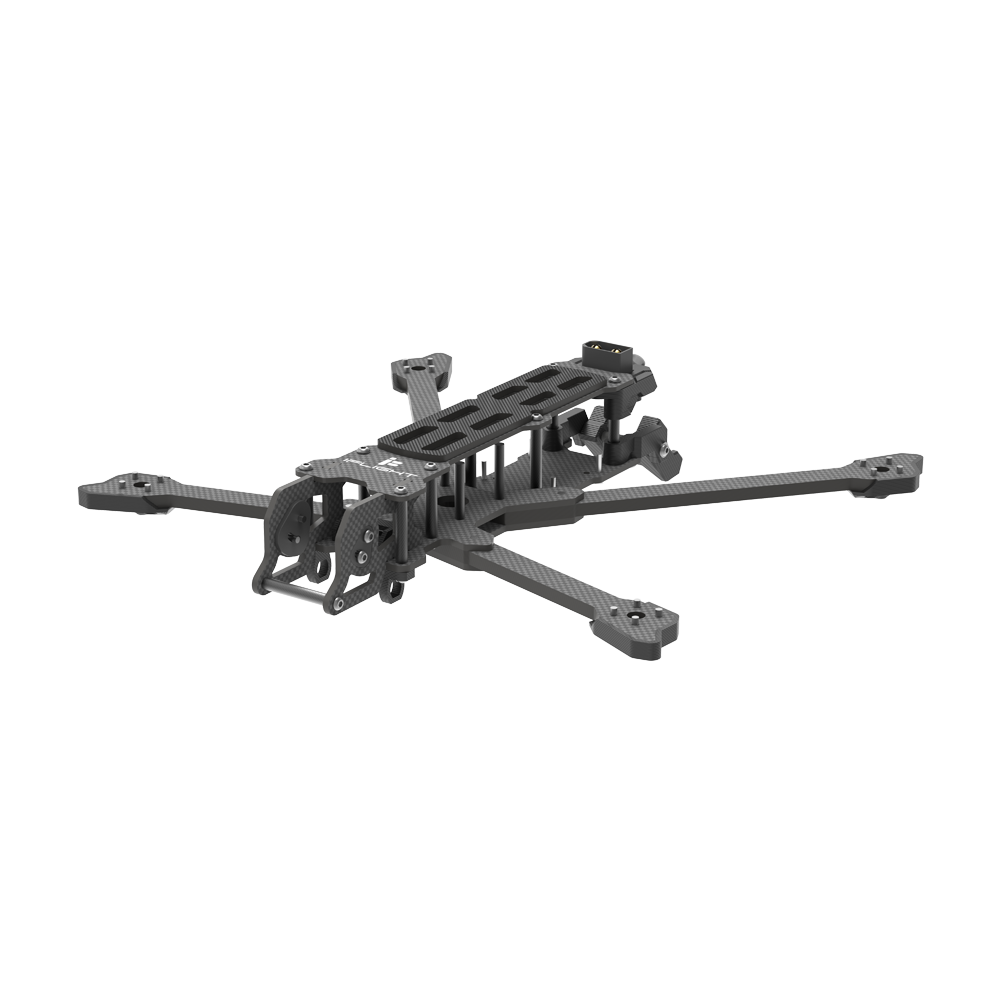

iFlight Chimera5 Pro V2 5inch Frame Kit with 4mm arm for FPV parts

iFlight Chimera5 Pro V2 5inch Frame Kit with 4mm arm for FPV parts

iFlight

$58.70 USD
$88.06 USD $58.70 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

128 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

iFlight Chimera5 Pro V2 5inch Frame Kit SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 2

Size: 225mm 5inch

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: Chimera5 Pro V2

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description：
  • Introducing our ultra-light Long Range 5 inch Frame kit for every terrain and beyond. If our iFlight Chimera4 is too small and light to fight against stronger winds, here you go.
  • The latest version of this frame has updated camera side plates to support the DJI O3 Air Unit and other 19-20mm FPV cameras.
Features
  • New Side Panels to perfectly fit the O3 Air Unit in the back
  • Secured Integrated XT60 Battery Plug
  • New GPS Mount, easy to disassemble
Specifications
  • Product Name：Chimera5 Pro V2 Frame Kit
  • Wheelbase: 225mm
  • Frame Dimension: L140*W176*H28.5 mm
  • Frame Body Dimension: 28.5mm
  • Arm Thickness: 4mm
  • Bottom Plate Thickness: 2mm
  • Top Plate Thickness: 1.5mm
  • Upper Plate Thickness: 2mm
  • Motor Mounting: 12x12mm
  • VTX Mounting: 25*25 φ1.6mm / 20*20 φ2mm
  • Weight: 135grams
Packing List
  • 1 x Chimera5 Pro V2 Frame Kit
  • 1 x TPU Set
  • 1 x Screw Bag
  • 1 x Anti-Slip Battery Pad
  • 2 x Battery Strap
