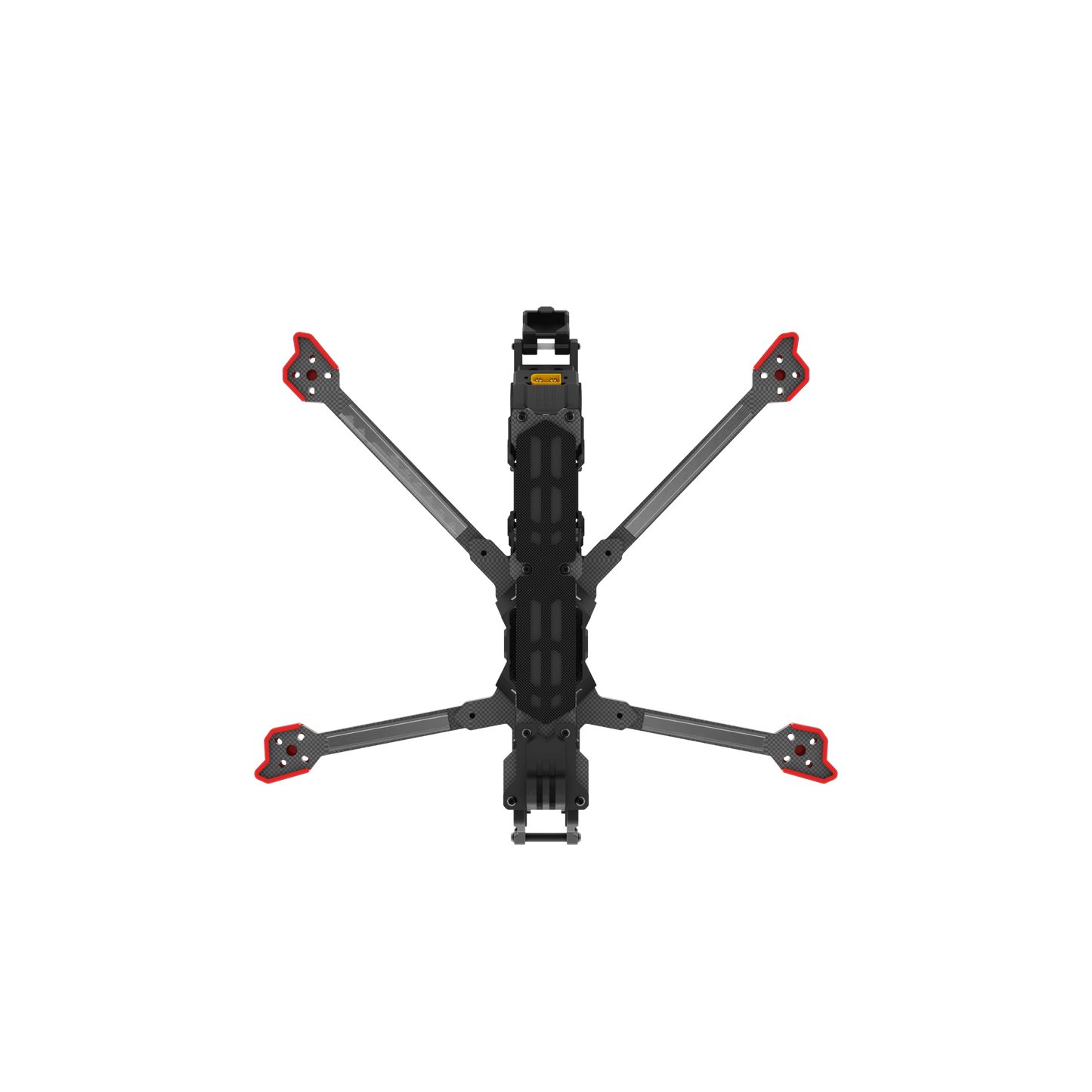

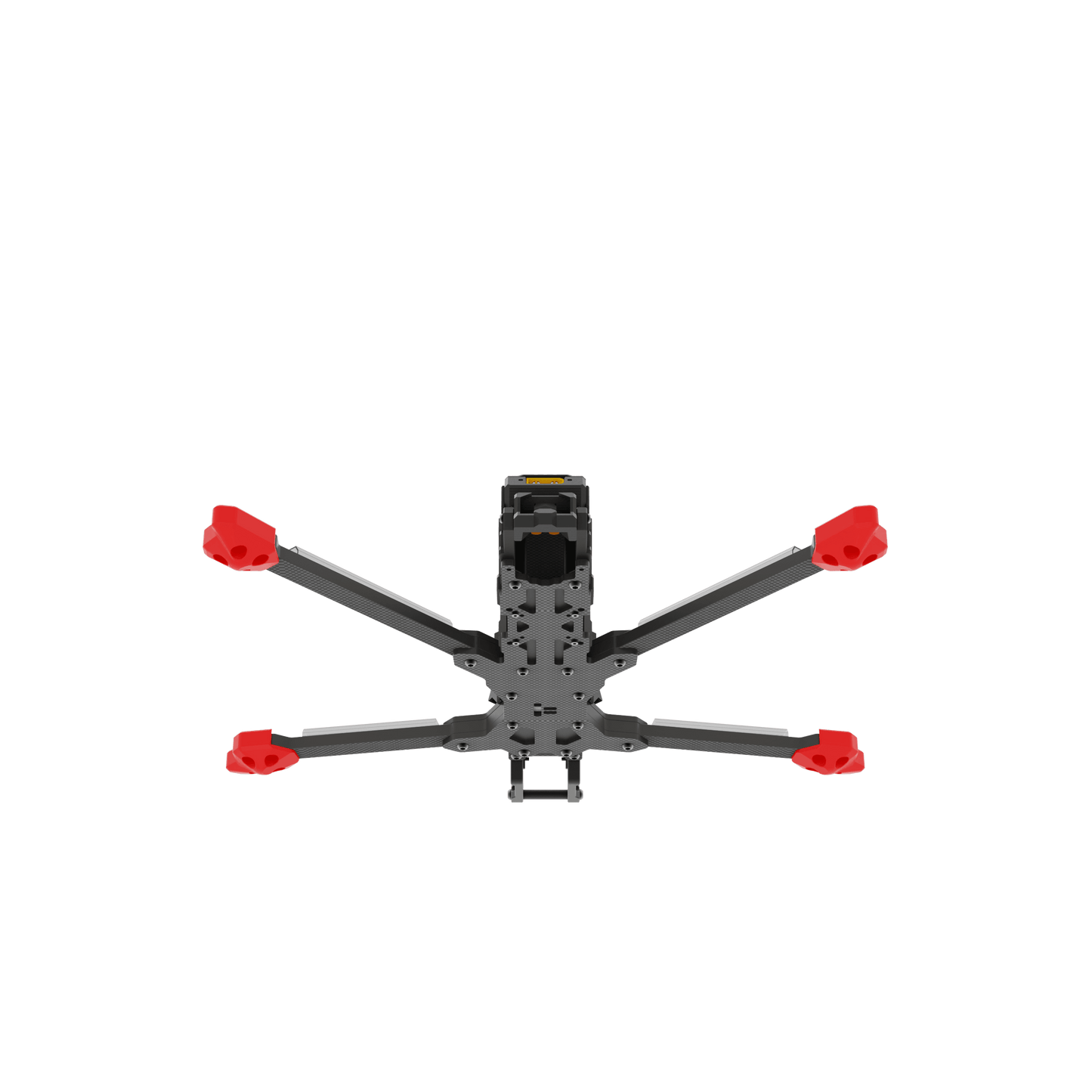

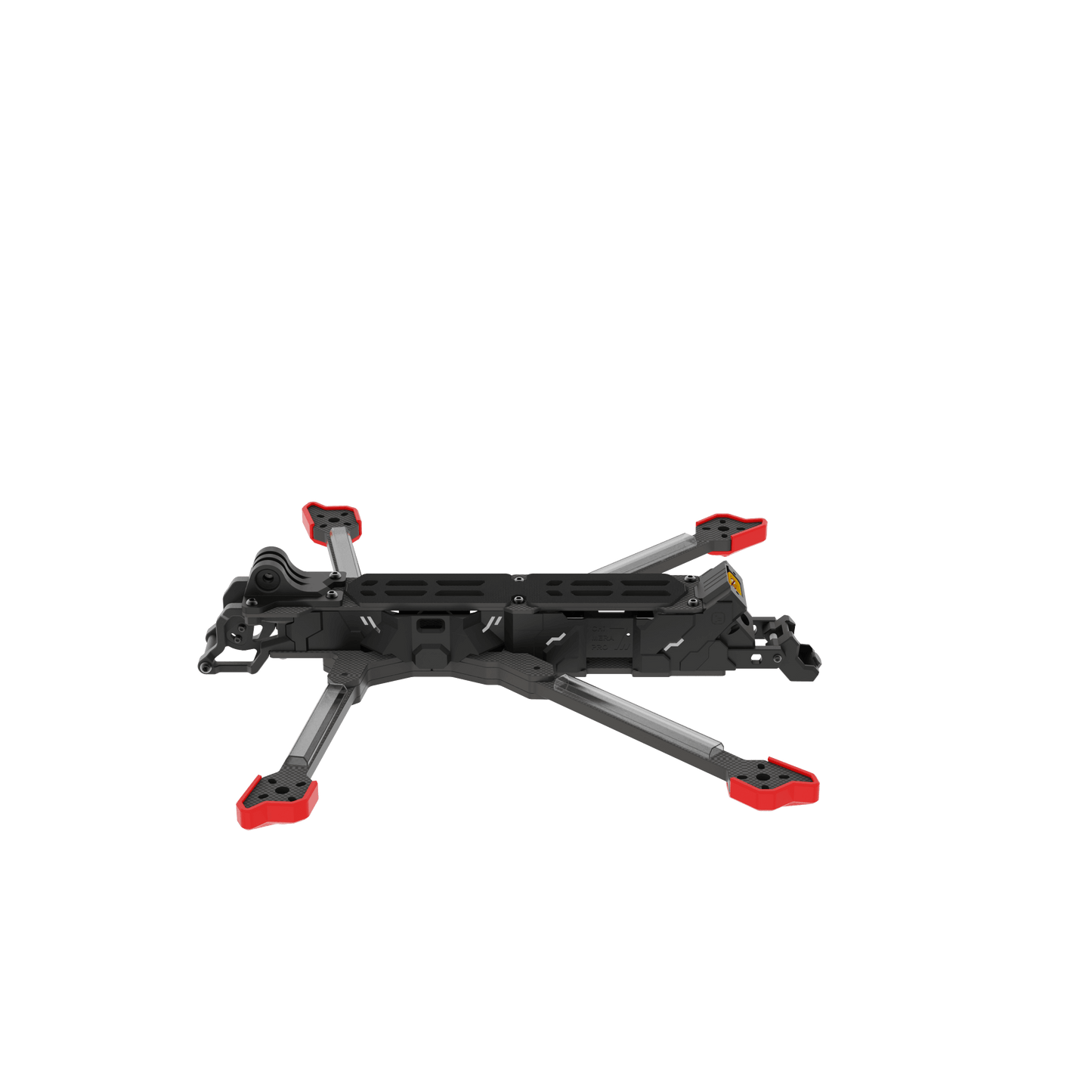

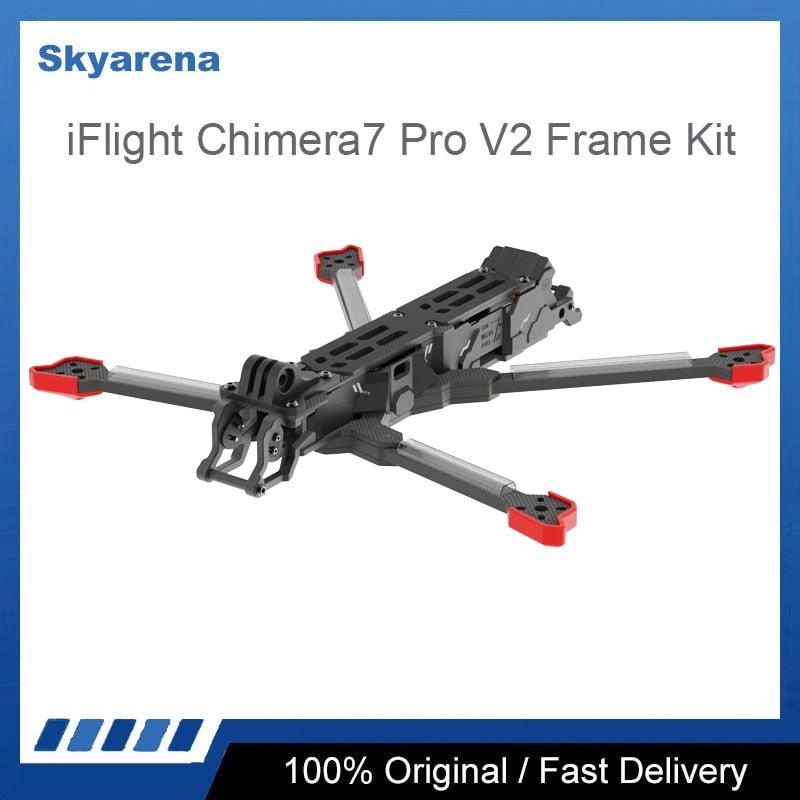

iFlight Chimera7 Pro V2 7.5inch Frame Long Range Frame Kit with 6mm arm for DJI O3 Air Unit Mount FPV Racing parts

Description

• The iFlight Chimera7 is a 7.5" longrange frame designed to give maximum stability and flight time during your cinematic shoots.

• Fly smooth lines on the waterfront all the way to the Swiss Alps if you want! Made from a super-stiff carbon for minimum resonance and recommended 2806.5 motors for maximum 7.5" prop control.

• Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6 cells recommended or 5 cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will do the job.

Highlights

• New Lightweight Side Panels Design

• Keep Your Rig Clean

• 7inch frame upgraded to 7.5inch


Specifications

• Product Name：Chimera7 Pro V2 Frame Kit

• Wheelbase: 327mm

• Diagonal Distance：120 mm

• Frame Dimension: L258*W199*H25 mm

• Frame Body Dimension: 20mm

• Arm Thickness: 6mm

• Bottom Plate Thickness: 3mm

• Top Plate Thickness: 2mm

• Upper Plate Thickness: 3mm

• Camera Plate Thickness: 3mm

• Motor Mounting：16x16mm

• VTX Mounting：

• Weight: 150grams (Included no TPU Parts)

Packing List

• 1 x Chimera7 Pro V2 Frame Kit

• 1 x GoPro TPU Base Mount

• 1 x Screw Bag

• 4 x TPU Armguard

• 1 x DJI Air Unit Antenna Fix Mount TPU

• 1 x Bottom Plate Front Protection TPU

• 1 x Bottom Plate Rear Protection TPU

• 1 x Anti-slip Battery Pad

• 1 x Battery Strap(20*250mm)
