SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Cutting
Technical parameters: Value 2
Size: 17.7x12.5mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: 4150kV
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
Description:

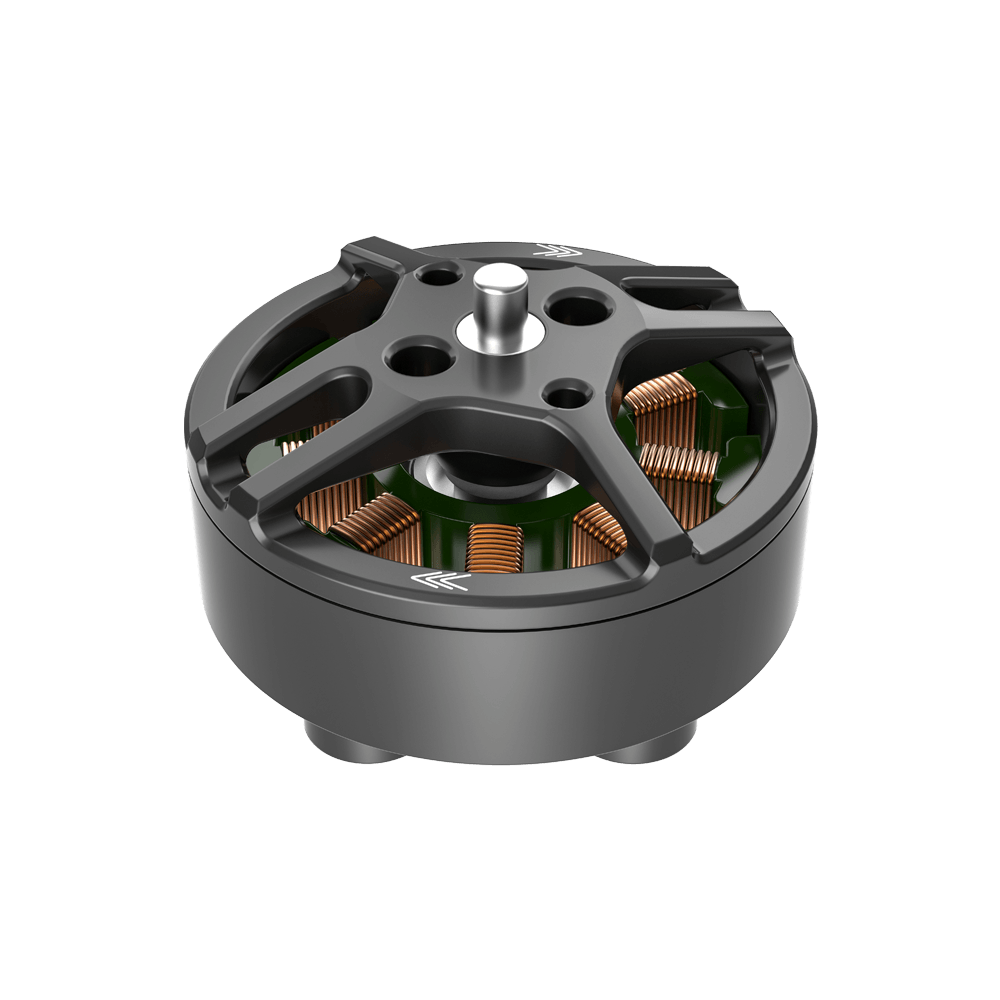

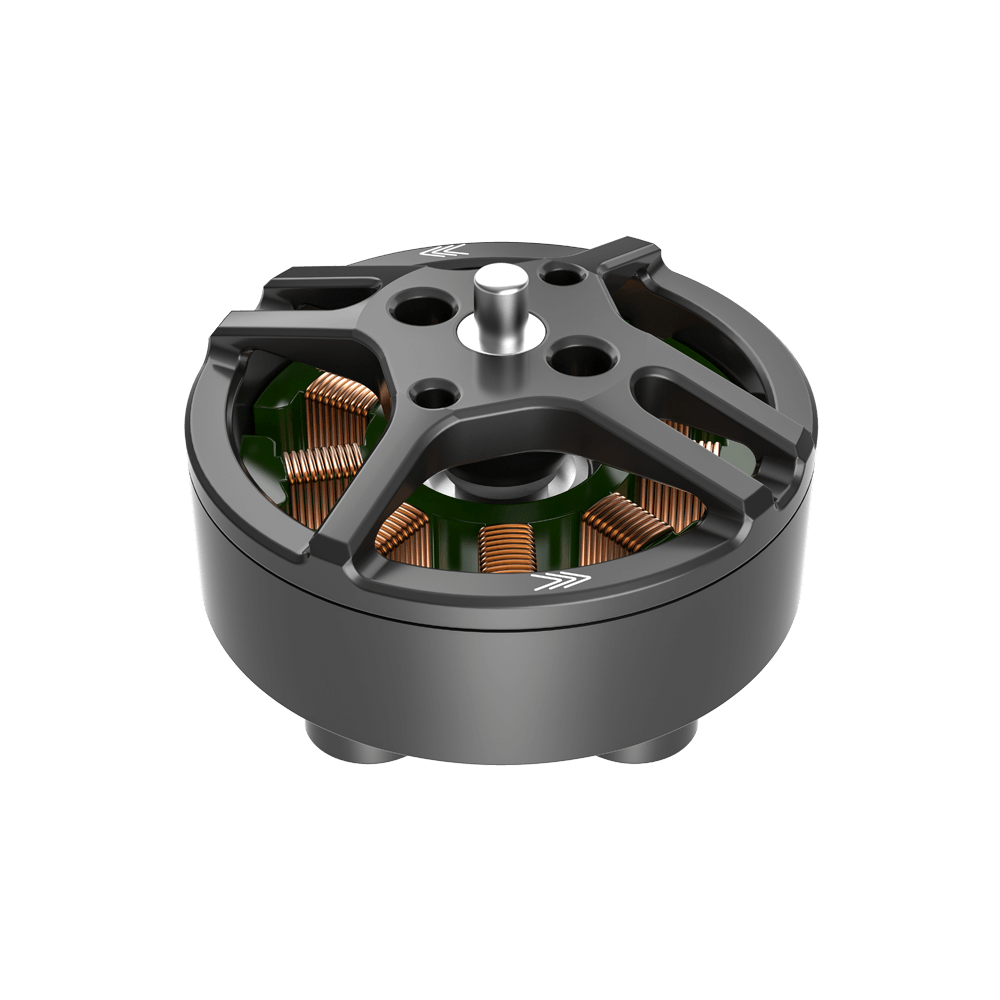

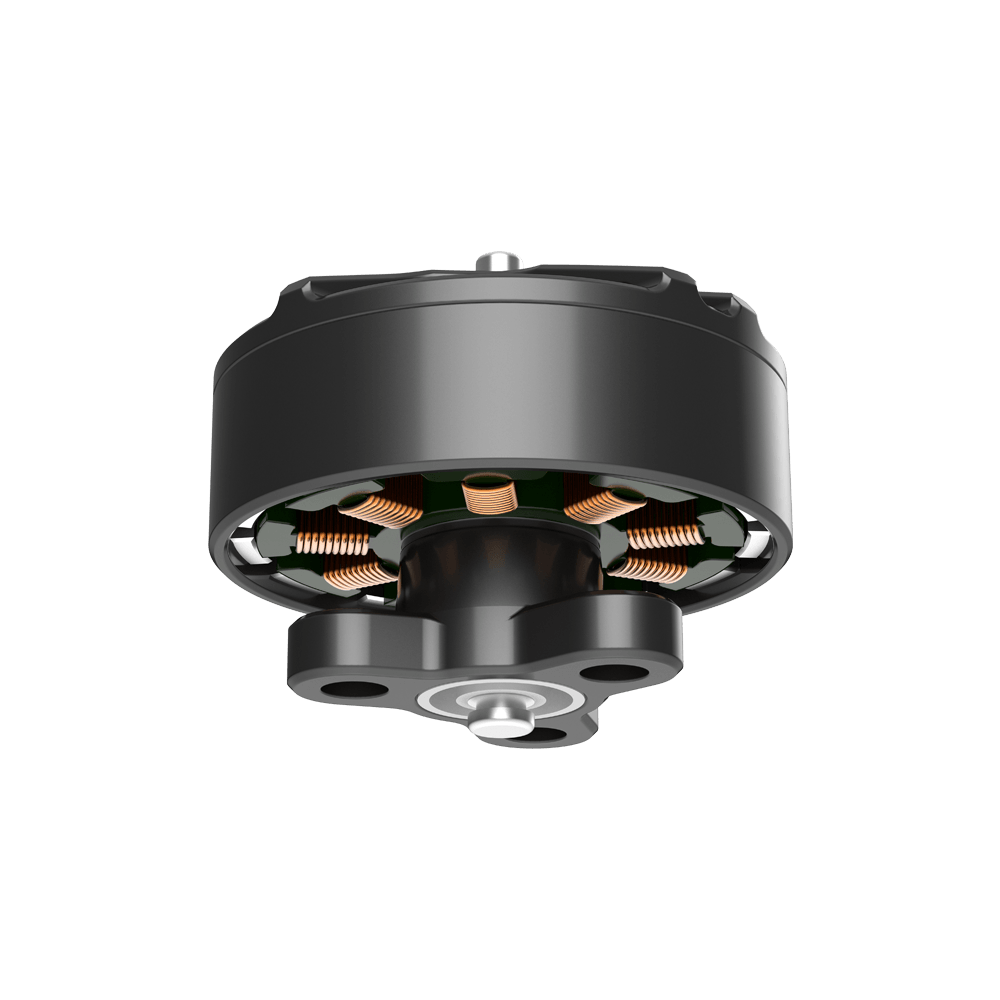

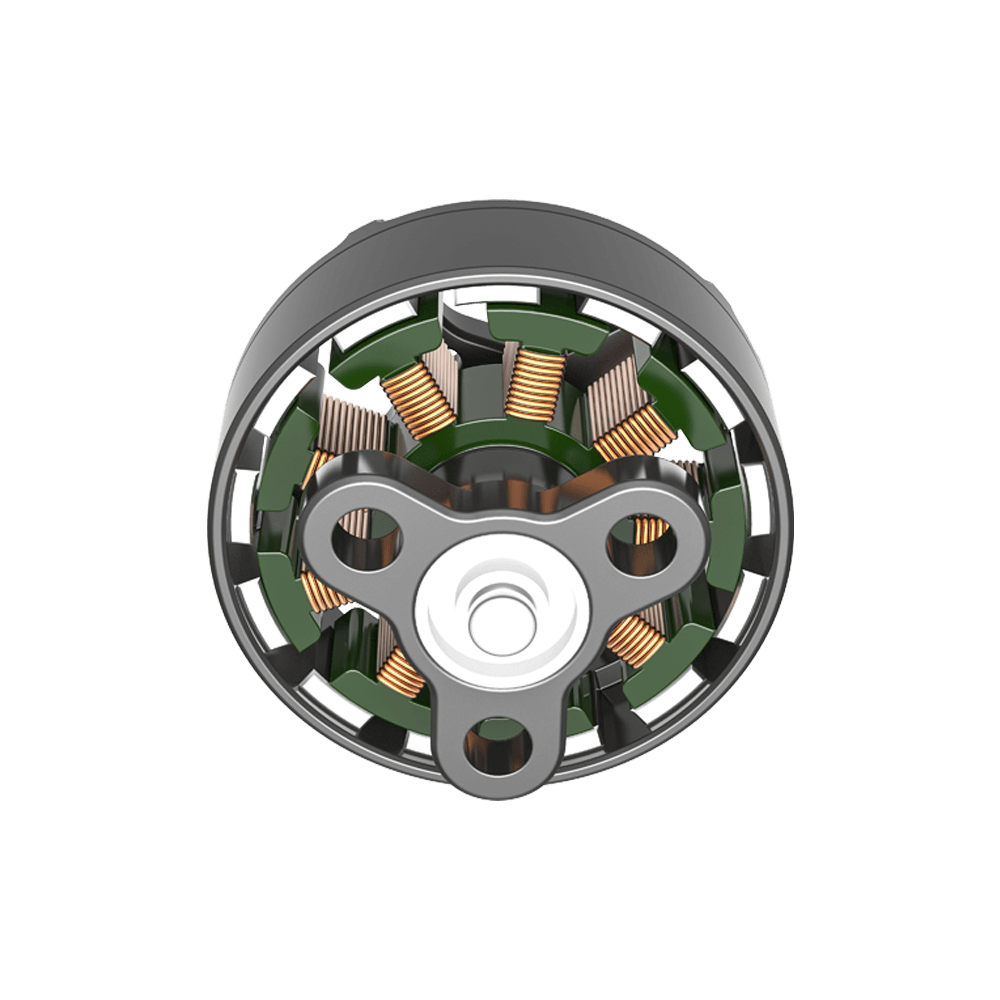

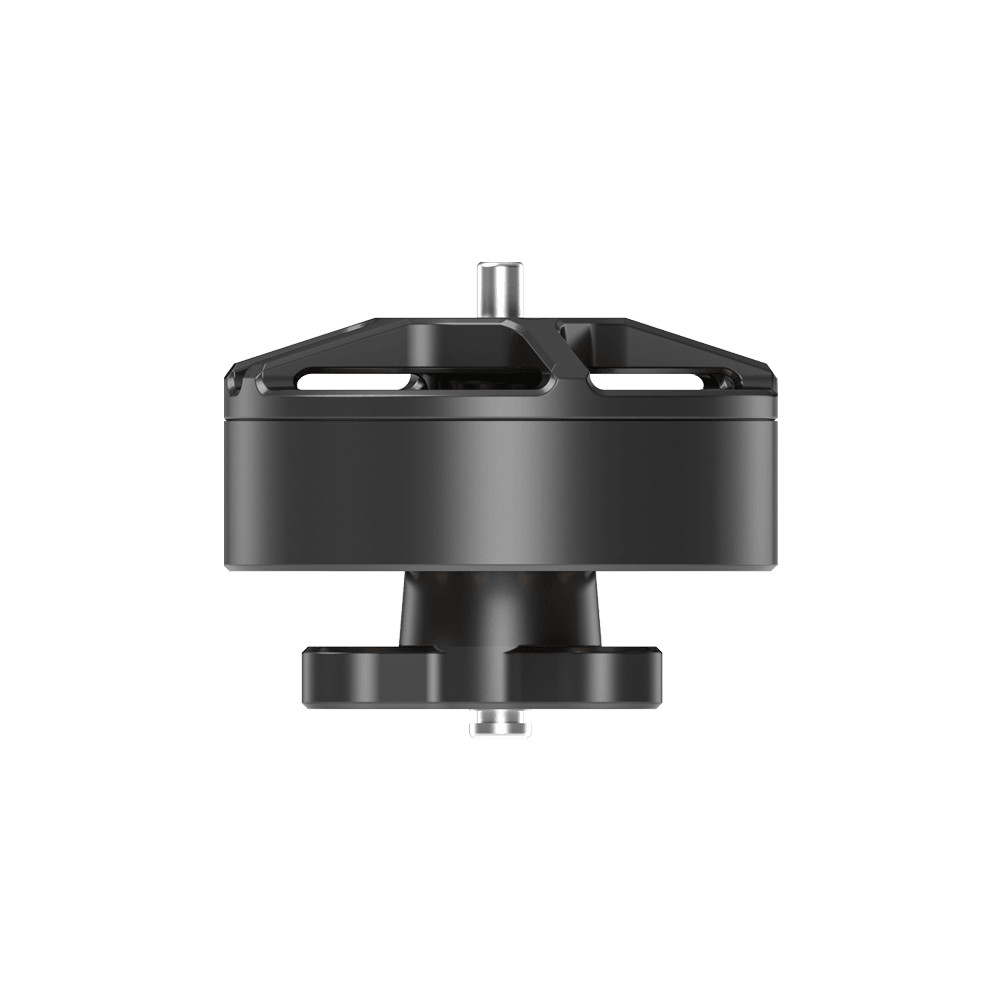

The new Defender 25 Motor designed for ultralight build, that micro drone change FPV in nowadays. Sub 250grams Defender 25 builds like these just got much nicer since we got the newest generation whoop style all in one (AIO) with iflight new Defender 25 frame you can build the ultralight micro drone.
Specifications:
Model: Defender 25 Motor
KV: 4150kV
Weight(included wire): 8g±0.5g
Dimension: φ17.7*12.5mm
Interphase Resistance: 0.188Ω
Input Volts: 4S
Peak Current: 12.03A
Max Watt: 200.8W
Mounting Holes: 3 x 9*9 φ2mm (3 mounting holes)
Rotor Specifications: Segmented bell
Shaft Diameter: 1.5mm
Shaft Protruding Length: 1.8mm±0.2mm
Lead: 65mm/26AWG
Magnet: N52H Curved
Configuration: 9N12P
Bearing Type: NMB
Bearing Specification: φ5*φ2*2.5
Winding: Single Strand copper winding
Package includes:
1 x Defender 25 1404 Motor
4 x M2x5 mounting screws
Defender 25 1404 Defender 25 70% 16.80 6.61 234.1 111.0 3.05 458€ 4150KV 2525-3 80% 16.75 8.74 284.7 146.4 2.76 90% 16.71 11.09 329.9 185.3 2.51 100% 16.69 12.03 350.4 200.8 2.29 05*c 4-82 o5+0 3-MS 1 8 3 0 2 125+0.2 18+0.2 L3 2 + 26AWG Black Datasheet Prop Throttle Voltages Load Curren Pull Power
