Description;

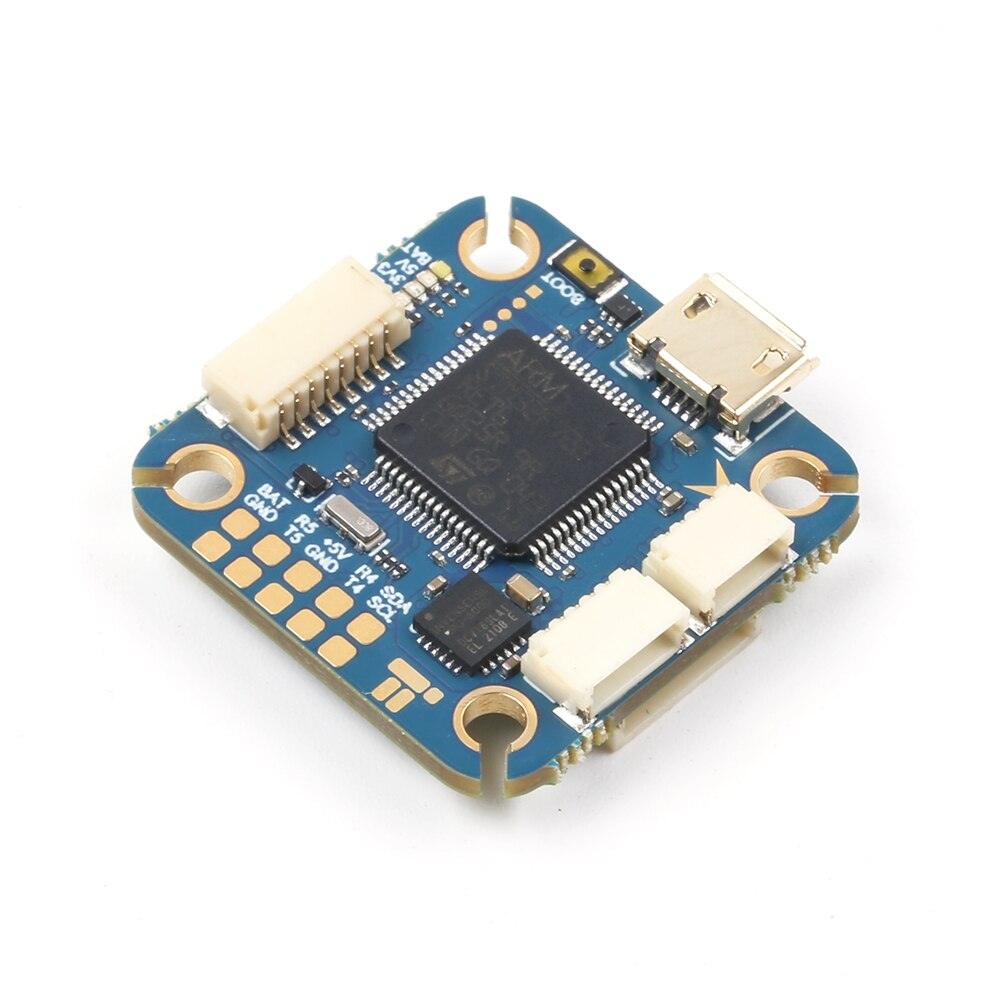

FC // SucceX-E Mini F7

Top Features:

• Gold-plated plug

• BlackBox: 16MB

• Vista HD Plug-and-Play. No need to solder tiny wires.

• BAT, +5V, 3.3, Start indicator

• Smartaudio & IRC Tramp VTX protocol supported

Changelog:

• Due to some global supply issues, the Barometer and Flash component was updated as well as some circuit improvements implemented.

• Before BMP280 changed to DPS310

• Before 8MB Flash changed to 16MB Flash

• August 2021: Barometer is not supported

Specifications:

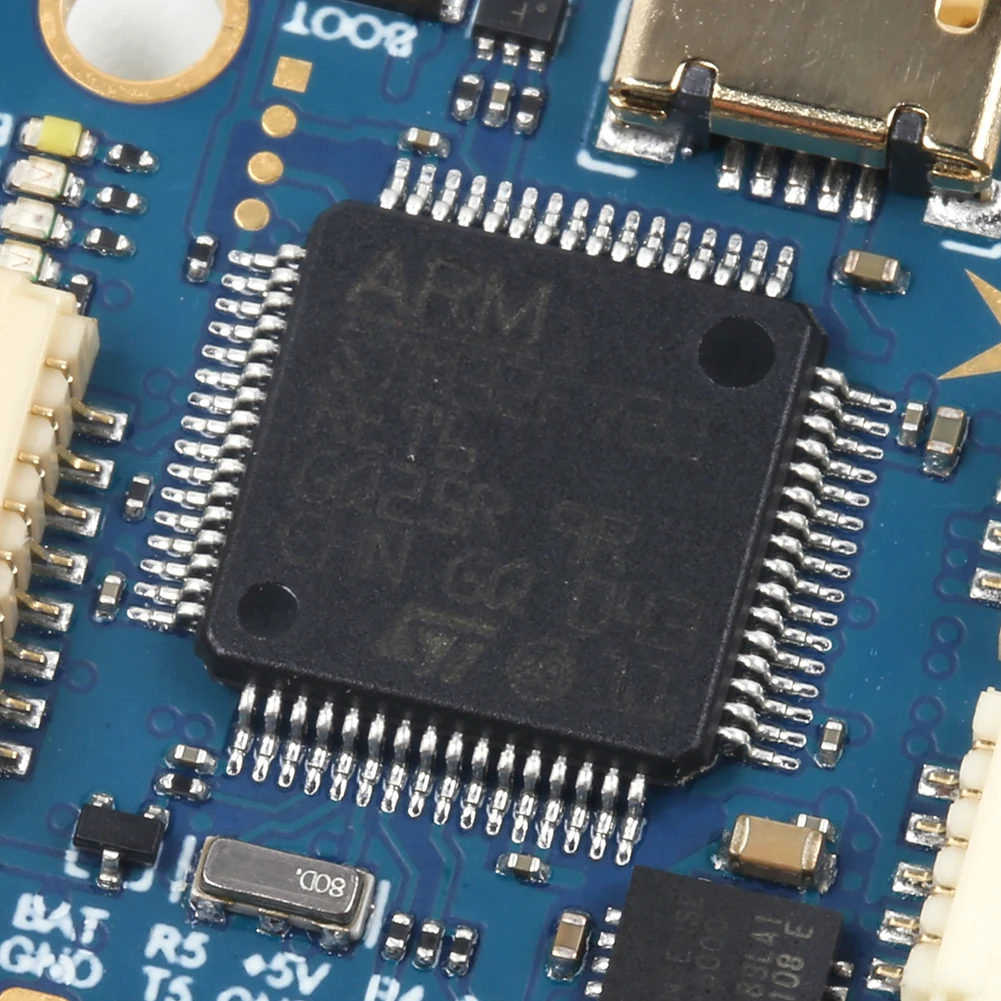

• MCU: STM32F22RET6 216 MHz

• Gyro: MPU6000

• Baro: No

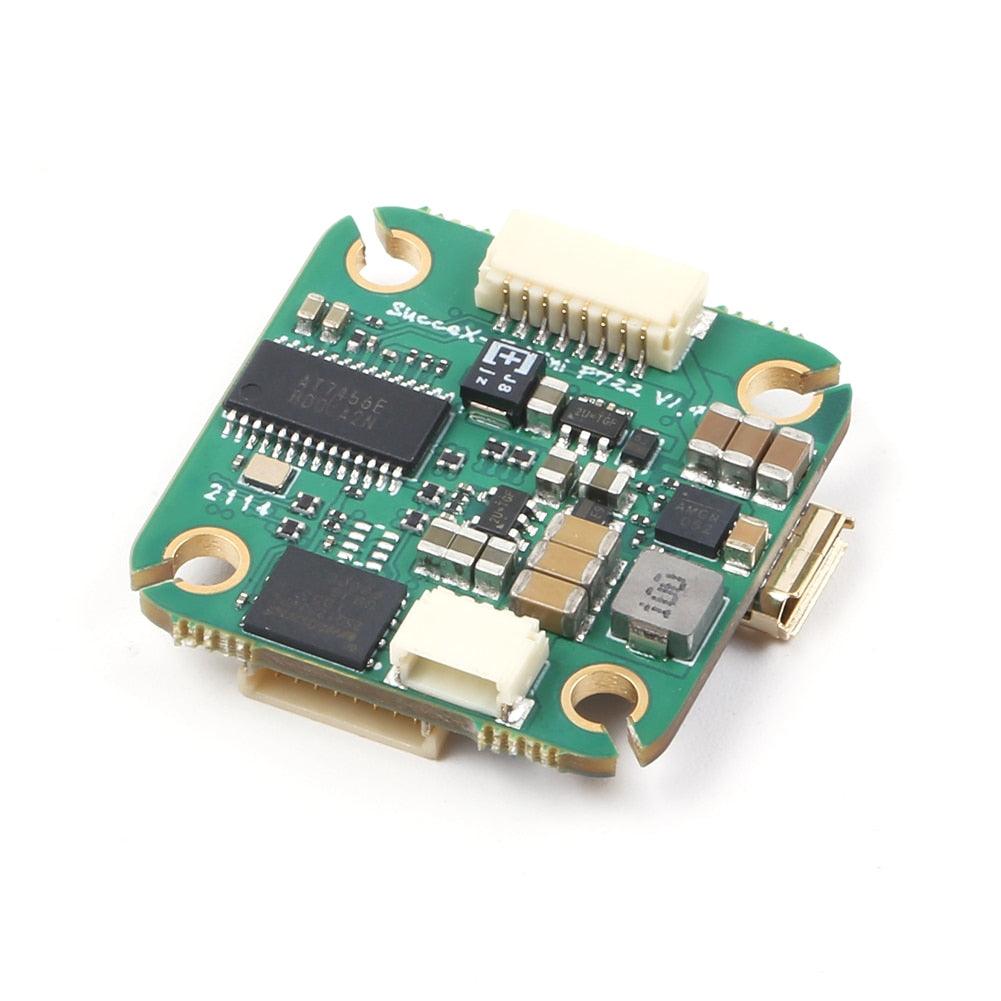

• OSD: IFLIGHT OSD （AT7456E）

• BEC: 5V 2.5A

• BlackBox: 16MB

• Uart: 4*UART(UART1、UART2、UART4、UART5)

• UART1 for VTX HD/Analog Telemetry

• UART2 for Receiver

• UART4 for GPS

• UART5 for ESC Telemetry

• 4×Dshot/PWM outputs

• Smartaudio & IRC Tramp VTX protocol supported

• WS2812 led Strip: Yes

• Bepper: Yes

• Firmware: IFLIGHT_SUCCEX_E_F7 4.2.9

• Outer Size: 27*27mm / 20*20mm φ3 mounting

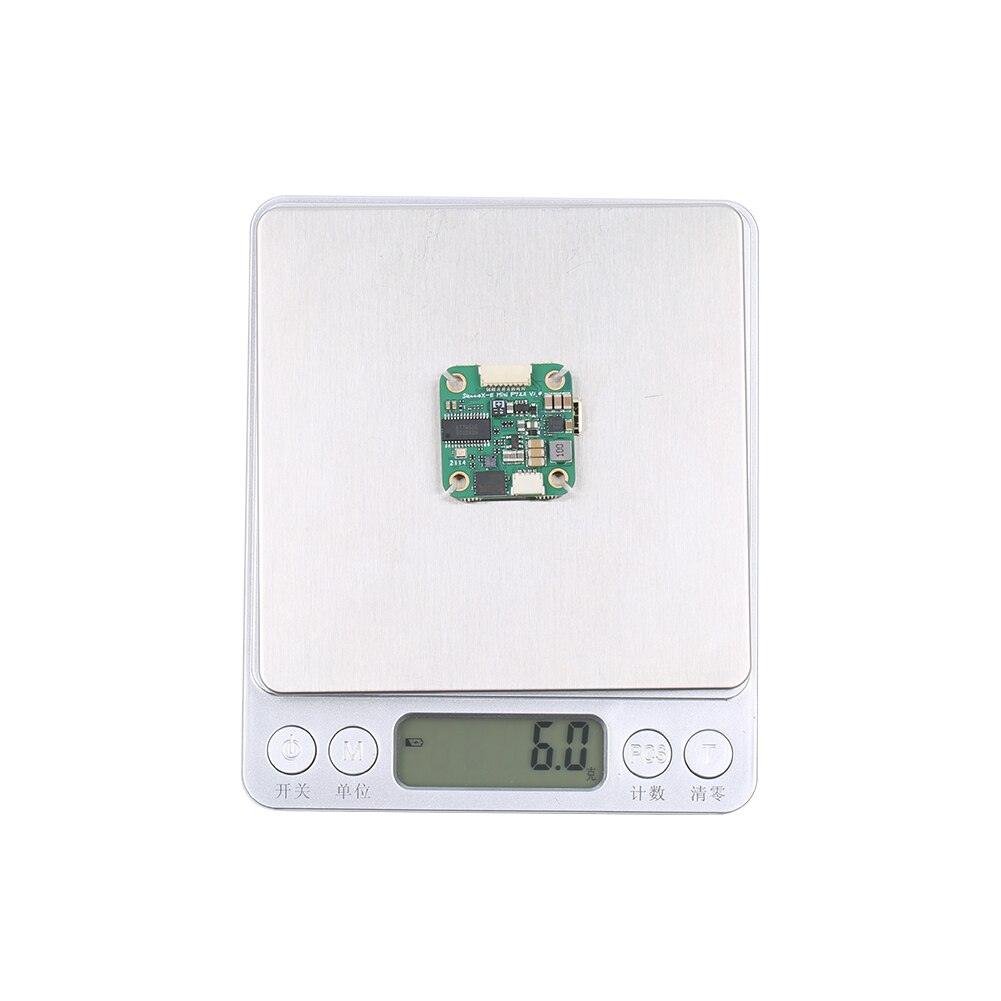

• Weight: 6g

Physical

• Mounting hole: 20*20mm，φ3mm

• Size: 27*27mm

Package included:

• 1pc x SucceX-E mini F7 V1.4 Flight controller

• 1set x wire harness
