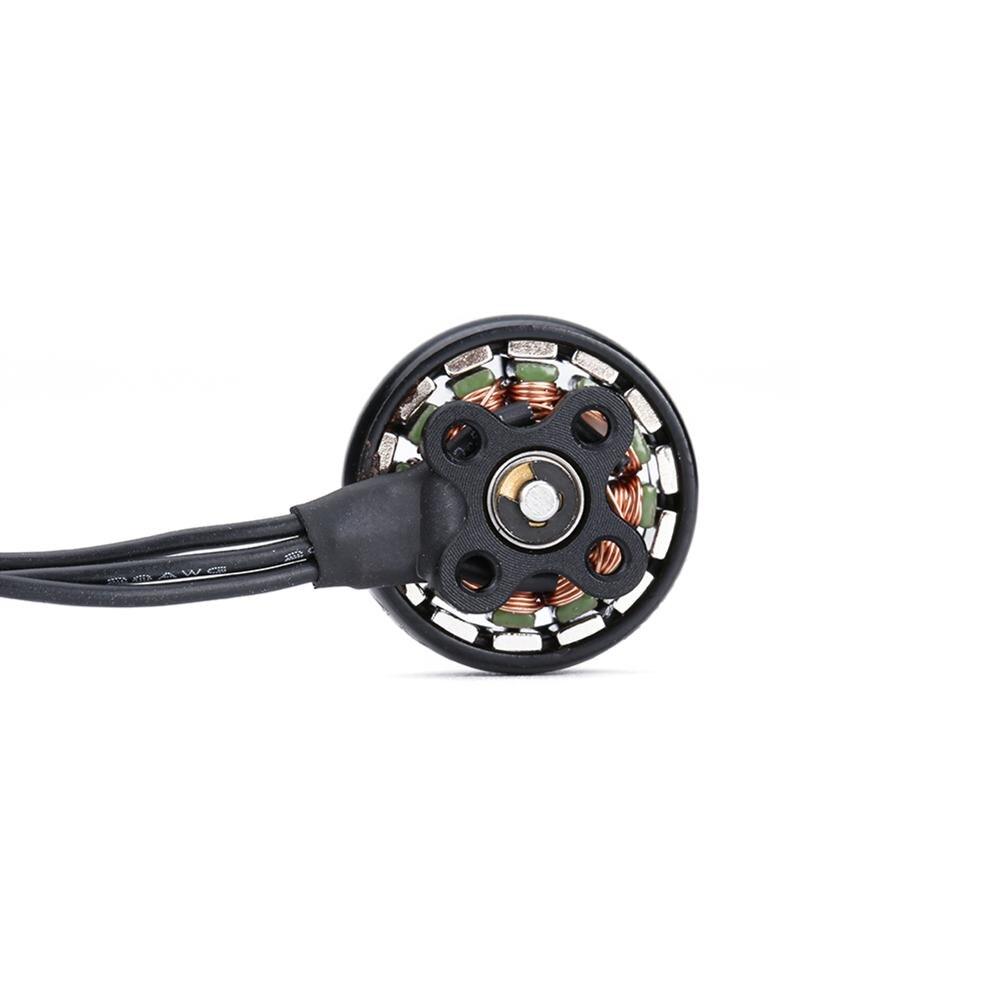

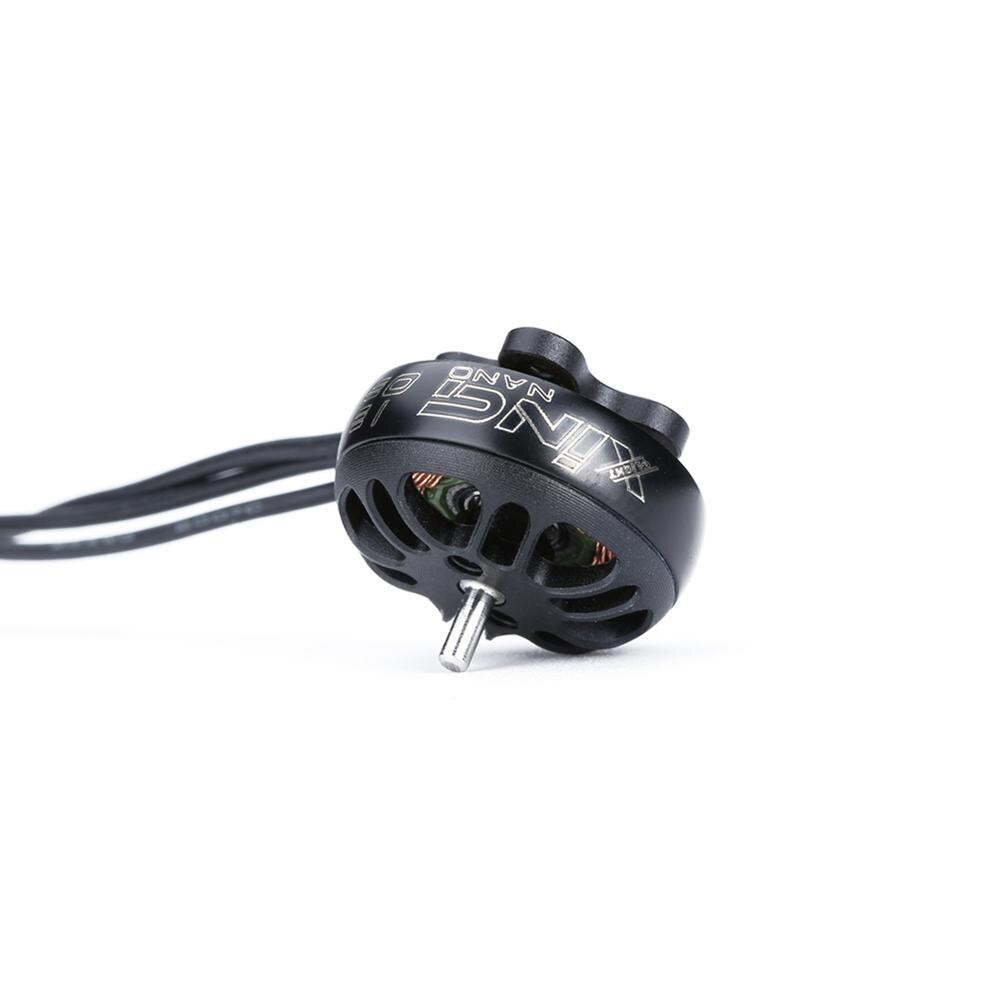

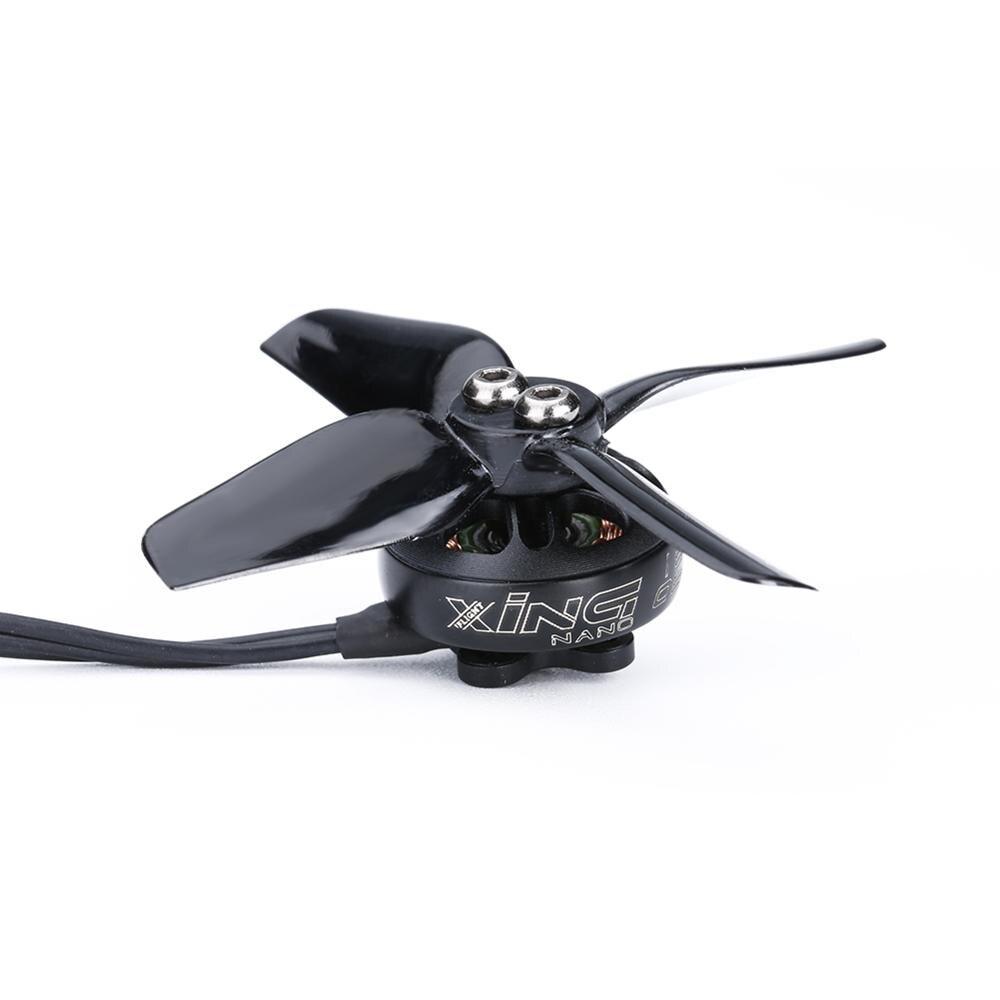

iFlight XING 1303 5000KV 2-4S FPV Micro Motor with 1.5mm Shaft compatible 2inch propeller for FPV whoop drone part

iFlight XING 1303 5000KV 2-4S FPV Micro Motor with 1.5mm Shaft compatible 2inch propeller for FPV whoop drone part

iFlight

Regular price $23.02 USD
Regular price Sale price $23.02 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
View full details

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 17.58x11mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: XING 1303

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: IFLIGHT

Description;

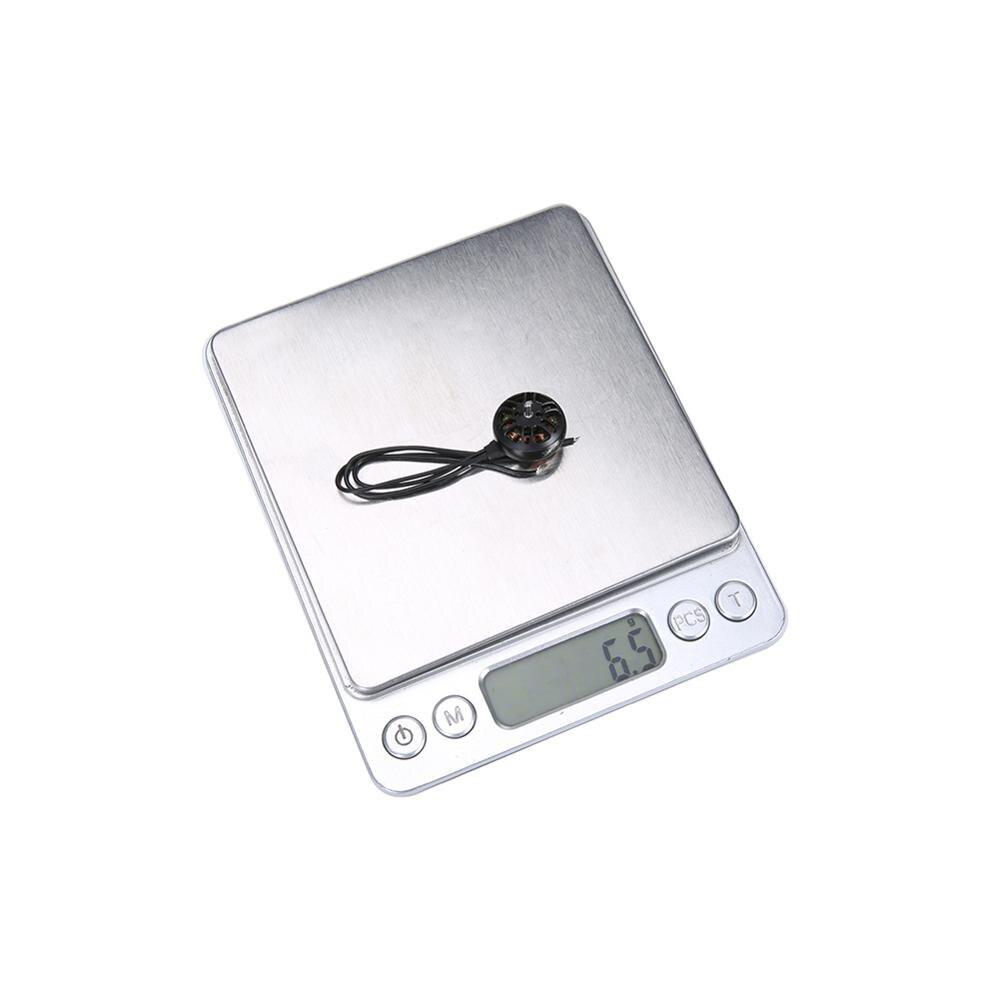

  • Super durable and ultra-light with only 6g on short wires.

  • Whatever frame you put these babys on, you'll have your mind blown!

Features:

  • XING 1303 brushless motors are customized for 2~4S brushless whoop drone.

  • Shaft Diameter: 1.5mm, Weight: 6.5g

  • Compatible with 2-4S lipo battery

SPECIFICATIONS:

  • Recommended Voltage: 2S-4S

  • KV Option: 5000KV

  • Configuration: 9N12P

  • Bearing: NSK/5*2*2.5

  • Stator Diameter: 13mm

  • Stator Length: 3mm

  • Shaft Diameter: 1.5mm

  • Weight: 6.5g (with short wires)

  • Motor mount hole: 9*9 φ2mm

Package included:

  • 1pc x XING 1303 Motor

  • 4pcs x m2*5 screws

  • 2pcs x m2*7 screws

NOTE: Propeller does not include.

iFlight XING 1303 5000KV 2-4S FPV Micro Motor, iFlight XING 1303 50OOKV Technical Datas Kv

iFlight XING 1303 50OOKV Technical Datas Kv 5000 Configu-ration 12NI4P Stator Diamter 13mm Stator Length 3mm Shaft Diameter 2mm Motor 017.58*11mm Dimension(Dia *Le Weight(g) 6.5 5O@ Idle 03 RV 30.44 current(IO)@SV(A) No.of Cells(Lipo) 45 Max Continuous 98.1 Power(W)605 Interna Resistance
