IFlight XING-E 2207 Pro 2750KV 2450KV 4S 1800KV 6S Brushless Motor for FPV Racing Freestyle 5inch Drones Replacement DIY Parts
IFlight XING-E 2207 Pro 2750KV 2450KV 4S 1800KV 6S Brushless Motor for FPV Racing Freestyle 5inch Drones Replacement DIY Parts
iFlight
167 orders in last 30 days
Couldn't load pickup availability
If you have payment problems, pls refresh the page or "Chat with us".
Free Shipping: 9-15 days to arrive.
Express Delivery: 5-8 days to arrive.
Warehouse: China/USA/Europe, Can delivery to all countries, tax included.
Free shipping & User guarantee
Free shipping & User guarantee
- Free Shipping：Ships within 3days, arrives within 10-18 days
- Paid Express: Ships within 2days,arrives within 4-7 days
- Money back guarantee: Quality problems, return and exchange within 30 days
- 12-month warranty, long-term after-sales service
- No need to register account, Order tracking url will send to your email
- More FAQ:FAQ
SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Lithium Battery
Tool Supplies: Assembled class
Technical parameters: Value 2
Remote Control Peripherals/Devices: Motor
Recommend Age: 12+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: Xing-E 2207 Pro
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes
Brand Name: NoEnName_Null
PRODUCT DESCRIPTION

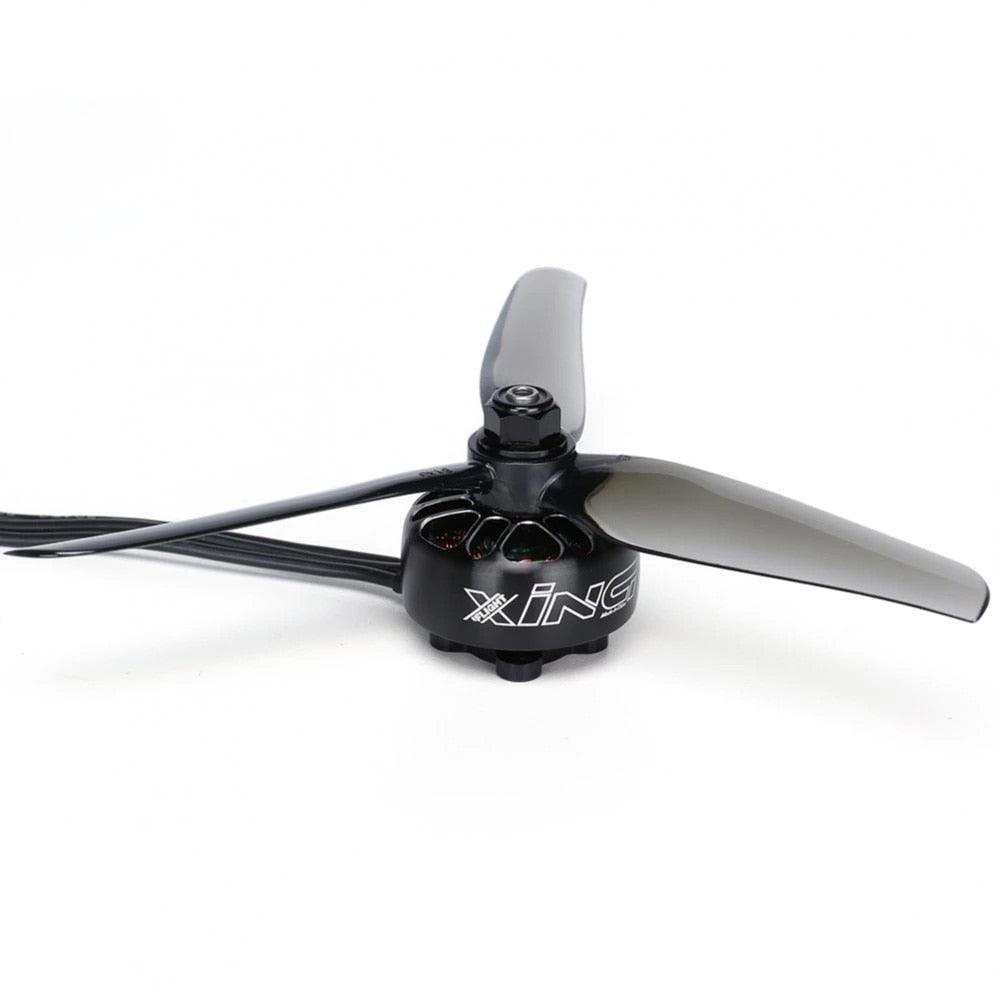

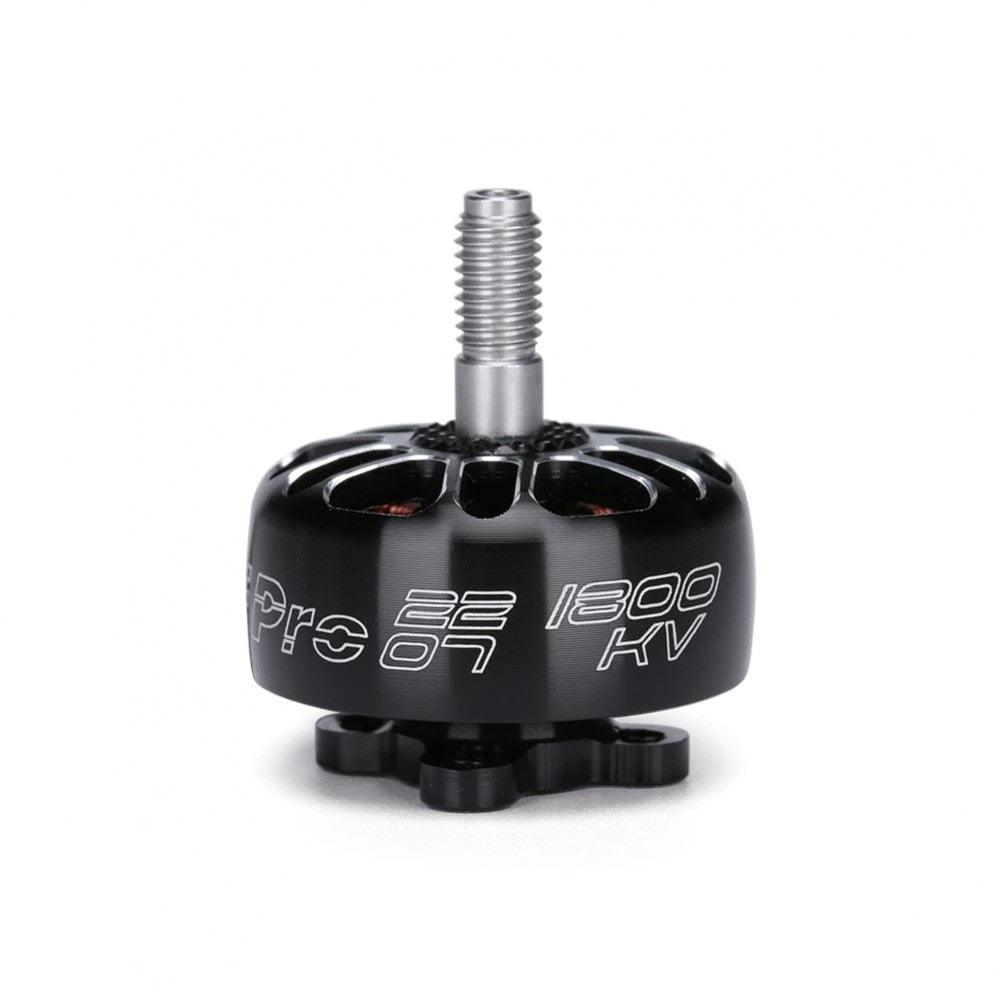

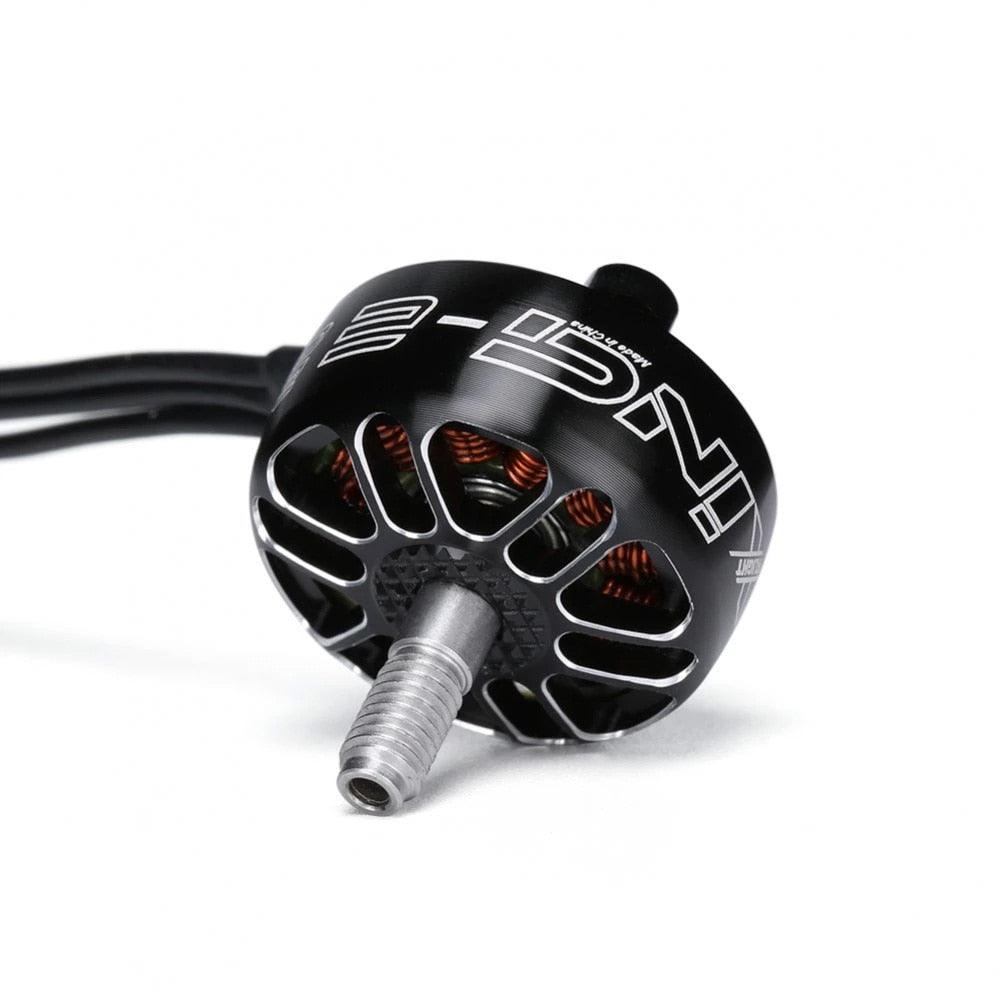

XING-E
series are very strong and powerful FPV motors for FPV racing, great
value choice with well known XING performance.focuses on quality, the
XING-E series affordable motors that are strong and durable.
This

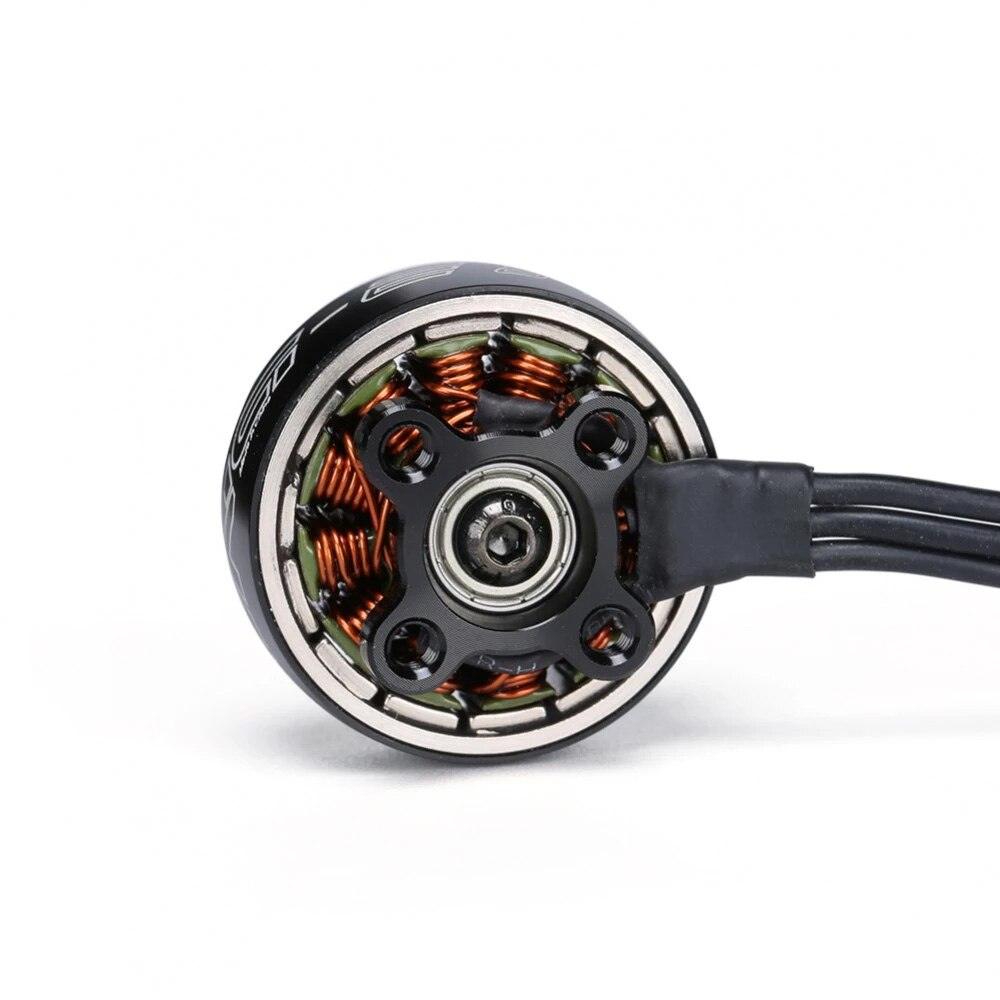

2207 sized motor features a High-strength 4mm steel hollow shaft,
Single strand windings for performance, M3 shaft screw, and larger
9x4x4mm NSK bearings.

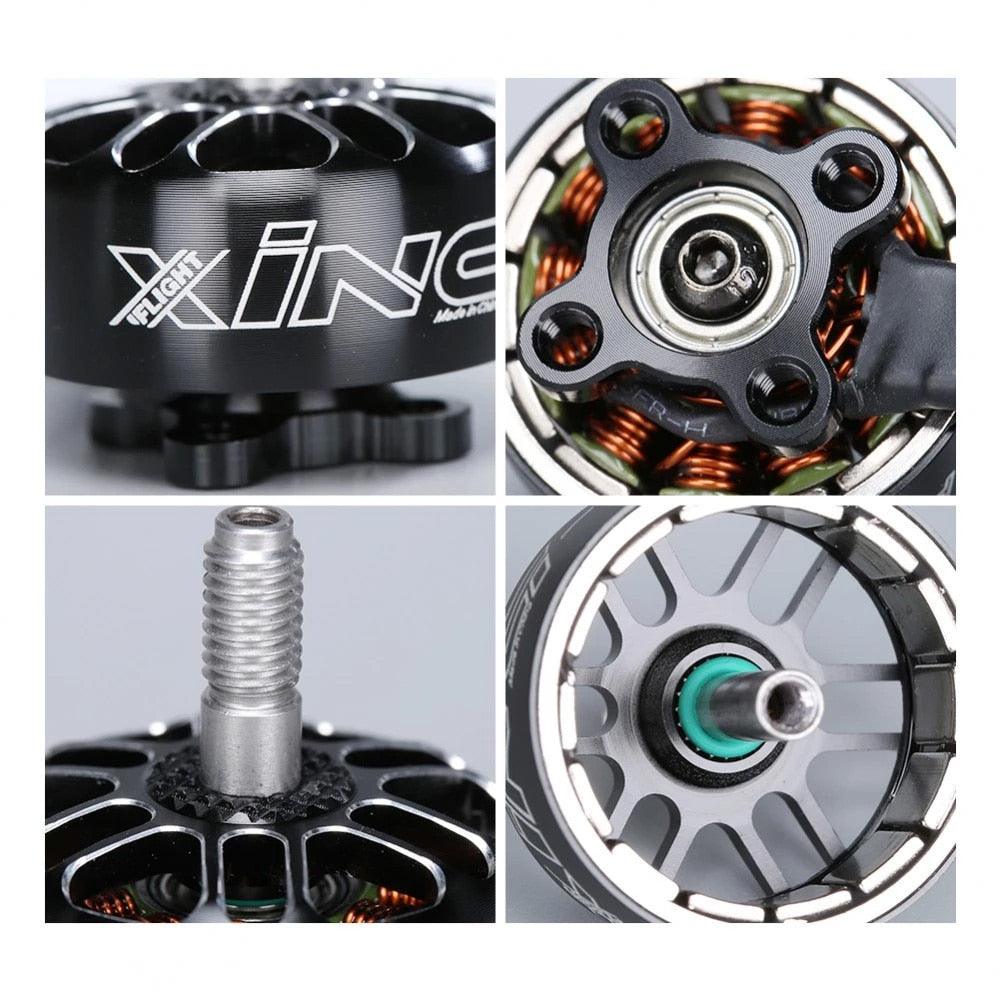

Features
-High-strength 4mm Steel shaft
-N52H High-temperature magnets, NSK bearings
-16x16mm hole pattern
-Single strand copper winding
-Hex bolt shaft set screw
Specifications
-Configuration:12N14P
-Stator Diameter:22mm
-Magnets: N52SH Curved
-Bearing Size: 9x4x4
-Shaft Diameter: 4mm / Steel
-Base Mounting Pattern: 16x16mm M3 Thread
-Motor Dimension: 28.5x19.7mm

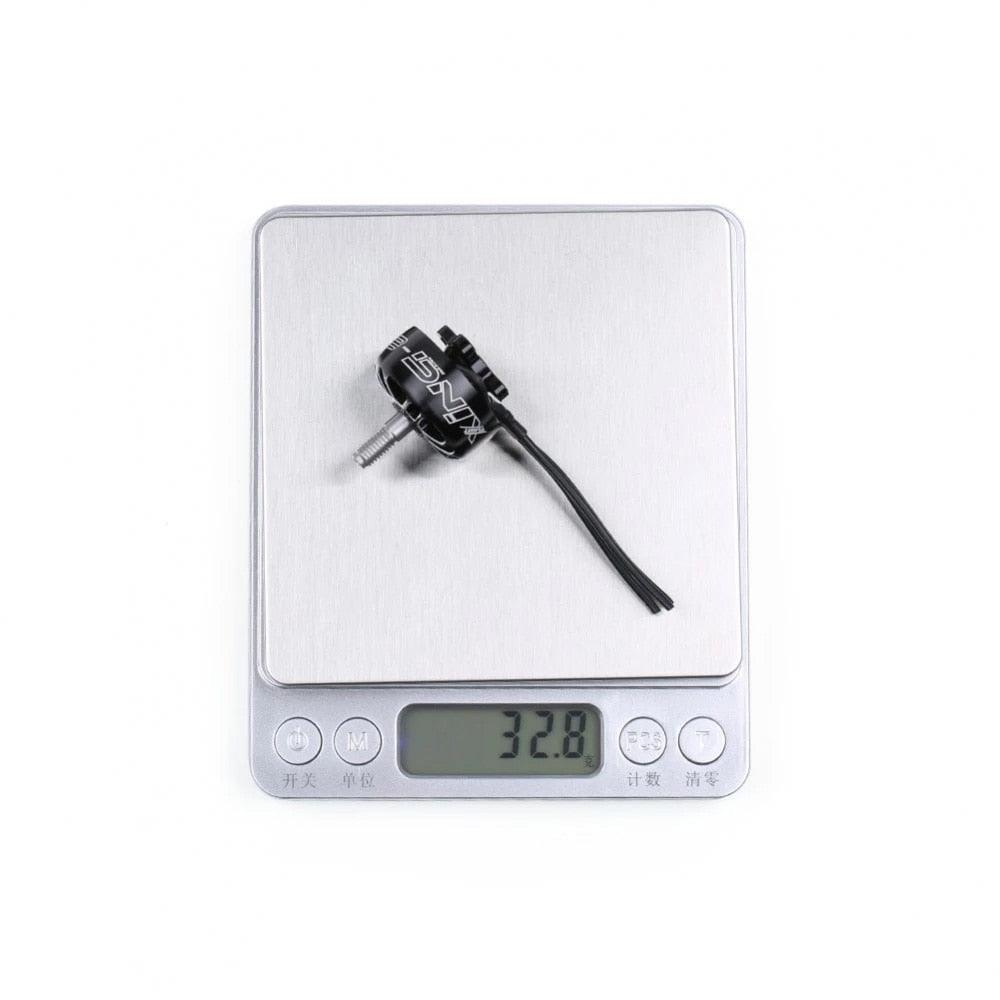

-Weight: 33.8g (150mm wires)
-Idle Current @12.6v (Io):1.2 A
-Cells (LiPo): 2-6S
-Max Burst Current <10s: 35.22A
-Max Power (W) 60s: 845W
-Internal Resistance (Rm):81.5mΩ
-Motor Wire Length:150mm / 20AWG
