SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Battery
Technical parameters: Value 2
Size: 28.5x19.7mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Antennas
Quantity: 1 pcs
Origin: Mainland China
Model Number: XING-E Pro 2207
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: IFLIGHT
Description:
XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.

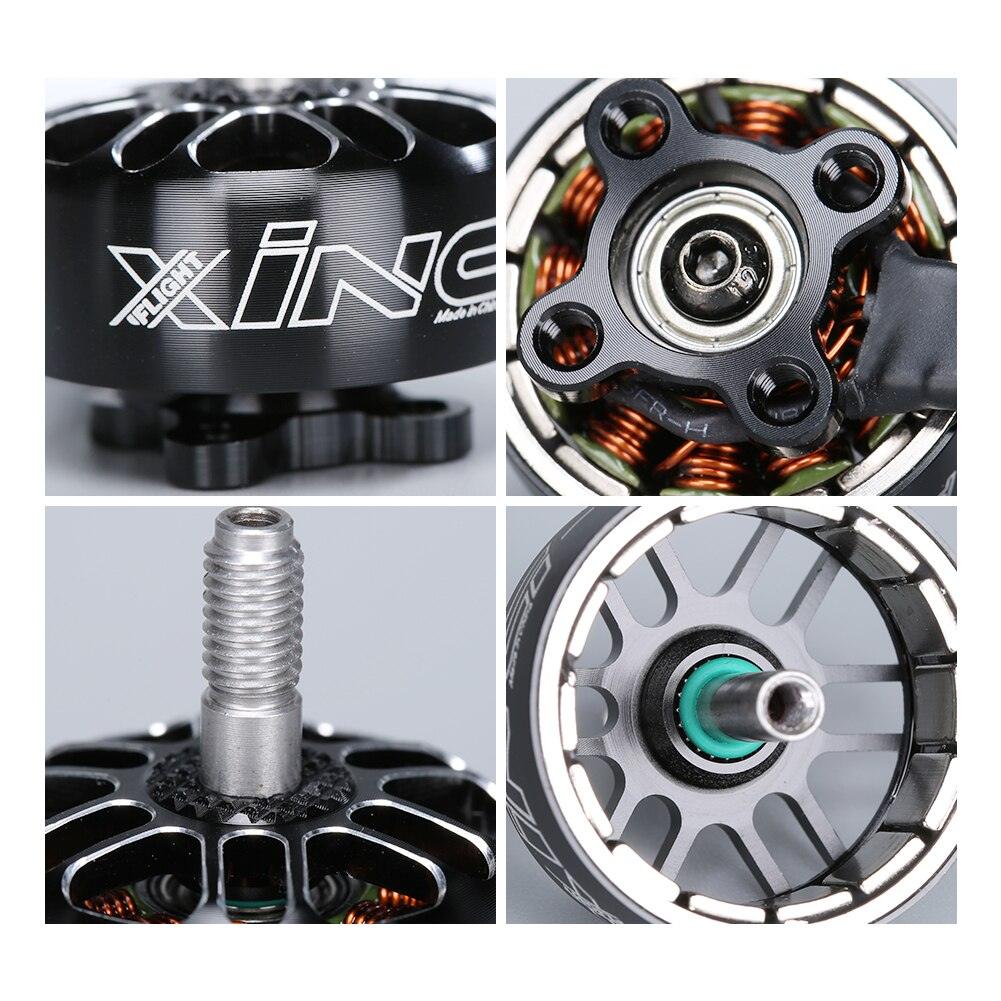

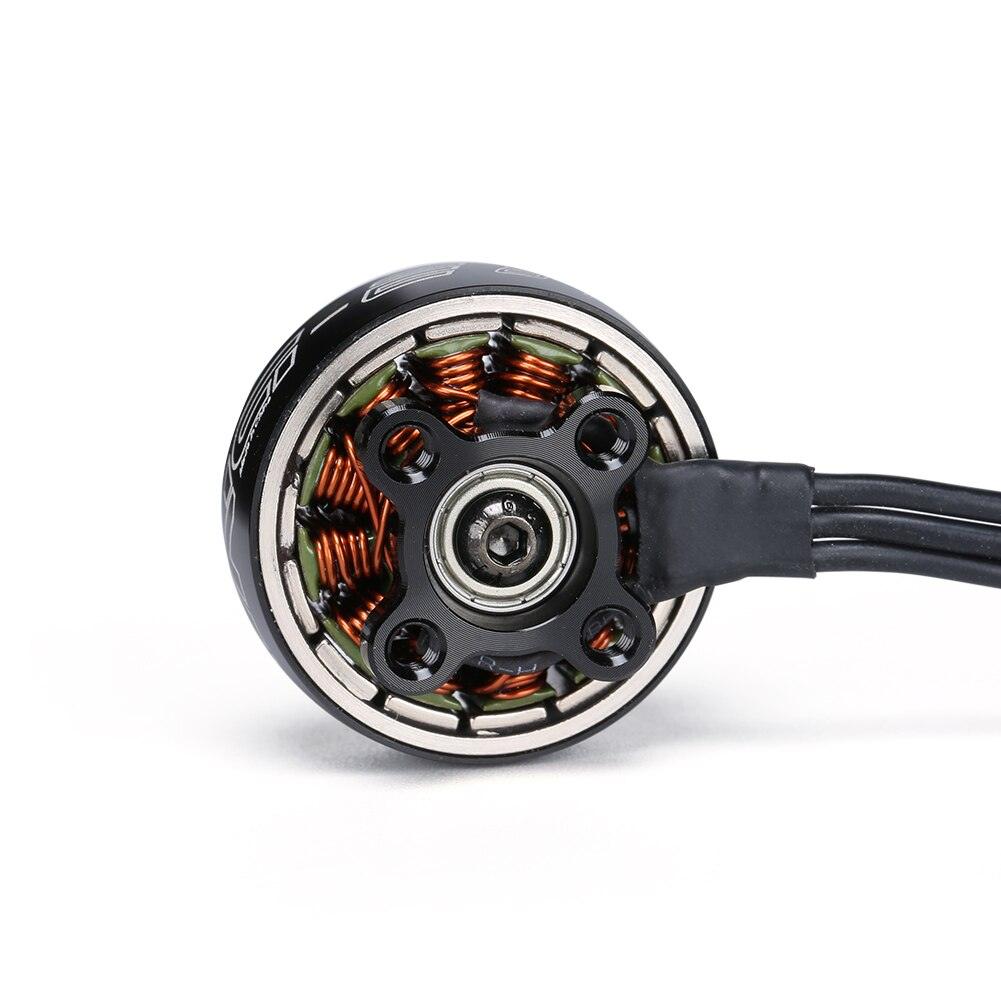

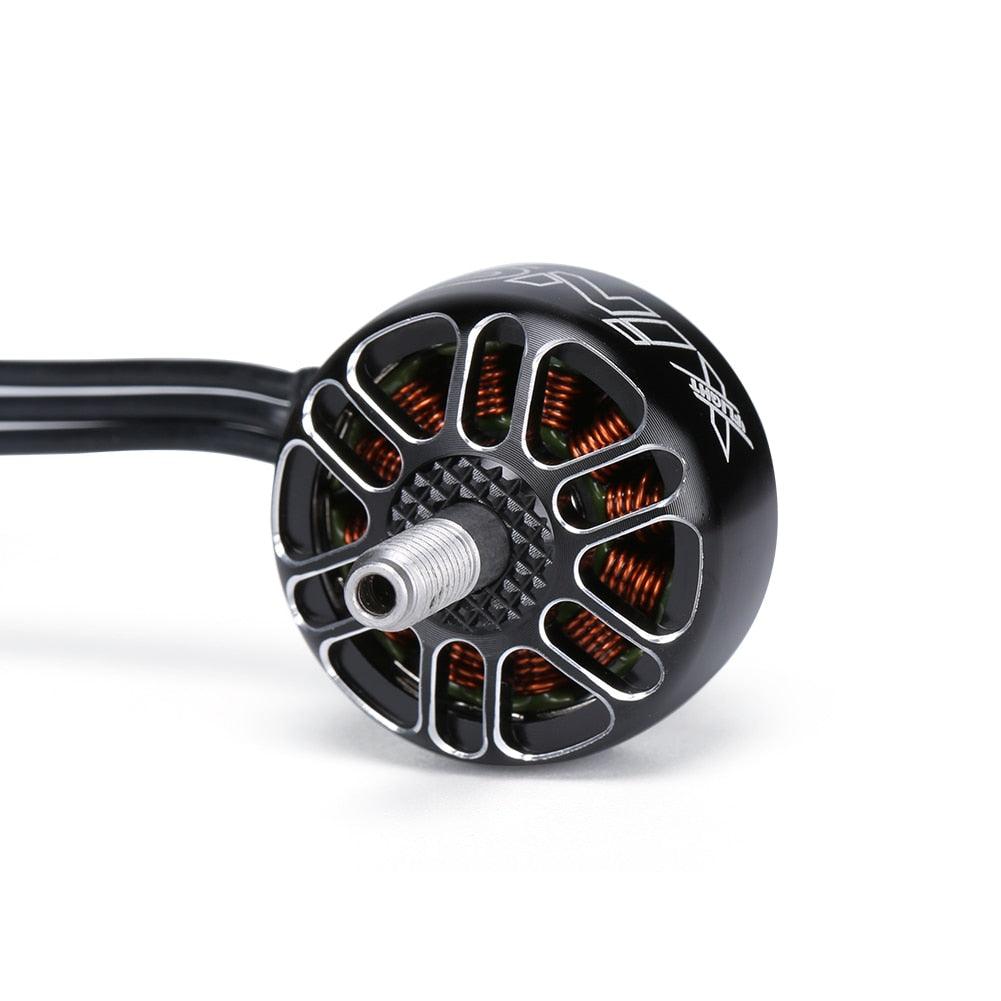

This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features
High-strength 5mm Steel shaft
N52H High-temperature magnets, NSK bearings
16x16mm hole pattern
Single strand copper winding
Hex bolt shaft set screw
Specifications
Configuration:12N14P
Stator Diameter:22mm
Magnets: N52SH Curved
Bearing Size: 9x4x4
Shaft Diameter: 5mm / Steel
Base Mounting Pattern: 16x16mm M3 Thread
Motor Dimension: 28.5x19.7mm

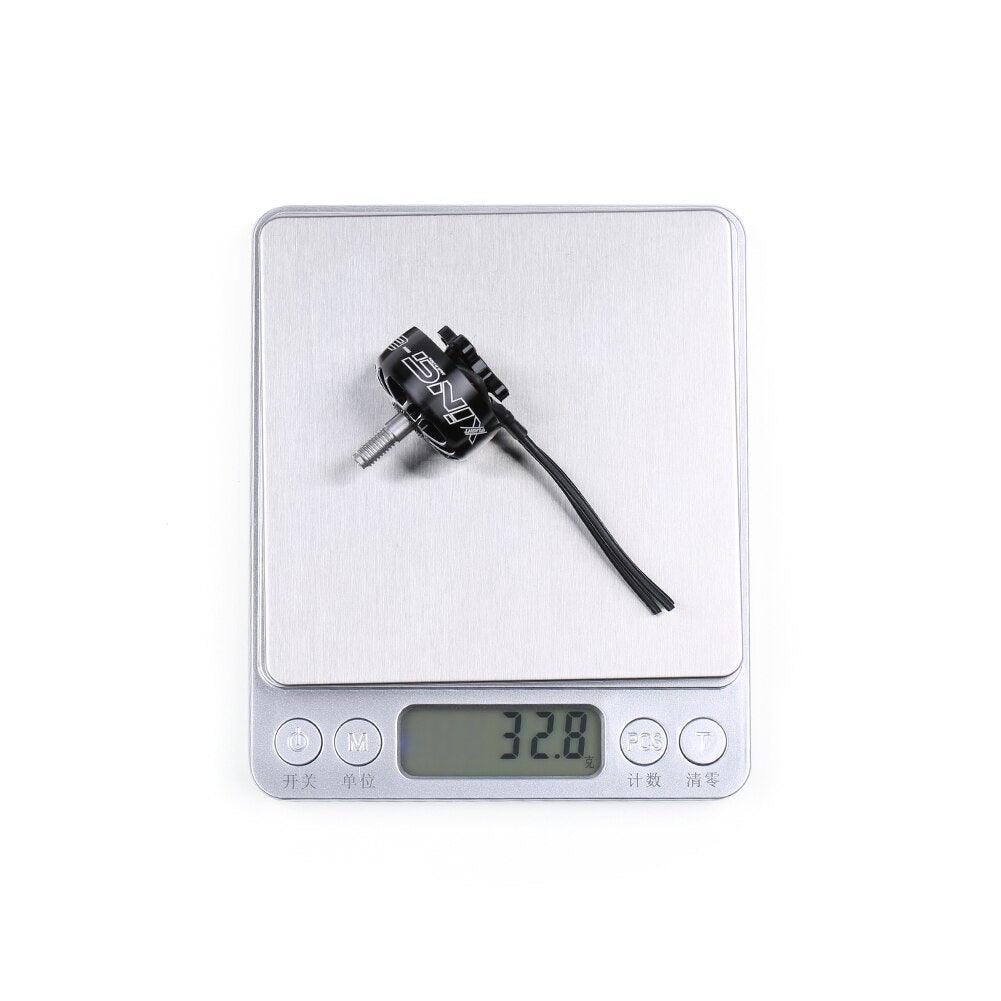

Weight: 33.8g (150mm wires)
Idle Current @12.6v (Io):1.2 A
Cells (LiPo): 2-6S
Max Burst Current <10s: 35.22A
Max Power (W) 60s: 845W
Internal Resistance (Rm):81.5mΩ
Motor Wire Length:150mm / 20AWG
Package included:
1pc x MOTOR XING-E Pro 2207 motor
or
4pcs x MOTOR XING-E Pro 2207 motor
iFlight XING-E Pro X2207 2750KV Technical Datas 2750 Configu-ration 12N14P Stator Diamter 22mm Stator Length Zmm Shaft Diameter 4mm Motor_Dimension(Dia :Len) p28.5*19.7mm Weight(g) 33.8 Idle_current(l0@1QV(A) Noof Cells(Lipo) 2-4S Pre63 =11 Max


The iFlight XING- E X2207 1800KV motor features technical specifications including a Kv value of 2448, an RPM range of 1481 to 1094, and a current consumption of 355mA at 53C. It also has a voltage rating of 5050V, a temperature range of -20C to 47C, and dimensions of 5.1mm x 3mm x 3mm.
