SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Battery
Technical parameters: Value 2
Size: 33.7x21.5mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: XING X2806.5
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
Description:

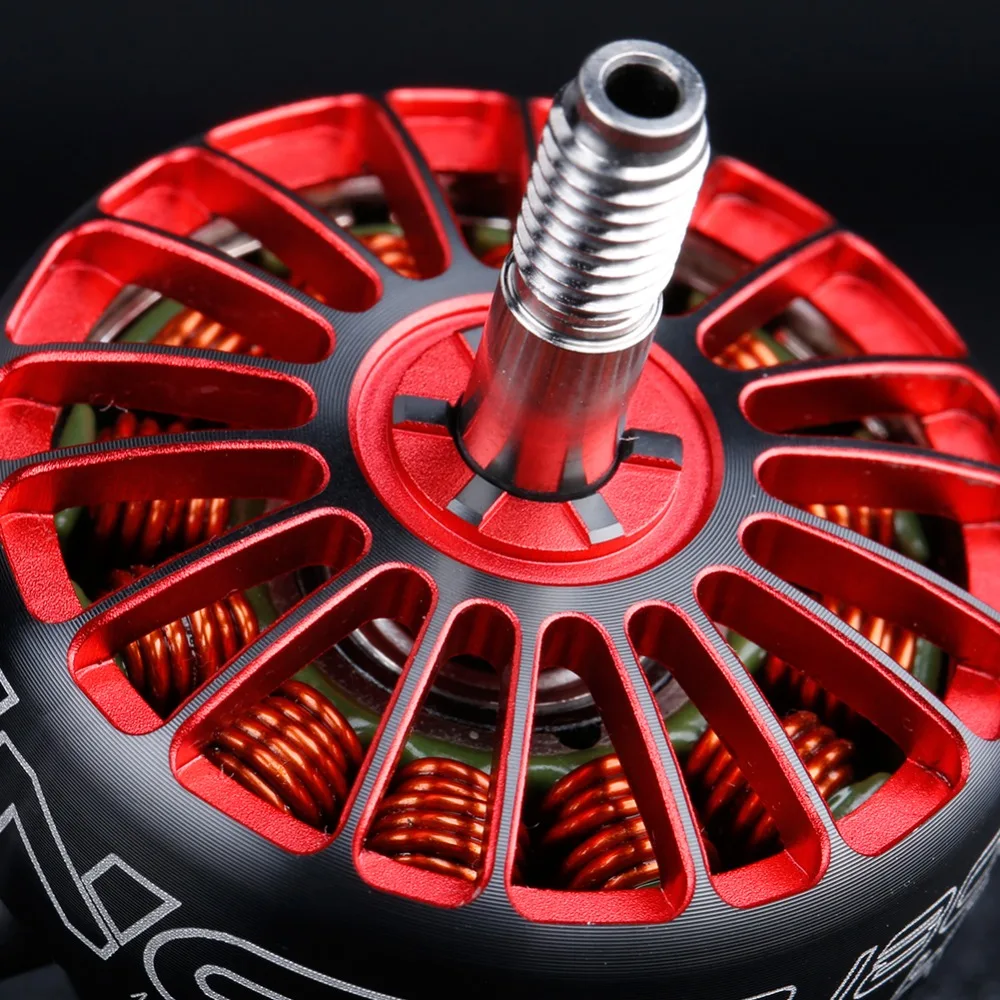

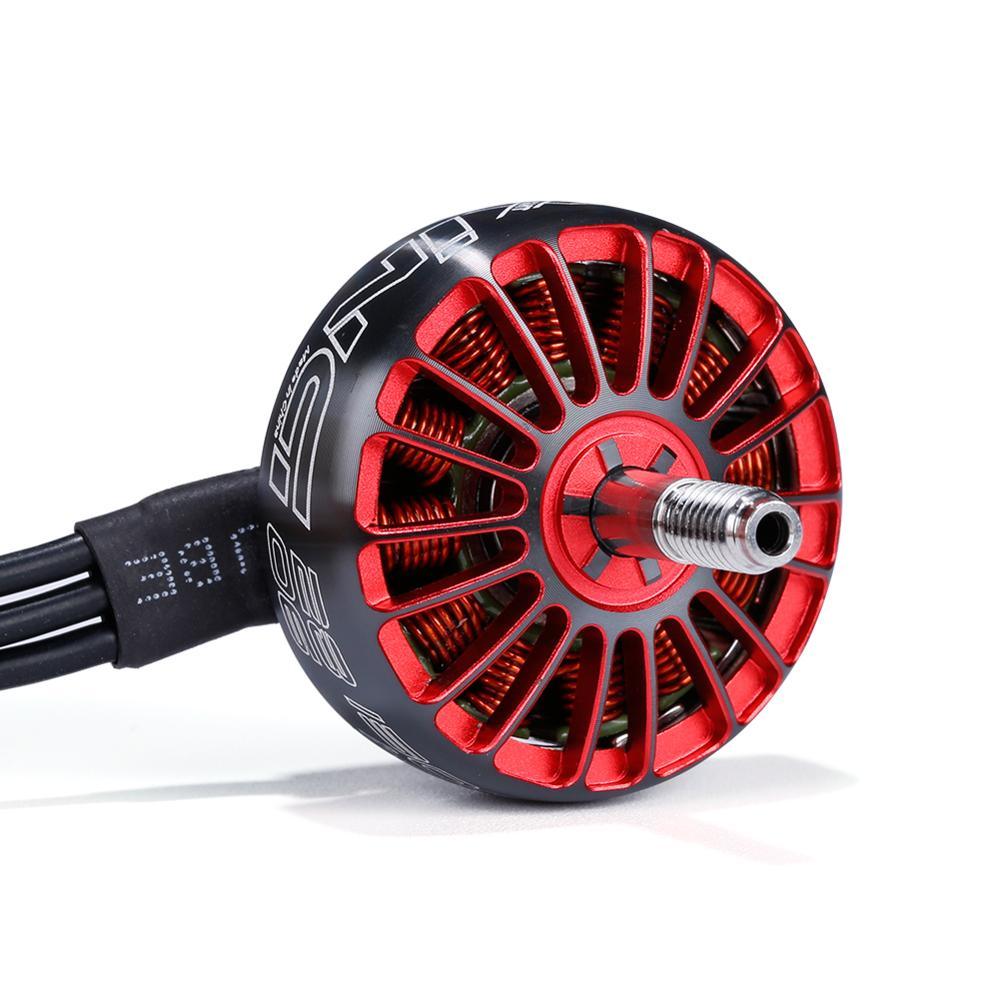

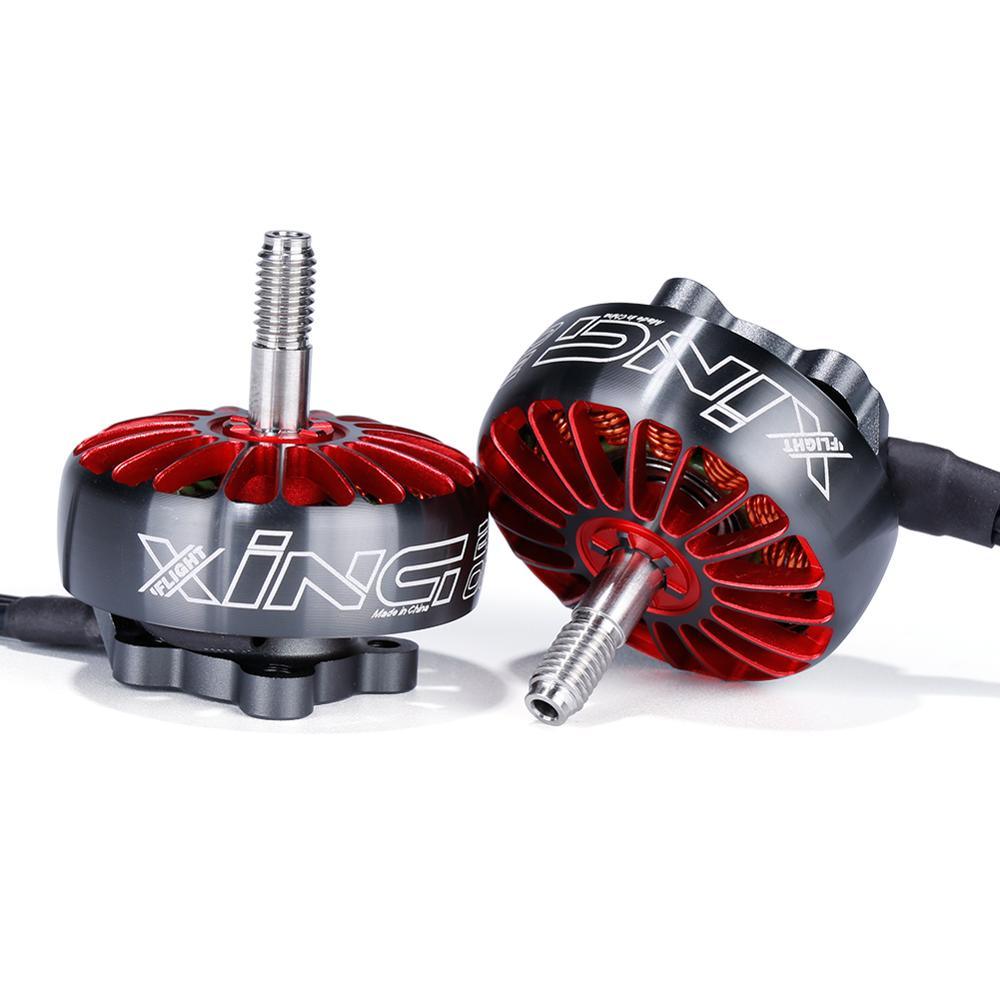

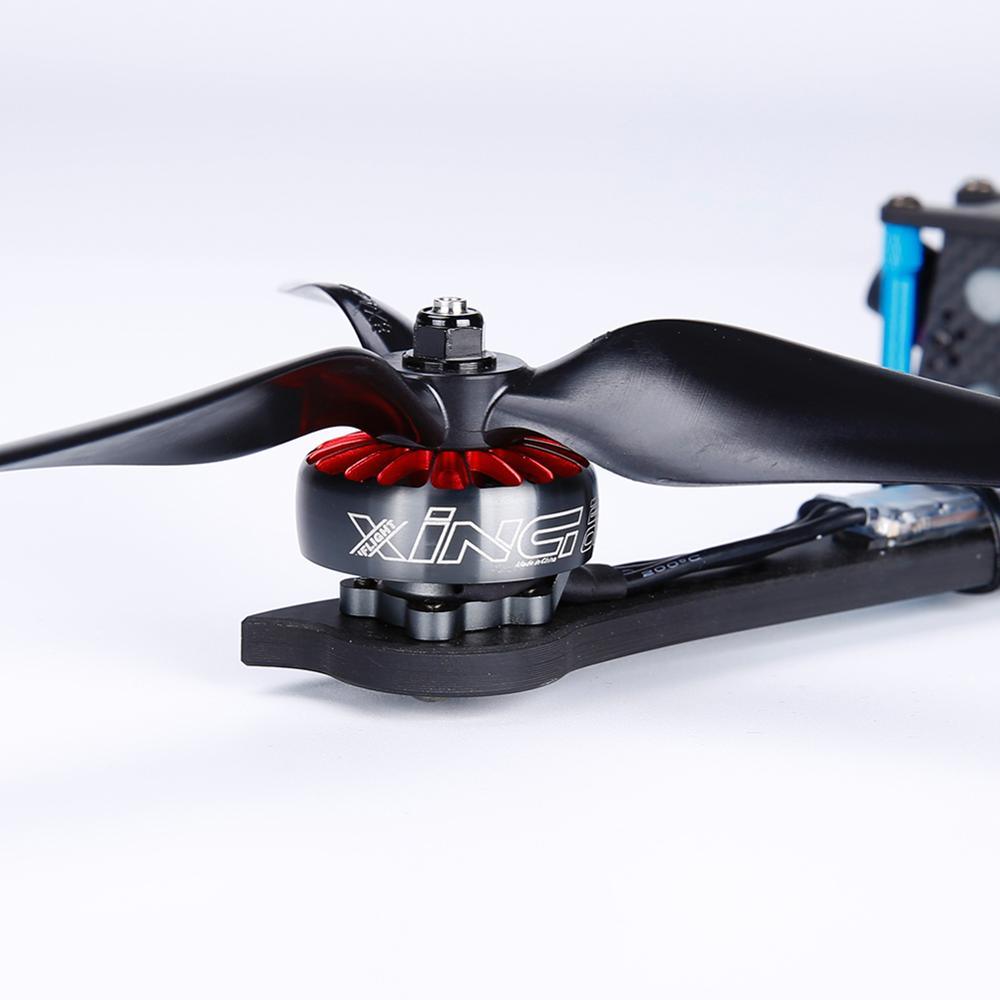

The Motor XING 2806.5 designed for bigger quads like 7-8 inch quad frames, which is with better efficiency in this range frames.The XING 2806.5 features uni-bell design and adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size 2806.5 allows it to provide instant power to save you from those crazy mountain dives last minute. It's a great motor if you're building bigger drones like 7 inch or 8 inch.
Features:
High-strength 4mm Titanium alloy shaft
Unibell design
7075 aluminum Bell and Base

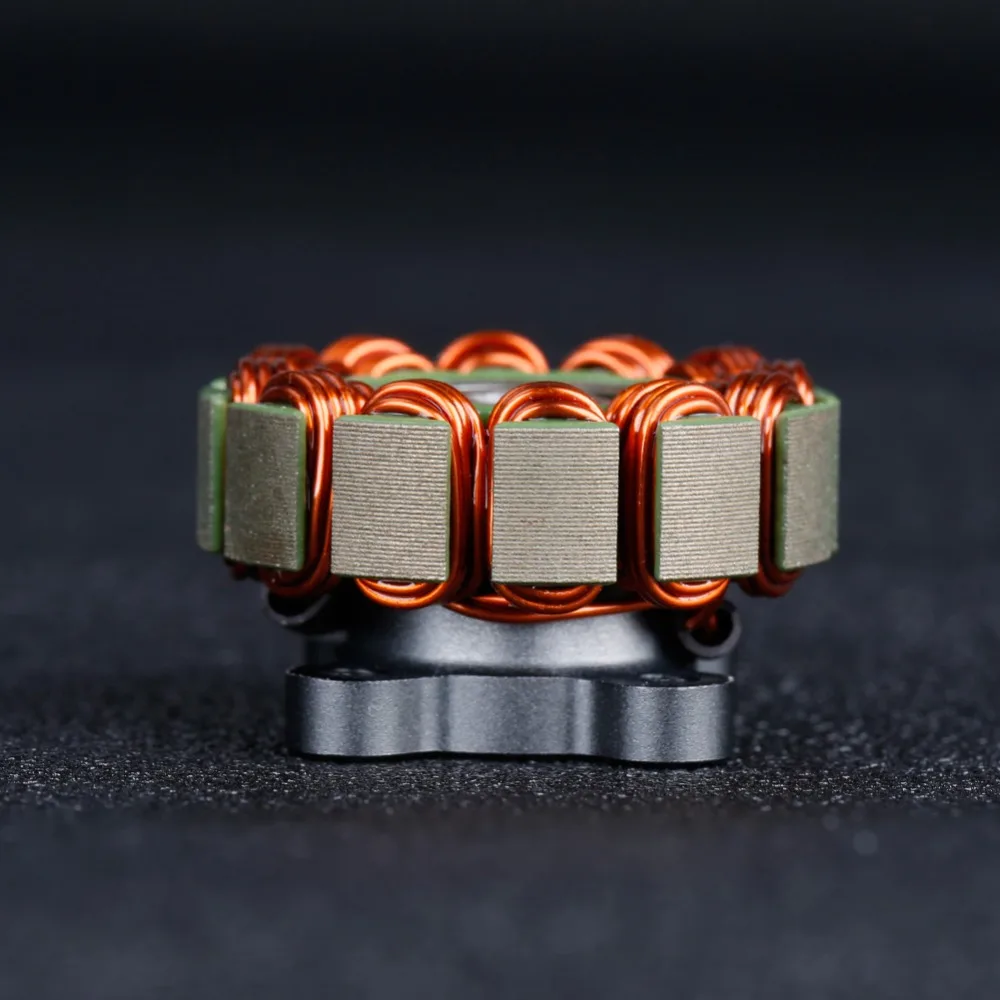

Electromagnetically matched magnets and stator
Japanese NSK 11*5*5 bearings
N52H Arc curve magnets
Motor wires protected
Hex bolt shaft set screw
Dynamically balanced
Specification:
Voltage: 2-6S
KV Option: 1300/1800
Configuration: 12N14P
Bearing: NSK/11*5*5
Stator Diameter: 28
Stator Length: 6.5mm
Shaft Diameter: M5
No.of Cells(Lipo): 2-6S

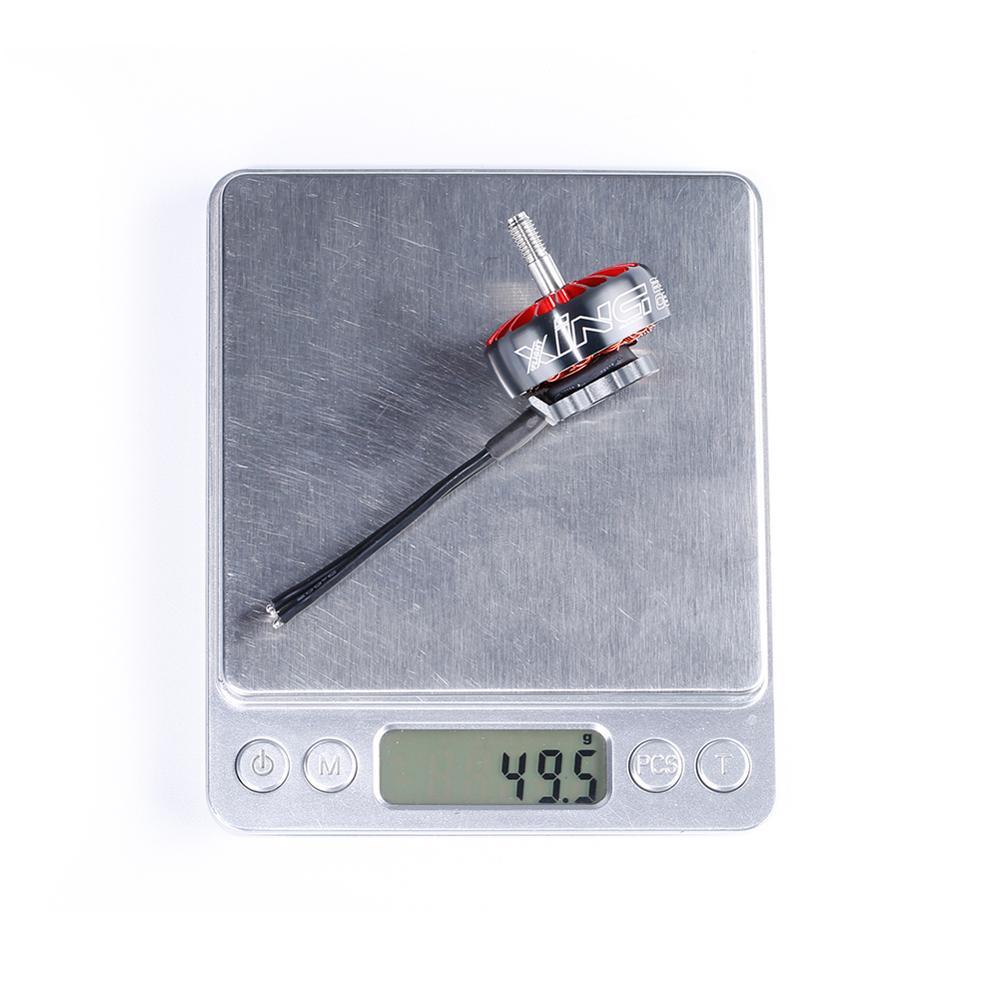

Weight: 49.5g(with a short cable)

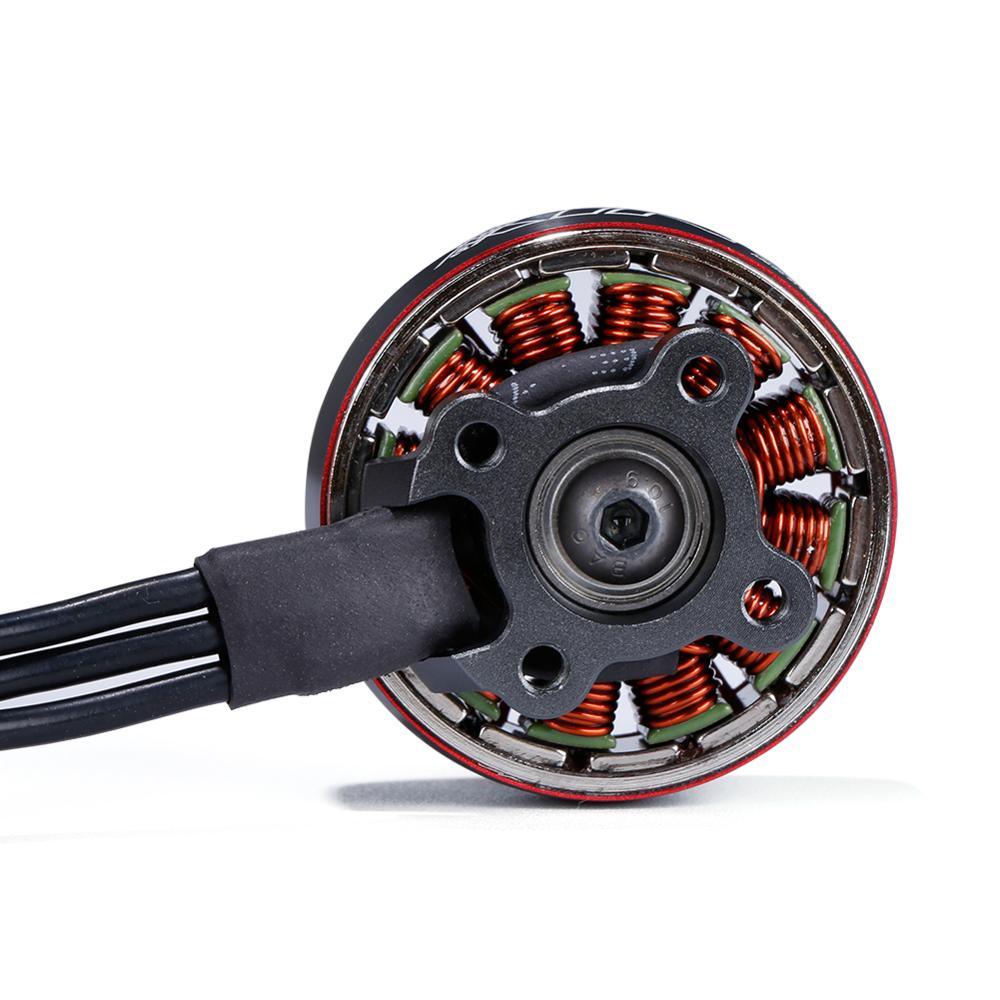

Motor mount hole: 19*19 φ3mm
Package included:
1pc x X2806.5 motor
1pc x M5 Screw nut
4pc x m3*8 screws
iFight XING 2806.5 1300KV Technical Datas KV 1300 Configu-ration 12NI4P Stator Diamter 28mm Stator Length 6.Smm Shaft Diameter Smm Motor 033.7*21.Smm Dimension(Dia:#Le Weightlg) 49 59 Idle 41.3 current(1O)@1OVA I309 No_of Cells (Lipo) 365 Max Continuous 986.64 Power(W)
