iFlight XING X4214 4214 400KV/660KV 3-6S X-CLASS FPV NextGen Motor compatible with iFlight iX15 X-Class racing frame for FPV kit

iFlight XING X4214 4214 400KV/660KV 3-6S X-CLASS FPV NextGen Motor compatible with iFlight iX15 X-Class racing frame for FPV kit

iFlight

Regular price $104.88 USD
Regular price $157.32 USD Sale price $104.88 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

35 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 50*33mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: XING X4214

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: IFLIGHT

Description:

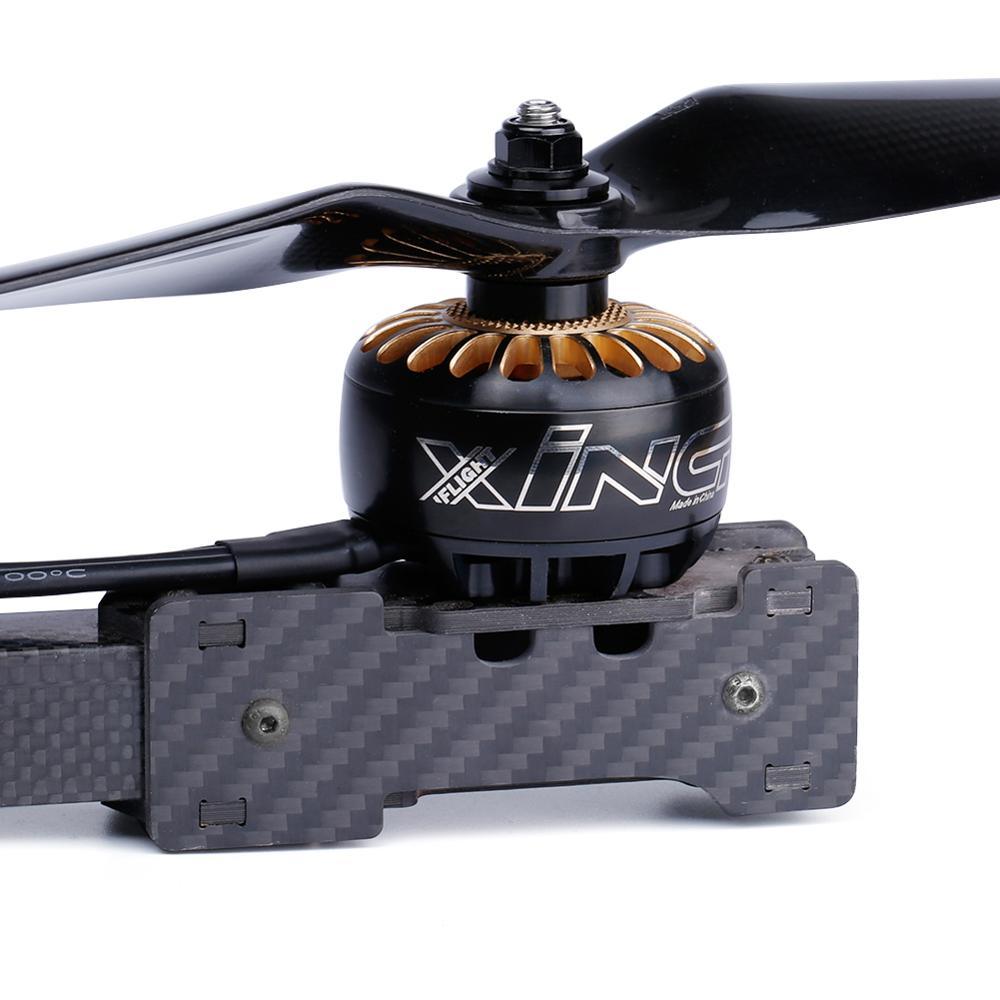

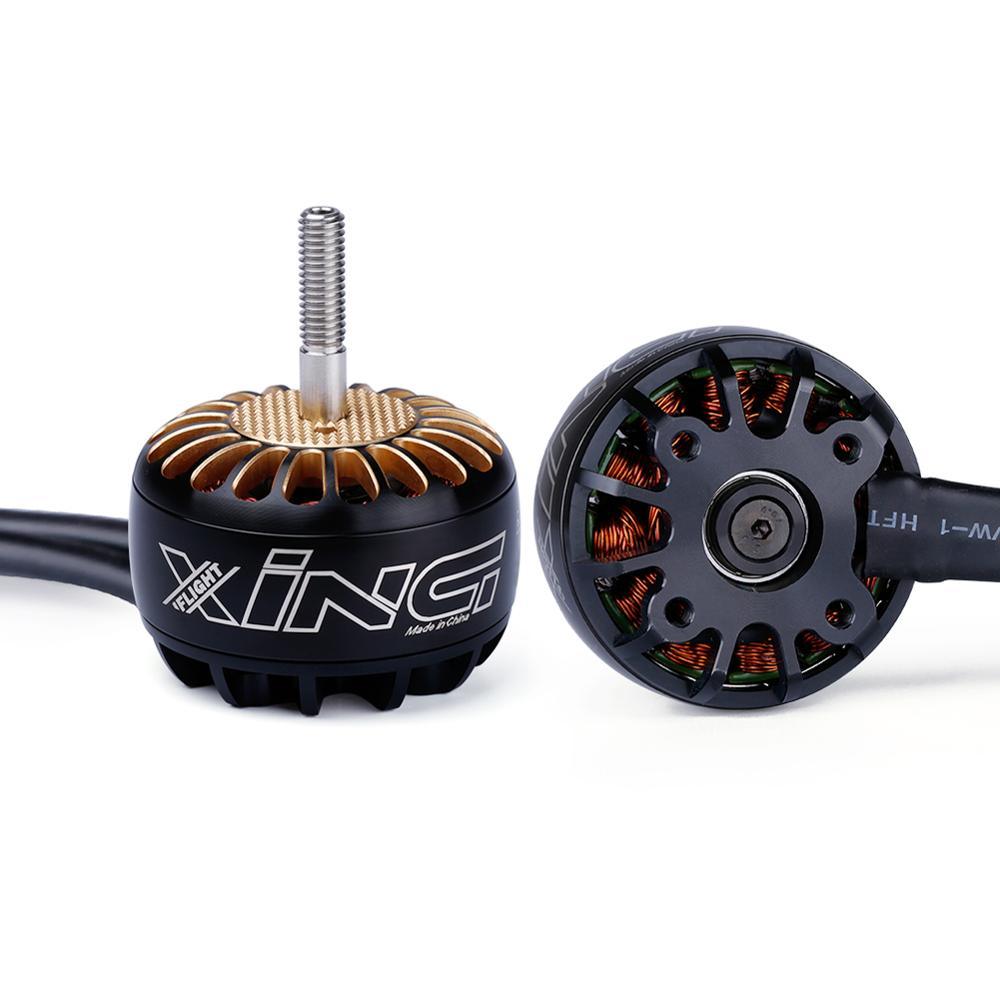

  • The iFlight XING 4214 motor is designed to provide responsive power with a low KV. It is perfect for 6S 15" X-Class racing drone like iX15! Named after and inspired by the XING series motor, matching its smooth and aggressive flying style, this motor comes with a solid stator & Pacific copper wires in combination with N45SH magnets & very small air gap. EZO bearings provide a silky smooth flight. All these results in unbelievable flight performance and experience!

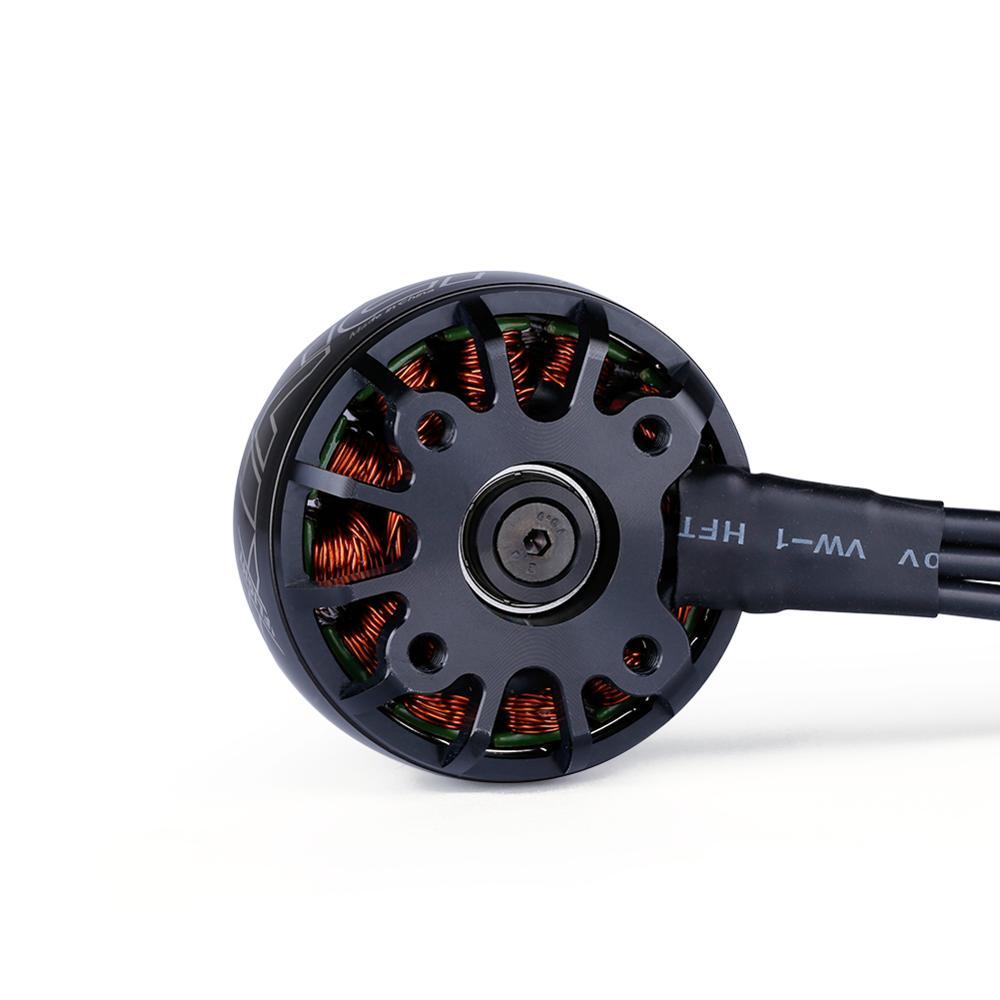

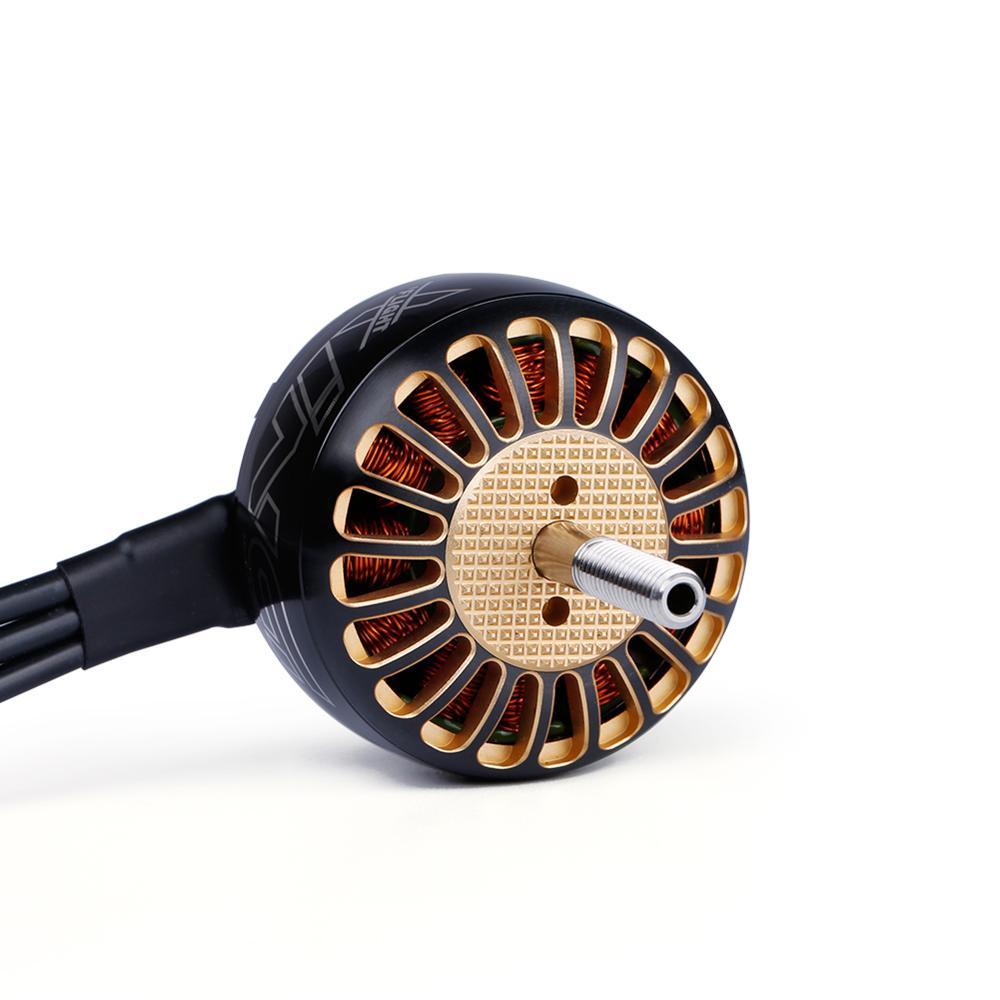

  • Anti-slip aluminum bell, 420 stainless steel 26.5mm (outer length) Φ6mm shaft & M6 hex nut enables most propellers on market easy to install and remove on 4214. Pre-tinned 800mm wires and 4mm threaded holes in 30*30mm pattern on the back plate apply to most X-Class frames on market. The hollowed-out lightweight base increases cooling and efficiency.

  • All in all, the new iFlight XING 4214 is definitely the first choice for X-Class racing!

Features:

  • Specially designed for X-Class Racing

  • Oxidation-Color 7075 T6 milled aluminum Bell and Base

  • 420 stainless steel

  • Japanese Kawasaki 1200 Iron Core

  • Solid Pacific 220℃ Heat-Resistant Copper Wire & Winding

  • Long life Japanese EZO bearings

  • N45SH High-temperature tegular magnets, small air gap

  • Electromagnetically matched magnets and stator

  • Optimized heat dissipation structure design, 20% heat reduced

  • Max 7.9kg thrust of 660kv

  • 50%-90% thrust max efficiency and thrust

  • Single piece 6mm shaft runs throughout motor to prevent bell warping in hard hits

  • Hex bolt shaft set screw for easy maintenance

  • Dynamically balanced

  • Motor wire protected

Specifications:

  • Name iFlight XING 4214

  • KV: 400KV/660KV

  • Structure: 12N14P

  • Stator diameter: 42mm

  • Stator length: 14mm

  • Outer Shaft length and diameter: 26.5mm M6

  • Motor size: φ50*33mm

  • Magnet: N45SH

  • Bearing: EZO

  • Cable: 14AWG,800mm

  • Weight: 270.1g w/ cables

  • Bearings:15x6x5

Package Included:

  • XING 4214 X-Class Racing Motor *1pcs

  • Screws & nut * 1set

iFlight XING 4214 40OKV Technical Datas 400 Configuration_

iFlight XING 4214 40OKV Technical Datas 400 Configuration_ 12N14P Stator Diamter 42mm Stator_Length _ 14mm Shaft Diameter 6mm Motor_Dimension(Dia :Len) p50+33mm Weightlg) 213 Idle_current(lQJ@1QV(A)_ 1.26 Noof Cells(Lipo) 3-8S 42 Max Continuous 741.6 Power(W)

iFlight XING 4214 660KV Technical Datas 660 Configur

iFlight XING X4214 motor specifications: 660KV configuration, featuring a 12N14P stator with a diameter of 42mm, length of 14mm, and shaft diameter of 6mm. The motor dimensions are approximately 50mm in diameter and 33mm in length, weighing 213 grams. Idle current is 2.5A at 1V (1Q), suitable for use with 3-6S Lipo batteries.
