SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Battery
Technical parameters: Value 2
Size: 38.6x21mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Antennas
Quantity: 1 pcs
Origin: Mainland China
Model Number: XING2 3106
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: IFLIGHT
Description:

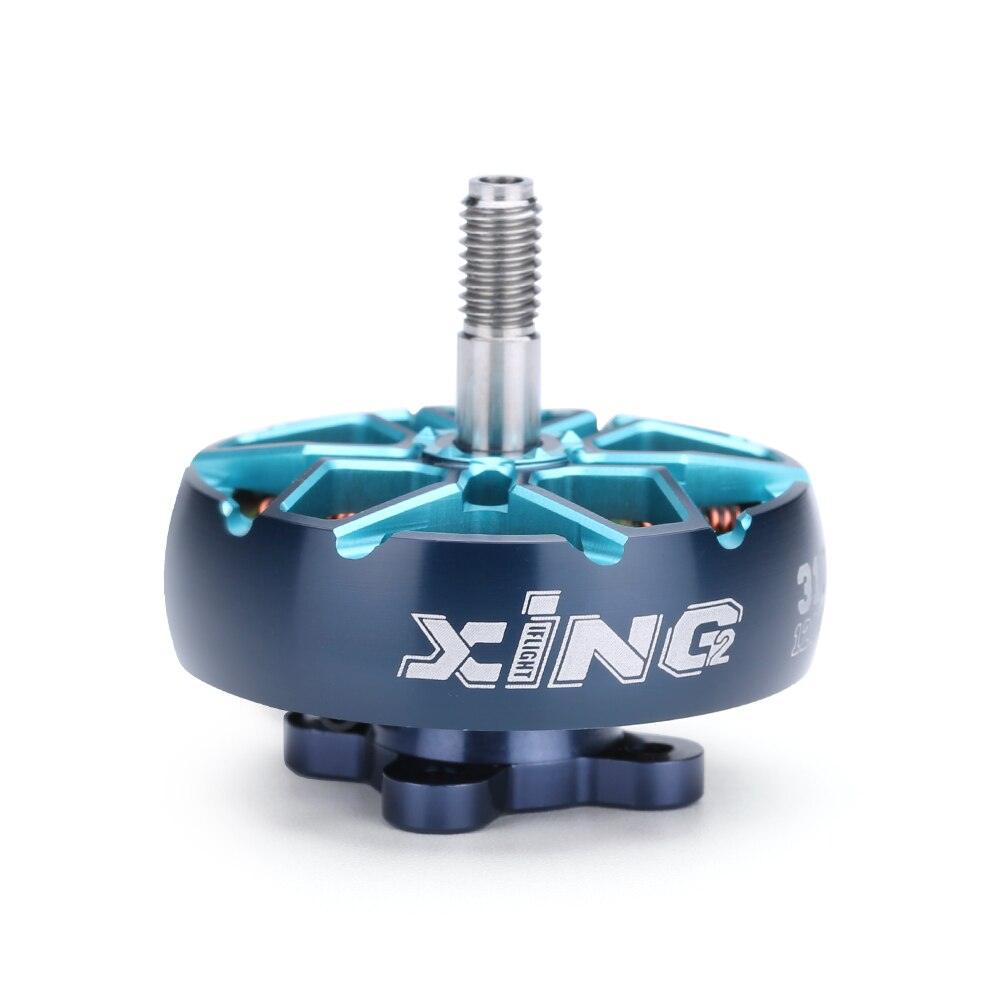

Our XING series NextGen motors have become popular after the initial release in 2018 and became the new standard on the market. Was it the curved shape or the internal damping ring to protect the bearing, or was it the higher quality NSK bearings coupled with a higher grade titanium alloy shaft? We've been copied and compared all these years, but now it's time to set a new standard again!We're finally ready to announce our predecessor the XING2!
The smooth, reliable and powerful XING motors were upgraded and we achieved an even higher standard in our manufactory as well as better performance than ever before.New center slotted N52H curved arc magnetswere introduced to drastically reduce response time of the motor! Maybe the biggest bottleneck of our FPV flight controller is the motor due to it's translation delay of it braking and accelerating. XING2 motors offer faster response to translate your PID loop quicker and get that locked-in feeling you were always looking for!
Due to the high quality materials used and the durable joint of bell and shaft, we were able toreduce the magnet air gap and stator laminationto a minimum. The smaller the air gap is, the lower that reluctance and the higher the magnetic flux (which is the magnetic analog of current) causingmore efficiency and higher power!
Early 2018 we started to put o-rings on the top of our bearings between motor bell and stator. This acts as an absorber if your bell or shaft has gone through crashing and keeps the bearing gap tight to reduce all those vibrations induced by high rpms! It can also reduce the axial impact force just enough to keep your bearings smooth and quiet. All our experience, high quality 7075 bells, O-ring bearing protection and all the other features you've just seen on your original XING series are still inbuilt in a new shape and design!

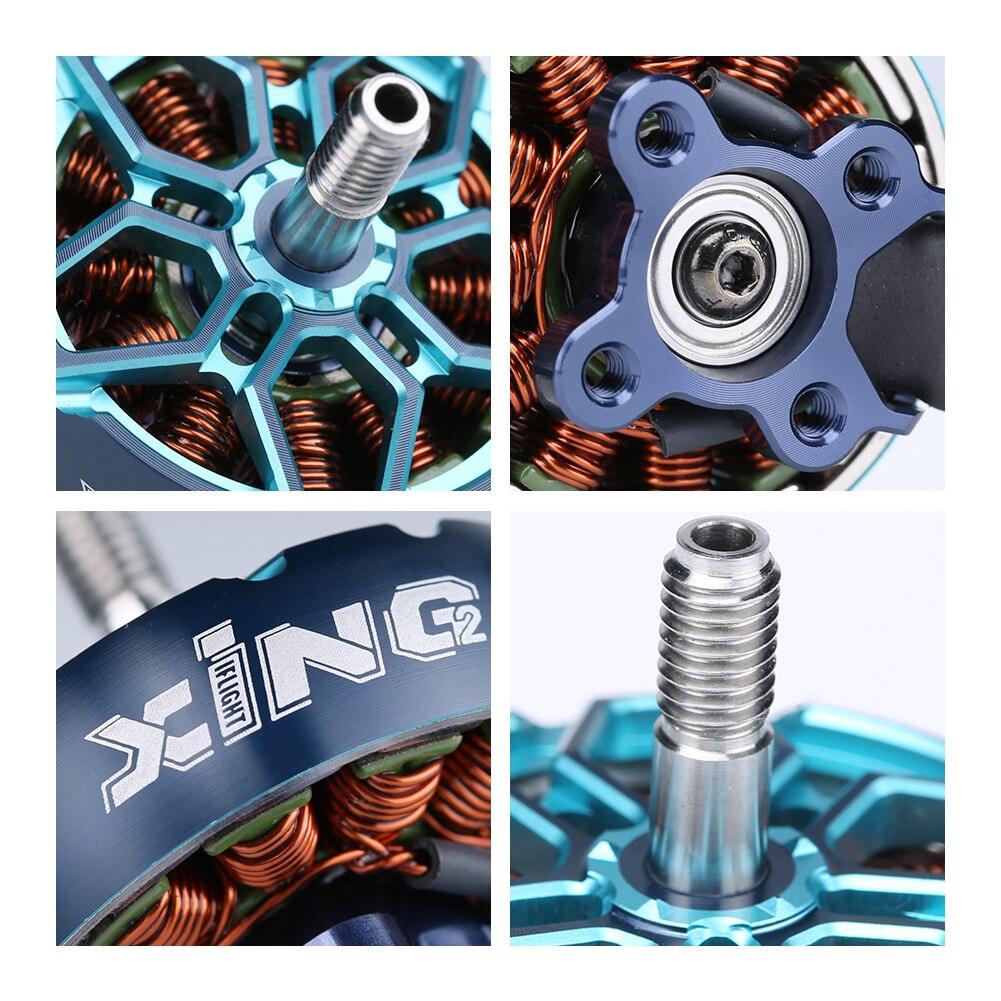

Features:
5mm titanium alloy shaft, our strongest prop shaft ever!
Crash resistant 7075 aluminum bell
Smooth and long-lasting NSK 11x5x5 bearings
Center slotted N52H curved arc magnets
XING O-ring bearing gap protection
Motor wires protector
Dynamically balanced
Specification
Model: XING2 3106
KV: 1200KV / 1500KV (select)
Prop shaft: CW thread
Recommended input voltage Voltage: 4S-6S (16V-26V)
Configuration: 12N14P
Stator Diameter: 31mm
Stator Height: 6mm

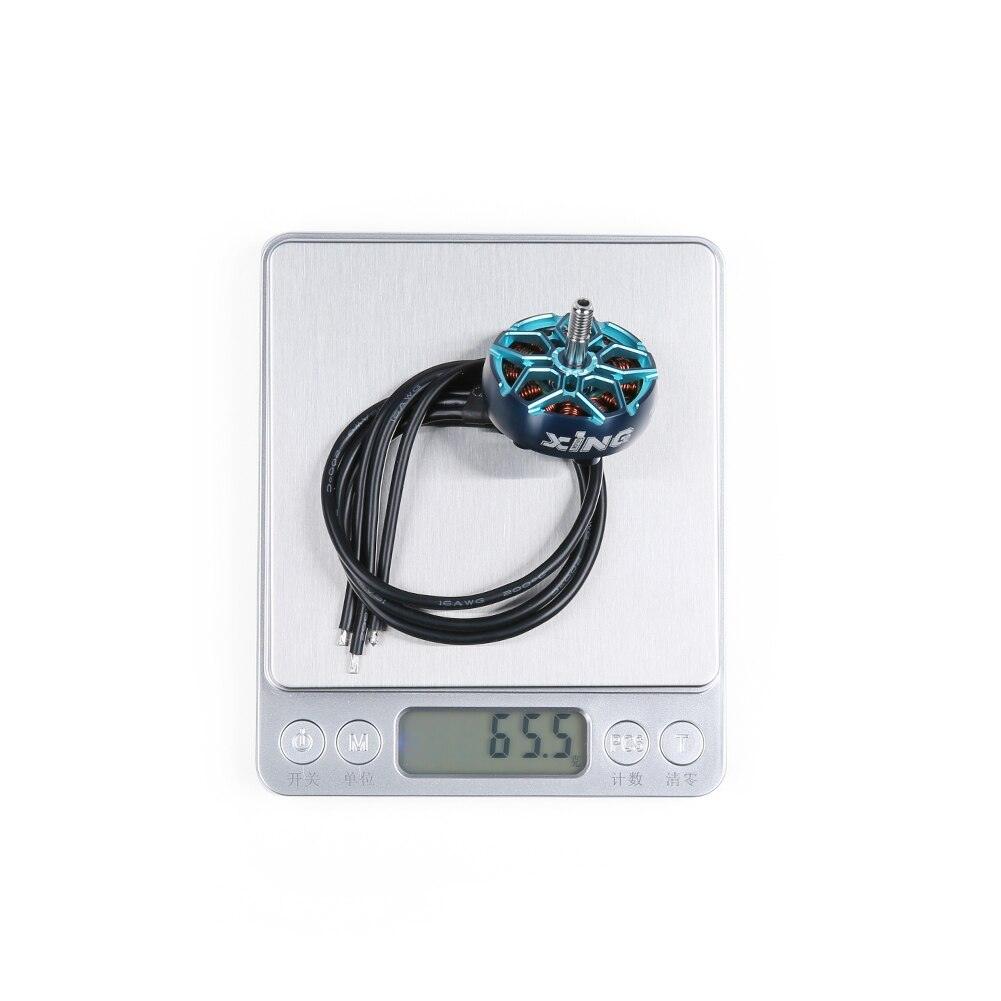

Weight: 65.5g with short wire
Wire length:16AWG 260mm
Mounting pattern: 19*19mm
Package includes:
1x XING2 3106 Brushless Motor
4x M3x6 screws
1xProp nut
NOTE: Propellers not included!
58g Dimension: 038.6*21.Omm Interphase resistance: 64.5m Input Volts: 24V Peak Current: 63.01A Max Watt: 1512W Mounting Holes: 19*19-03mm Magnet: NSZH Curved Configuration: 12N14P Bearing type: NSK Bearing specs: Q11*05*5 Winding: Single strand copper winding Package included: M3*8mm screw (4PCS) MS Flange Nut (1PC
