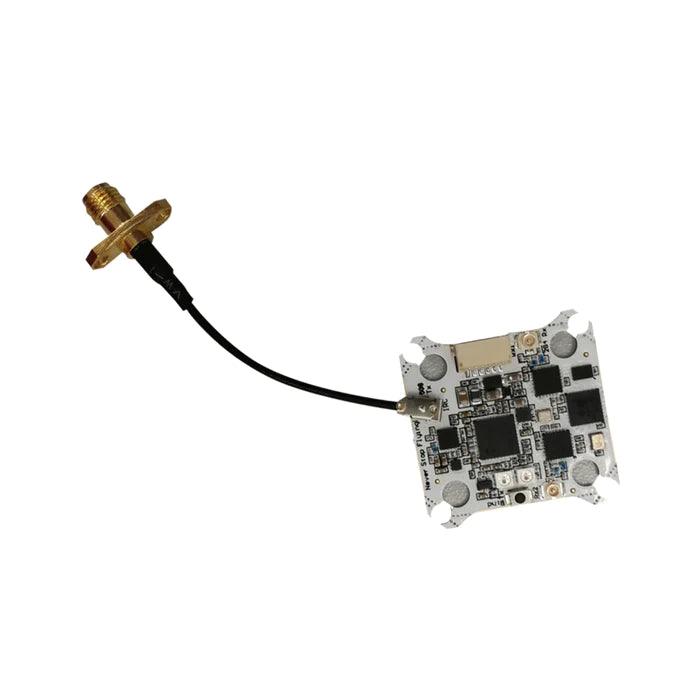

ImmersionRC Ghost Hybrid V2 DUO 5.8GHz VTX/2.4GHz RX - 25mW - 600mW Video Transmitter RC Control Link

ImmersionRC Ghost Hybrid V2 DUO 5.8GHz VTX/2.4GHz RX - 25mW - 600mW Video Transmitter RC Control Link

ImmersionRC

$85.00 USD
$85.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Description

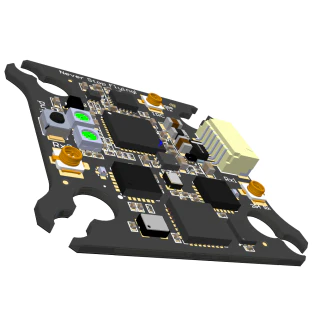

Immersion RC Ghost Hybrid 5.8GHz vTx/2.4GHz Rx. High end analog video transmitter and high RC control link - all in one board.



A Perfect Fusion Ghost Receiver and Tramp Transmitter

heidi schlumpf: Designed by pilots

There is nothing like the experience of flying an FPV drone, but building these marvelous machines is more complex than it needs to be. With Tramp we set out to raise the bar on video transmitter technology. With Ghost we set out to redefine the norms in receivers for R/C control. And now we have fused these two together, in the groundbreaking Ghost Hybrid. Designed by pilots, built by pilots, supported by pilots.
  • 20 x 20mm Mounting (inner)
  • Additional mounting holes, 25.5x25.5mm (outer)
  • Two full receiver channels (not just dual antenna)
  • Only 2.2g, perfect for the popular sub-250g class
  • Extreme Range AND Low Latency
  • 500Hz R/C Link Updates (HW is 1kHz ready) *
  • 2.4GHz Lora OR FLRC control modes, for the best performance in any environment
  • Integrated 5.8GHz 25mW - 600mW Video Transmitter *
  • All 48 Standard Channels
  • Thermally regulated, Factory calibrated

* 1kHz/1kHz ready for when OpenTx can supply quality data at this rate
* Available vTx channels and power may vary from region to region to comply with local regulations



Intelligent vTx Control

Ghost set out to redefine the norms in receivers for R/C control .

Intelligent, and direct control of the video transmitter from the Ghost ecosystem. Use either the OLED menus on the Ghost Transmitter module, or the responsive OpenTx tools menu.Tx remains silent on power-up, shuts down immediately in an (unlikely) failsafe.


Locking Connectors

we have fused these two together, in the groundbreaking Ghost Hybrid .

Innovative locking connectors deliver the advantages of the light-weight u.FL/MHF standard, with the security required for world class racing, or long range flying.Simply plug the connector onto the board, and slide the locking cap to secure.


Thermal Regulation + Calibration

Heat map of semiconductor

As with all tramp products, the Hybrid includes automatic thermal regulations, protecting the video transmitter against potentially damaging overheating while sitting on the starting pad.The on-board Tramp is factory calibrated, for precise power delivery during critical race events.

qTee Antennas

heidi schlumpf: Designed by pilots

qTee, a.k.a ‘Cutie’ antennas are center-fed dipoles, with integral balun to ensure no cable radiation, and without unexpected nulls in the radiation pattern.Tip to Tip length of just 60mm, easy to install in anything from a Whoop™ to an X-Class quad

GHOST HYBRID SPECIFICATIONS

  • Package List:   (1x Ghost Hybrid, 2x qTee Antenna, 1x U.FL to SMA, Wire Harness, 4x Gummies)
  • Downlink RF Power: +13dBm
  • Sensitivity: -117dBm in Long Range mode
  • Serial Formats: GHST, SBus, SBus-Fast (200k) , SRXL-2 (400k), SBus Inverted
  • Firmware: Over-the-air (OTA) upgradable (Rx and VTx)
  • Power Supply: 5V, with Over Voltage Protection
  • vTx Control: Automatic, via Ghost
  • Antenna Connectors: Standard U.FL with Locking Connectors
  • Dimensions: 26mm x 126mm, 2.2g (w/o antennas)
1 GHST protocol available in a custom OpenTX build at product first shipment.
2 Sbus is inverted by definition, SBus Inverted flips it over so that it doesn’t require inverters on F4 FCs
3 Some specifications vary depending upon the regionally-specific product SKU
