JHEMCU JHE20B Finder BB Ring 100dB Buzzer Alarm w/ LED, BF/CF/INAV Flight Controller Buzzer Port

Overview

The JHEMCU JHE20B Finder is a 100dB buzzer alarm with LED light for BF/CF/INAV flight controllers. It works like a traditional active buzzer when connected to the flight controller, and it can also continue beeping and lighting after main battery power is disconnected to help locate the aircraft.

Key Features

• Active buzzer function synchronized with the flight controller (buzzer interface connection).
• Power-loss alarm: when the flight controller is normally connected and the main battery is powered off, the buzzer automatically sounds after 30 seconds and the LED emits white light.
• Built-in charging behavior from the flight controller power supply when wiring is correct.
• Status indication (per provided instructions): red LED on = charging; red LED off = fully charged; red LED flashing = flight controller powered off (30-second wait time).
• Sound off: press and hold the release button for more than 2 seconds to turn off the sound.
• Compatible with BF and CF flight controllers.

Specifications

For setup or wiring assistance, contact https://rcdrone.top/ or email [email protected].

What's Included

• JHE20B Finder x 1
• 3P*1.0MM line x 1

Applications

• Multirotor/FPV aircraft buzzer alarm and locator
• BF/CF/INAV flight controller builds using the buzzer interface

Details

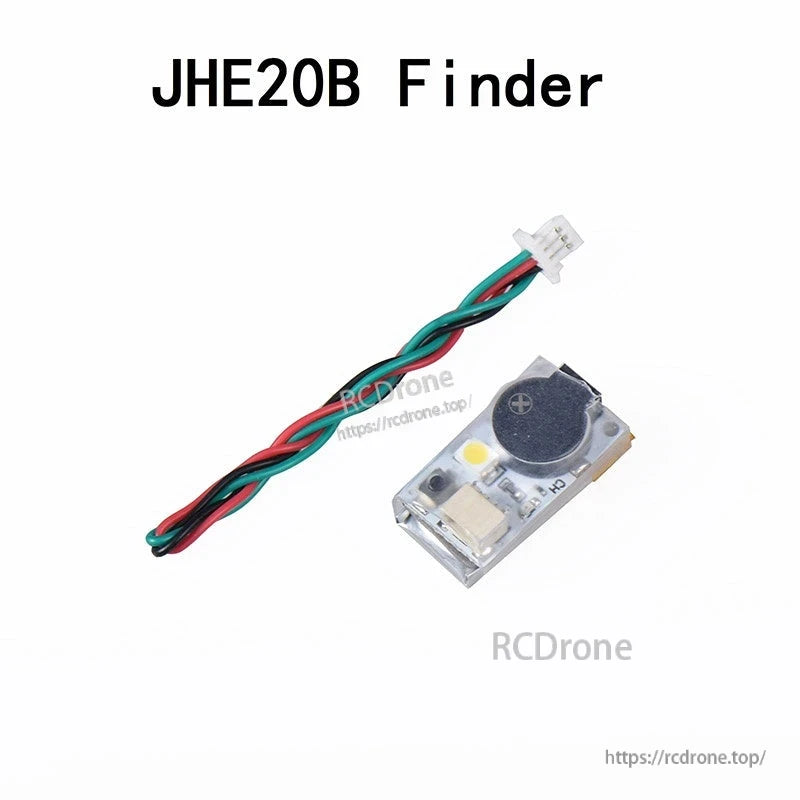

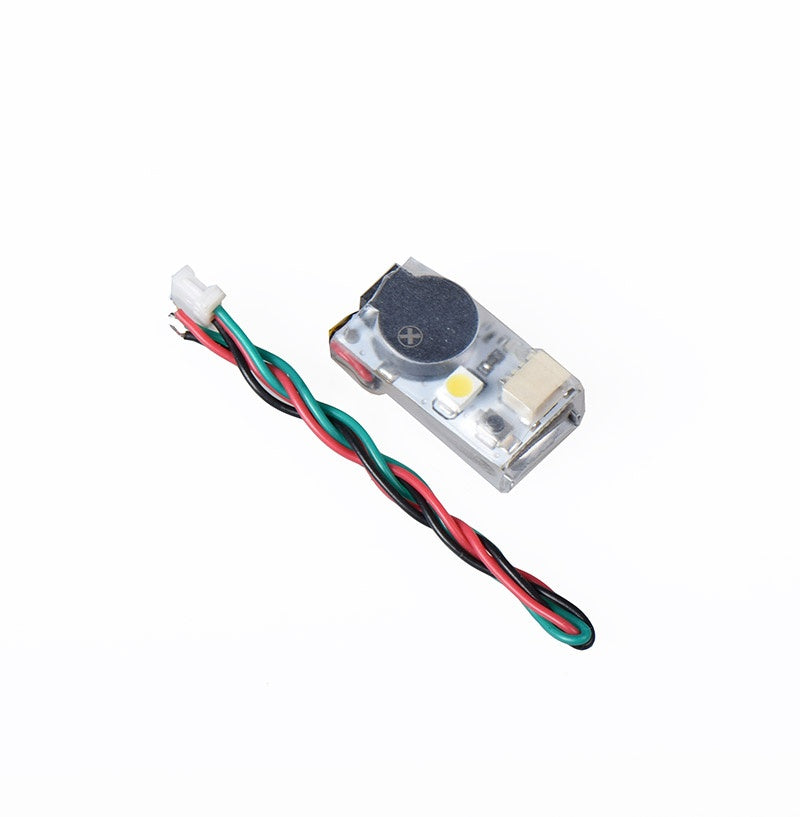

A compact 100dB FPV finder buzzer with onboard LED and a 3-pin lead for the flight controller buzzer port.

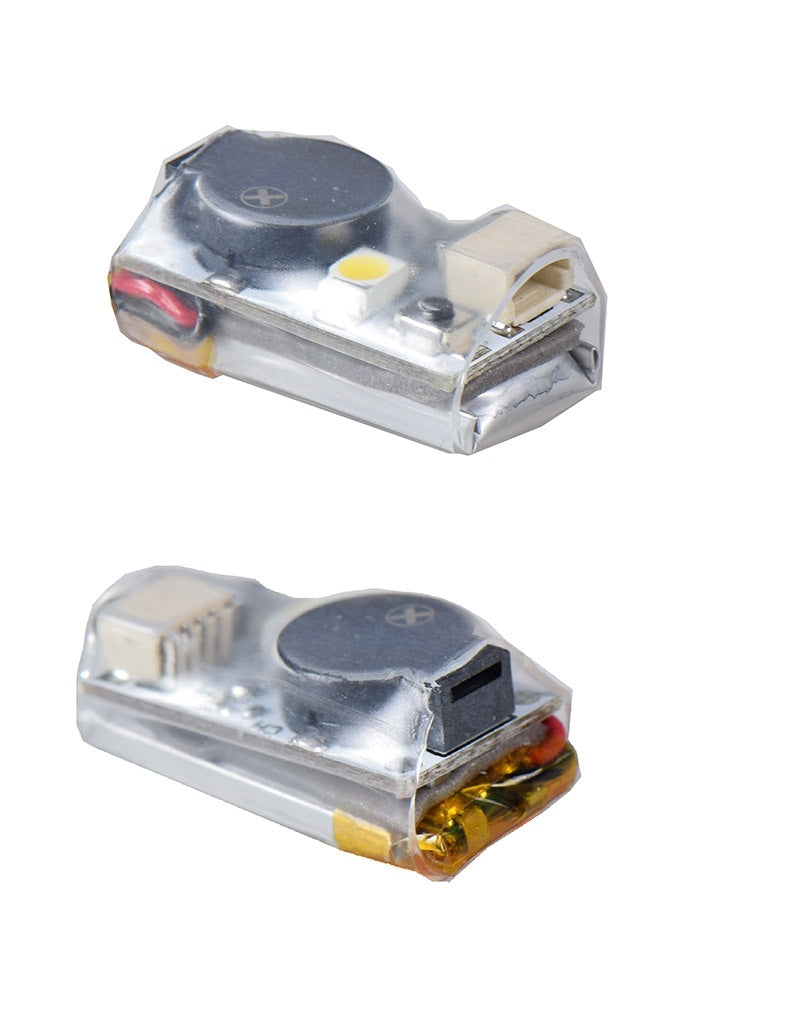

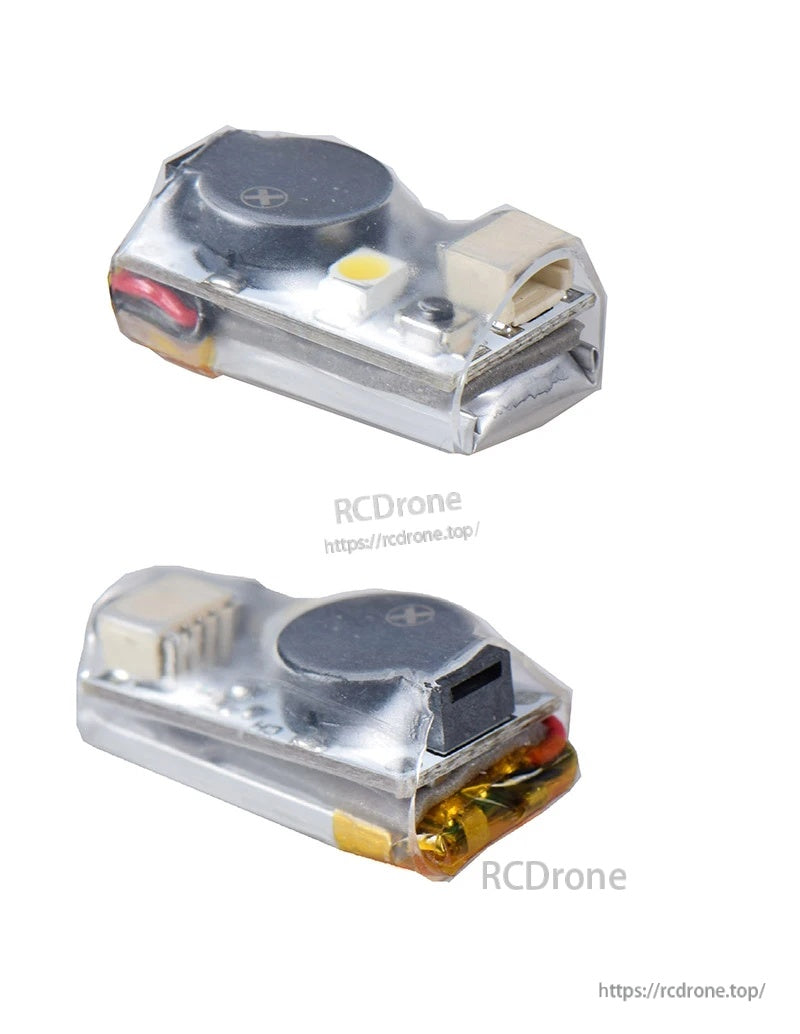

The integrated LED and small form factor make it easy to fit into tight FPV builds while keeping the locator visible.
