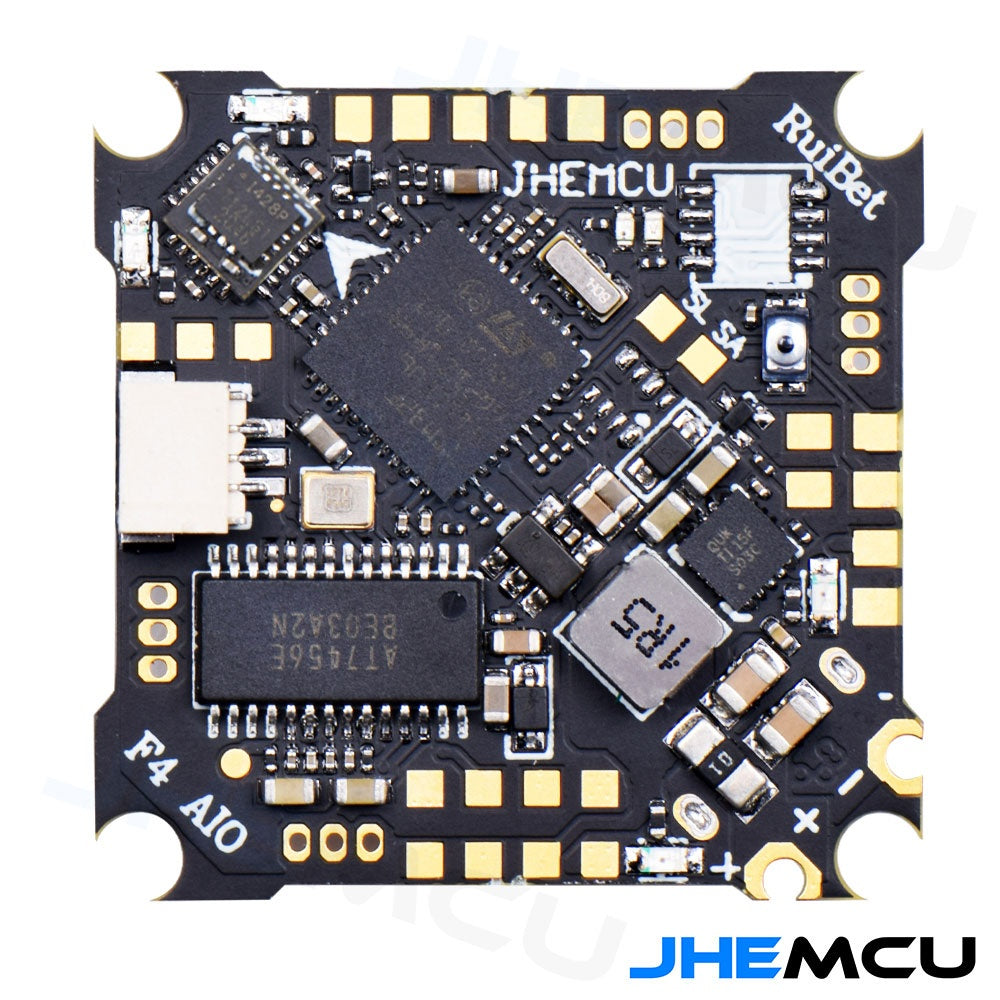

• JHEMCU Ruibet F4AIO 12A AIO flight controller top view with solder pads and main MCU

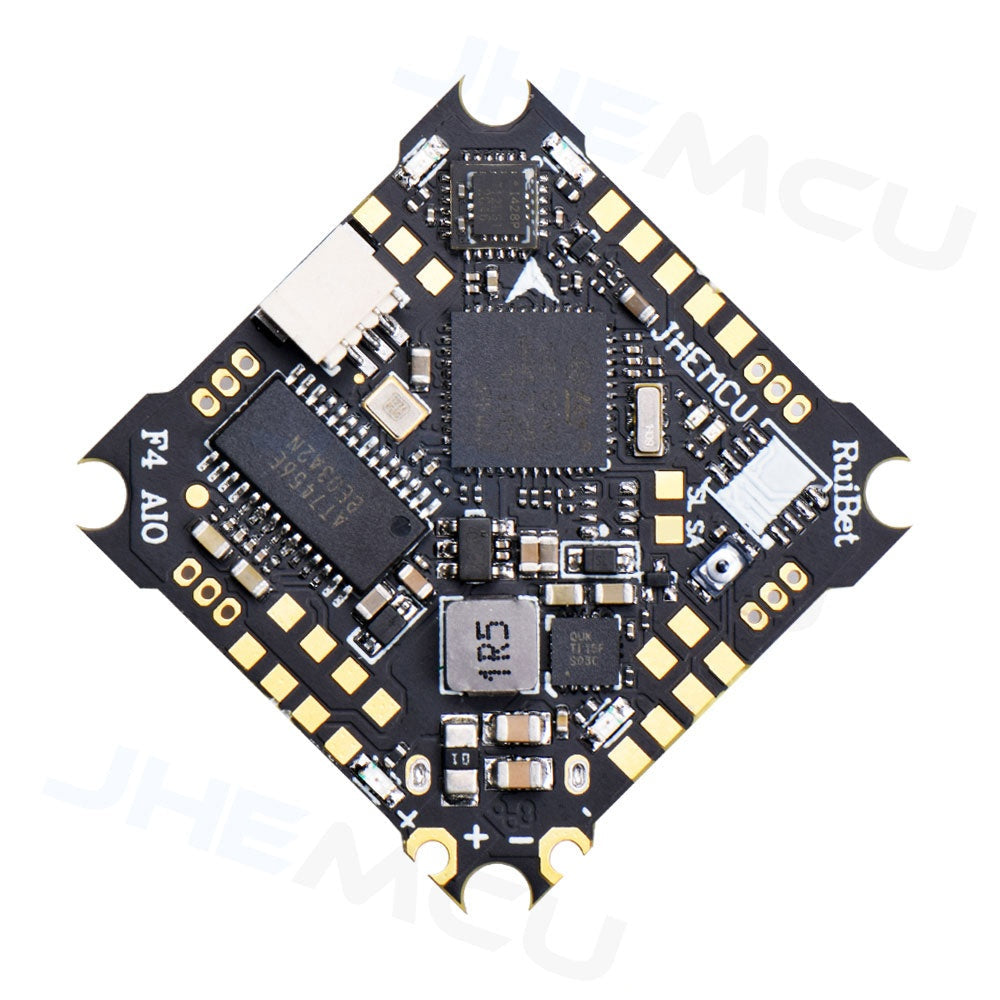

  • Ruibet F4 AIO flight controller PCB close-up showing components, corner mounting holes, and pad layout

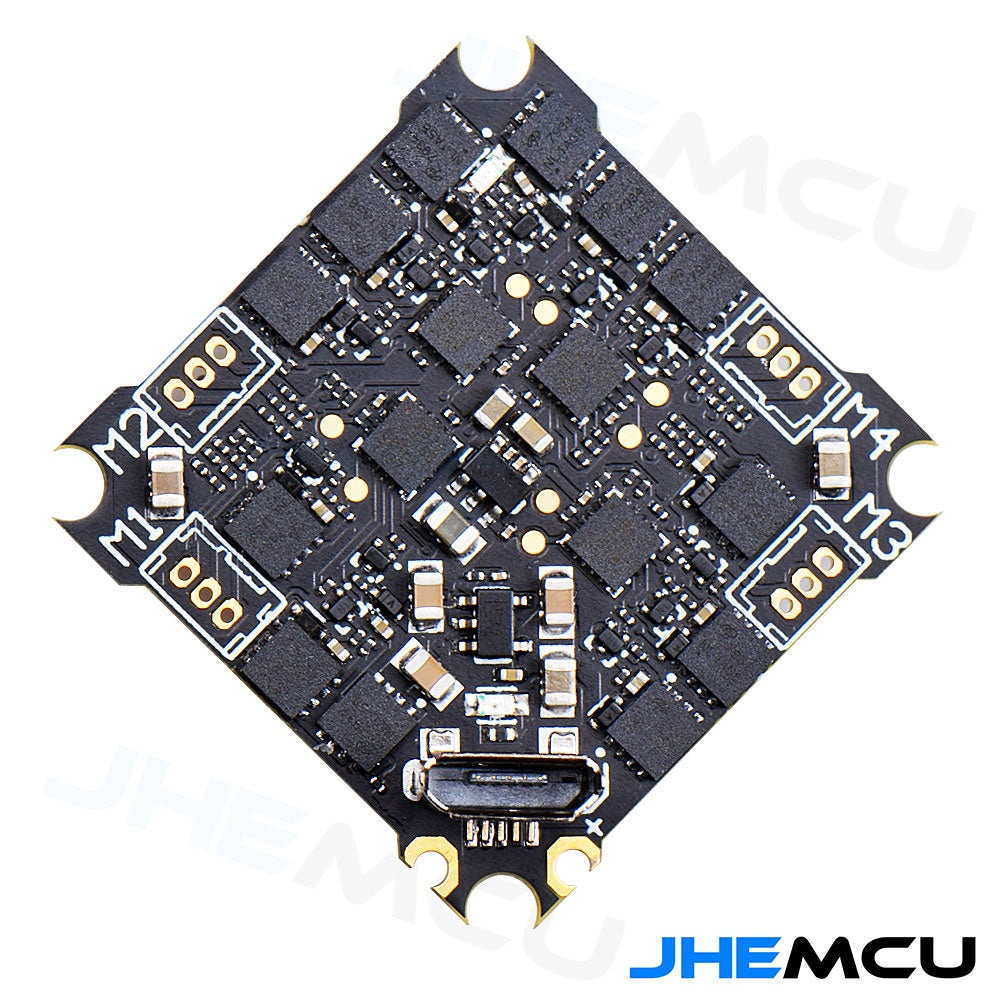

  • JHEMCU Ruibet F4AIO 12A AIO flight controller bottom view with USB port and motor pad labels M1–M4

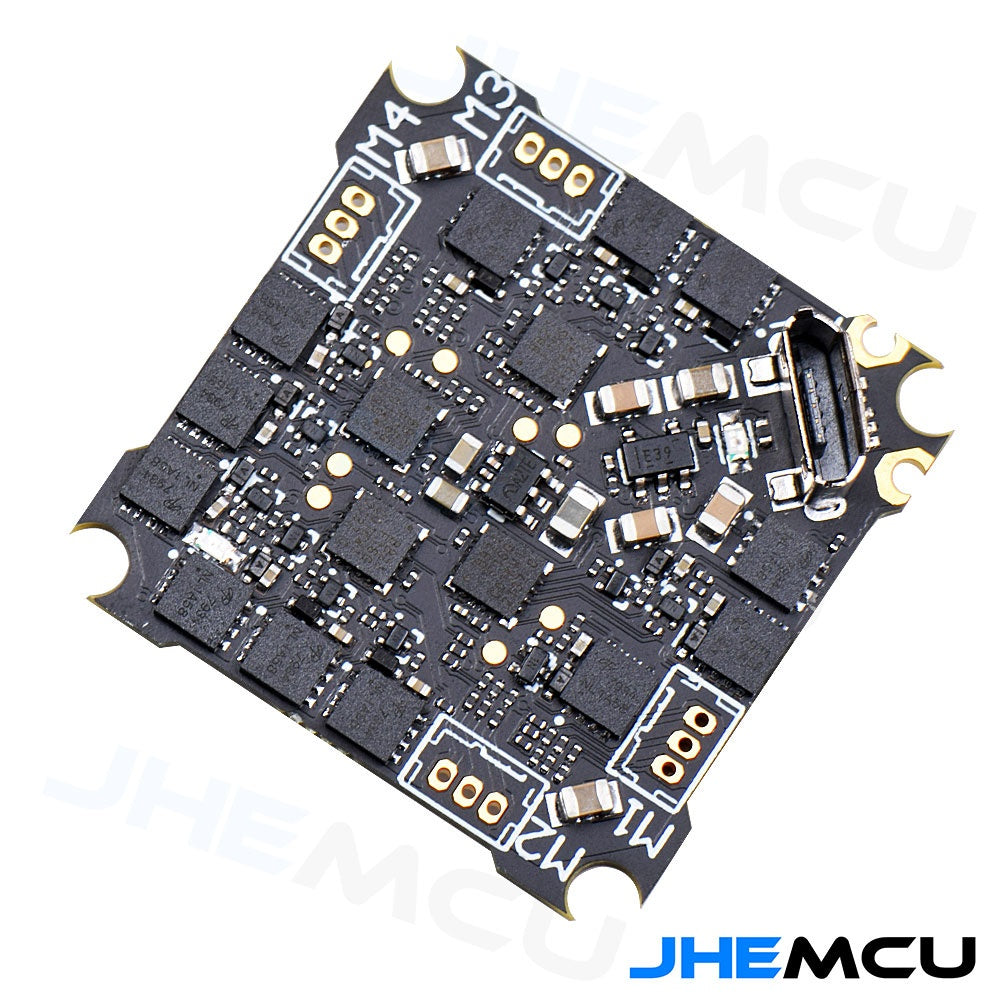

  • Angled underside view of Ruibet F4 AIO board showing integrated ESC MOSFET array and USB connector
1 4

JHEMCU Ruibet F4AIO 12A AIO Flight Controller w/ 12A*4 BLHeli_S ESC for 1S-2S FPV Quad

JHEMCU Ruibet F4AIO 12A AIO Flight Controller w/ 12A*4 BLHeli_S ESC for 1S-2S FPV Quad

JHEMCU

$84.98 USD
$84.98 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

JHEMCU Ruibet F4AIO 12A is an AIO flight controller with an integrated 12A 4-in-1 ESC for 1S–2S LiPo micro quadcopter builds. It combines an STM32F411 flight controller, AT7456E OSD, and BLHeli_S ESC firmware in a compact 29×29 mm board.

Key Features

  • MCU: STM32F411 / 100MHZ
  • IMU: ICM-42688-P
  • OSD: AT7456E
  • Input voltage: 1S-2S
  • 5V BEC: 5V/1.5A ±0.1V
  • Receiver support: ELRS(CRSF), TBS(CRSF), SBUS, IBUS, DSM2, DSMX
  • UART: UART1, UART2
  • IIC: YES
  • LED strip support: YES
  • Buzzer: supports 5V active
  • ESC signal: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
  • USB: Micro USB
  • Current port: YES
  • Voltage sensor: YES
  • DFU button: YES
  • Barometer: WITHOUT
  • Blackbox: WITHOUT

Specifications

Brand JHEMCU
Model Ruibet F4AIO 12A
MCU STM32F411/100MHZ
IMU ICM-42688-P
OSD AT7456E
Baro WITHOUT
Blackbox WITHOUT
Input voltage 1S-2S
5V-BEC 5V/1.5A ±0.1V
Receiver ELRS(CRSF), TBS(CRSF), SBUS, IBUS, DSM2, DSMX
USART UART1, UART2
IIC YES
Led_Strip YES
Buzzer supports 5V active
ESC signal PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
USB Micro USB
Current port YES
Voltage sensor YES
DFU button YES
FC firmware betaflight_4.3.1 JHEF411.HEX
ESC MCU EFM8BB21F16G
ESC current 12A*4
ESC firmware type Blheli_S
ESC firmware Z_H_30_REV16_7.HEX
Size 29*29MM
Mounting Hole 25.5*25.5*3MM
Weight 4.4g

Wiring / Connections

  • Motor pads: M1, M2, M3, M4
  • Camera pads: CAM, +5V, GND
  • VTX pads (incl. spare pads shown): VTX, GND (power connection depends on VTX requirement)
  • Receiver pads shown: SBUS; DSM receiver example uses RC / 3.3V / GND; SBUS/IBUS uses RC / VCC / GND; CRSF uses RX / TX / VCC / GND
  • UART pads shown: RX1, TX1; RX2, TX2
  • I2C pads: SCL, SDA
  • Other labeled pads: RSSI, LED, BZ, +5V, VBAT, GND

Note: When using SBUS/IBUS/DSM receiver, enable UART2 as Serial RX in the ports configuration.

ESC Setup Note (1S)

If using a 1S battery and the motor is difficult to start, try increasing the ESC starting power to a value that can start the motor (BLHeli_S / Bluejay settings screen).

What's Included

  • RuiBet F4 AIO *1
  • 20AWG wire *2
  • XT30 *1
  • M2*6.5 damping ball *4
  • 220UF/16V capacitor *1
  • 2P plug wire *1
  • 3P*1.25 socket *4

For build/connection questions and compatibility checks, contact support at https://rcdrone.top/ or email [email protected].

Details

JHEMCU Ruibet F4AIO 12A AIO flight controller front view with STM32F411 FC and integrated 4-in-1 ESC

The JHEMCU Ruibet F4AIO 12A combines an F411 flight controller and 12A 4-in-1 ESC in a compact AIO board for 1S–2S micro builds.

Close-up of Ruibet F4AIO 12A board components and solder pads for receiver, VTX, camera, and power connectionsBack side of the AIO flight controller showing motor pad layout (M1–M4) and micro USB port

Motor pads are clearly marked (M1–M4) on the underside, with a Micro USB port for easy Betaflight setup.

Angled rear view highlighting the 4-in-1 ESC MOSFET layout and motor pad corners on the 29×29mm boardDetail view of underside circuitry with motor pad clusters and USB connector for the Ruibet F4AIO 12AJHEMCU Ruibet F4AIO 12A AIO flight controller on scale showing 4.4g board weight

At only about 4.4g, it helps keep lightweight builds responsive without giving up integrated ESC capability.

Package contents: Ruibet F4AIO 12A board, XT30 lead, wires, capacitor, damping balls, and connector sockets

Included accessories support a clean install with power lead, capacitor, wiring, connectors, and soft mounting hardware.

BLHeli_S and Bluejay ESC settings screenshots for adjusting startup power on 1S builds

For 1S setups where motors hesitate to start, raising ESC startup power in BLHeli_S/Bluejay can improve spin-up.

Ruibet F4AIO 12A specifications table listing STM32F411, ICM-42688-P IMU, AT7456E OSD, 1S–2S input, and UARTs

Key specs at a glance: STM32F411 MCU, ICM-42688-P IMU, AT7456E OSD, 1S–2S input, and UART1/UART2 for receiver options.

Wiring diagram for Ruibet F4AIO 12A showing motor, camera, VTX, and receiver connections plus UART2 serial RX note

Wiring guidance covers motors, camera, VTX, and common receiver types, including the UART2 serial RX setting for SBUS/IBUS/DSM.
