JHEMCU VTX2W5 5.8G 2.5W VTX Image Transmission Module 40CH w/ MIC, Button, IRC, 7-26V Input

Overview

JHEMCU VTX2W5 is a 5.8G image transmission product (VTX) with 2.5W output power and 40CH channel support. The board includes a push button for Power/Band/Chan selection and an on-board microphone (MIC) for audio pickup.

Key Features

• 5.8G VTX with 2.5W marked output power
• 40CH channel support (marked “40CH”)
• Button control for Power/Band/Chan (marked on PCB)
• On-board microphone (marked “MIC”)
• IRC control pin available (marked “IRC”)
• Heatsink-equipped design (as shown)

Specifications

Wiring (as labeled in diagram)

When flight controller OSD is required

• Flight controller Video Out → VTX VIDEO
• Flight controller GND → VTX GND
• Flight controller VCC → VTX VCC (INPUT 7-26V)
• Flight controller TX → VTX IRC

When flight controller OSD is not required

• Camera +5V → VTX +5V
• Camera GND → VTX GND
• Camera Video → VTX VIDEO
• Flight controller VCC → VTX VCC (INPUT 7-26V)
• Flight controller TX → VTX IRC

What's Included

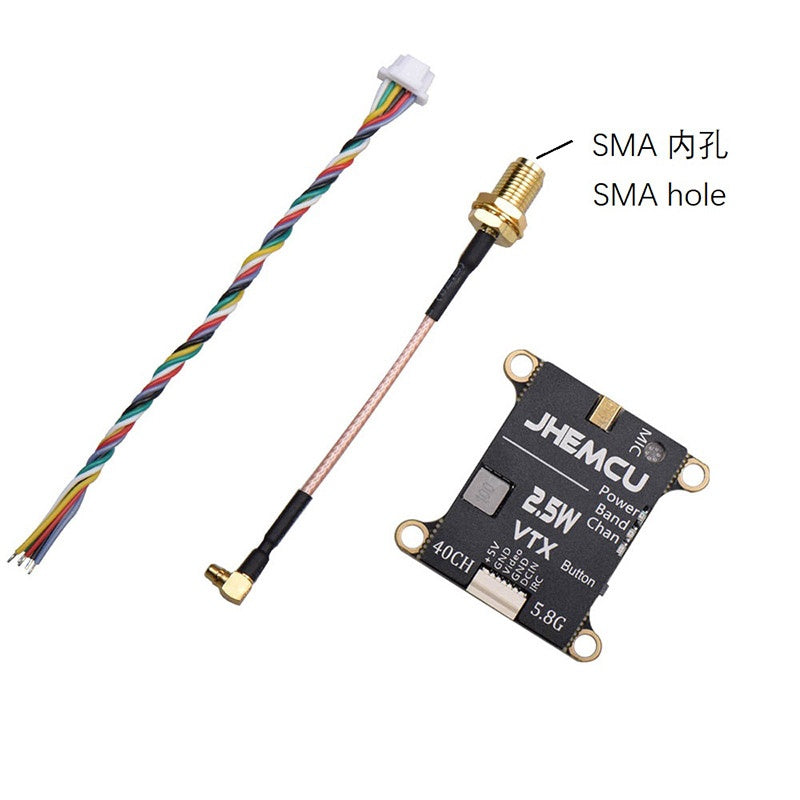

• JHEMCU 2.5W VTX board (5.8G, 40CH)
• Wire harness (as shown)
• SMA “hole” RF pigtail cable (as shown)

For pre-sales compatibility questions or after-sales support, contact [email protected] or visit https://rcdrone.top/.

Details

High-power 5.8GHz FPV VTX board with 40 channels and onboard button control for power, band, and channel.

An onboard microphone pad and clear PCB labels make wiring and setup straightforward.

A full-size heatsink covers the underside to help manage heat during higher output settings.

At about 7.9 g, it keeps your FPV build lightweight without sacrificing output headroom.

Includes the VTX board, a wiring harness, and an SMA-hole RF pigtail for antenna connection.

Connection options cover both setups: routing video through a flight controller OSD or wiring the camera directly to the VTX.
