JHEMCU VTX30-800 5.8GHz 25-800mW FPV Video Transmitter Module, MMCX to RP-SMA, IRC Tramp

Overview

The JHEMCU VTX30-800 is a 5.8G FPV video transmitter (VTX) module designed for analog FPV image transmission. It supports selectable RF power from 25–800mW and provides standard 5-band / 8-channel operation with onboard status indication LEDs for power, band, and channel.

Key Features

• 5.8G FPV video transmitter module (VTX30-800)
• Selectable output power levels: 25 / 100 / 200 / 400 / 800 mW
• 5 bands, 8 channels per band (40-channel set)
• Onboard indicator legend: Red = Power (mW), Green = Band (A–R), Blue = Channel (1–8)
• Control support shown in Betaflight: VTX (IRC Tramp)
• Antenna connection: MMCX on the VTX with included MMCX to RP-SMA jack pigtail
• Input power wiring label: INPUT 7–26V
• Provides a labeled +5V OUT pad for powering compatible peripherals

Specifications

5.8G Channel/Frequency Table (MHz)

Pad Labels (as printed on the VTX)

• +5V OUT
• GND
• VIDEO
• DC-IN
• IRC
• TRC

Wiring Notes (as shown)

• When flight controller OSD is required: connect the flight controller Video Out and GND to the VTX video and ground, and power the VTX from INPUT 7–26V; connect flight controller TX to IRC.
• When flight controller OSD is not required: connect the camera video directly to the VTX video and use the VTX +5V OUT / GND for camera power where applicable; power the VTX from INPUT 7–26V; connect flight controller TX to IRC.

What's Included

• JHEMCU VTX30-800 video transmitter module
• Wire harness
• MMCX to RP-SMA jack pigtail
• RP-SMA antenna

Applications

• Analog 5.8G FPV video transmission for FPV drones and RC aircraft
• Betaflight-configurable VTX setups using IRC Tramp

Manuals / Documents

• VTX JSON table reference: https://github.com/jhemcu/FC-ESC-Firmware/tree/main/VTX30-800

For compatibility checks (antenna connector type, wiring, and Betaflight setup), contact support at [email protected] or visit https://rcdrone.top/.

Details

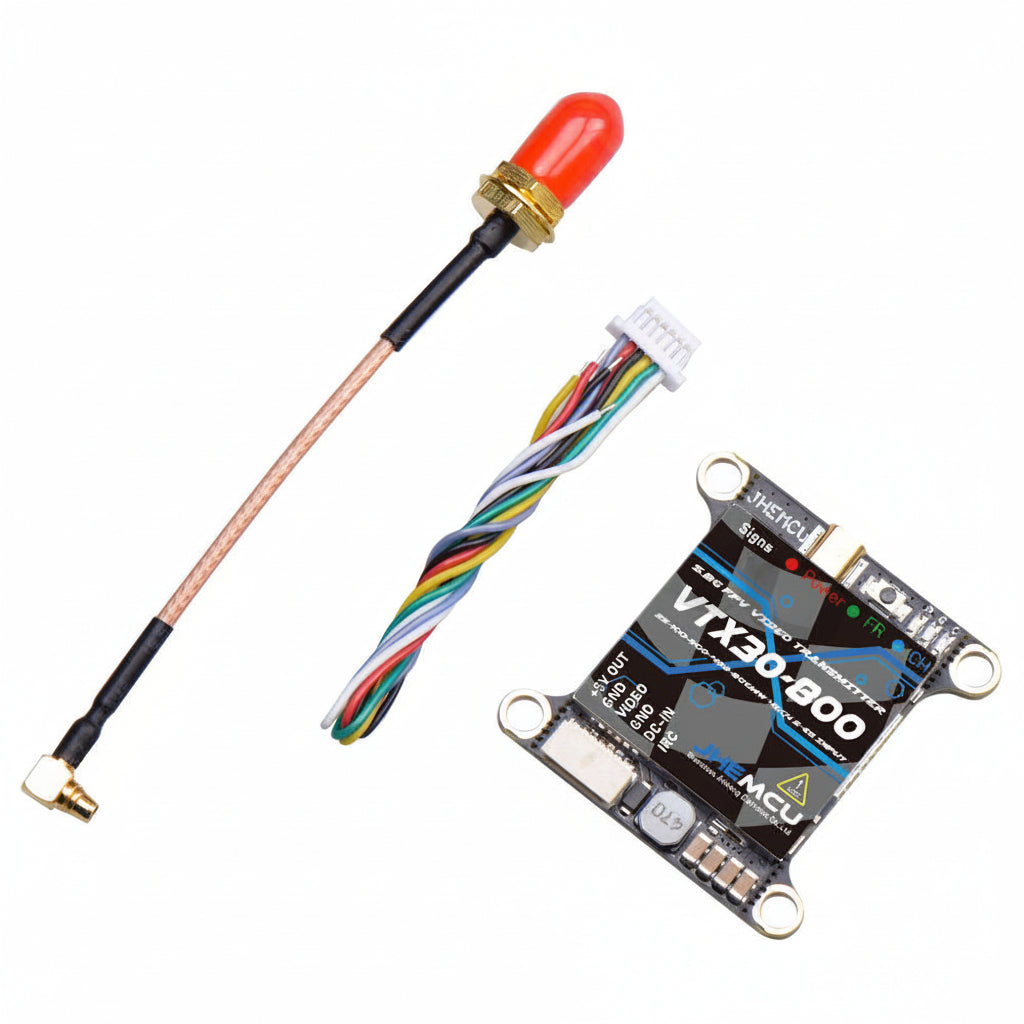

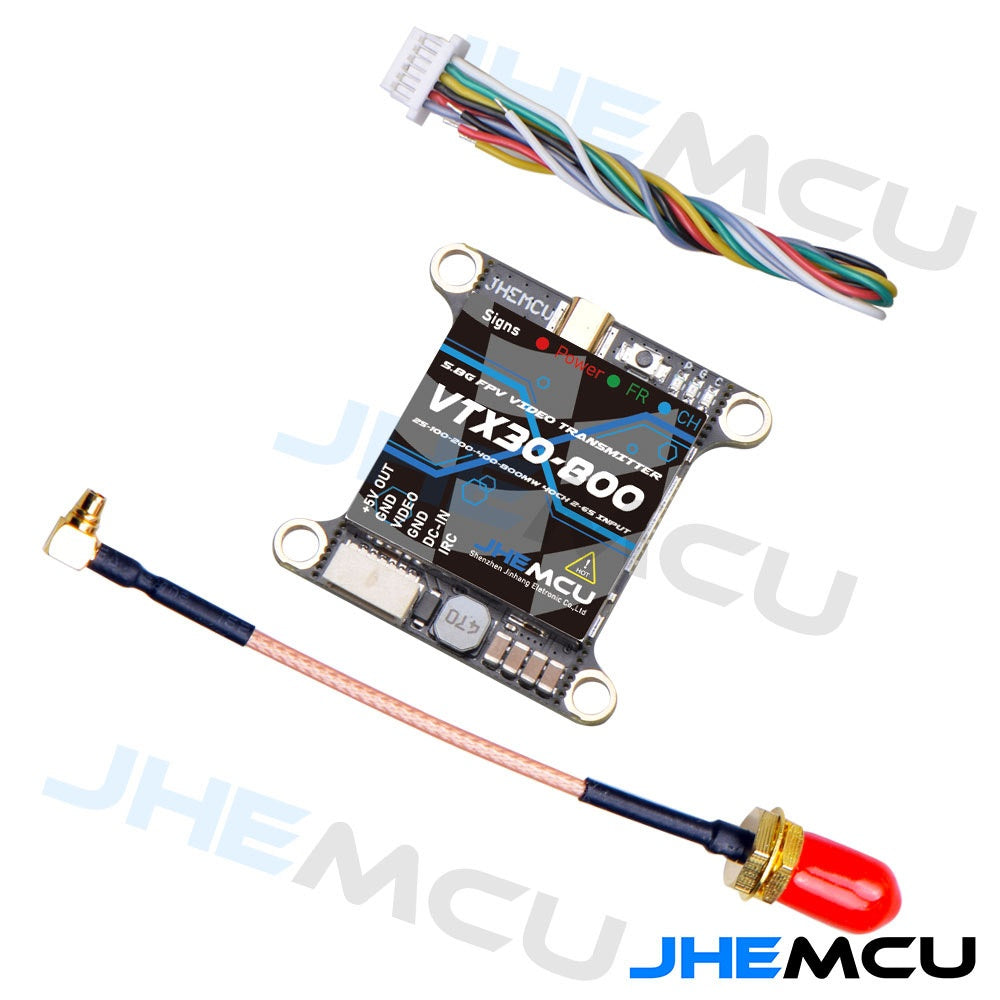

Everything needed to add 5.8G analog video to a build: VTX module, wiring harness, MMCX-to-RP-SMA pigtail, and antenna.

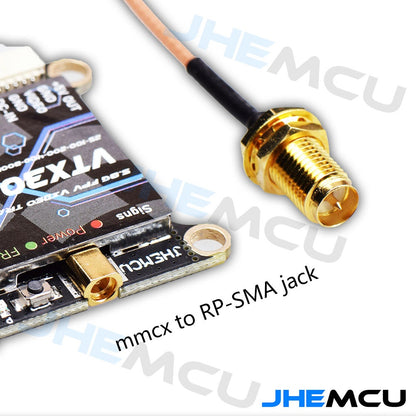

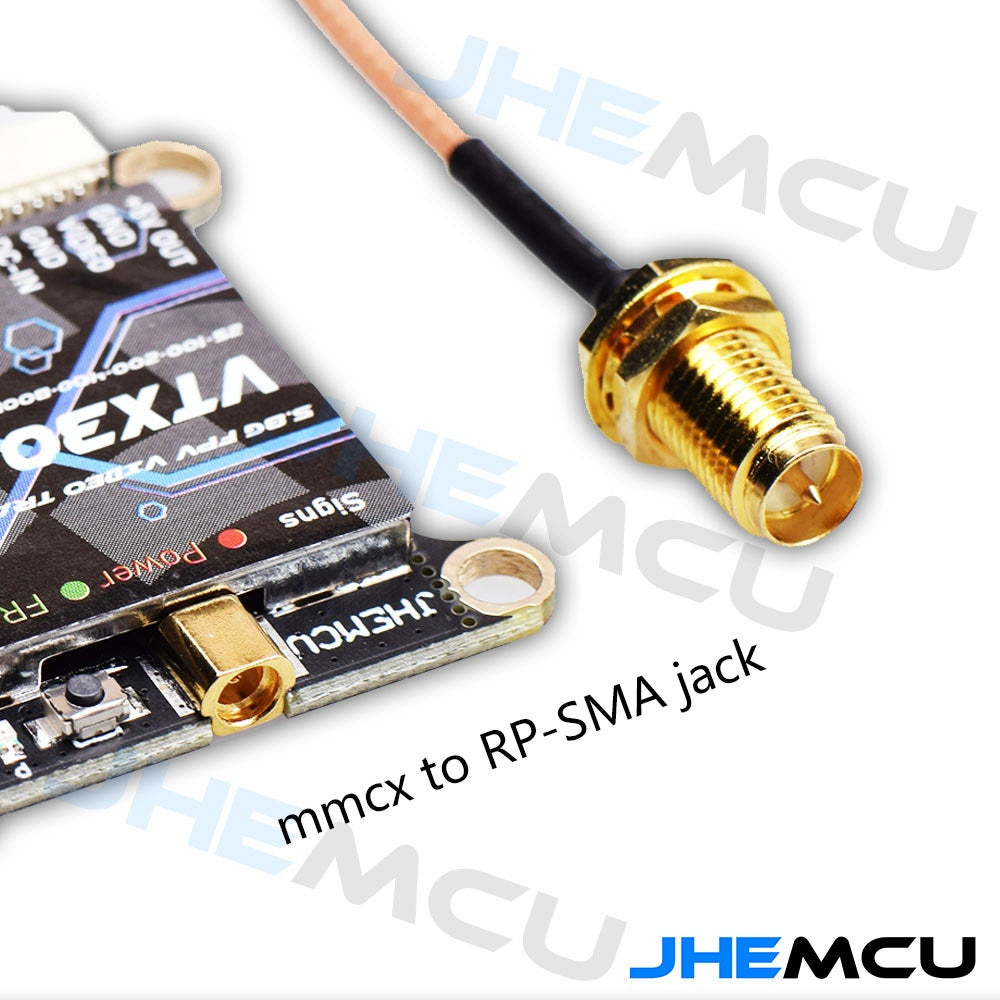

Use the included MMCX-to-RP-SMA adapter to run common RP-SMA FPV antennas from the onboard MMCX connector.

The compact board includes a plug-in cable and clear silkscreen labeling for quick power, video, and IRC control hookups.

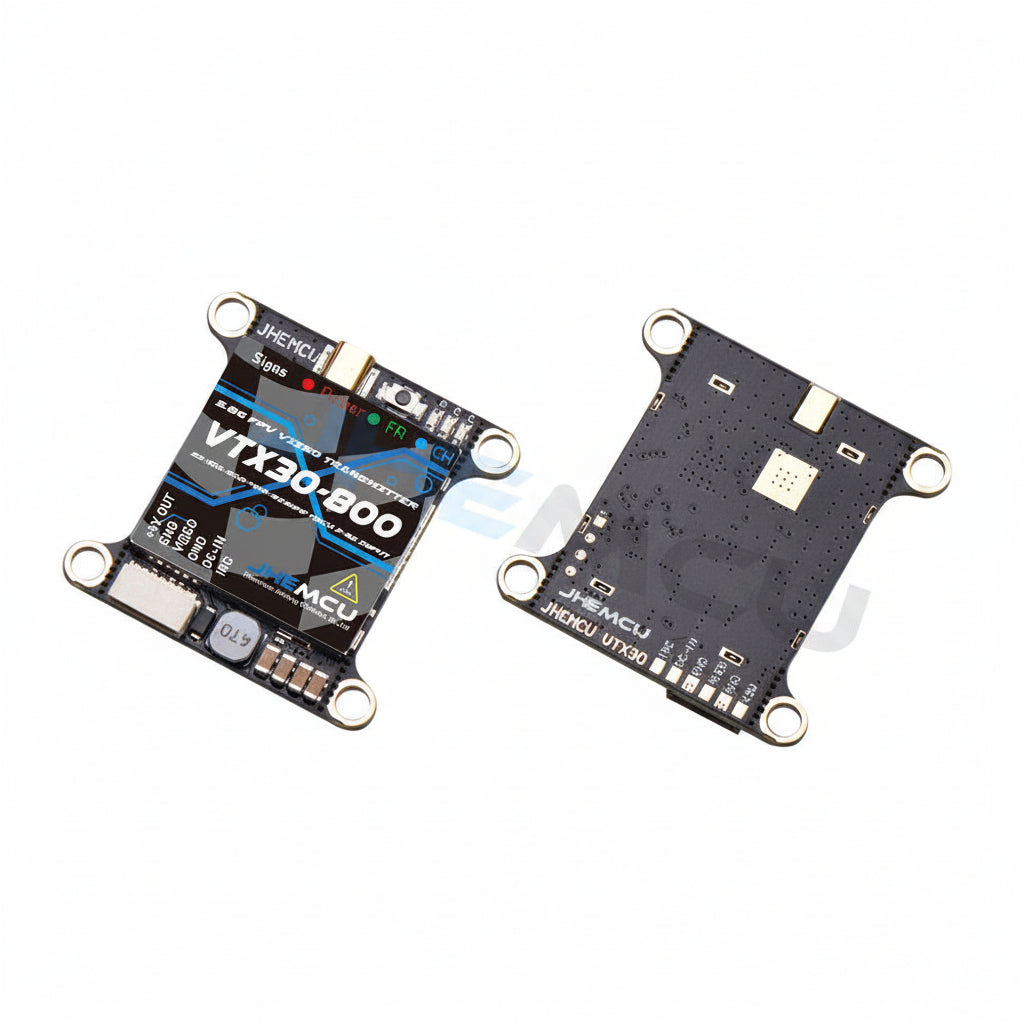

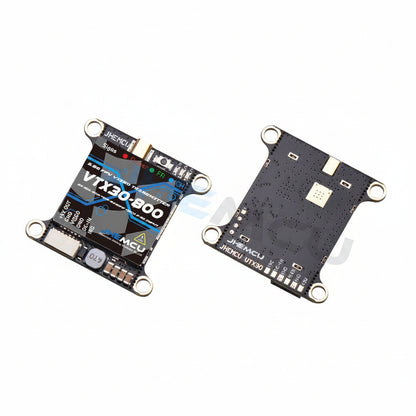

Front-and-back views help confirm fitment, solder pad access, and mounting-hole alignment on your stack.

Silkscreened pads make it easy to wire DC input, video signal, and IRC Tramp control from a flight controller.

Betaflight can be configured for IRC Tramp so band, channel, and power can be changed from the OSD.

Two wiring options are provided depending on whether the flight controller OSD is used or the camera feeds the VTX directly.
