JHEMCU WING ESC-DUAL 40A 2-in-1 Brushless Wing ESC for Dual-Motor Fixed Wing, 2-6S, BEC 5/6.4/7.4V

Overview

JHEMCU WING ESC-DUAL 40A is a 2-in-1 brushless wing ESC designed for dual-motor fixed-wing RC aircraft. It supports 2–6S LiPo input and provides a selectable BEC output (default 5V, switchable to 6.4V or 7.4V) via onboard switch pads.

Key Features

• 2-in-1 dual ESC layout for MOTOR1 and MOTOR2
• Battery input: 2–6S LiPo
• Selectable BEC output: variable BEC pads marked with *; default 5V; switchable to 6.4V or 7.4V by changing the switch pads
• Flight controller connections: BAT+, GND, CURRENT, M1, M2, BEC-GND, 5V BEC*

Specifications

Wiring / Pinout

• BAT+: ESC positive output (commonly used to power the flight controller)
• GND: ESC negative output
• CURRENT: current meter signal
• M1, M2: ESC input signals
• BEC-GND: BEC negative
• 5V BEC*: variable BEC output (default 5V; switch pads for 6.4V / 7.4V)

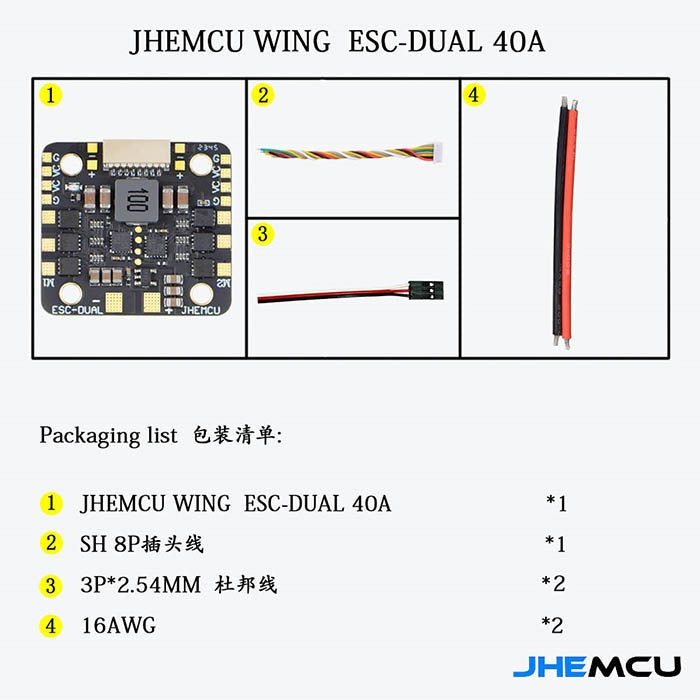

What's Included

• JHEMCU WING ESC-DUAL 40A x 1
• SH 8P plug cable x 1
• 3P 2.54 mm (DuPont) cable x 2
• 16AWG wire x 2

Support

For pre-sales compatibility questions or setup support, contact https://rcdrone.top/ or email [email protected].

Details

Dual-motor layout with clear wiring for BAT+/GND, CURRENT, M1/M2 signals, and the variable BEC output pads.

Compact 29.5 × 27 mm footprint with a 20 mm mounting pattern helps fit tight fixed-wing builds.

Everything needed to hook up the ESC is included, with signal cables and 16AWG power leads in the box.
